Part 2 of a RFM69-based BlackMagic ATEM Tally Light system - On Camera Light

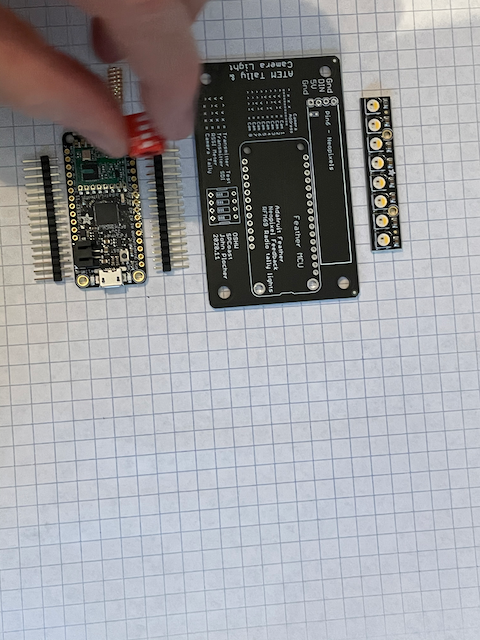

IMG_0174
IMG_0174

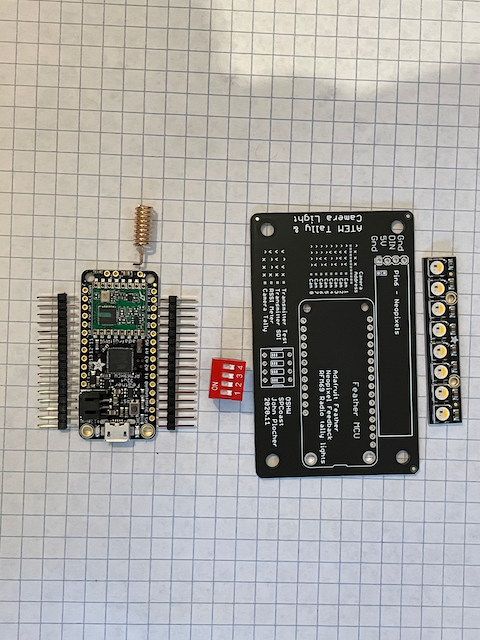

IMG_0175
IMG_0175

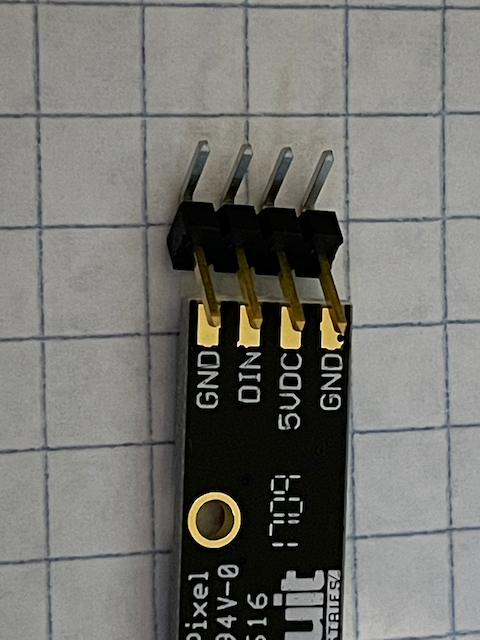

IMG_0177
IMG_0177

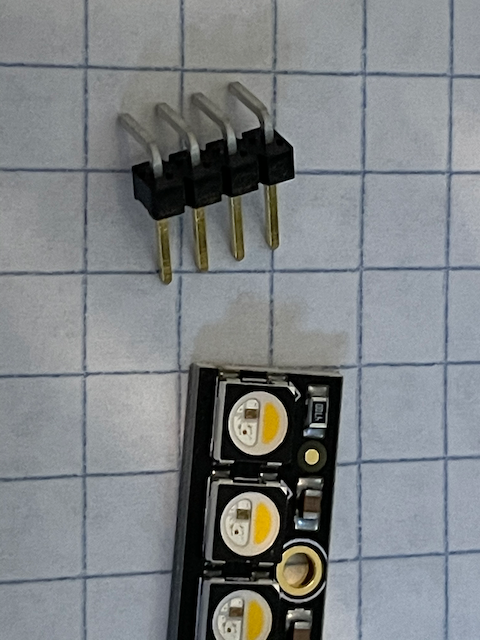

IMG_0176
IMG_0176

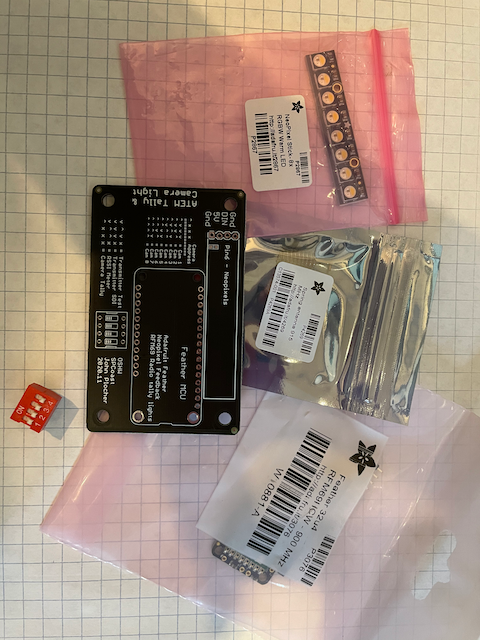

IMG_0172
IMG_0172

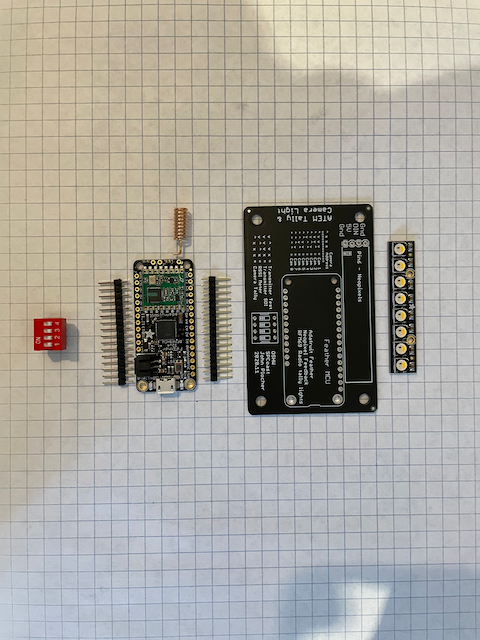

IMG_0173
IMG_0173
IMG_0171
IMG_0171
IMG_0170
IMG_0170
IMG_0169
IMG_0169
IMG_0168
IMG_0168

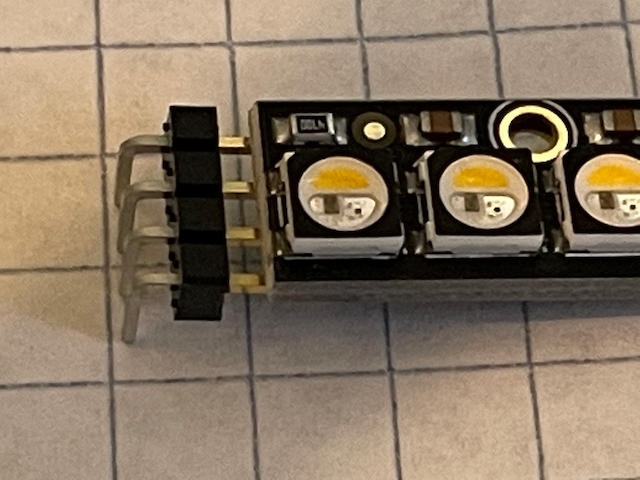

IMG_0181
IMG_0181

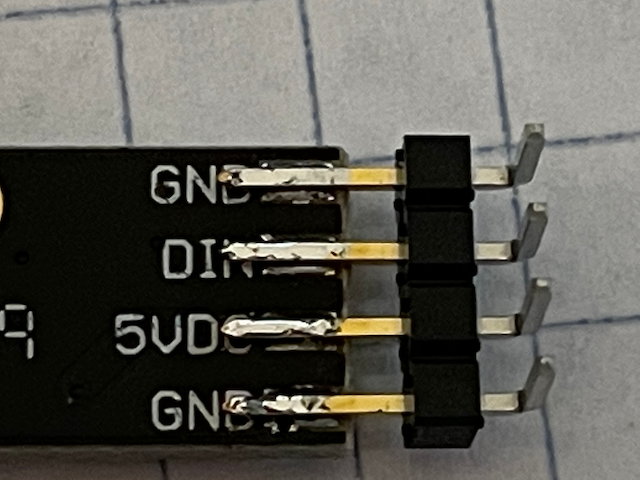

IMG_0180
IMG_0180
IMG_0184
IMG_0184

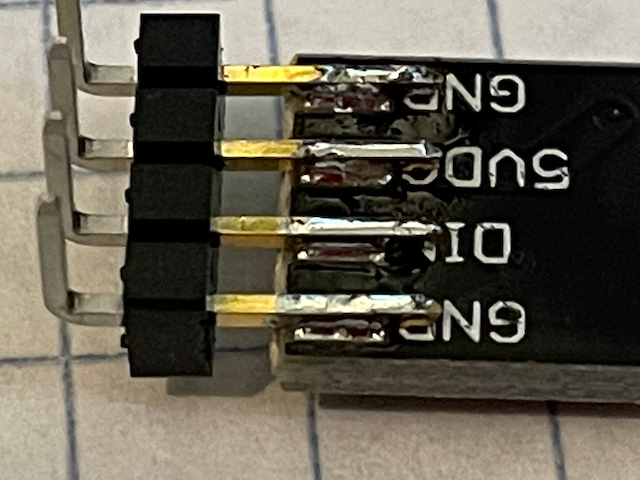

IMG_0178
IMG_0178
IMG_0193
IMG_0193

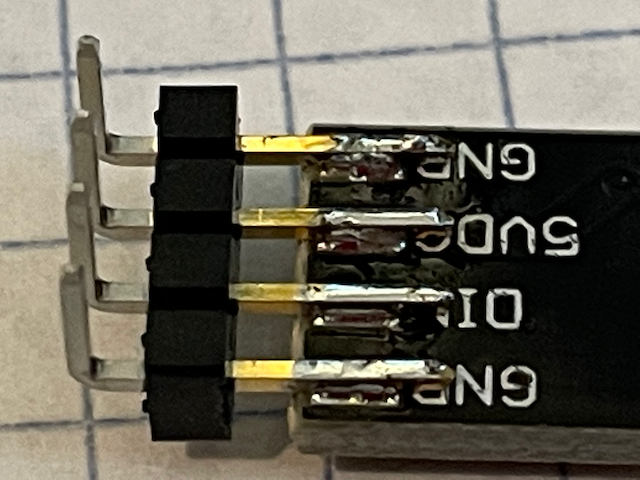

IMG_0179
IMG_0179



Download IMG_0190 -
Download IMG_0191 -
Download IMG_0192 -
Download eagle -



ATEM-Tally-Camera-Light Version 1.1

First built: 2020.11

The controller uses the BMD SDI-Shield as an I2C interface to the control signals embedded in the SDI video stream emitted by the ATEM switchers, connected to an AdaFruit RadioFeather AVR 32u4 RFM69 controller and an AdaFruit neopixel strip.

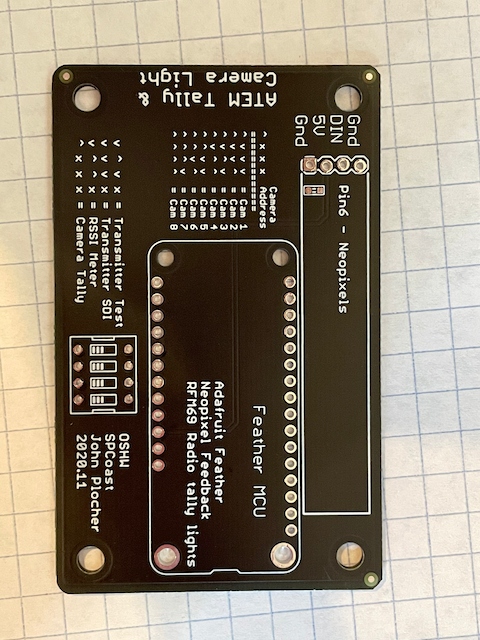

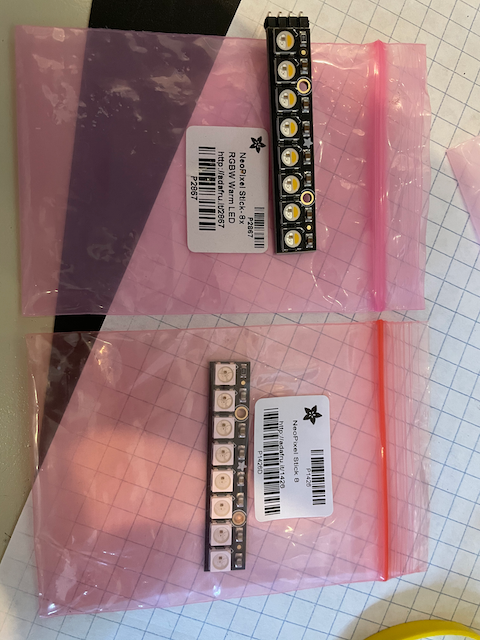

The Tally light receivers use the same AdaFruit RadioFeather RFM68 AVR 32U4 sticks with a NeoPixel RGB (not RGBW!) strip that displays Red (LIVE), dim Green (PREVIEW) or dim Blue (operational but not currently selected).

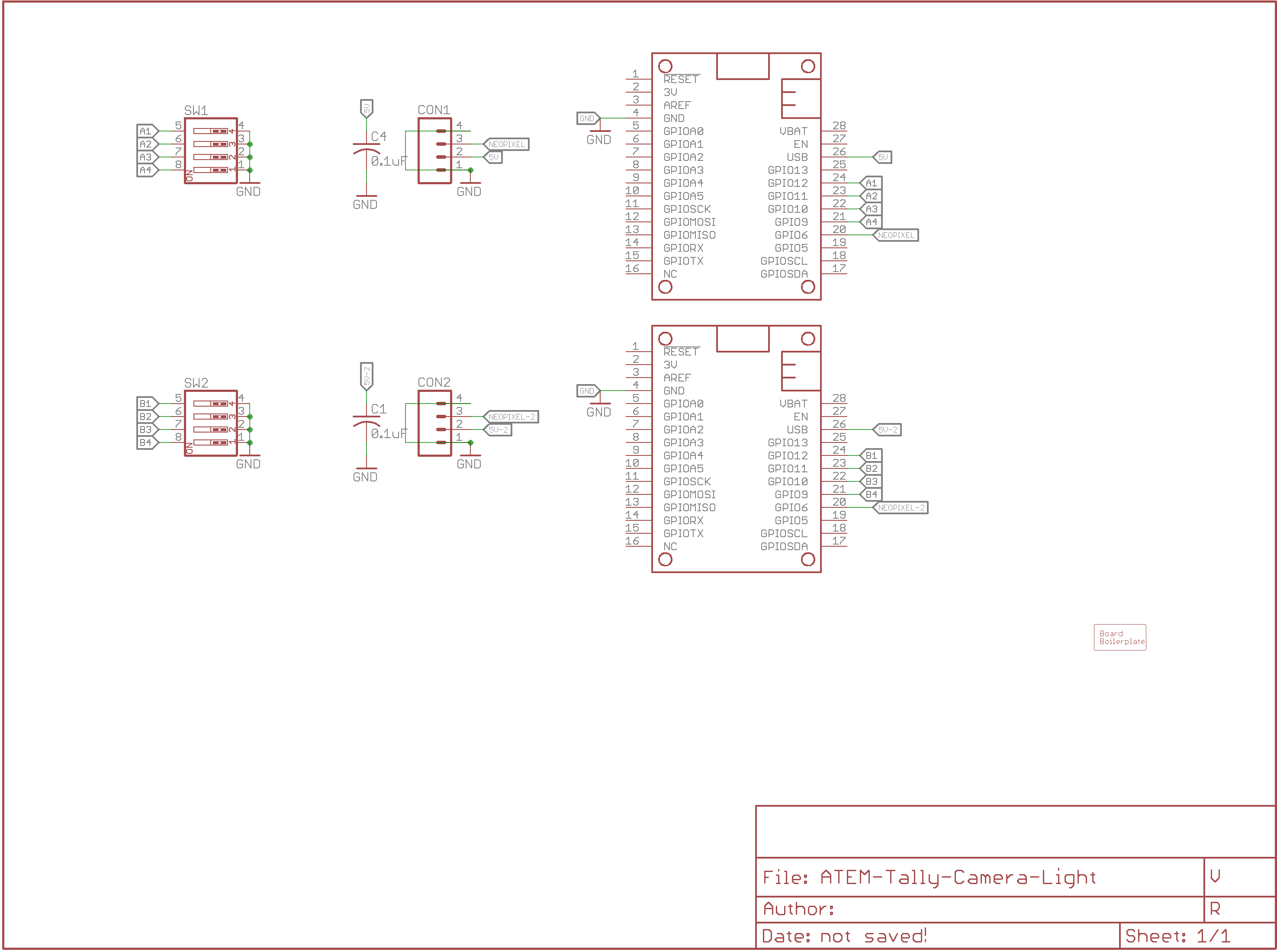

Schematic
Schematic
Bot Silk
Bot Silk

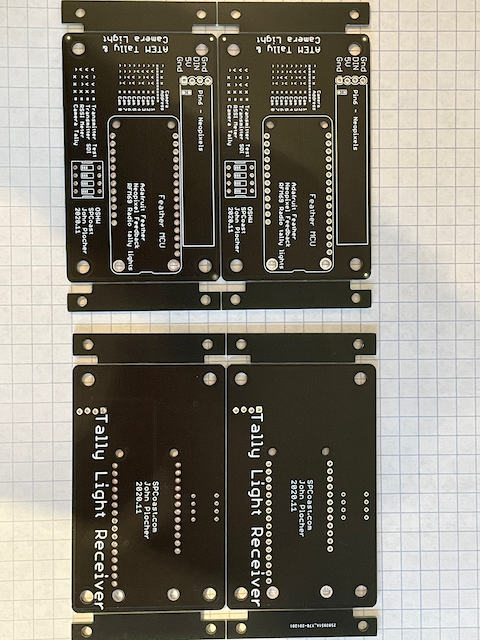

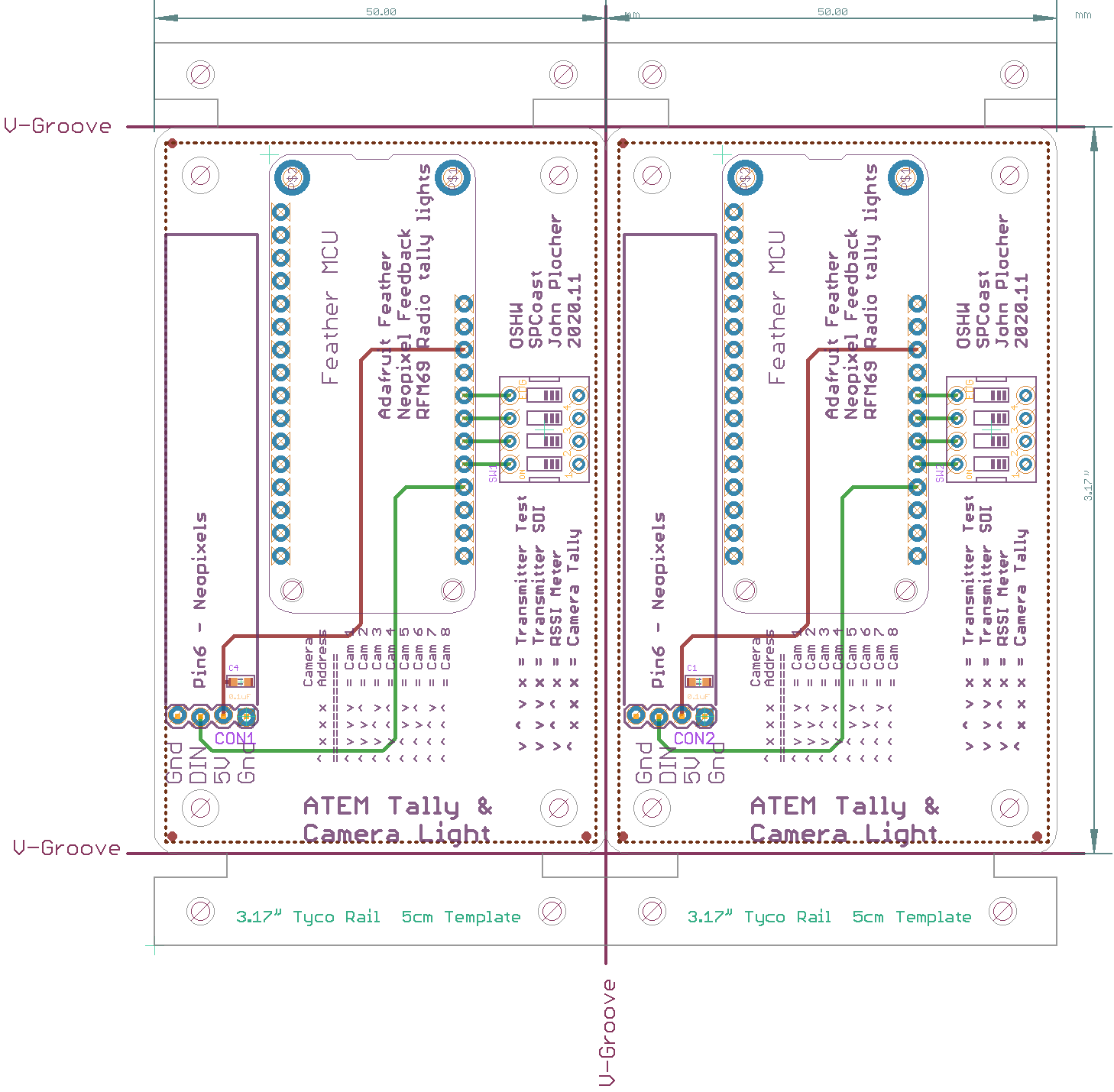

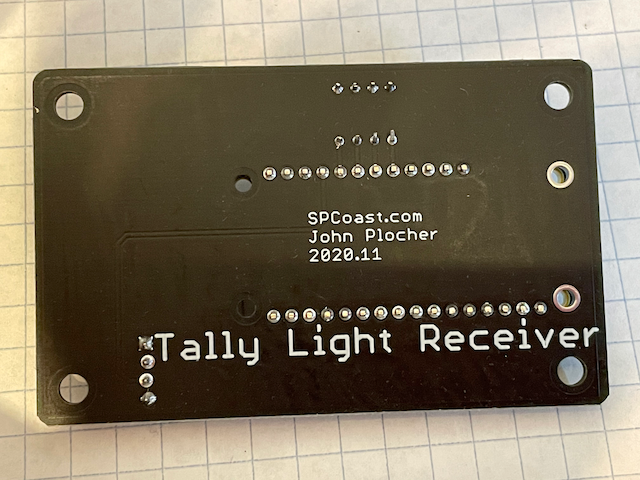

Board
Board

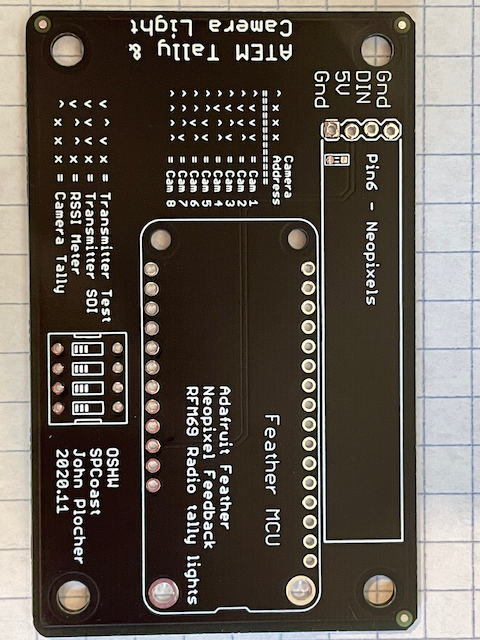

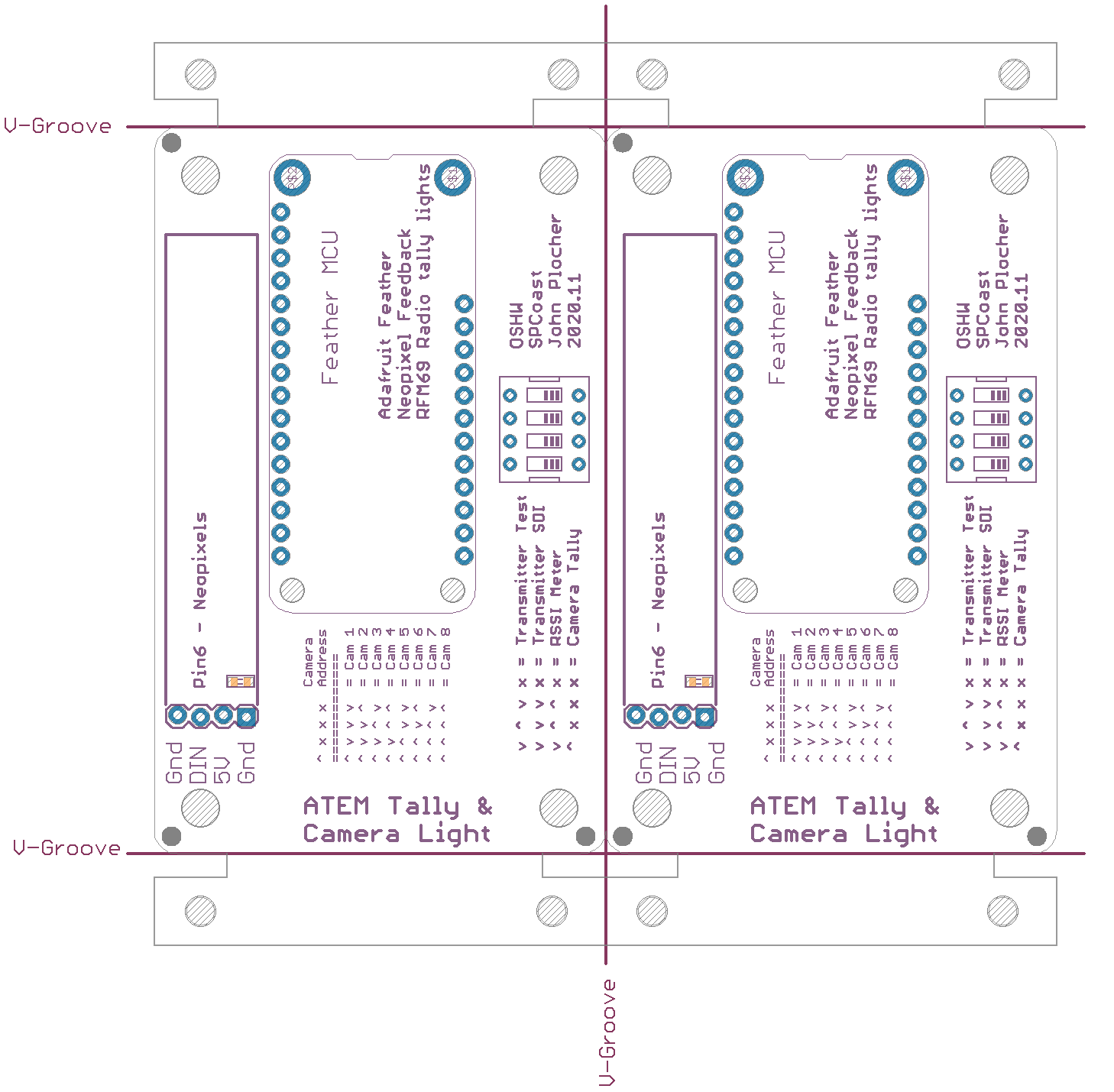

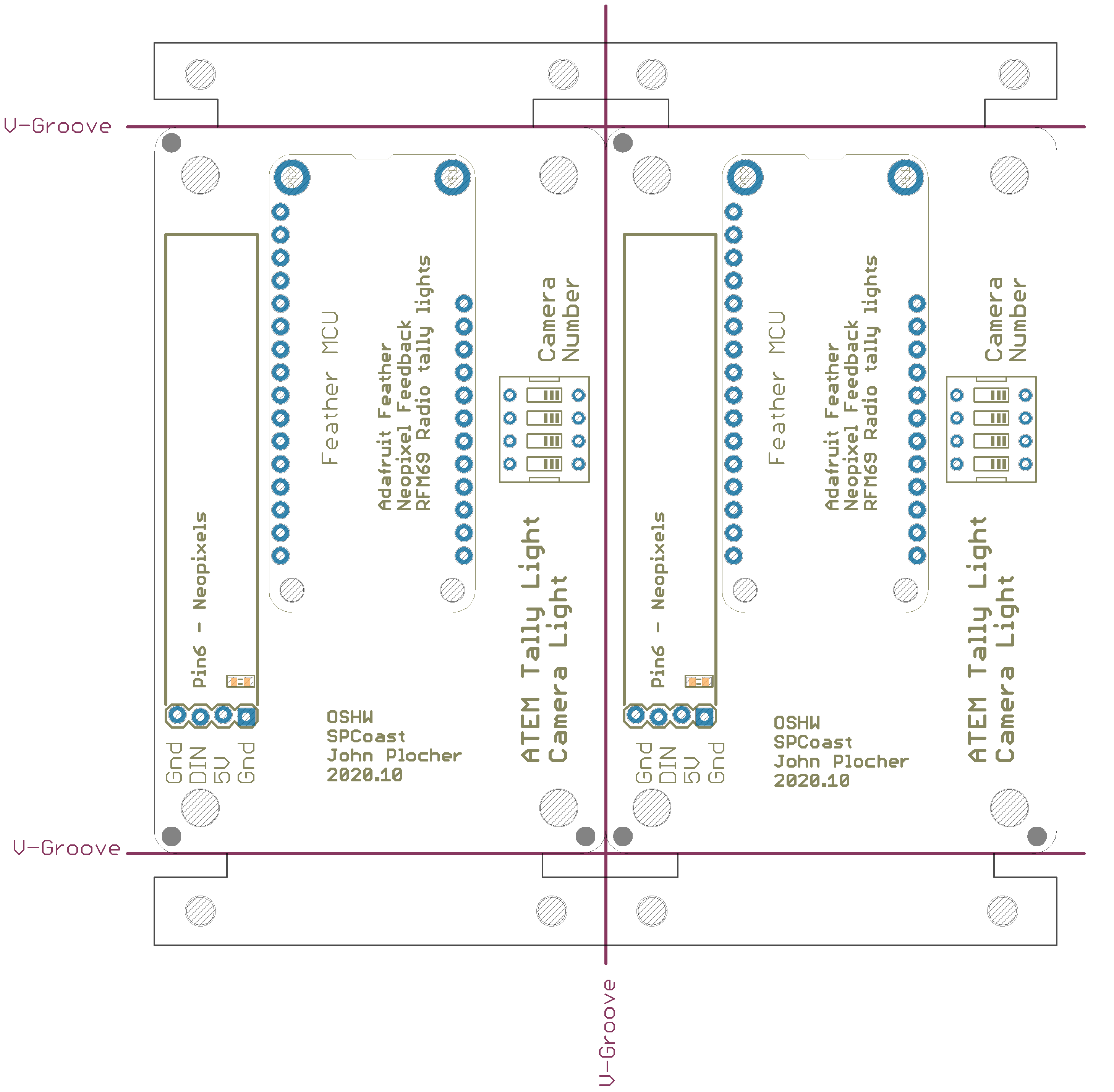

Top Silk
Top Silk

Download ATEM-Tally-Camera-Light.gerbers.zip - Gerber Fabrication files
Download ATEM-Tally-Camera-Light.parts - Parts List (spreadsheet data)



ATEM-Tally-Camera-Light.bom

Parts Value Package Quantity Library Type/Feeder
C1, C4 0.1uF 0603-CAP 2x SPCoast 19
CON1, CON2   1X04_LOCK 2x SPCoast PTH
BOARD1   BOARD-DINRAIL-3.17INX5CM 1x SPCoast NONE
SW1, SW2   EDG-04 2x SPCoast PTH
MS1, MS2 FEATHERWING_NODIM FEATHERWING_DIM 2x adafruit PTH

ATEM-Tally-Camera-Light Version 1.0

Not built

Part 1 is the SDI-connected controller Part 2 is the on-camera tally light display The controller uses the BMD SDI-Shield as an I2C interface to the control signals embedded in the SDI video stream emitted by the ATEM switchers, connected to an AdaFruit RadioFeather AVR 32u4 RFM69 controller and an AdaFruit neopixel strip.
The Tally light receivers use the same AdaFruit RadioFeather RFM68 AVR 32U4 sticks with a NeoPixel strip that displays Red (LIVE), Green (PREVIEW) or dim Blue (operational, but not currently selected). The Arduino IDE sketch is available on GitHub (… TBD URL …)

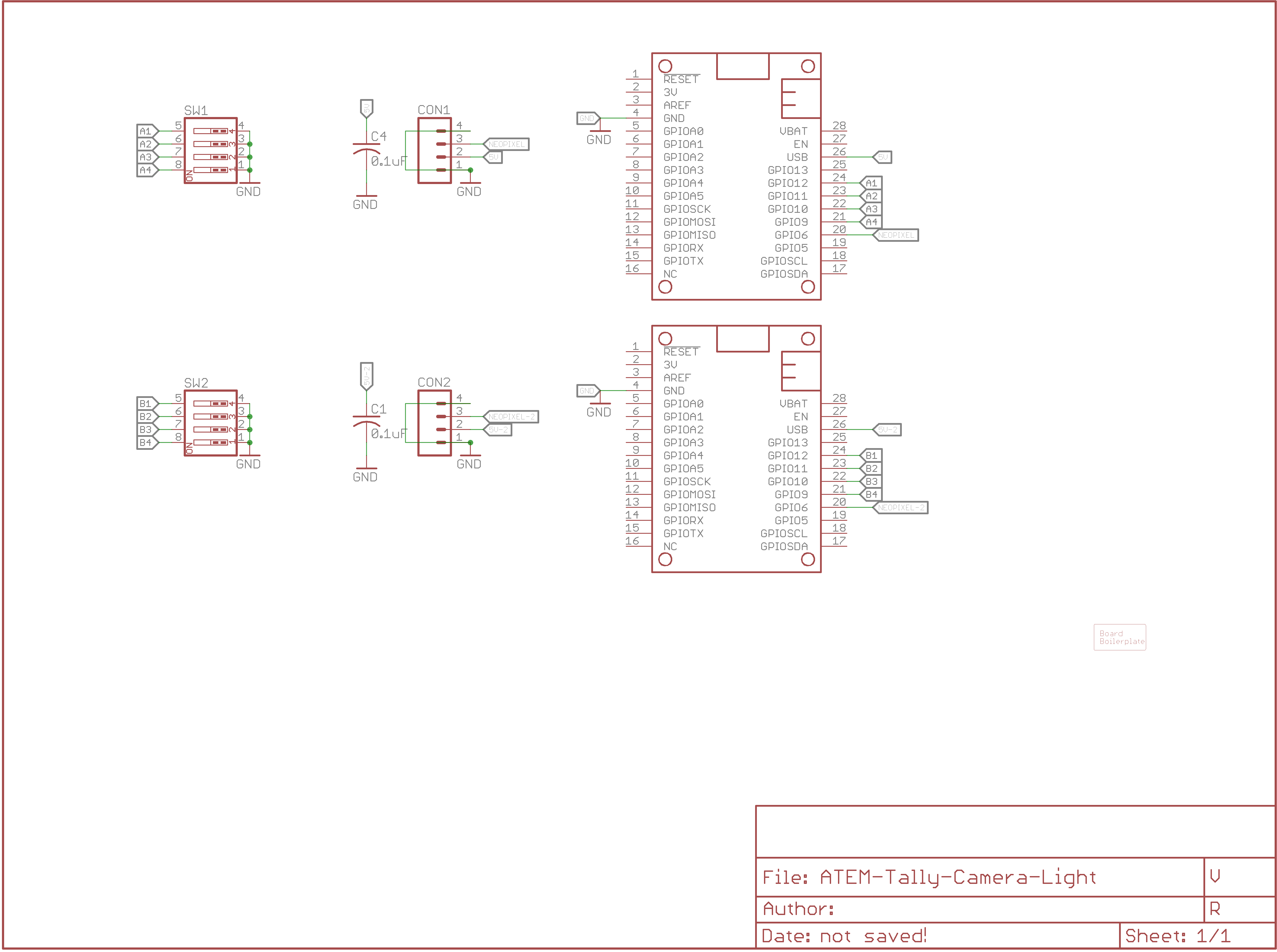

Schematic
Schematic

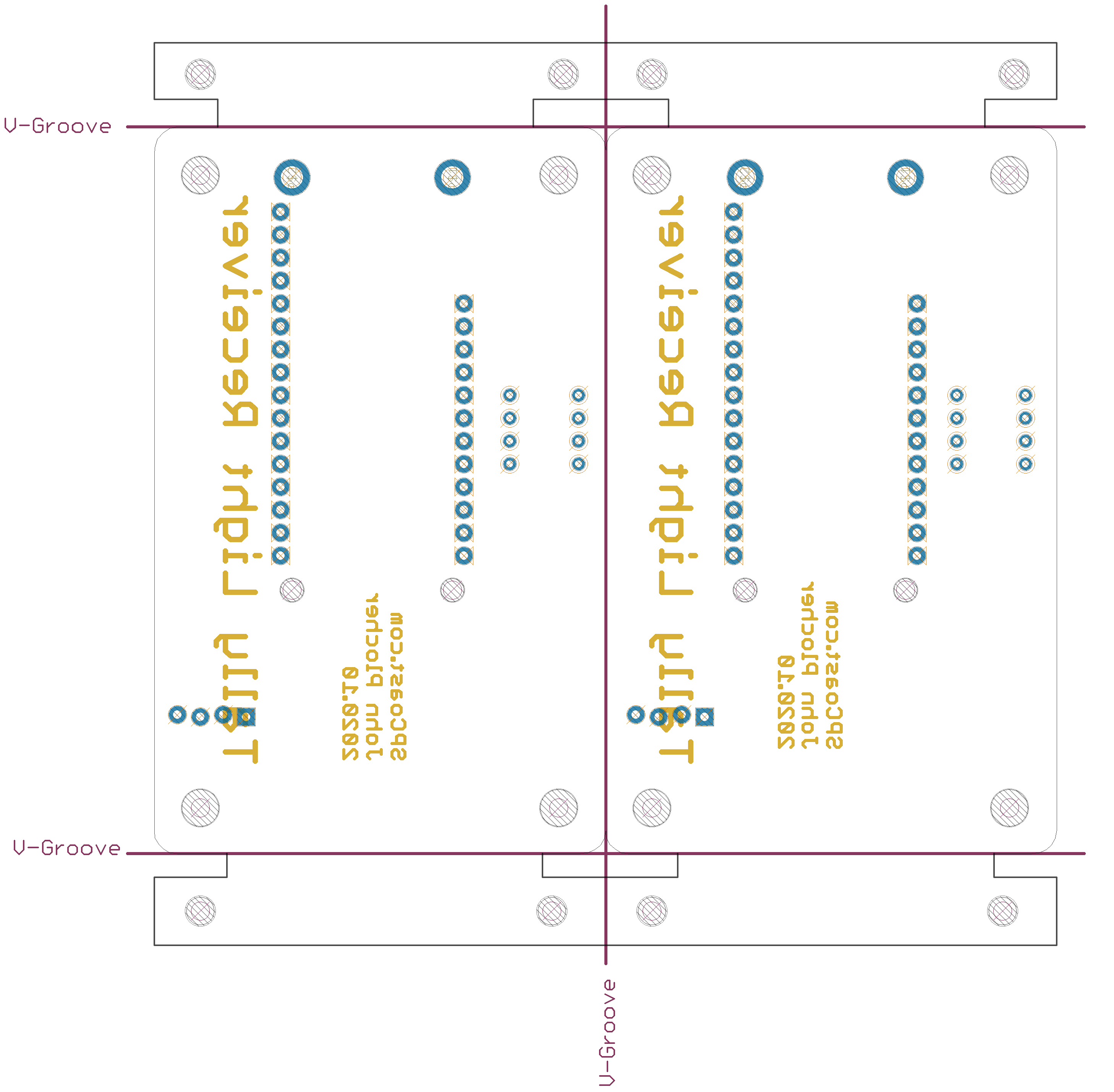

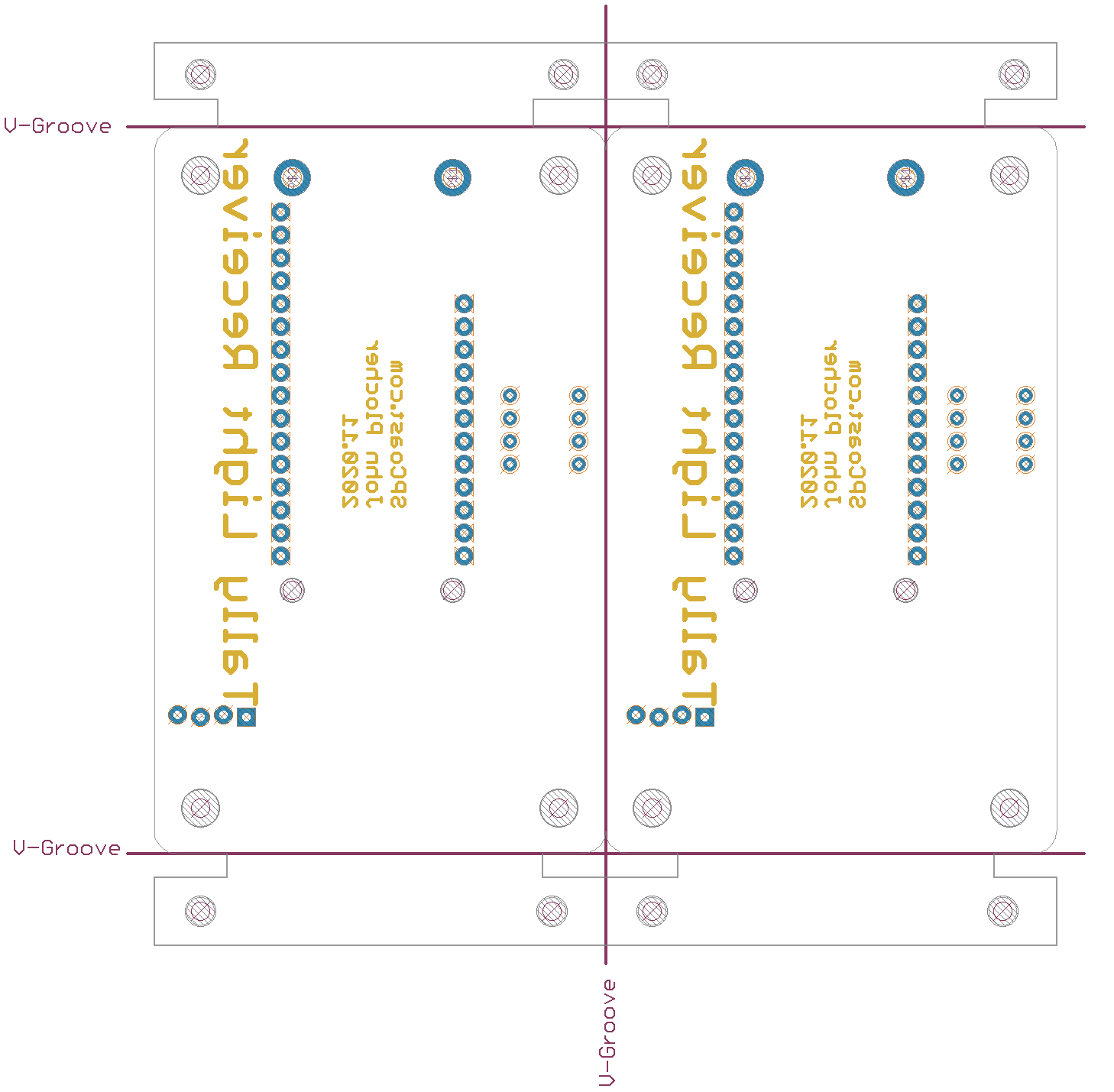

Bot Silk
Bot Silk

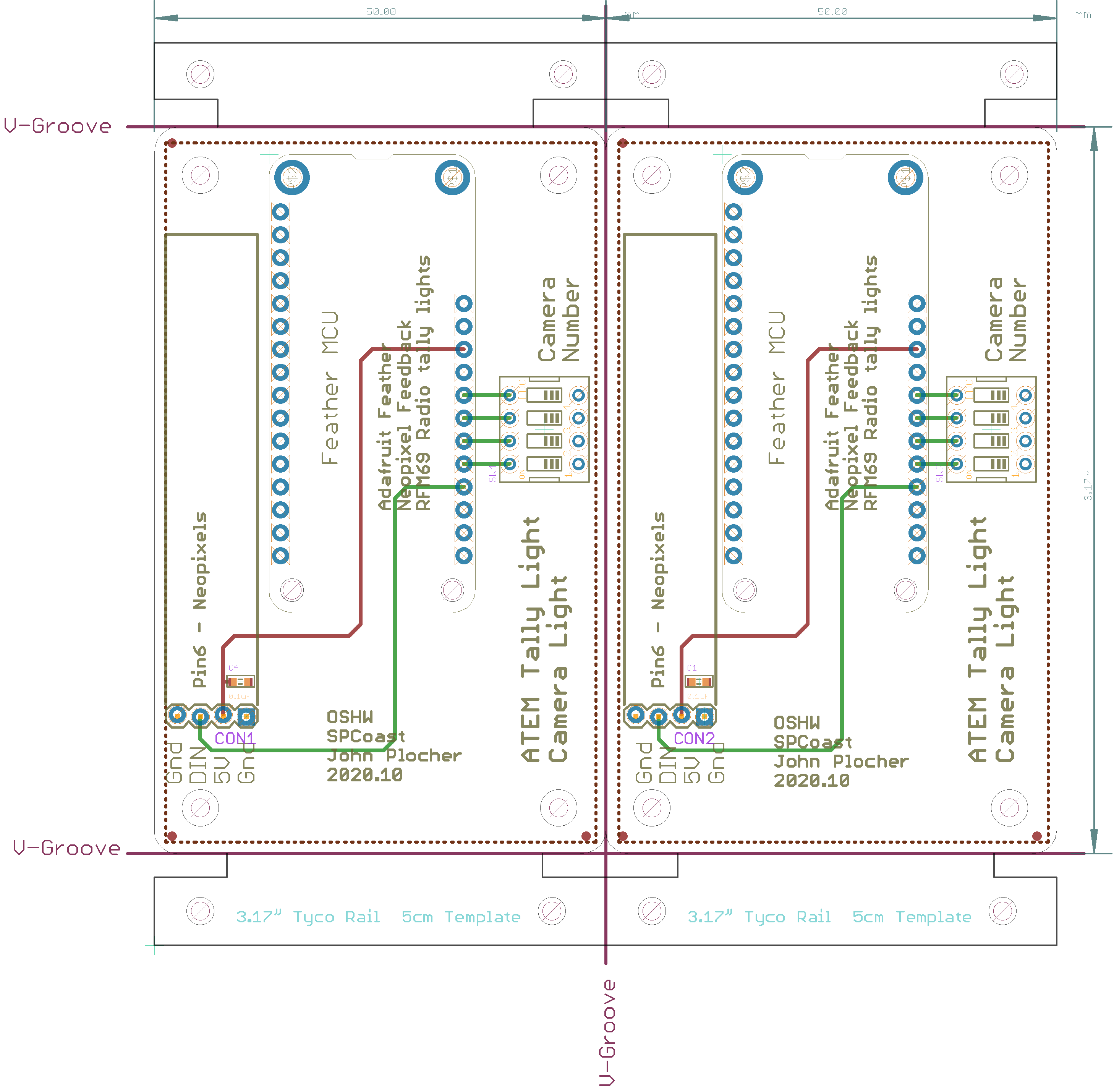

Board
Board
Top Silk
Top Silk

Download ATEM-Tally-Camera-Light.gerbers.zip - Gerber Fabrication files
Download ATEM-Tally-Camera-Light.parts - Parts List (spreadsheet data)



ATEM-Tally-Camera-Light.bom

Parts Value Package Quantity Library Type/Feeder
C1, C4 0.1uF 0603-CAP 2x SPCoast 19
CON1, CON2   1X04_LOCK 2x SPCoast PTH
BOARD1   BOARD-DINRAIL-3.17INX5CM 1x SPCoast NONE
SW1, SW2   EDG-04 2x SPCoast PTH
MS1, MS2 FEATHERWING_NODIM FEATHERWING_DIM 2x adafruit PTH

This sketch is licensed under the MIT License

Tags: eagle SPCoast
