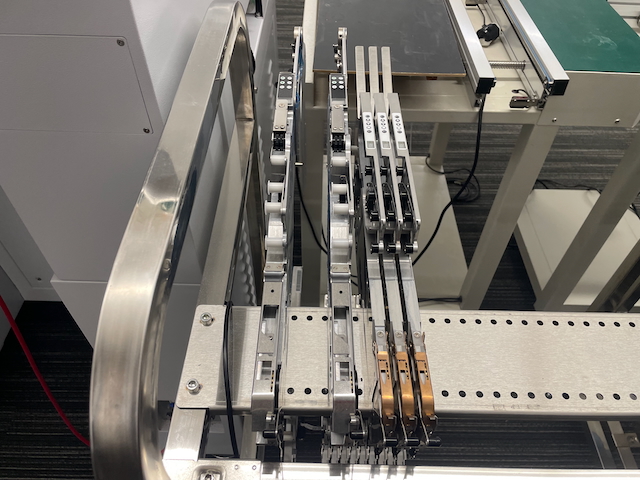

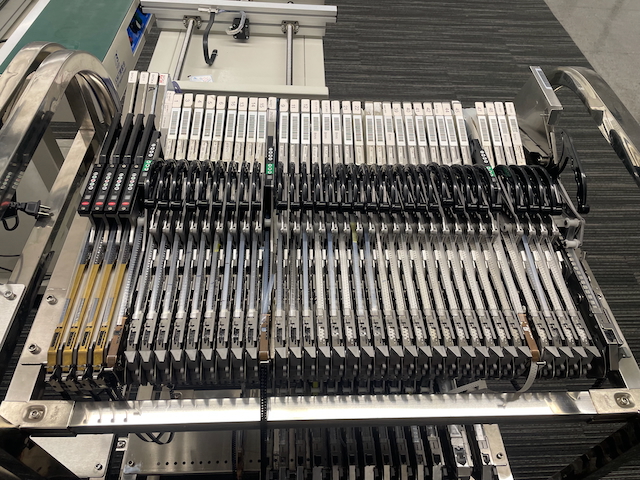

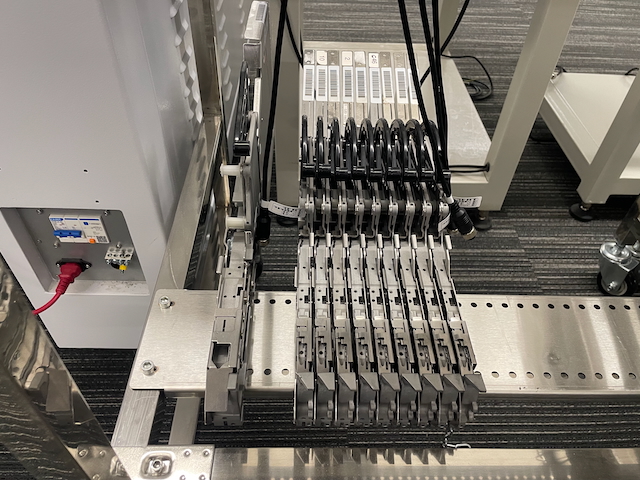

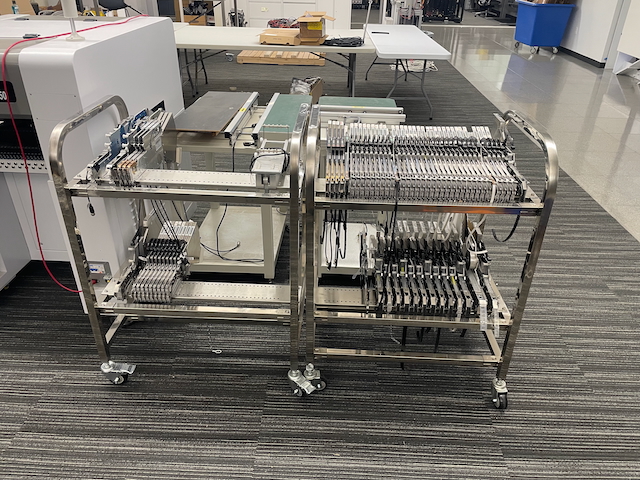

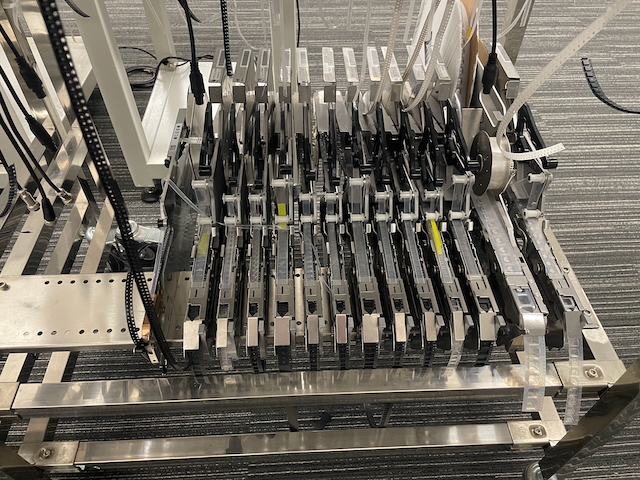

Feeders on carts	Feeders on carts	Feeders on carts	Feeders on carts

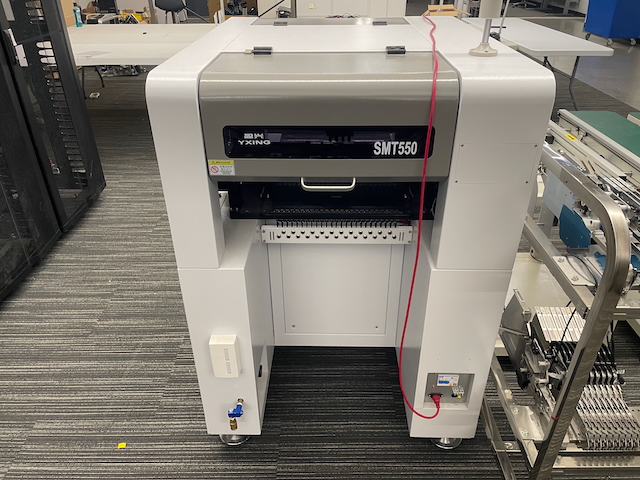

Feeders on carts	Feeders on carts	SMT550 outside view	SMT550 outside view

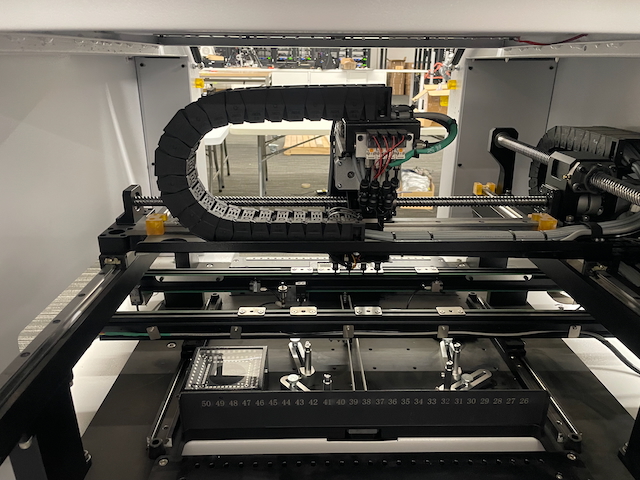

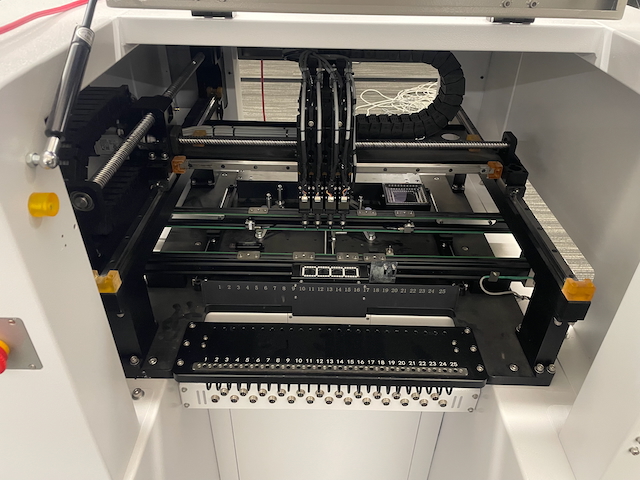

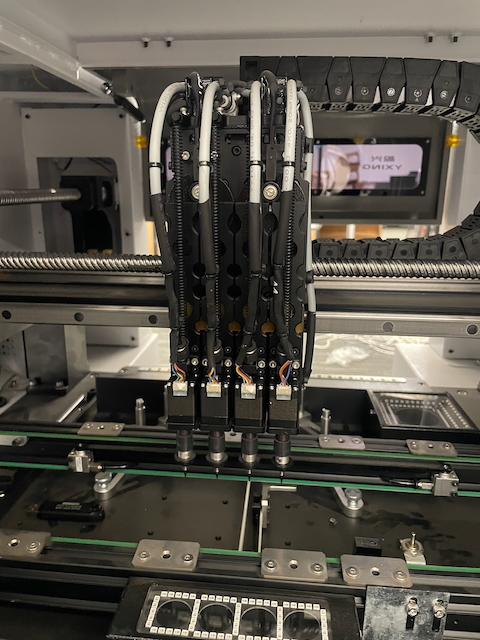

SMT550 outside view	SMT550 interior view	SMT550 interior view	SMT550 interior view

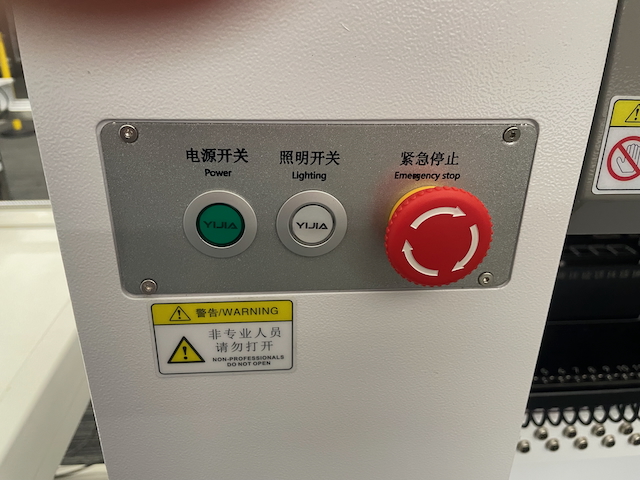

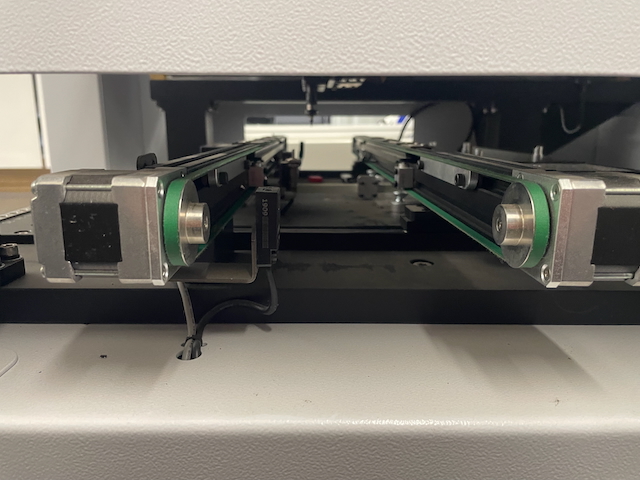

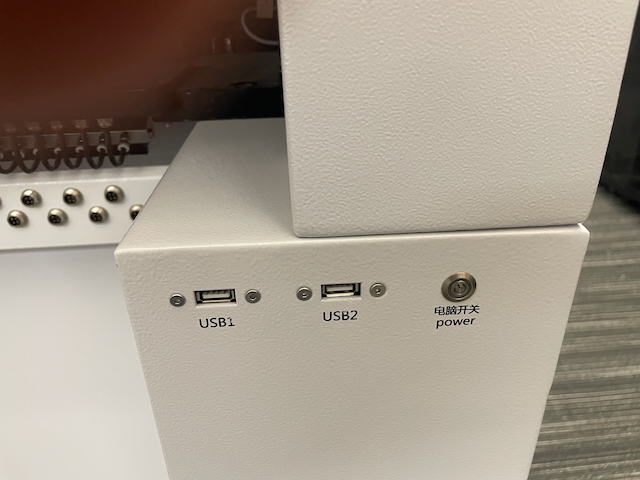

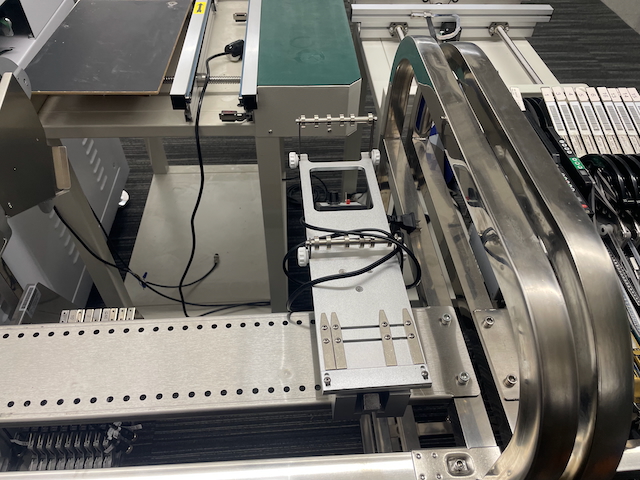

SMT550 interior view	SMT550 conveyer view	SMT550 Controls view	SMT550 USB sticks and PC power control

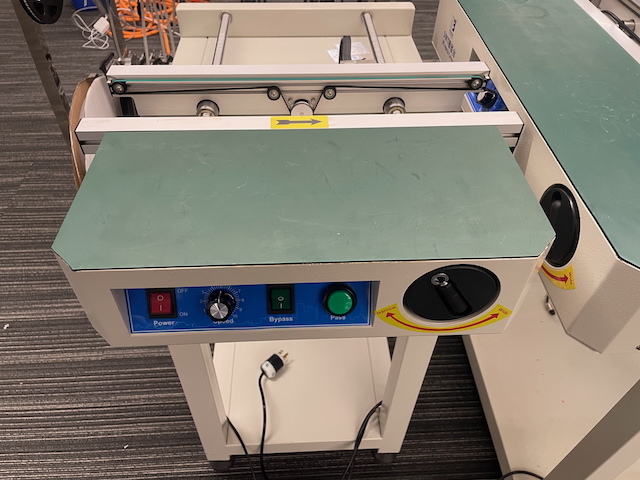

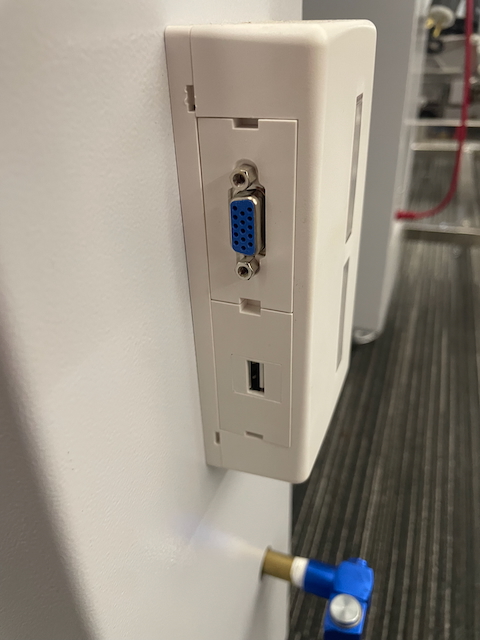

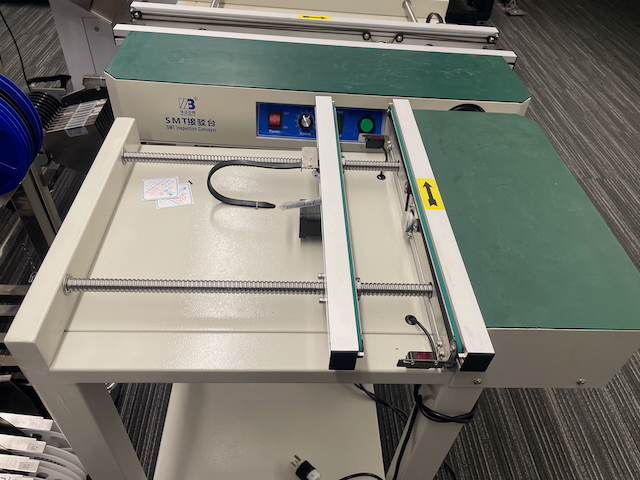

SMT550 USB keyboard/mouse and vga video	SMT550 In- and Out-feed conveyer tables	SMT550 In- and Out-feed conveyer tables	SMT550 In- and Out-feed conveyer tables

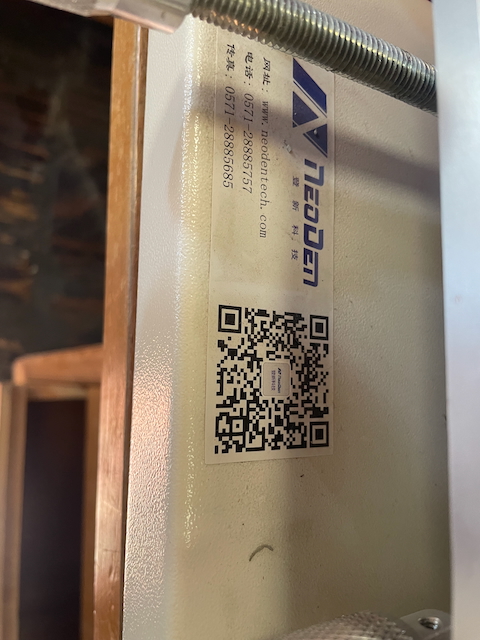

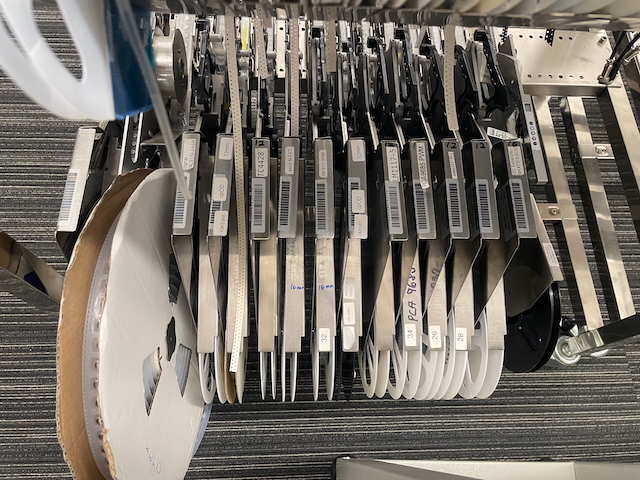

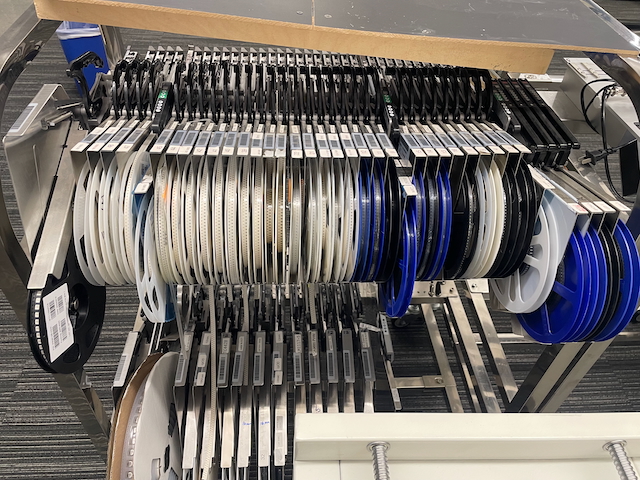

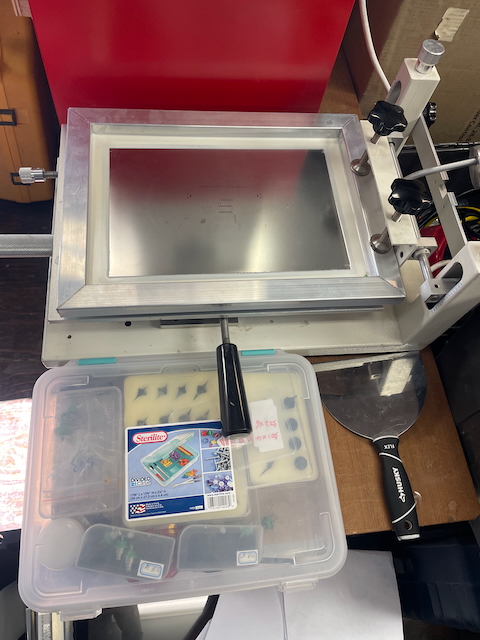

SMT550 SMT Components	SMT550 SMT Components	SMT550 Supplies and Stencil Printer	SMT550 Stencil Printer

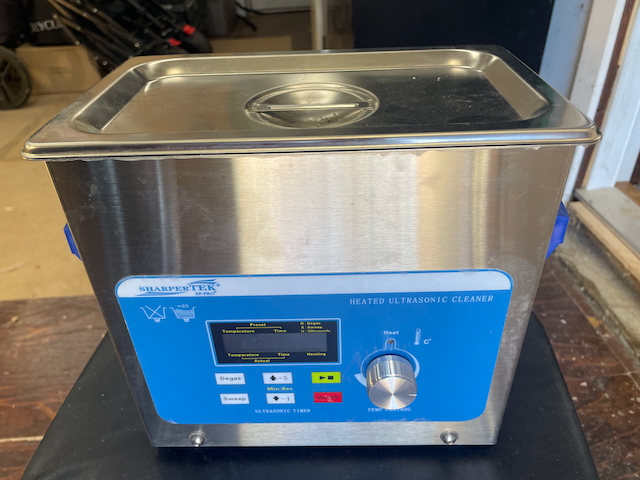

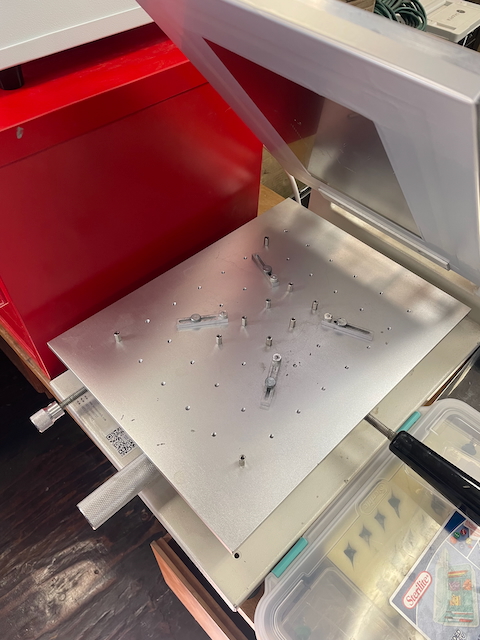

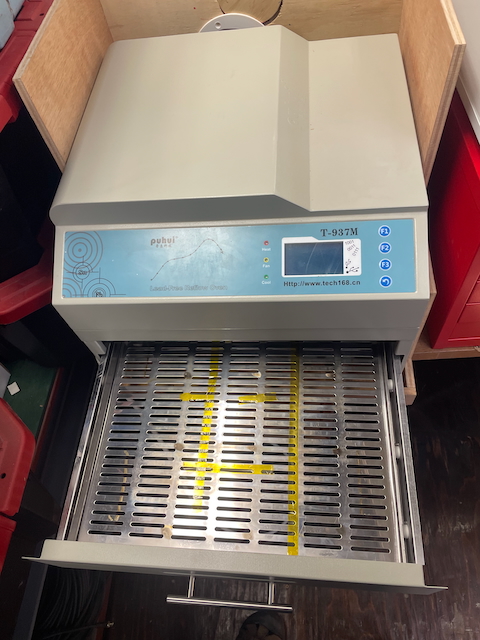

SMT550 Stencil Printer Detail	SMT550 Supplies Detail	SMT550 Ultrasonic cleaner	SMT550 Puhui T937M Reflow Oven

Download Charmhigh Automatic Chip Mounter(CHM-T48VB) Operating Manual - PDF

YXing Wenzhou Yingxing Technology Co.,Ltd SMT550 Pick and Place system

I'm retiring from making model train electronics for the hobby market (http://www.SPCoast.com/electronics) and have a small SMT fabrication line that needs a new home. The line is 6 years old and has seen moderate use. It all works well and is in great physical condition.

From YXing:

Introduction: The machine SMT550 with the ball screw and servo motor which is more stable and more accurate than the step motor. YX SMT550 is designed for mass production, with the speed of 9000 CPH, It can be used for PCB/LED batch production. And it has been supplied to many different overseas areas, we have English interface, user manual, and professional after-sales engineers."

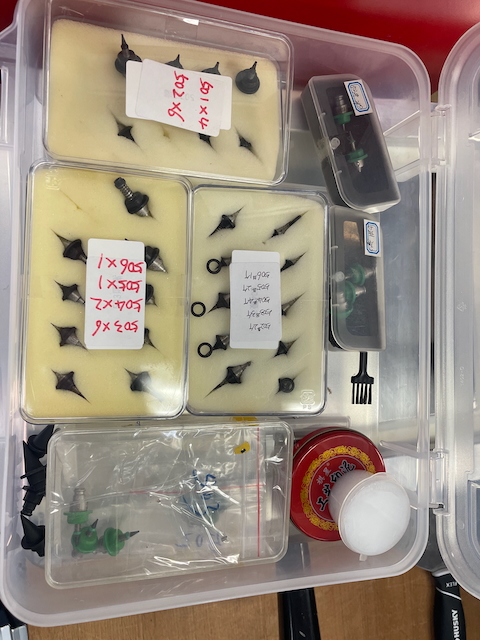

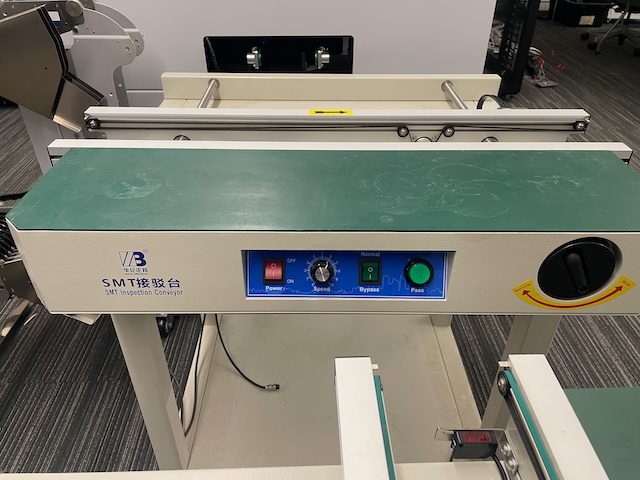

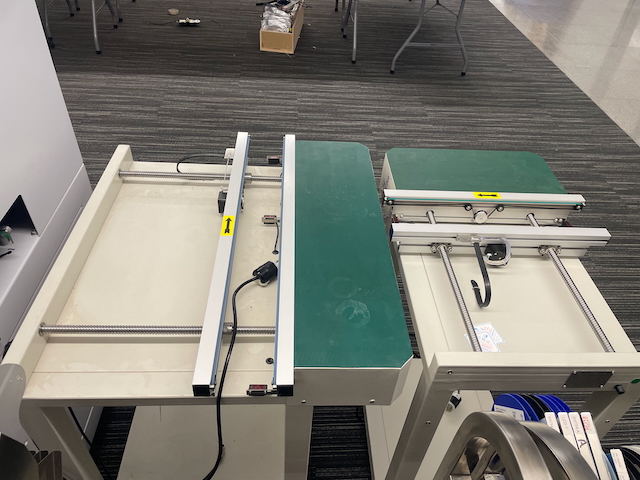

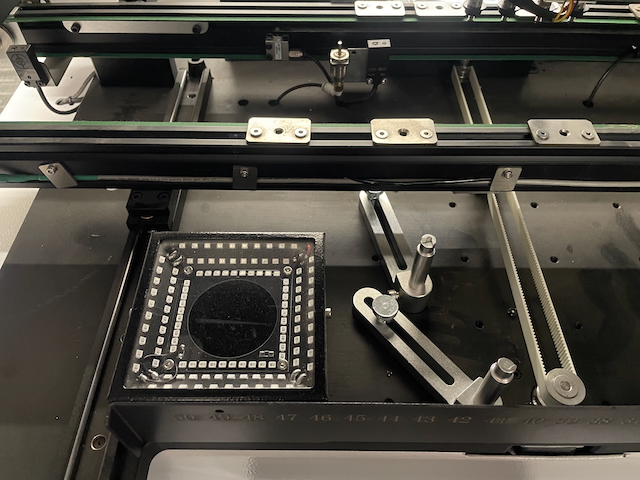

In practice, once you get past the minimal documentation, this machine is a solid performer, able (with electric feeders) to handle 0603 components easily, and 0402 with some care. With pneumatic feeders, it places 0805 and larger components with ease. The software fully supports pneumatic and electric feeders, bulk tube vibratory feeders and tray-based (I/C) grid feeding. The SMT550 has 4x heads with Juki nozzles paired with 4x up-looking cameras for fast mispick detection and component rotation, a high resolution/size camera for larger components and a down-looking camera used for fiducial detection and (manual) feeder alignment. The Left-in, Right-out conveyer system interfaces to in and out-feed tables and uses photo-detectors to pause the line when boards are backed up or not ready.

The SMT550 has an embedded PC (running a Chinese version of Windows XP) that is used to control the machine and process the fab jobs from a USB stick. The Win95 Windows .Net PnP app supplied by YXiing is usable and robust, without many of the OpenPnP features. It takes about 15-30 minutes to set up a job, and 2-5 minutes to place a small 10x10cm 4x or 6x panel. I'm used to seeing 2k to 4k pph placement rates, though the real test for me was that the (manual) stencil paste, placement speed, inspection and reflow oven throughput rate allowed for almost continuous 1-person operation.
