Low cost Signal Mast - single high head Searchlight - N scale



Download SignalMast-Searchlight-SingleHead_array.scr - Eagle SCRipt



SignalMast-Searchlight-SingleHead Version 1.0

Not built

Experimenting with Searchlight style and an addressable APA102 LED LEDs eBay bulk

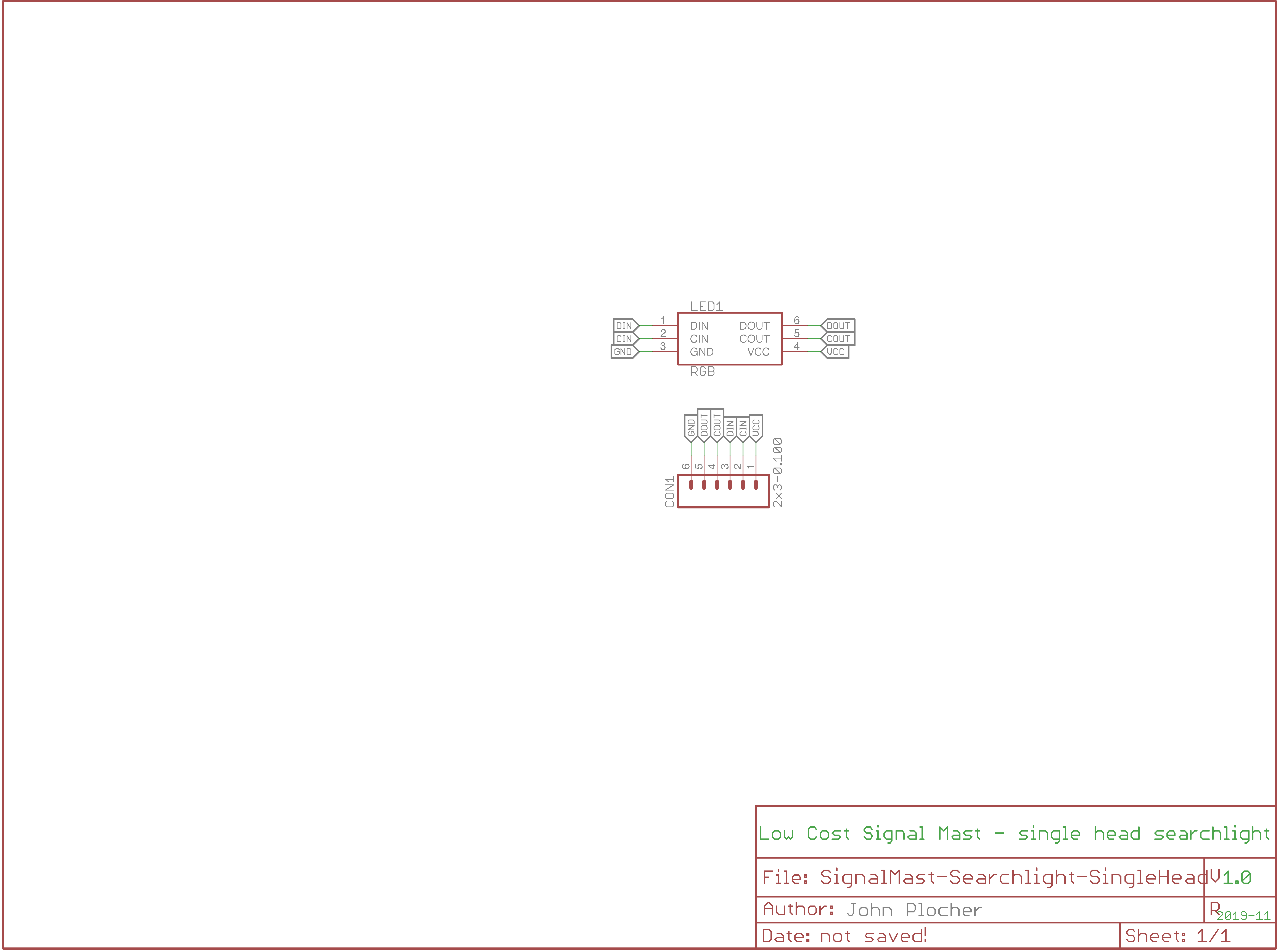

Schematic
Schematic

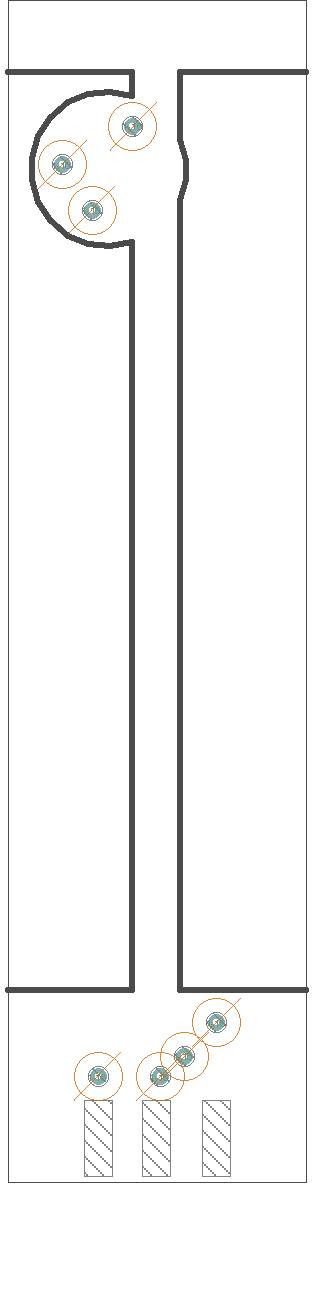

Bot Silk
Bot Silk

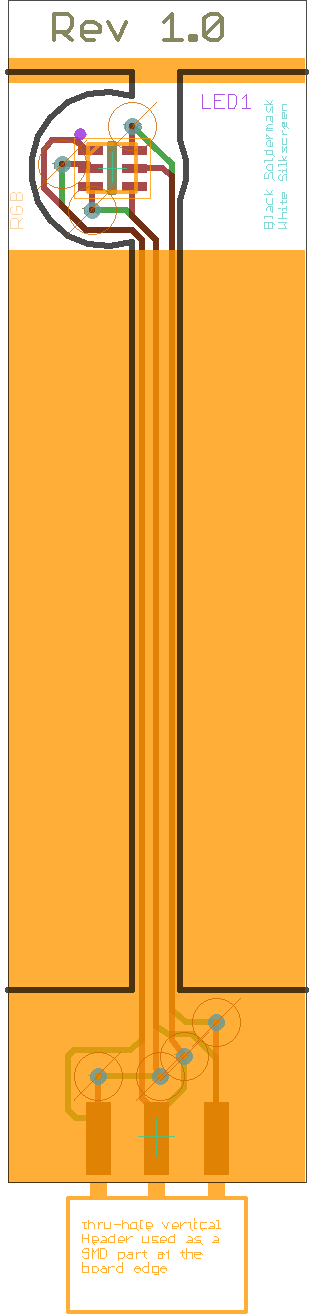

Board
Board
Top Silk
Top Silk

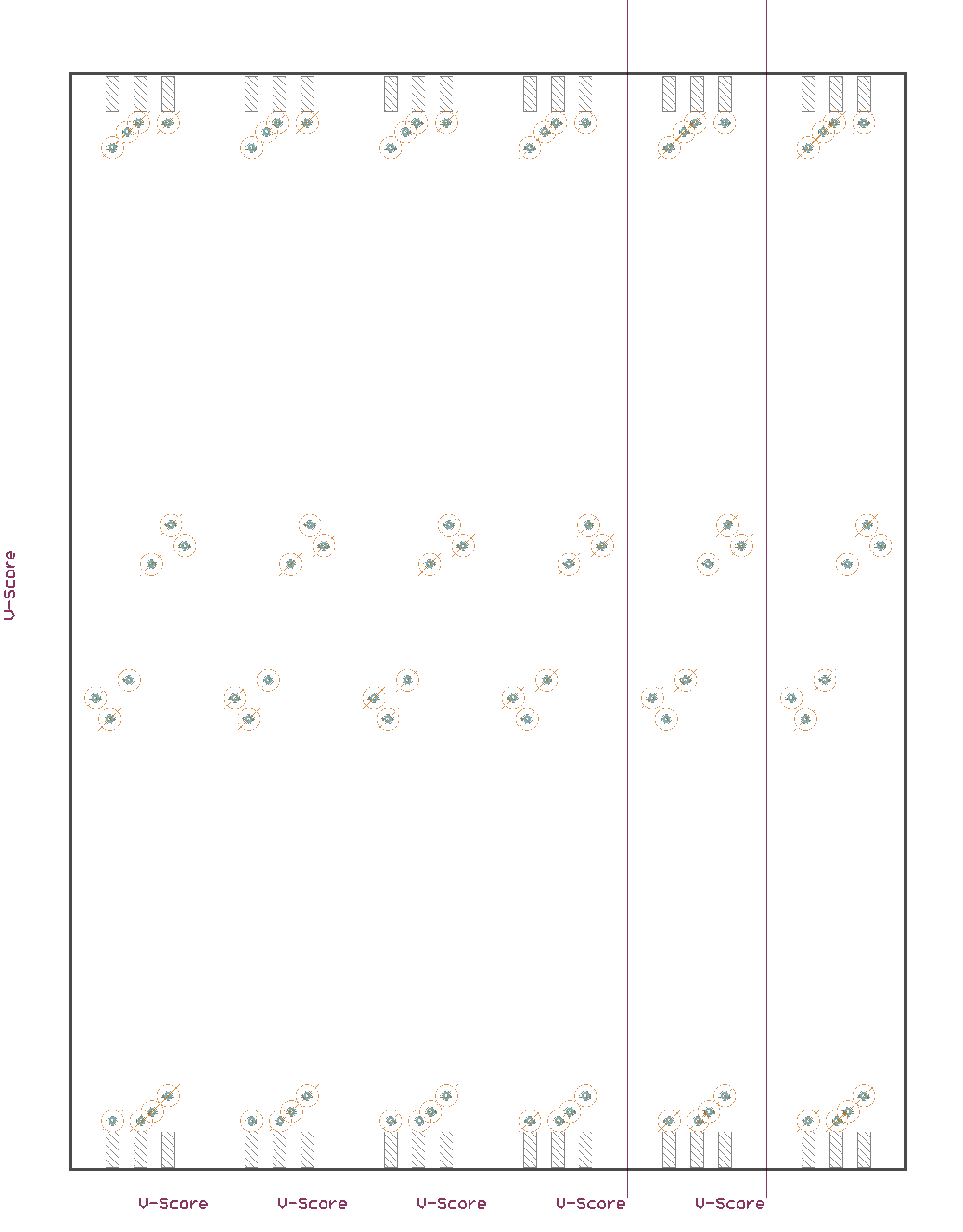

Bot Silk
Bot Silk

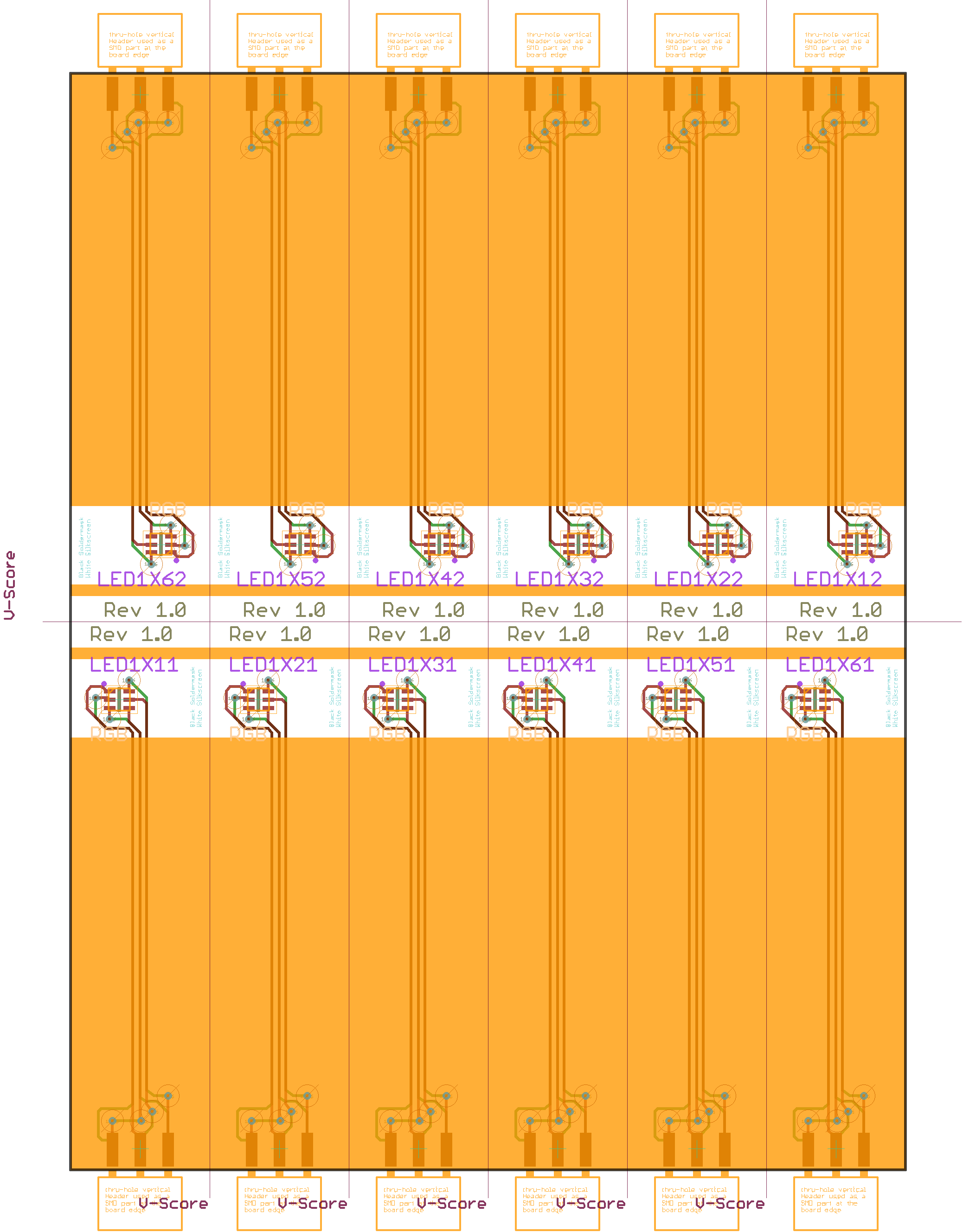

Board
Board

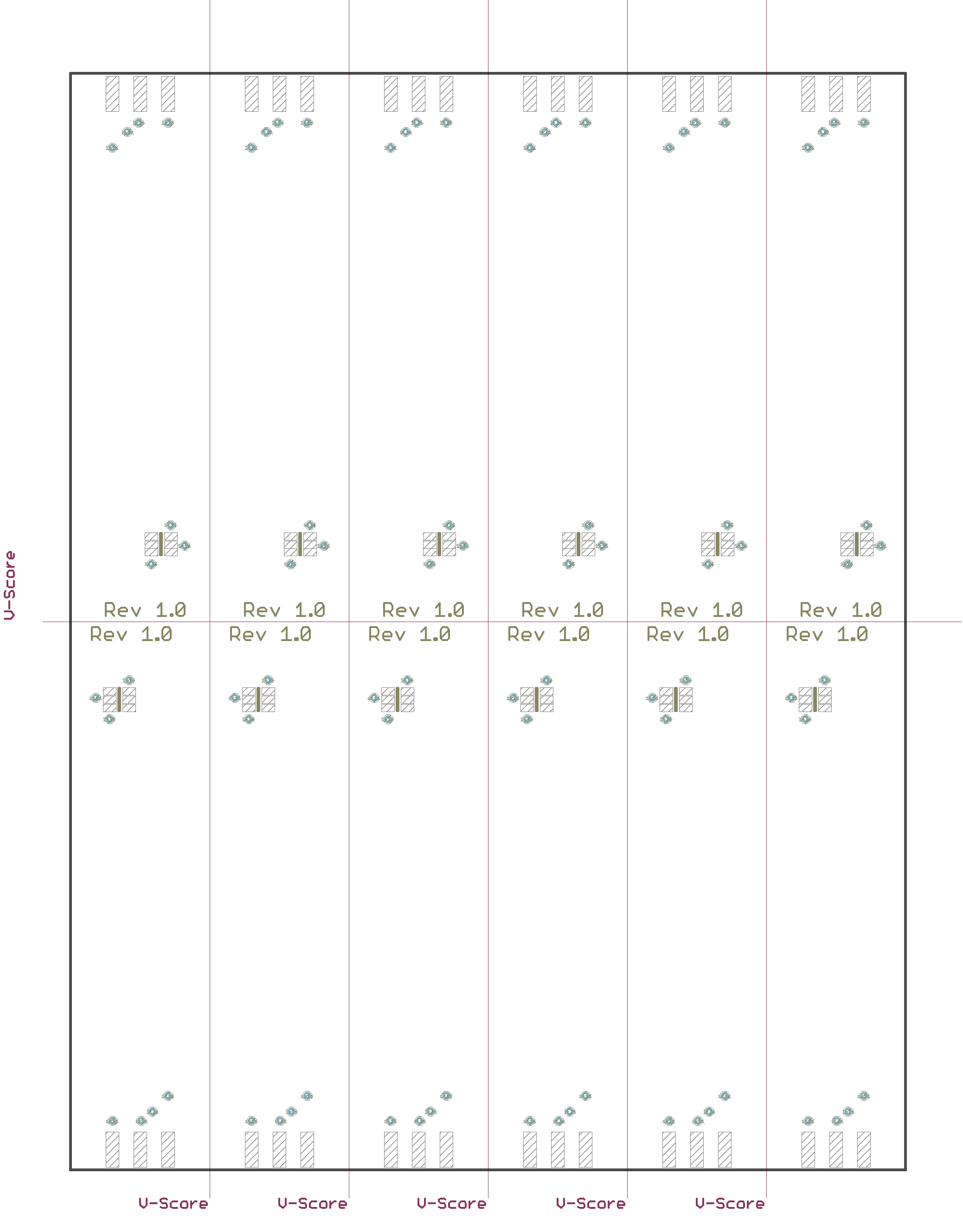

Top Silk
Top Silk

Download SignalMast-Searchlight-SingleHead.gerbers.zip - Gerber Fabrication files
Download SignalMast-Searchlight-SingleHead.parts - Parts List (spreadsheet data)
Download SignalMast-Searchlight-SingleHead_array.gerbers.zip - Gerber Fabrication files
Download SignalMast-Searchlight-SingleHead_array.parts - Parts List (spreadsheet data)



SignalMast-Searchlight-SingleHead.bom

Parts Value Package Quantity Library Type/Feeder
CON1 2x3-0.100 2X3-SMD_EDGE 1x SPCoast NONE
LED1 RGB APA102 1x SPCoast NONE

SignalMast-Searchlight-SingleHead_array.bom

Parts Value Package Quantity Library Type/Feeder
CON1X11, CON1X12, CON1X21, CON1X22, CON1X31, CON1X32, CON1X41, CON1X42, CON1X51, CON1X52, CON1X61, CON1X62 2x3-0.100 2X3-SMD_EDGE 12x SPCoast NONE
LED1X11, LED1X12, LED1X21, LED1X22, LED1X31, LED1X32, LED1X41, LED1X42, LED1X51, LED1X52, LED1X61, LED1X62 RGB APA102 12x SPCoast NONE

This technical documentation is licensed under the CERN Open Hardware Licence v1.2
