Low cost Signal Mast - single high head ColorLight - N scale

Signal-Graphic
Signal-Graphic
SignalMast-ColorLight-SingleHead-Graphic
SignalMast-ColorLight-SingleHead-Graphic





SignalMast-ColorLight-SingleHead Version 1.2

First built: 2017-08, 2018-01, 2018-04, 2018-06, 2018-08, 2019-08, 2019-11

SP style color light (3 lens) signal heads

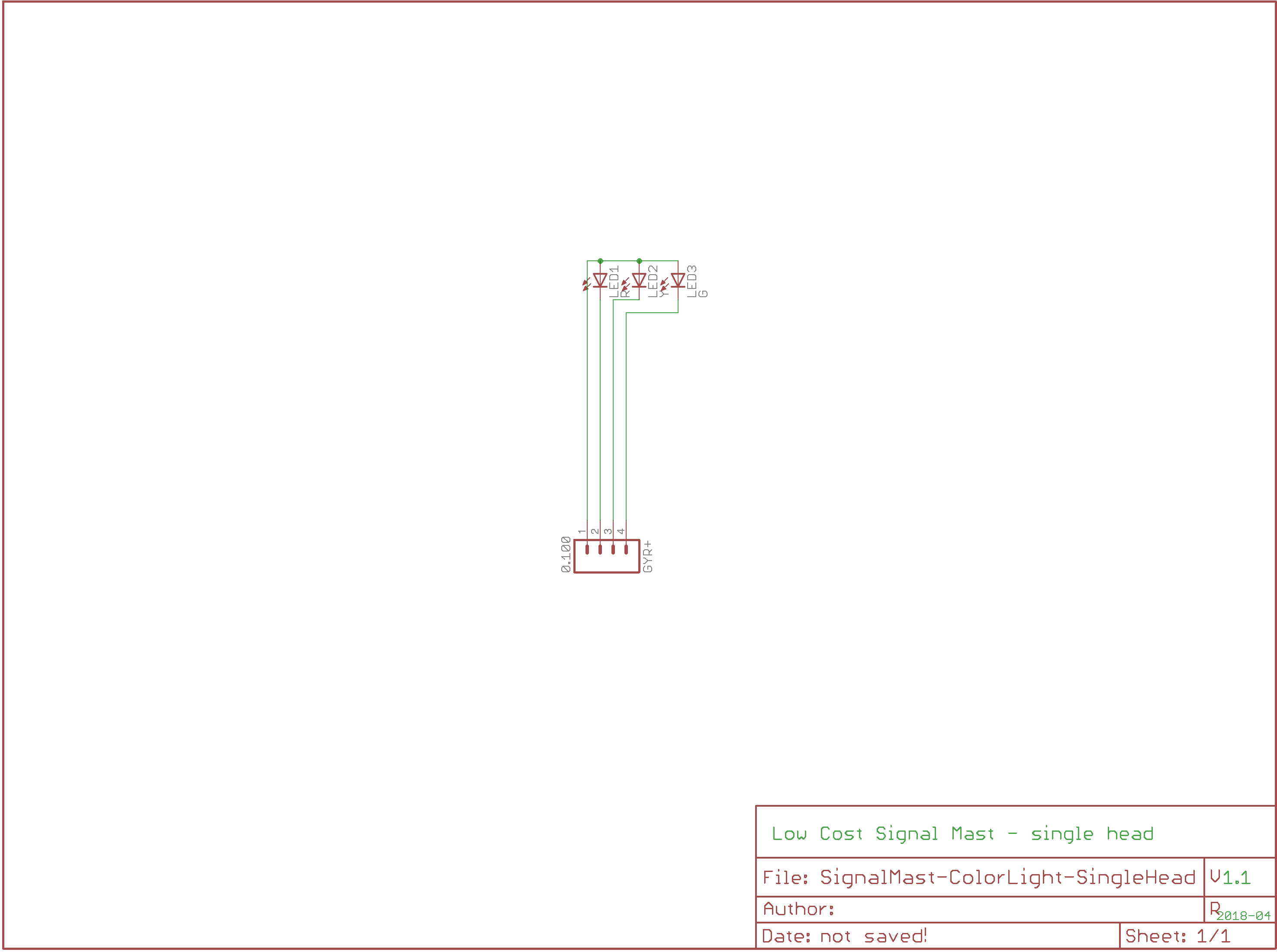

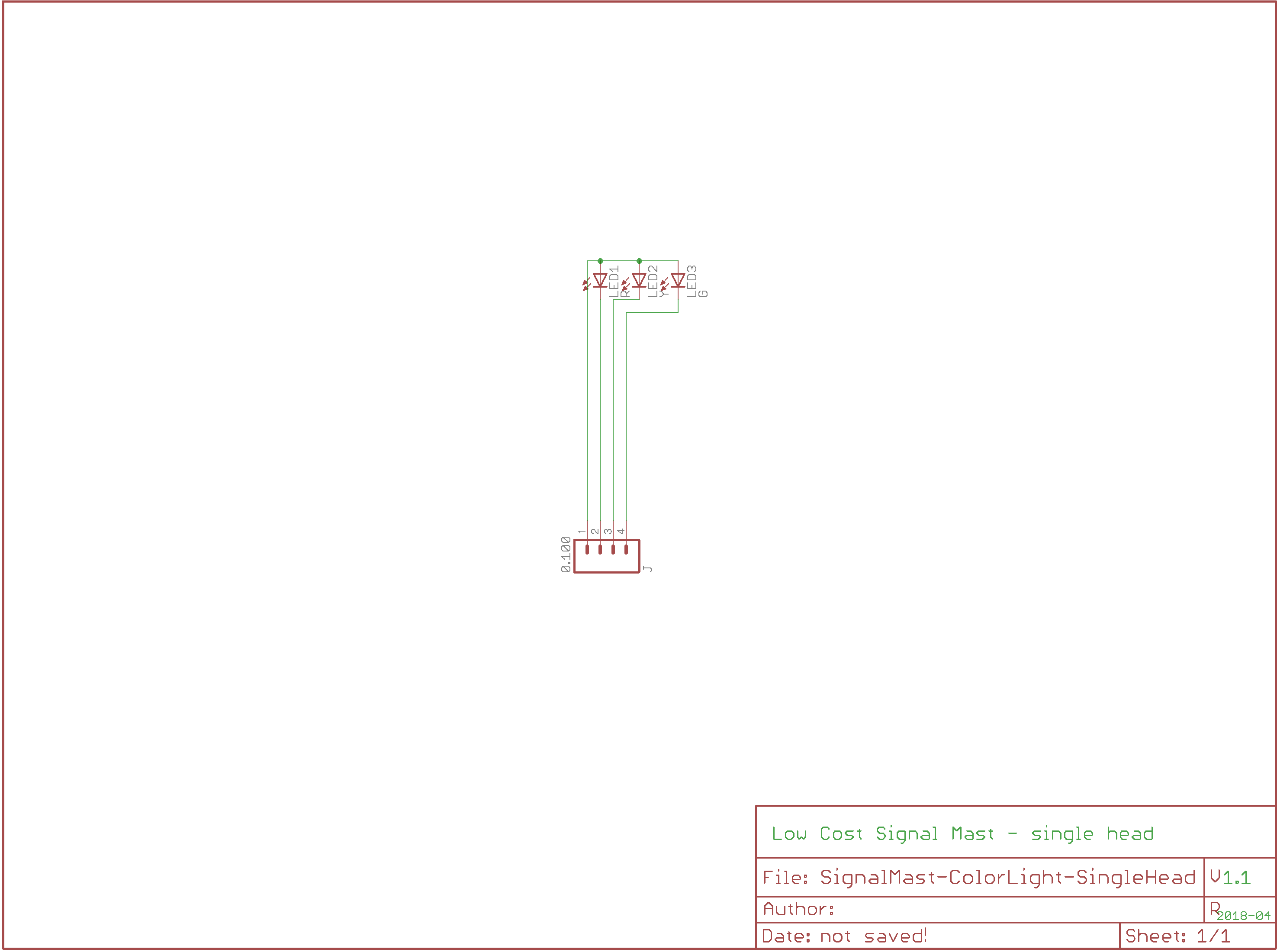

Schematic
Schematic
Bot Silk
Bot Silk

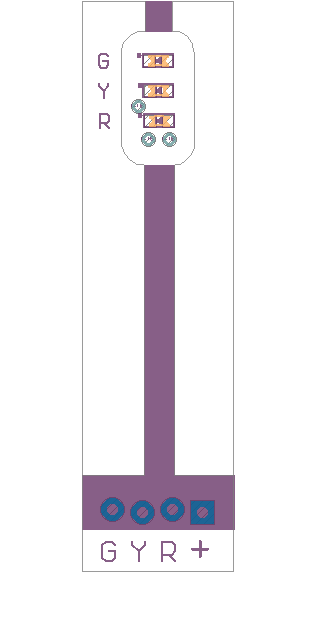

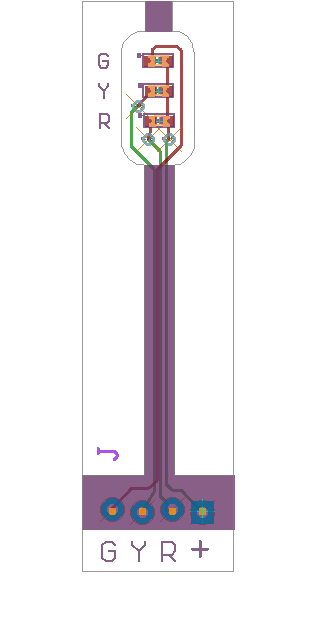

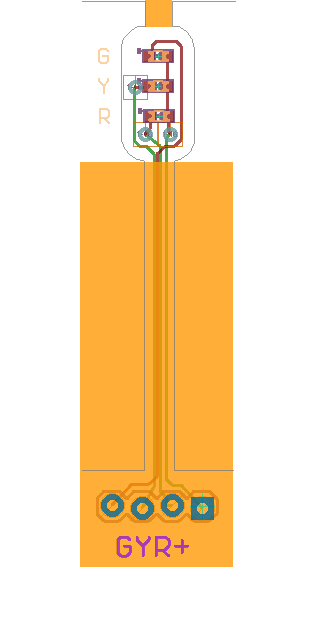

Board
Board
Top Silk
Top Silk

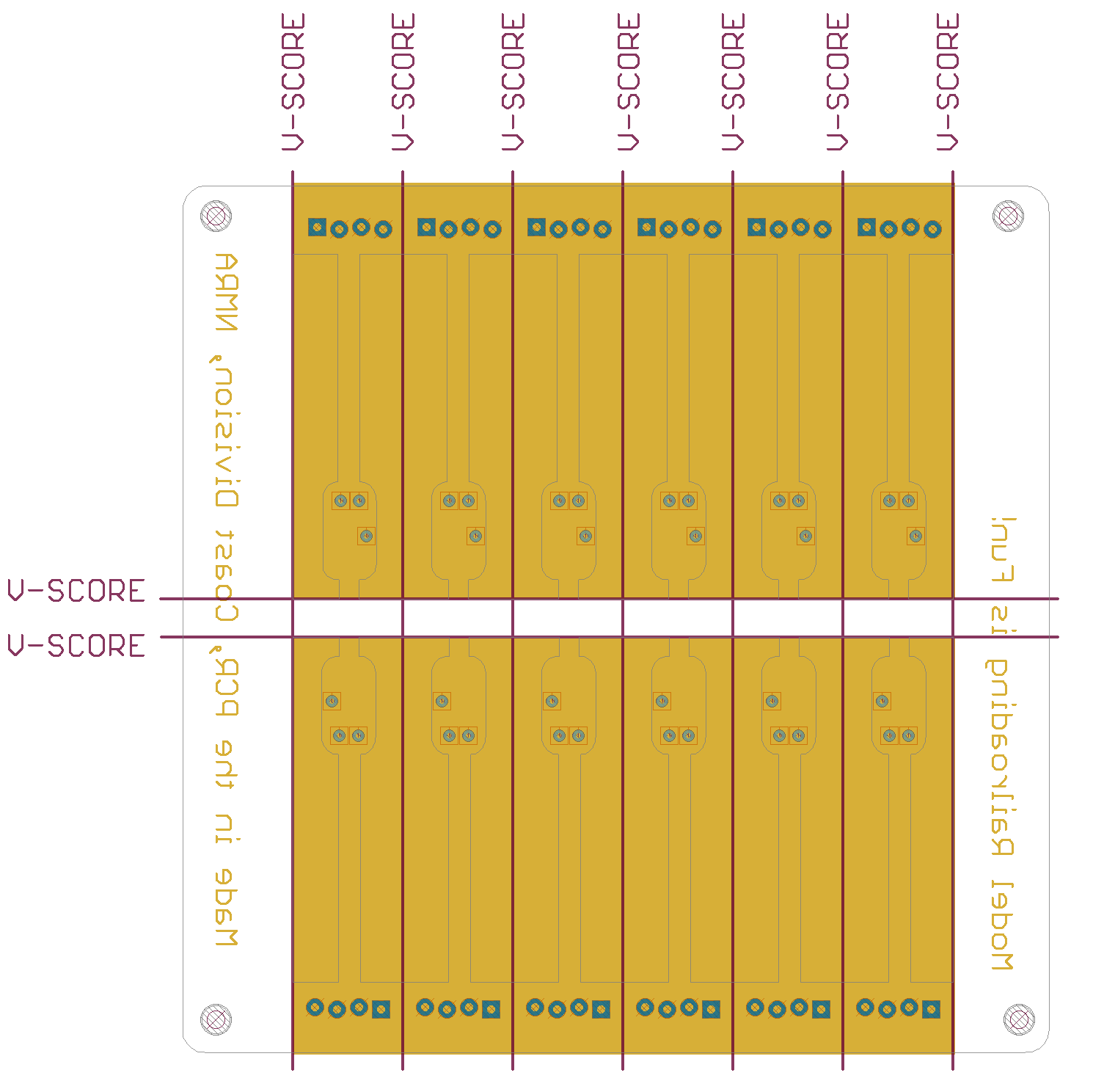

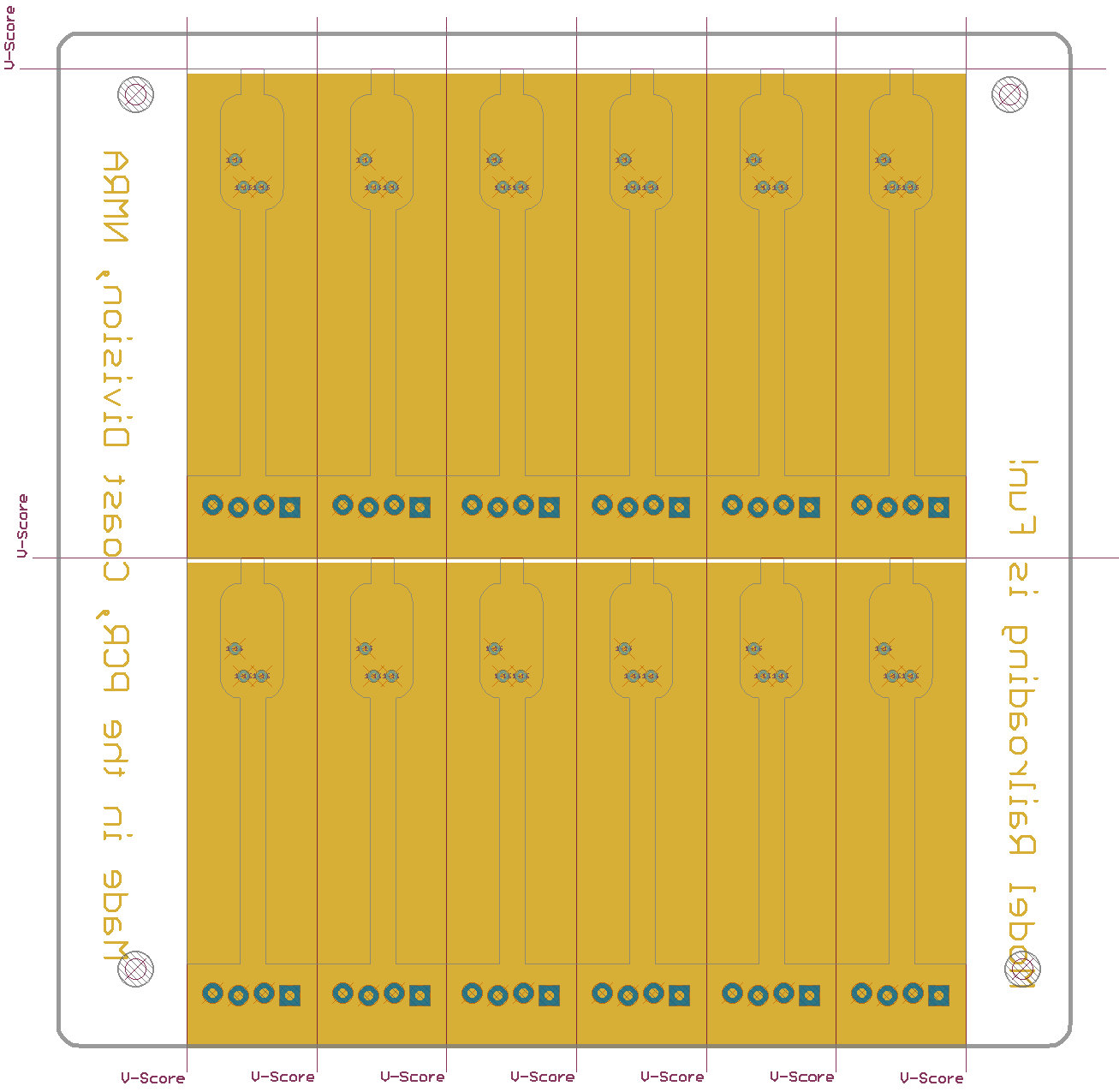

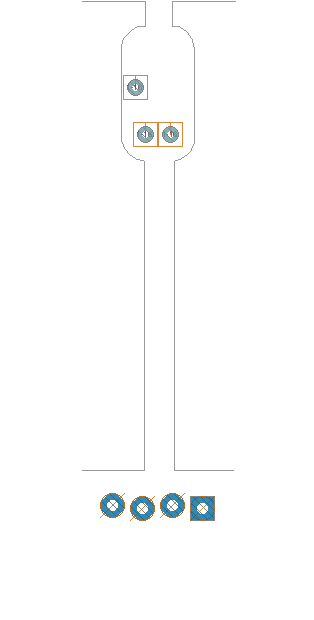

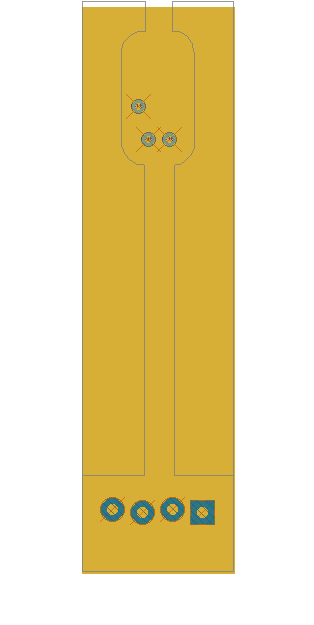

Bot Silk
Bot Silk
Board
Board

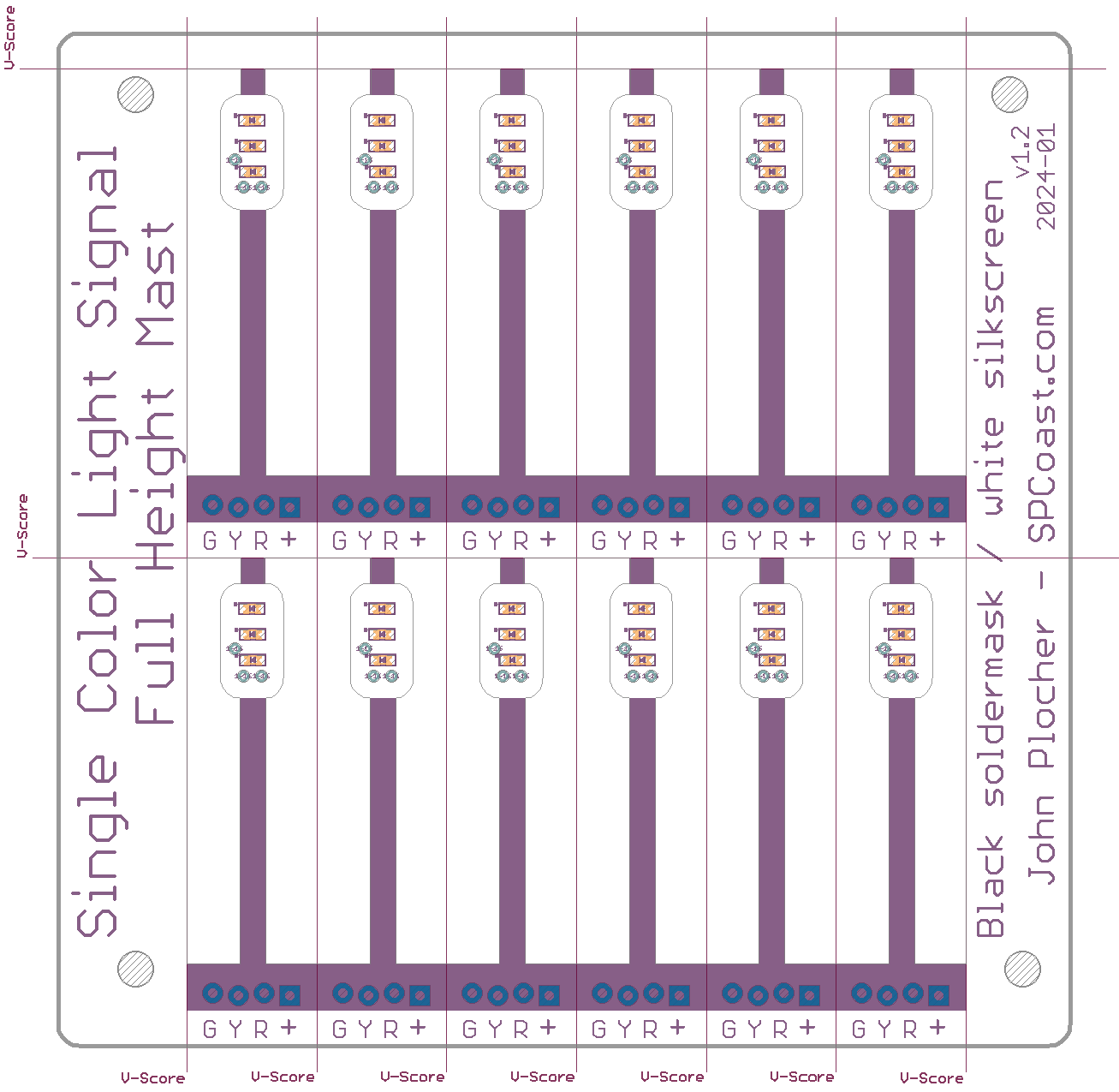

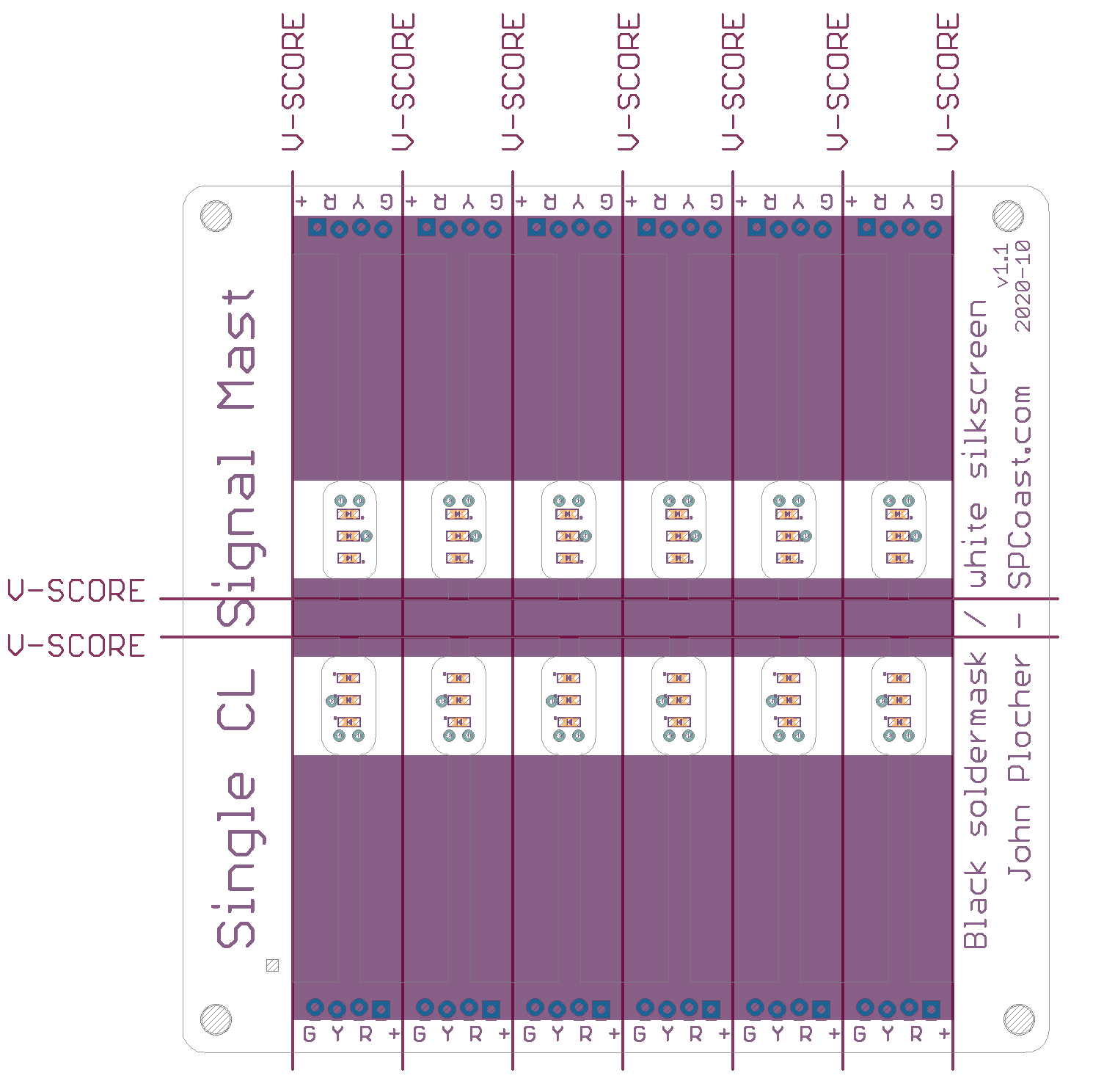

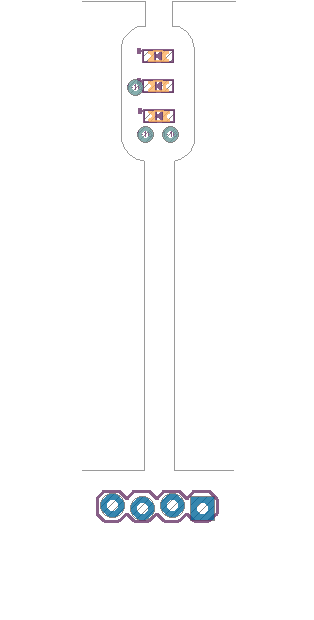

Top Silk
Top Silk

Download SignalMast-ColorLight-SingleHead.gerbers.zip - Gerber Fabrication files
Download SignalMast-ColorLight-SingleHead.parts - Parts List (spreadsheet data)

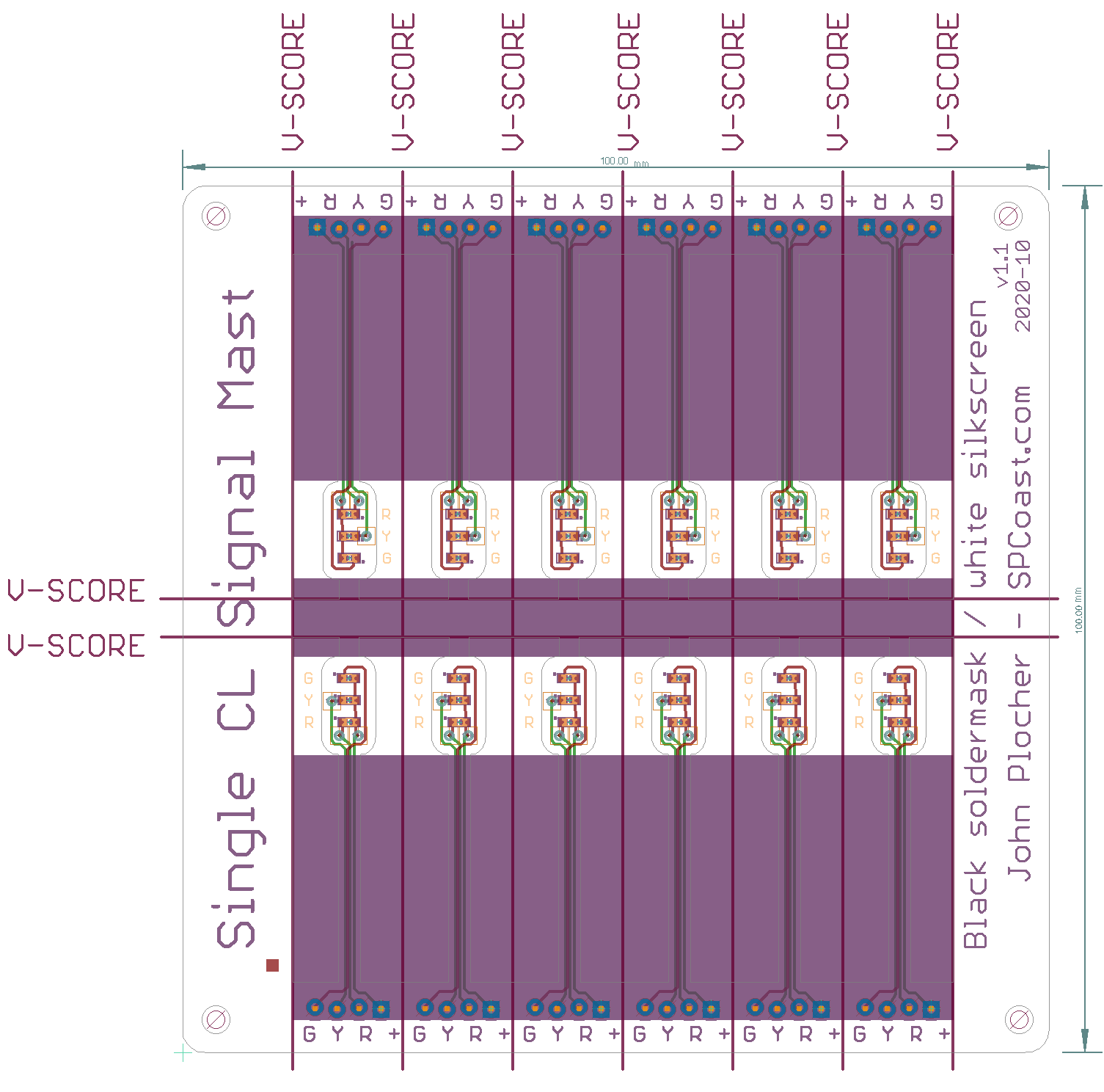

Download SignalMast-ColorLight-SingleHead_array.gerbers.zip - Gerber Fabrication files
Download SignalMast-ColorLight-SingleHead_array.parts - Parts List (spreadsheet data)



SignalMast-ColorLight-SingleHead.bom

Parts Value Package Quantity Library Type/Feeder
GYR+ 0.100 1X04_LOCK 1x SPCoast PTH
LED3 G 0603-LED 1x SPCoast 3
LED1 R 0603-LED 1x SPCoast 1
LED2 Y 0603-LED 1x SPCoast 2

SignalMast-ColorLight-SingleHead_array.bom

Parts Value Package Quantity Library Type/Feeder
GYR+, GYR+1, GYR+2, GYR+3, GYR+4, GYR+5, GYR+6, GYR+7, GYR+8, GYR+9, GYR+10, GYR+11 0.100 1X04_LOCK 12x SPCoast PTH
BOARD1 BOARD BOARD-SEEED10X10-NOHOLES 1x SPCoast PTH
LED3, LED6, LED9, LED12, LED15, LED18, LED21, LED24, LED27, LED30, LED33, LED36 G 0603-LED 12x SPCoast 3
LED1, LED4, LED7, LED10, LED13, LED16, LED19, LED22, LED25, LED28, LED31, LED34 R 0603-LED 12x SPCoast 1
LED2, LED5, LED8, LED11, LED14, LED17, LED20, LED23, LED26, LED29, LED32, LED35 Y 0603-LED 12x SPCoast 2

This technical documentation is licensed under the CERN Open Hardware Licence v1.2
