SignalMast-ColorLight-DualHead

Fork project on GitHub

Low cost Signal Mast - single high head Color Light - N scale

Signal-Graphic
Signal-Graphic
SignalMast-ColorLight-DualHead-Graphic
SignalMast-ColorLight-DualHead-Graphic





SignalMast-ColorLight-DualHead Version 1.1

First built: 2018-04

Changes from 1.0D: Top Layer text “GYR+” didn’t have “SPIN” set, so it was wrong side up and backward on the top row of upsidedown masts… (The square pad is “+”, no matter what the legend says…)

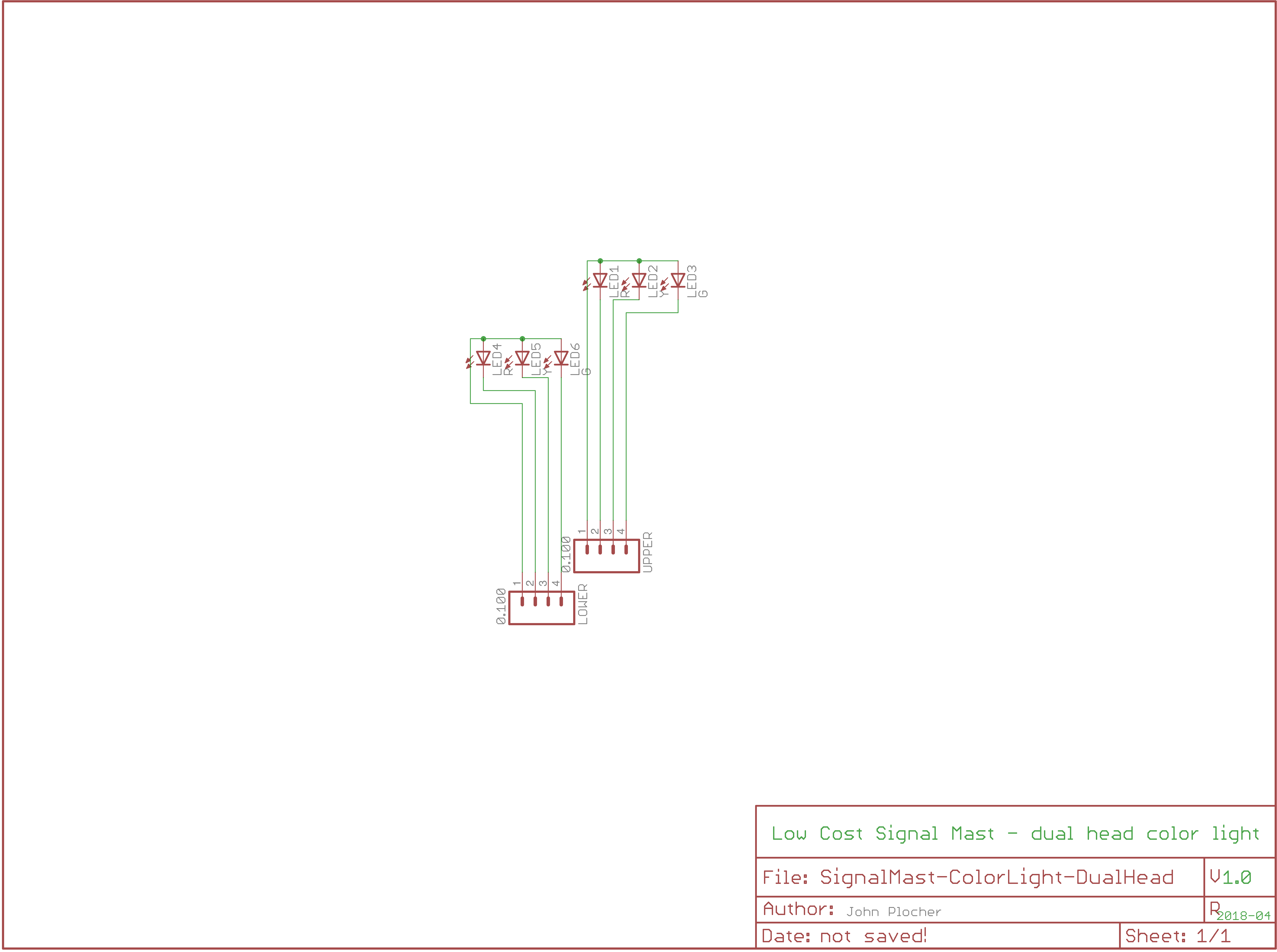

Schematic
Schematic

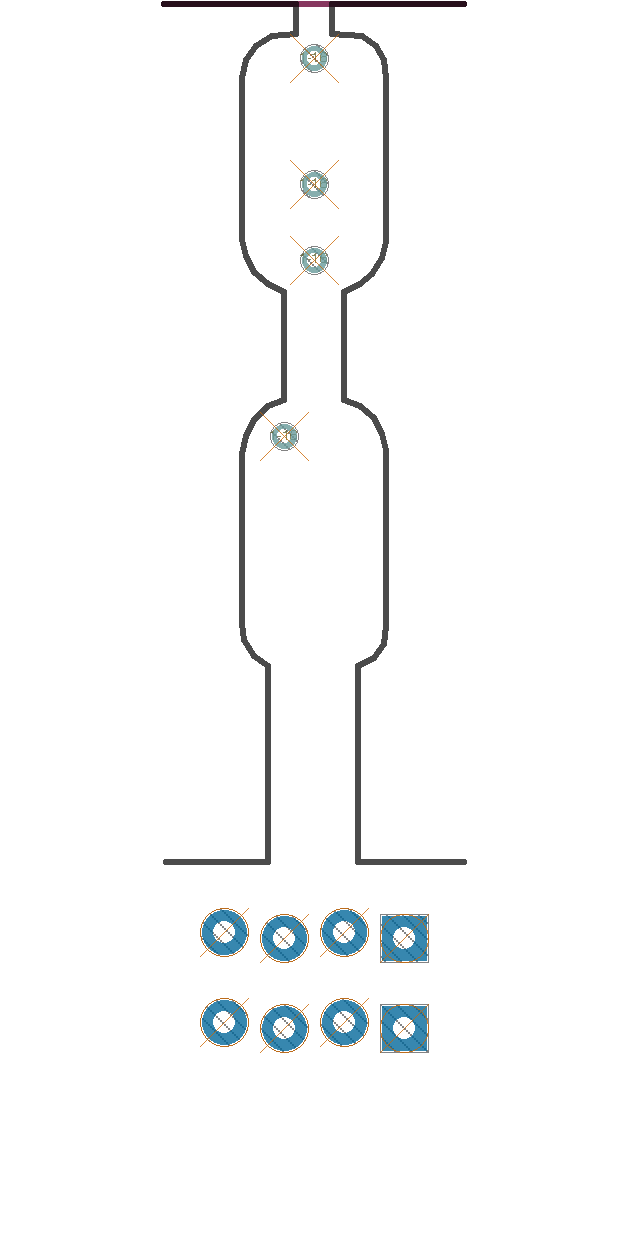

Bot Silk
Bot Silk

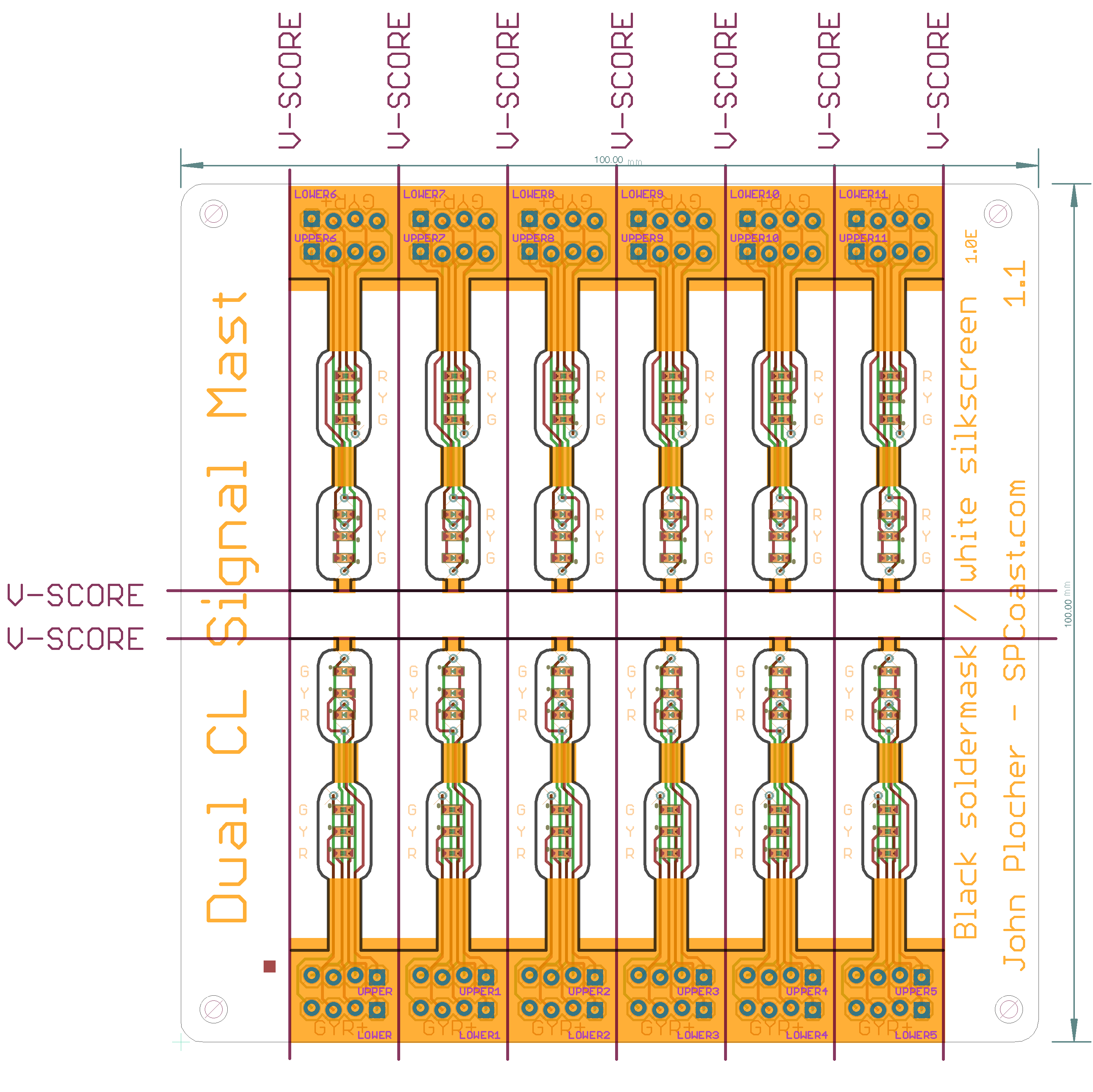

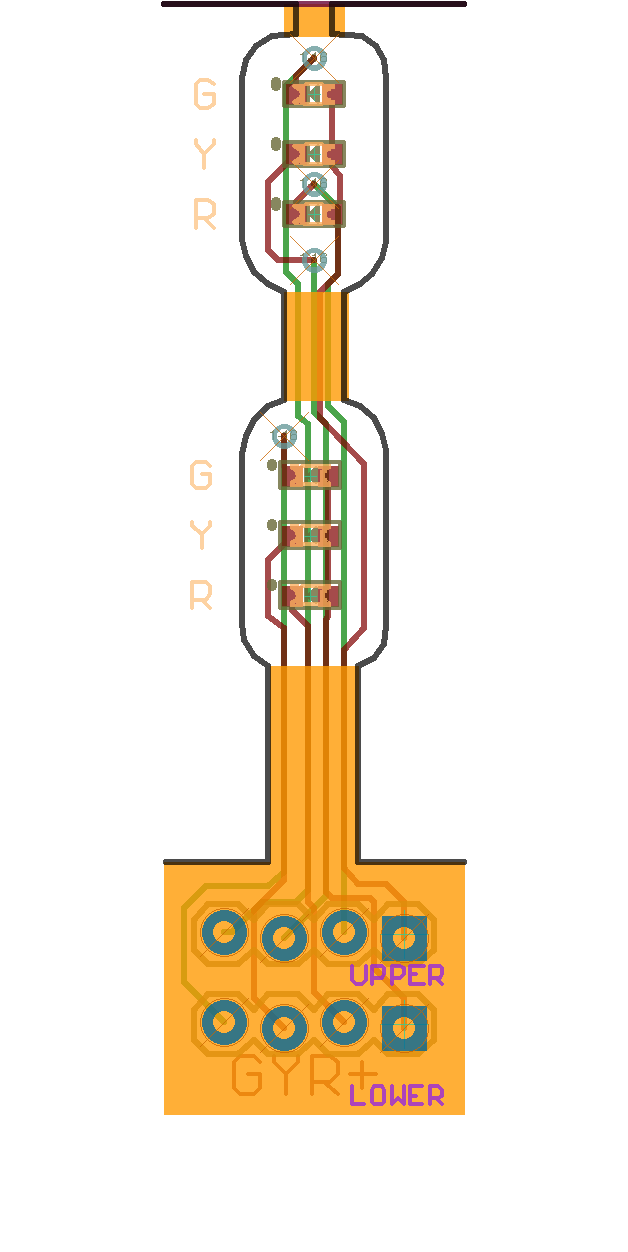

Board
Board

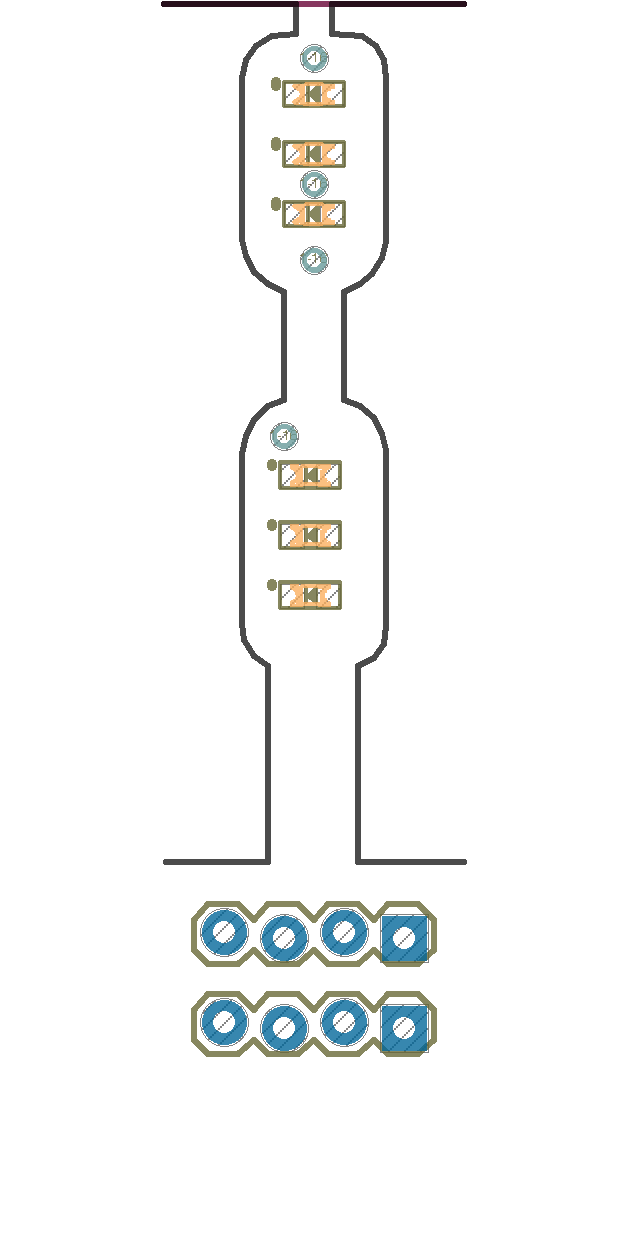

Top Silk
Top Silk

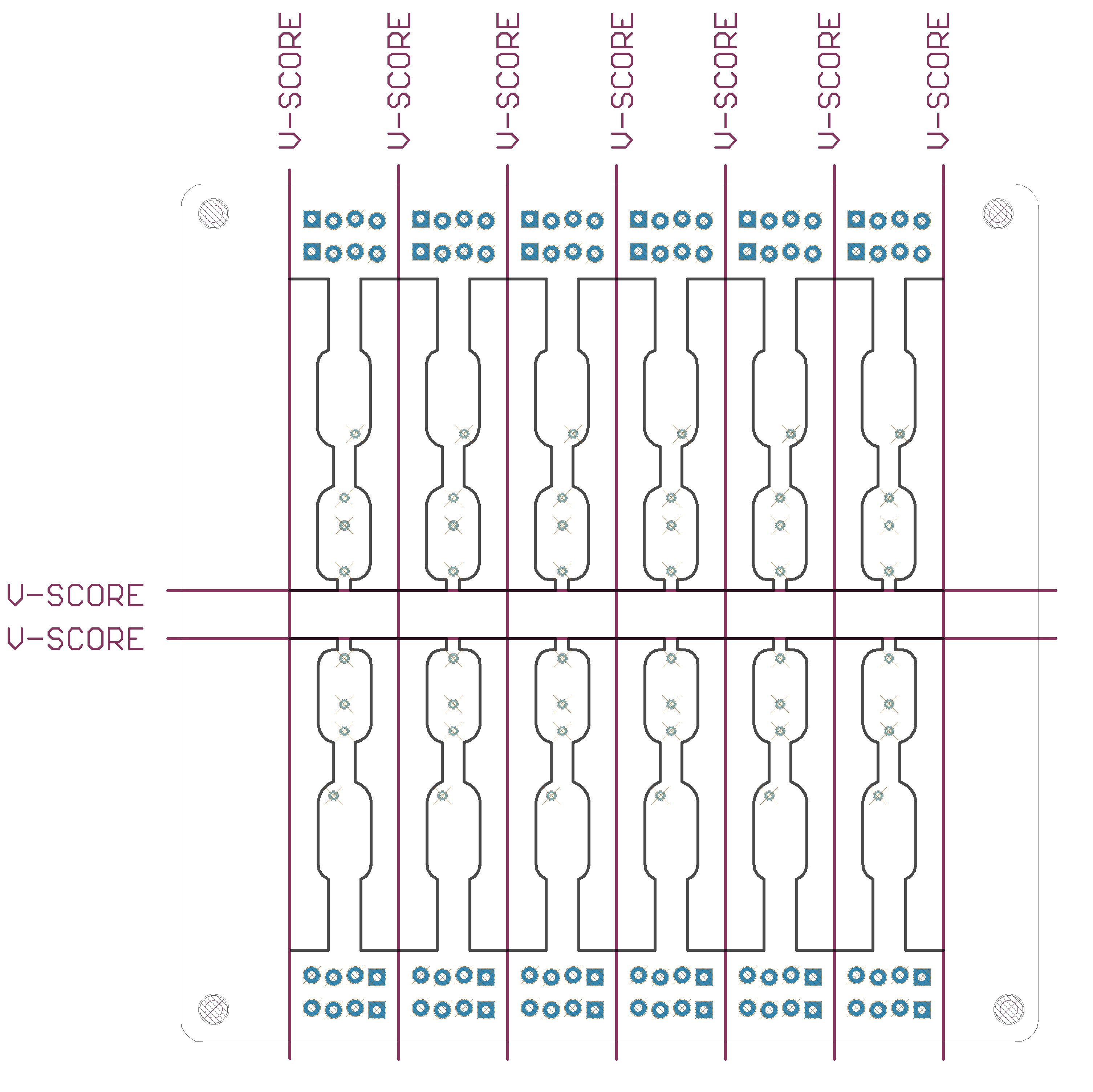

Bot Silk
Bot Silk
Board
Board

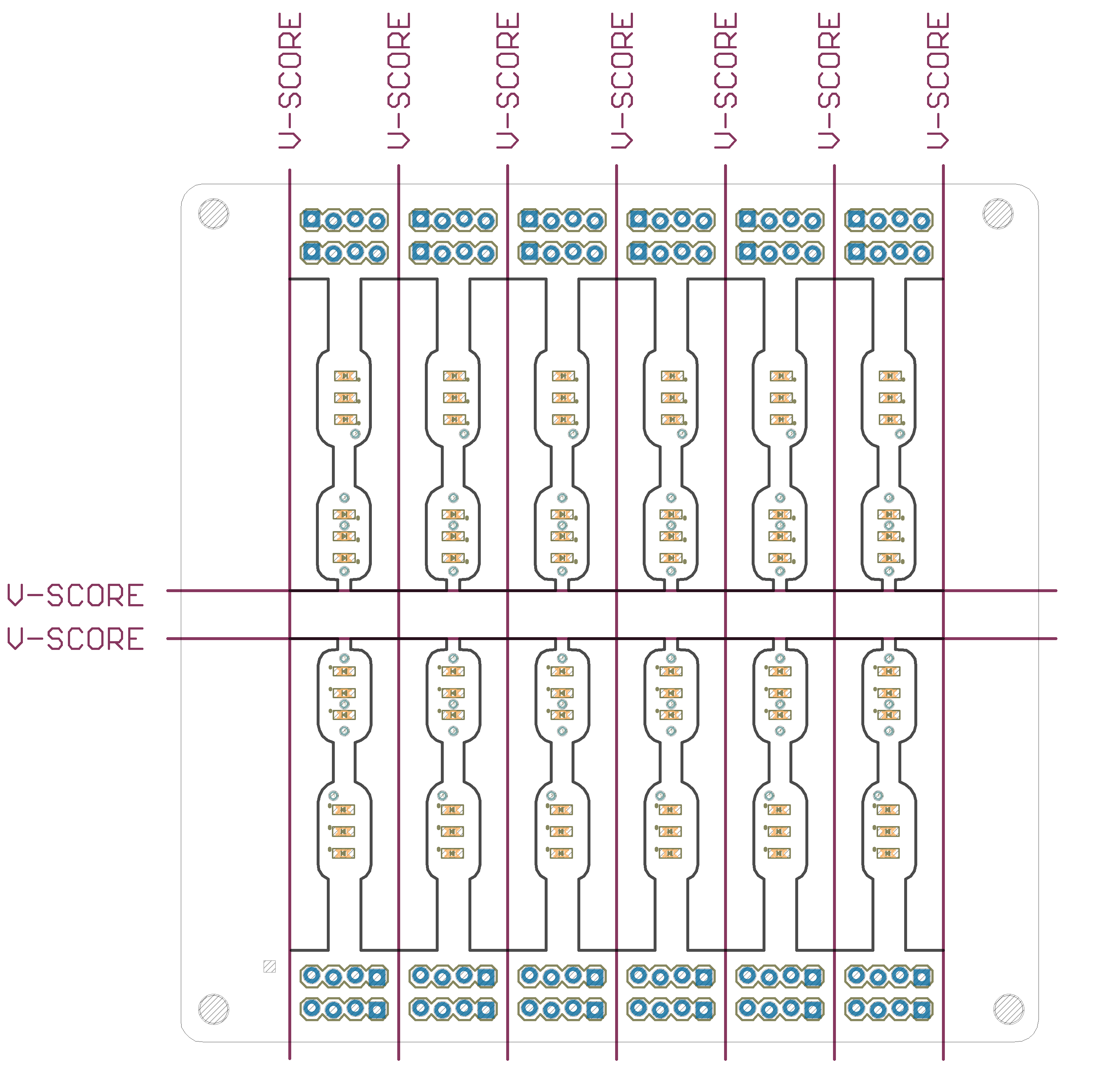

Top Silk
Top Silk

Download SignalMast-ColorLight-DualHead.gerbers.zip - Gerber Fabrication files
Download SignalMast-ColorLight-DualHead.parts - Parts List (spreadsheet data)
Download SignalMast-ColorLight-DualHead_array.gerbers.zip - Gerber Fabrication files
Download SignalMast-ColorLight-DualHead_array.parts - Parts List (spreadsheet data)



SignalMast-ColorLight-DualHead.bom

Parts Value Package Quantity Library Type/Feeder
LOWER, UPPER 0.100 1X04_LOCK 2x SPCoast PTH
LED3, LED6 G 0603-LED 2x SPCoast 3
LED1, LED4 R 0603-LED 2x SPCoast 1
LED2, LED5 Y 0603-LED 2x SPCoast 2

SignalMast-ColorLight-DualHead_array.bom

Parts Value Package Quantity Library Type/Feeder
LOWER, LOWER1, LOWER2, LOWER3, LOWER4, LOWER5, LOWER6, LOWER7, LOWER8, LOWER9, LOWER10, LOWER11, UPPER, UPPER1, UPPER2, UPPER3, UPPER4, UPPER5, UPPER6, UPPER7, UPPER8, UPPER9, UPPER10, UPPER11 0.100 1X04_LOCK 24x SPCoast PTH
BOARD1 BOARD BOARD-SEEED10X10-NOHOLES 1x SPCoast PTH
LED3, LED6, LED9, LED12, LED15, LED18, LED21, LED24, LED27, LED30, LED33, LED36, LED39, LED42, LED45, LED48, LED51, LED54, LED57, LED60, LED63, LED66, LED69, LED72 G 0603-LED 24x SPCoast 3
LED1, LED4, LED7, LED10, LED13, LED16, LED19, LED22, LED25, LED28, LED31, LED34, LED37, LED40, LED43, LED46, LED49, LED52, LED55, LED58, LED61, LED64, LED67, LED70 R 0603-LED 24x SPCoast 1
LED2, LED5, LED8, LED11, LED14, LED17, LED20, LED23, LED26, LED29, LED32, LED35, LED38, LED41, LED44, LED47, LED50, LED53, LED56, LED59, LED62, LED65, LED68, LED71 Y 0603-LED 24x SPCoast 2

This technical documentation is licensed under the CERN Open Hardware Licence v1.2
