ShowMeShield

Fork project on GitHub

Arduino IO pin LEDs on wings

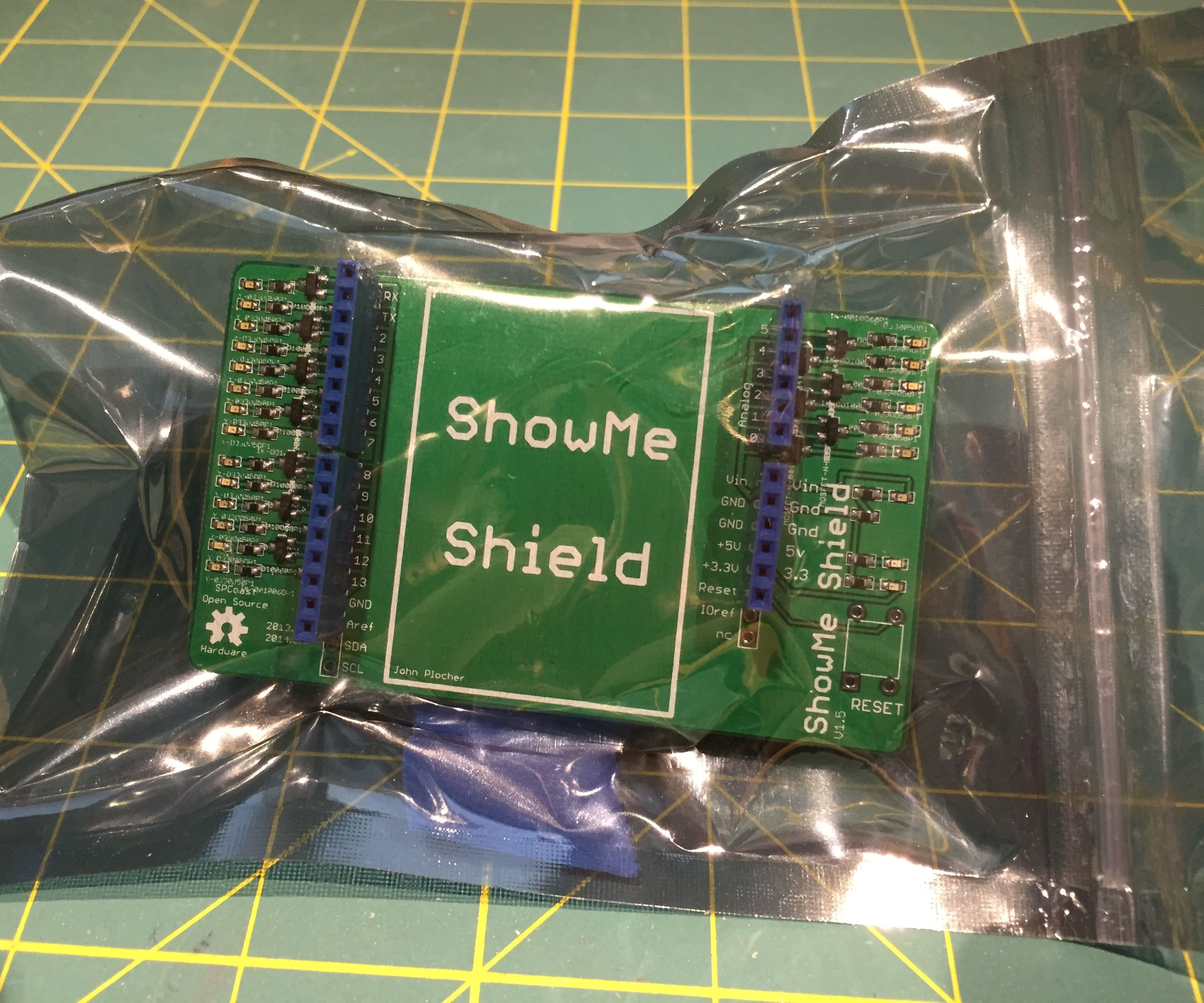

IMG_0598
IMG_0598

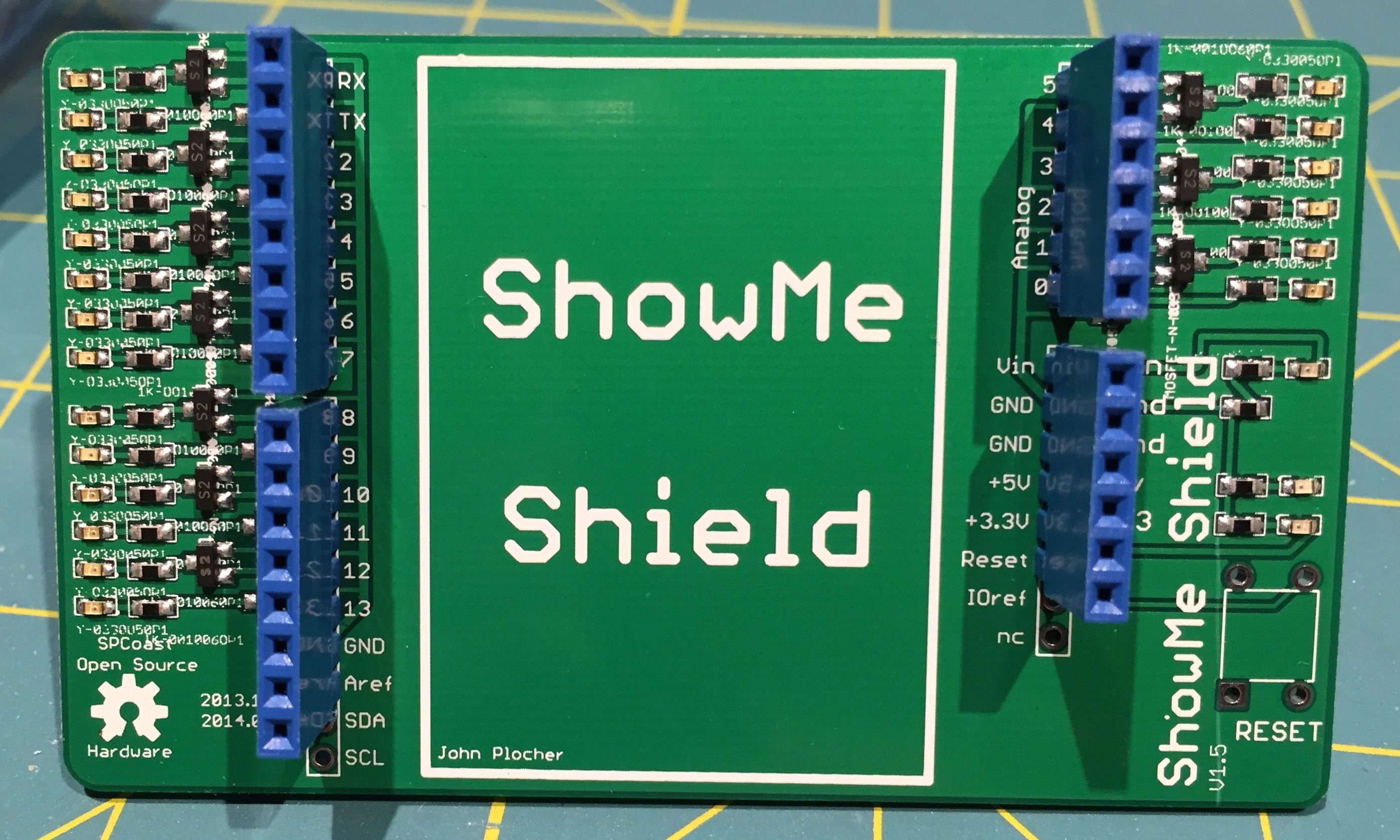

IMG_0599
IMG_0599

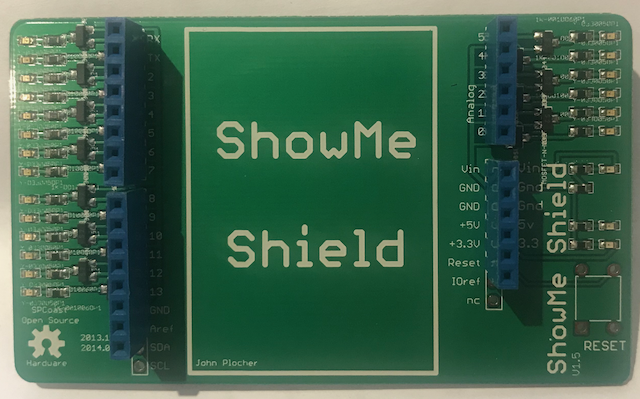

Assembled-15-1
Assembled-15-1

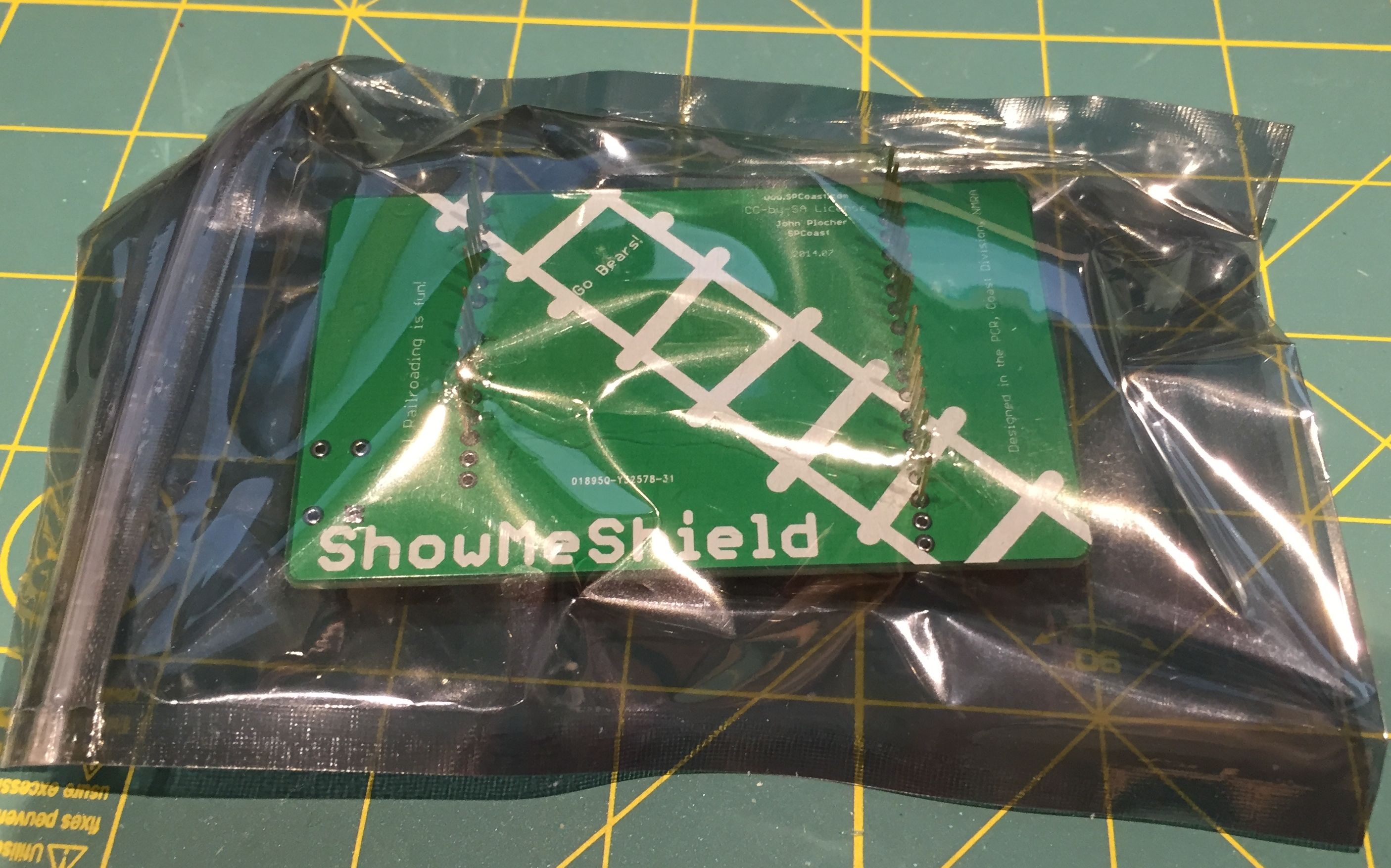

IMG_0597
IMG_0597





ShowMeShield Version 1.5

First built: 2014-07

Features

  • increased board size from 5cmX5cm to 3.5”x2” - small size cut into Arduino header pads, now room for small breadboard
  • moved LEDs outside of headers, allowing visibility even if board is in middle of a shield stack
  • added a reset button because one on Arduino will be hidden by the wide wings on this board
  • This version was fabricated and assembled by SeeedStudio and used as Arduino Introduction meet-up handouts I hosted

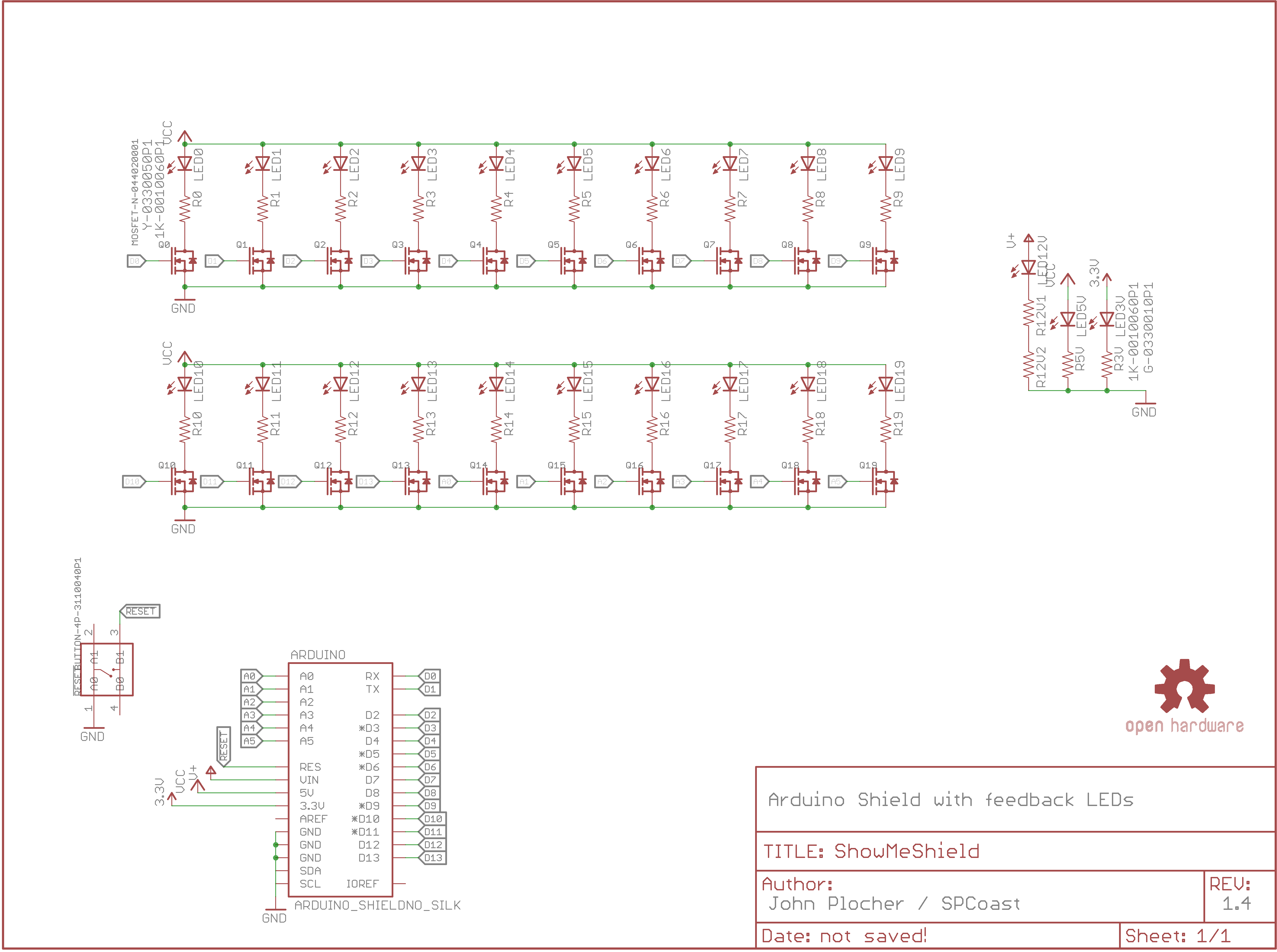

Schematic
Schematic

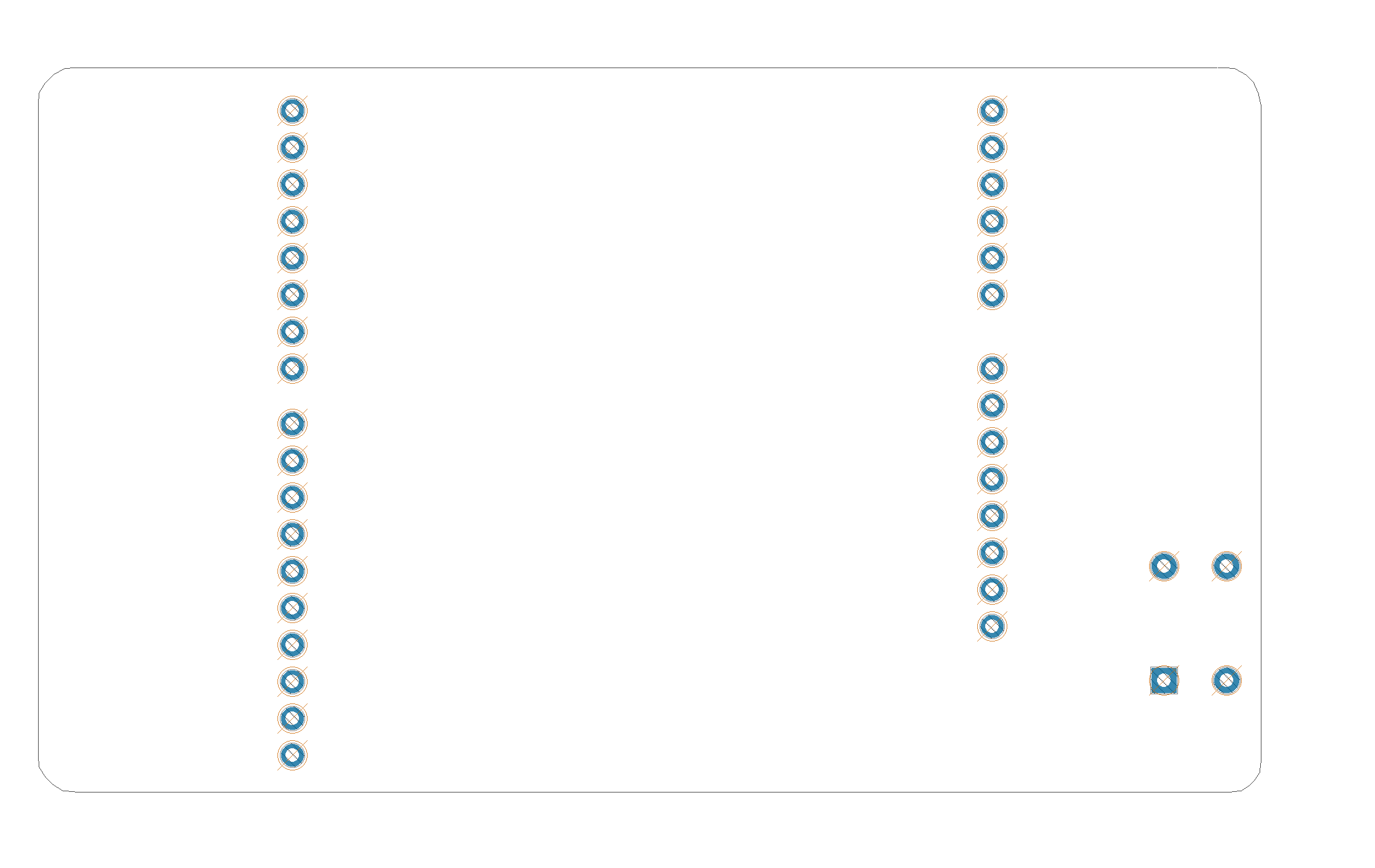

Bot Silk
Bot Silk

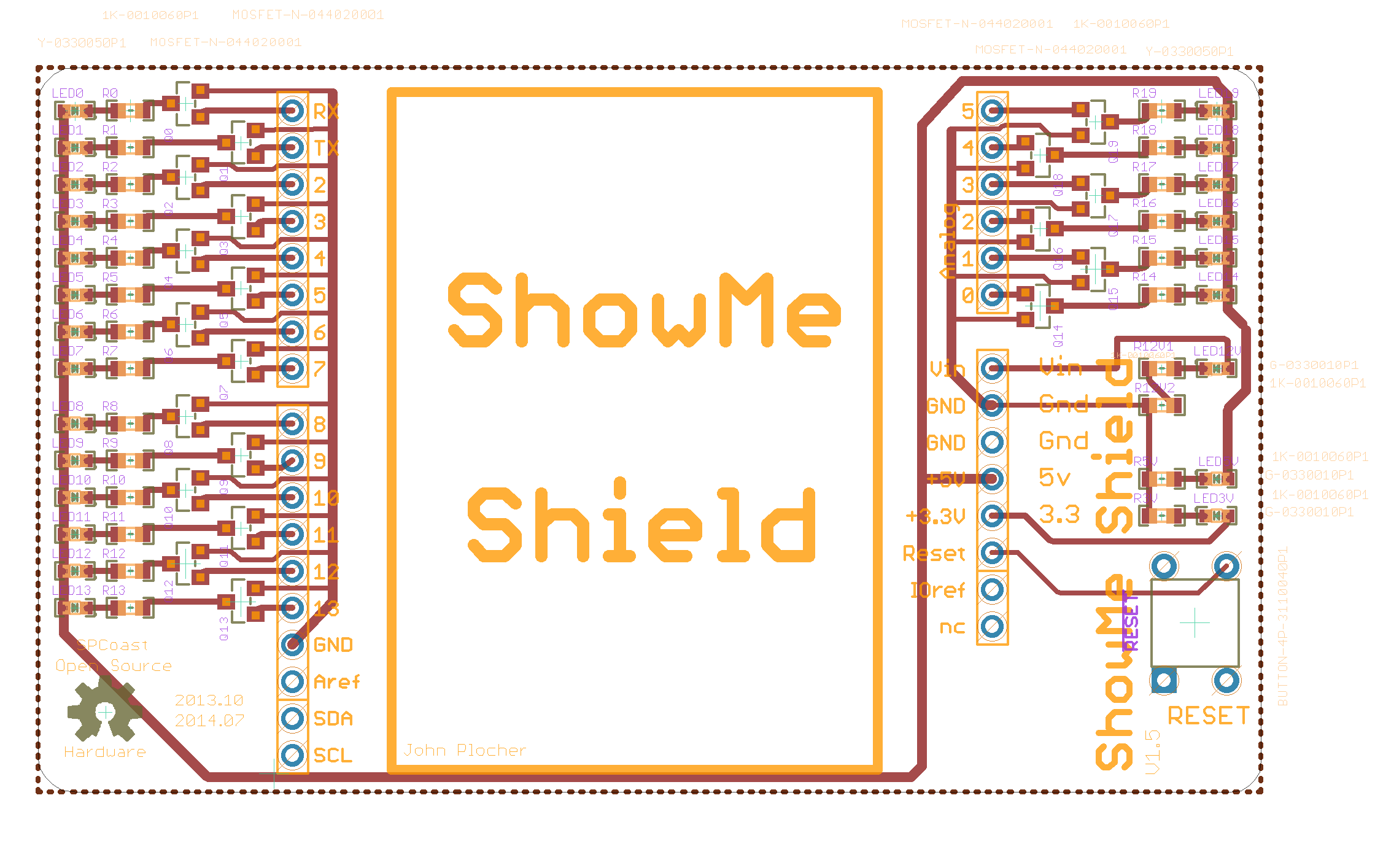

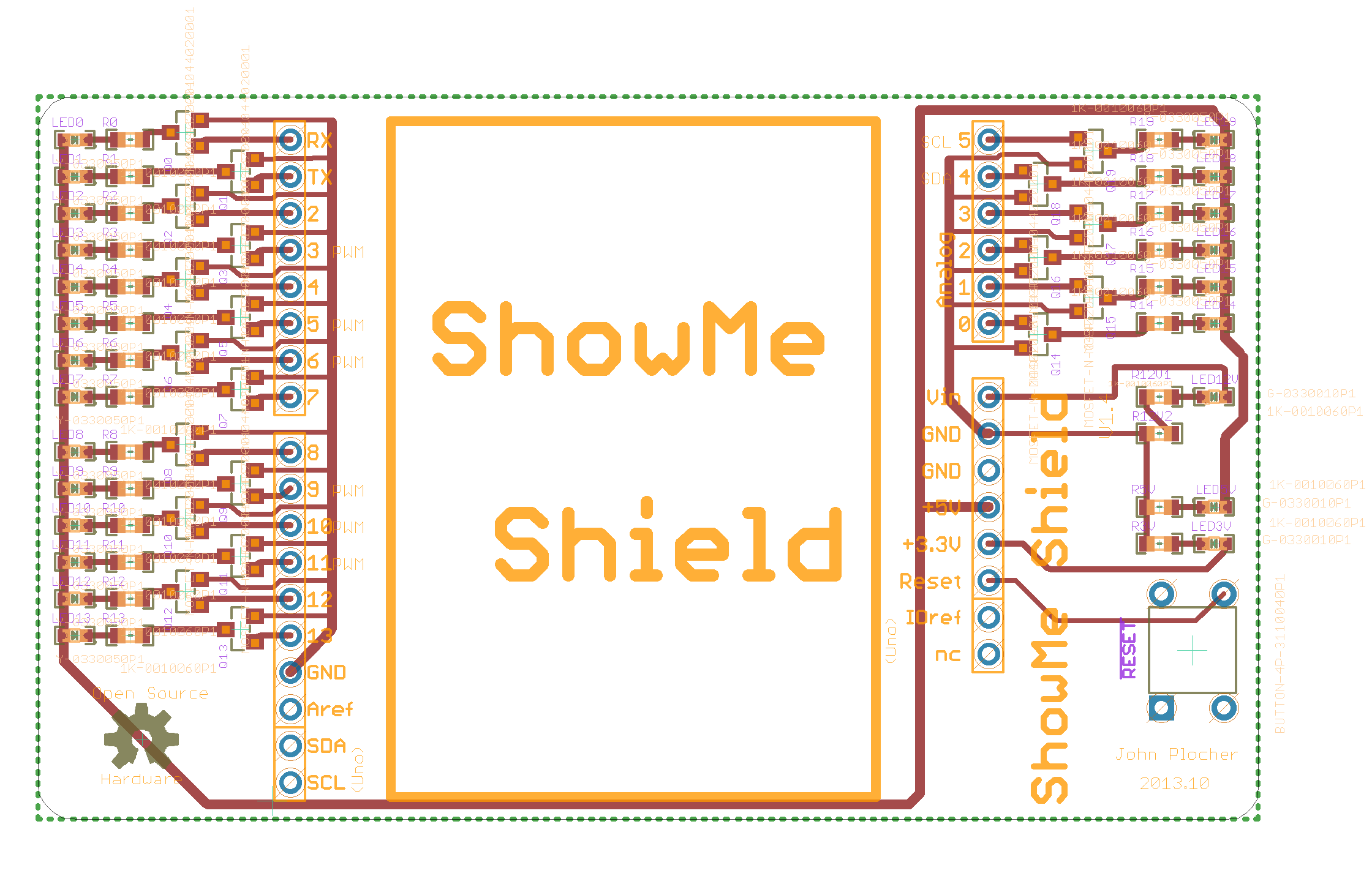

Board
Board

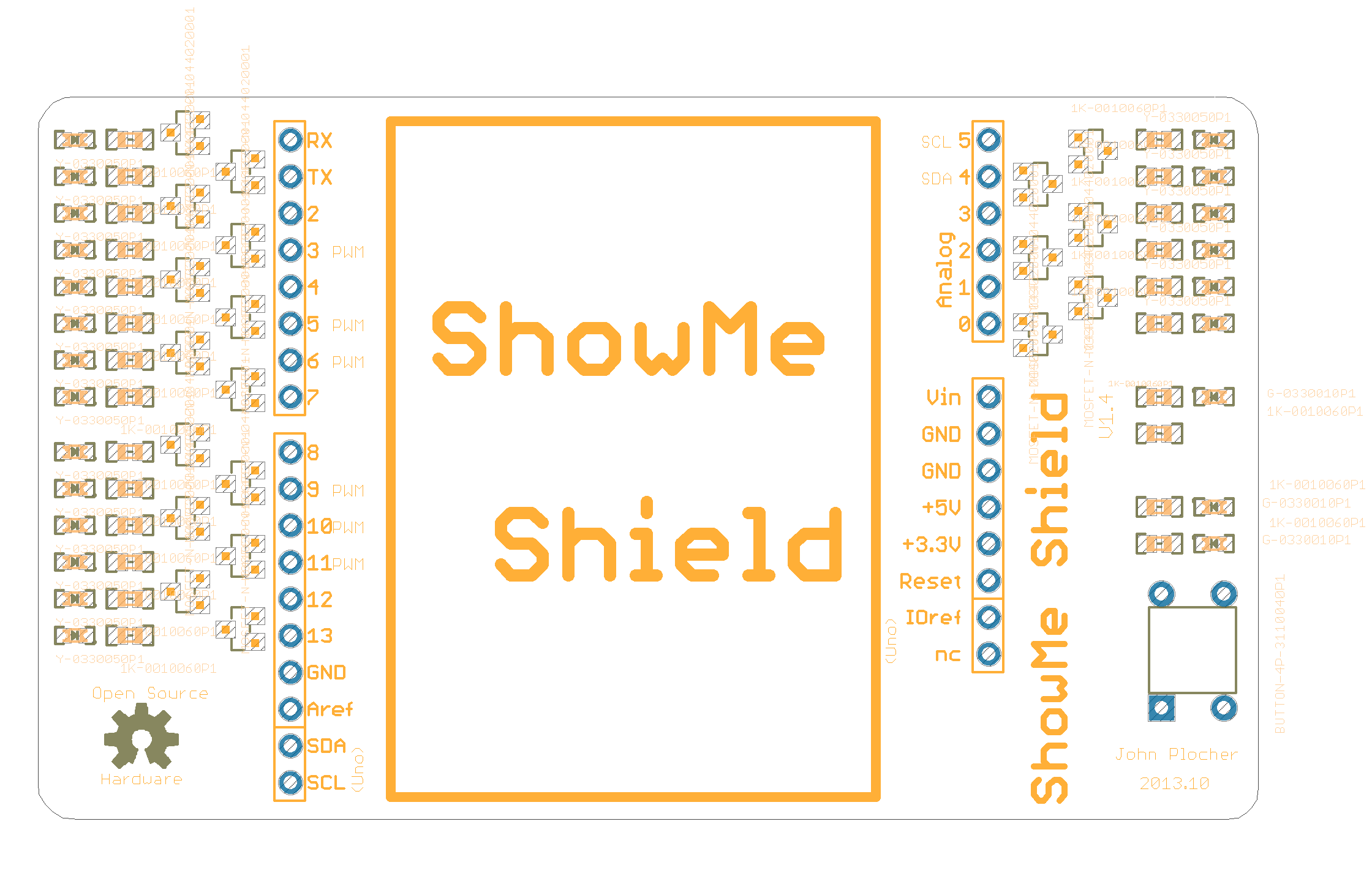

Top Silk
Top Silk

Download ShowMeShield.gerbers.zip - Gerber Fabrication files
Download ShowMeShield.parts - Parts List (spreadsheet data)



ShowMeShield.bom

Parts Value Package Quantity Library Type/Feeder
R0, R1, R2, R3, R3V, R4, R5, R5V, R6, R7, R8, R9, R10, R11, R12, R12V1, R12V2, R13, R14, R15, R16, R17, R18, R19 1K-0010060P1 0603-RES 24x MCP NONE
ARDUINO ARDUINO_SHIELDNO_SILK DUEMILANOVE_VIAS 1x SPCoast PTH
!RESET BUTTON-4P-3110040P1 4P-6.0X6.0X5.0H 1x OPL PTH
LED3V, LED5V, LED12V G-0330010P1 CHIPLED_0603 3x MCP NONE
Q0, Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8, Q9, Q10, Q11, Q12, Q13, Q14, Q15, Q16, Q17, Q18, Q19 MOSFET-N-044020001 SOT23 20x OPL NONE
U$1 OSHW-LOGOM OSHW-LOGO-M 1x SparkFun PTH
LED0, LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8, LED9, LED10, LED11, LED12, LED13, LED14, LED15, LED16, LED17, LED18, LED19 Y-0330050P1 CHIPLED_0603 20x MCP NONE

ShowMeShield Version 1.4

First built: 2013-10

Features

  • increased board size from 5cmX5cm to 3.5”x2” - small size cut into Arduino header pads, now room for small breadboard
  • moved LEDs outside of headers, allowing visibility even if board is in middle of a shield stack
  • added a reset button because one on Arduino will be hidden by the wide wings on this board

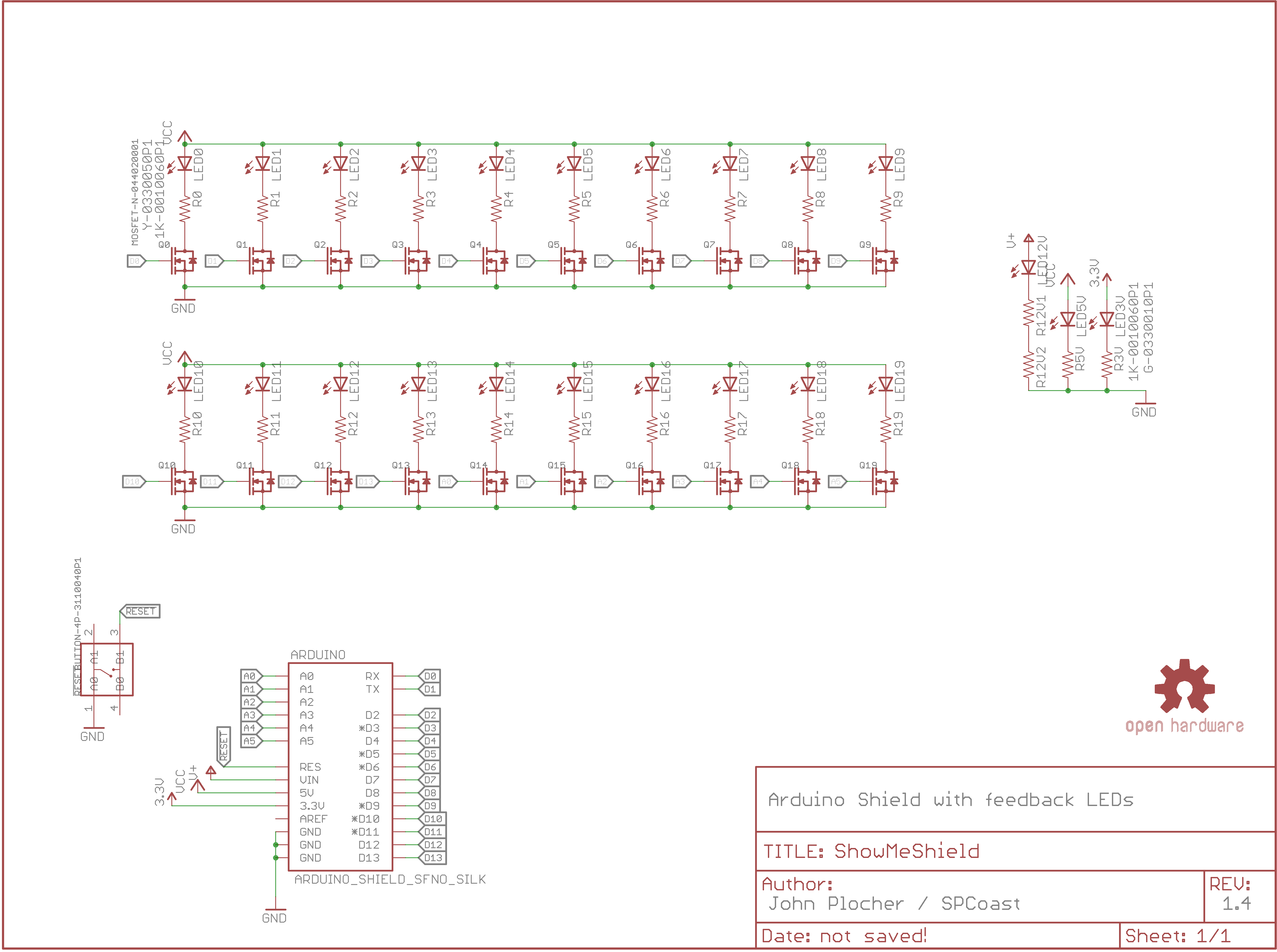

Schematic
Schematic

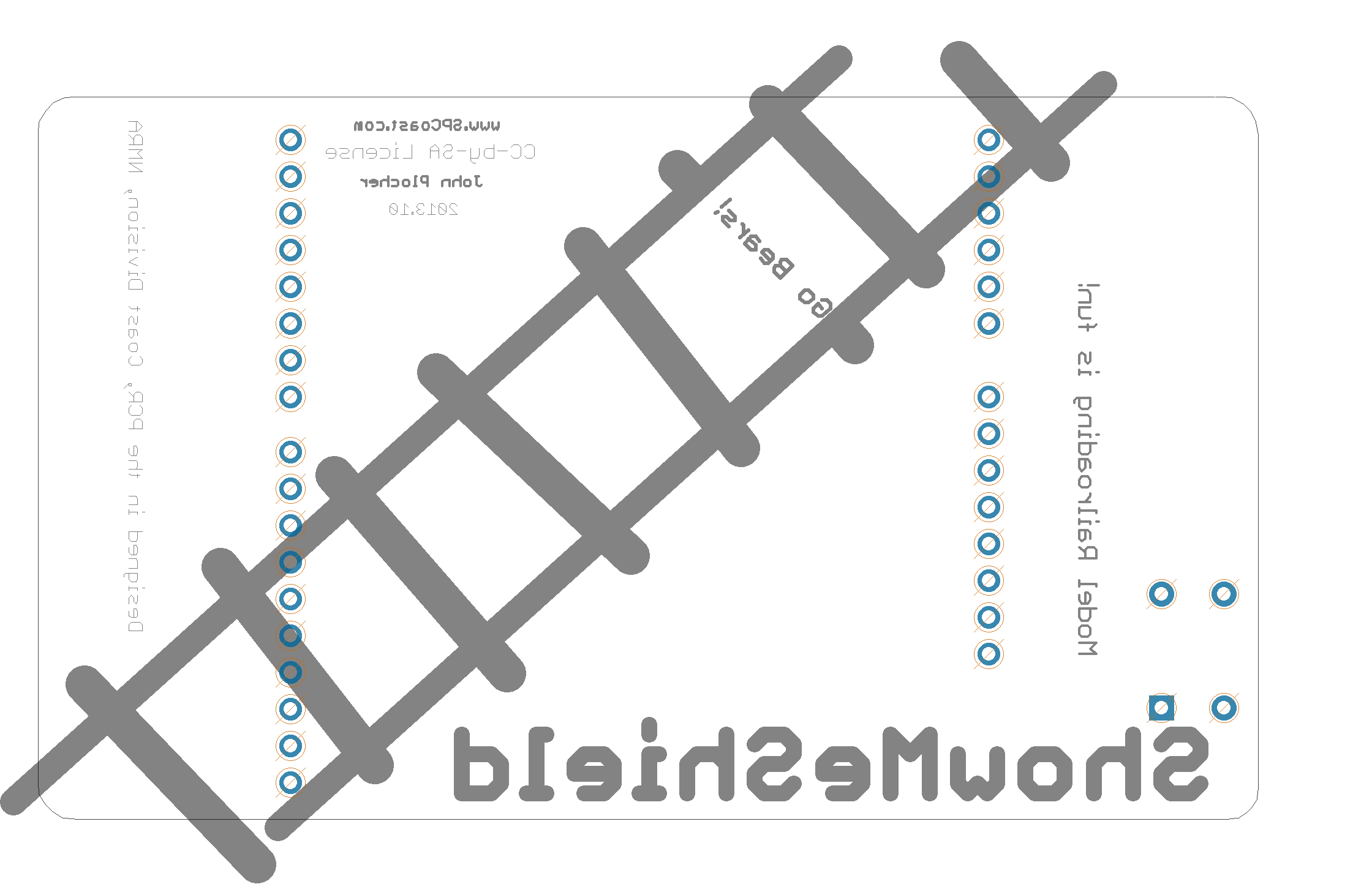

Bot Silk
Bot Silk
Board
Board
Top Silk
Top Silk

Download ShowMeShield - CHMT Component and feeder definitions
Download ShowMeShield.gerbers.zip - Gerber Fabrication files
Download ShowMeShield.parts - Parts List (spreadsheet data)



ShowMeShield.bom

Parts Value Package Quantity Library Type/Feeder
R0, R1, R2, R3, R3V, R4, R5, R5V, R6, R7, R8, R9, R10, R11, R12, R12V1, R12V2, R13, R14, R15, R16, R17, R18, R19 1K-0010060P1 0603-RES 24x MCP NONE
ARDUINO ARDUINO_SHIELD_SFNO_SILK DUEMILANOVE_VIAS 1x MCP PTH
!RESET BUTTON-4P-3110040P1 4P-6.0X6.0X5.0H 1x OPL PTH
LED3V, LED5V, LED12V G-0330010P1 CHIPLED_0603 3x MCP NONE
Q0, Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8, Q9, Q10, Q11, Q12, Q13, Q14, Q15, Q16, Q17, Q18, Q19 MOSFET-N-044020001 SOT23 20x OPL NONE
U$1 OSHW-LOGOM OSHW-LOGO-M 1x SparkFun PTH
LED0, LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8, LED9, LED10, LED11, LED12, LED13, LED14, LED15, LED16, LED17, LED18, LED19 Y-0330050P1 CHIPLED_0603 20x MCP NONE

This technical documentation is licensed under the Creative Commons CC-by-SA terms.
