SVL-Light-It-Base





SVL-Light-It-Base Version 1.0

First built: 2019-01

Not tested or validated

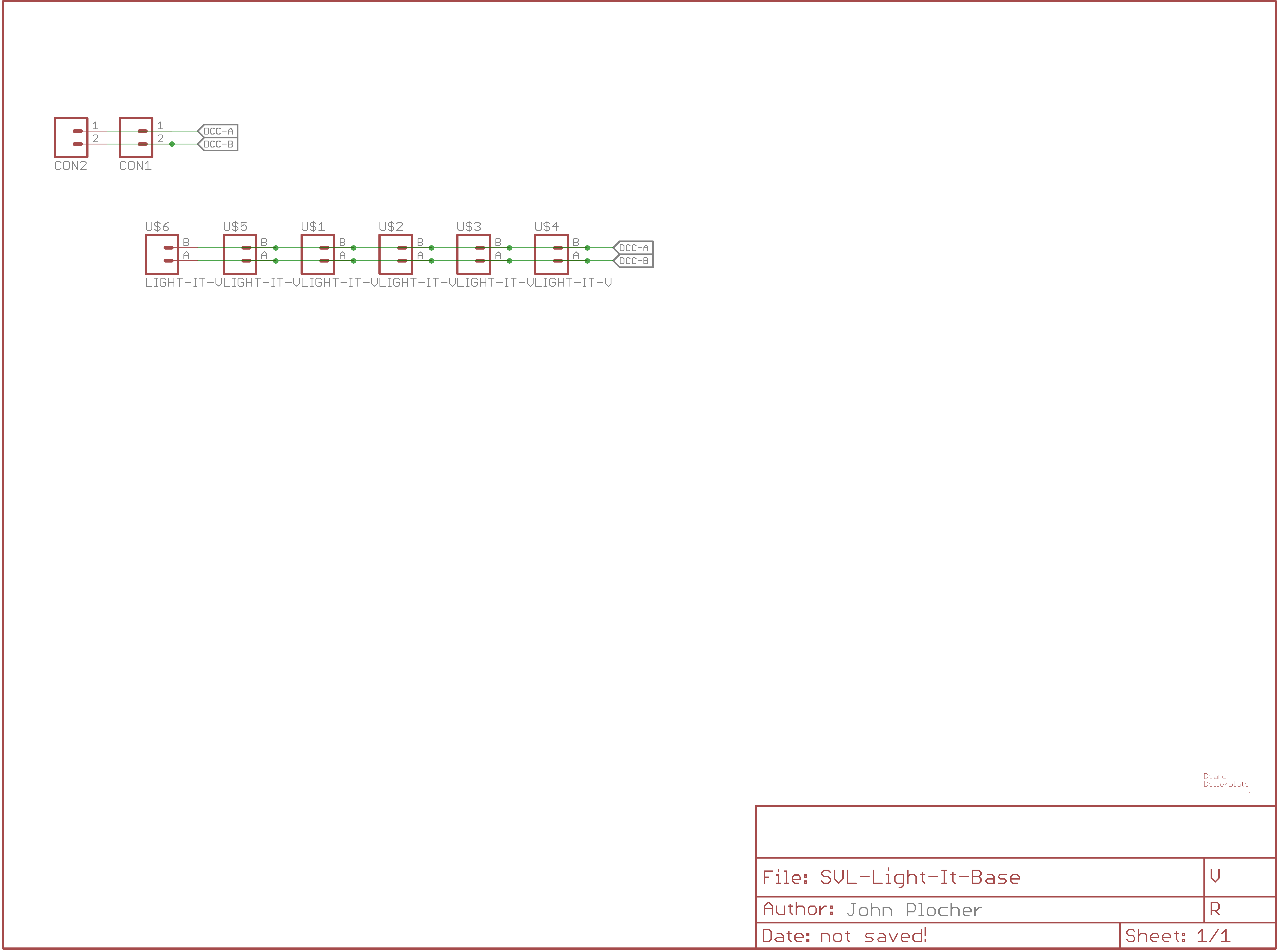

Schematic
Schematic

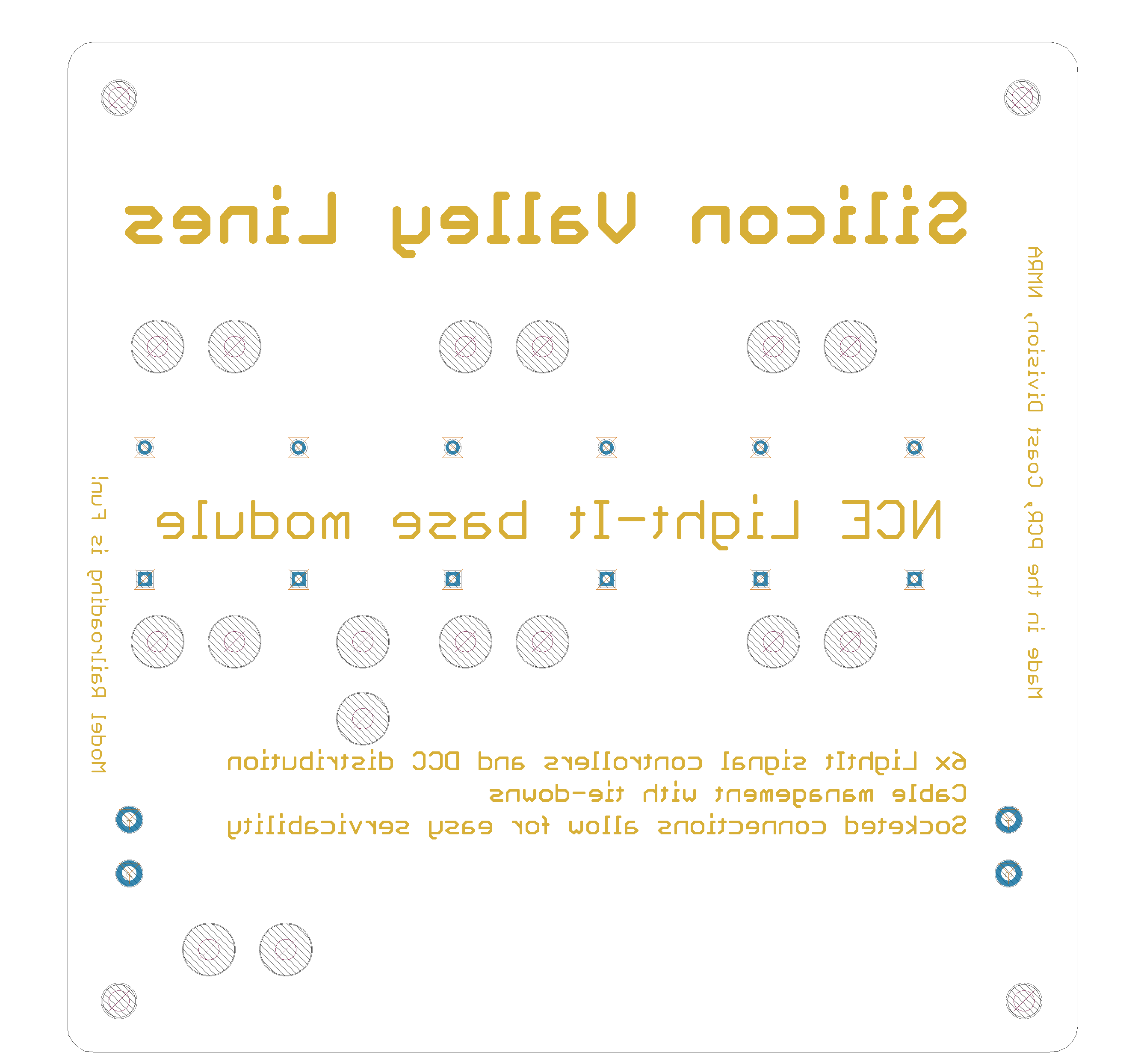

Bot Silk
Bot Silk

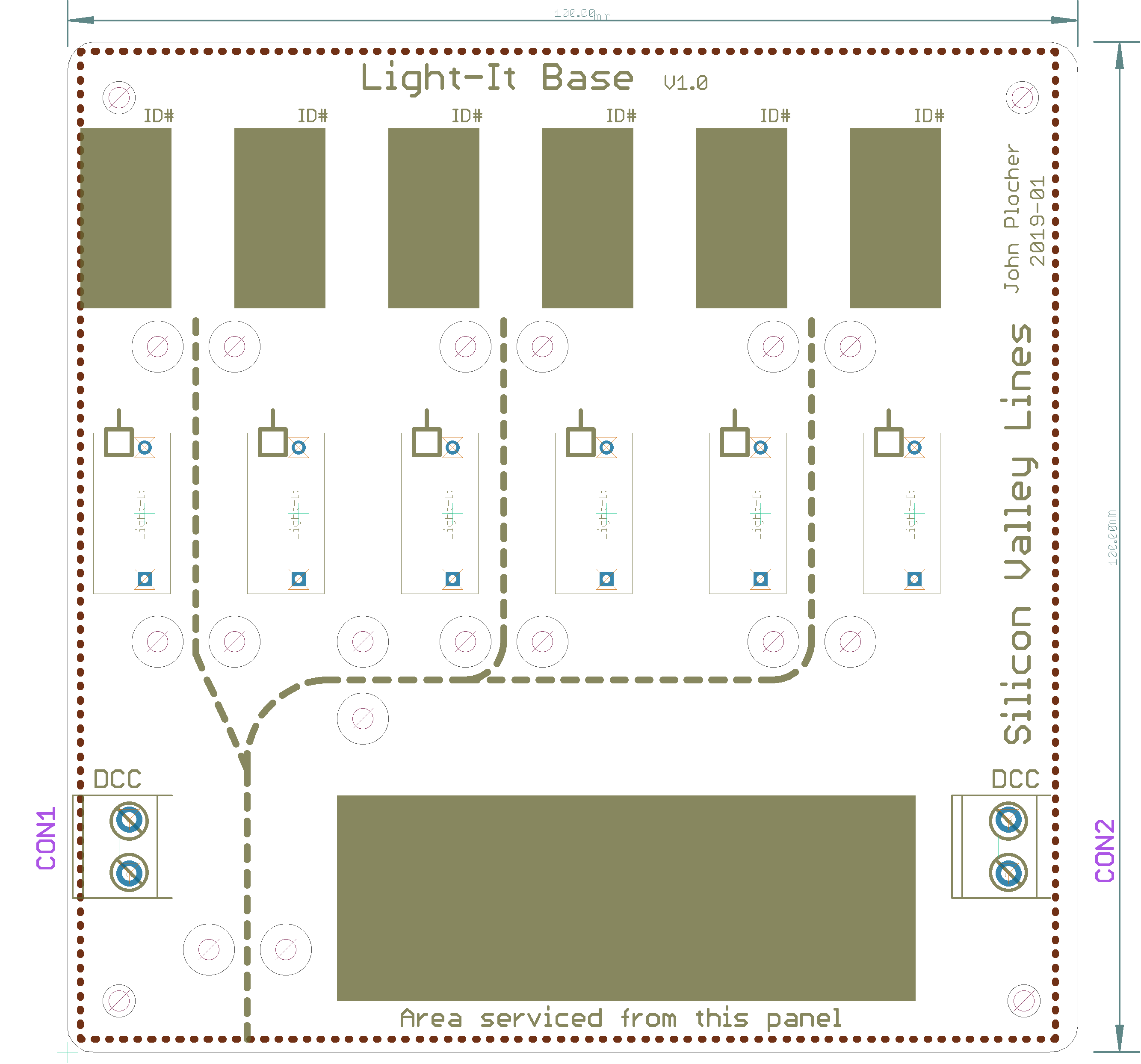

Board
Board
Top Silk
Top Silk

Download SVL-Light-It-Base.gerbers.zip - Gerber Fabrication files
Download SVL-Light-It-Base.parts - Parts List (spreadsheet data)



SVL-Light-It-Base.bom

Parts Value Package Quantity Library Type/Feeder
CON1, CON2   MSTB2 2x SPCoast PTH
BOARD1 BOARD100X100 BOARD-SEEED10X10 1x SPCoast PTH
U$1, U$2, U$3, U$4, U$5, U$6 LIGHT-IT-V LIGHT-IT-V 6x SPCoast PTH

Documentation

Like other NCE trinkets, the LightIts need infrequent servicing. They need to be reprogrammed, they burn out, they get stuck and need some TLC… Rather than crawling under the layout trying to find them, this mounting panel lets us put them in one easily serviced place, and allows easy replacement without having a wiring mess.

This technical documentation is licensed under the CERN Open Hardware Licence v1.2
