RFID-RC522-Wemos

Fork project on GitHub

RFID reader based on RC522 module with Wemos and LCD

RFID-RC522-Wemos-Graphic
RFID-RC522-Wemos-Graphic





RFID-RC522-Wemos Version 1.0

First built: 2017-02

Initial version, talks rudamentary MQTT

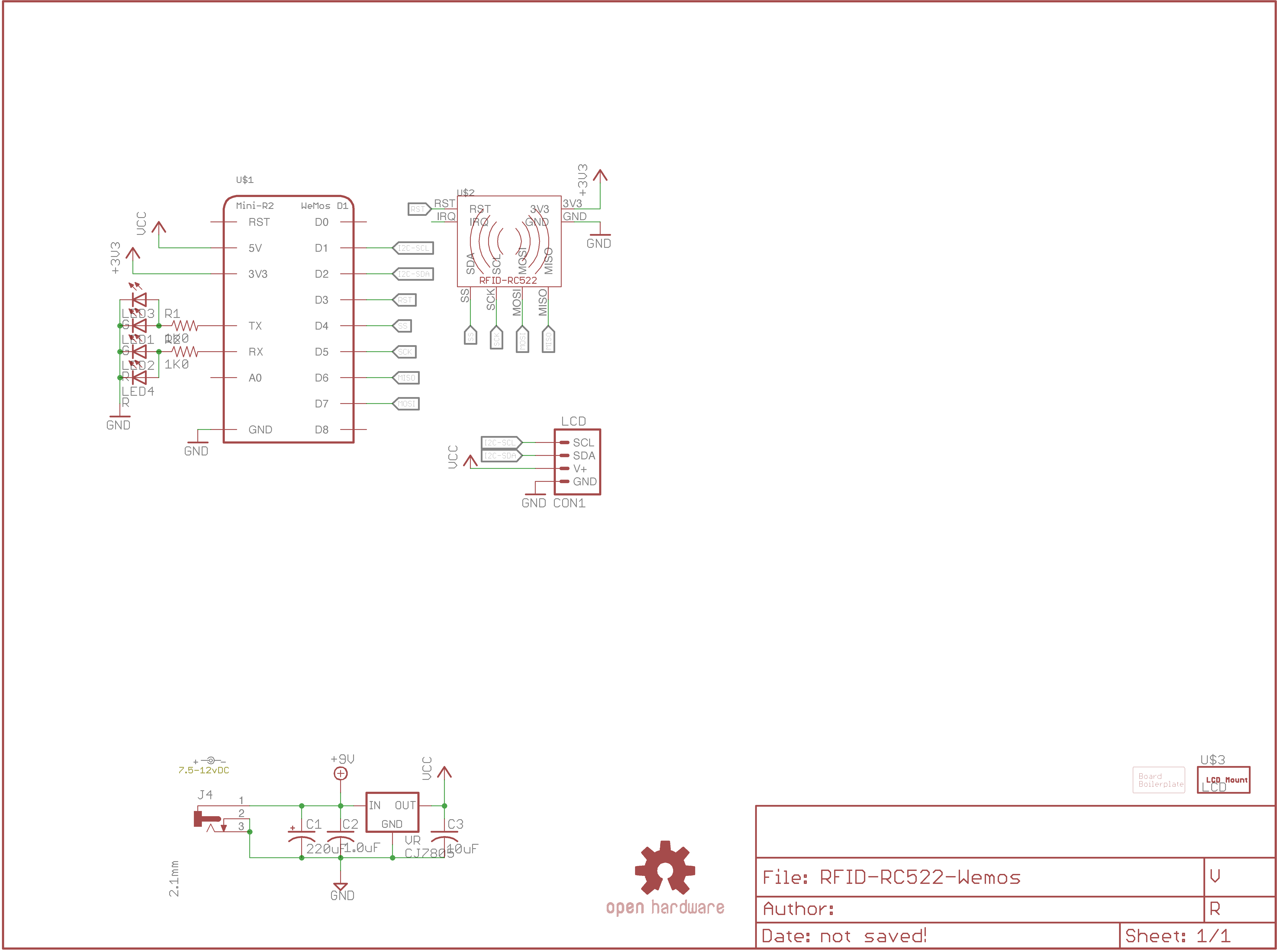

Schematic
Schematic

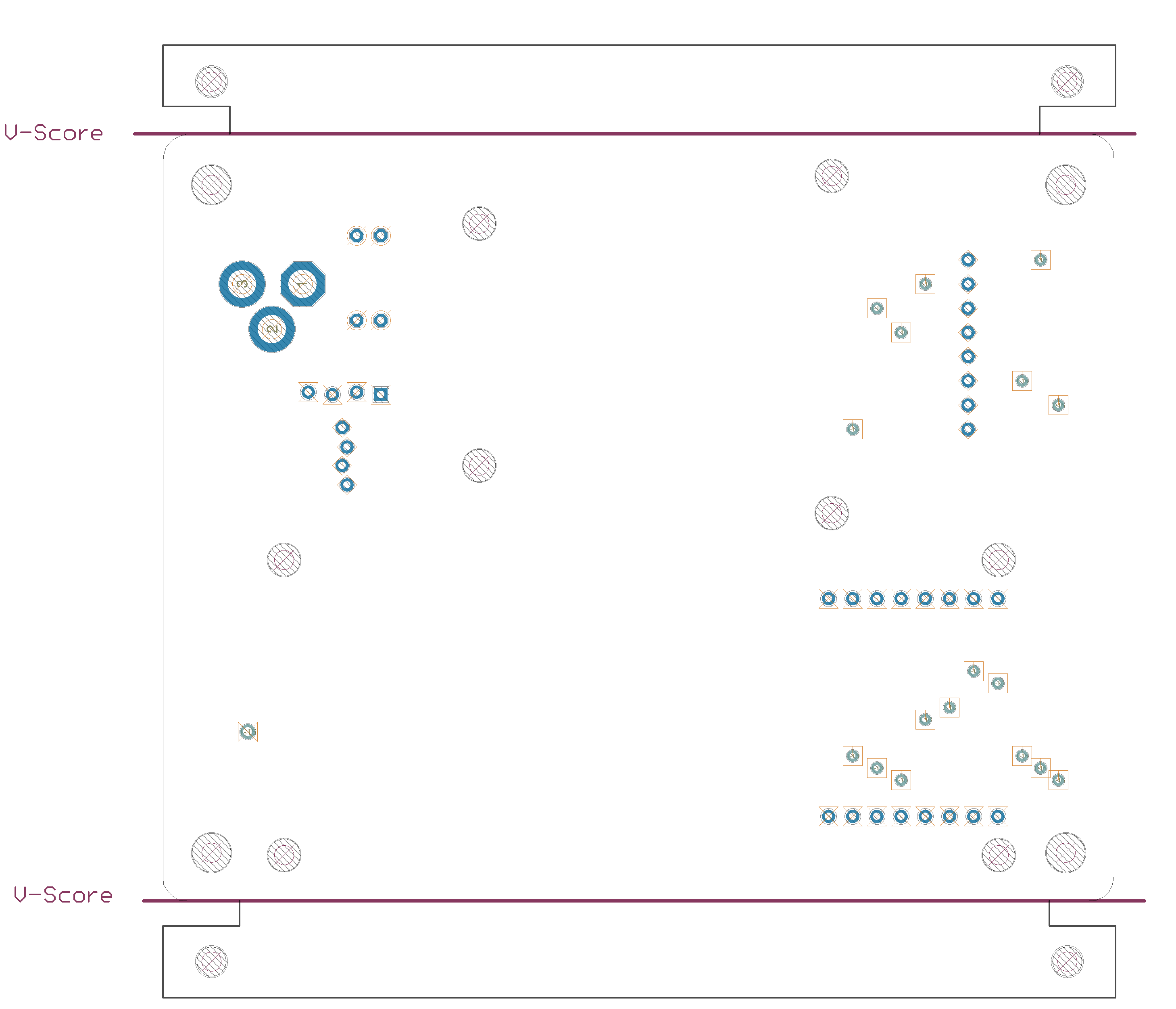

Bot Silk
Bot Silk

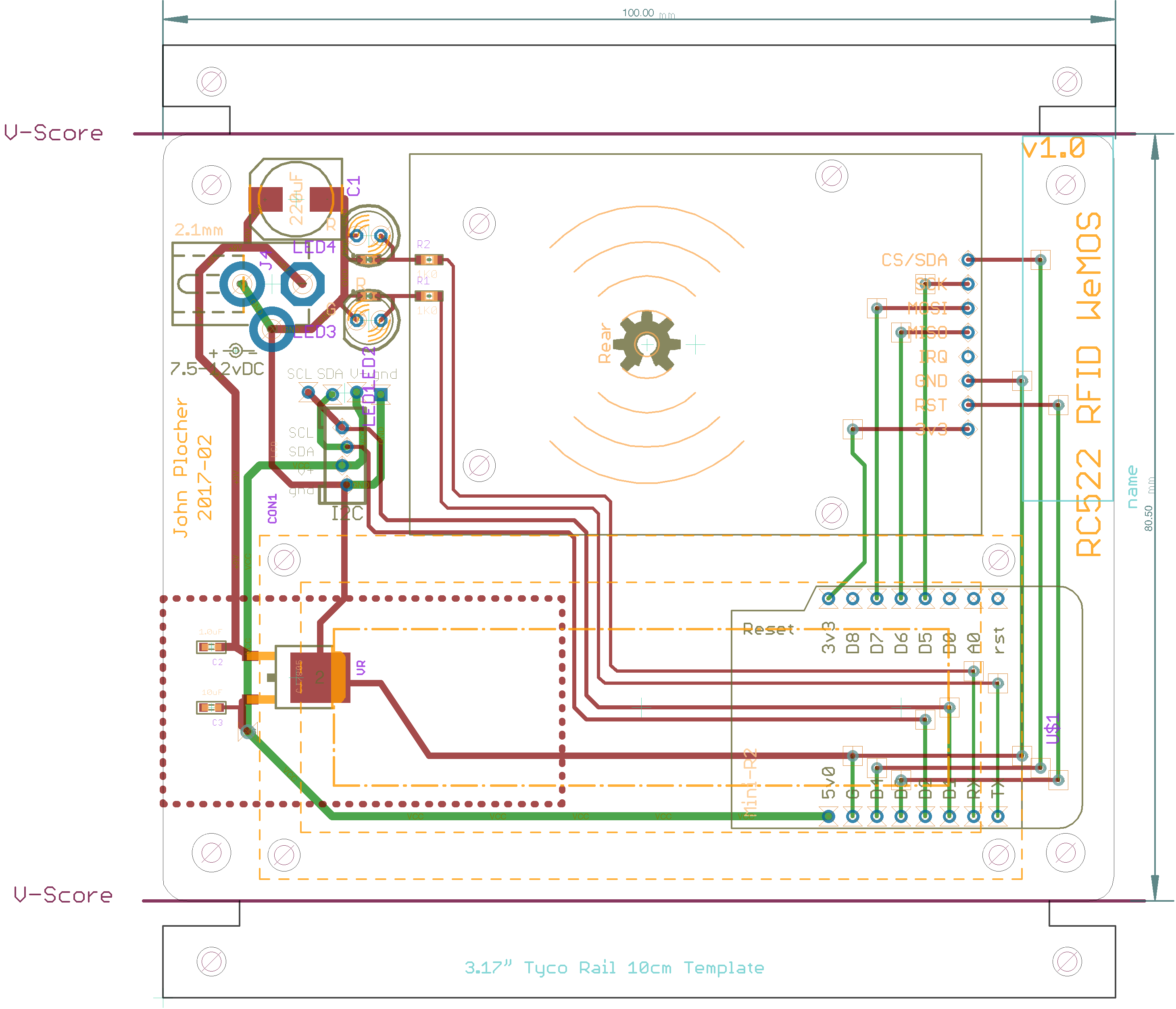

Board
Board

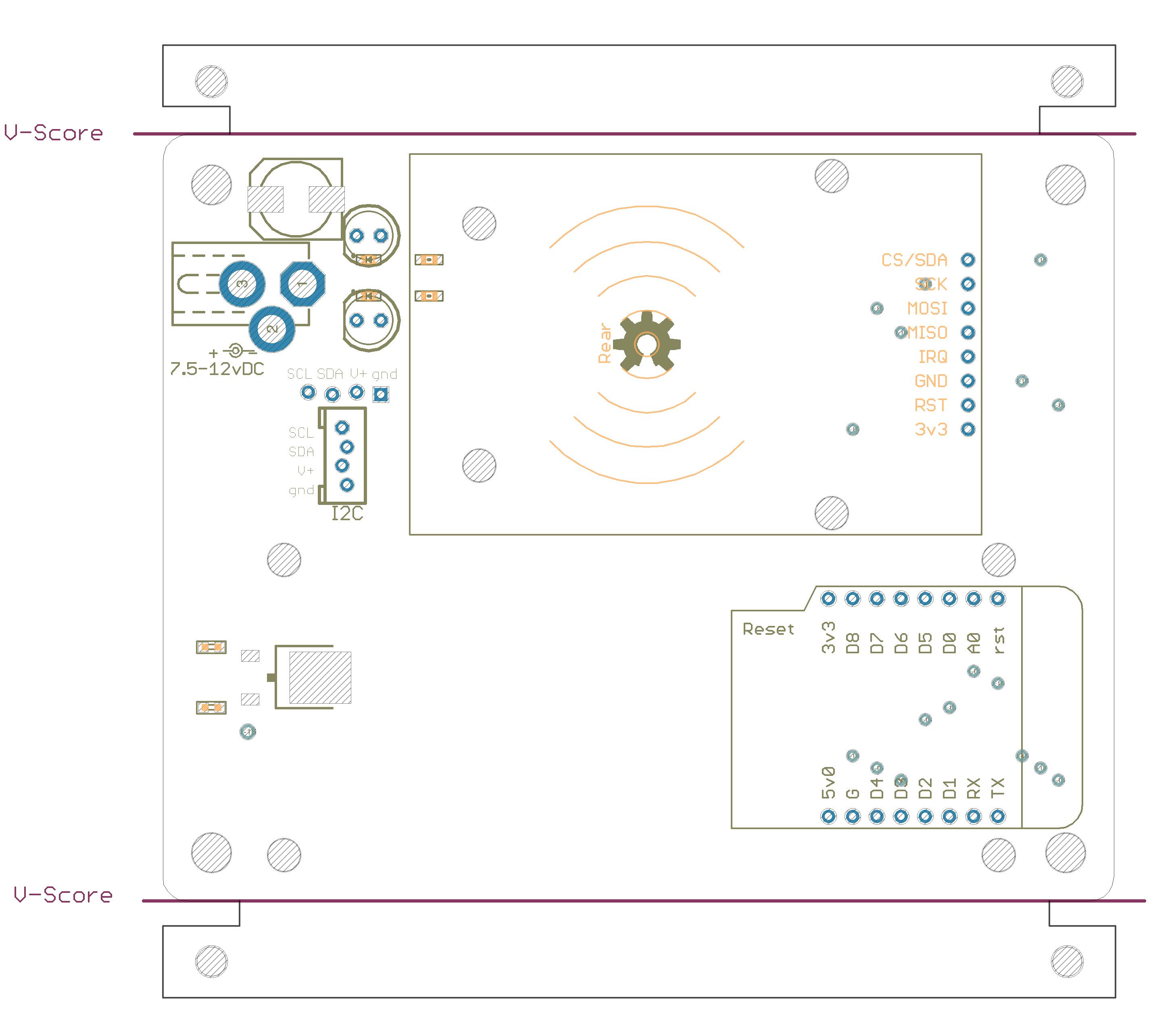

Top Silk
Top Silk

Download RFID-RC522-Wemos.gerbers.zip - Gerber Fabrication files
Download RFID-RC522-Wemos.parts - Parts List (spreadsheet data)



RFID-RC522-Wemos.bom

Parts Value Package Quantity Library Type/Feeder
C2 1.0uF 0603-CAP 1x SPCoast 20
R1, R2 1K0 0603-RES 2x SPCoast 41
J4 2.1mm DCJ0202 1x SPCoast PTH
POWER 7.5-12vDC PWR_LABEL 1x SPCoast PTH
C3 10uF 0603-CAP 1x SPCoast 22
C1 220uF 0810-CAP 1x SPCoast NONE
BOARD1 BOARD BOARD-DINRAIL-3.17INX10CM 1x SPCoast PTH
VR CJ7805 TO-252 1x SPCoast NONE
LED1 G 0603-LED 1x SPCoast 3
LED3 G LED5MM 1x SPCoast PTH
CON1 LCD I2C-L 1x SPCoast PTH
U$3 LCD LCD-16X2-SILK 1x SPCoast PTH
U$1 Mini-R2 WEMOS-D1 1x SPCoast PTH
LOGO1 OSHW OSHW-LOGO-L 1x SPCoast PTH
LED2 R 0603-LED 1x SPCoast 1
LED4 R LED5MM 1x SPCoast PTH
U$2 RFIDBACK RC522-REVERSE 1x SPCoast PTH

Documentation

Wemos RFID / LCD device

I found a cheap RC522 RFID card reader on eBay eBay example and wanted to experiment with it. In the future, I may use this to do location-based interactions with the crews (i.e., switch list identification, local control unlocking, etc)

At this point, the Wemos D1 Mini can send MQTT messages via WiFi that can be consumed by other nodes - or even JMRI.
