OBS-buttons-processor

Fork project on GitHub

Processor Board for Arduino Keyboard Box



Download OBS-buttons-processor.pdf - Documentation
Download eagle -



OBS-buttons-processor Version 1.0

First built: 2020.11

An Arduino Pro-mini and connectors for IO daughterboard

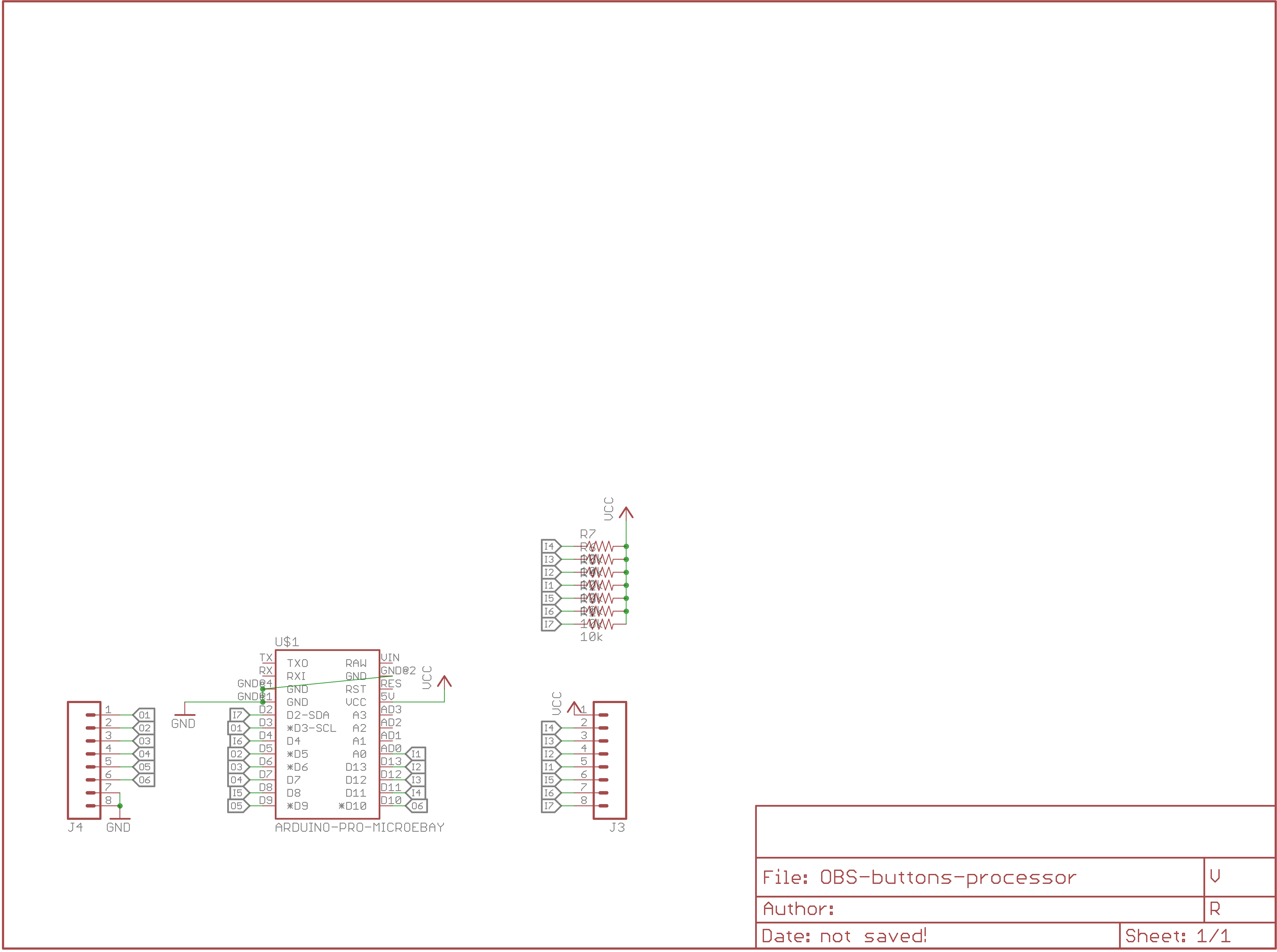

Schematic
Schematic

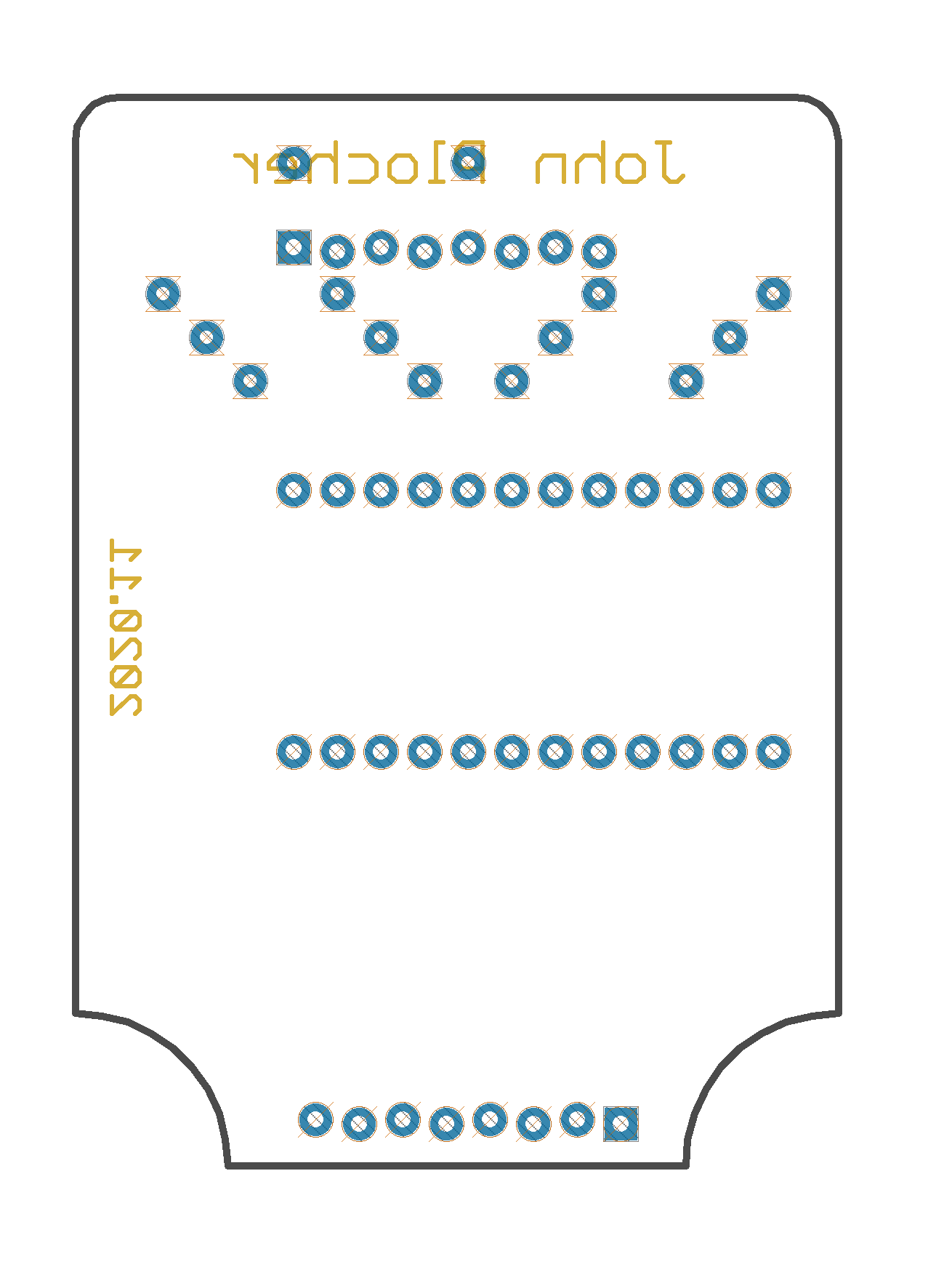

Bot Silk
Bot Silk

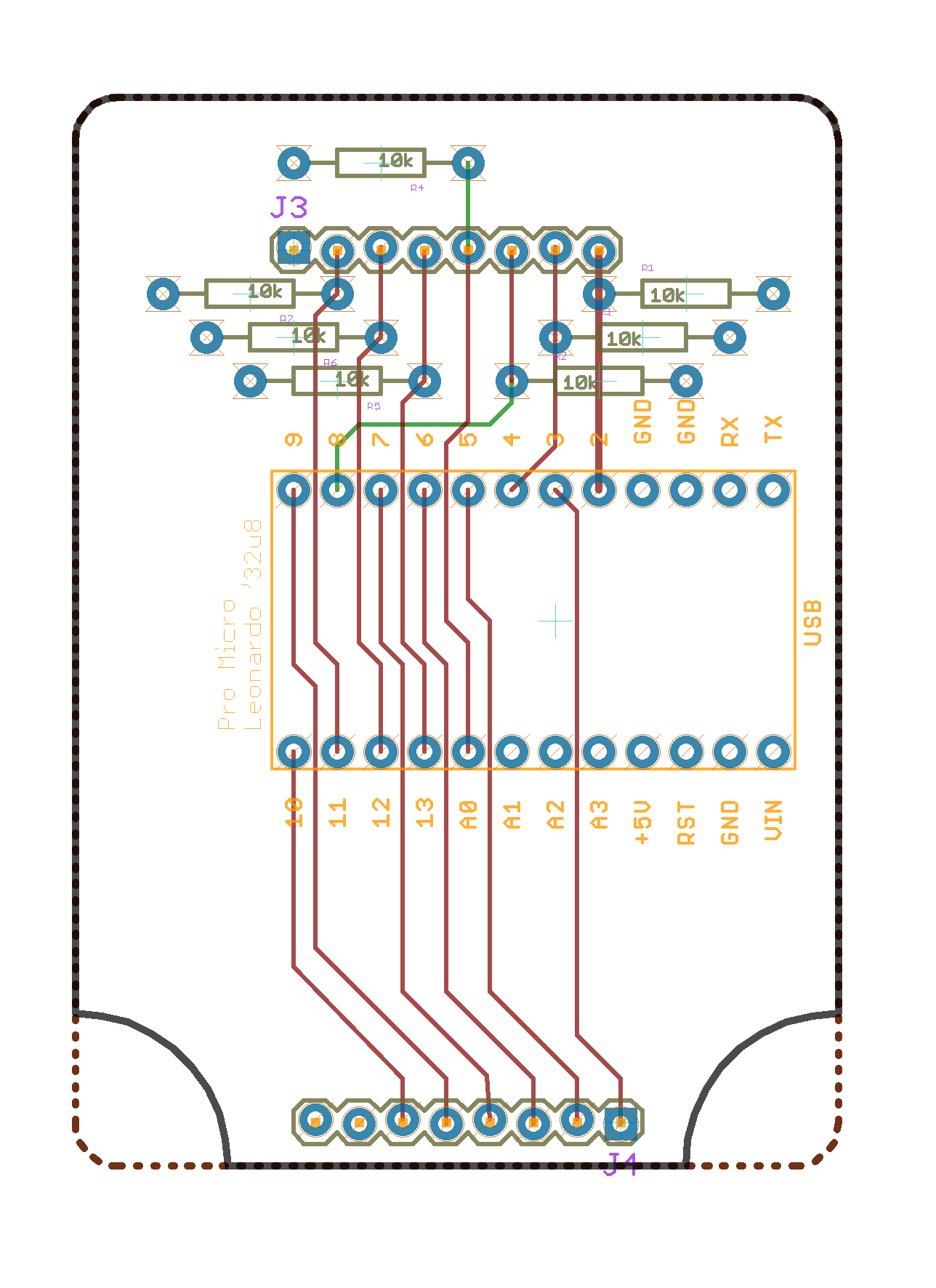

Board
Board

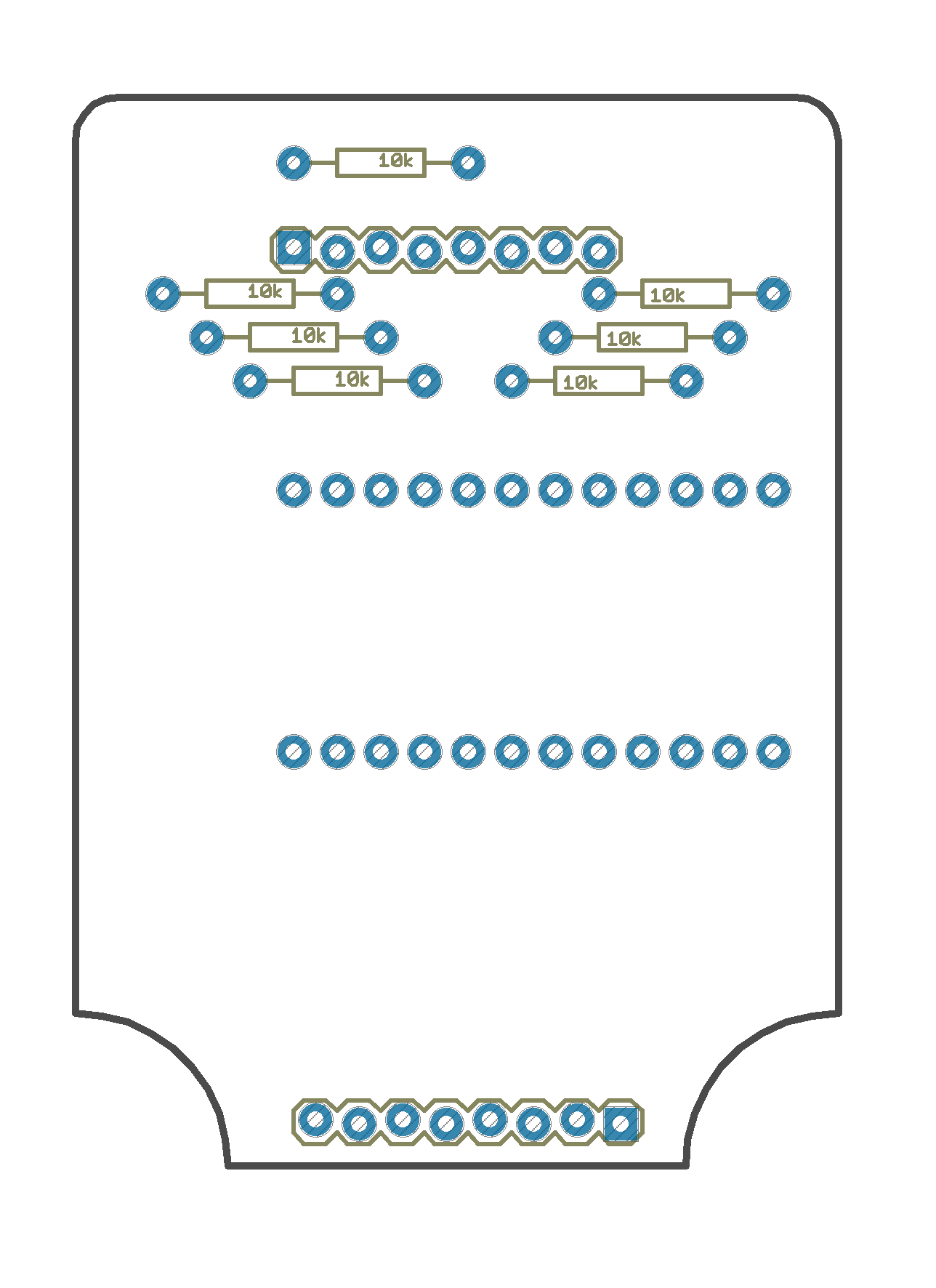

Top Silk
Top Silk

Download OBS-buttons-processor.gerbers.zip - Gerber Fabrication files
Download OBS-buttons-processor.parts - Parts List (spreadsheet data)



OBS-buttons-processor.bom

Parts Value Package Quantity Library Type/Feeder
R1, R2, R3, R4, R5, R6, R7 10k AXIAL-0.4-RES 7x SPCoast PTH
J3, J4   1X08_LOCK 2x SPCoast PTH
U$1 ARDUINO-PRO-MICROEBAY ARDUINO-PRO-MICRO 1x SPCoast PTH

This technical documentation is licensed under the CERN Open Hardware Licence v1.2

Tags: eagle SPCoast
