Buttons Board for Arduino Keyboard Box



Download eagle -



OBS-buttons-buttons Version 1.1

First built: 2020.11

IO daughterboard with 3x SPDT momentary switches and a pushbutton

Schematic
Schematic

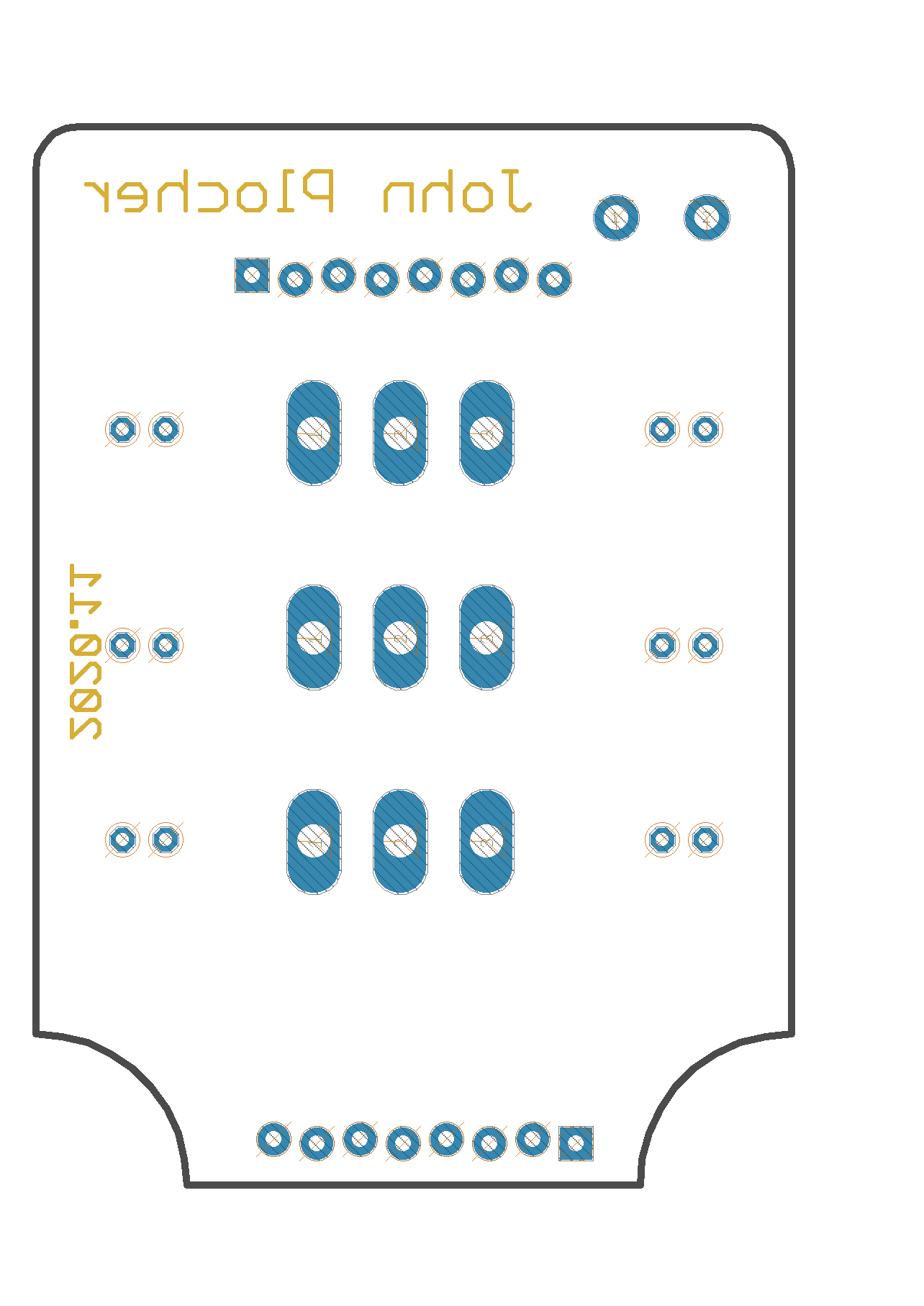

Bot Silk
Bot Silk

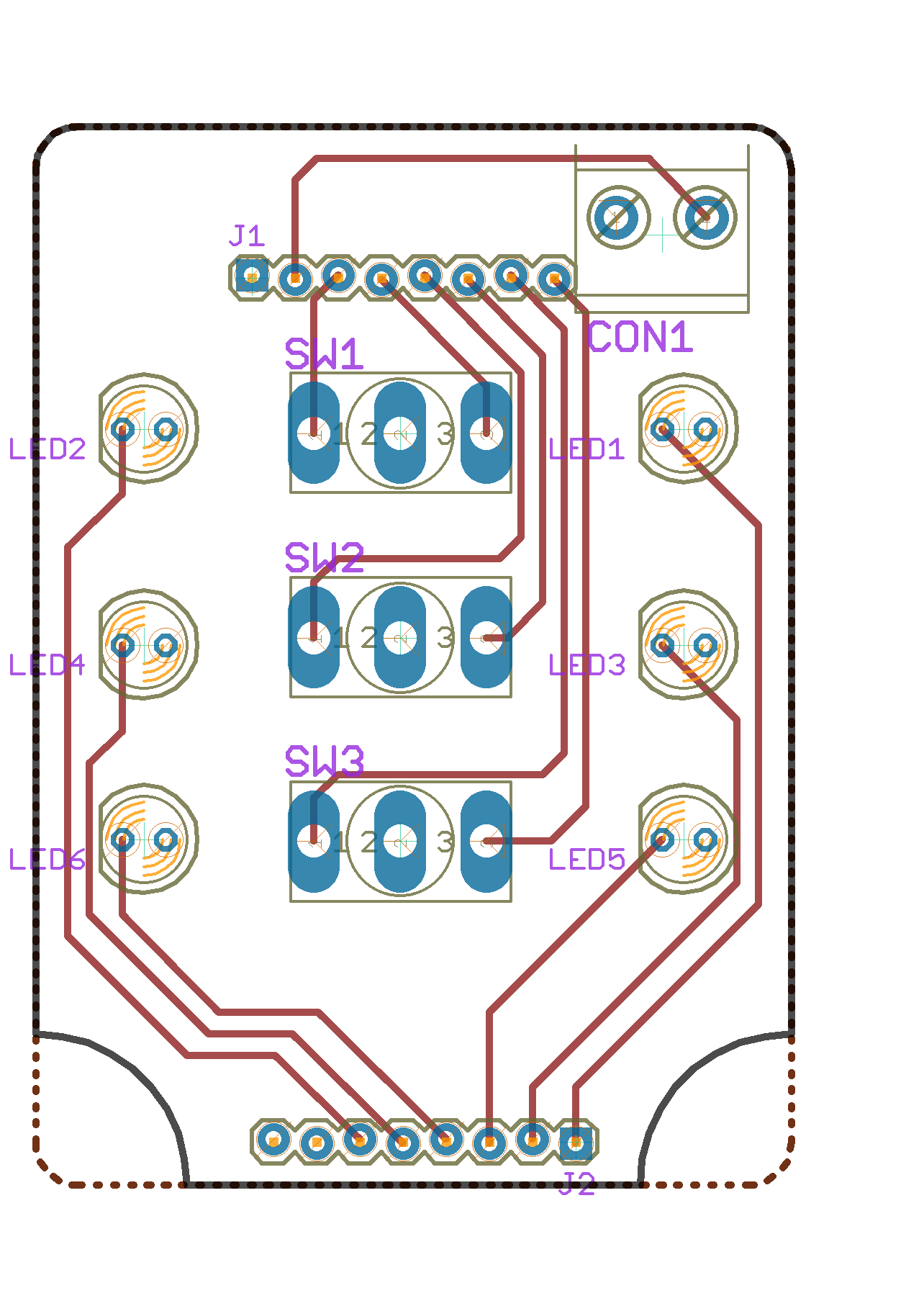

Board
Board

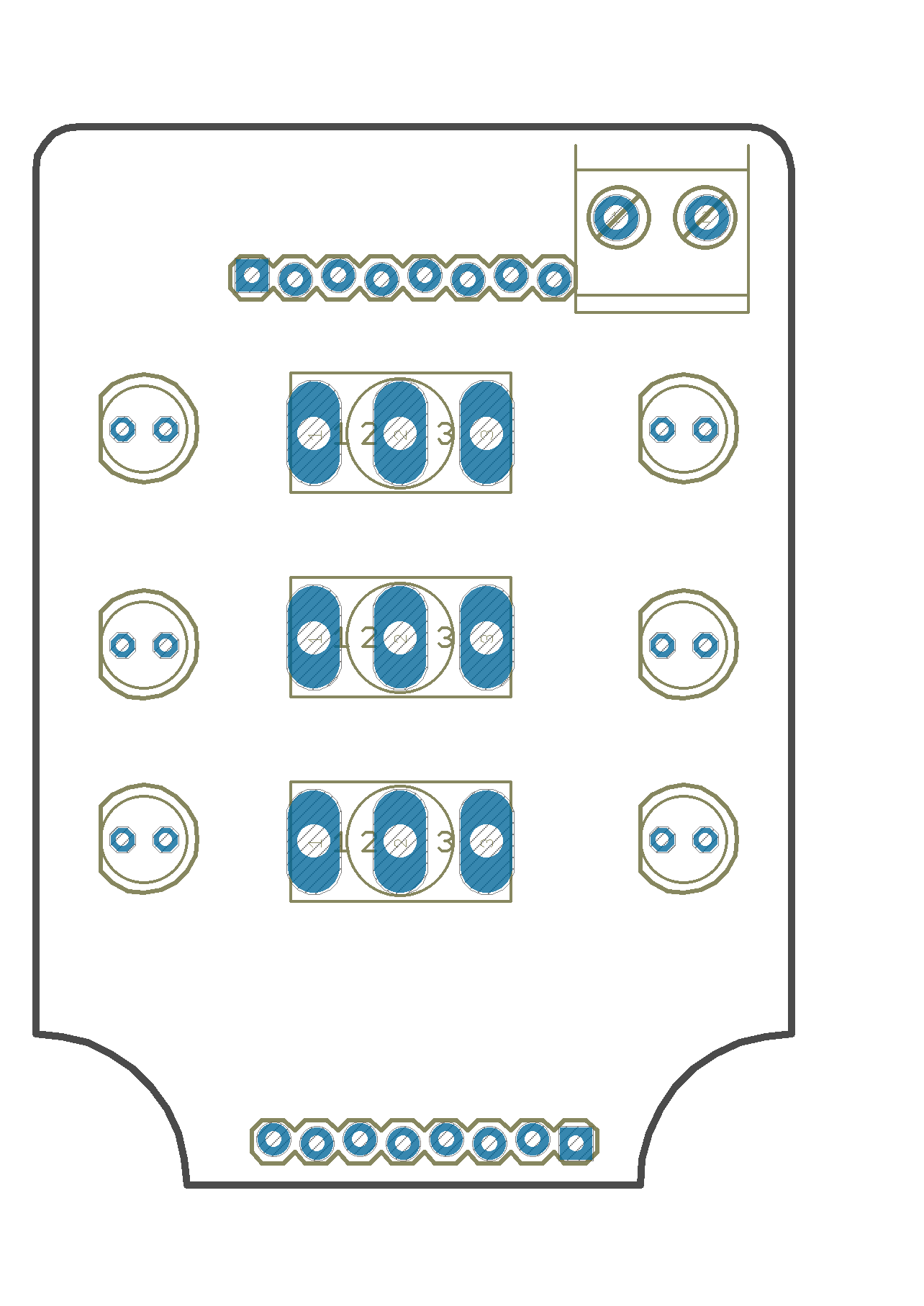

Top Silk
Top Silk

Download OBS-buttons-buttons.gerbers.zip - Gerber Fabrication files
Download OBS-buttons-buttons.parts - Parts List (spreadsheet data)



OBS-buttons-buttons.bom

Parts Value Package Quantity Library Type/Feeder
J1, J2   1X08_LOCK 2x SPCoast PTH
LED1, LED2, LED3, LED4, LED5, LED6   LED5MM 6x SPCoast PTH
CON1   MSTB2 1x SPCoast PTH
SW1, SW2, SW3   SWITCH-SPDT-508 3x SPCoast PTH

OBS-buttons-buttons Version 1.0

First built: 2020.11

IO daughterboard with 3x SPDT momentary switches and a pushbutton

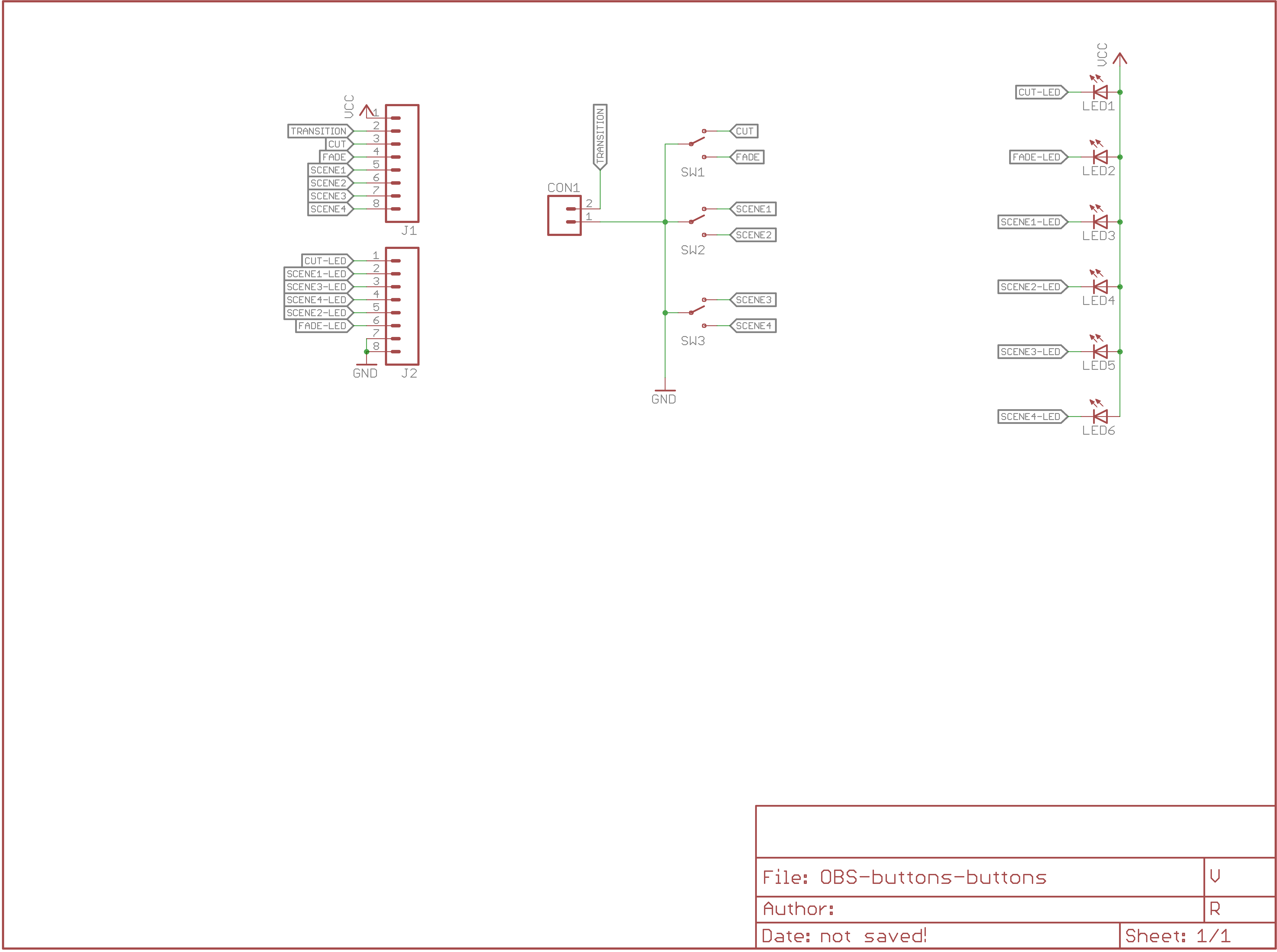

Schematic
Schematic

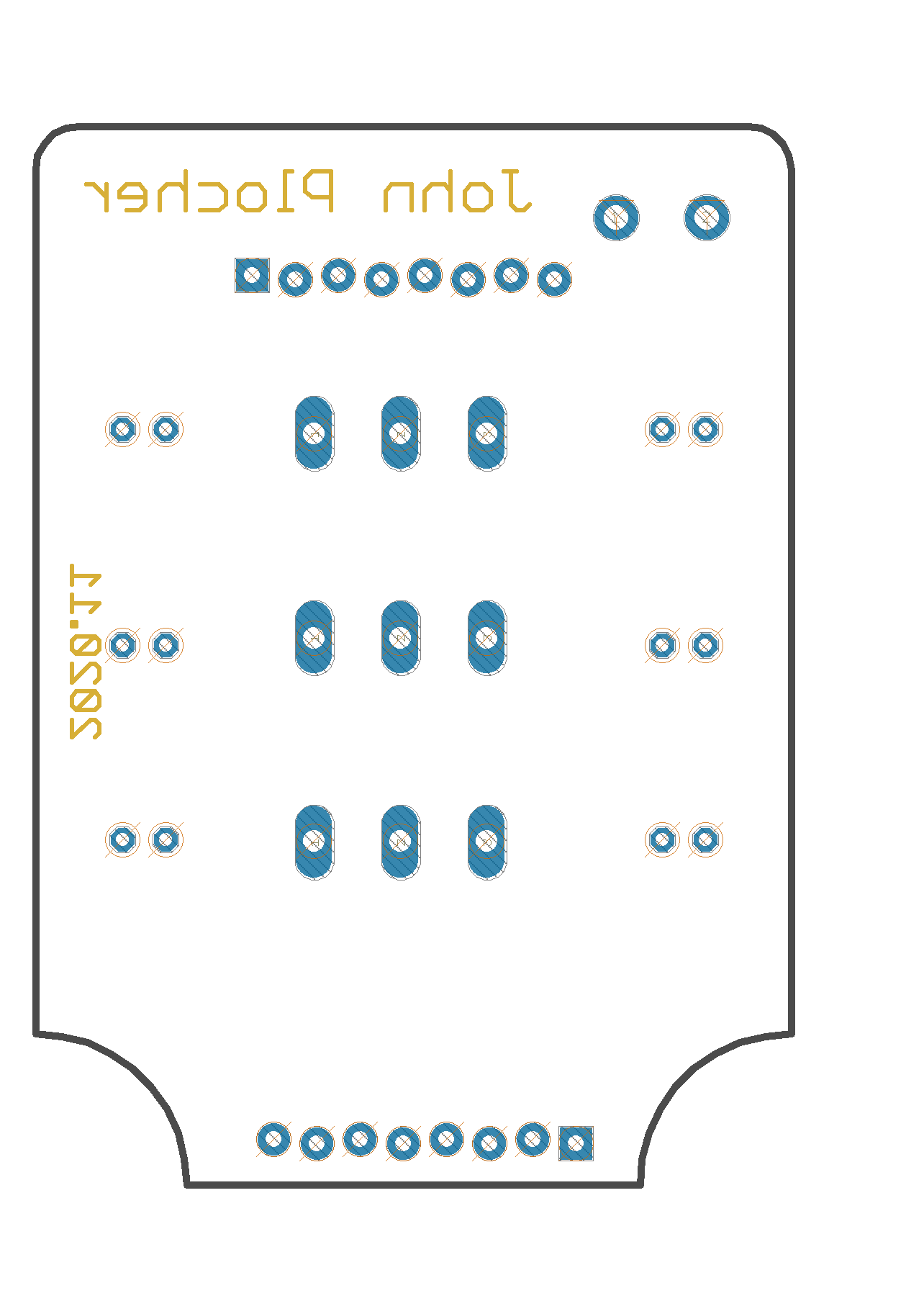

Bot Silk
Bot Silk

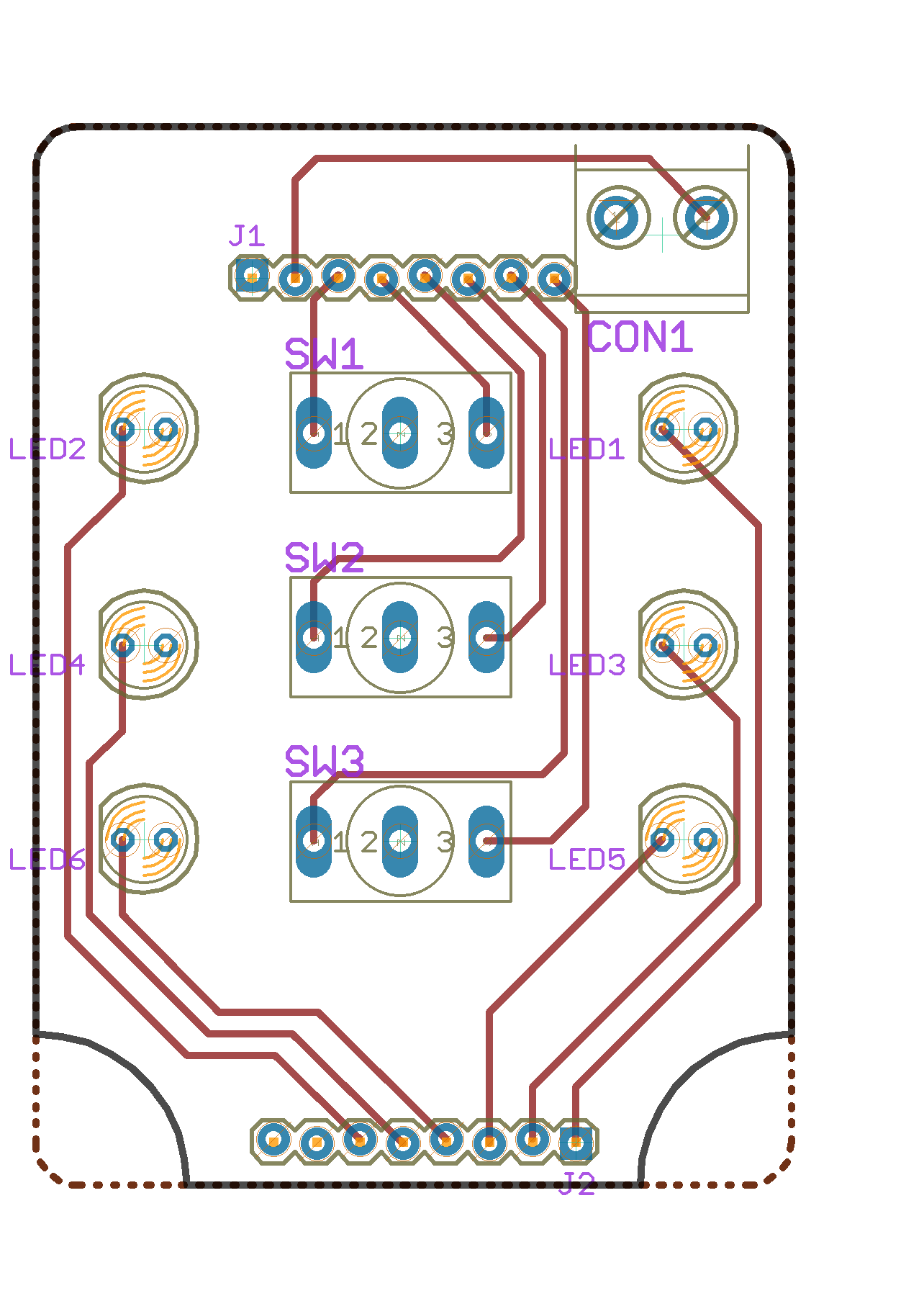

Board
Board

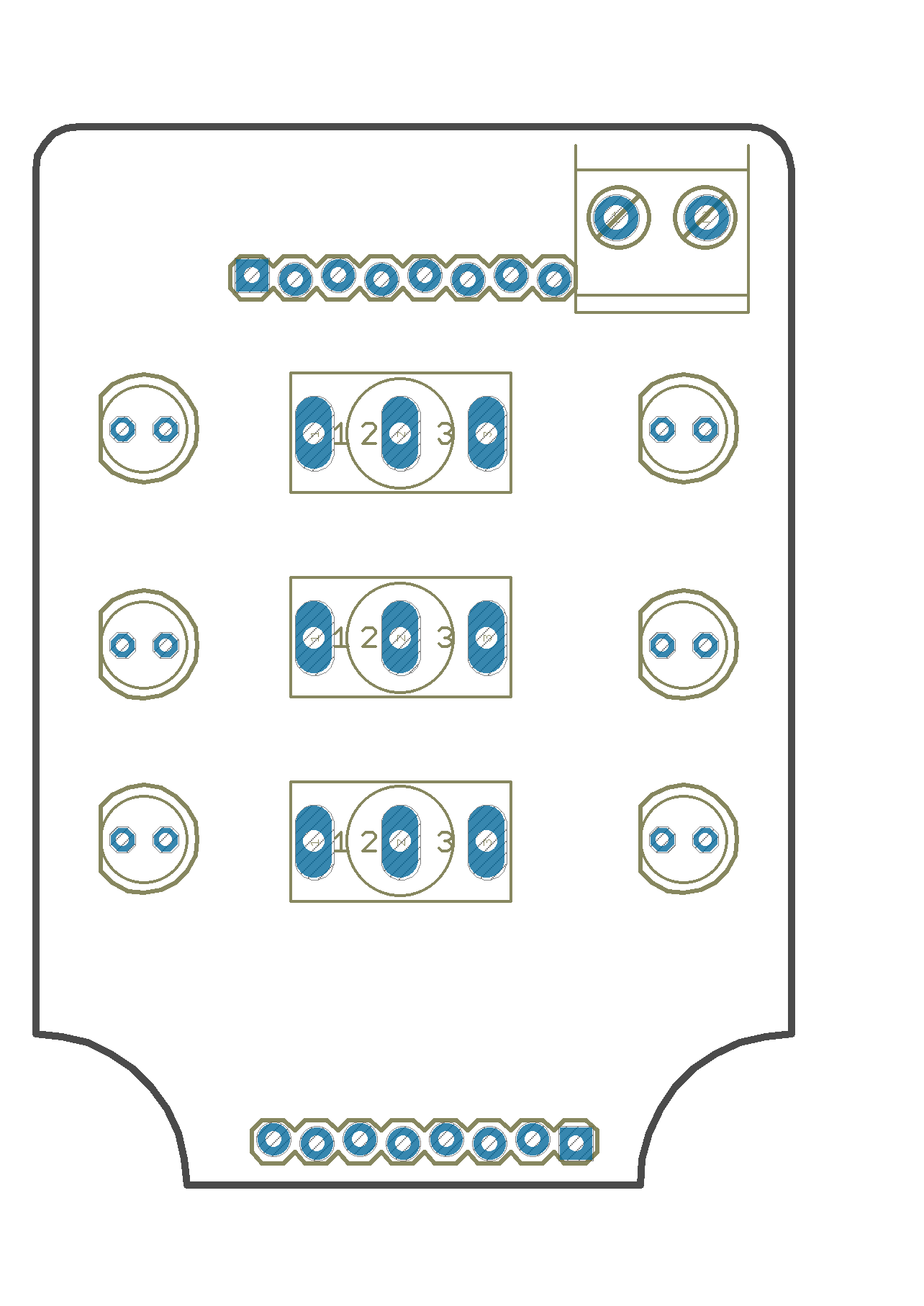

Top Silk
Top Silk

Download OBS-buttons-buttons.gerbers.zip - Gerber Fabrication files
Download OBS-buttons-buttons.parts - Parts List (spreadsheet data)



OBS-buttons-buttons.bom

Parts Value Package Quantity Library Type/Feeder
J1, J2   1X08_LOCK 2x SPCoast PTH
LED1, LED2, LED3, LED4, LED5, LED6   LED5MM 6x SPCoast PTH
CON1   MSTB2 1x SPCoast PTH
SW1, SW2, SW3   SWITCH-SPDT-508 3x SPCoast PTH

This technical documentation is licensed under the CERN Open Hardware Licence v1.2
