MRCS-MSS-Detector-Crossover

Fork project on GitHub

Modular Signaling System Crossover board cpOD-M



Download MRCS-MSS-Detector-Crossover_array.scr - Eagle SCRipt



MRCS-MSS-Detector-Crossover Version 1.0

First built: 2016-08, 2017-03

V1.0 (rev B) minor layout tweeks and silkscreen fixes

Re-laid-out PCB

  • thicker traces, no right angles
  • ground plane
  • silkscreen labels

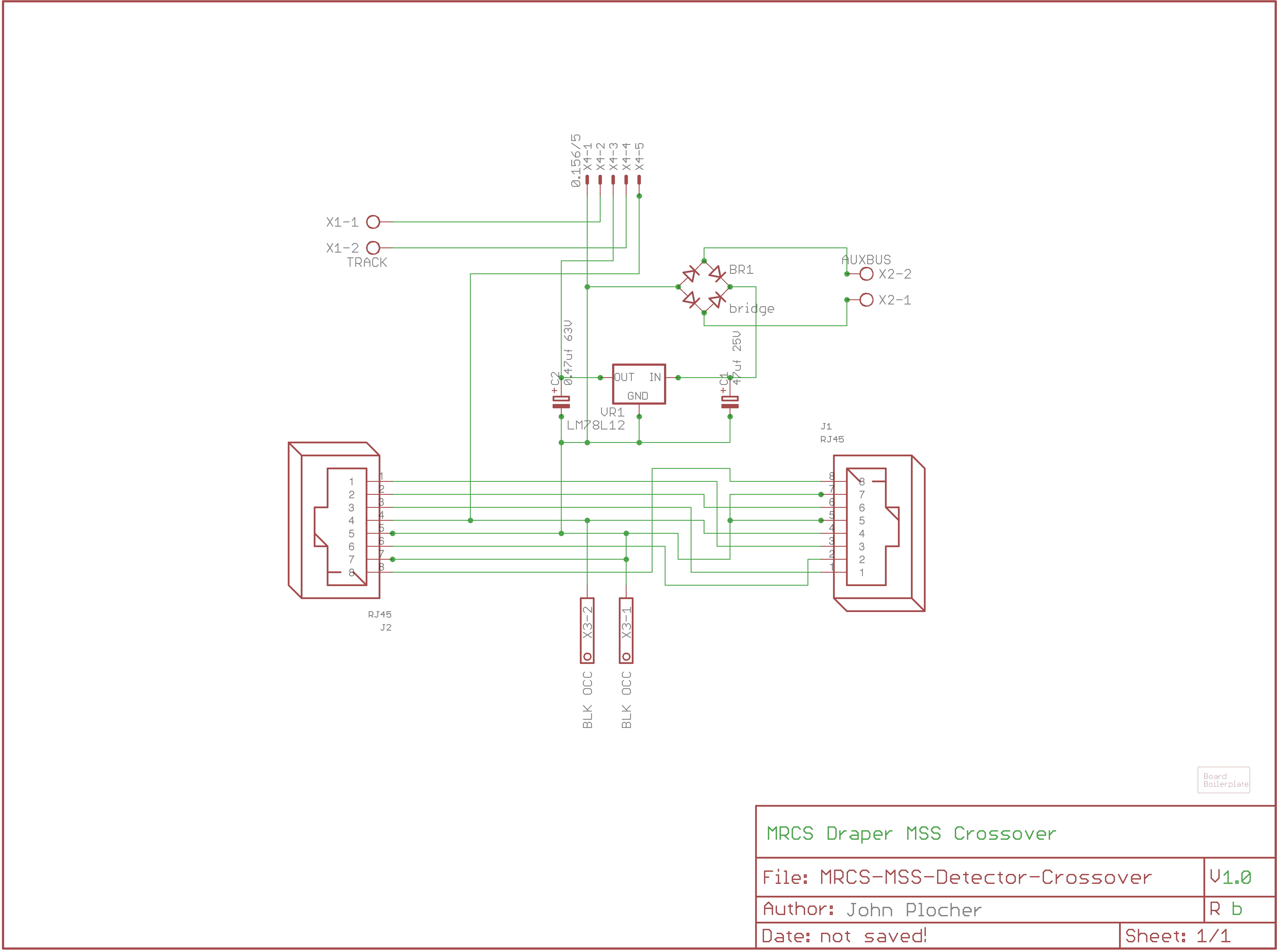

Schematic
Schematic

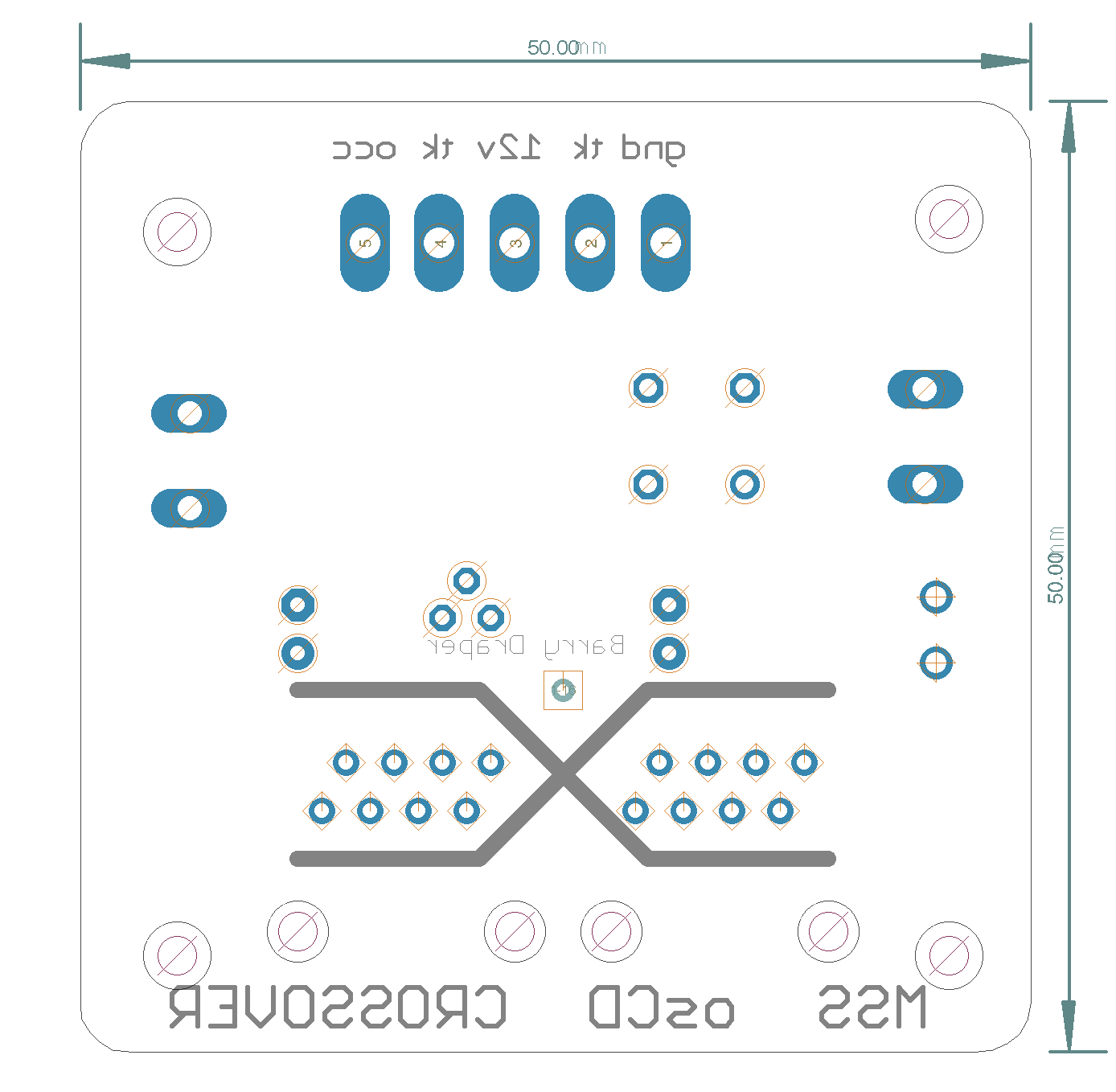

Bot Silk
Bot Silk

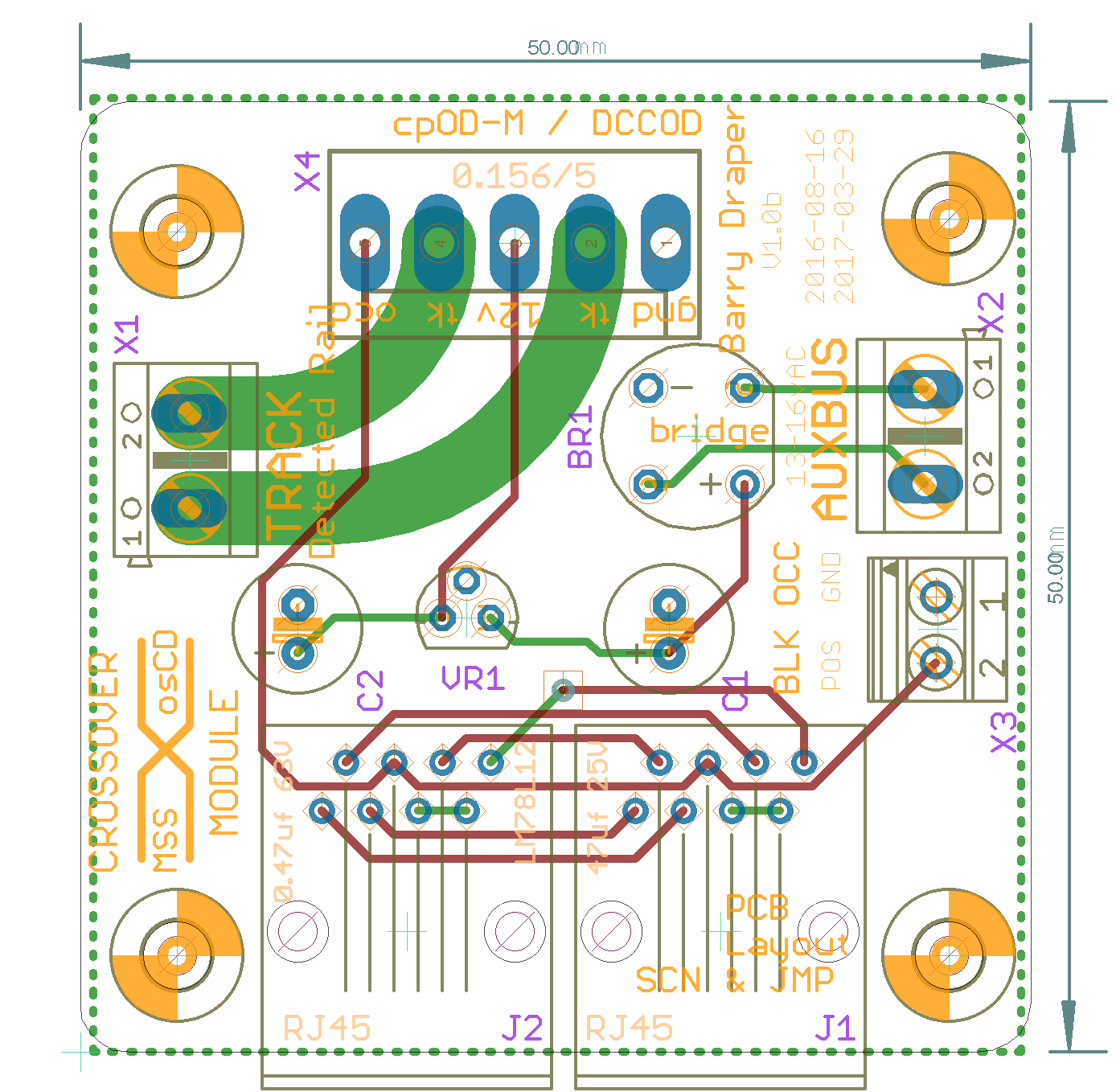

Board
Board

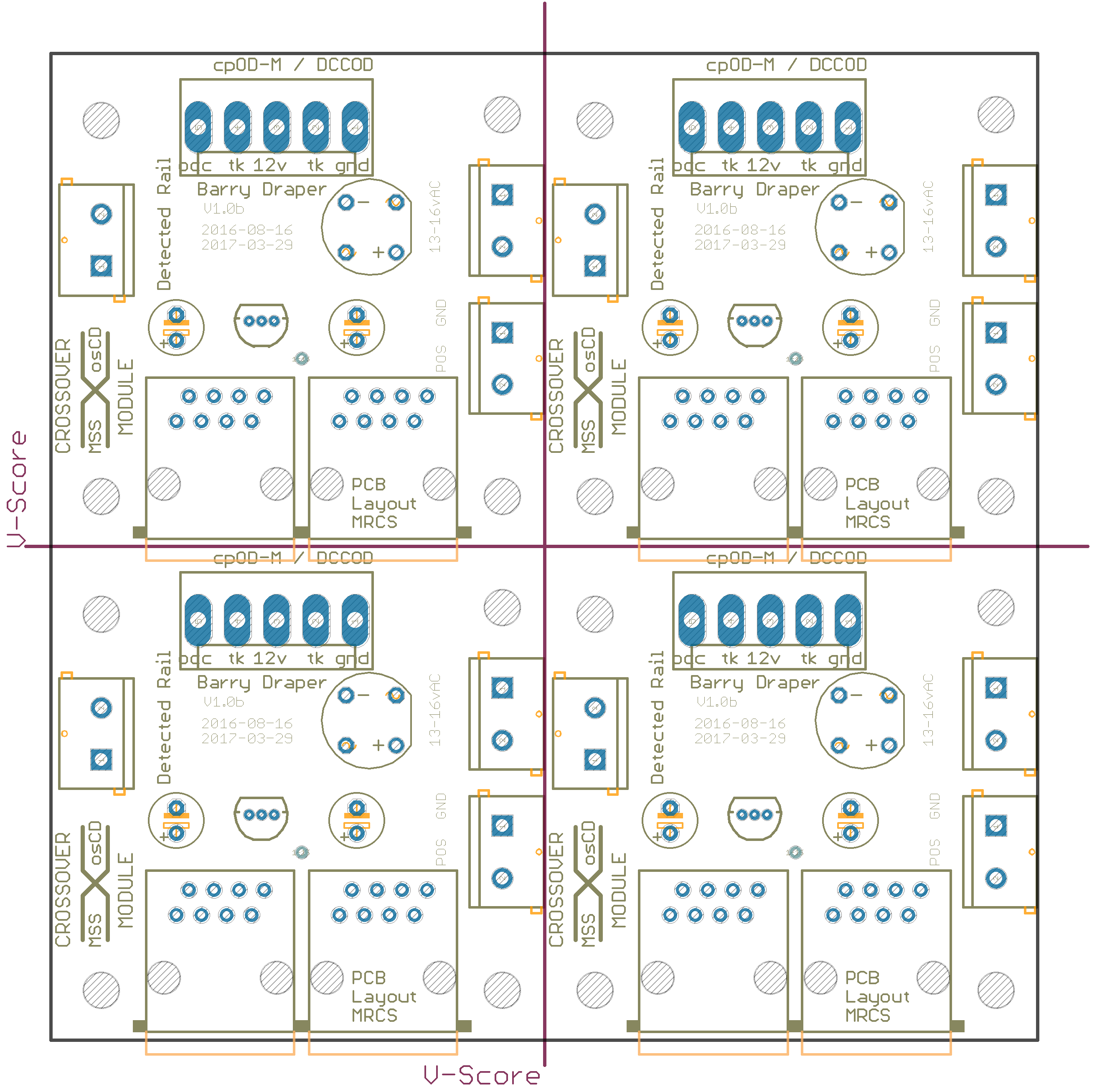

Top Silk
Top Silk

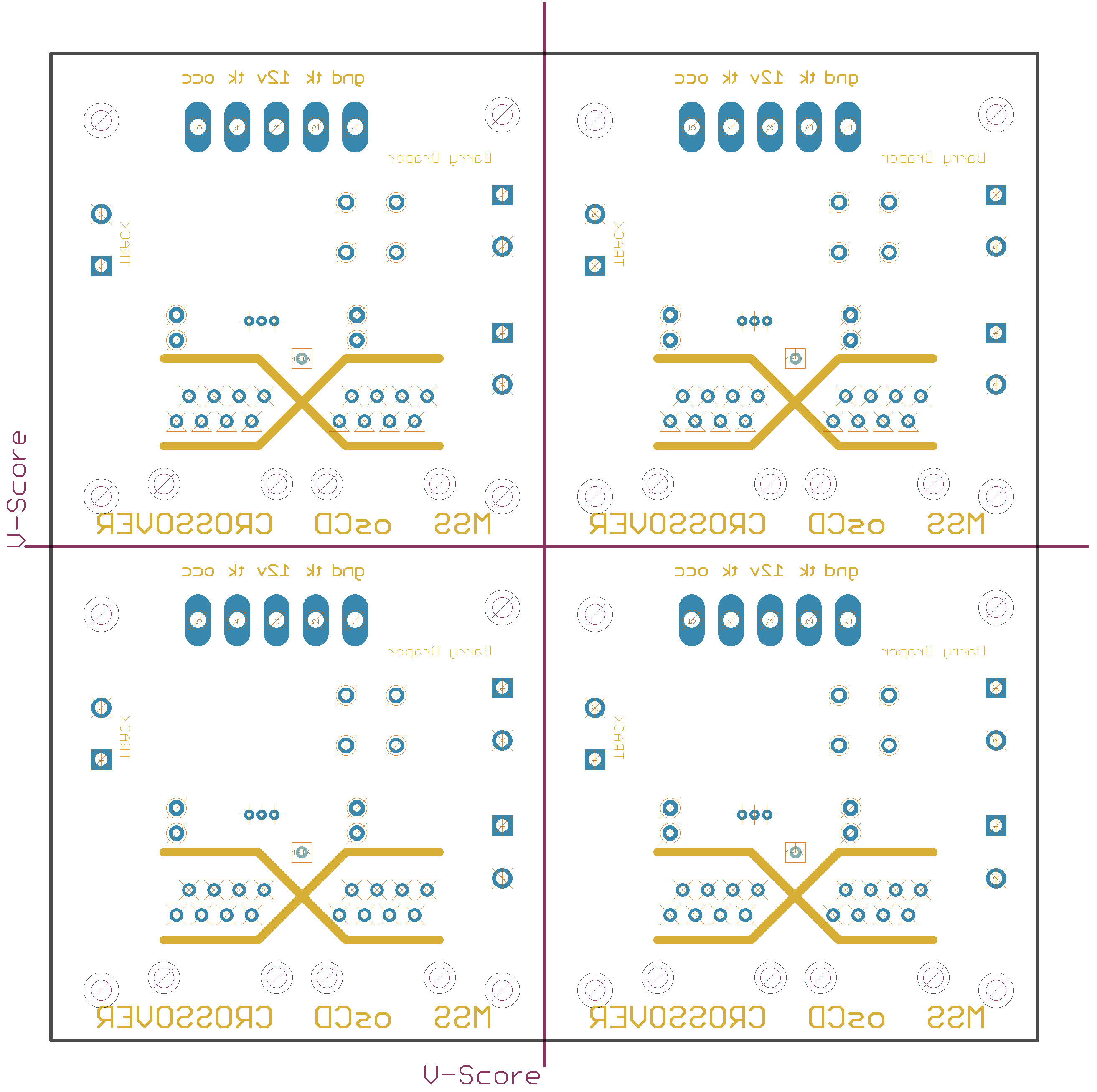

Bot Silk
Bot Silk

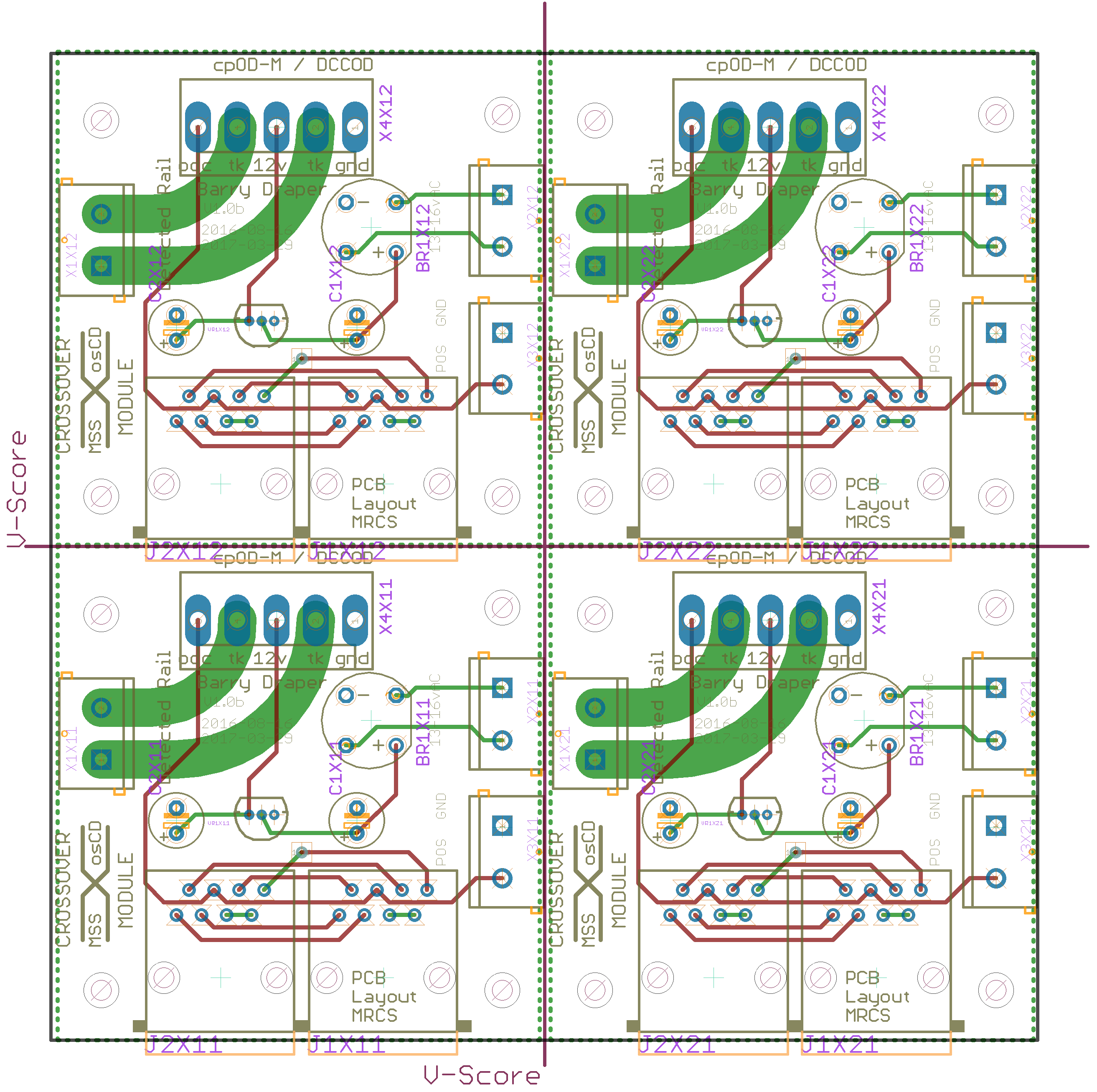

Board
Board
Top Silk
Top Silk

Download MRCS-MSS-Detector-Crossover - CHMT Component and feeder definitions
Download MRCS-MSS-Detector-Crossover.gerbers.zip - Gerber Fabrication files
Download MRCS-MSS-Detector-Crossover.parts - Parts List (spreadsheet data)
Download MRCS-MSS-Detector-Crossover_array.gerbers.zip - Gerber Fabrication files
Download MRCS-MSS-Detector-Crossover_array.parts - Parts List (spreadsheet data)



MRCS-MSS-Detector-Crossover.bom

Parts Value Package Quantity Library Type/Feeder
C2 0.47uf 63V E2.5-6 1x SPCoast PTH
C1 47uf 25V E2.5-6 1x SPCoast PTH
X4   KK-156-5 1x SPCoast PTH
J1, J2   RJ45-NO-SHIELD 2x SPCoast PTH
X2 AUXBUS SCREWTERMINAL-5MM-2 1x SPCoast PTH
X3 BLOCKOCC SCREWTERMINAL-5MM-2 1x SPCoast PTH
BR1 bridge RB1A 1x SPCoast PTH
VR1 LM78L12 TO-92 1x SPCoast PTH
X1 TRACK SCREWTERMINAL-5MM-2 1x SPCoast PTH

MRCS-MSS-Detector-Crossover_array.bom

Parts Value Package Quantity Library Type/Feeder
C1X11, C1X12, C1X21, C1X22, C2X11, C2X12, C2X21, C2X22   E2.5-6 8x SPCoast PTH
X4X11, X4X12, X4X21, X4X22   KK-156-5 4x SPCoast PTH
BR1X11, BR1X12, BR1X21, BR1X22   RB1A 4x SPCoast PTH
J1X11, J1X12, J1X21, J1X22, J2X11, J2X12, J2X21, J2X22   RJ45-NO-SHIELD 8x SPCoast PTH
X1X11, X1X12, X1X21, X1X22, X2X11, X2X12, X2X21, X2X22, X3X11, X3X12, X3X21, X3X22   SCREWTERMINAL-5MM-2 12x SPCoast PTH
VR1X11, VR1X12, VR1X21, VR1X22   TO-92 4x SPCoast PTH
