MRCS-Candlestick-Base

Fork project on GitHub

Wiring base for MRCS-Candlestick-Mic electret carbon mic replacement



Download MRCS-Candlestick-Base_array.scr - Eagle SCRipt



MRCS-Candlestick-Base Version 1.0

First built: 2019-11

Initial version

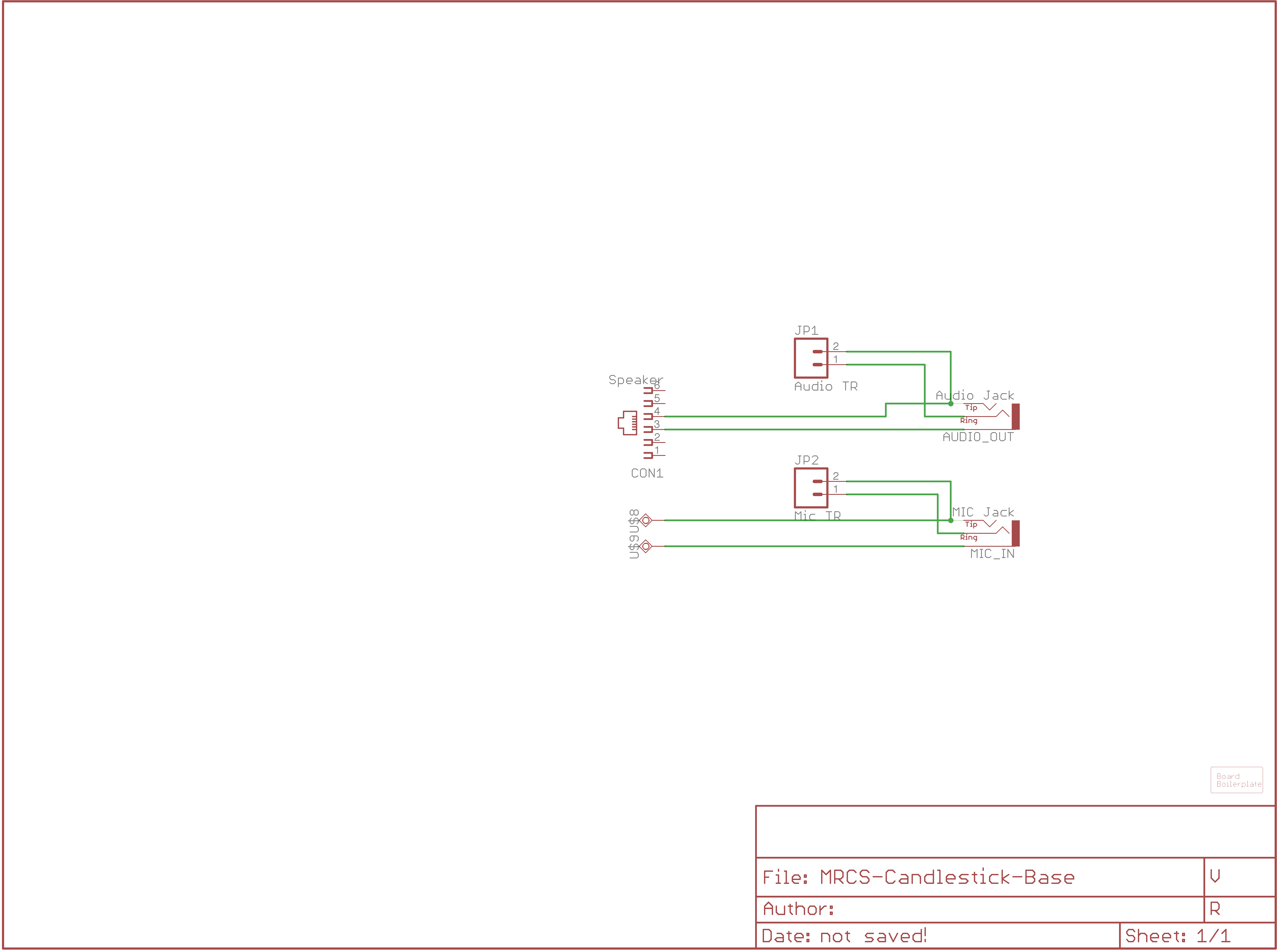

Schematic
Schematic

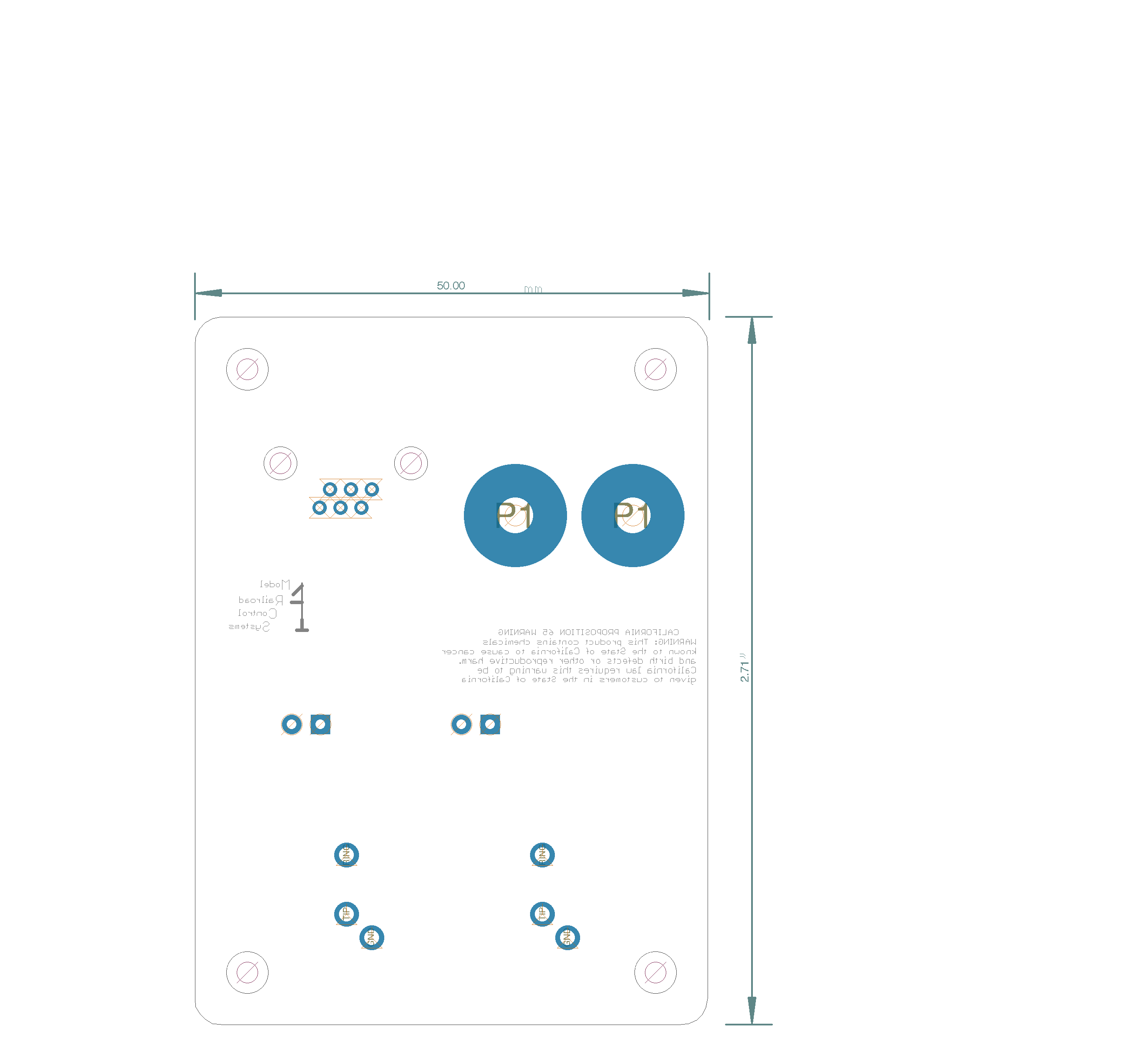

Bot Silk
Bot Silk

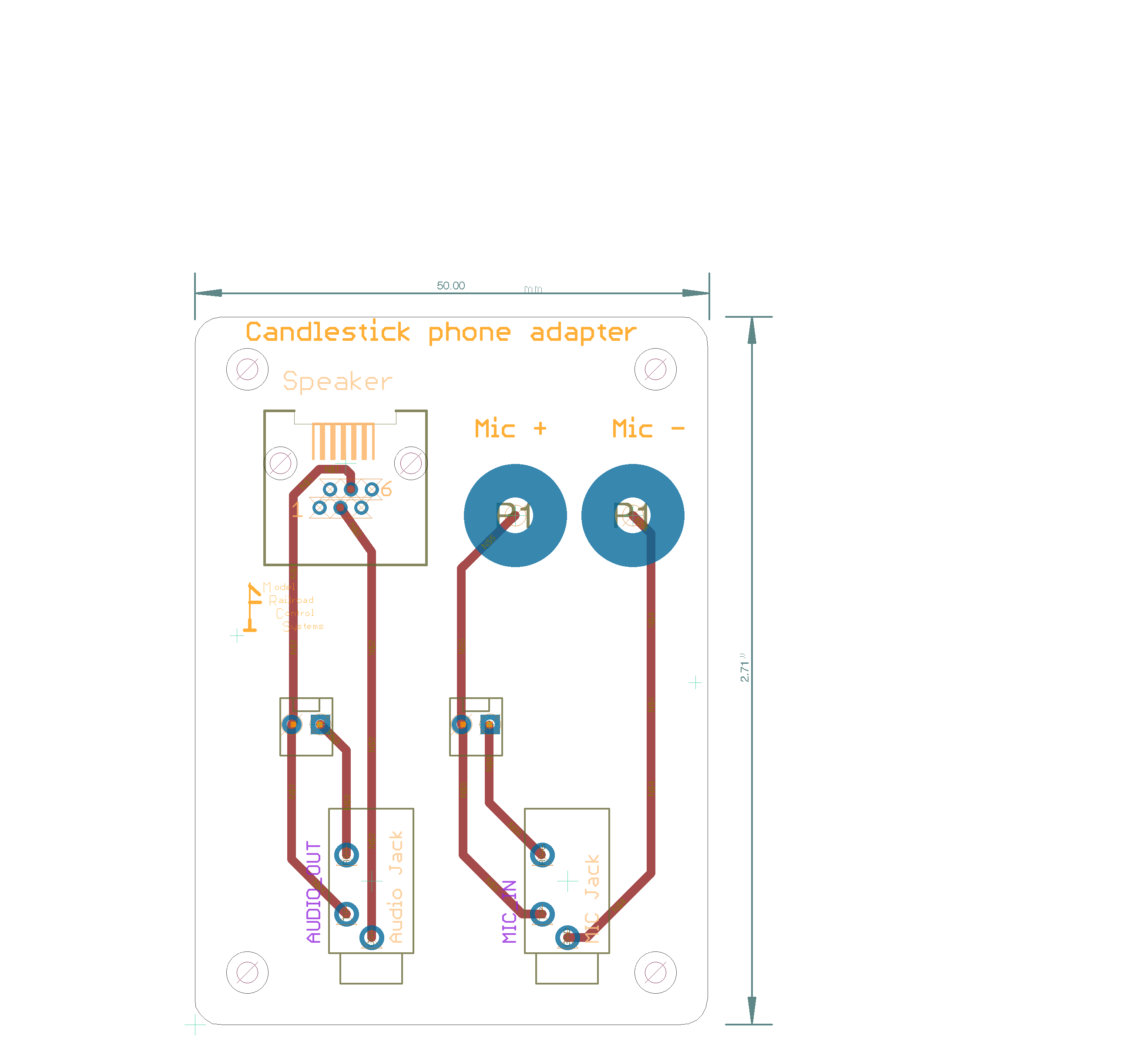

Board
Board
Top Silk
Top Silk

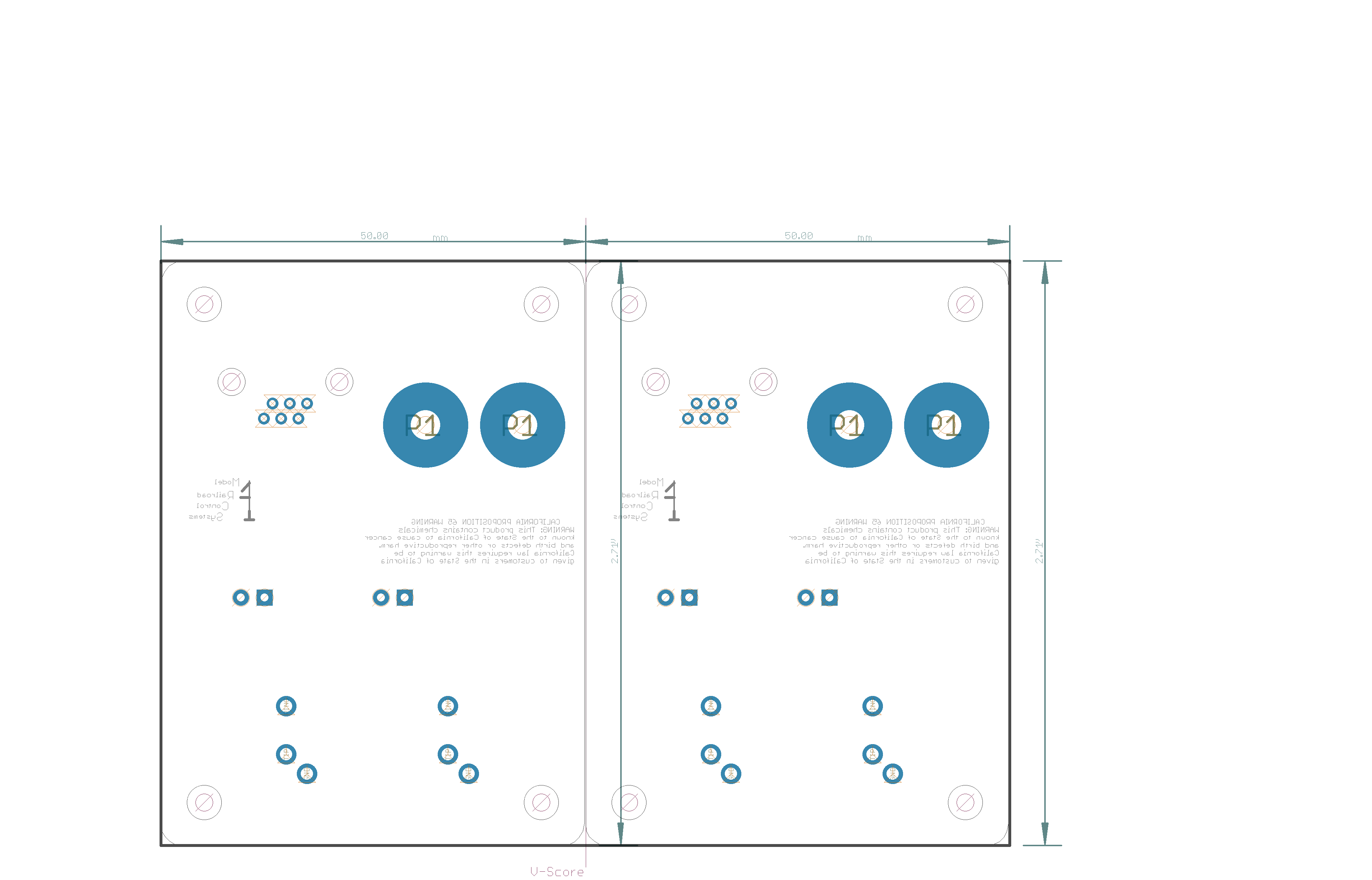

Bot Silk
Bot Silk

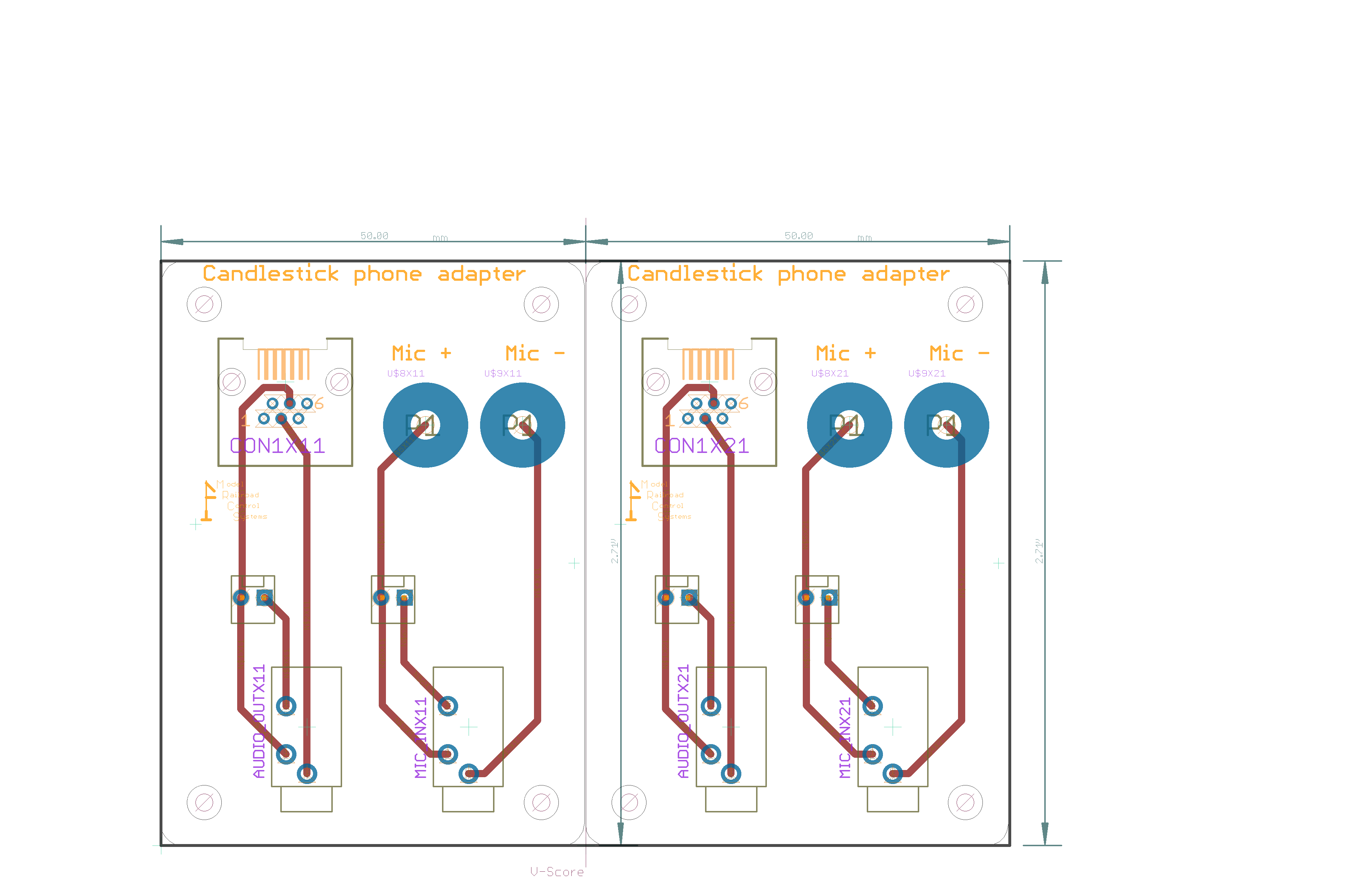

Board
Board

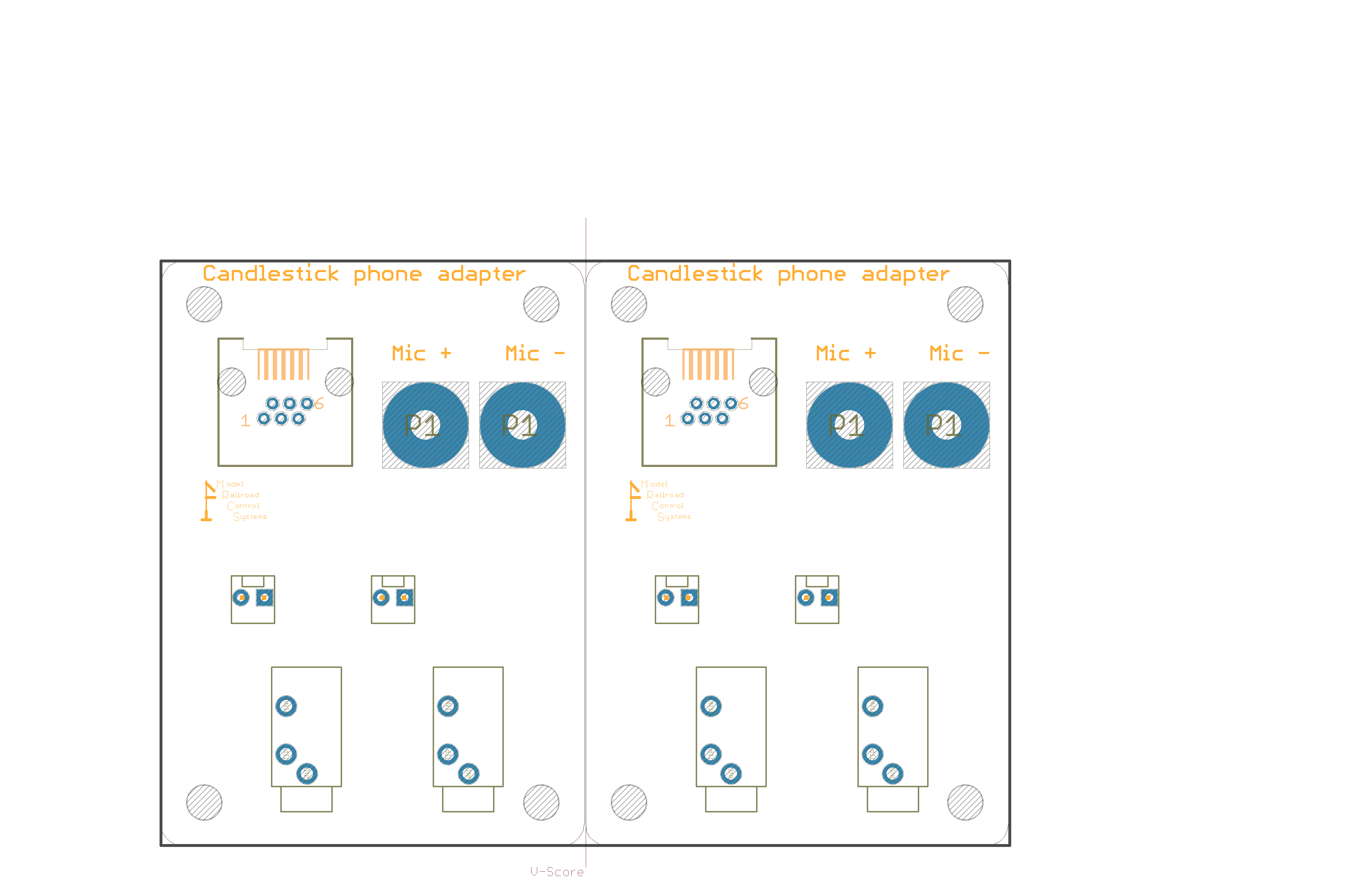

Top Silk
Top Silk

Download MRCS-Candlestick-Base - CHMT Component and feeder definitions
Download MRCS-Candlestick-Base.gerbers.zip - Gerber Fabrication files
Download MRCS-Candlestick-Base.parts - Parts List (spreadsheet data)
Download MRCS-Candlestick-Base_array - CHMT Component and feeder definitions
Download MRCS-Candlestick-Base_array.gerbers.zip - Gerber Fabrication files
Download MRCS-Candlestick-Base_array.parts - Parts List (spreadsheet data)



MRCS-Candlestick-Base.bom

Parts Value Package Quantity Library Type/Feeder
U$7   CA-PROP65-BACK 1x SPCoast PTH
U$6   MRCSLOGOBTM 1x SPCoast PTH
U$5   MRCSLOGOTOP 1x SPCoast PTH
U$8, U$9   SPADELUGPAD 2x SPCoast PTH
AUDIO_OUT Audio Jack AUDIO-JACK-3.5MM_STEREO 1x SPCoast PTH
JP1 Audio TR MOLEX-1X2_LOCK 1x SPCoast PTH
BOARD1 BOARD69X50 BOARD-DINRAIL-2.7IN-5CM 1x SPCoast PTH
MIC_IN MIC Jack AUDIO-JACK-3.5MM_STEREO 1x SPCoast PTH
JP2 Mic TR MOLEX-1X2_LOCK 1x SPCoast PTH
CON1 Speaker RJ25-INVERTED 1x SPCoast PTH

MRCS-Candlestick-Base_array.bom

Parts Value Package Quantity Library Type/Feeder
AUDIO_OUTX11, AUDIO_OUTX21, MIC_INX11, MIC_INX21   AUDIO-JACK-3.5MM_STEREO 4x SPCoast PTH
BOARD1X11, BOARD1X21   BOARD-DINRAIL-2.7IN-5CM 2x SPCoast PTH
U$7X11, U$7X21   CA-PROP65-BACK 2x SPCoast PTH
JP1X11, JP1X21, JP2X11, JP2X21   MOLEX-1X2_LOCK 4x SPCoast PTH
U$6X11, U$6X21   MRCSLOGOBTM 2x SPCoast PTH
U$5X11, U$5X21   MRCSLOGOTOP 2x SPCoast PTH
CON1X11, CON1X21   RJ25-INVERTED 2x SPCoast PTH
U$8X11, U$8X21, U$9X11, U$9X21   SPADELUGPAD 4x SPCoast PTH

This technical documentation is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike

Tags: eagle MRCS
