MRCS-BBProMini
A ProMini in a BBLeo form factor for use on MRCS cpNode
Download MRCS-BBProMini.SMD-parts -
Download MRCS-BBProMini_array.SMD-parts -
Download MRCS-BBProMini_array.scr - Eagle SCRipt

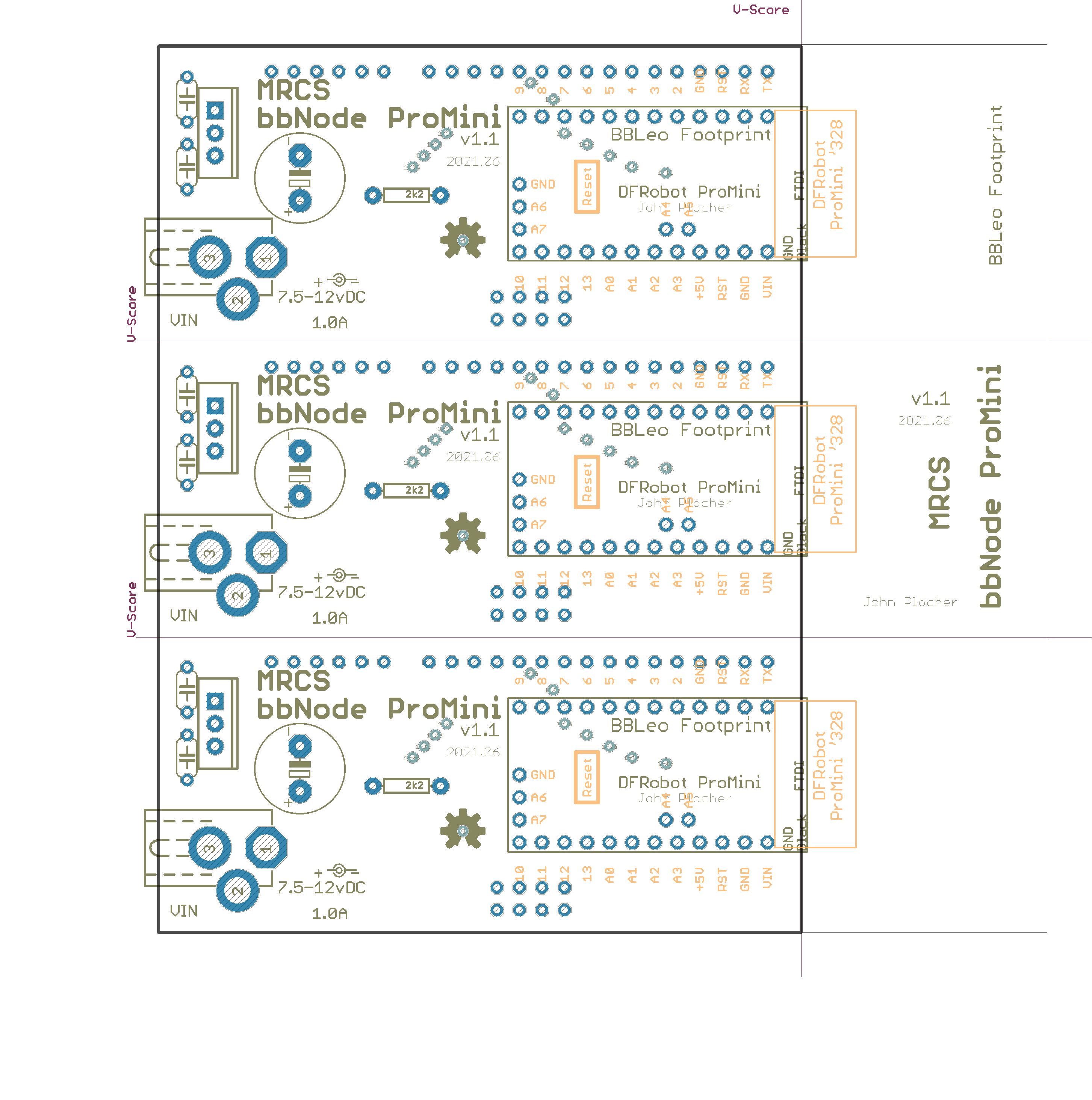

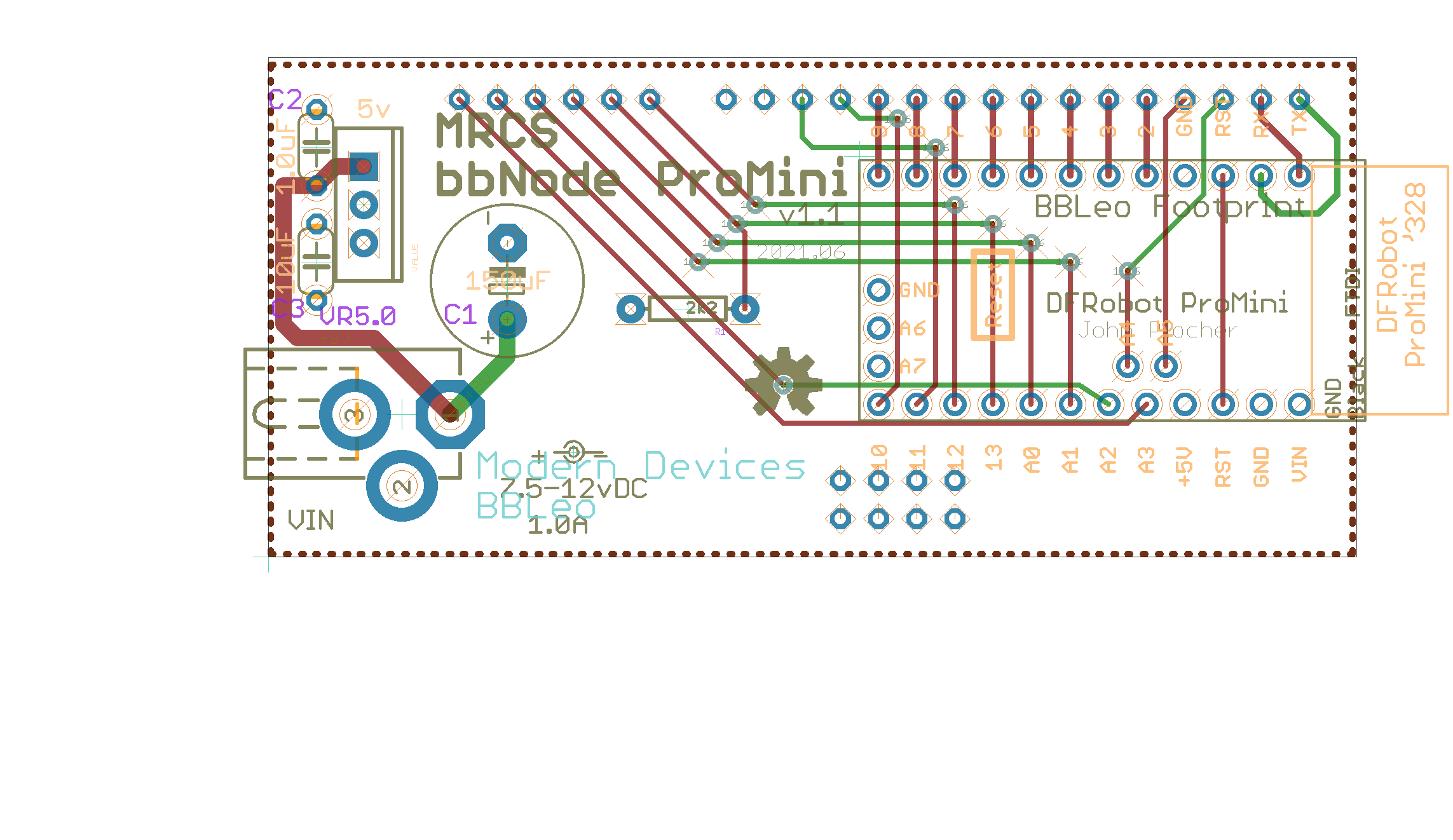

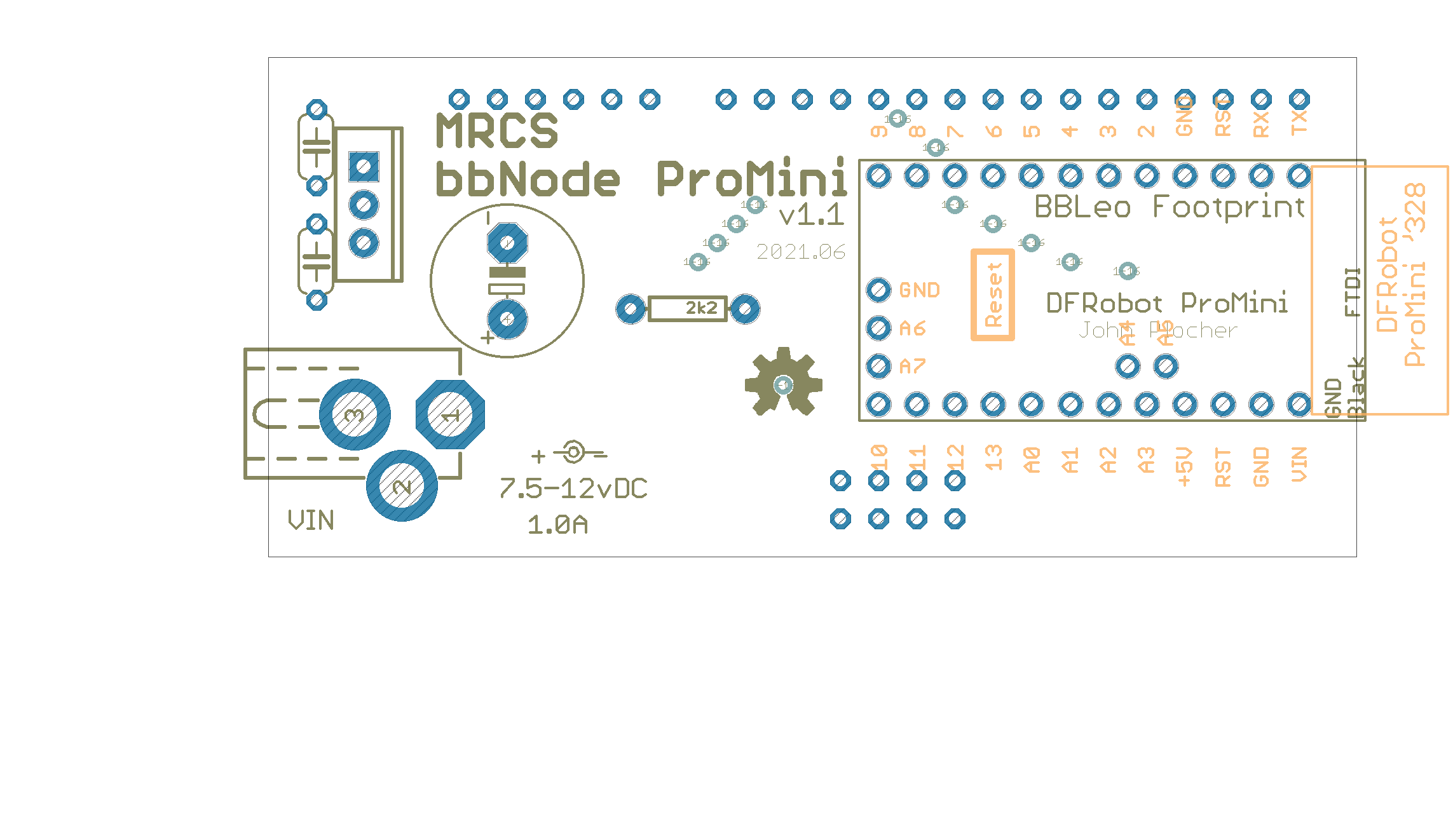

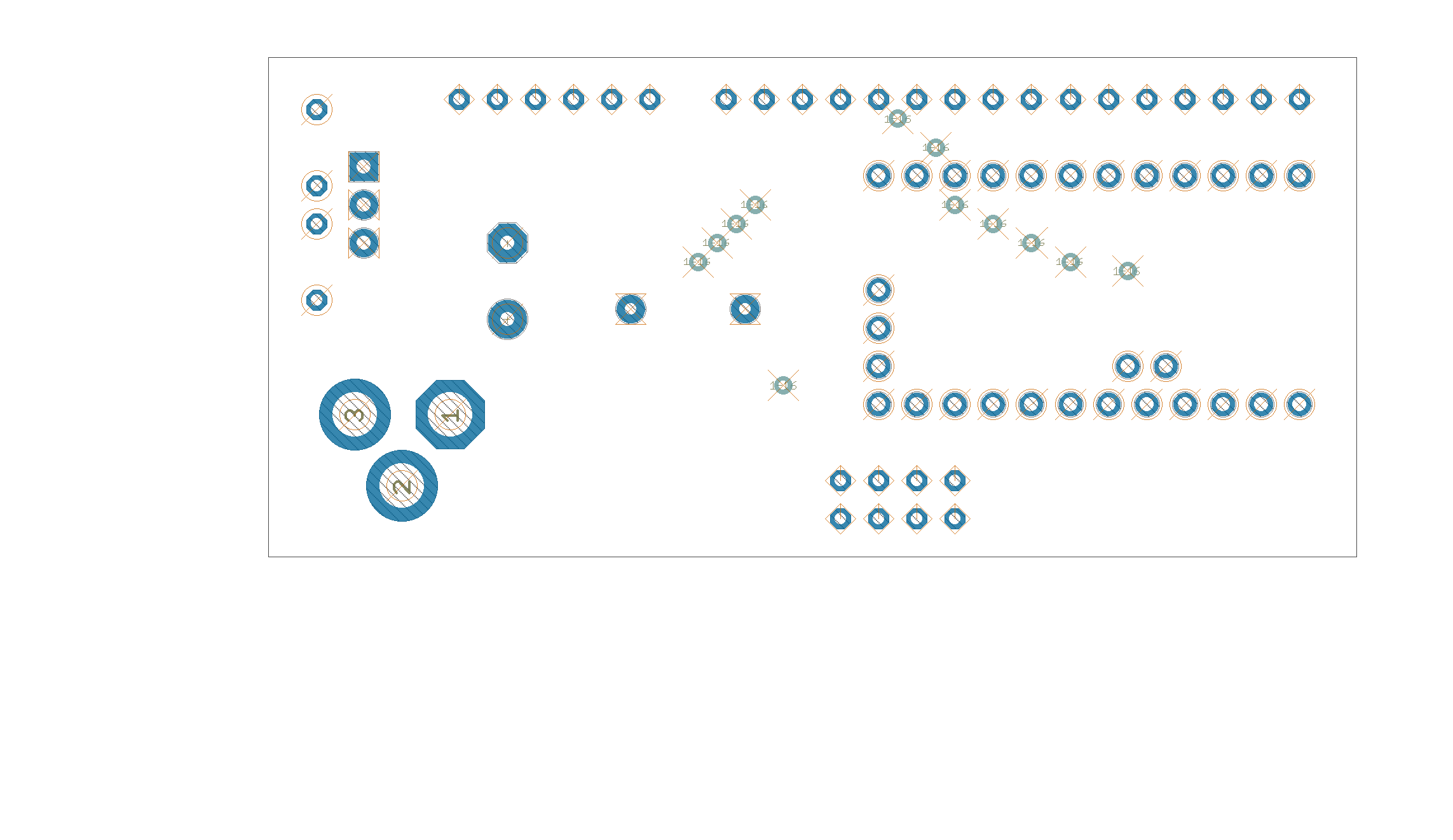

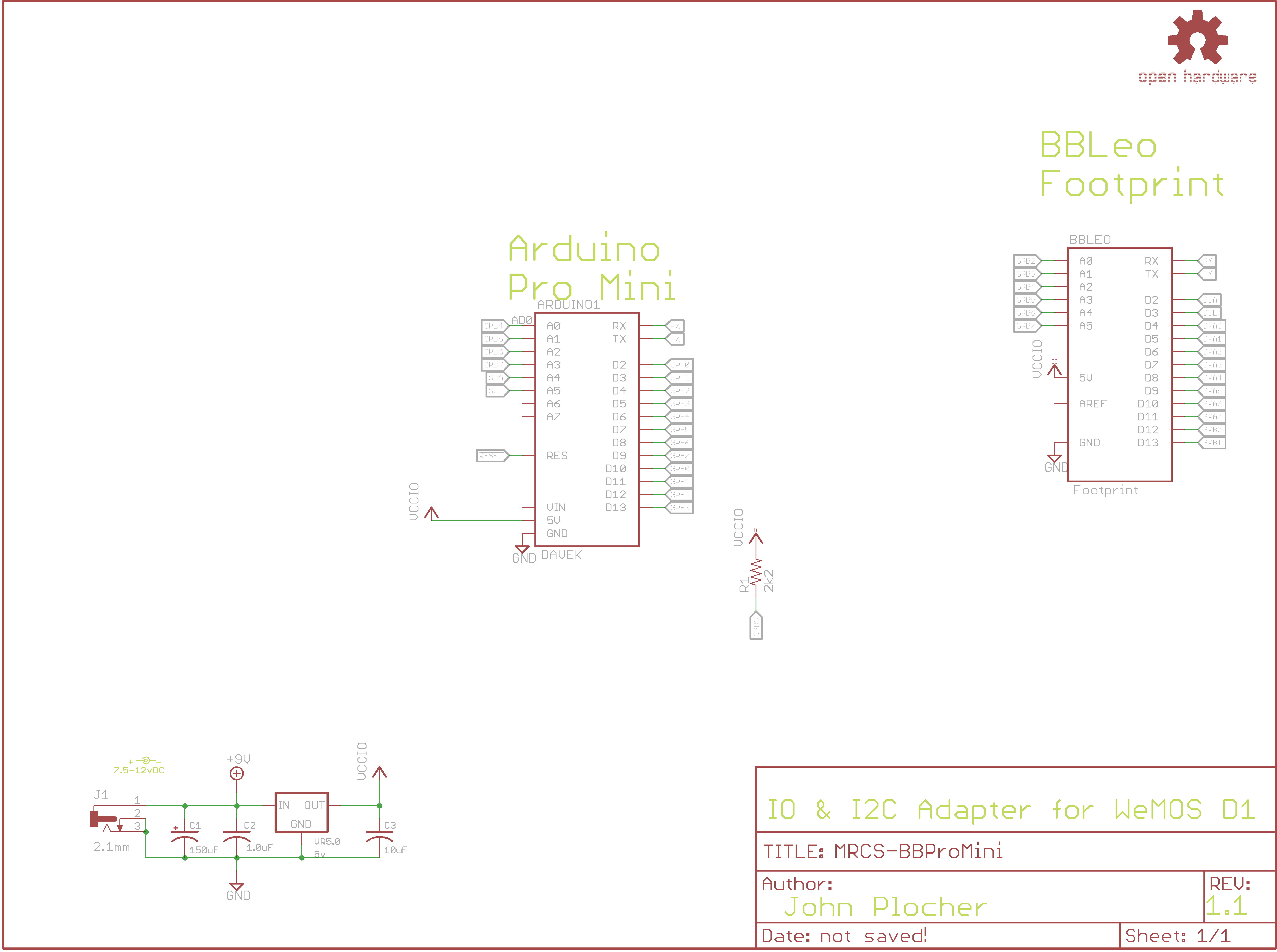

MRCS-BBProMini Version 1.1
First built: 2019-08
Initial proof of concept
|
|
|
|||
|
|
|
Download MRCS-BBProMini.gerbers.zip - Gerber Fabrication files
Download MRCS-BBProMini.parts - Parts List (spreadsheet data)

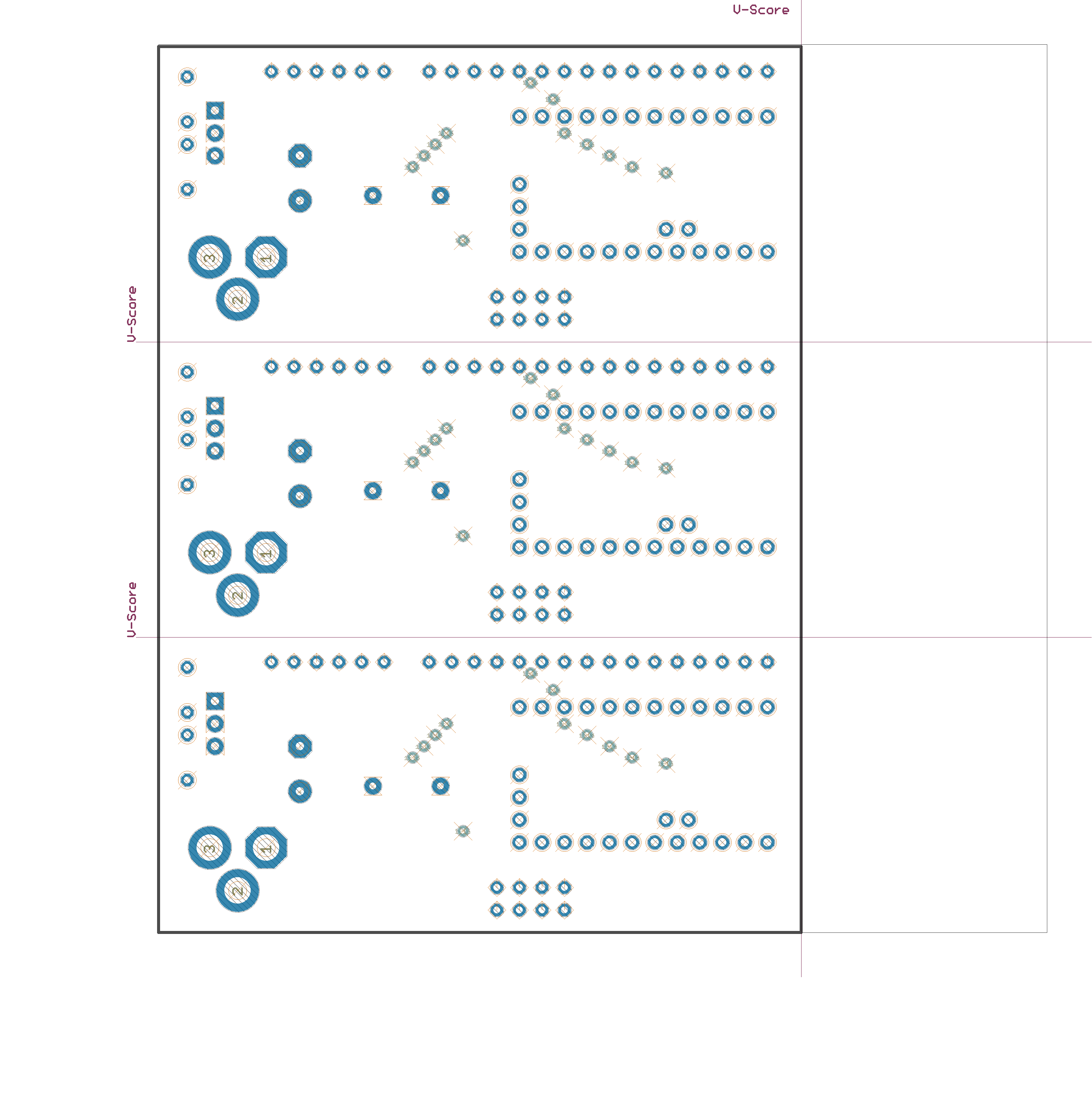

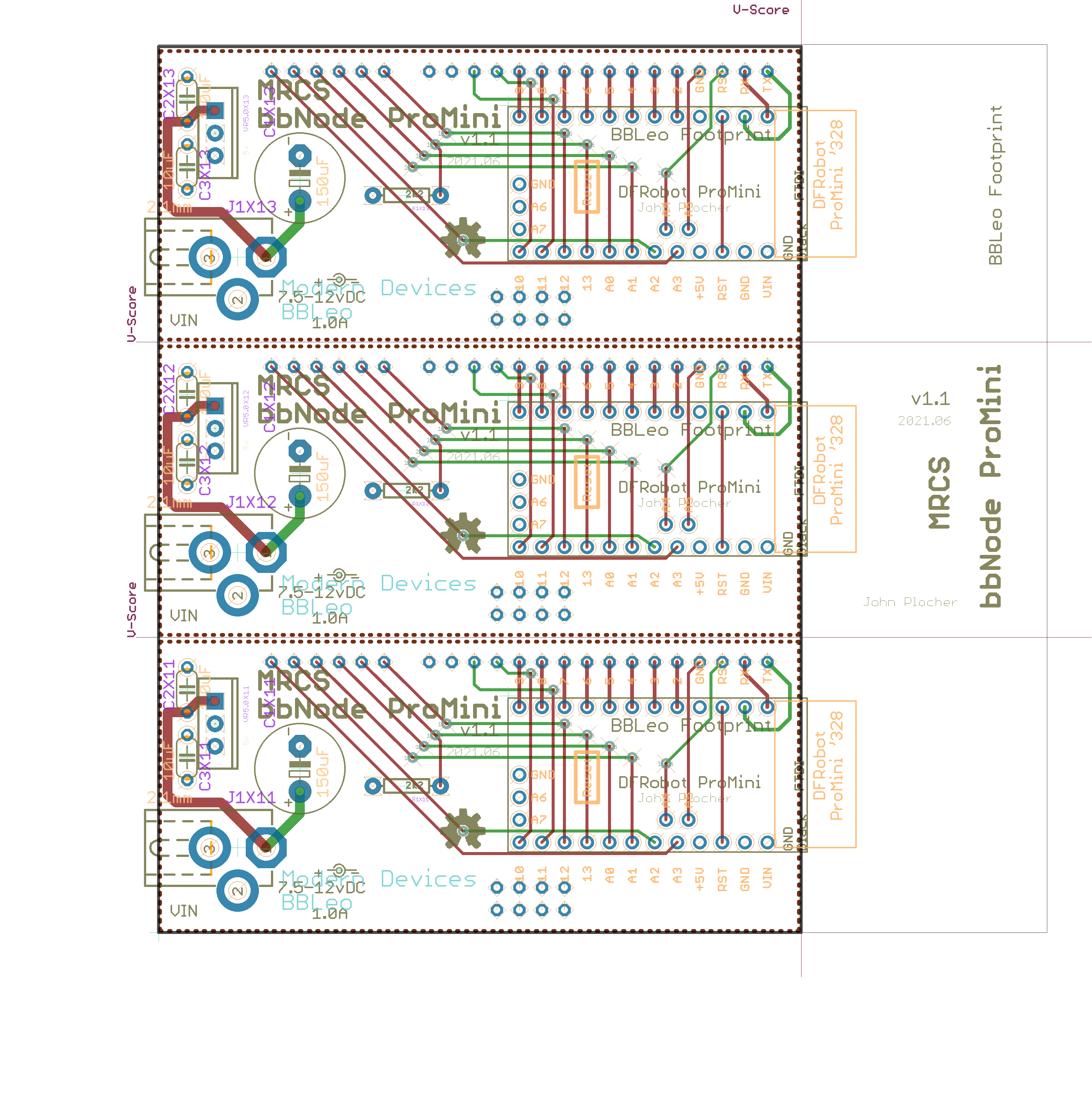

Download MRCS-BBProMini_array.gerbers.zip - Gerber Fabrication files
Download MRCS-BBProMini_array.parts - Parts List (spreadsheet data)
MRCS-BBProMini.bom
| Parts | Value | Package | Quantity | Library | Type/Feeder |
|---|---|---|---|---|---|
| C2 | 1.0uF | C050-024X044 | 1x | SPCoast | PTH |
| J1 | 2.1mm | DCJ0202 | 1x | SPCoast | PTH |
| R1 | 2k2 | AXIAL-0.3-RES | 1x | SPCoast | PTH |
| VR5.0 | 5v | TO-220-RA | 1x | SPCoast | PTH |
| LABEL1 | 7.5-12vDC | PWR_LABEL | 1x | SPCoast | PTH |
| C3 | 10uF | C050-024X044 | 1x | SPCoast | PTH |
| C1 | 150uF | E5-10.5 | 1x | SPCoast | PTH |
| ARDUINO1 | DAVEK | ARDUINO_PRO_MINI_DAVEK | 1x | SPCoast | PTH |
| BBLEO | Footprint | ARDUINO-BBLEO | 1x | SPCoast | PTH |
| OSHW1 | OSHW | OSHW-LOGO-M | 1x | SPCoast | PTH |
MRCS-BBProMini_array.bom
| Parts | Value | Package | Quantity | Library | Type/Feeder |
|---|---|---|---|---|---|
| C2X11, C2X12, C2X13 | 1.0uF | C050-024X044 | 3x | SPCoast | PTH |
| J1X11, J1X12, J1X13 | 2.1mm | DCJ0202 | 3x | SPCoast | PTH |
| R1X11, R1X12, R1X13 | 2k2 | AXIAL-0.3-RES | 3x | SPCoast | PTH |
| VR5.0X11, VR5.0X12, VR5.0X13 | 5v | TO-220-RA | 3x | SPCoast | PTH |
| LABEL1X11, LABEL1X12, LABEL1X13 | 7.5-12vDC | PWR_LABEL | 3x | SPCoast | PTH |
| C3X11, C3X12, C3X13 | 10uF | C050-024X044 | 3x | SPCoast | PTH |
| C1X11, C1X12, C1X13 | 150uF | E5-10.5 | 3x | SPCoast | PTH |
| ARDUINO1X11, ARDUINO1X12, ARDUINO1X13 | DAVEK | ARDUINO_PRO_MINI_DAVEK | 3x | SPCoast | PTH |
| BBLEOX11, BBLEOX12, BBLEOX13 | Footprint | ARDUINO-BBLEO | 3x | SPCoast | PTH |
| OSHW1X11, OSHW1X12, OSHW1X13 | OSHW | OSHW-LOGO-M | 3x | SPCoast | PTH |

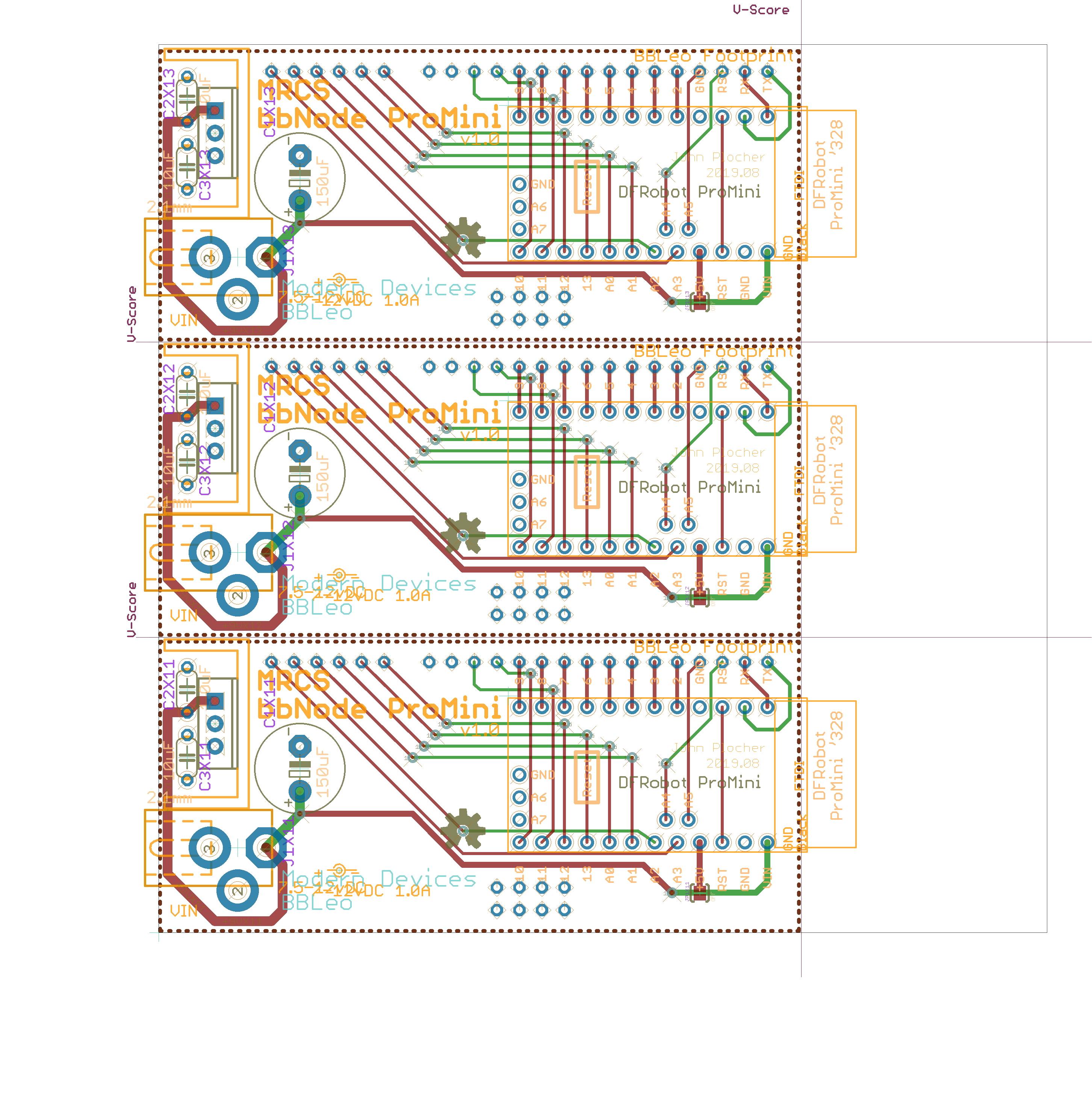

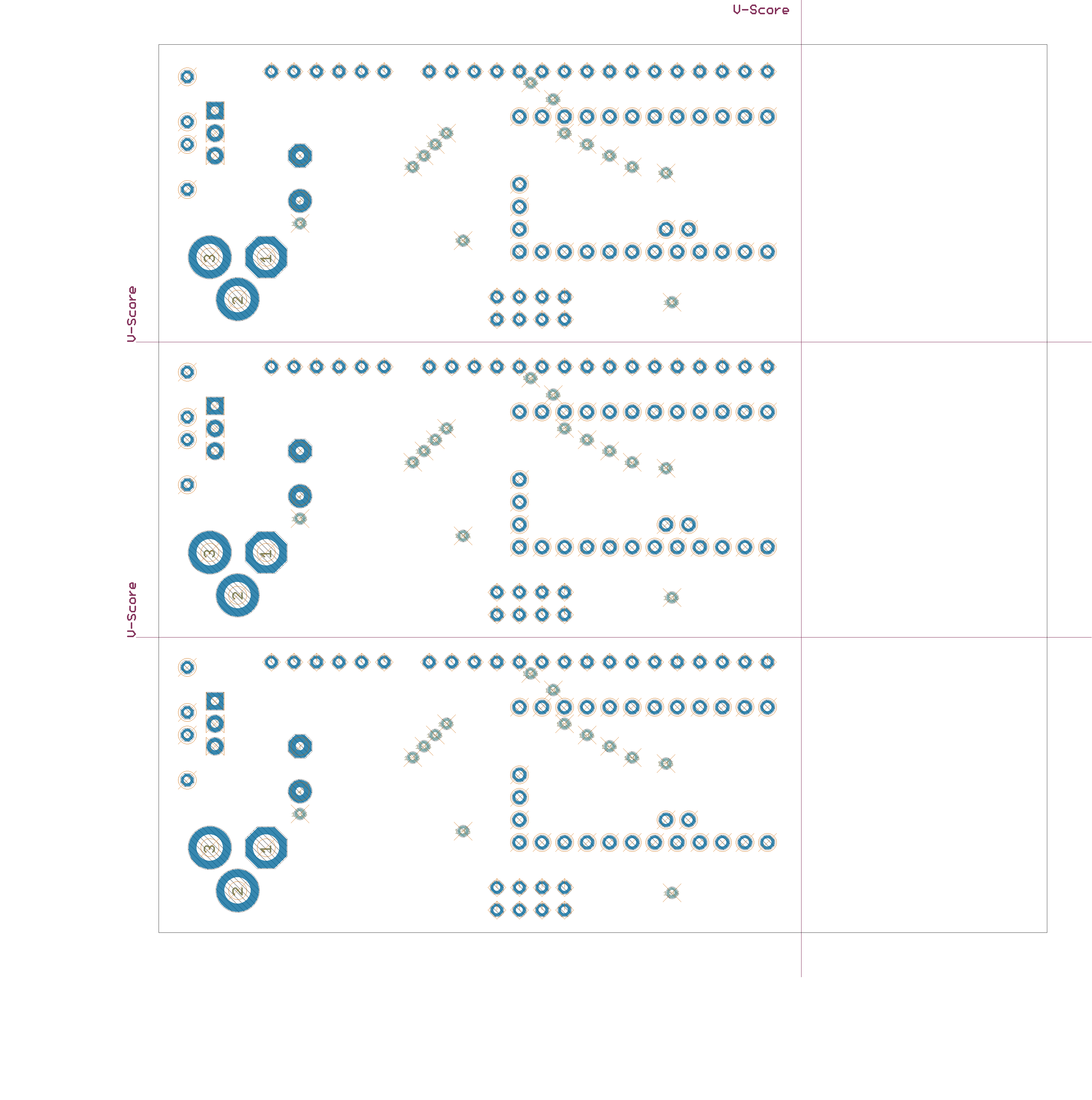

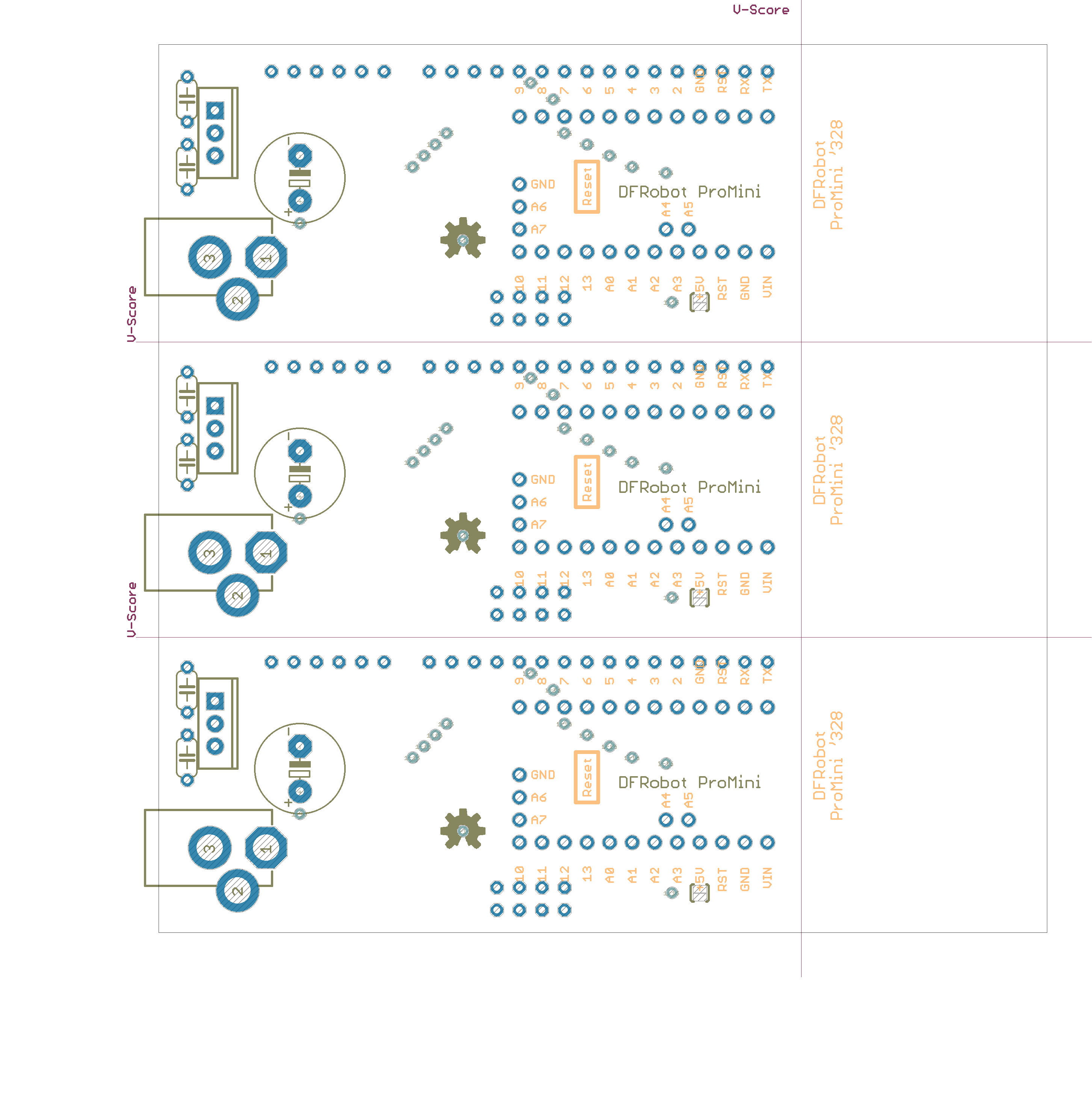

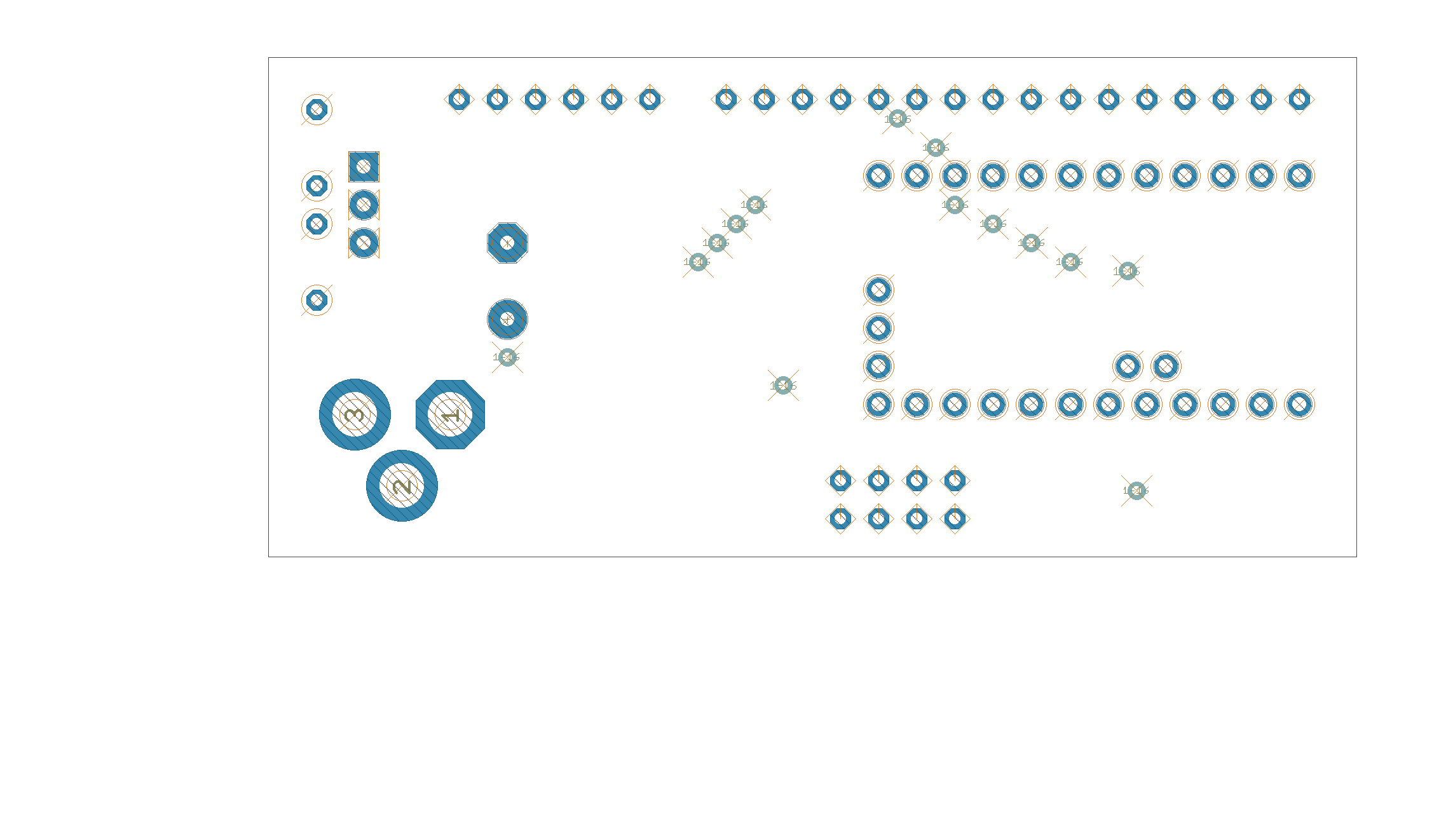

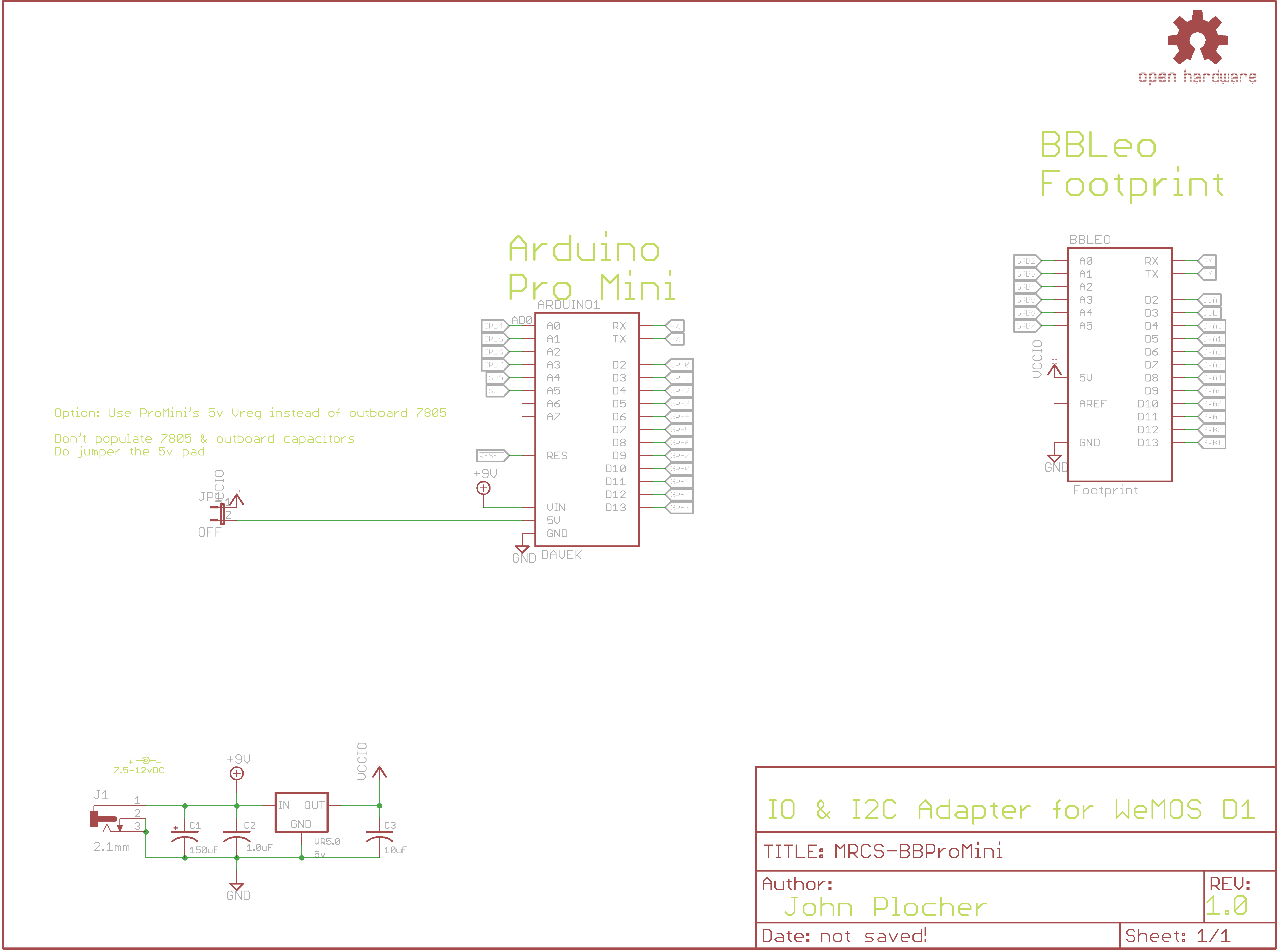

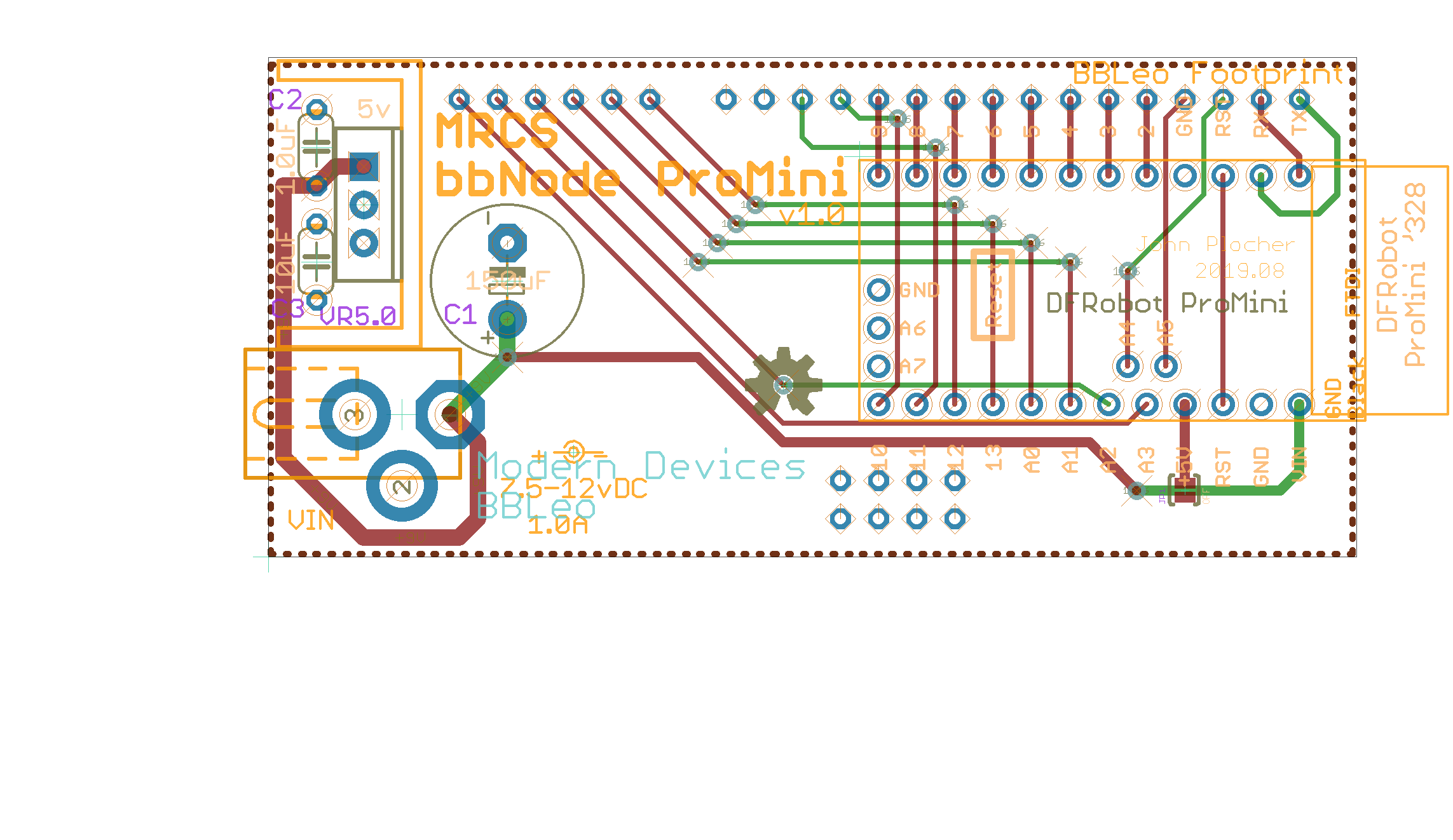

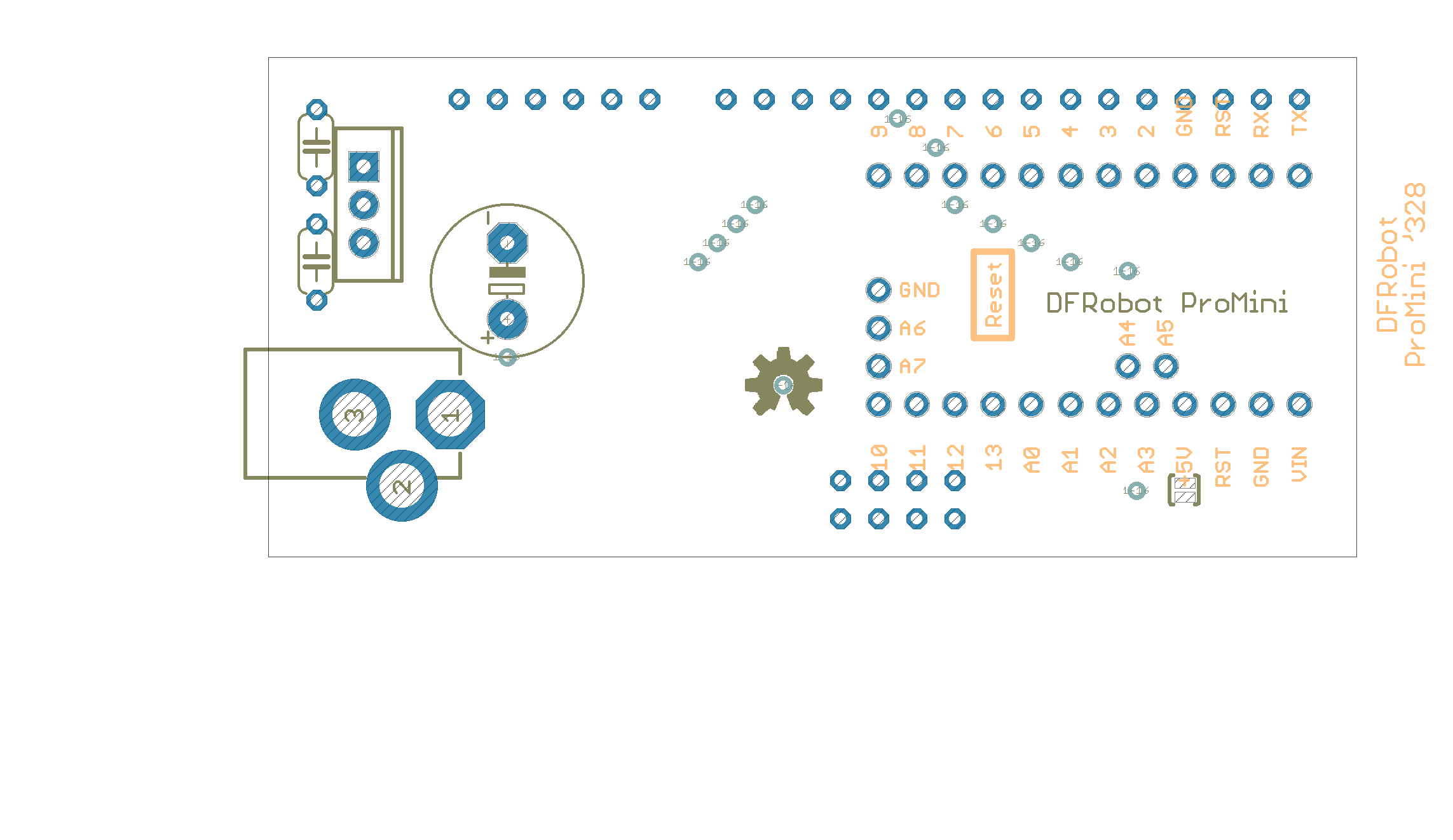

MRCS-BBProMini Version 1.0
First built: 2019-08
Initial proof of concept
|
|
|
|||
|
|
|
Download MRCS-BBProMini.gerbers.zip - Gerber Fabrication files
Download MRCS-BBProMini.parts - Parts List (spreadsheet data)
Download MRCS-BBProMini_array.gerbers.zip - Gerber Fabrication files
Download MRCS-BBProMini_array.parts - Parts List (spreadsheet data)
MRCS-BBProMini.bom
| Parts | Value | Package | Quantity | Library | Type/Feeder |
|---|---|---|---|---|---|
| C2 | 1.0uF | C050-024X044 | 1x | SPCoast | PTH |
| J1 | 2.1mm | DCJ0202 | 1x | SPCoast | PTH |
| VR5.0 | 5v | TO-220-RA-SINK | 1x | SPCoast | PTH |
| LABEL1 | 7.5-12vDC | PWR_LABEL | 1x | SPCoast | PTH |
| C3 | 10uF | C050-024X044 | 1x | SPCoast | PTH |
| C1 | 150uF | E5-10.5 | 1x | SPCoast | PTH |
| ARDUINO1 | DAVEK | ARDUINO_PRO_MINI_DAVEK | 1x | SPCoast | PTH |
| BBLEO | Footprint | ARDUINO-BBLEO | 1x | SPCoast | PTH |
| JP1 | OFF | SJ_2S-NO | 1x | SPCoast | NONE |
| OSHW1 | OSHW | OSHW-LOGO-M | 1x | SPCoast | PTH |
MRCS-BBProMini_array.bom
| Parts | Value | Package | Quantity | Library | Type/Feeder |
|---|---|---|---|---|---|
| C2X11, C2X12, C2X13 | 1.0uF | C050-024X044 | 3x | SPCoast | PTH |
| J1X11, J1X12, J1X13 | 2.1mm | DCJ0202 | 3x | SPCoast | PTH |
| VR5.0X11, VR5.0X12, VR5.0X13 | 5v | TO-220-RA-SINK | 3x | SPCoast | PTH |
| LABEL1X11, LABEL1X12, LABEL1X13 | 7.5-12vDC | PWR_LABEL | 3x | SPCoast | PTH |
| C3X11, C3X12, C3X13 | 10uF | C050-024X044 | 3x | SPCoast | PTH |
| C1X11, C1X12, C1X13 | 150uF | E5-10.5 | 3x | SPCoast | PTH |
| ARDUINO1X11, ARDUINO1X12, ARDUINO1X13 | DAVEK | ARDUINO_PRO_MINI_DAVEK | 3x | SPCoast | PTH |
| BBLEOX11, BBLEOX12, BBLEOX13 | Footprint | ARDUINO-BBLEO | 3x | SPCoast | PTH |
| JP1X11, JP1X12, JP1X13 | OFF | SJ_2S-NO | 3x | SPCoast | NONE |
| OSHW1X11, OSHW1X12, OSHW1X13 | OSHW | OSHW-LOGO-M | 3x | SPCoast | PTH |
