MRCS-Adapter-RJ11

Fork project on GitHub

MRCS - RJ modular Headset connector breakout board





MRCS-Adapter-RJ11 Version 1.0

First built: 2018-12

RJ11/4 “mini” headset connector to 0.100 pins, for telephony applications

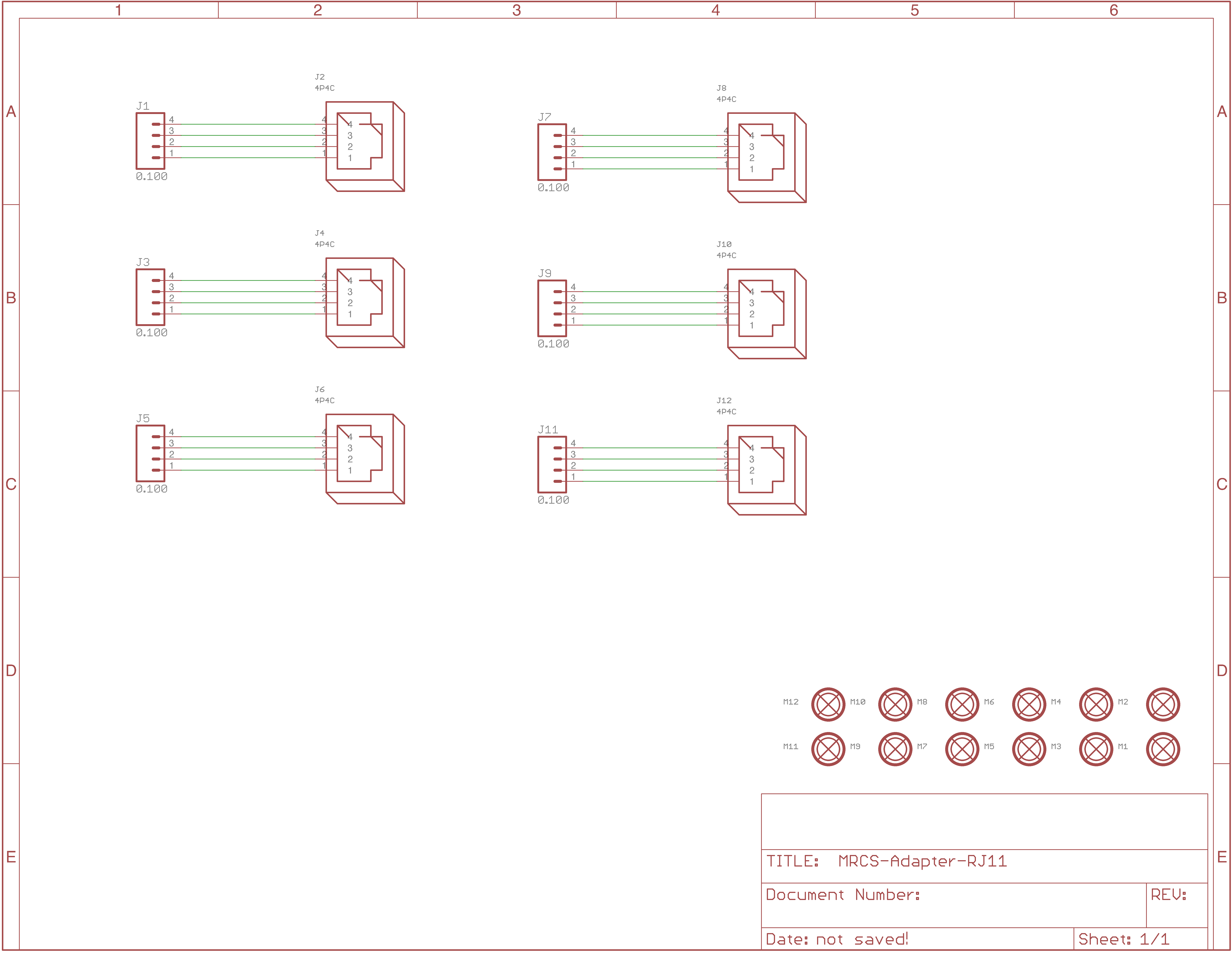

Schematic
Schematic

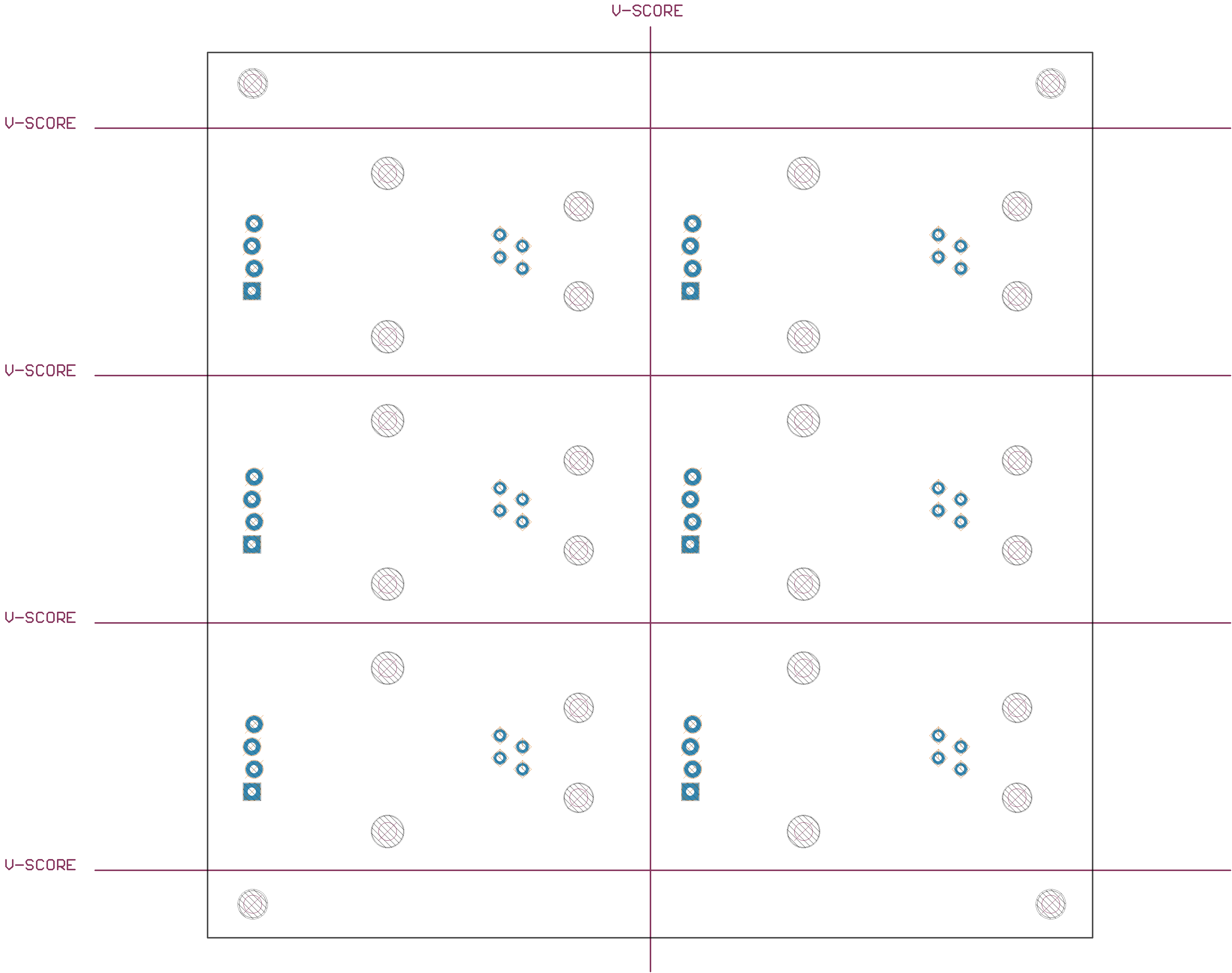

Bot Silk
Bot Silk

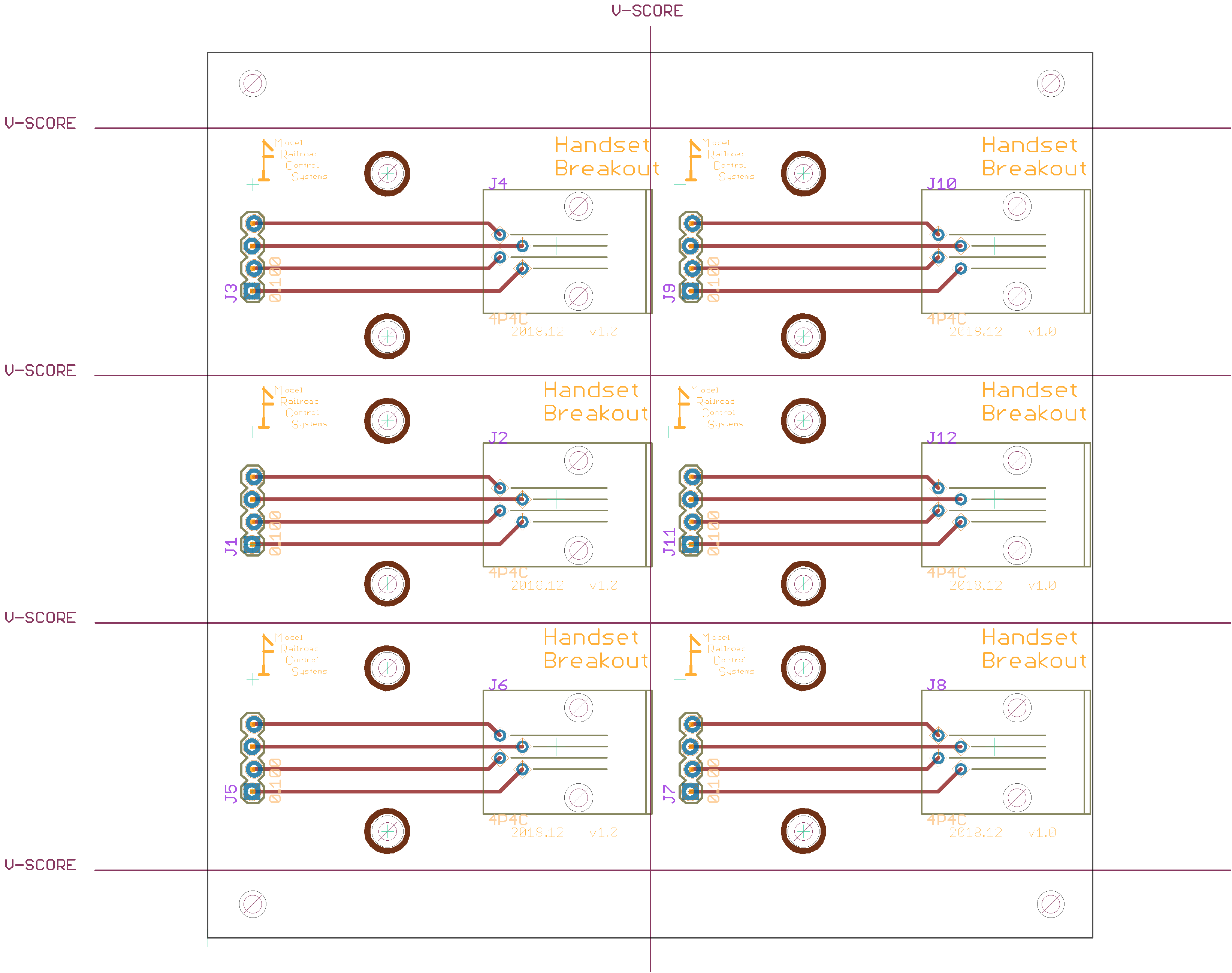

Board
Board
Top Silk
Top Silk

Download MRCS-Adapter-RJ11.gerbers.zip - Gerber Fabrication files
Download MRCS-Adapter-RJ11.parts - Parts List (spreadsheet data)



MRCS-Adapter-RJ11.bom

Parts Value Package Quantity Library Type/Feeder
J1, J3, J5, J7, J9, J11 0.100 1X04_LOCK 6x SPCoast PTH
J2, J4, J6, J8, J10, J12 4P4C RJ11 6x con-rj PTH
E$1 10x10 BOARD-10X10-3X2-PANEL 1x SPCoast PTH
M1, M2, M3, M4, M5, M6, M7, M8, M9, M10, M11, M12 MOUNTINGHOLE MOUNTINGHOLE 12x SPCoast PTH
U$1, U$2, U$3, U$4, U$5, U$6 MRCS MRCSLOGOTOP 6x MRCSLogoTop PTH
