Power distribution block for cTc controlled locked turnouts





MRCS-12v-power-block Version 1.0

Not built

Initial version based on Seth v20191115

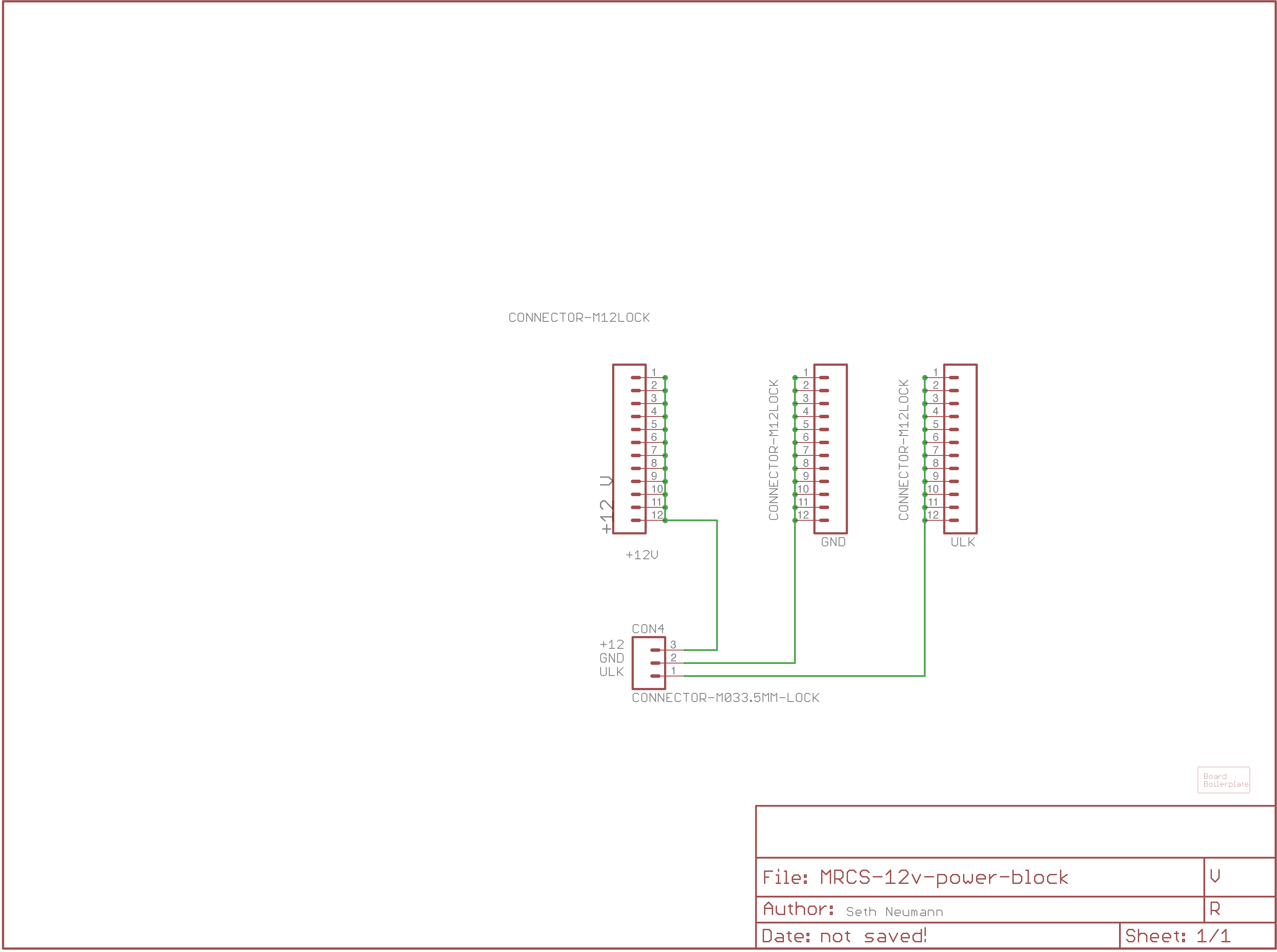

Schematic
Schematic

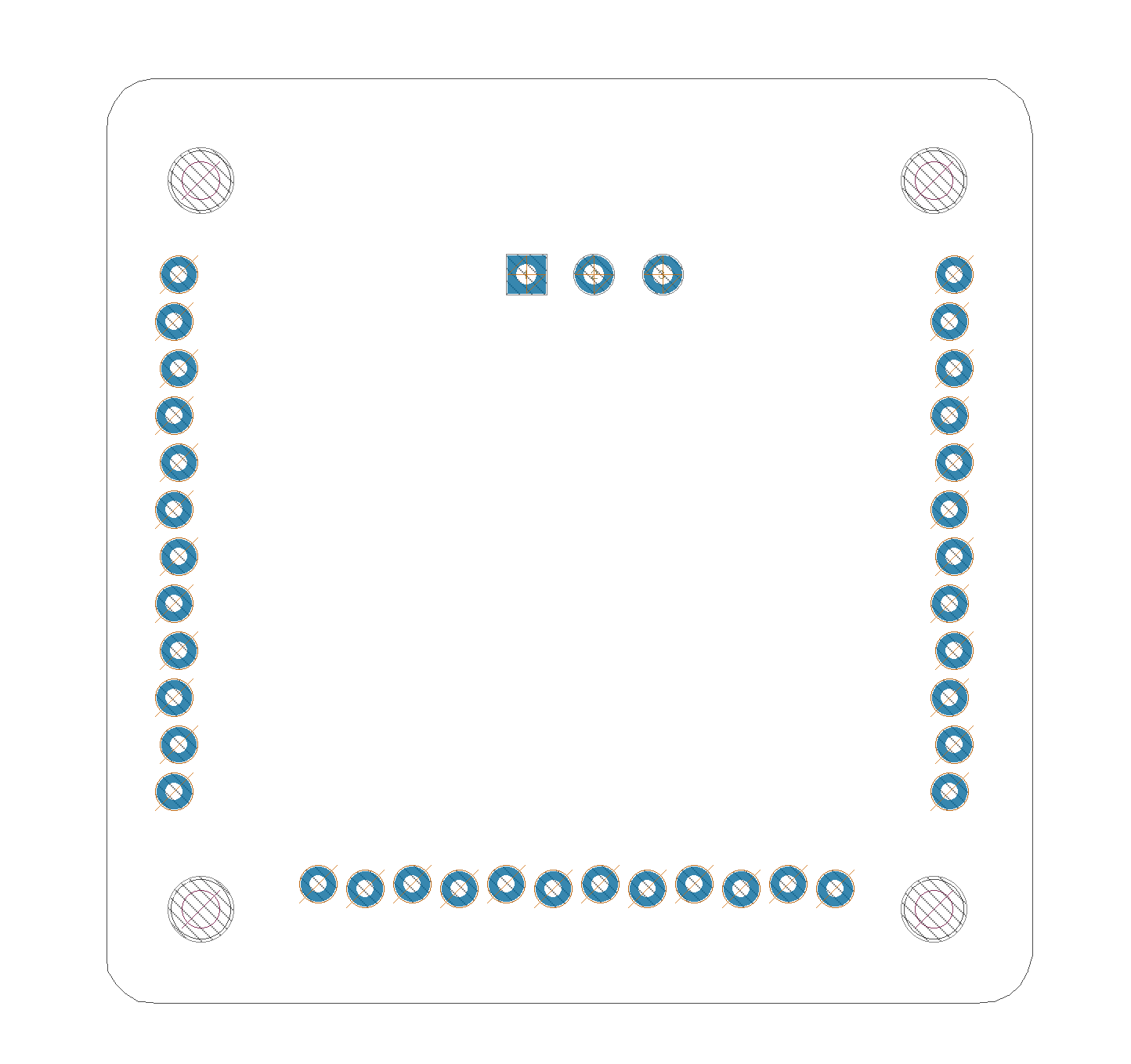

Bot Silk
Bot Silk

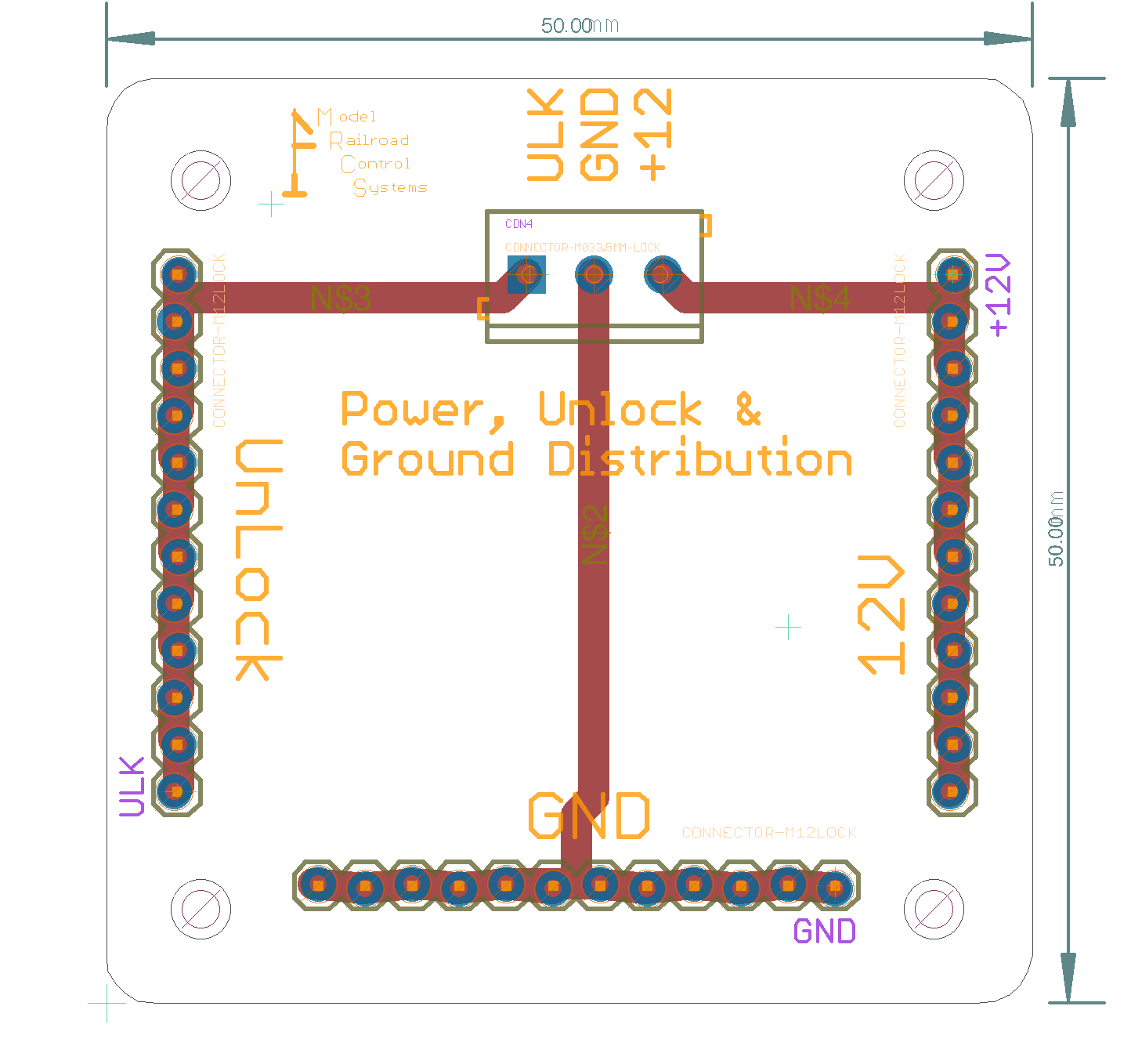

Board
Board
Top Silk
Top Silk

Download MRCS-12v-power-block.gerbers.zip - Gerber Fabrication files
Download MRCS-12v-power-block.parts - Parts List (spreadsheet data)



MRCS-12v-power-block.bom

Parts Value Package Quantity Library Type/Feeder
BOARD1 BOARD50X50 BOARD-SEEED5X5 1x SPCoast PTH
+12V, GND, ULK CONNECTOR-M12LOCK 1X12_LOCK 3x SPCoast PTH
CON4 CONNECTOR-M033.5MM-LOCK SCREWTERMINAL-3.5MM-3_LOCK.007S 1x SPCoast PTH
U$3 MRCS MRCSLOGOBTM 1x MRCSLogoBtm PTH
U$2 MRCS MRCSLOGOTOP 1x MRCSLogoTop PTH
U$1 Prop65 CA-PROP65-BACK 1x SPCoast PTH

=This technical documentation is licensed under the CERN Open Hardware Licence v1.2 This technical documentation is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike
