LocoNet Quad Detector baseboard

Loconet-QuadOD-Graphic
Loconet-QuadOD-Graphic





Loconet-QuadOD Version 1.0

Not built

Not tested or validated

An Arduino Pro Mini with 4x DCC-OD/cpOD sockets and LocoNet-style communications that can be used as a building block for a stand alone Loconet Occupancy Detector.

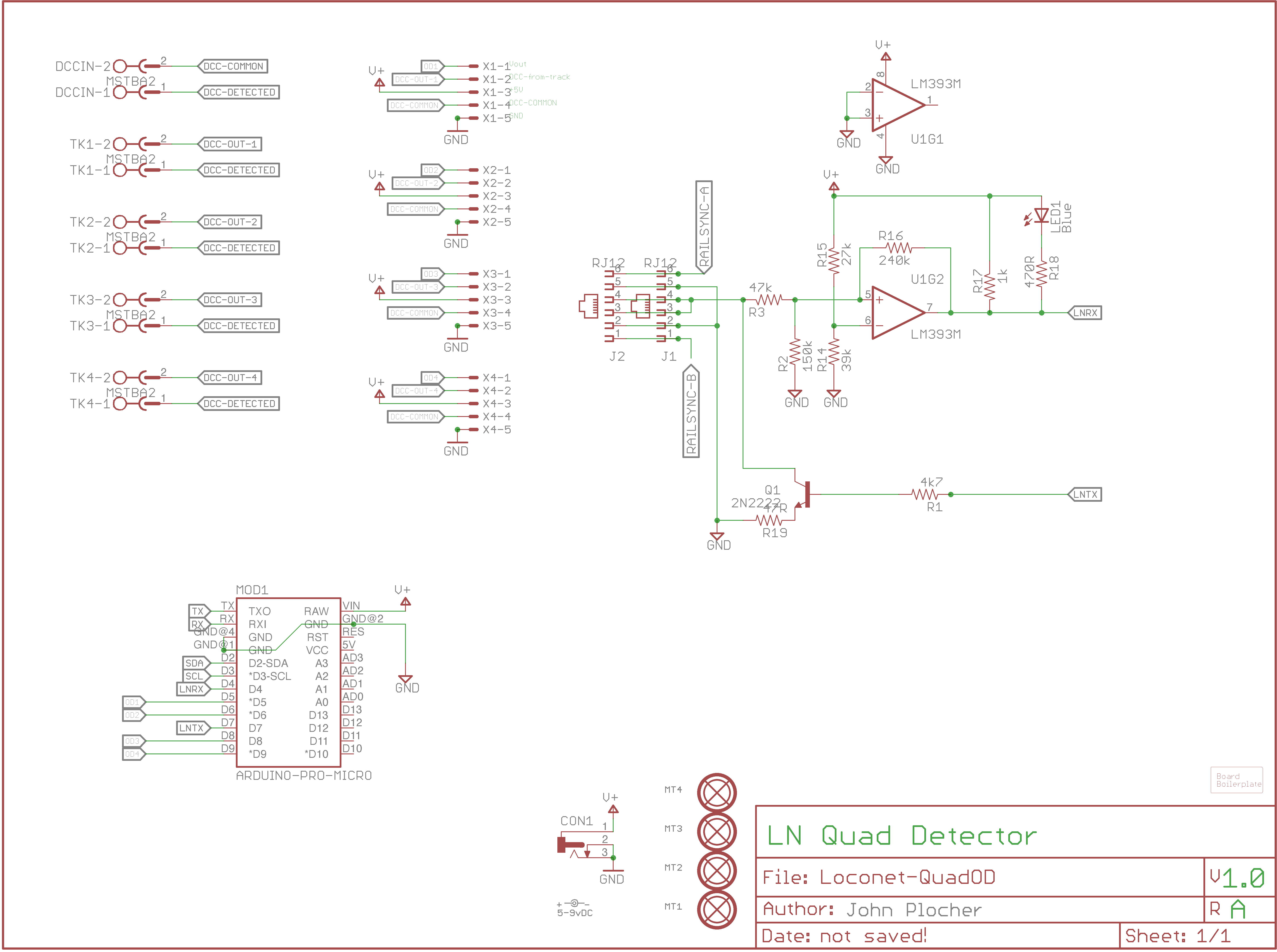

Schematic
Schematic

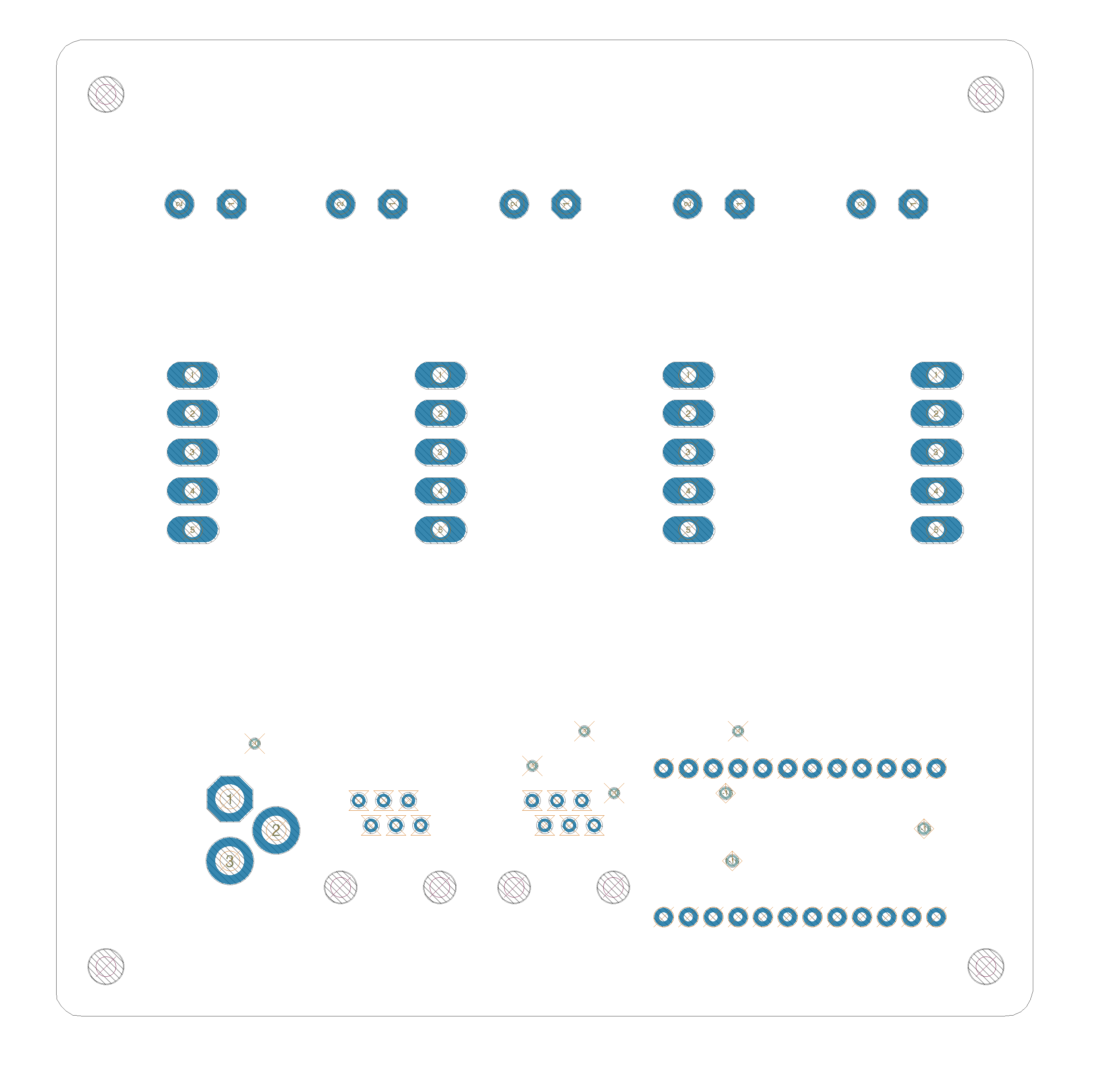

Bot Silk
Bot Silk

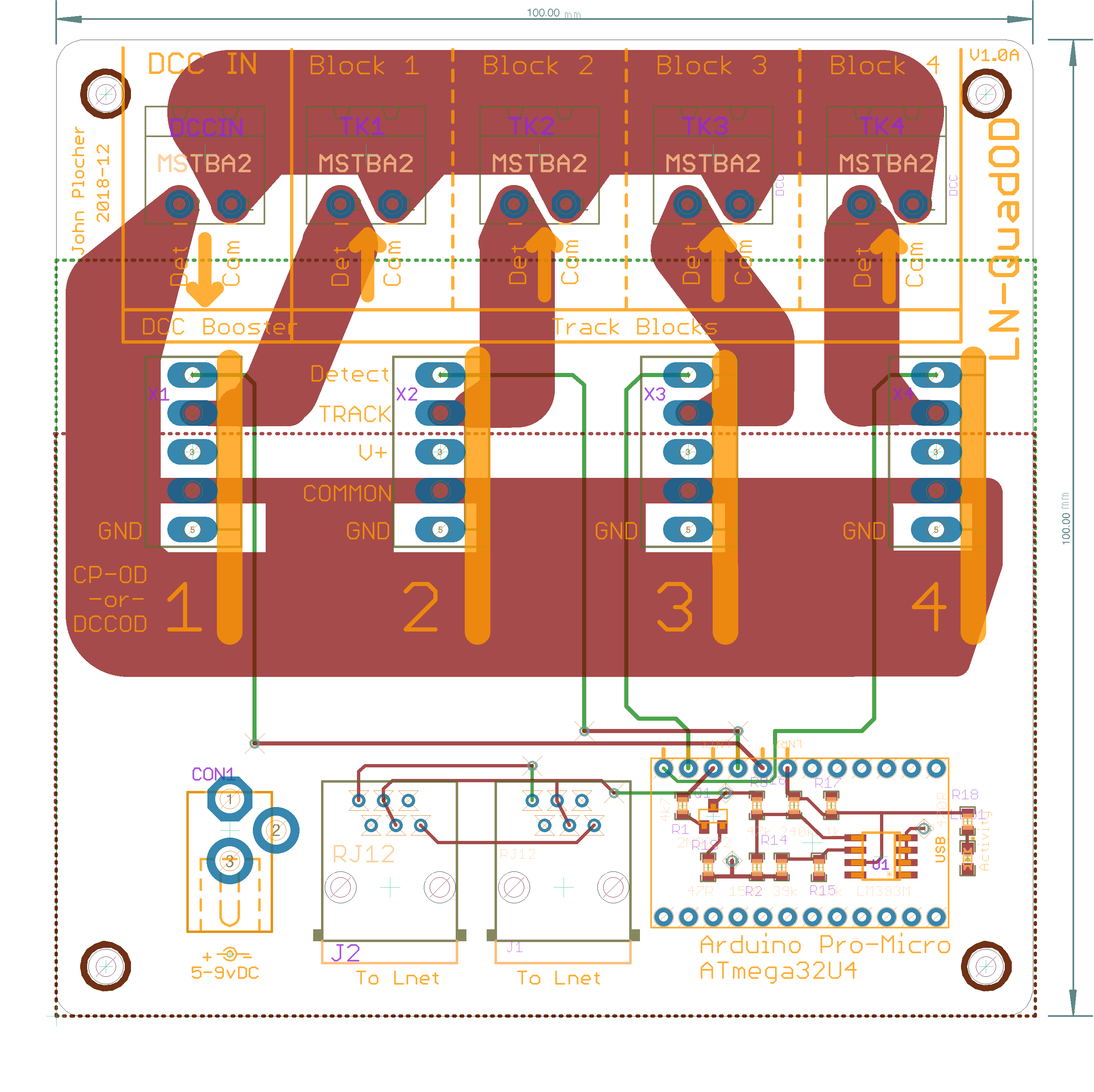

Board
Board

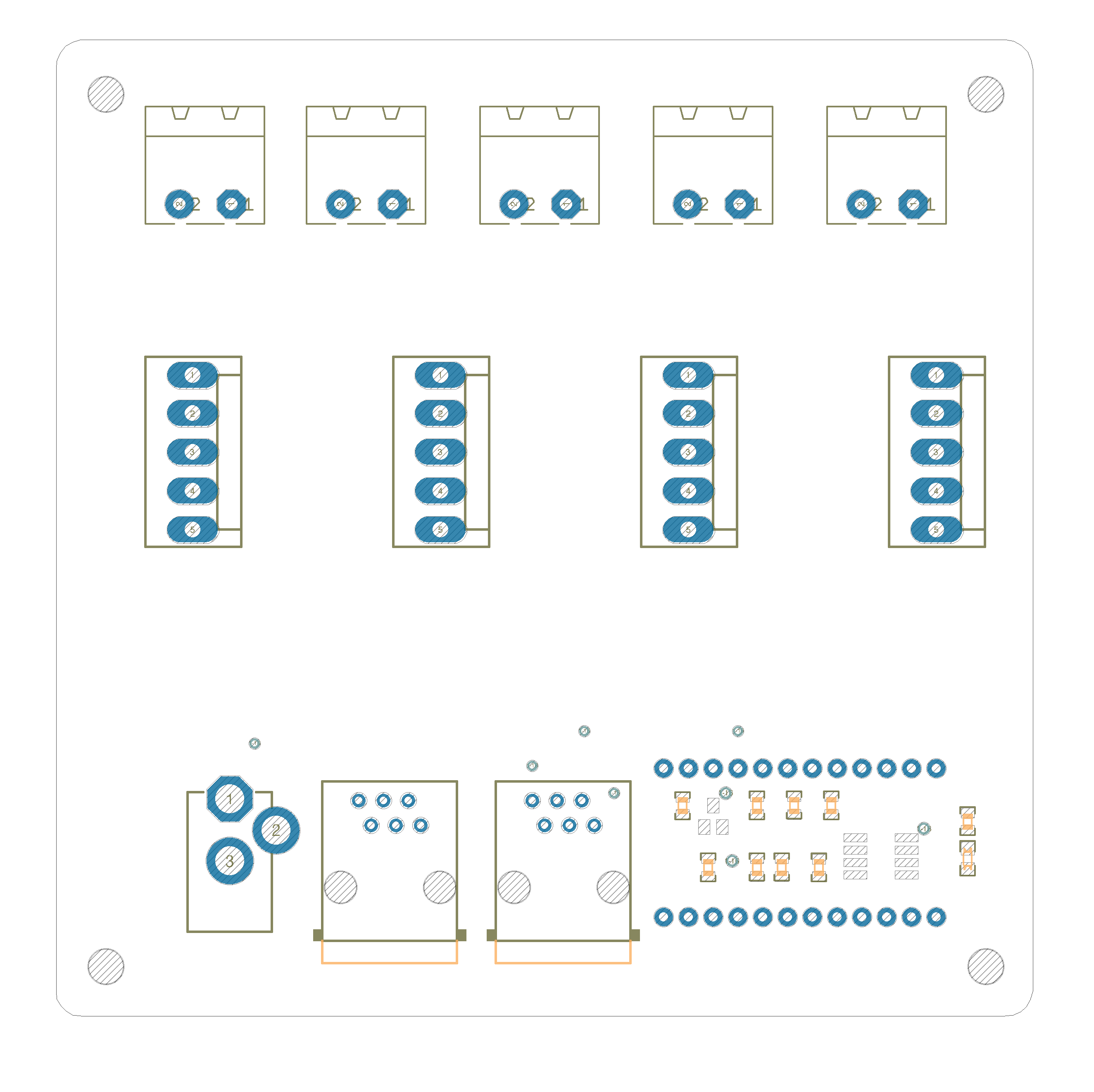

Top Silk
Top Silk

Download Loconet-QuadOD.gerbers.zip - Gerber Fabrication files
Download Loconet-QuadOD.parts - Parts List (spreadsheet data)



Loconet-QuadOD.bom

Parts Value Package Quantity Library Type/Feeder
R17 1k 0805-RES 1x SPCoast NONE
Q1 2N2222 SOT23 1x SPCoast 14
R1 4k7 0805-RES 1x SPCoast 44
U$1 5-9vDC PWR_LABEL 1x SPCoast PTH
R15 27k 0805-RES 1x SPCoast NONE
R14 39k 0805-RES 1x SPCoast NONE
R3 47k 0805-RES 1x SPCoast NONE
R19 47R 0805-RES 1x SPCoast NONE
R2 150k 0805-RES 1x SPCoast NONE
R16 240k 0805-RES 1x SPCoast NONE
R18 470R 0805-RES 1x SPCoast NONE
BOARD1   BOARD-SEEED10X10-NOHOLES 1x SPCoast PTH
CON1   DCJ0202 1x SPCoast PTH
X1, X2, X3, X4   KK-156-5 4x SPCoast PTH
MOD1 ARDUINO-PRO-MICRO ARDUINO-PRO-MICRO-NOSILK 1x SPCoast PTH
LED1 Blue 0805-LED 1x SPCoast NONE
U1 LM393M SO08 1x SPCoast NONE
MT1, MT2, MT3, MT4 MOUNTINGHOLE MOUNTINGHOLE 4x SPCoast PTH
DCCIN, TK1, TK2, TK3, TK4 MSTBA2 MSTBA2 5x SPCoast PTH
J1, J2 RJ12 RJ25 2x SPCoast PTH

Documentation

LN Quad Detector

A variation on IO4-QuadOD that replaces the WemosD1 & IO4 connections with an Arduino Pro Mini and LocoNet-style communications.

This simple 4-pack module should end up with a BOM cost between $5 and $10, so a full stand alone quad detector pack would run about $60 with detector boards.

The MRRWA Embedded Loconet library includes support for LN-SV V2 configuration management, which is also supported by JMRI; it should be pretty easy to write an addressable Detector sketch (TBD) with assorted XML definitions suitable for DecoderPro3…

This technical documentation is licensed under the CERN Open Hardware Licence v1.2
