IOB-Turtle

Fork project on GitHub

IOB Interface provides 1x IO4 port for connection to an IO4-Turtle

IOB-Turtle-Graphic
IOB-Turtle-Graphic



Download IOB-Turtle.SMD-parts -
Download IOB-Turtle_array.SMD-parts -
Download IOB-Turtle_array.scr - Eagle SCRipt
Download PanelTemplate.brd - Eagle PCB file



IOB-Turtle Version 3.0

First built: 2018-02

Not tested or validated

  • V2.0: new IOB layout

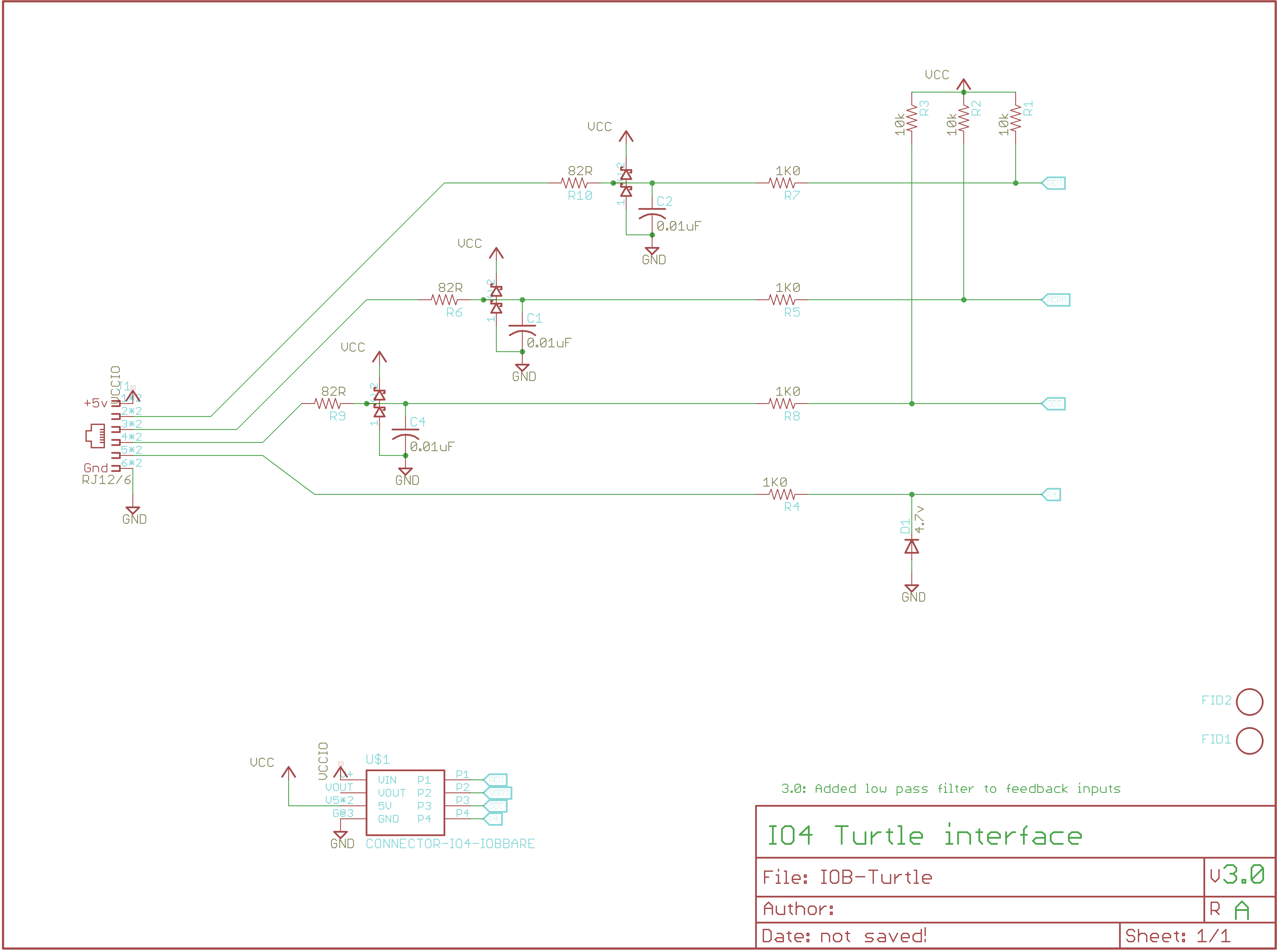

Schematic
Schematic

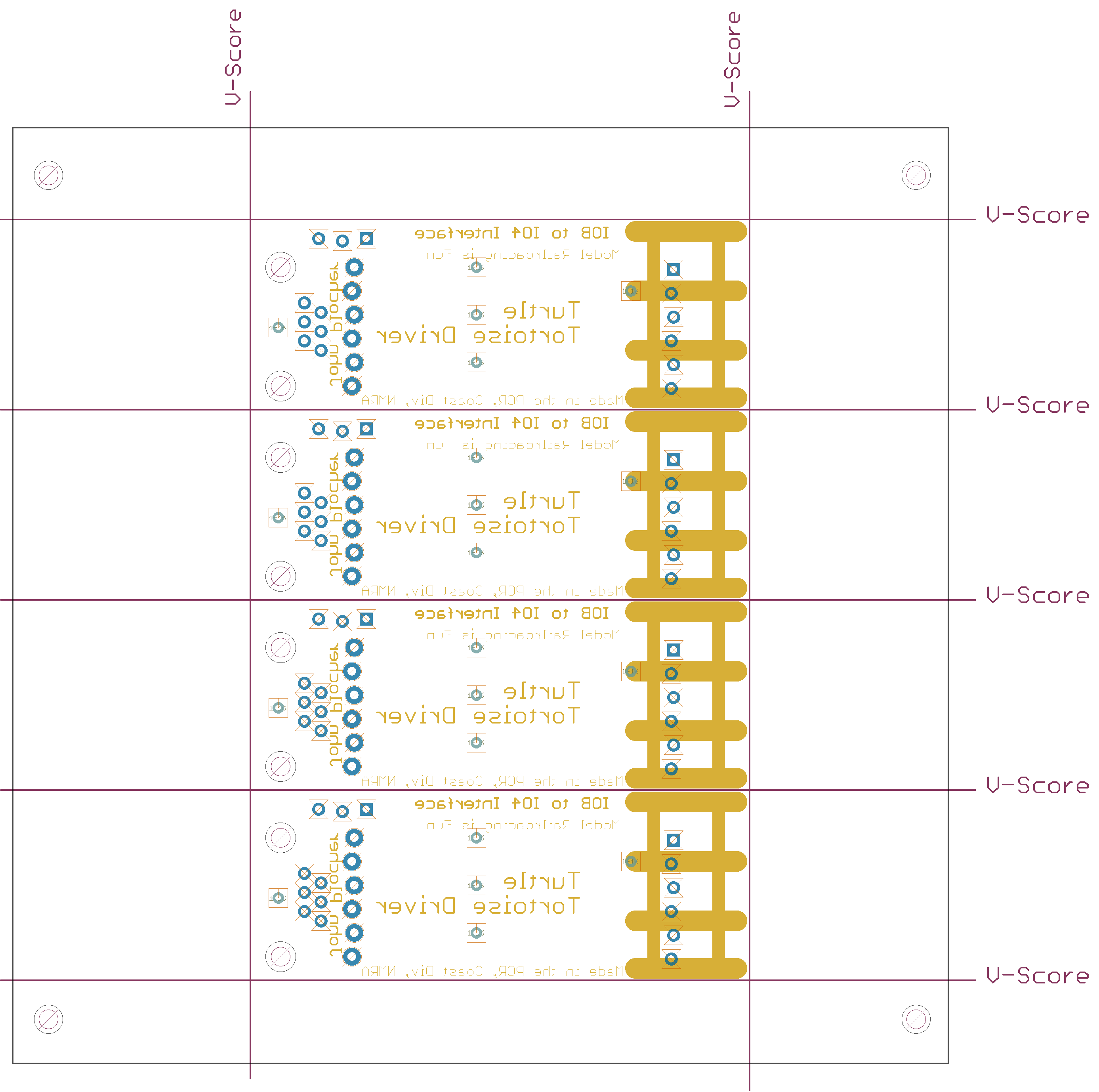

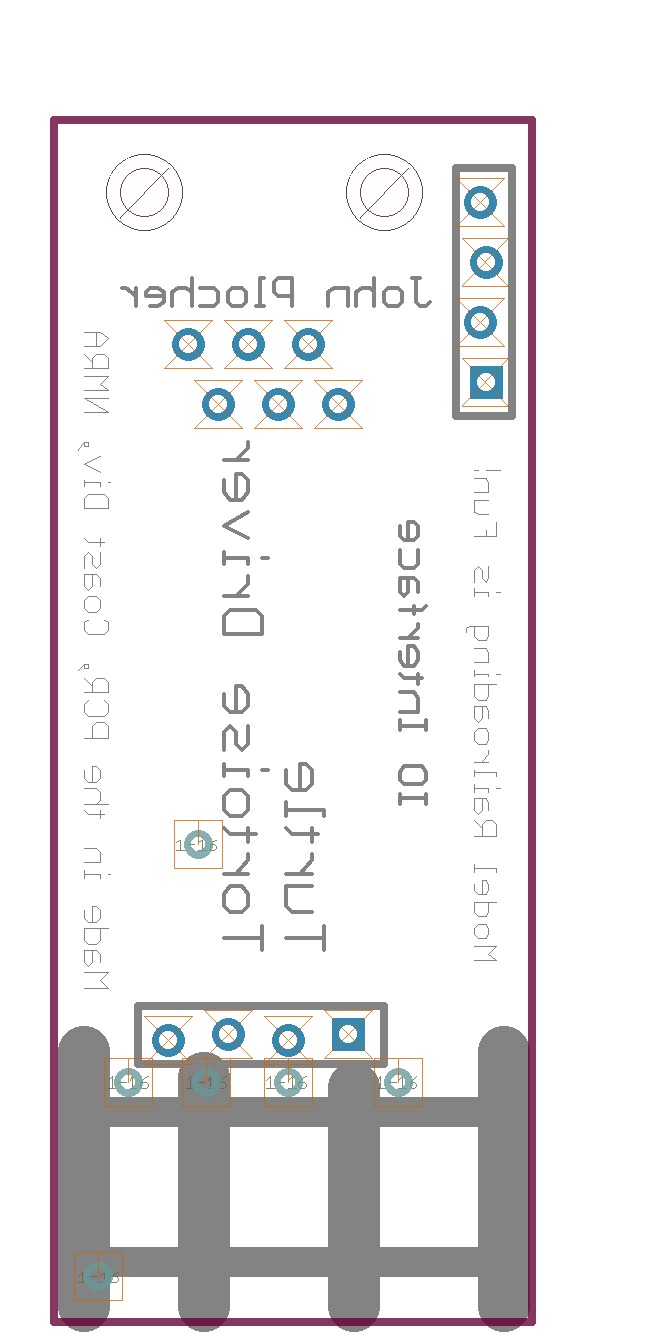

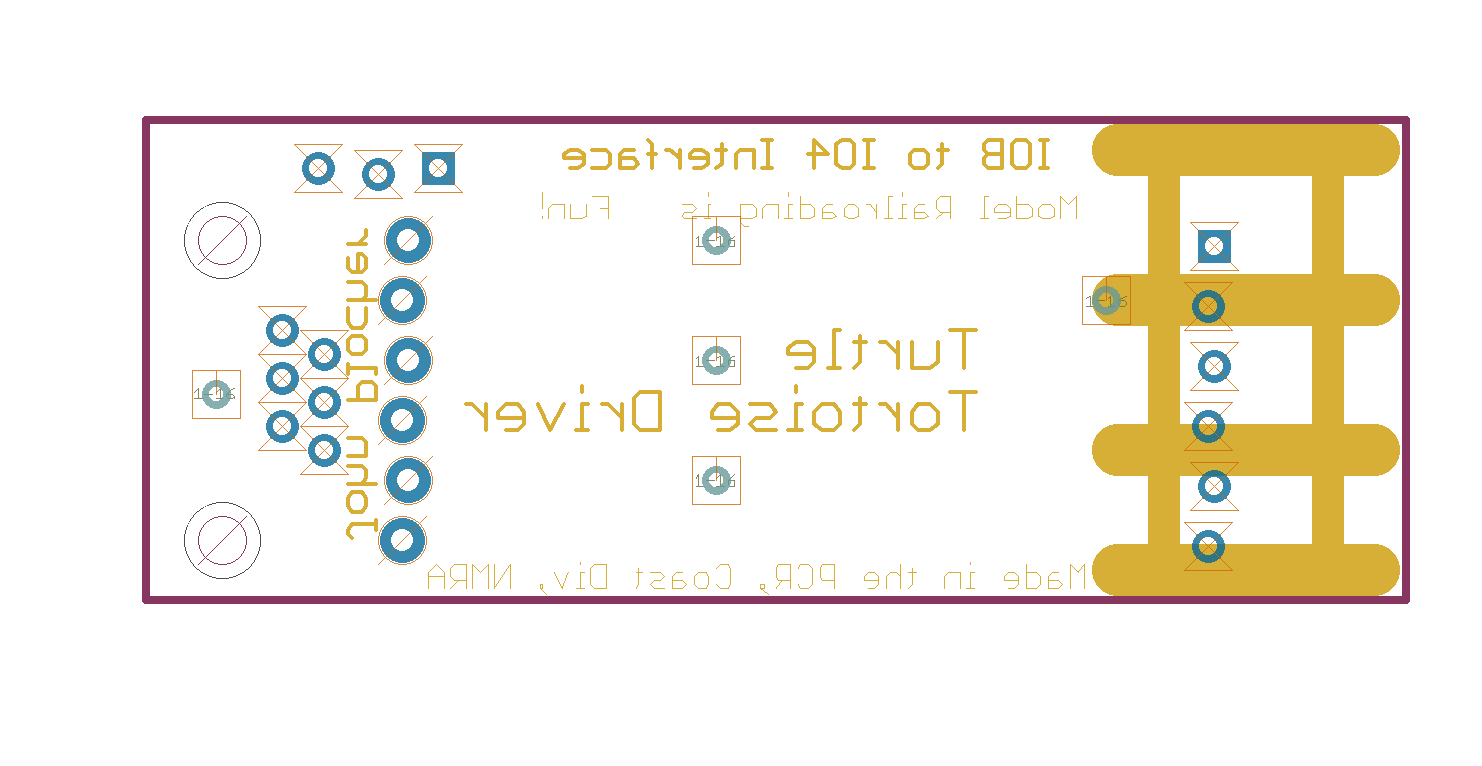

Bot Silk
Bot Silk

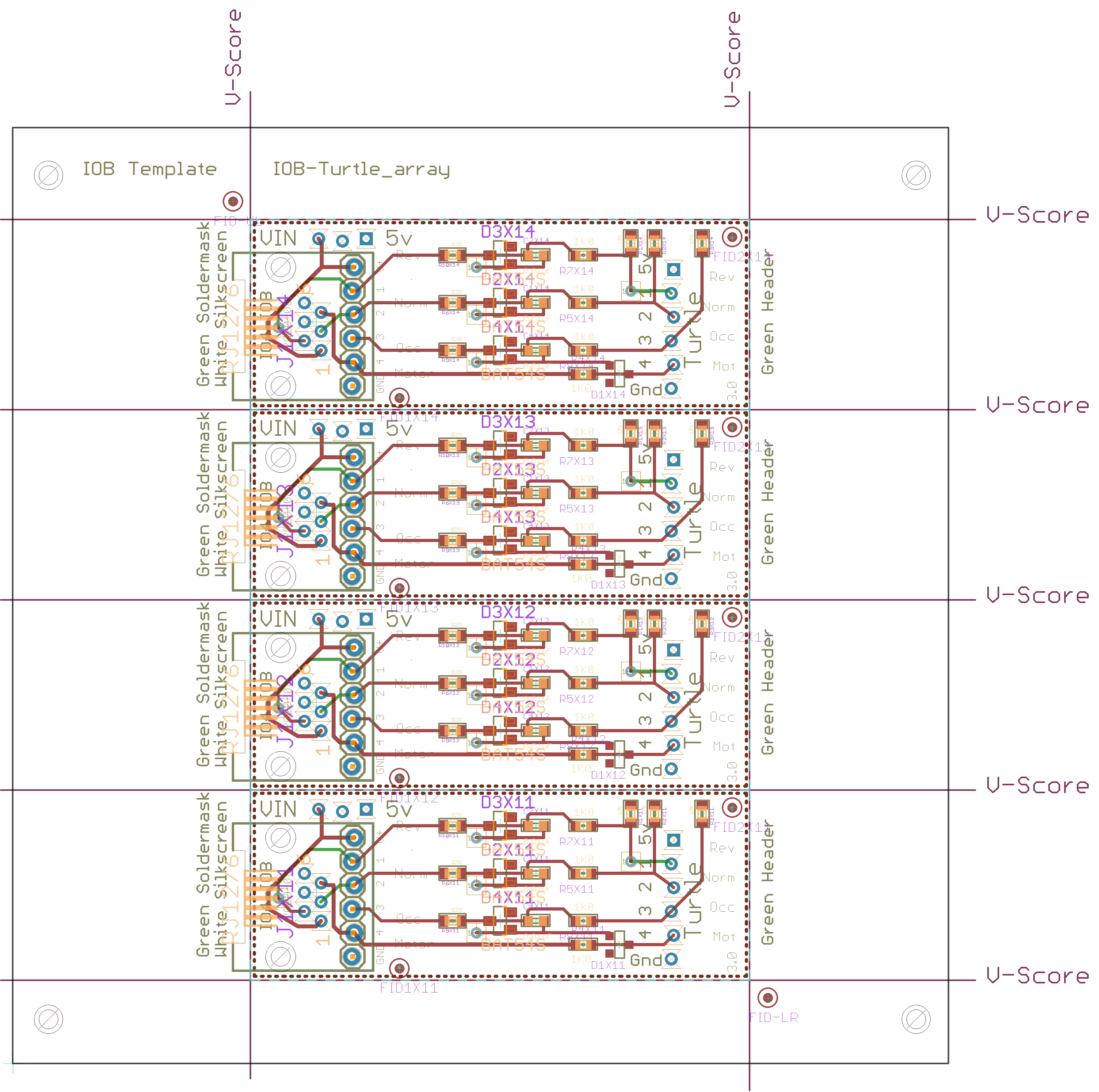

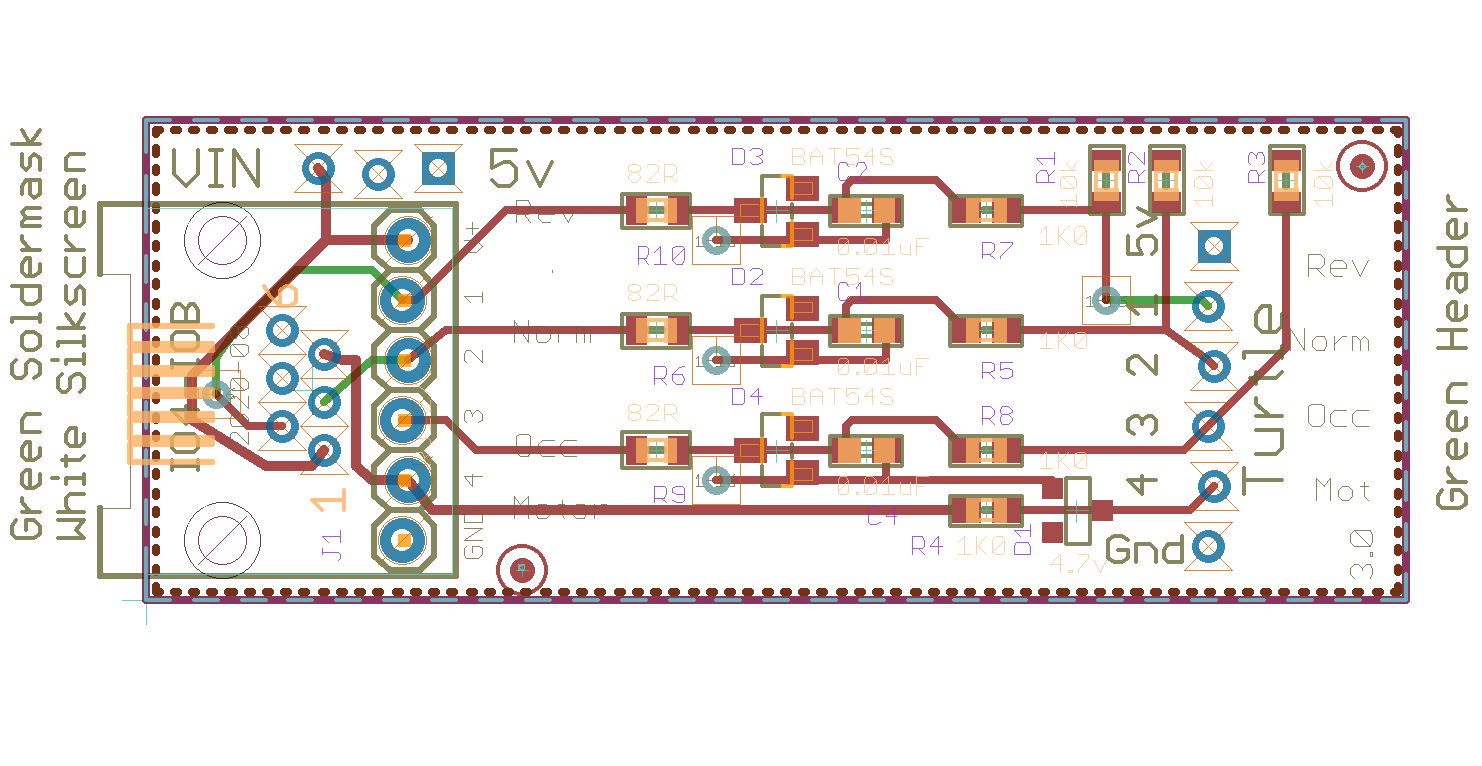

Board
Board

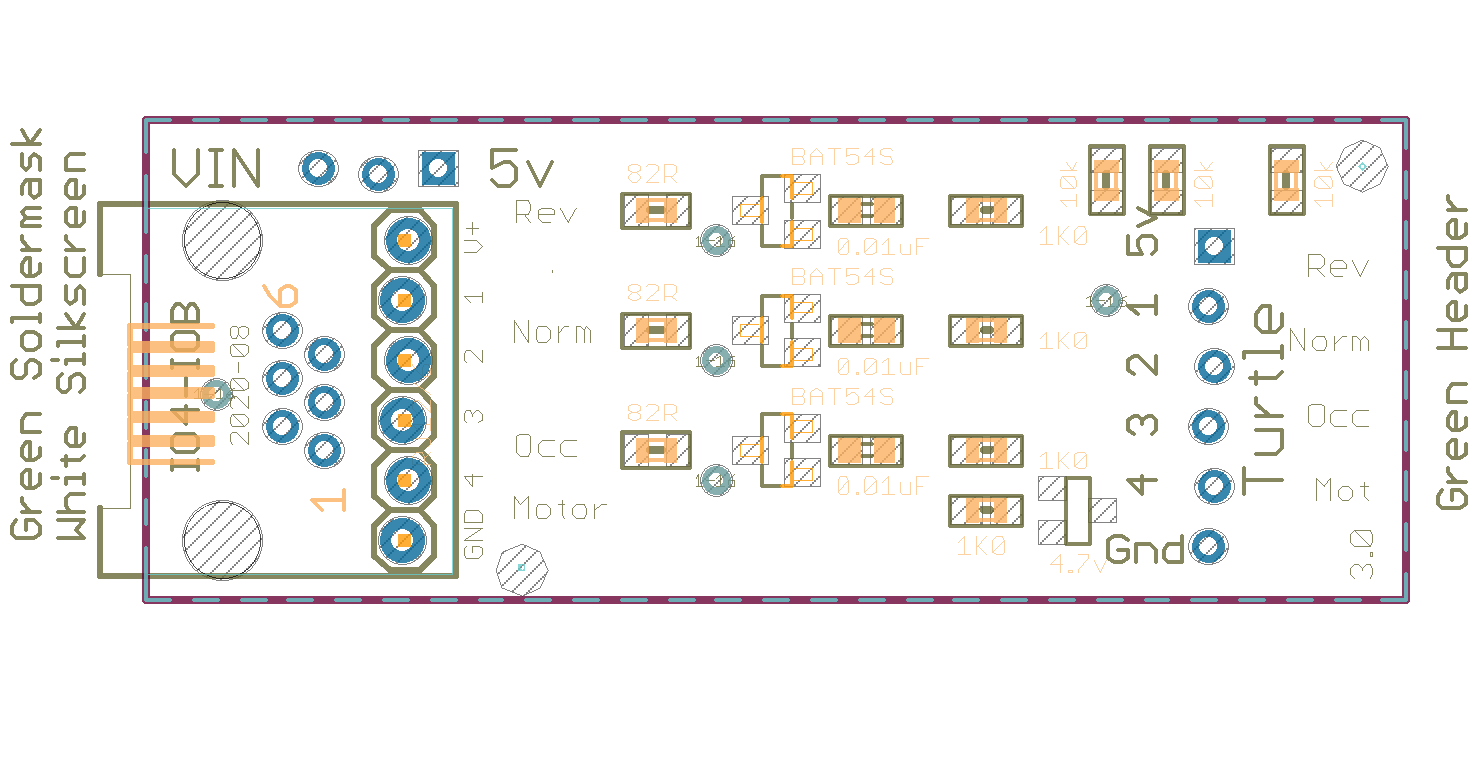

Top Silk
Top Silk
Bot Silk
Bot Silk
Board
Board
Top Silk
Top Silk

Download IOB-Turtle.gerbers.zip - Gerber Fabrication files
Download IOB-Turtle.parts - Parts List (spreadsheet data)

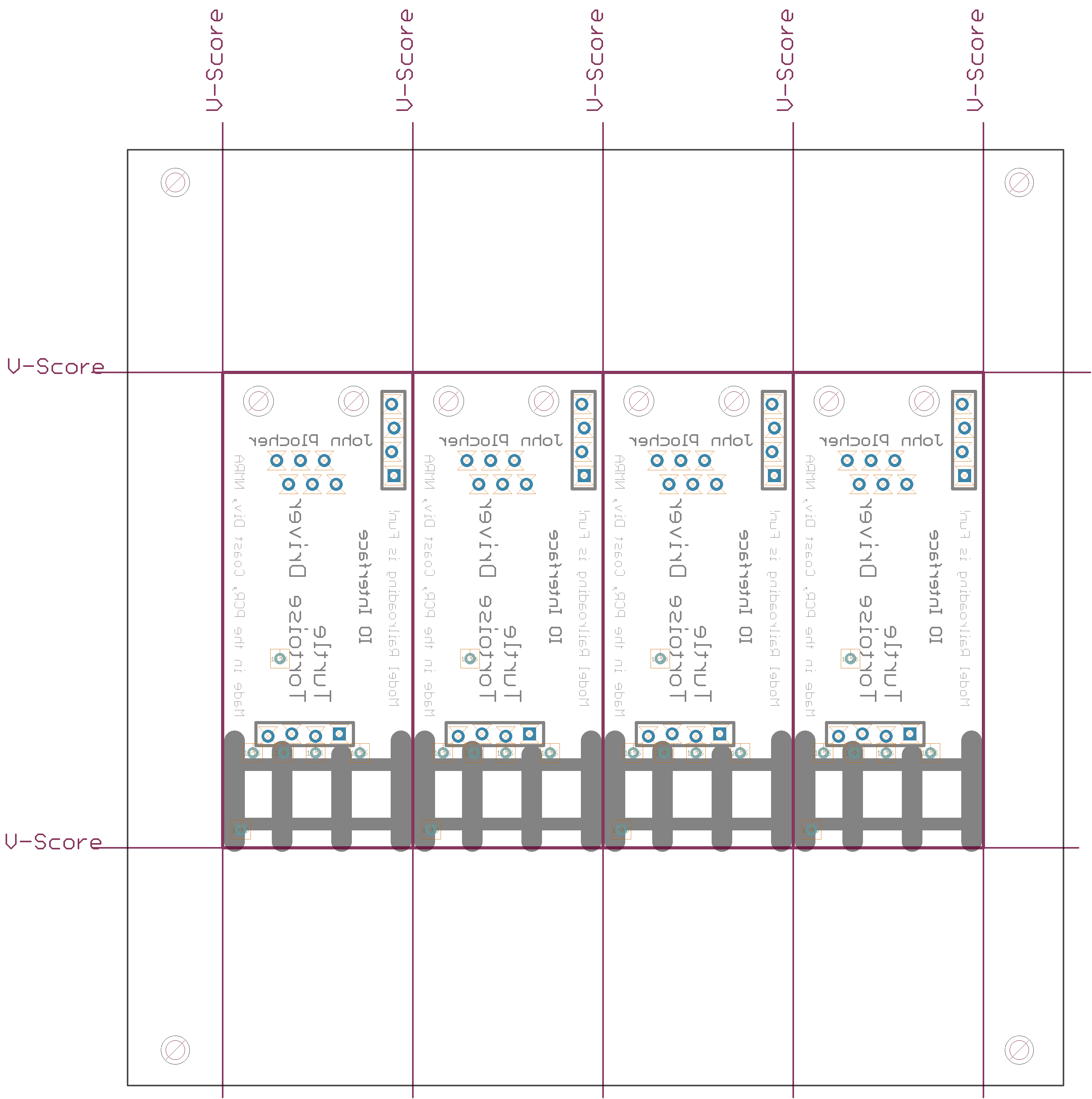

Download IOB-Turtle_array.gerbers.zip - Gerber Fabrication files
Download IOB-Turtle_array.parts - Parts List (spreadsheet data)



IOB-Turtle.bom

Parts Value Package Quantity Library Type/Feeder
C1, C2, C4 0.01uF 0603-CAP 3x SPCoast 18
R4, R5, R7, R8 1K0 0603-RES 4x SPCoast 41
D1 4.7v SOT23-3 1x SPCoast 13
R1, R2, R3 10k 0805-RES 3x SPCoast 46
R6, R9, R10 82R 0805-RES 3x SPCoast NONE
D2, D3, D4 BAT54S SOT23 3x SPCoast 10
U$1 CONNECTOR-IO4-IOBBARE IO4-IOB 1x SPCoast PTH
FID1, FID2 FIDUCIAL FIDUCIAL_1MM 2x SPCoast NONE
J1 RJ12/6 RJ24-INVERTED-PINS 1x SPCoast PTH

IOB-Turtle_array.bom

Parts Value Package Quantity Library Type/Feeder
C1X11, C1X12, C1X13, C1X14, C2X11, C2X12, C2X13, C2X14, C4X11, C4X12, C4X13, C4X14 0.01uF 0603-CAP 12x SPCoast 18
R4X11, R4X12, R4X13, R4X14, R5X11, R5X12, R5X13, R5X14, R7X11, R7X12, R7X13, R7X14, R8X11, R8X12, R8X13, R8X14 1K0 0603-RES 16x SPCoast 41
D1X11, D1X12, D1X13, D1X14 4.7v SOT23-3 4x SPCoast 13
R1X11, R1X12, R1X13, R1X14, R2X11, R2X12, R2X13, R2X14, R3X11, R3X12, R3X13, R3X14 10k 0805-RES 12x SPCoast 46
R6X11, R6X12, R6X13, R6X14, R9X11, R9X12, R9X13, R9X14, R10X11, R10X12, R10X13, R10X14 82R 0805-RES 12x SPCoast NONE
U$1X1   BOARD-DINRAIL-3.17IN-H4X-IOB 1x SPCoast PTH
D2X11, D2X12, D2X13, D2X14, D3X11, D3X12, D3X13, D3X14, D4X11, D4X12, D4X13, D4X14 BAT54S SOT23 12x SPCoast 10
U$1X11, U$1X12, U$1X13, U$1X14 CONNECTOR-IO4-IOBBARE IO4-IOB 4x SPCoast PTH
FID1X11, FID1X12, FID1X13, FID1X14, FID2X11, FID2X12, FID2X13, FID2X14, FID-LR, FID-UL FIDUCIAL FIDUCIAL_1MM 10x SPCoast NONE
J1X11, J1X12, J1X13, J1X14 RJ12/6 RJ24-INVERTED-PINS 4x SPCoast PTH

IOB-Turtle Version 2.0

First built: 2018-02

  • V2.0: new IOB layout

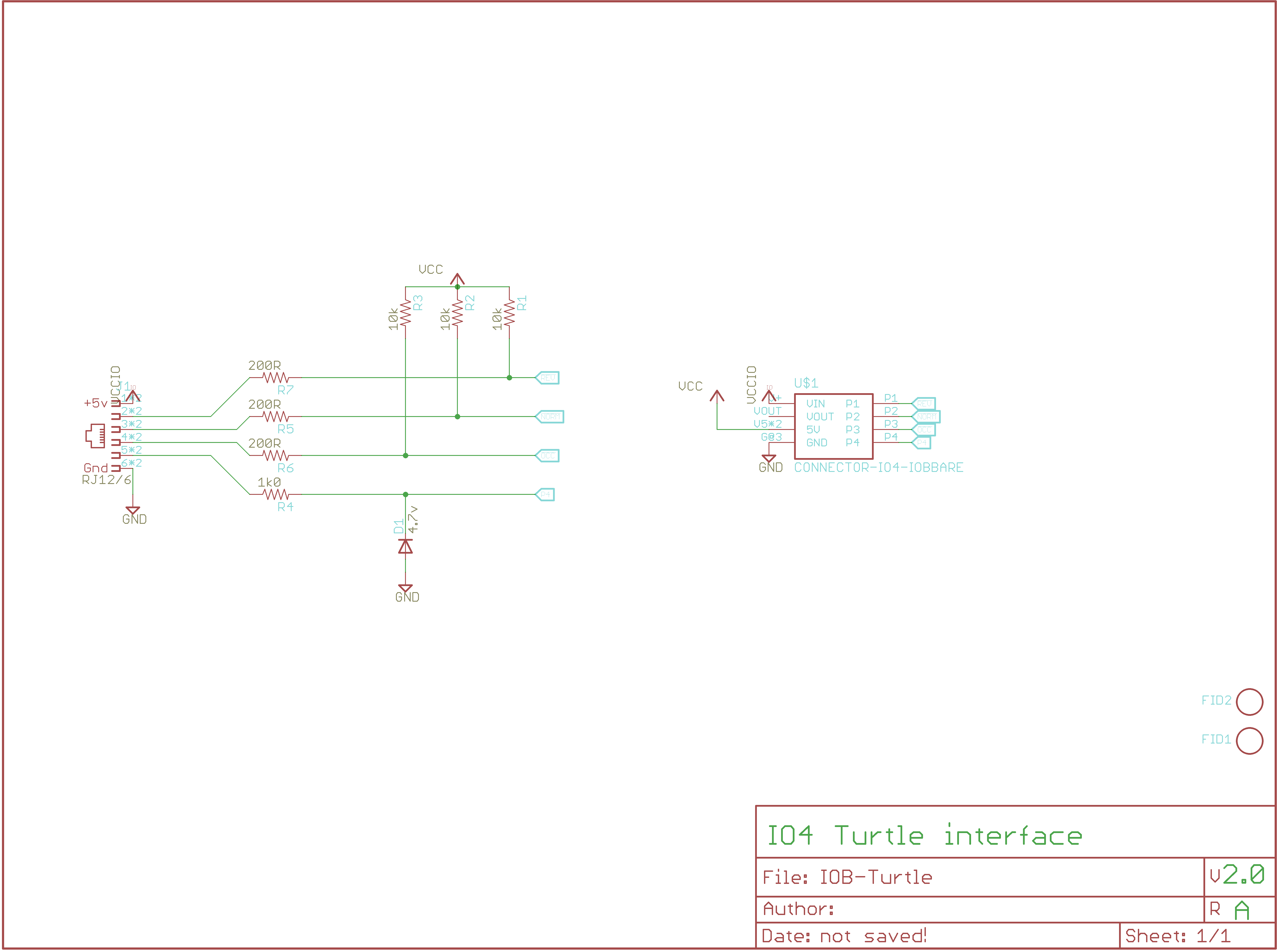

Schematic
Schematic

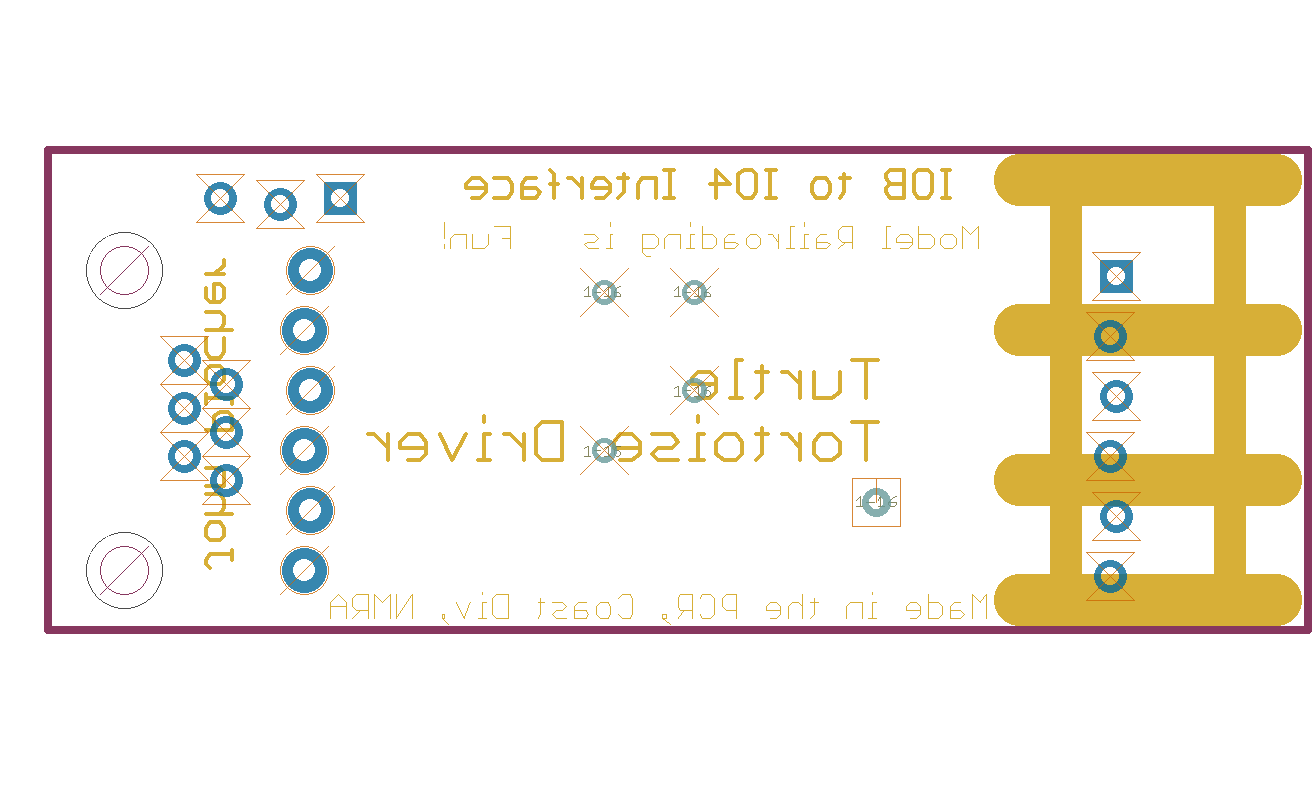

Bot Silk
Bot Silk

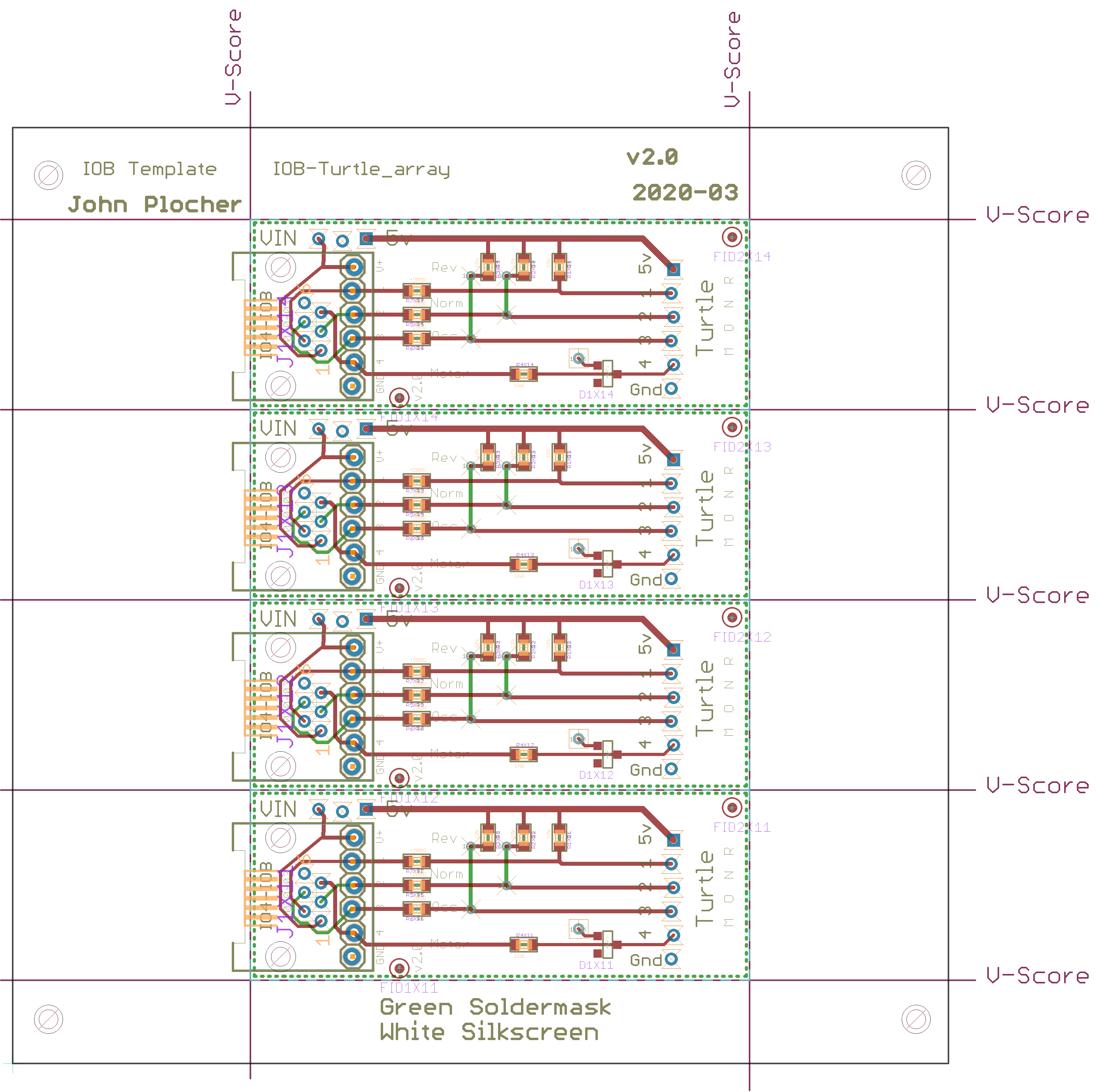

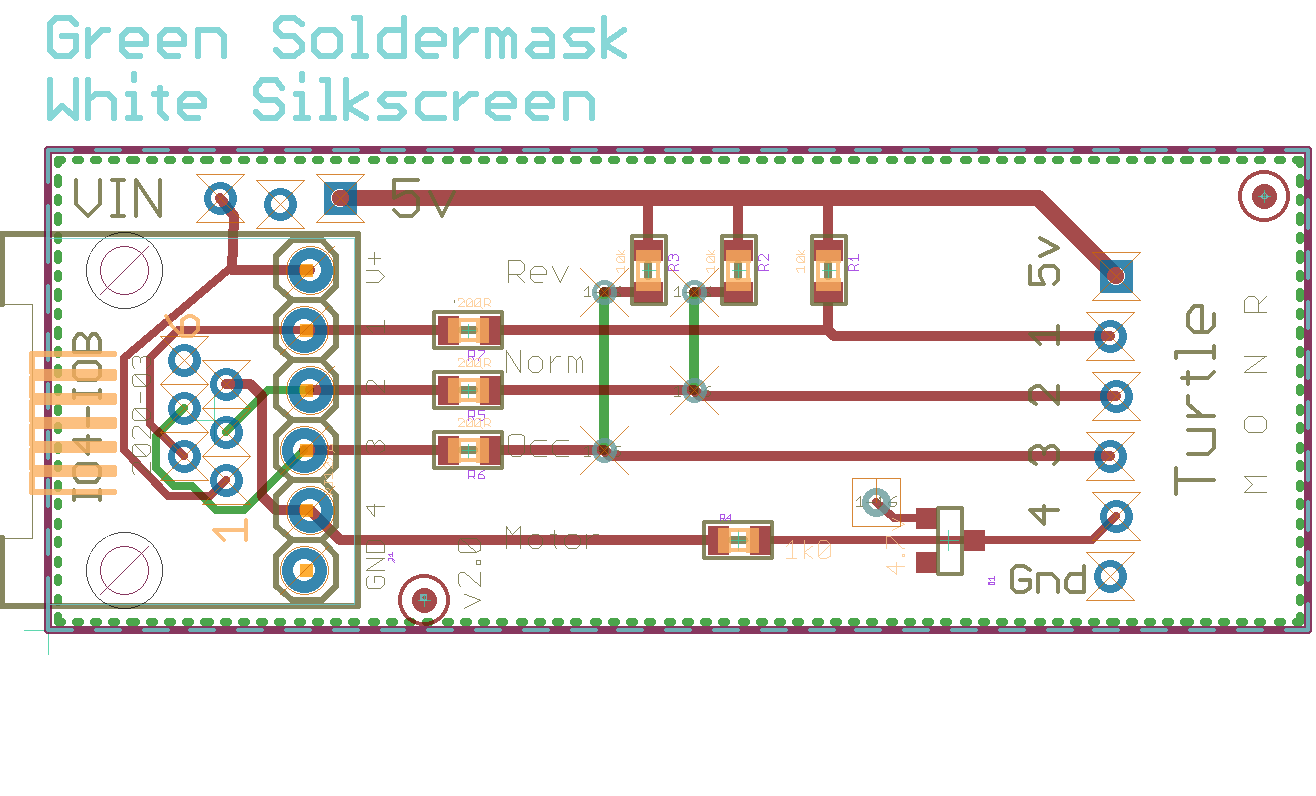

Board
Board

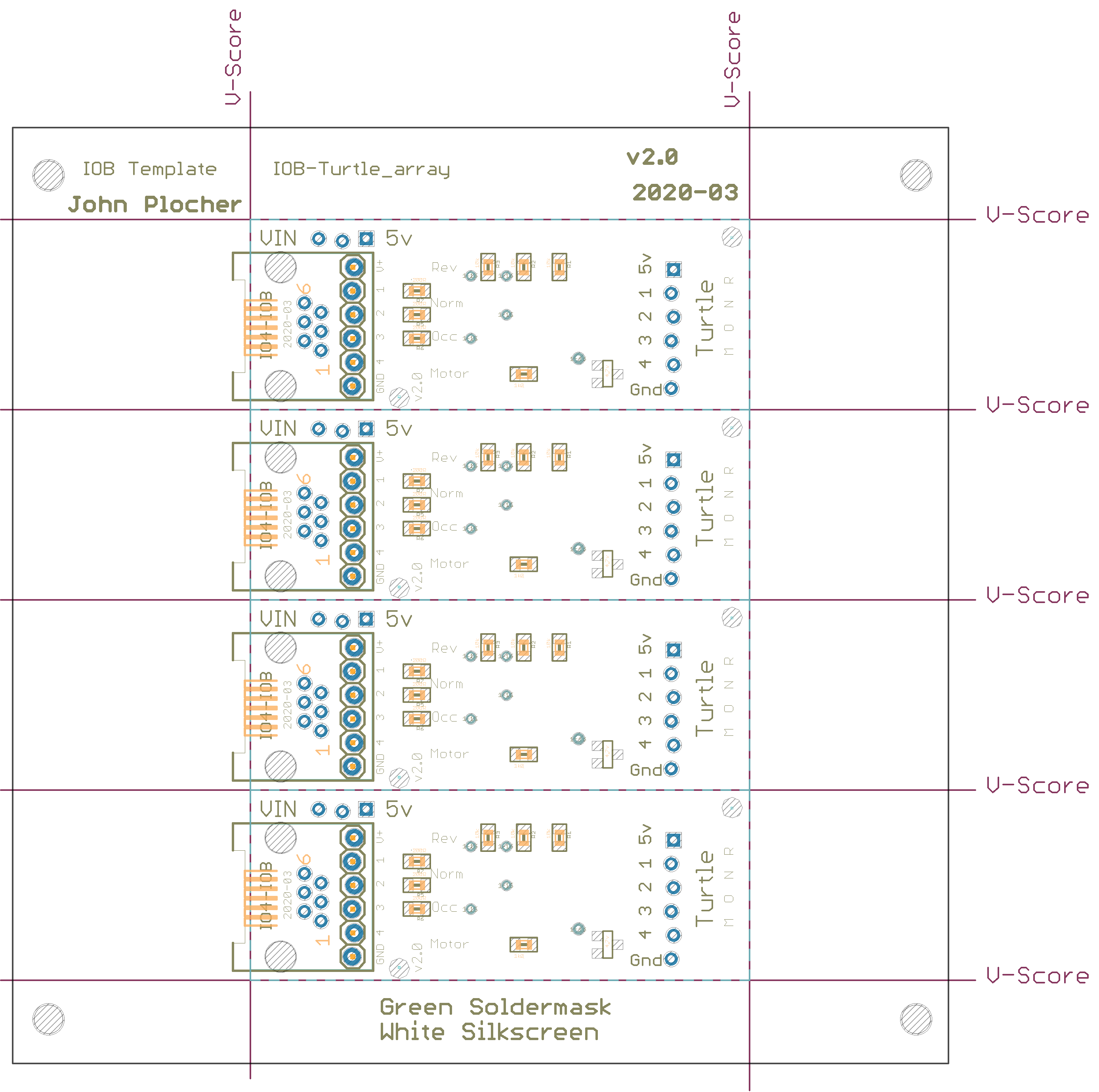

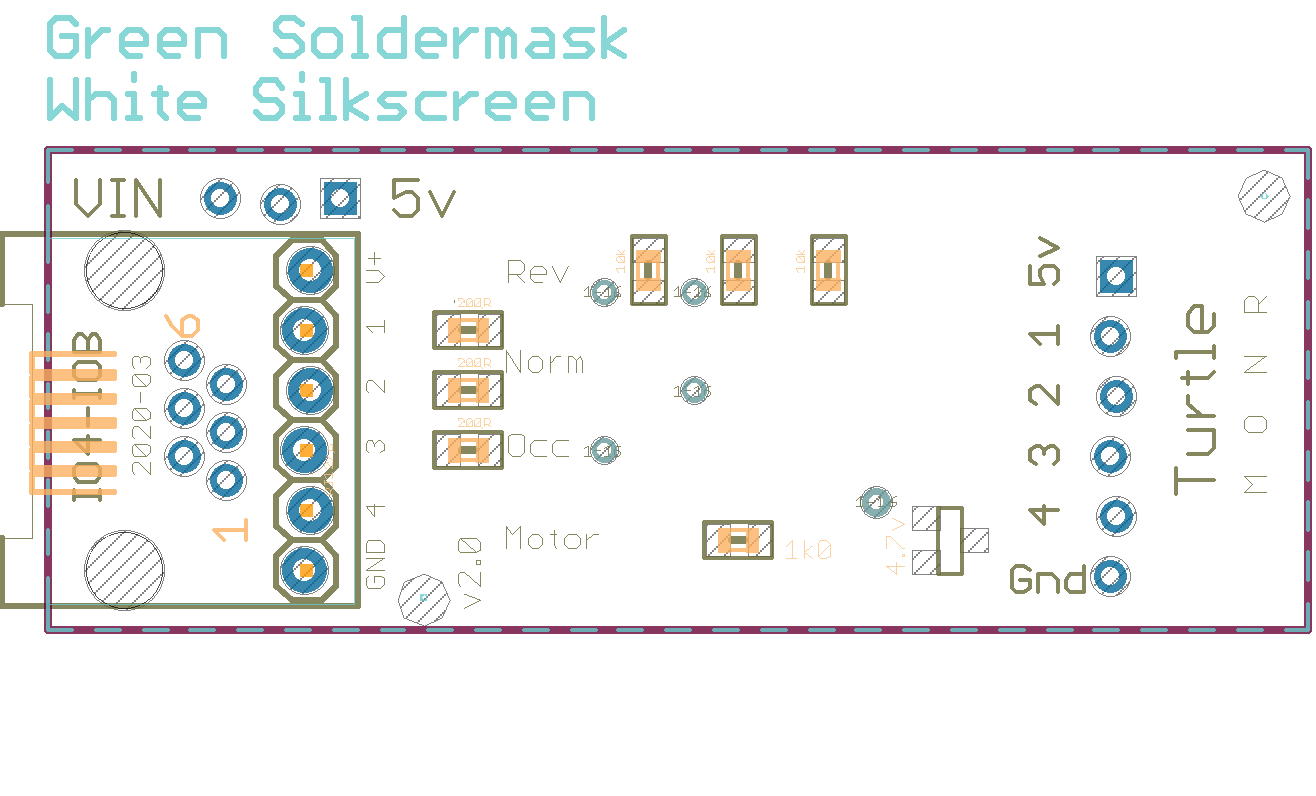

Top Silk
Top Silk
Bot Silk
Bot Silk
Board
Board
Top Silk
Top Silk

Download IOB-Turtle.gerbers.zip - Gerber Fabrication files
Download IOB-Turtle.parts - Parts List (spreadsheet data)
Download IOB-Turtle_array.gerbers.zip - Gerber Fabrication files
Download IOB-Turtle_array.parts - Parts List (spreadsheet data)



IOB-Turtle.bom

Parts Value Package Quantity Library Type/Feeder
R4 1k0 0805-RES 1x SPCoast 41
D1 4.7v SOT23-3 1x SPCoast 13
R1, R2, R3 10k 0805-RES 3x SPCoast 46
R5, R6, R7 200R 0805-RES 3x SPCoast NONE
U$1 CONNECTOR-IO4-IOBBARE IO4-IOB 1x SPCoast PTH
FID1, FID2 FIDUCIAL FIDUCIAL_1MM 2x SPCoast NONE
J1 RJ12/6 RJ24-INVERTED-PINS 1x SPCoast PTH

IOB-Turtle_array.bom

Parts Value Package Quantity Library Type/Feeder
R4X11, R4X12, R4X13, R4X14 1k0 0805-RES 4x SPCoast 41
D1X11, D1X12, D1X13, D1X14 4.7v SOT23-3 4x SPCoast 13
R1X11, R1X12, R1X13, R1X14, R2X11, R2X12, R2X13, R2X14, R3X11, R3X12, R3X13, R3X14 10k 0805-RES 12x SPCoast 46
R5X11, R5X12, R5X13, R5X14, R6X11, R6X12, R6X13, R6X14, R7X11, R7X12, R7X13, R7X14 200R 0805-RES 12x SPCoast NONE
U$1X1   BOARD-DINRAIL-3.17IN-H4X-IOB 1x SPCoast PTH
FID1X11, FID1X12, FID1X13, FID1X14, FID2X11, FID2X12, FID2X13, FID2X14   FIDUCIAL_1MM 8x SPCoast NONE
U$1X11, U$1X12, U$1X13, U$1X14   IO4-IOB 4x SPCoast PTH
J1X11, J1X12, J1X13, J1X14   RJ24-INVERTED-PINS 4x SPCoast PTH

IOB-Turtle Version 1.1

First built: 2018-02

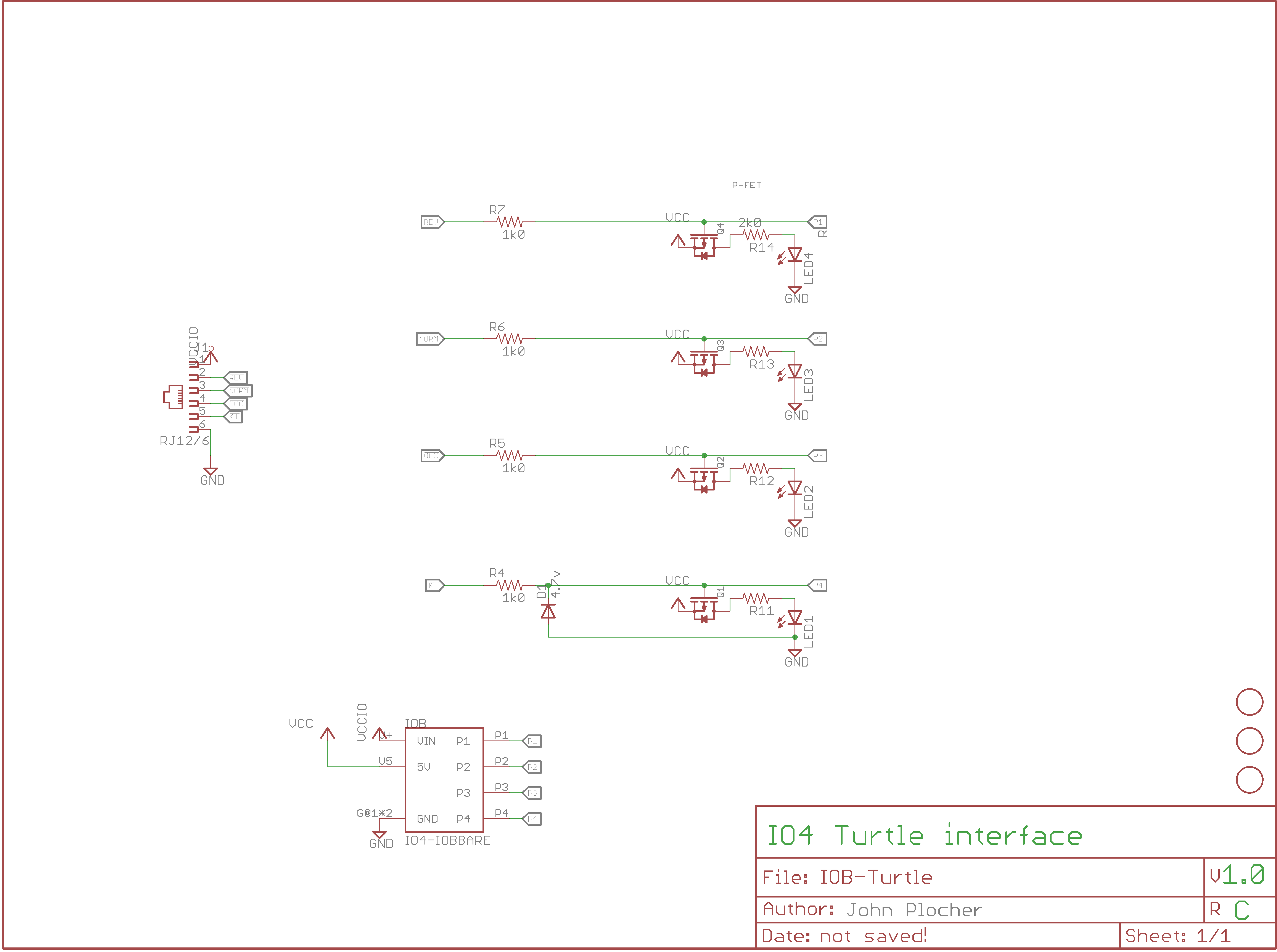

Schematic
Schematic
Bot Silk
Bot Silk

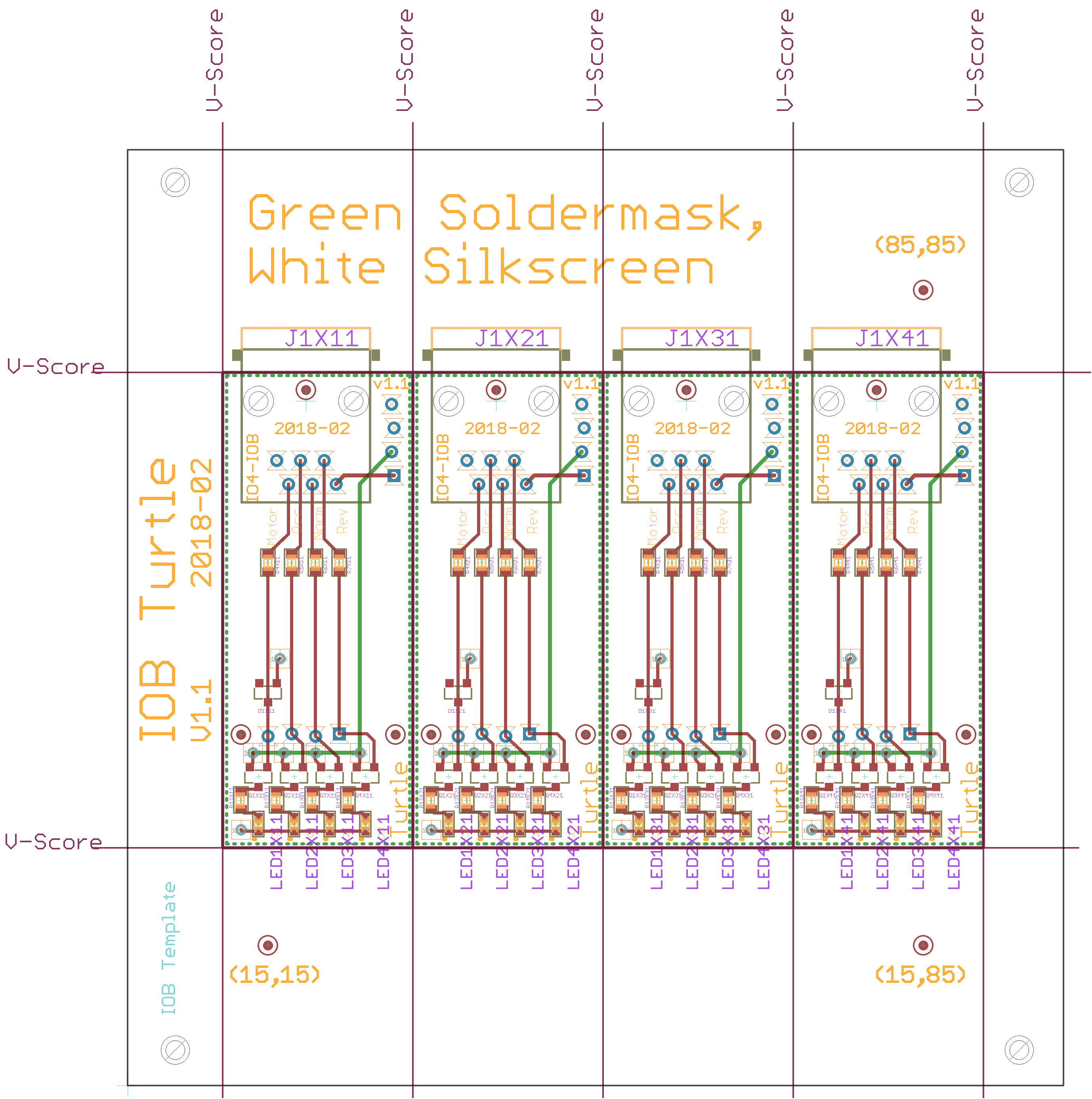

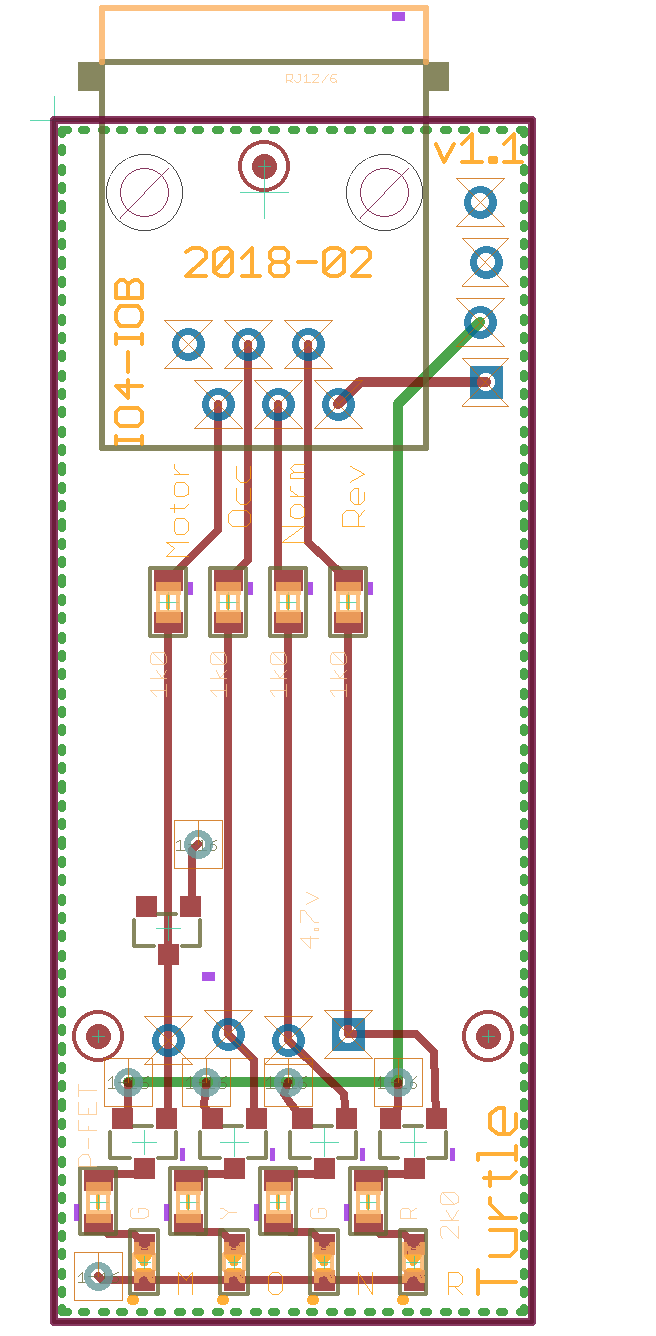

Board
Board

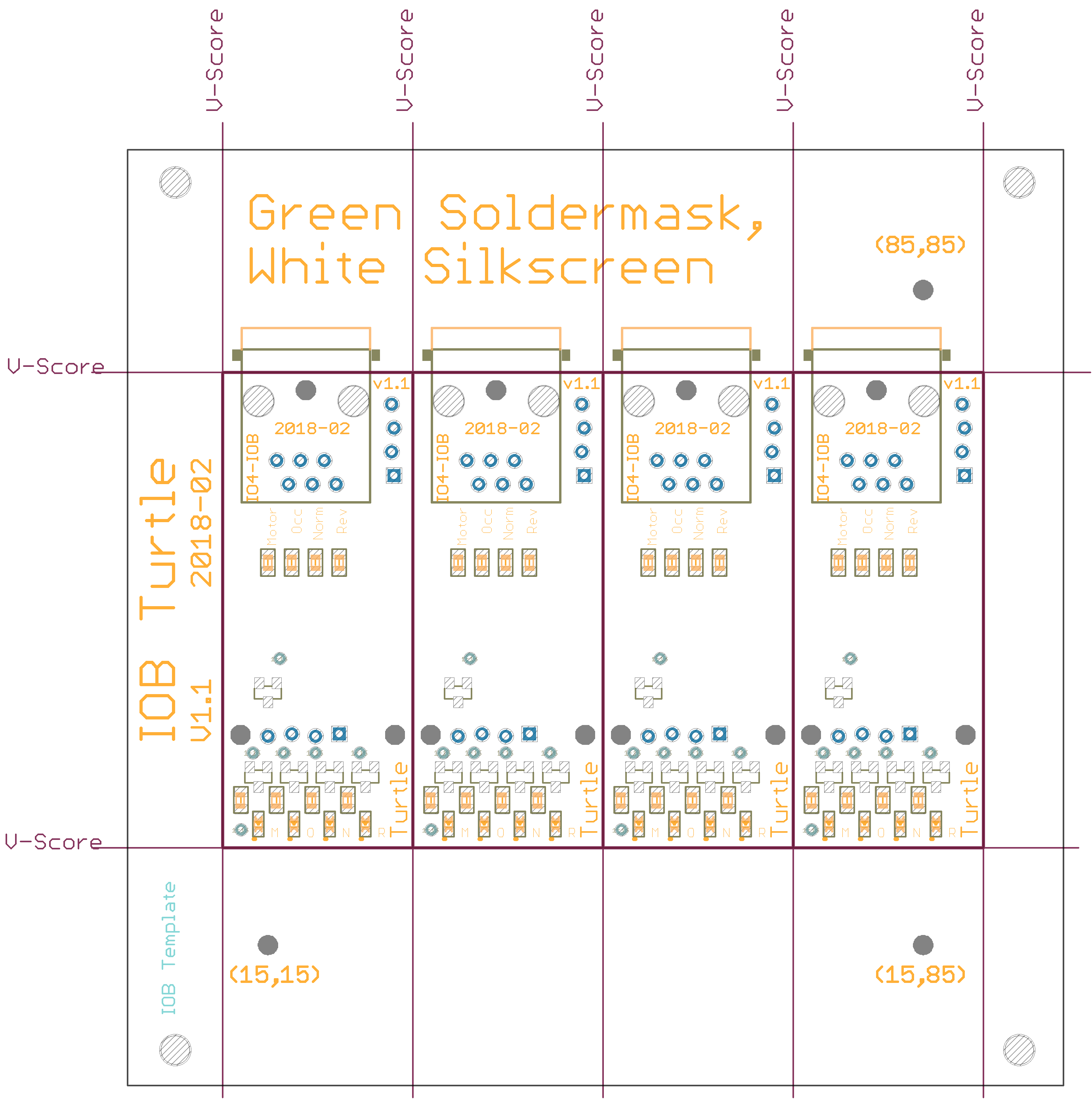

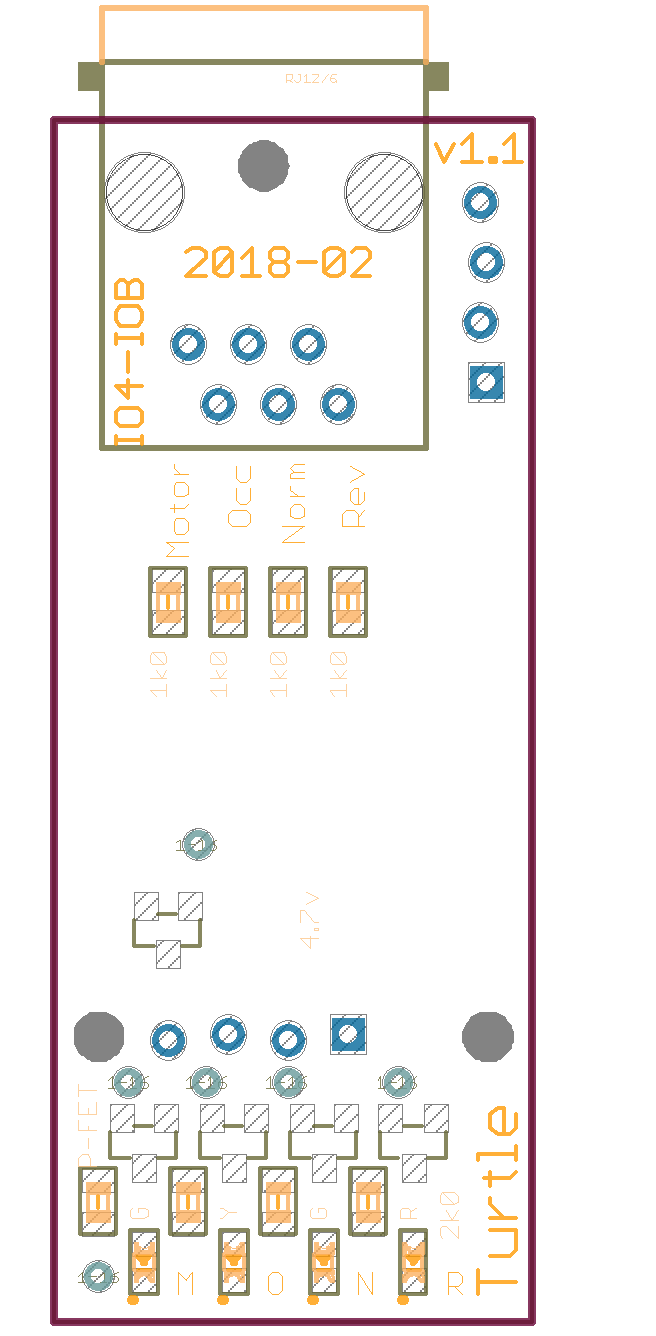

Top Silk
Top Silk
Bot Silk
Bot Silk
Board
Board
Top Silk
Top Silk

Download IOB-Turtle - CHMT Component and feeder definitions
Download IOB-Turtle.gerbers.zip - Gerber Fabrication files
Download IOB-Turtle.parts - Parts List (spreadsheet data)
Download IOB-Turtle_array - CHMT Component and feeder definitions
Download IOB-Turtle_array.gerbers.zip - Gerber Fabrication files
Download IOB-Turtle_array.parts - Parts List (spreadsheet data)



IOB-Turtle.bom

Parts Value Package Quantity Library Type/Feeder
R4, R5, R6, R7 1k0 0805-RES 4x SPCoast 6
R11, R12, R13, R14 2k0 0805-RES 4x SPCoast 7
D1 4.7v SOT23-3 1x SPCoast 44
FID1, FID2, FID3 FIDUCIAL FIDUCIAL_1MM 3x SPCoast NONE
LED1, LED3 G 0603-LED 2x SPCoast 18
IOB IO4-IOBBARE IO4-IOB 1x SPCoast PTH
Q1, Q2, Q3, Q4 P-FET SOT23-3 4x SPCoast NONE
LED4 R 0603-LED 1x SPCoast 17
J1 RJ12/6 RJ25 1x SPCoast PTH
LED2 Y 0603-LED 1x SPCoast 20

IOB-Turtle_array.bom

Parts Value Package Quantity Library Type/Feeder
LED1X11, LED1X21, LED1X31, LED1X41, LED2X11, LED2X21, LED2X31, LED2X41, LED3X11, LED3X21, LED3X31, LED3X41, LED4X11, LED4X21, LED4X31, LED4X41   0603-LED 16x SPCoast NONE
R4X11, R4X21, R4X31, R4X41, R5X11, R5X21, R5X31, R5X41, R6X11, R6X21, R6X31, R6X41, R7X11, R7X21, R7X31, R7X41, R11X11, R11X21, R11X31, R11X41, R12X11, R12X21, R12X31, R12X41, R13X11, R13X21, R13X31, R13X41, R14X11, R14X21, R14X31, R14X41   0805-RES 32x SPCoast NONE
R8X1   BOARD-DINRAIL-3.17IN-4X-IOB 1x SPCoast PTH
FID1X11, FID1X21, FID1X31, FID1X41, FID2X11, FID2X21, FID2X31, FID2X41, FID3X11, FID3X21, FID3X31, FID3X41, R8X2, R8X3, R8X4   FIDUCIAL_1MM 15x SPCoast NONE
IOBX11, IOBX21, IOBX31, IOBX41   IO4-IOB 4x SPCoast PTH
J1X11, J1X21, J1X31, J1X41   RJ25 4x SPCoast PTH
D1X11, D1X21, D1X31, D1X41, Q1X11, Q1X21, Q1X31, Q1X41, Q2X11, Q2X21, Q2X31, Q2X41, Q3X11, Q3X21, Q3X31, Q3X41, Q4X11, Q4X21, Q4X31, Q4X41   SOT23-3 20x SPCoast NONE

Documentation

PNP Ready: IOB-Turtle - adapter for IO4-Turtle controller and I2C-7311 IO expansion board

  • pin 1: 9-12vDC
  • pin 2: !DIVERGING - Turnout Position Feedback - low = Diverging, high = not diverging
  • pin 3: !NORMAL - Turnout Position Feedback - low = Normal, high = not normal
  • pin 4: !OCCUPIED - Detector - low = occupied, high = empty
  • pin 5: !MOTOR - Motor Control Output - Low = Normal, High = Diverging
  • pin 6: GND

This technical documentation is licensed under the CERN Open Hardware Licence v1.2
