IOB-RR-CirKits

Fork project on GitHub

IOB Interface with an 8-bit RR-CirKits-style 2x5 (10-pin) ribbon cable connector



Download IOB-RR-CirKits.SMD-parts -
Download IOB-RR-CirKits_array.SMD-parts -
Download IOB-RR-CirKits_array.scr - Eagle SCRipt



IOB-RR-CirKits Version 1.0

Not built

Not tested or validated

  • Dual-size daughterboard * generic Input/Output passive adapter * Provisions for inline resistors (required cutting small traces to enable) * Updated to new IOB design

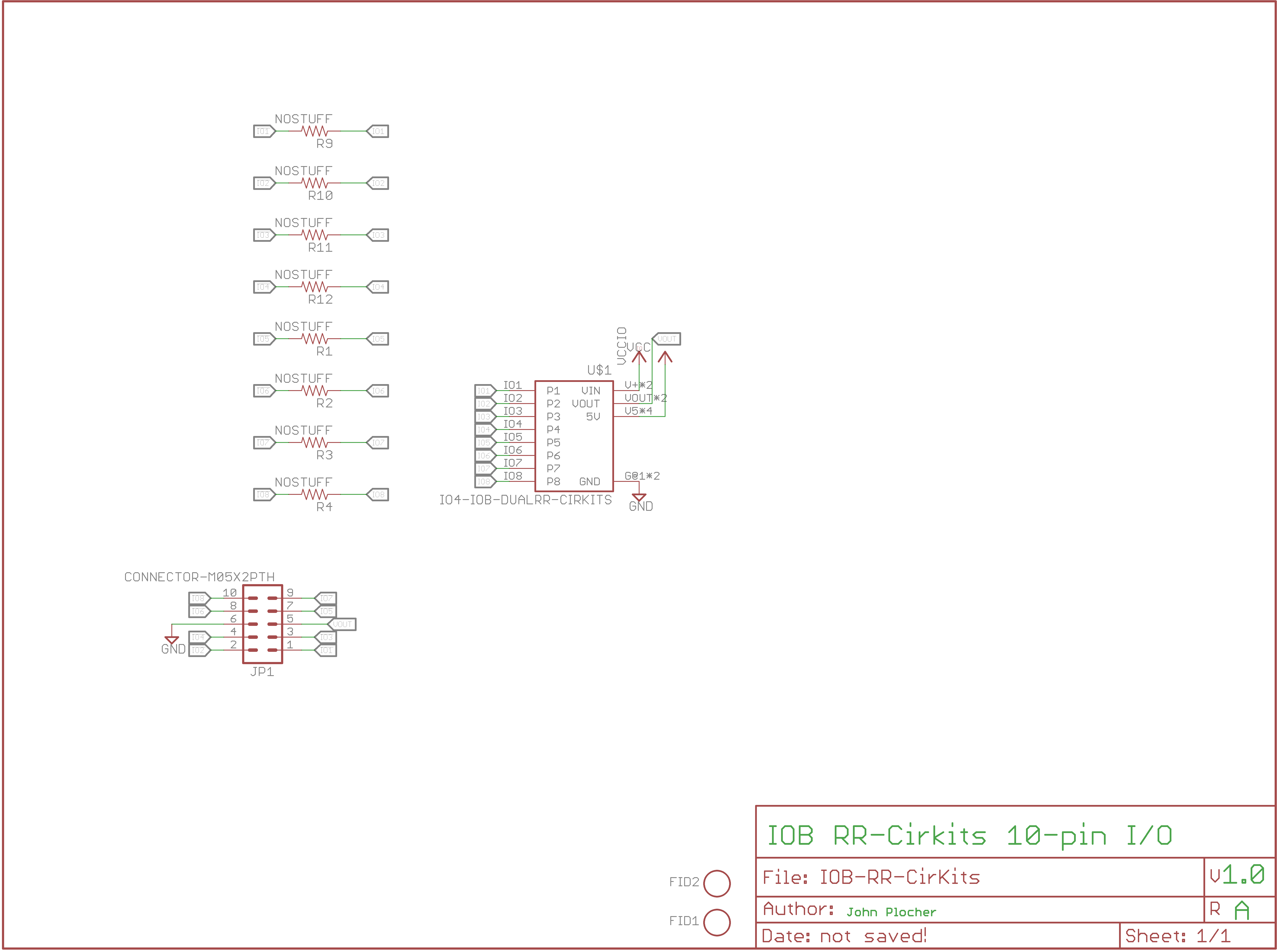

Schematic
Schematic

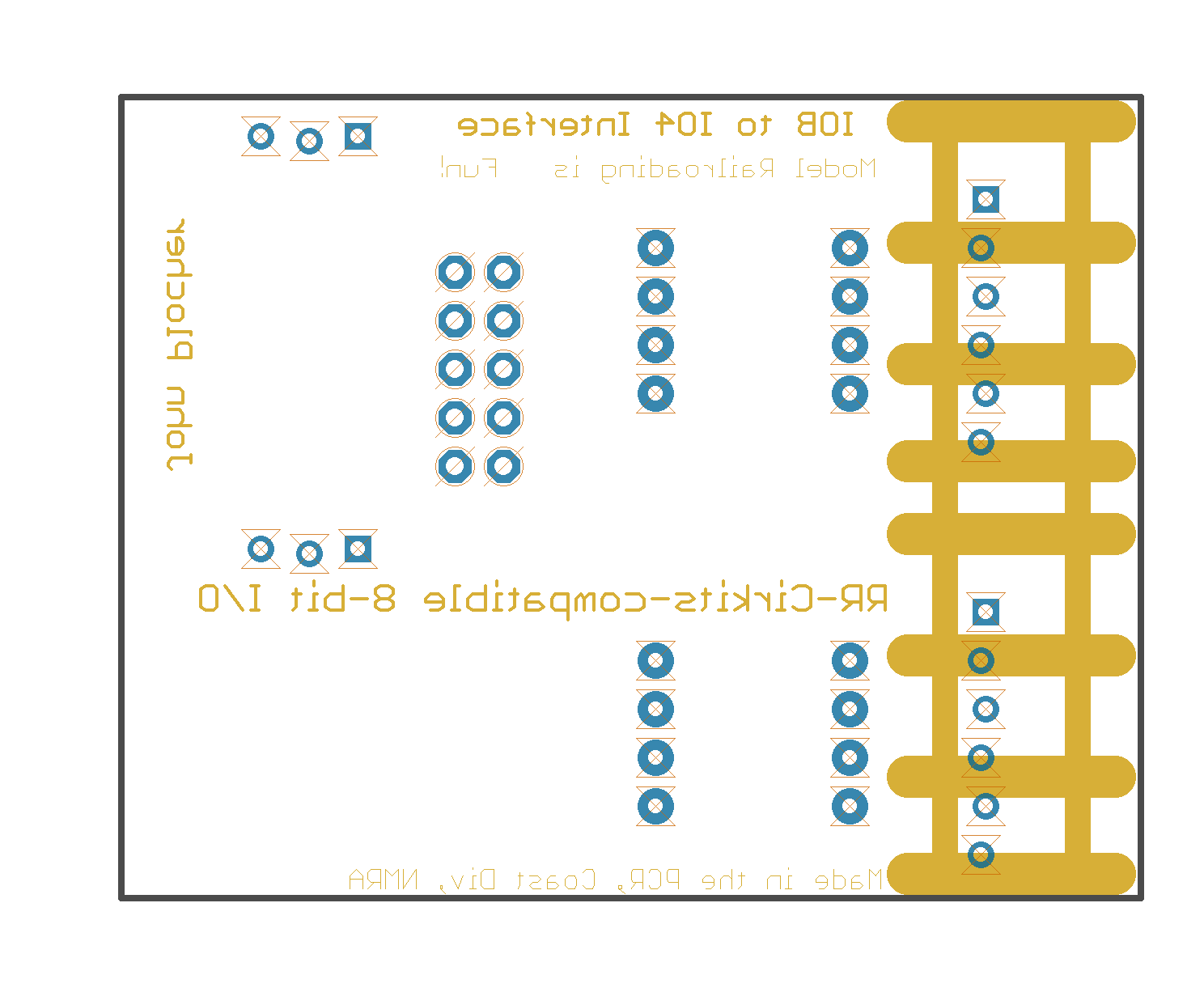

Bot Silk
Bot Silk

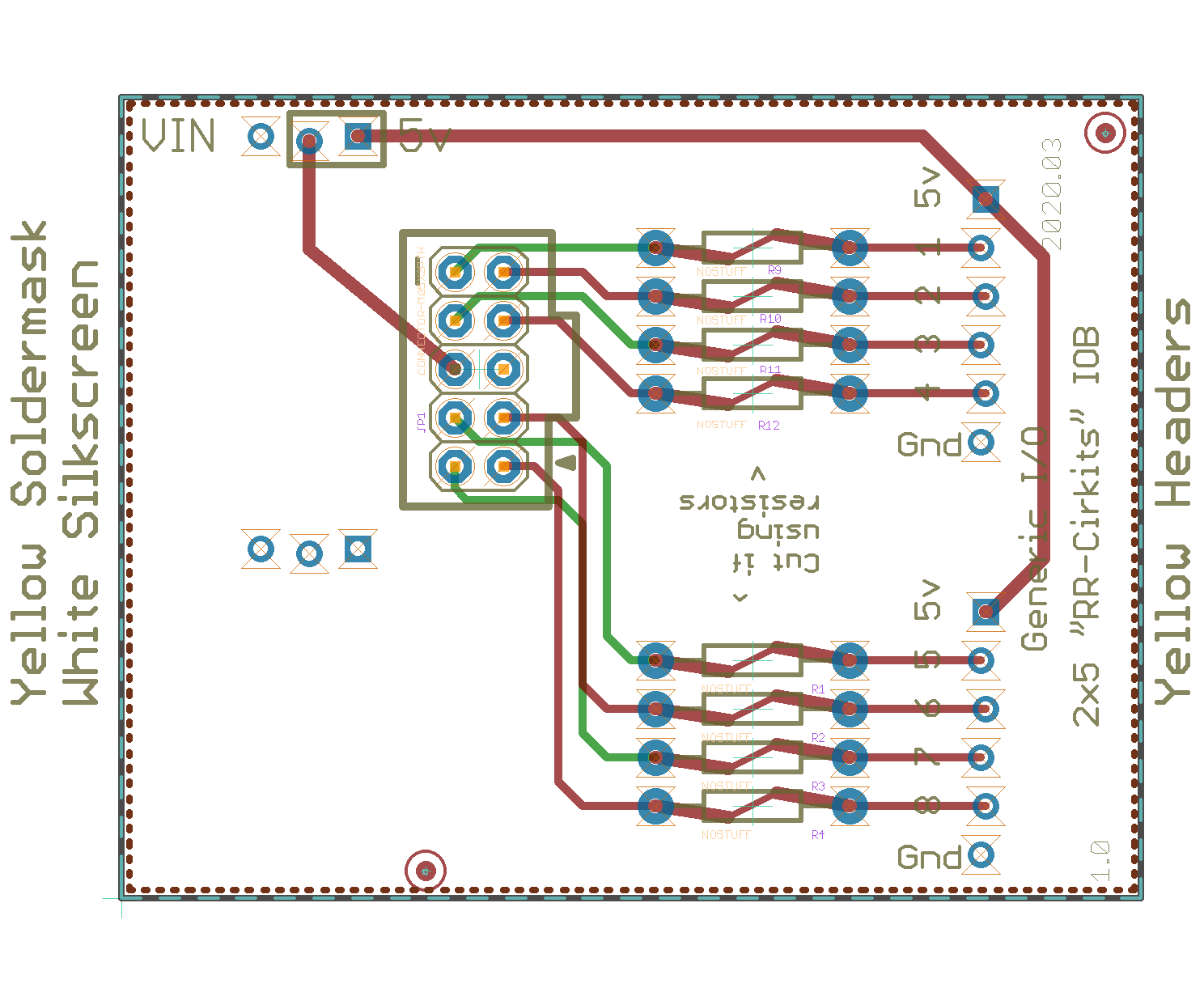

Board
Board
Top Silk
Top Silk

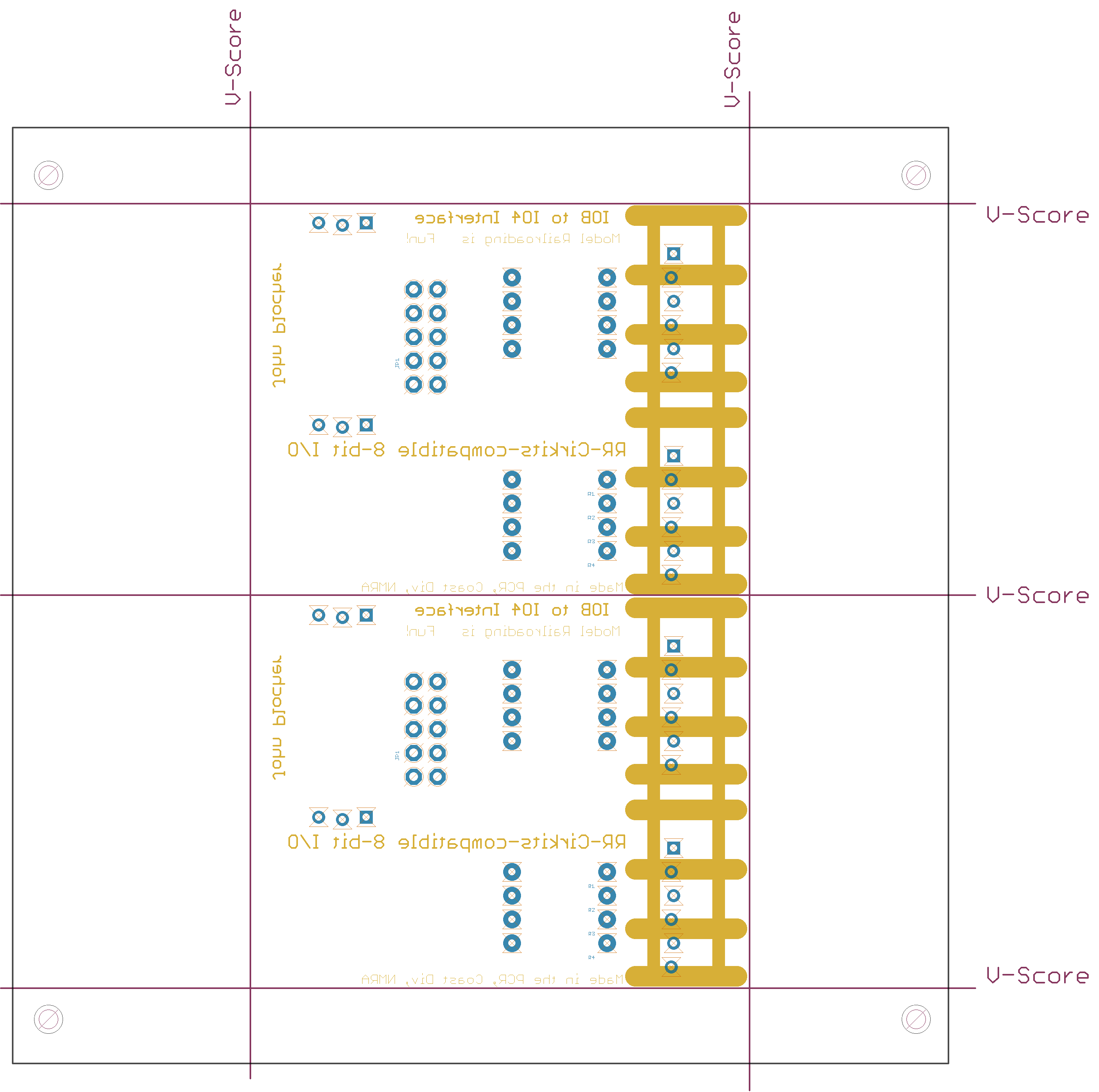

Bot Silk
Bot Silk

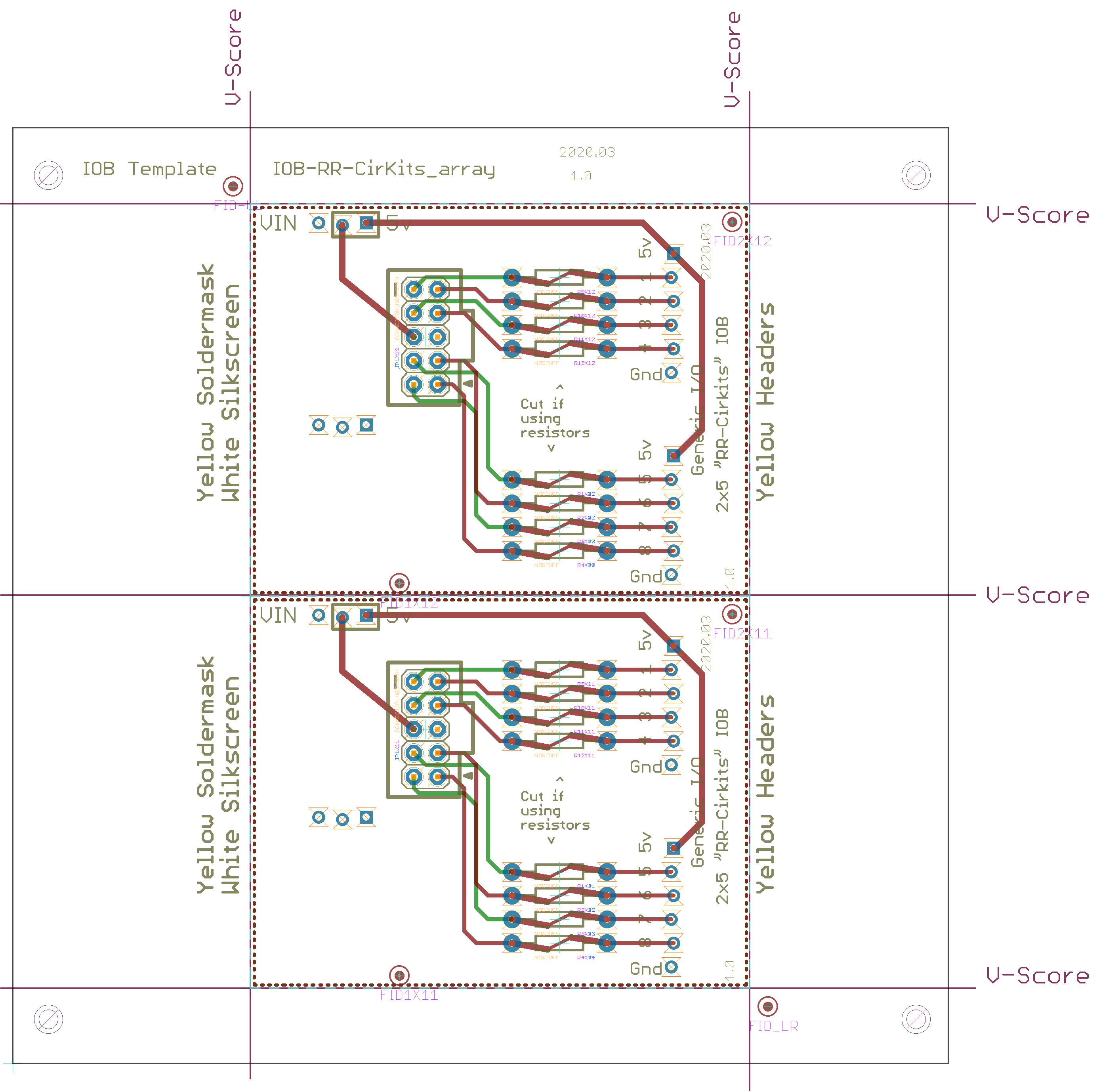

Board
Board

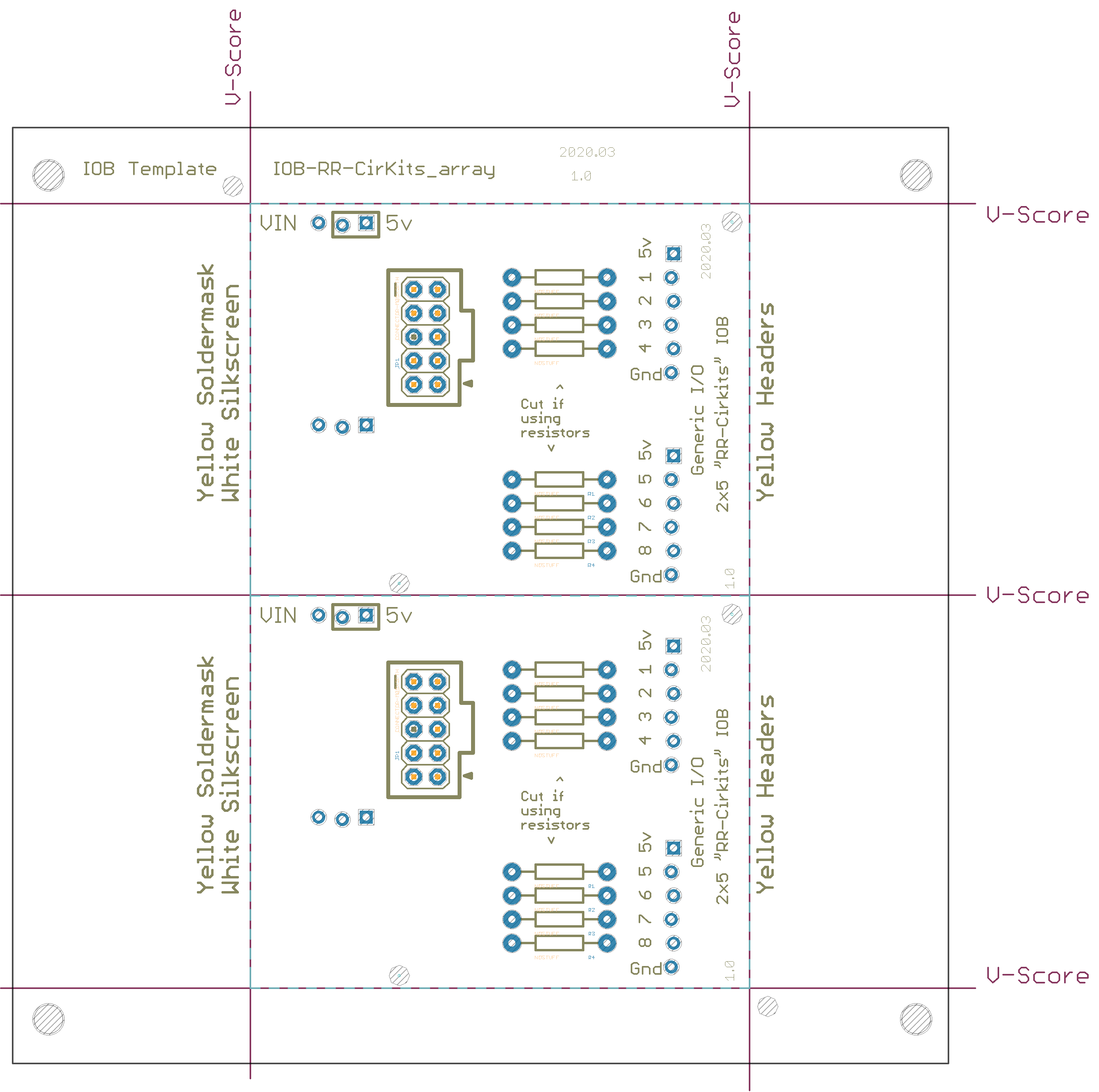

Top Silk
Top Silk

Download IOB-RR-CirKits.gerbers.zip - Gerber Fabrication files
Download IOB-RR-CirKits.parts - Parts List (spreadsheet data)
Download IOB-RR-CirKits_array.gerbers.zip - Gerber Fabrication files
Download IOB-RR-CirKits_array.parts - Parts List (spreadsheet data)



IOB-RR-CirKits.bom

Parts Value Package Quantity Library Type/Feeder
JP1 CONNECTOR-M05X2PTH AVR_ICSP 1x SPCoast PTH
FID1, FID2 FIDUCIAL FIDUCIAL_1MM 2x SPCoast NONE
U$1 IO4-IOB-DUALRR-CIRKITS 10X-IOB 1x SPCoast PTH
R1, R2, R3, R4, R9, R10, R11, R12 NOSTUFF CUT-R 8x SPCoast PTH

IOB-RR-CirKits_array.bom

Parts Value Package Quantity Library Type/Feeder
U$1X1   BOARD-DINRAIL-3.17IN-H2X-IOB 1x SPCoast PTH
JP1X11, JP1X12 CONNECTOR-M05X2PTH AVR_ICSP 2x SPCoast PTH
FID1X11, FID1X12, FID2X11, FID2X12, FID-UL, FID_LR FIDUCIAL FIDUCIAL_1MM 6x SPCoast NONE
U$1X11, U$1X12 IO4-IOB-DUALRR-CIRKITS 10X-IOB 2x SPCoast PTH
R1X11, R1X12, R2X11, R2X12, R3X11, R3X12, R4X11, R4X12, R9X11, R9X12, R10X11, R10X12, R11X11, R11X12, R12X11, R12X12 NOSTUFF CUT-R 16x SPCoast PTH

This technical documentation is licensed under the CERN Open Hardware Licence v1.2
