IOB-LED-Monitor

Fork project on GitHub

IOB LED Monitor daughterboard

IOB-LED-Monitor-Graphic
IOB-LED-Monitor-Graphic



Download IOB-LED-Monitor.SMD-parts -
Download IOB-LED-Monitor -
Download IOB-LED-Monitor_array.SMD-parts -
Download IOB-LED-Monitor_array.scr - Eagle SCRipt
Download eagle -



IOB-LED-Monitor Version 1.0

First built: 2020.09

Not tested or validated

Active-Low LED monitor for I/O pin signal debugging. (LED is on when pin is 0v, off when pin is at Vcc)

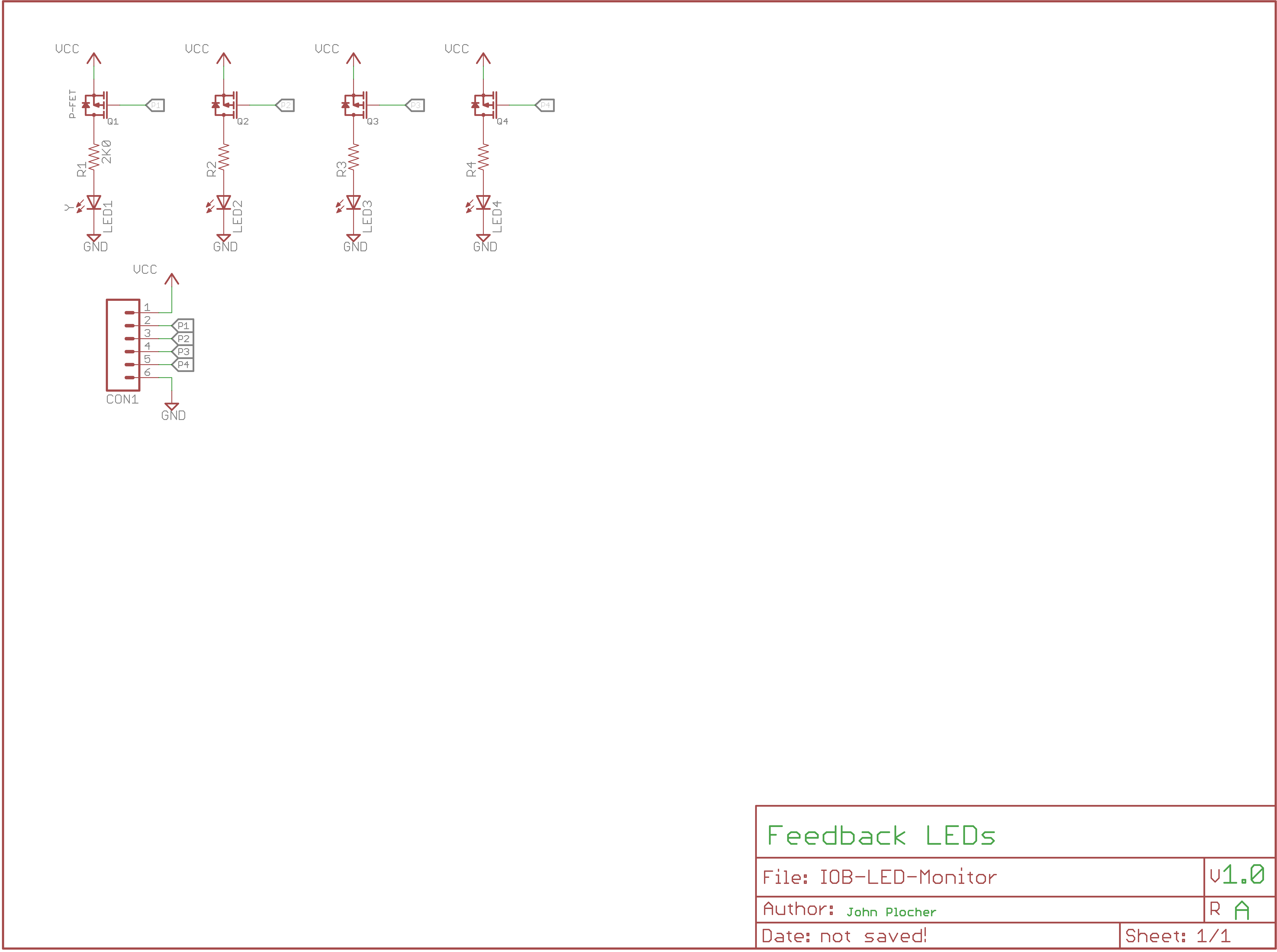

Schematic
Schematic

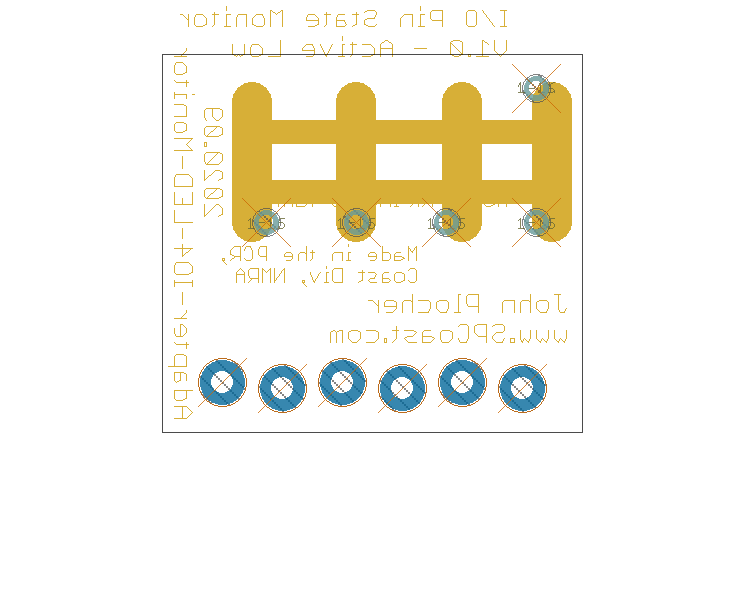

Bot Silk
Bot Silk

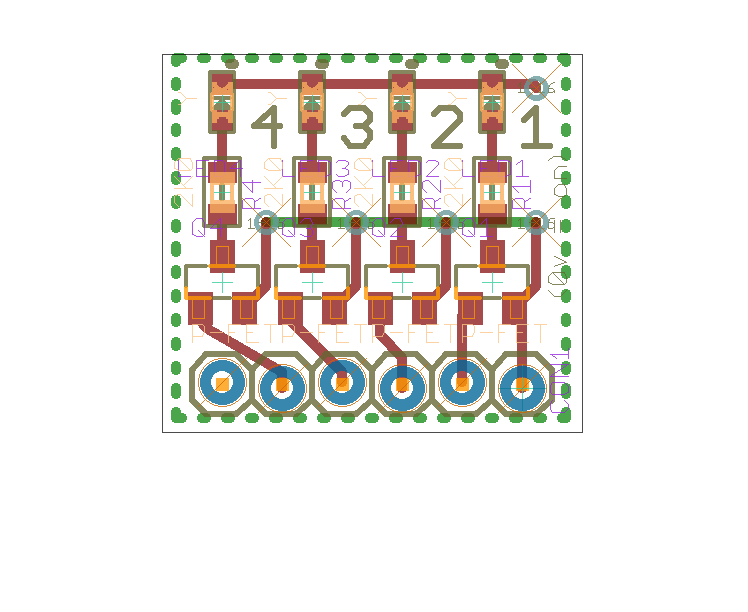

Board
Board

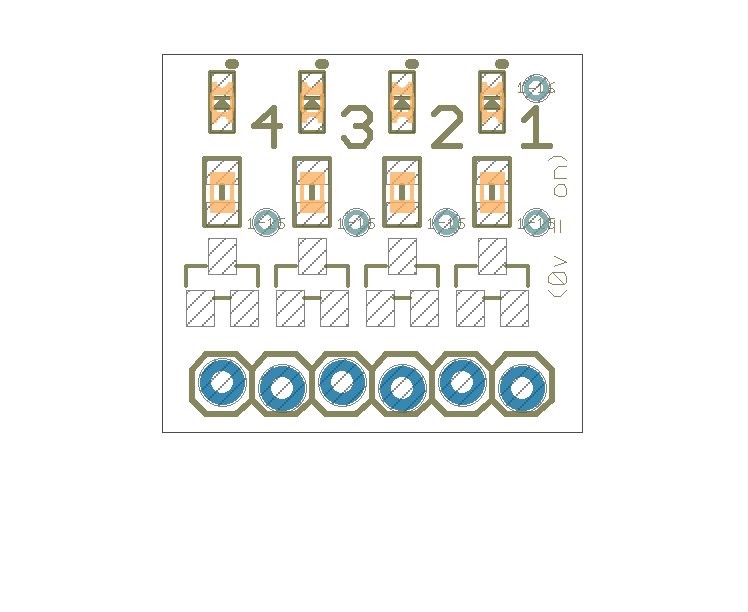

Top Silk
Top Silk

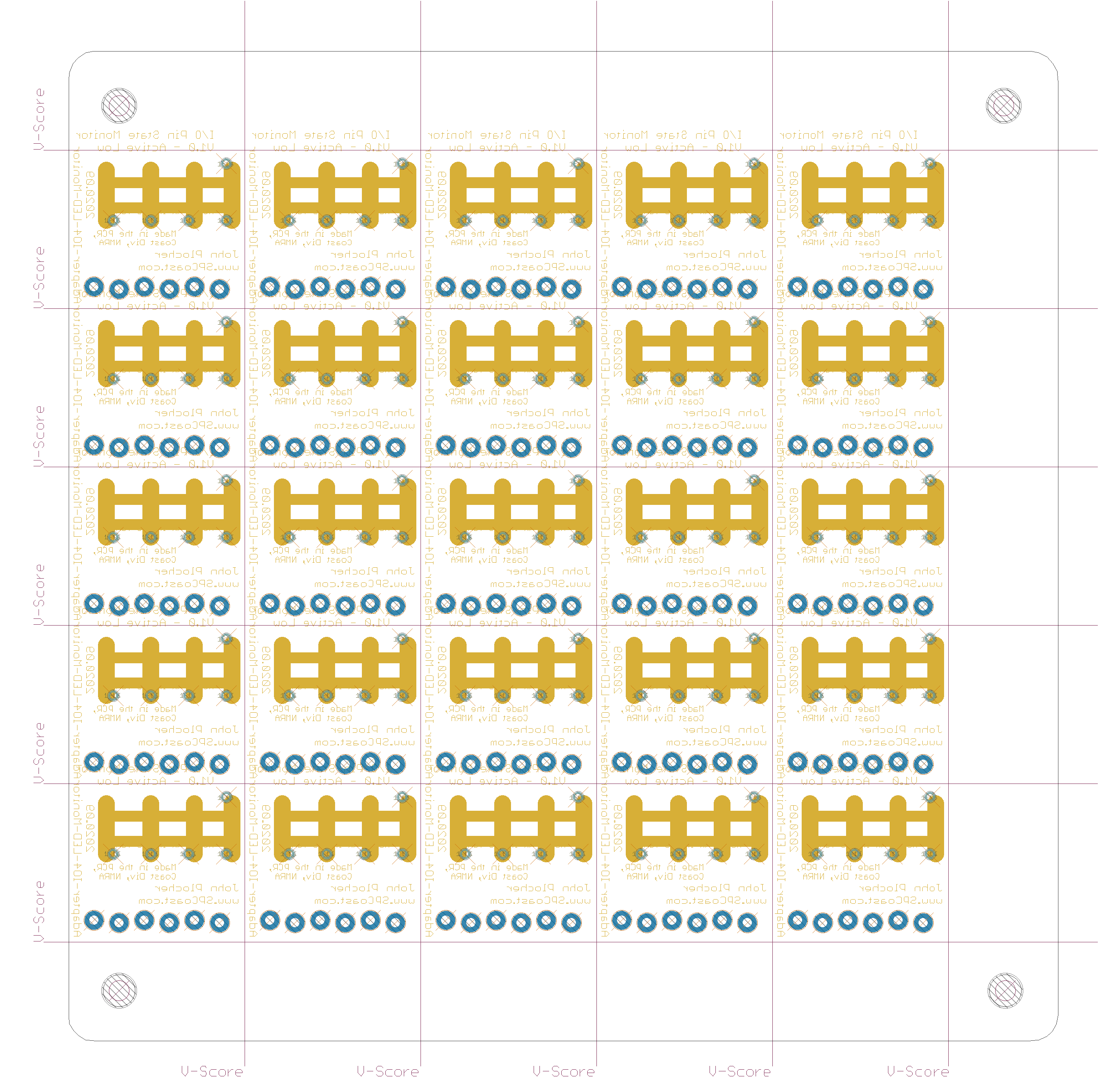

Bot Silk
Bot Silk

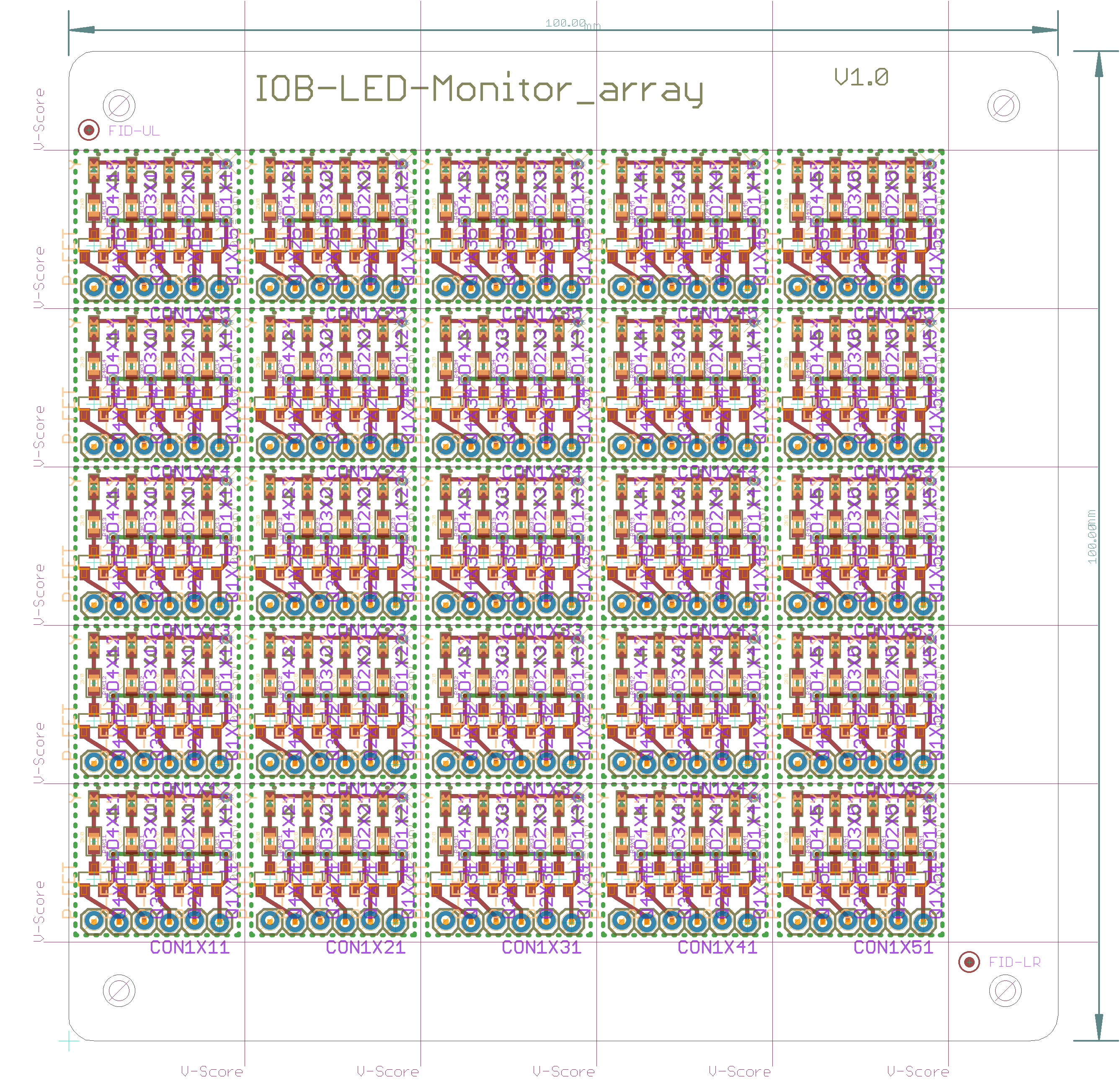

Board
Board

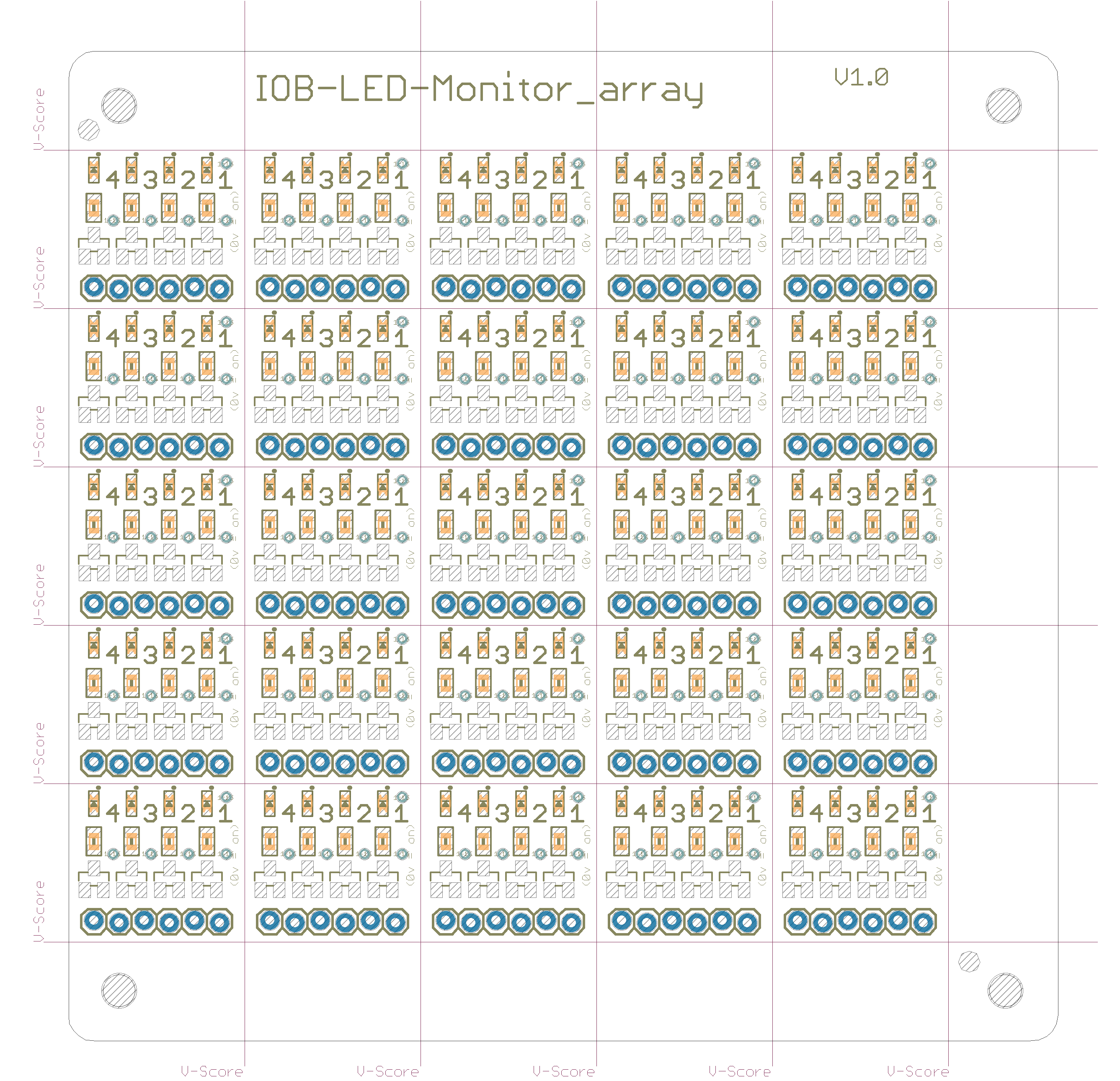

Top Silk
Top Silk

Download IOB-LED-Monitor.gerbers.zip - Gerber Fabrication files
Download IOB-LED-Monitor.parts - Parts List (spreadsheet data)
Download IOB-LED-Monitor_array.gerbers.zip - Gerber Fabrication files
Download IOB-LED-Monitor_array.parts - Parts List (spreadsheet data)



IOB-LED-Monitor.bom

Parts Value Package Quantity Library Type/Feeder
R1, R2, R3, R4 2K0 0805-RES 4x SPCoast 42
CON1   1X06_LOCK 1x SPCoast PTH
Q1, Q2, Q3, Q4 P-FET SOT23 4x SPCoast 9
LED1, LED2, LED3, LED4 Y 0603-LED 4x SPCoast 2

IOB-LED-Monitor_array.bom

Parts Value Package Quantity Library Type/Feeder
R1X11, R1X12, R1X13, R1X14, R1X15, R1X21, R1X22, R1X23, R1X24, R1X25, R1X31, R1X32, R1X33, R1X34, R1X35, R1X41, R1X42, R1X43, R1X44, R1X45, R1X51, R1X52, R1X53, R1X54, R1X55, R2X11, R2X12, R2X13, R2X14, R2X15, R2X21, R2X22, R2X23, R2X24, R2X25, R2X31, R2X32, R2X33, R2X34, R2X35, R2X41, R2X42, R2X43, R2X44, R2X45, R2X51, R2X52, R2X53, R2X54, R2X55, R3X11, R3X12, R3X13, R3X14, R3X15, R3X21, R3X22, R3X23, R3X24, R3X25, R3X31, R3X32, R3X33, R3X34, R3X35, R3X41, R3X42, R3X43, R3X44, R3X45, R3X51, R3X52, R3X53, R3X54, R3X55, R4X11, R4X12, R4X13, R4X14, R4X15, R4X21, R4X22, R4X23, R4X24, R4X25, R4X31, R4X32, R4X33, R4X34, R4X35, R4X41, R4X42, R4X43, R4X44, R4X45, R4X51, R4X52, R4X53, R4X54, R4X55 2K0 0805-RES 100x SPCoast 42
CON1X11, CON1X12, CON1X13, CON1X14, CON1X15, CON1X21, CON1X22, CON1X23, CON1X24, CON1X25, CON1X31, CON1X32, CON1X33, CON1X34, CON1X35, CON1X41, CON1X42, CON1X43, CON1X44, CON1X45, CON1X51, CON1X52, CON1X53, CON1X54, CON1X55   1X06_LOCK 25x SPCoast PTH
R4X1   BOARD-SEEED10X10 1x SPCoast PTH
FID-LR, FID-UL   FIDUCIAL_1MM 2x SPCoast NONE
Q1X11, Q1X12, Q1X13, Q1X14, Q1X15, Q1X21, Q1X22, Q1X23, Q1X24, Q1X25, Q1X31, Q1X32, Q1X33, Q1X34, Q1X35, Q1X41, Q1X42, Q1X43, Q1X44, Q1X45, Q1X51, Q1X52, Q1X53, Q1X54, Q1X55, Q2X11, Q2X12, Q2X13, Q2X14, Q2X15, Q2X21, Q2X22, Q2X23, Q2X24, Q2X25, Q2X31, Q2X32, Q2X33, Q2X34, Q2X35, Q2X41, Q2X42, Q2X43, Q2X44, Q2X45, Q2X51, Q2X52, Q2X53, Q2X54, Q2X55, Q3X11, Q3X12, Q3X13, Q3X14, Q3X15, Q3X21, Q3X22, Q3X23, Q3X24, Q3X25, Q3X31, Q3X32, Q3X33, Q3X34, Q3X35, Q3X41, Q3X42, Q3X43, Q3X44, Q3X45, Q3X51, Q3X52, Q3X53, Q3X54, Q3X55, Q4X11, Q4X12, Q4X13, Q4X14, Q4X15, Q4X21, Q4X22, Q4X23, Q4X24, Q4X25, Q4X31, Q4X32, Q4X33, Q4X34, Q4X35, Q4X41, Q4X42, Q4X43, Q4X44, Q4X45, Q4X51, Q4X52, Q4X53, Q4X54, Q4X55 P-FET SOT23 100x SPCoast 9
LED1X11, LED1X12, LED1X13, LED1X14, LED1X15, LED1X21, LED1X22, LED1X23, LED1X24, LED1X25, LED1X31, LED1X32, LED1X33, LED1X34, LED1X35, LED1X41, LED1X42, LED1X43, LED1X44, LED1X45, LED1X51, LED1X52, LED1X53, LED1X54, LED1X55, LED2X11, LED2X12, LED2X13, LED2X14, LED2X15, LED2X21, LED2X22, LED2X23, LED2X24, LED2X25, LED2X31, LED2X32, LED2X33, LED2X34, LED2X35, LED2X41, LED2X42, LED2X43, LED2X44, LED2X45, LED2X51, LED2X52, LED2X53, LED2X54, LED2X55, LED3X11, LED3X12, LED3X13, LED3X14, LED3X15, LED3X21, LED3X22, LED3X23, LED3X24, LED3X25, LED3X31, LED3X32, LED3X33, LED3X34, LED3X35, LED3X41, LED3X42, LED3X43, LED3X44, LED3X45, LED3X51, LED3X52, LED3X53, LED3X54, LED3X55, LED4X11, LED4X12, LED4X13, LED4X14, LED4X15, LED4X21, LED4X22, LED4X23, LED4X24, LED4X25, LED4X31, LED4X32, LED4X33, LED4X34, LED4X35, LED4X41, LED4X42, LED4X43, LED4X44, LED4X45, LED4X51, LED4X52, LED4X53, LED4X54, LED4X55 Y 0603-LED 100x SPCoast 2

This technical documentation is licensed under the CERN Open Hardware Licence v1.2

Tags: eagle SPCoast
