PWM Driver board for high current LED strips





IO4-LED-Strip-Driver Version 1.1

First built: 2020-07

An IO4 appliance that takes 4x PWM signals and drives 4x LED strips (RGB + White) at up to 2A each at 12v

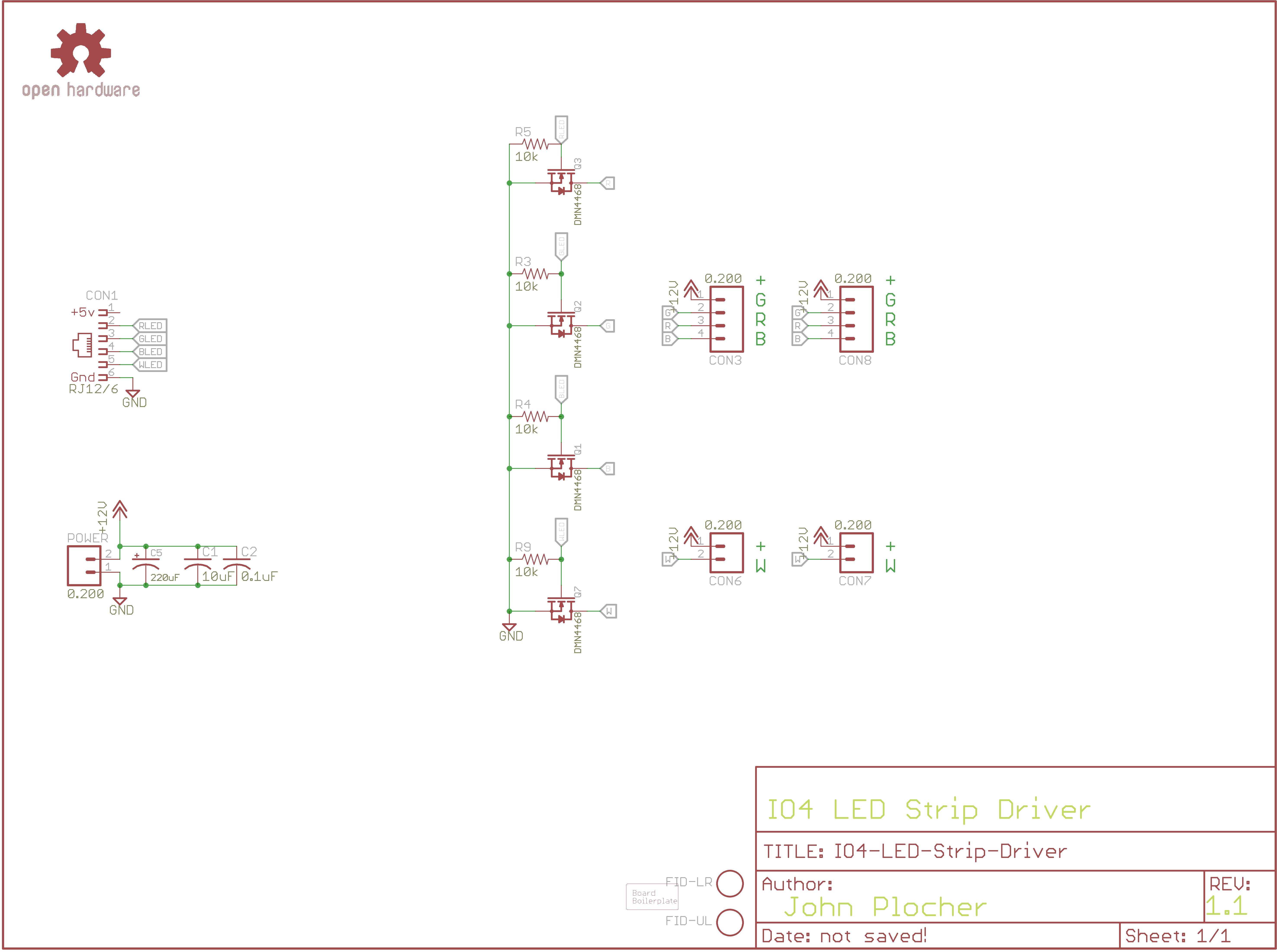

Schematic
Schematic

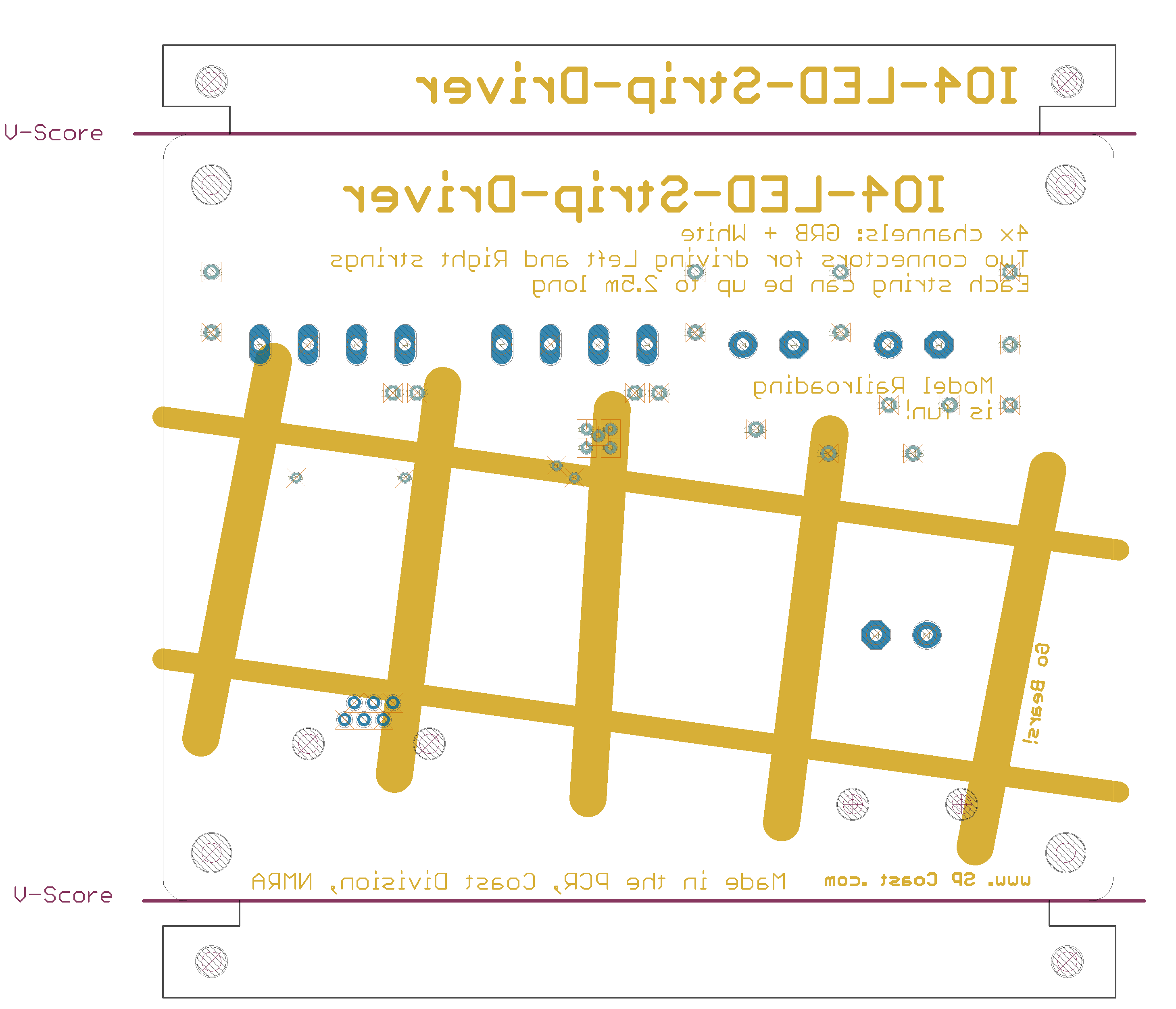

Bot Silk
Bot Silk

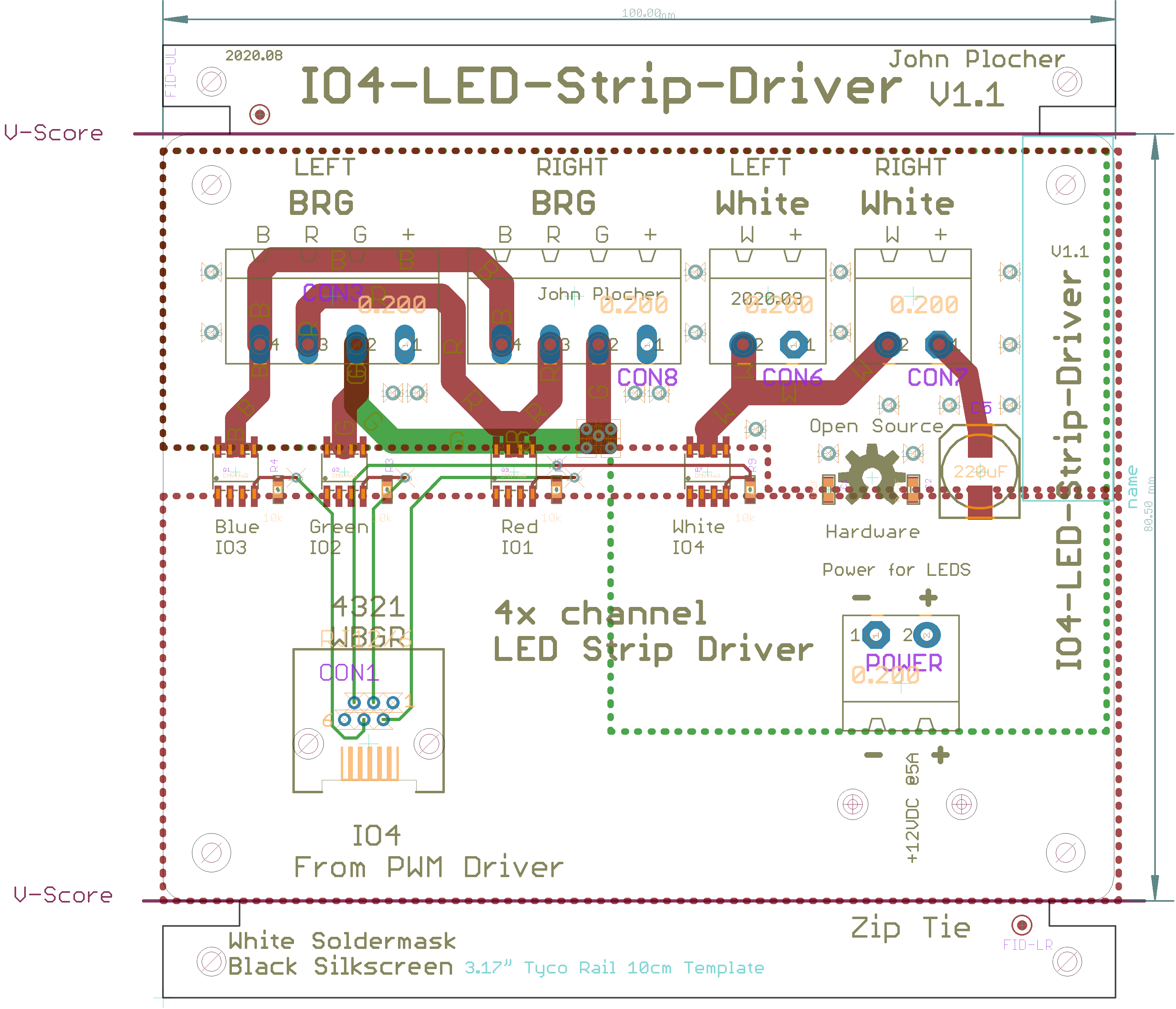

Board
Board

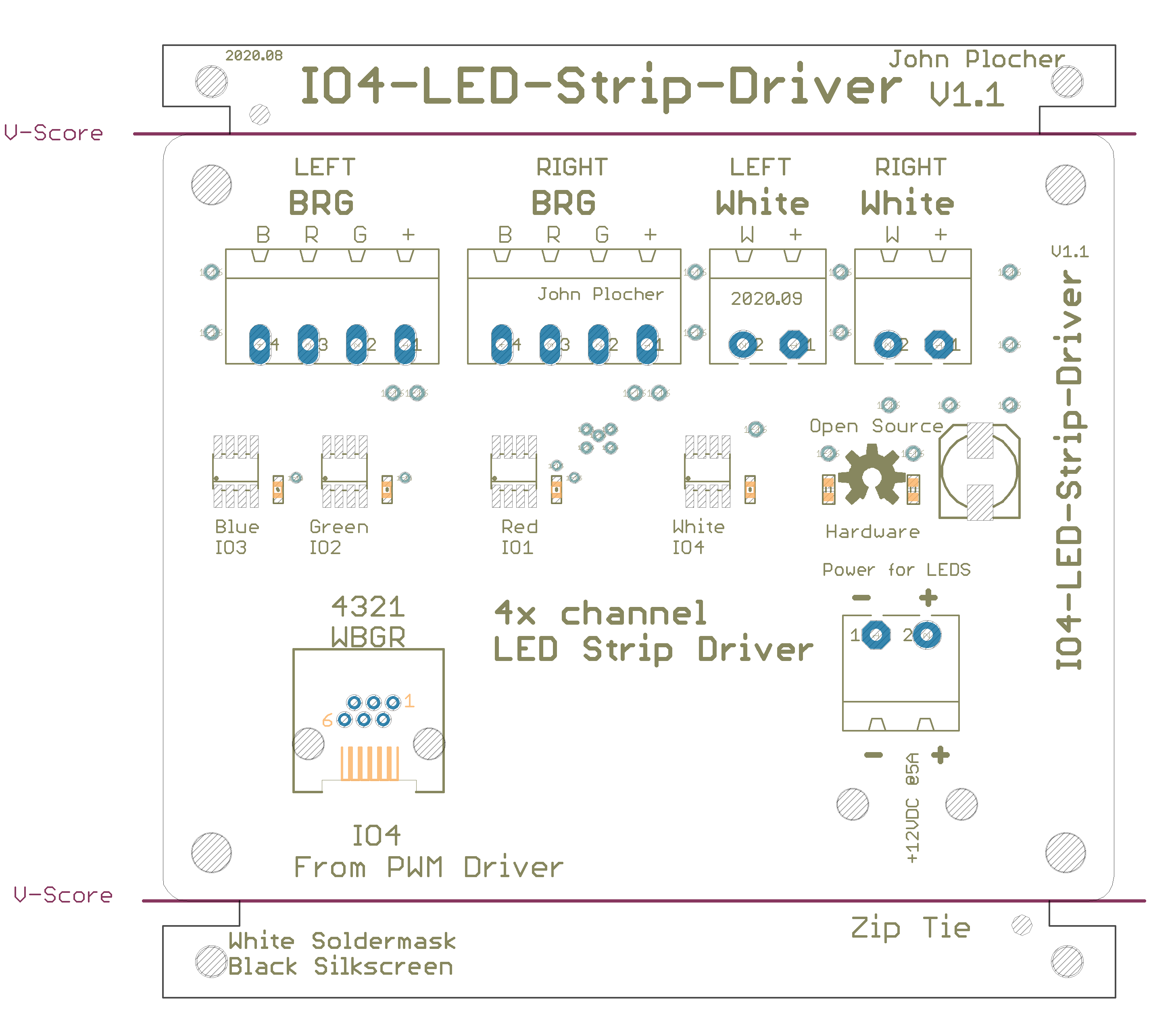

Top Silk
Top Silk

Download IO4-LED-Strip-Driver.gerbers.zip - Gerber Fabrication files
Download IO4-LED-Strip-Driver.parts - Parts List (spreadsheet data)



IO4-LED-Strip-Driver.bom

Parts Value Package Quantity Library Type/Feeder
C2 0.1uF 0603-CAP 1x SPCoast 19
CON6, CON7, POWER 0.200 MSTBA2 3x SPCoast PTH
CON3, CON8 0.200 MSTBA4 2x SPCoast PTH
R3, R4, R5, R9 10k 0603-RES 4x SPCoast 46
C1 10uF 0603-CAP 1x SPCoast 22
C5 220uF 0810-CAP 1x SPCoast NONE
BOARD1 BOARD BOARD-DINRAIL-3.17INX10CM 1x SPCoast PTH
Q1, Q2, Q3, Q7 DMN4468 SO08 4x SPCoast 60
FID-LR, FID-UL FIDUCIAL FIDUCIAL_1MM 2x SPCoast NONE
OSHW1 OSHW OSHW-LOGO-L 1x SparkFun PTH
CON1 RJ12/6 RJ25-INVERTED 1x SPCoast PTH

IO4-LED-Strip-Driver Version 1.0

First built: 2020-07

An IO4 appliance that takes 4x PWM signals and drives 4x LED strips (RGB + White) at up to 2A each at 12v

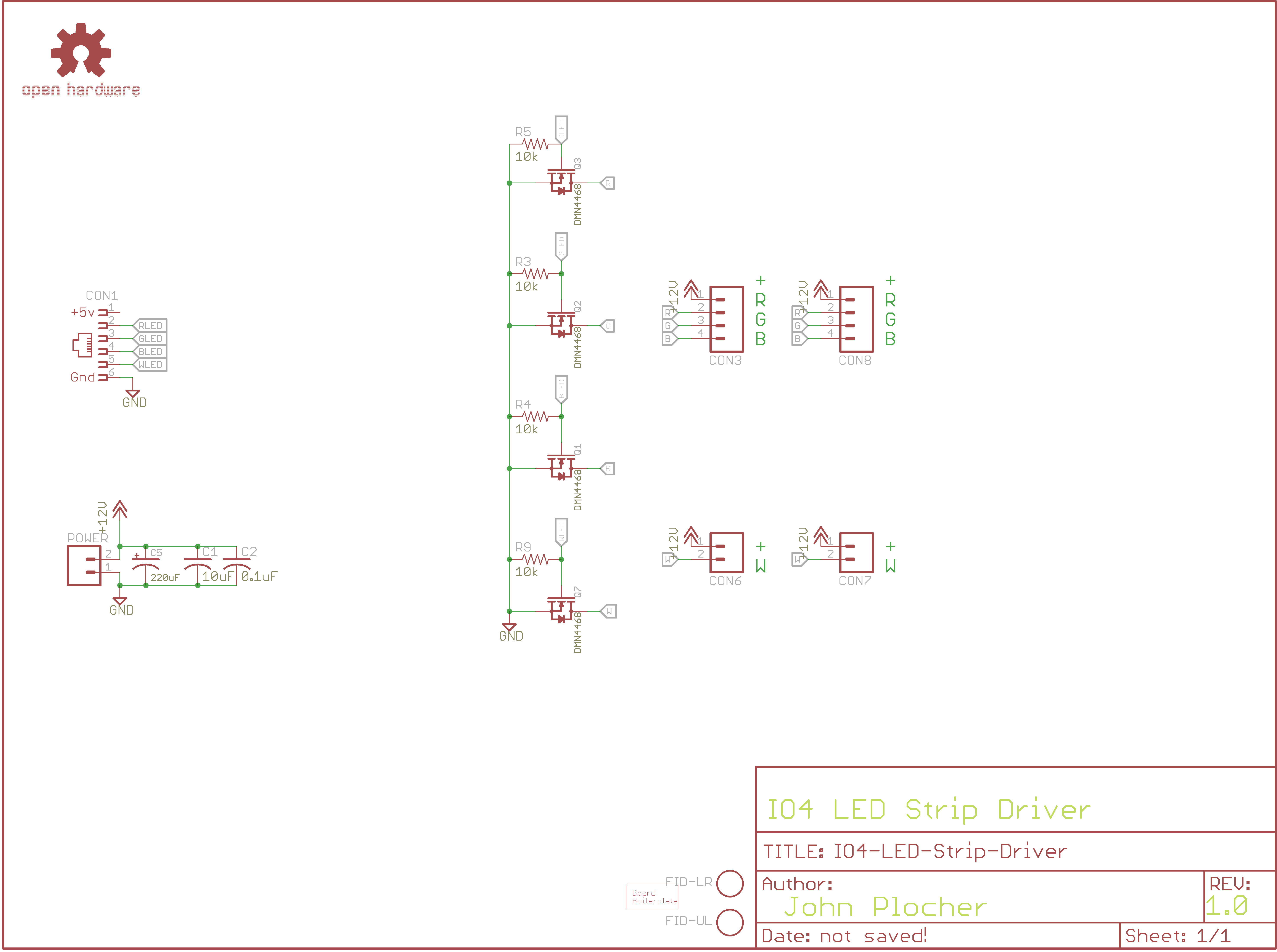

Schematic
Schematic

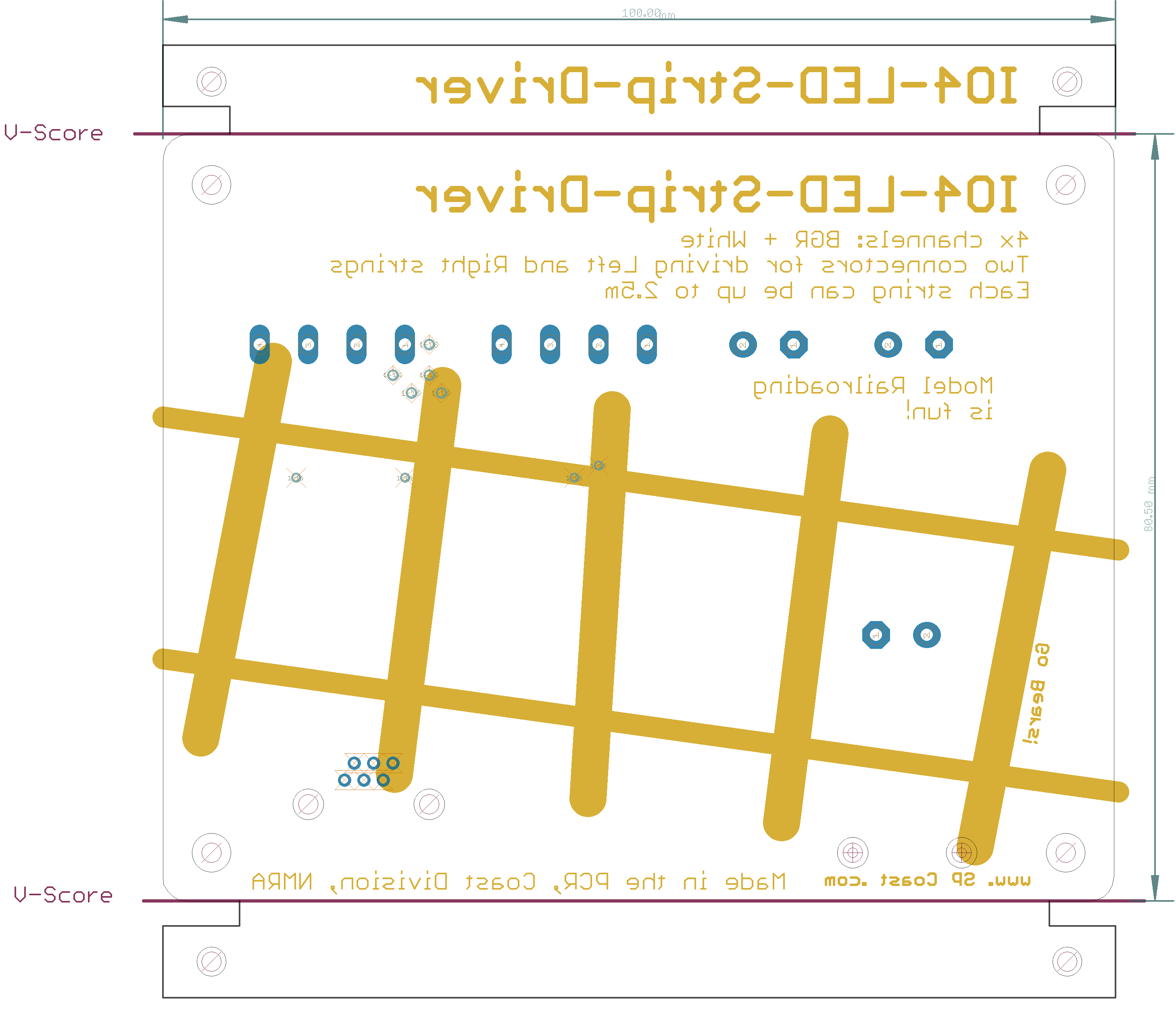

Bot Silk
Bot Silk

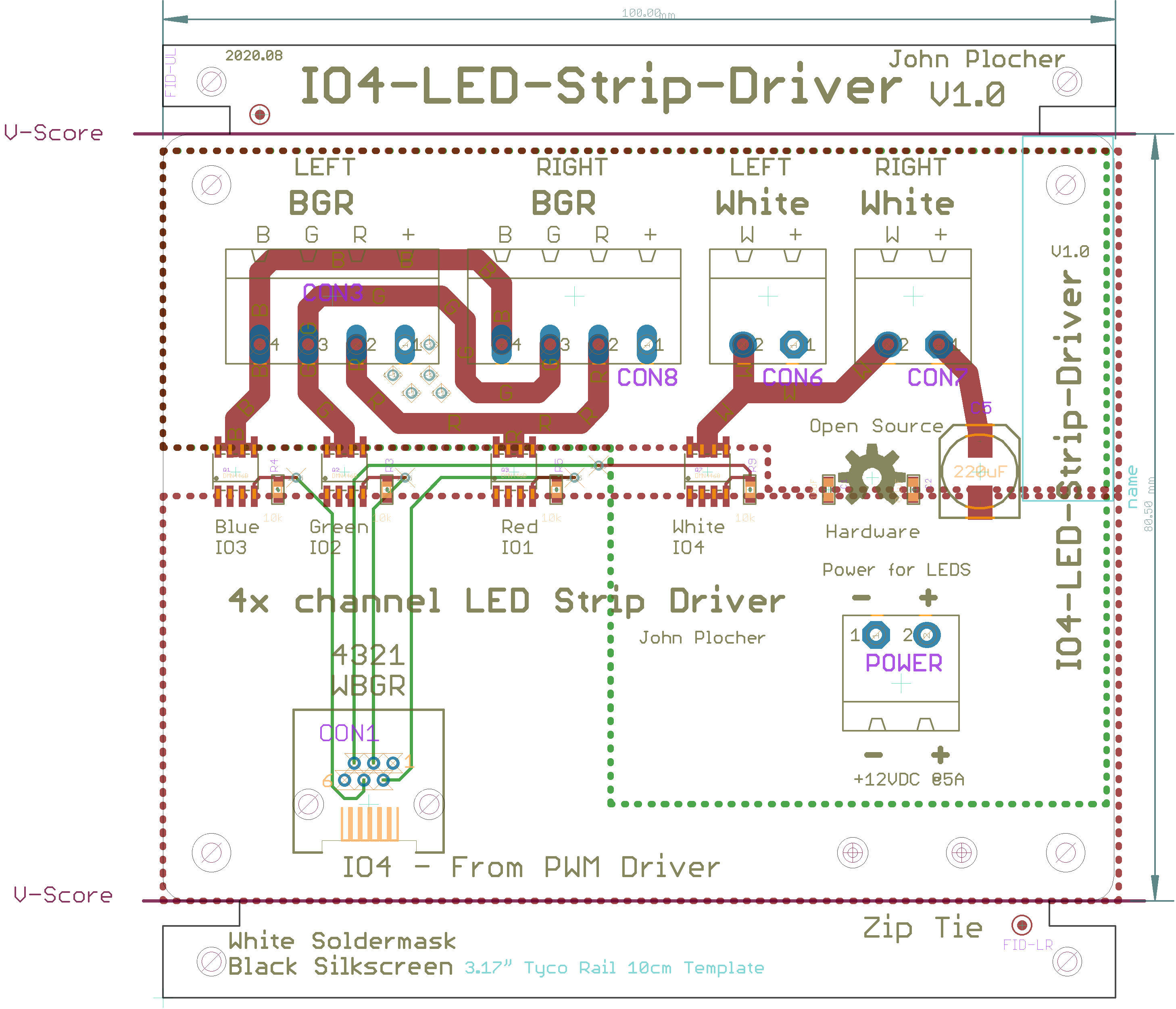

Board
Board

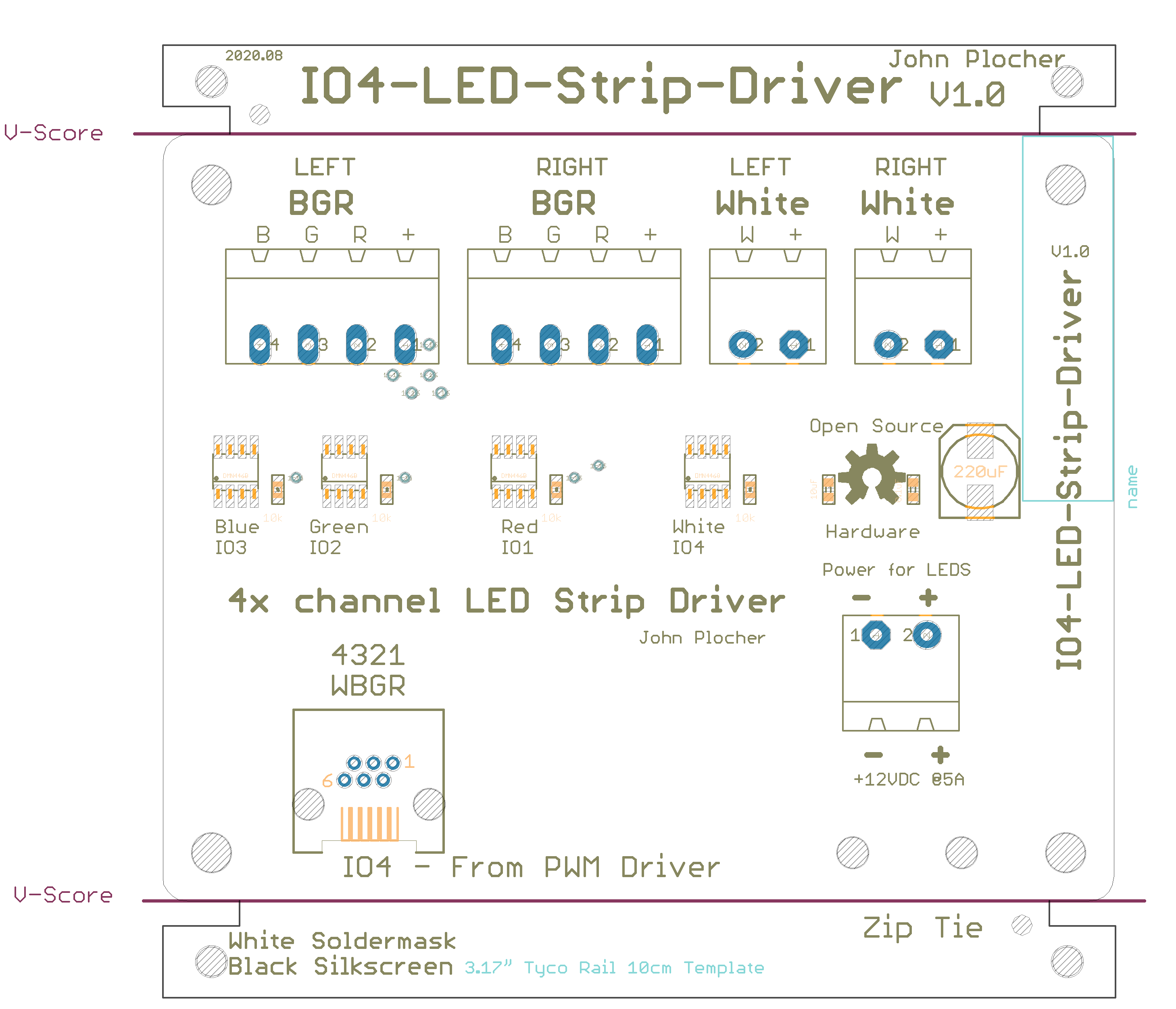

Top Silk
Top Silk

Download IO4-LED-Strip-Driver.gerbers.zip - Gerber Fabrication files
Download IO4-LED-Strip-Driver.parts - Parts List (spreadsheet data)



IO4-LED-Strip-Driver.bom

Parts Value Package Quantity Library Type/Feeder
C2 0.1uF 0603-CAP 1x SPCoast 19
R3, R4, R5, R9 10k 0603-RES 4x SPCoast 46
C1 10uF 0603-CAP 1x SPCoast 22
C5 220uF 0810-CAP 1x SPCoast NONE
CON6, CON7, POWER   MSTBA2 3x SPCoast PTH
CON3, CON8   MSTBA4 2x SPCoast PTH
CON1   RJ25-INVERTED 1x SPCoast PTH
BOARD1 BOARD80X100 BOARD-DINRAIL-3.17INX10CM 1x SPCoast PTH
Q1, Q2, Q3, Q7 DMN4468 SO08 4x SPCoast 60
FID-LR, FID-UL FIDUCIAL FIDUCIAL_1MM 2x SPCoast NONE
OSHW1 OSHW-LOGOL OSHW-LOGO-L 1x SparkFun PTH

This technical documentation is licensed under the CERN Open Hardware Licence v1.2
