IR Detector subassemblies made to look like N or HO scale ties.

IO4-IR-Detector-GBunza-Fingers-Graphic
IO4-IR-Detector-GBunza-Fingers-Graphic



Download PT19-21C-L41-TR8.pdf - Documentation



IO4-IR-Detector-GBunza-Fingers Version 1.1-panel

First built: 2018-03

Added registration holes to allow solder paste application with stencil.

Schematic
Schematic

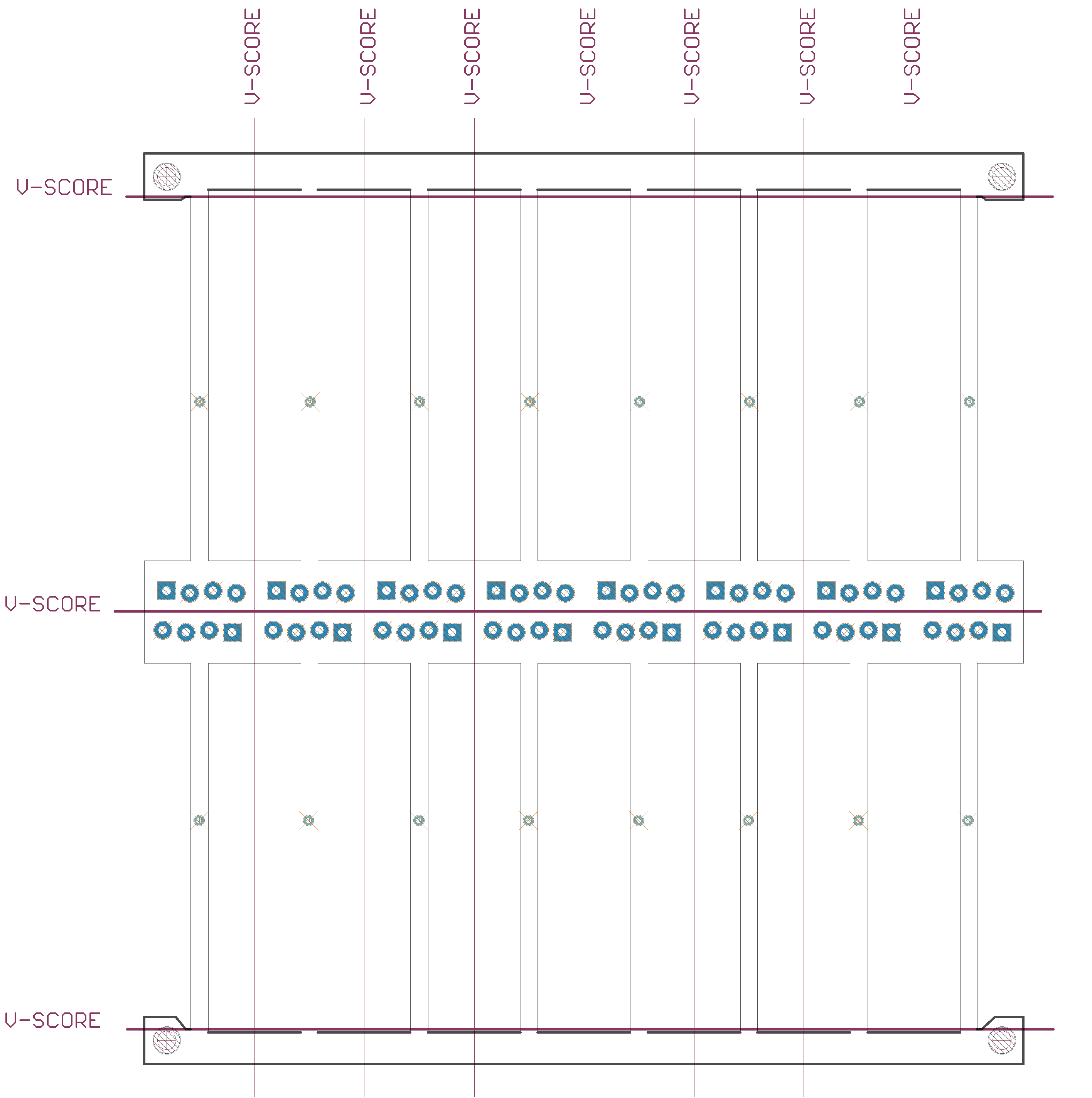

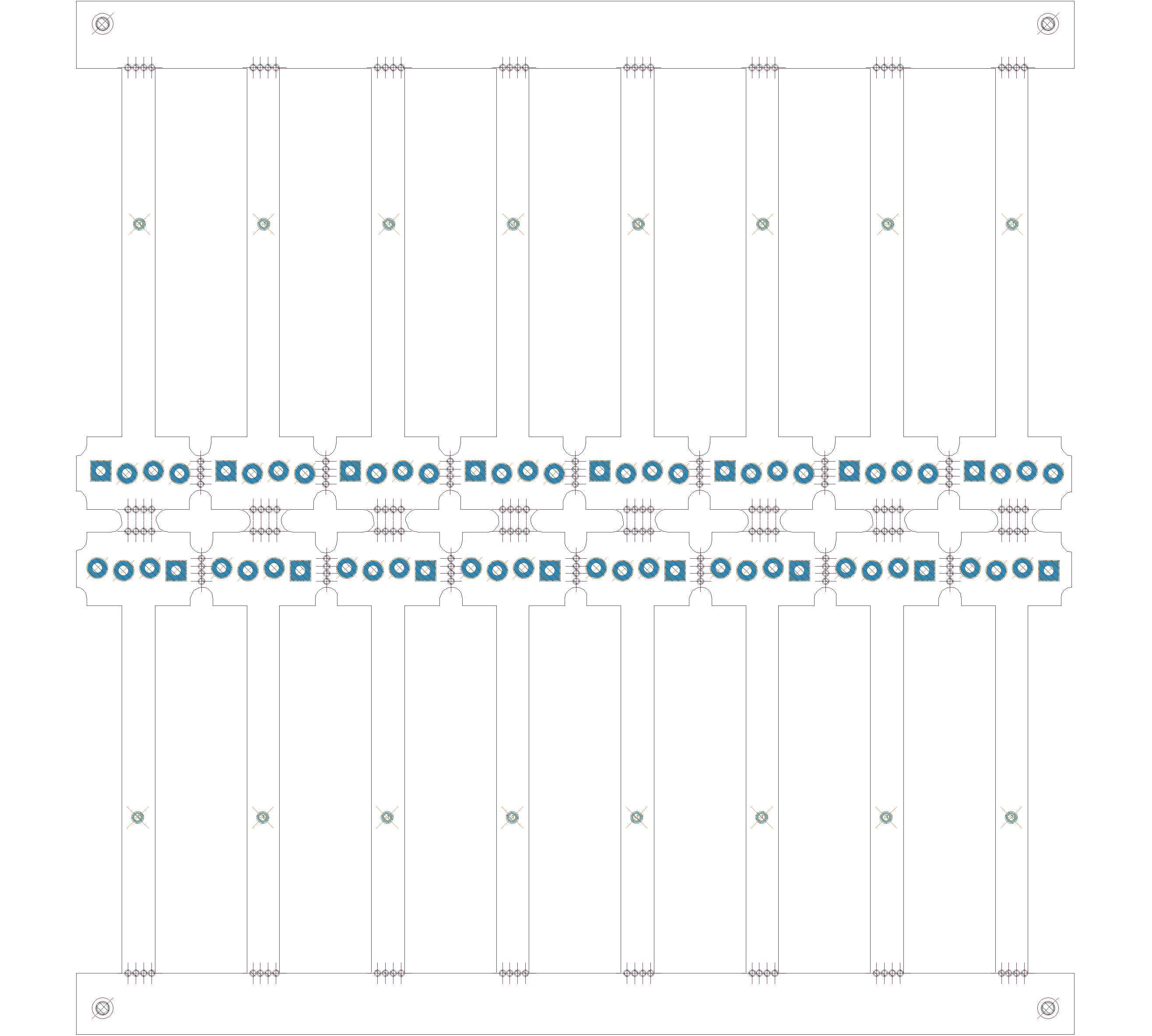

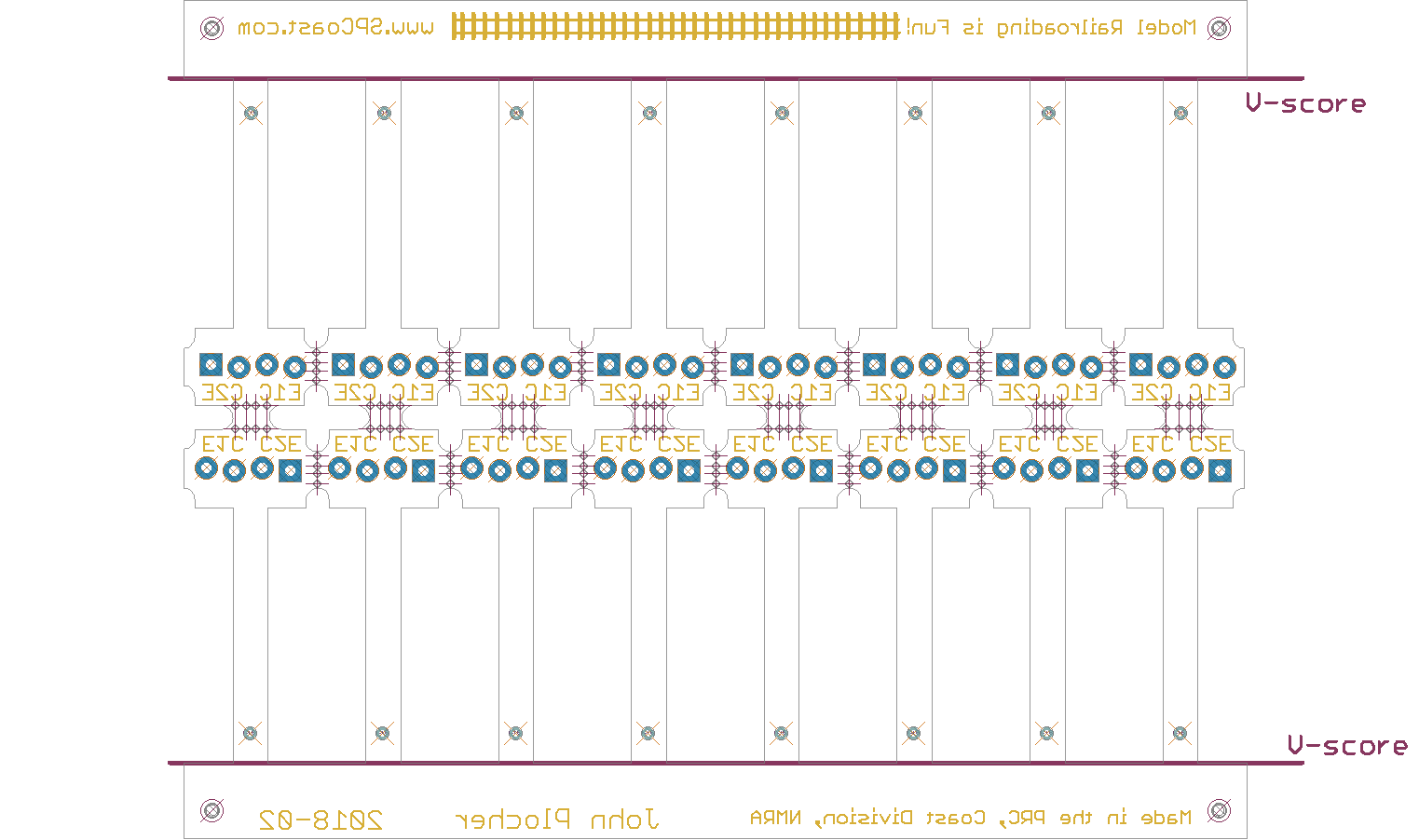

Bot Silk
Bot Silk

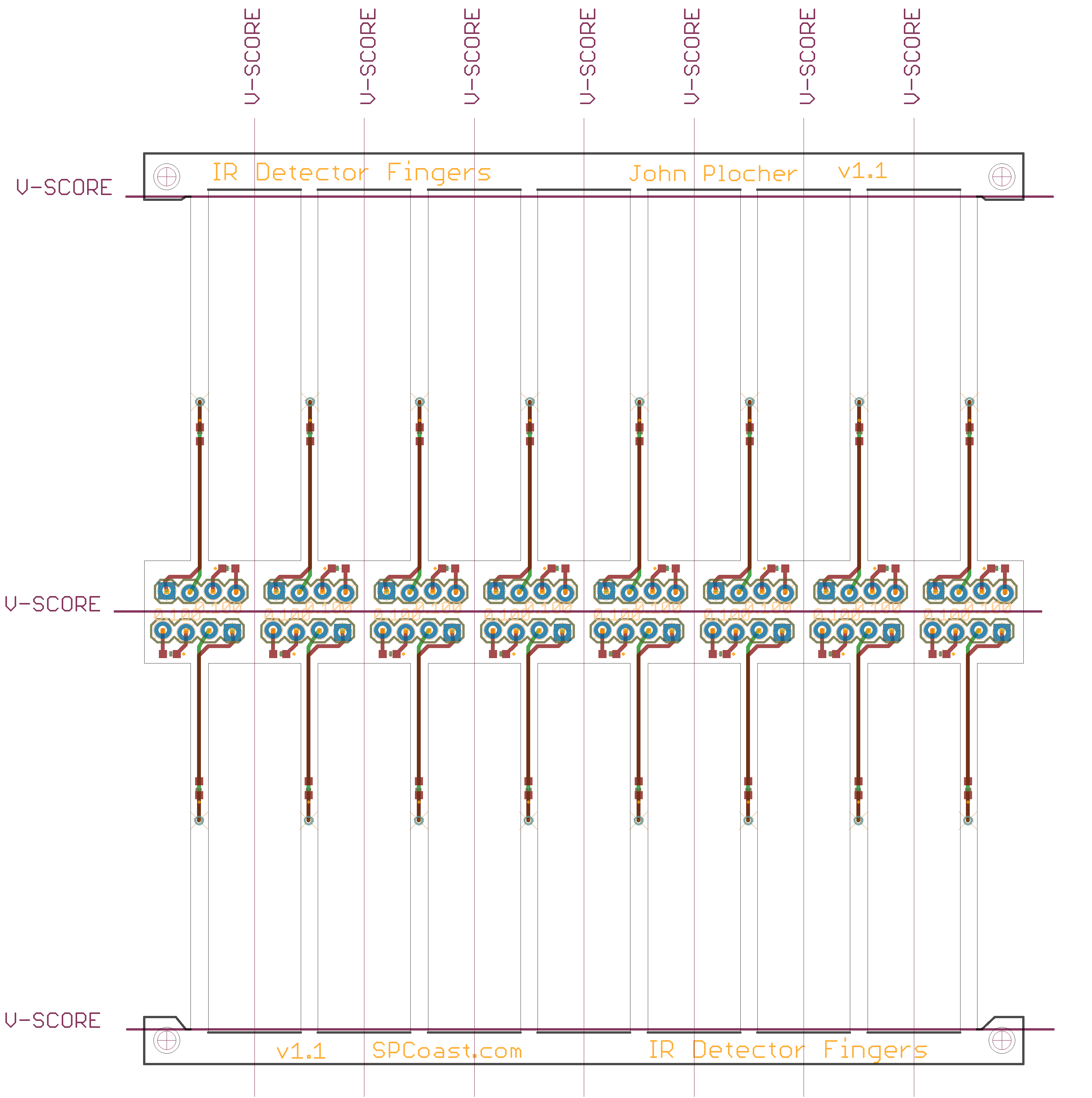

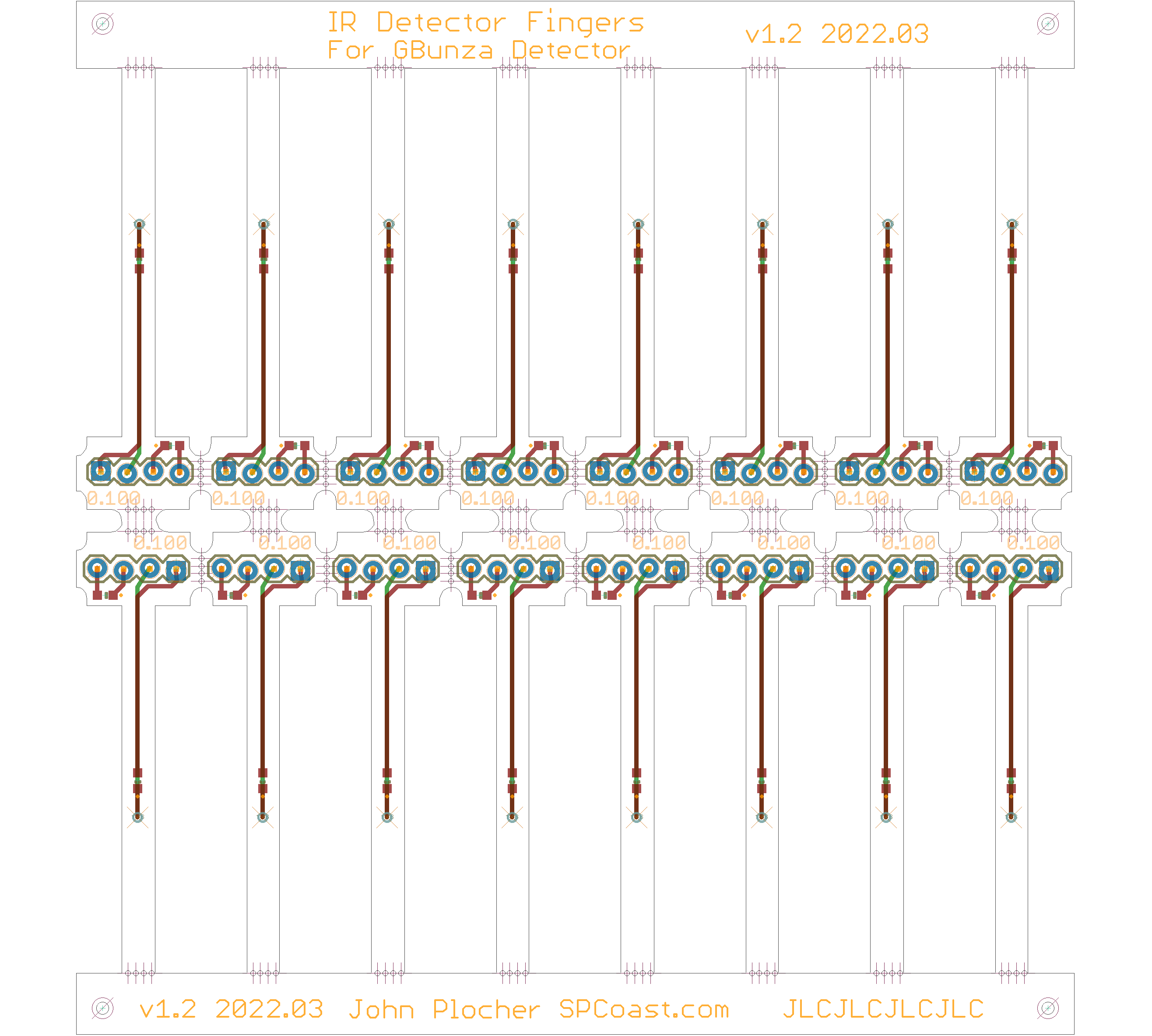

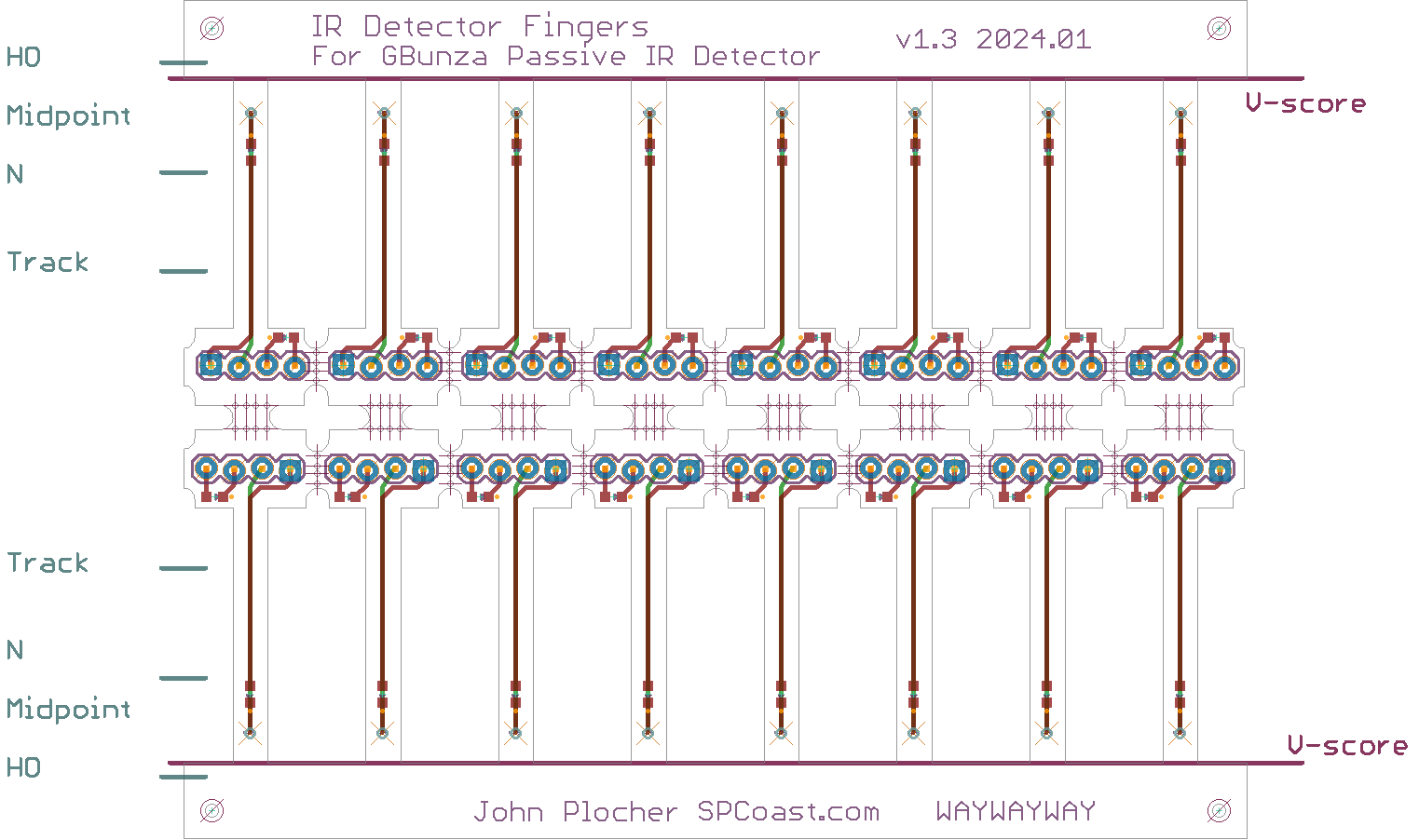

Board
Board

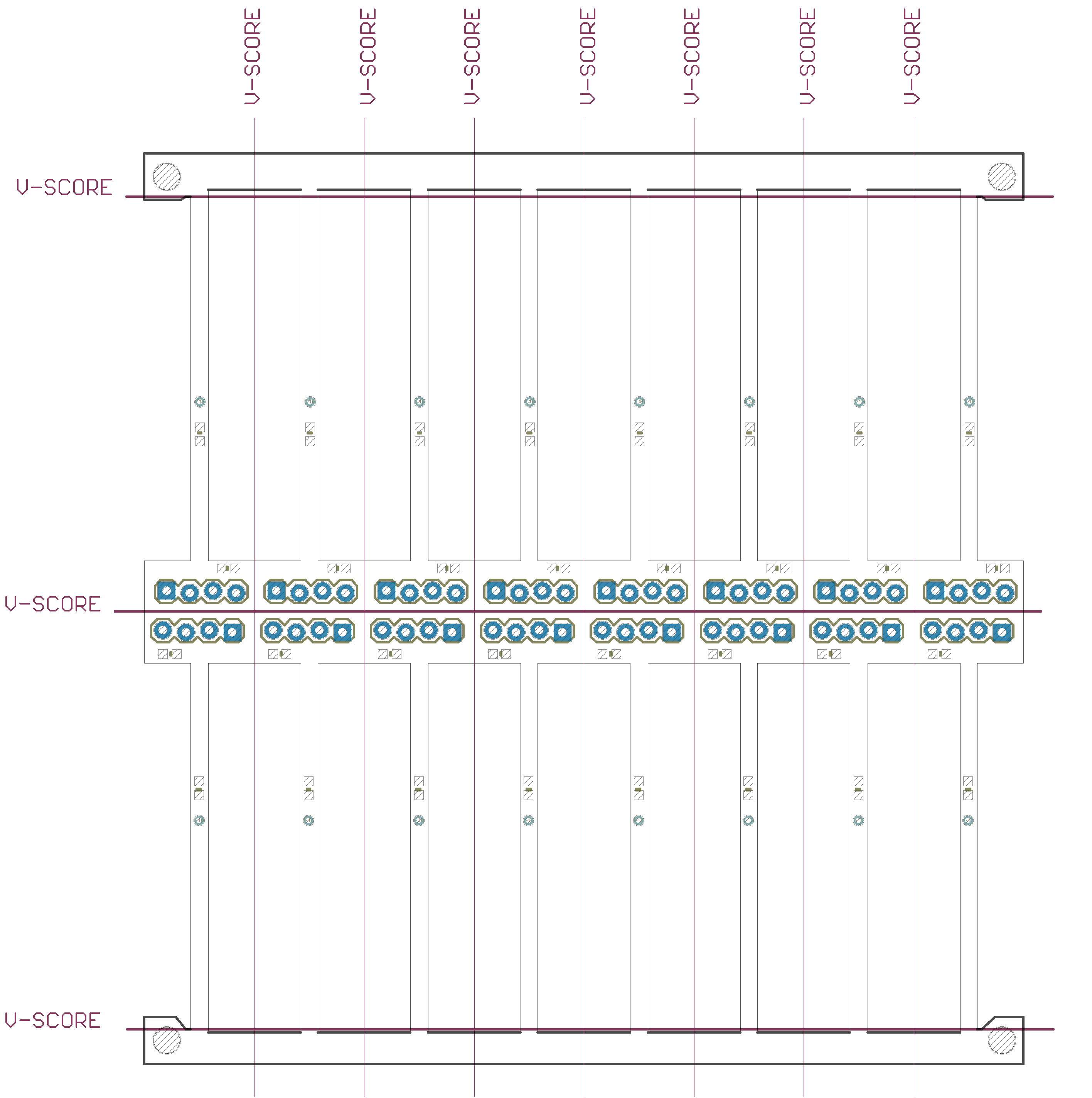

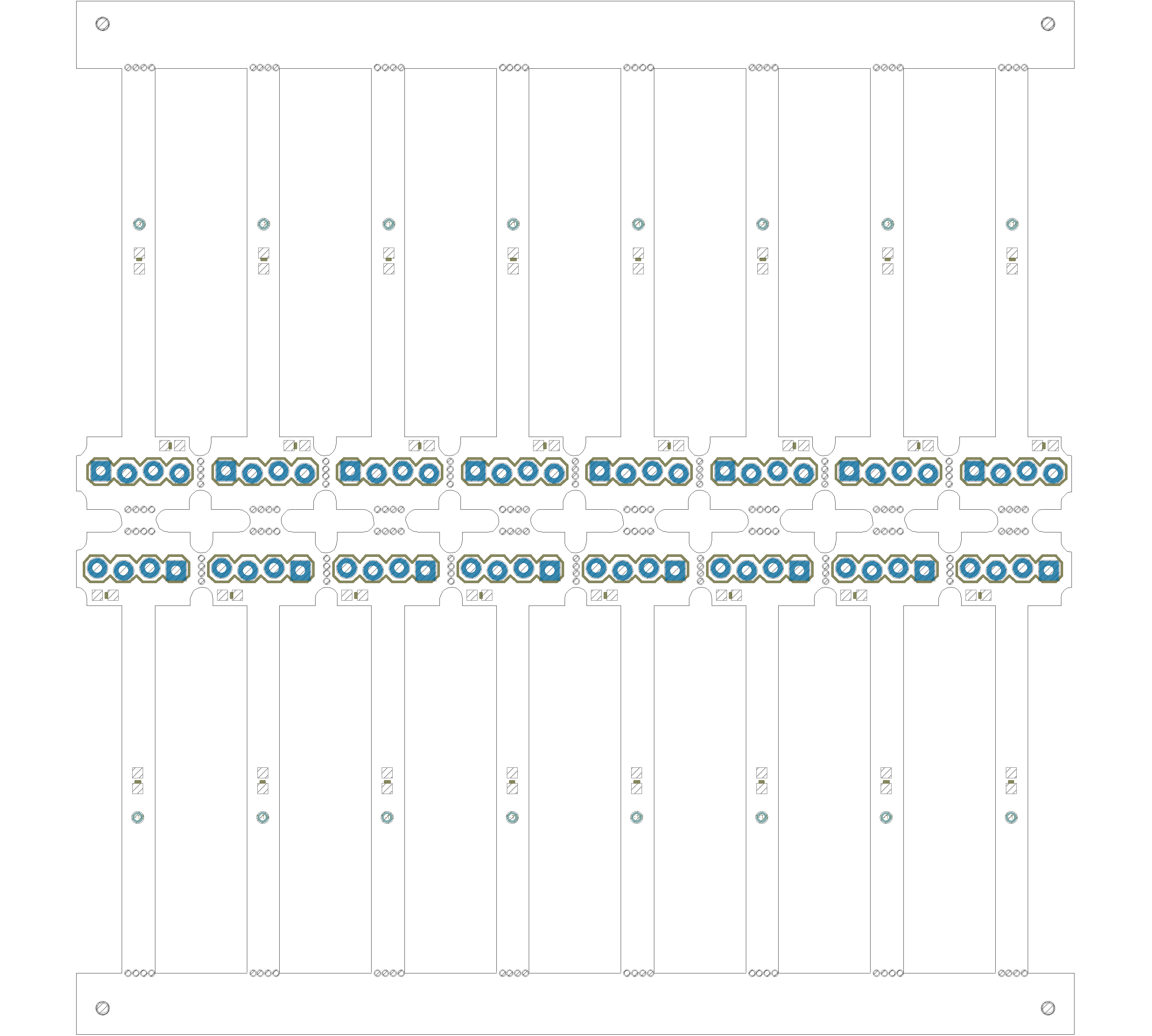

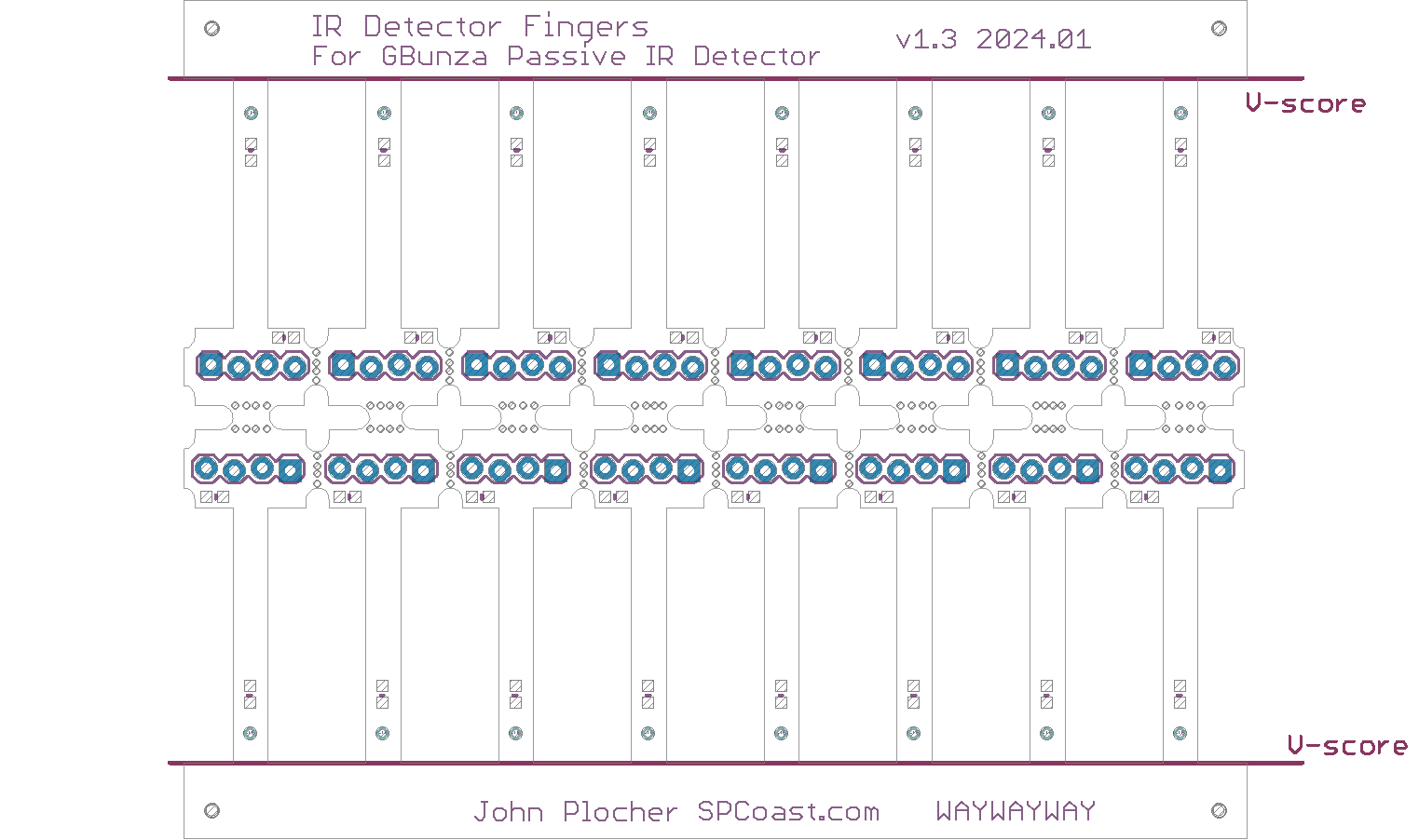

Top Silk
Top Silk

Download IO4-IR-Detector-GBunza-Fingers.gerbers.zip - Gerber Fabrication files
Download IO4-IR-Detector-GBunza-Fingers.parts - Parts List (spreadsheet data)



IO4-IR-Detector-GBunza-Fingers.bom

Parts Value Package Quantity Library Type/Feeder
J1, J2, J3, J4, J5, J6, J7, J8, J9, J10, J11, J12, J13, J14, J15, J16 0.100 1X04_LOCK 16x SPCoast PTH
T.AMBIENT, T.AMBIENT1, T.AMBIENT2, T.AMBIENT3, T.AMBIENT4, T.AMBIENT5, T.AMBIENT6, T.AMBIENT7, T.AMBIENT8, T.AMBIENT9, T.AMBIENT10, T.AMBIENT11, T.AMBIENT12, T.AMBIENT13, T.AMBIENT14, T.AMBIENT15, T.DETECTED, T.DETECTED1, T.DETECTED2, T.DETECTED3, T.DETECTED4, T.DETECTED5, T.DETECTED6, T.DETECTED7, T.DETECTED8, T.DETECTED9, T.DETECTED10, T.DETECTED11, T.DETECTED12, T.DETECTED13, T.DETECTED14, T.DETECTED15 PT19-21C/L41 ALS-PT19 32x SparkFun-Sensors 16

IO4-IR-Detector-GBunza-Fingers Version 1.0

First built: 2018-01

Basic signal for panelization

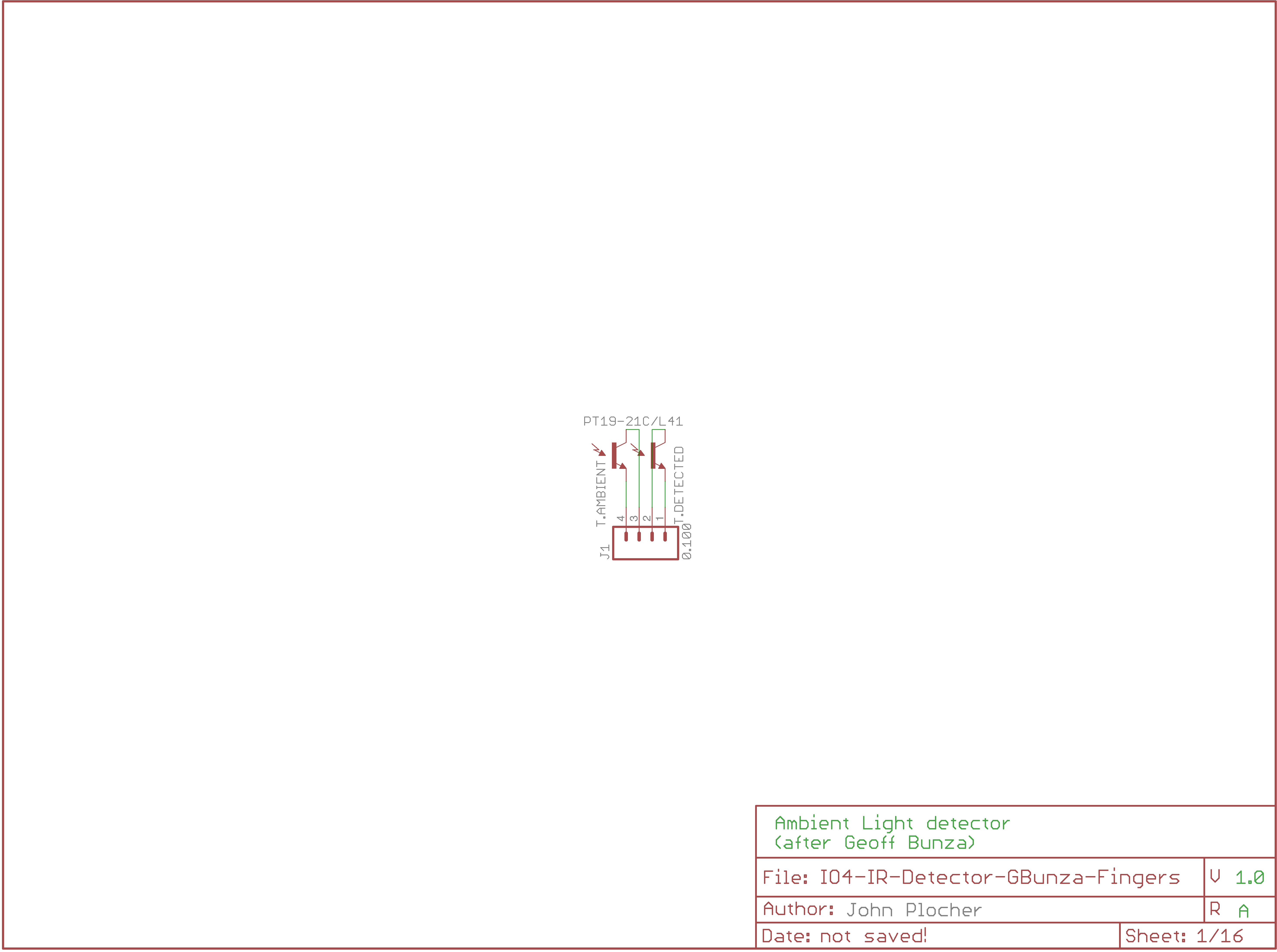

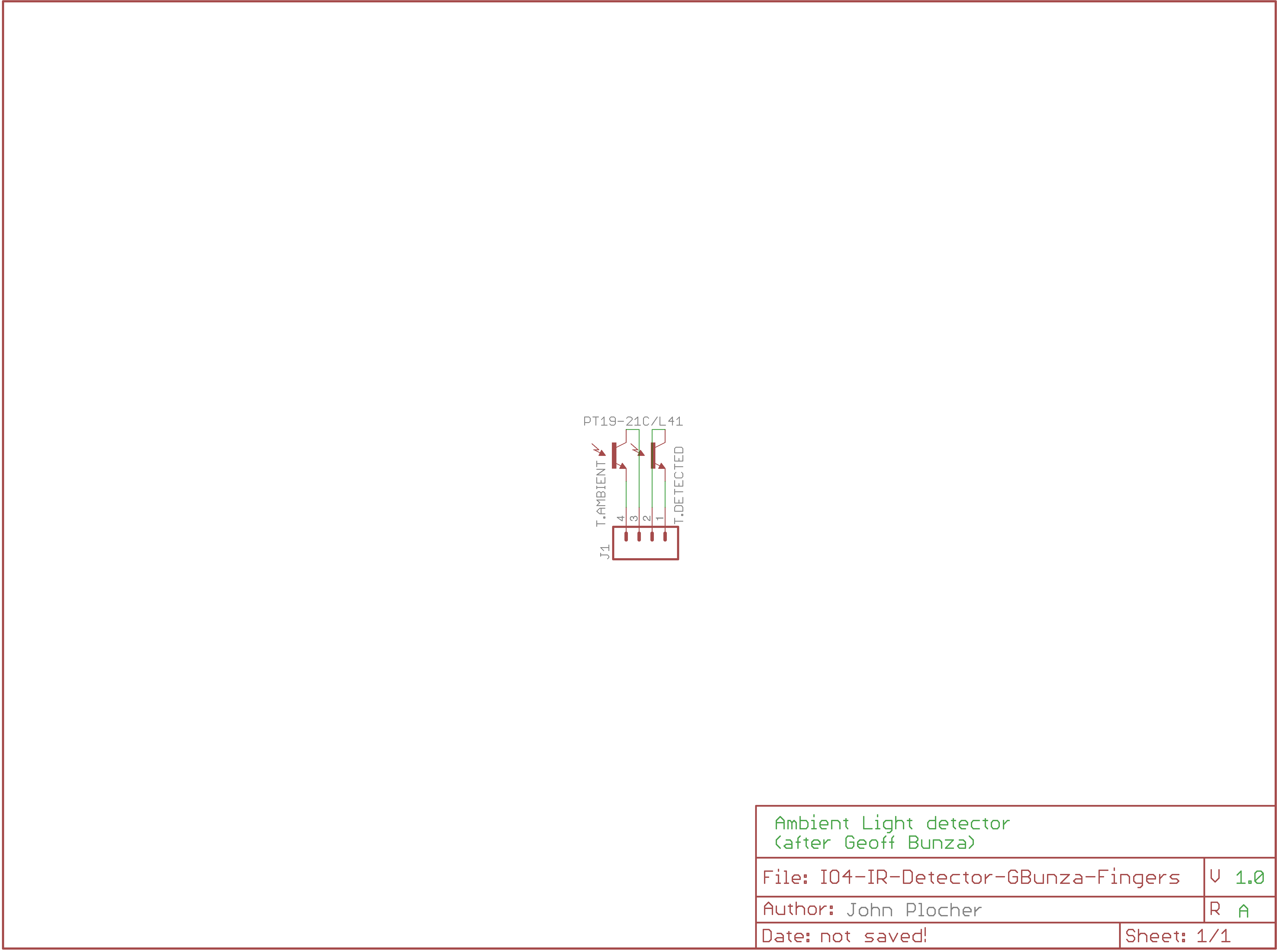

Schematic
Schematic

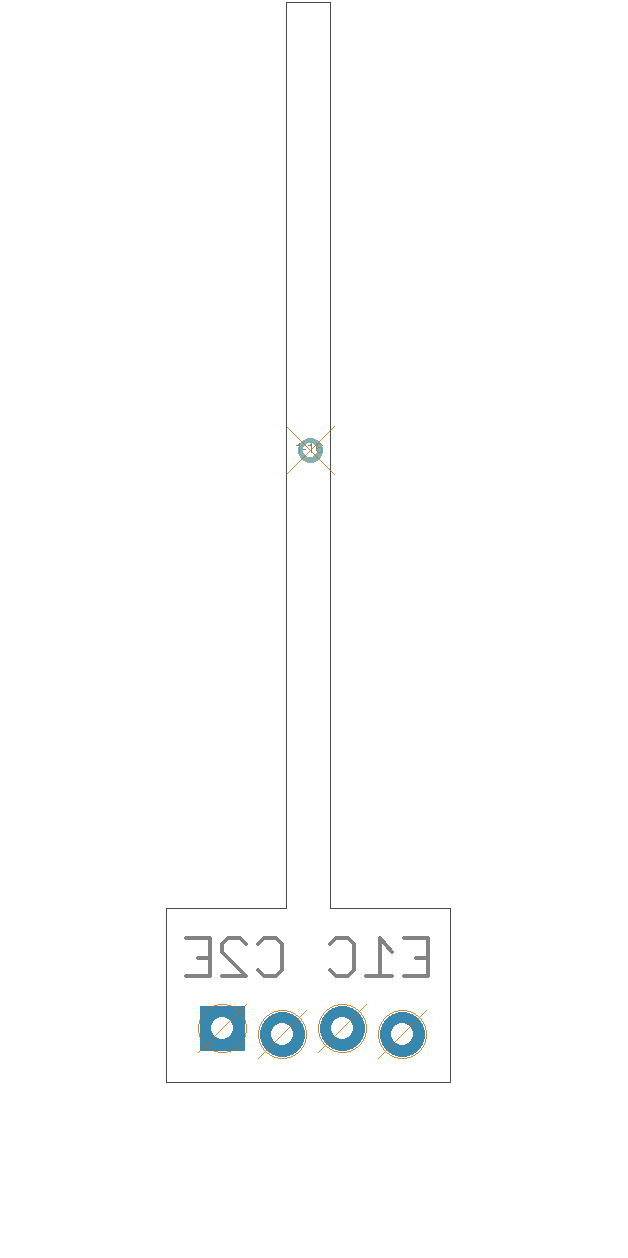

Bot Silk
Bot Silk

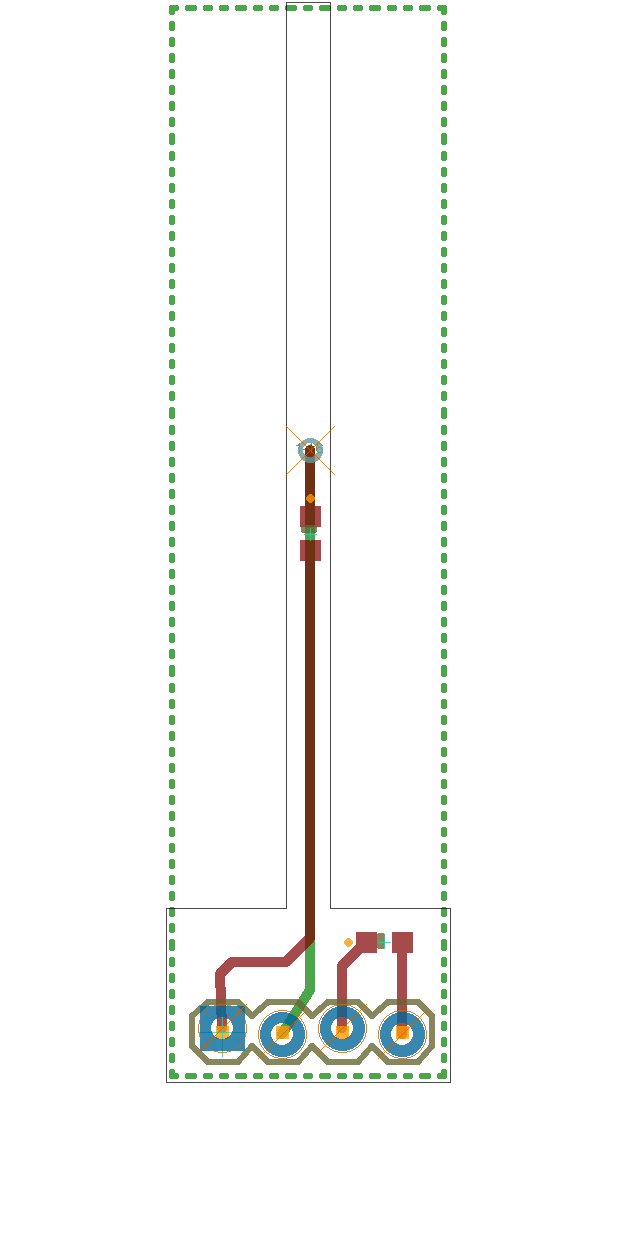

Board
Board

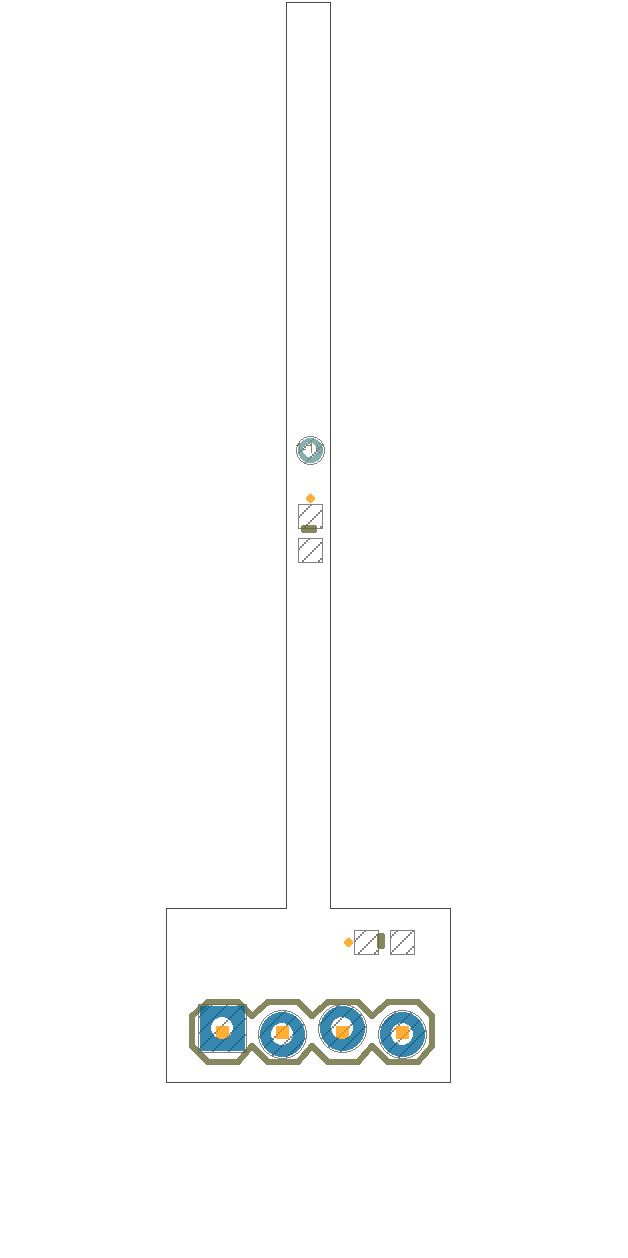

Top Silk
Top Silk

Download IO4-IR-Detector-GBunza-Fingers - CHMT Component and feeder definitions
Download IO4-IR-Detector-GBunza-Fingers.gerbers.zip - Gerber Fabrication files
Download IO4-IR-Detector-GBunza-Fingers.parts - Parts List (spreadsheet data)



IO4-IR-Detector-GBunza-Fingers.bom

Parts Value Package Quantity Library Type/Feeder
J1   1X04_LOCK 1x SPCoast PTH
T.AMBIENT, T.DETECTED PT19-21C/L41 ALS-PT19 2x SparkFun-Sensors 15

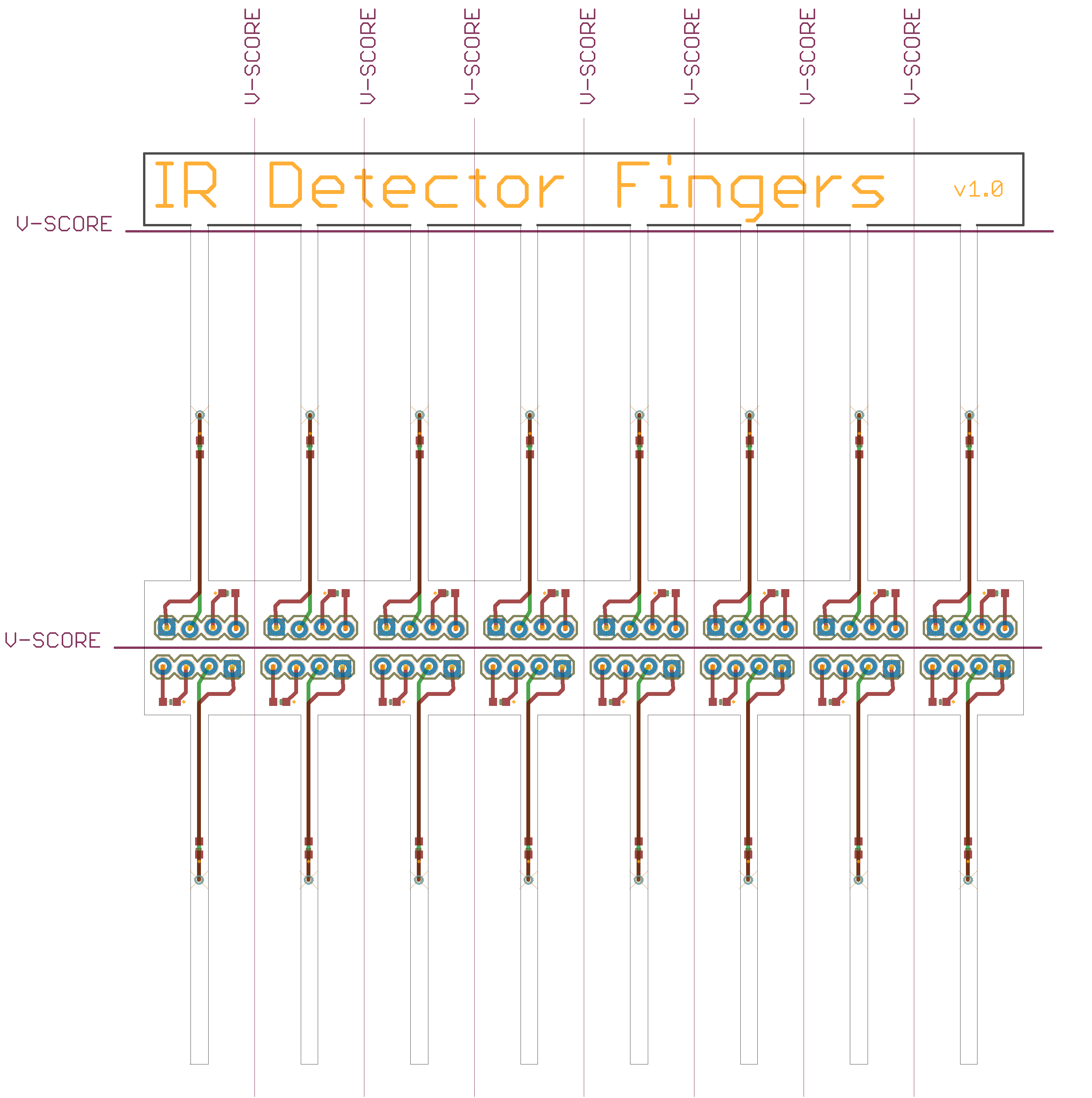

IO4-IR-Detector-GBunza-Fingers Version 1.0-panel

First built: 2018-01

Initial variation based on GBunza’s design. Array generated via ULP needed lots of manual tweeking for DFM and strength.

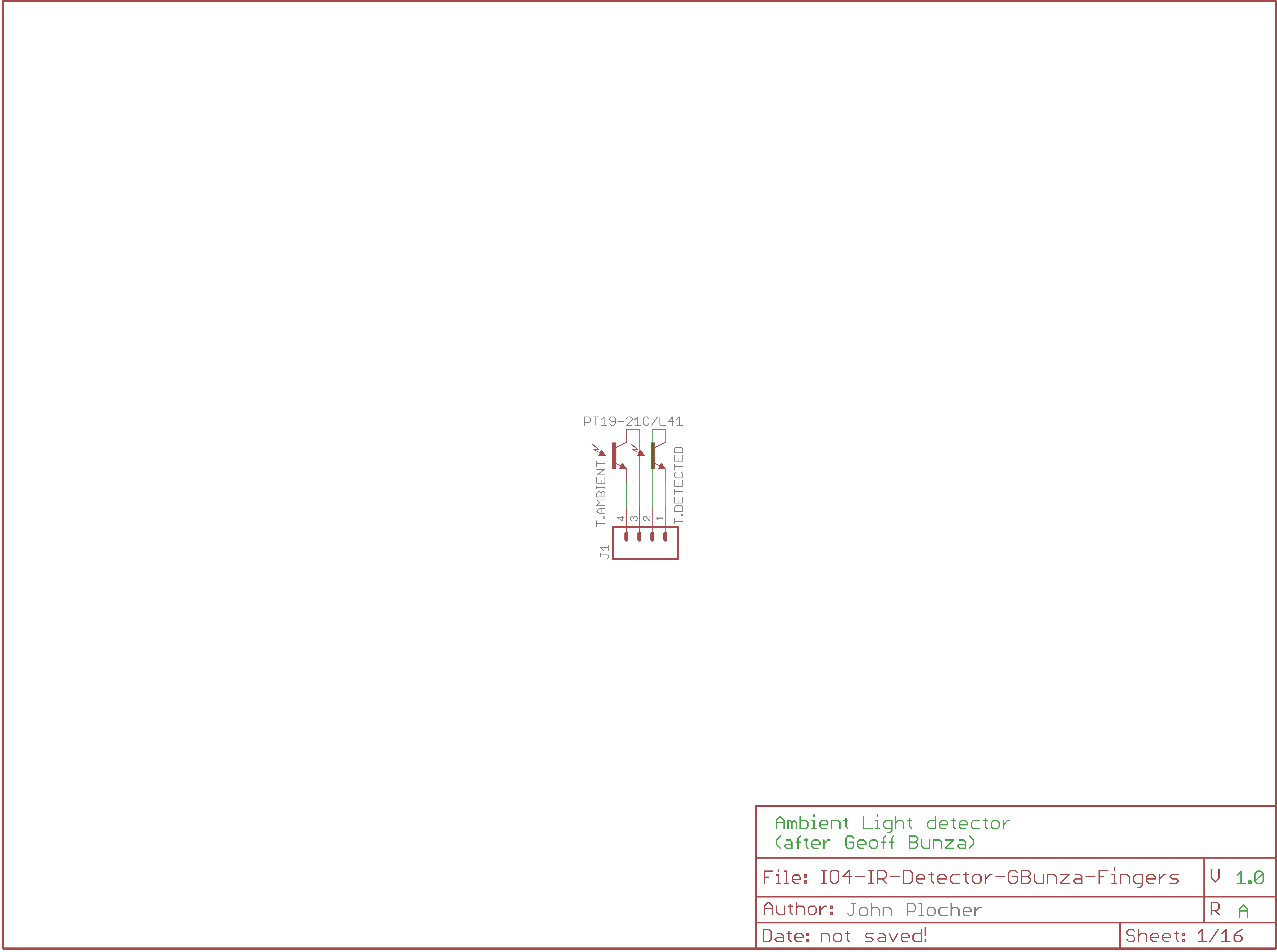

Schematic
Schematic

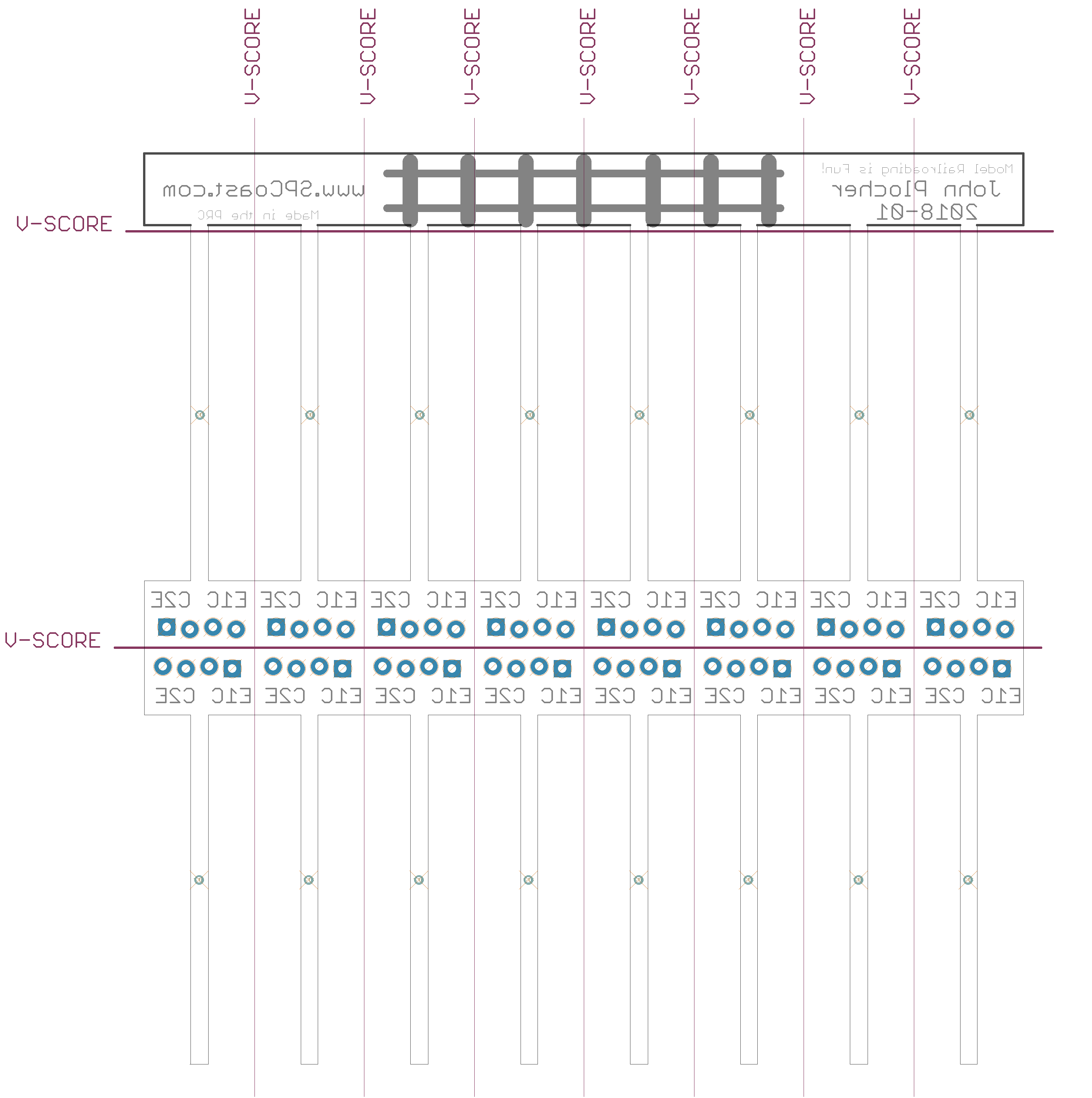

Bot Silk
Bot Silk
Board
Board

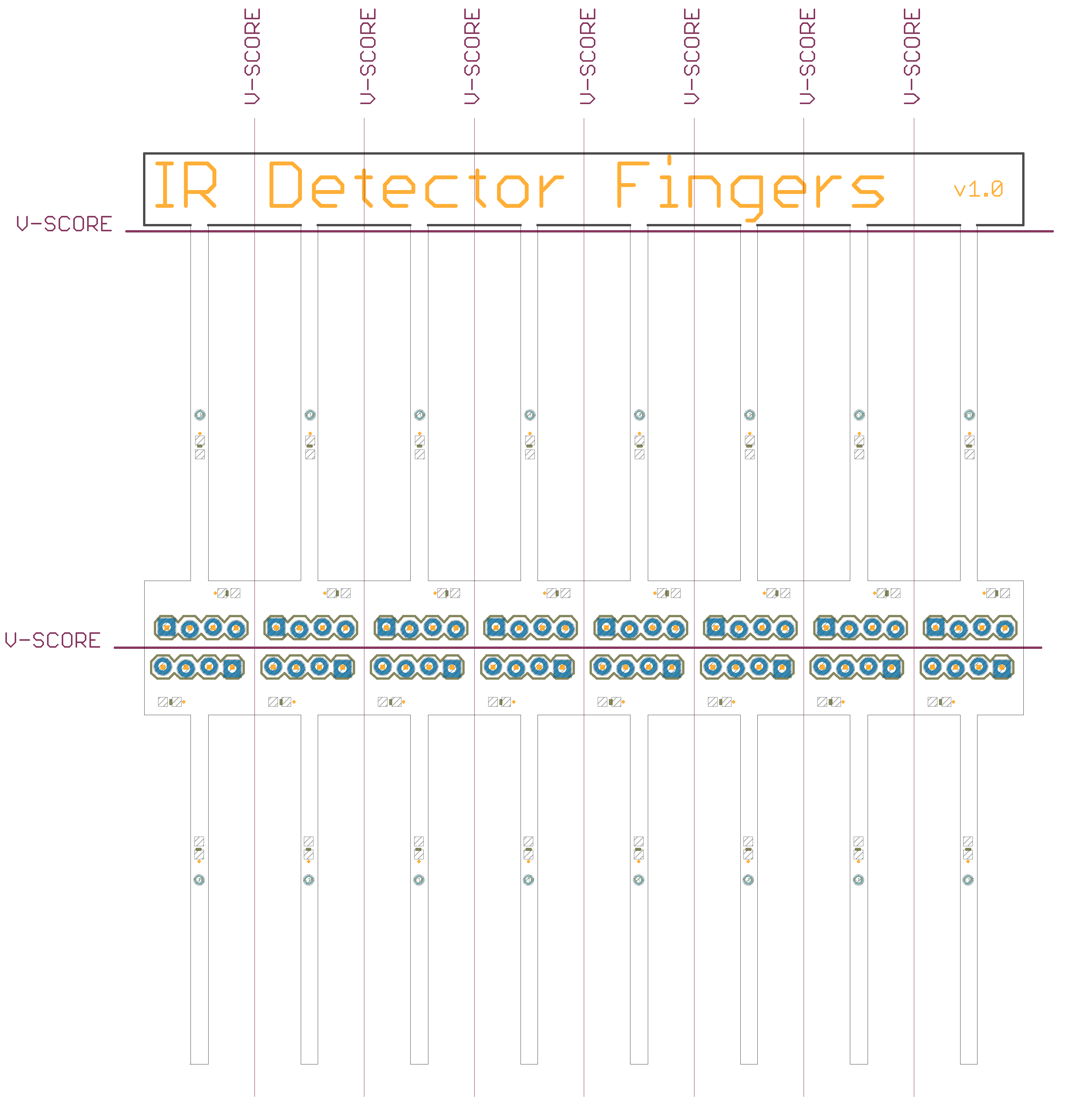

Top Silk
Top Silk

Download IO4-IR-Detector-GBunza-Fingers - CHMT Component and feeder definitions
Download IO4-IR-Detector-GBunza-Fingers.gerbers.zip - Gerber Fabrication files
Download IO4-IR-Detector-GBunza-Fingers.parts - Parts List (spreadsheet data)



IO4-IR-Detector-GBunza-Fingers.bom

Parts Value Package Quantity Library Type/Feeder
J1, J2, J3, J4, J5, J6, J7, J8, J9, J10, J11, J12, J13, J14, J15, J16   1X04_LOCK 16x SPCoast PTH
T.AMBIENT, T.AMBIENT1, T.AMBIENT2, T.AMBIENT3, T.AMBIENT4, T.AMBIENT5, T.AMBIENT6, T.AMBIENT7, T.AMBIENT8, T.AMBIENT9, T.AMBIENT10, T.AMBIENT11, T.AMBIENT12, T.AMBIENT13, T.AMBIENT14, T.AMBIENT15, T.DETECTED, T.DETECTED1, T.DETECTED2, T.DETECTED3, T.DETECTED4, T.DETECTED5, T.DETECTED6, T.DETECTED7, T.DETECTED8, T.DETECTED9, T.DETECTED10, T.DETECTED11, T.DETECTED12, T.DETECTED13, T.DETECTED14, T.DETECTED15 PT19-21C/L41 ALS-PT19 32x SparkFun-Sensors 15

Documentation

Works with GBunza's MRCS MRCS-DAPD and SPCoast IO4-IR-Detector-GBunza passive IR Detectors

  • E1C is the Ambient transistor, labeled T1 on the MRCS schematic.
  • E2C is the between the rails detector transistor.
  • Fab with a BLACK silk screen to help blend in to the trackwork.
  • Cut to length for N scale

This technical documentation is licensed under the CERN Open Hardware Licence v1.2
