IO4 Quad IR Occupancy Detector

IO4-IR-Detector-Active-Graphic
IO4-IR-Detector-Active-Graphic



Download IO4-IR-Detector-Active.SMD-parts -
Download IO4-IR-Detector-Active_array.SMD-parts -
Download IO4-IR-Detector-Active_array.scr - Eagle SCRipt
Download RPR-220-photoreflector.pdf - Documentation



IO4-IR-Detector-Active Version 3.1

First built: 2017-11

  • DFRobot based Quad Active IR Transmitter/PhotoDetector occupancy detector

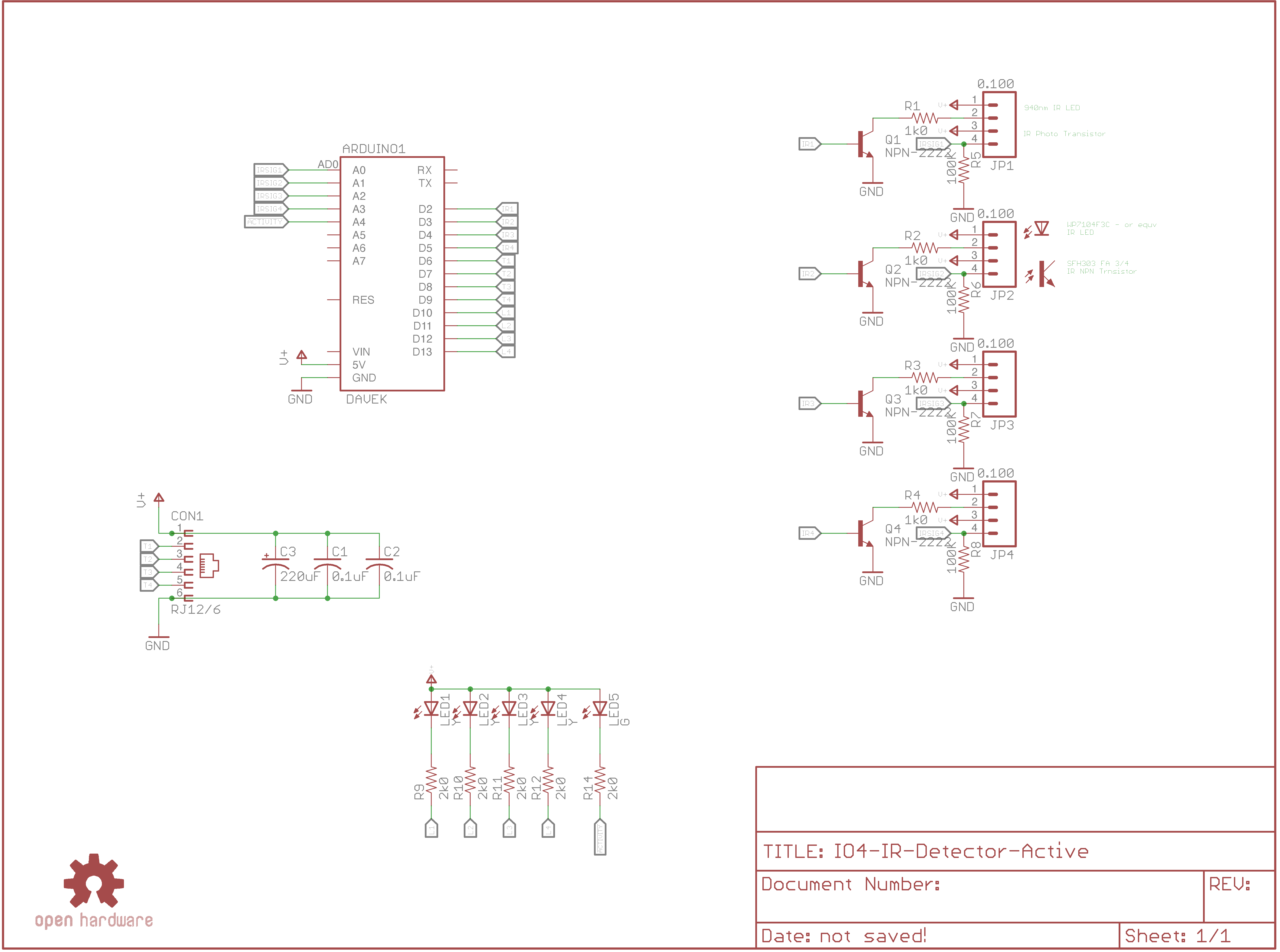

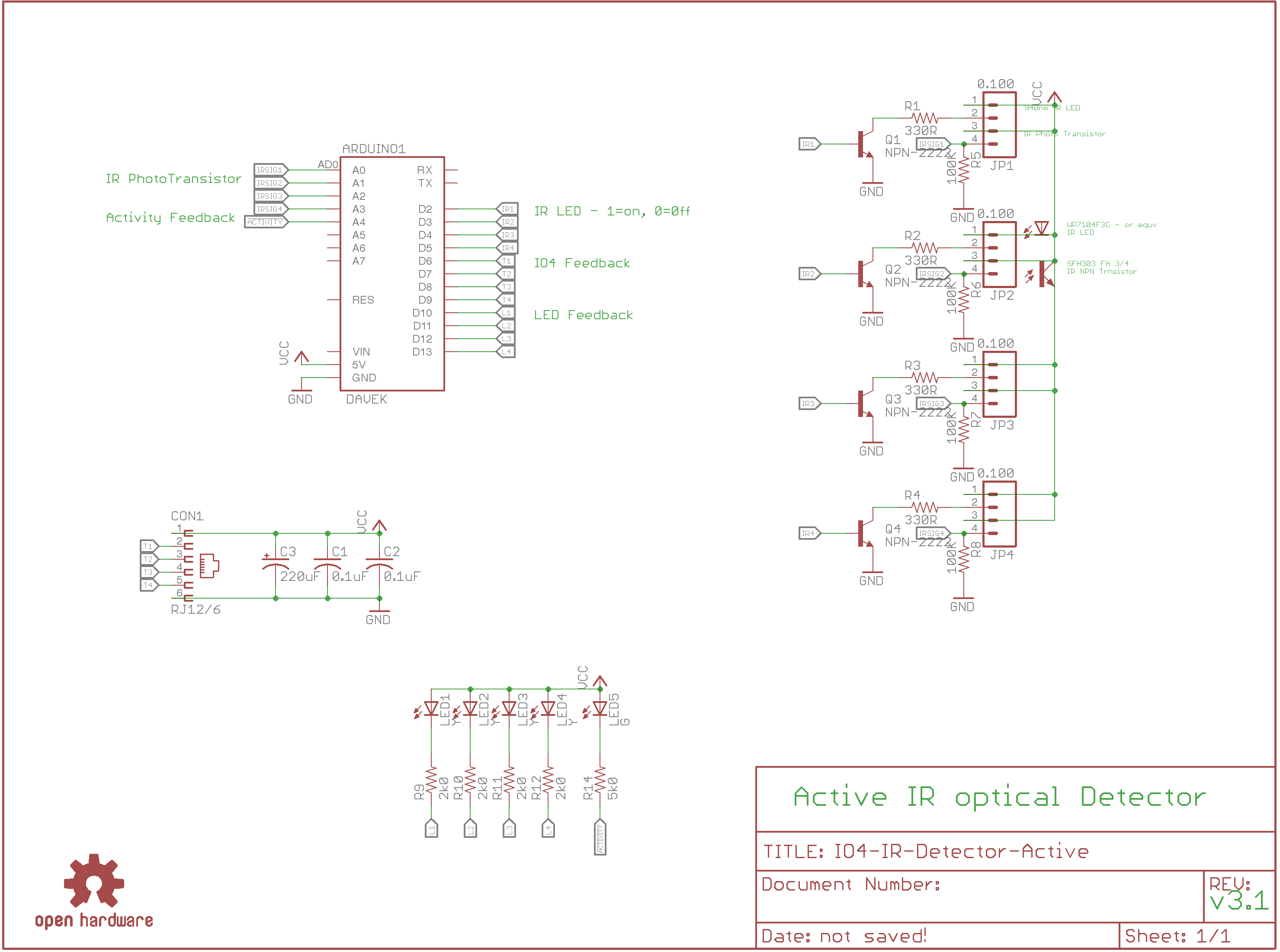

Schematic
Schematic

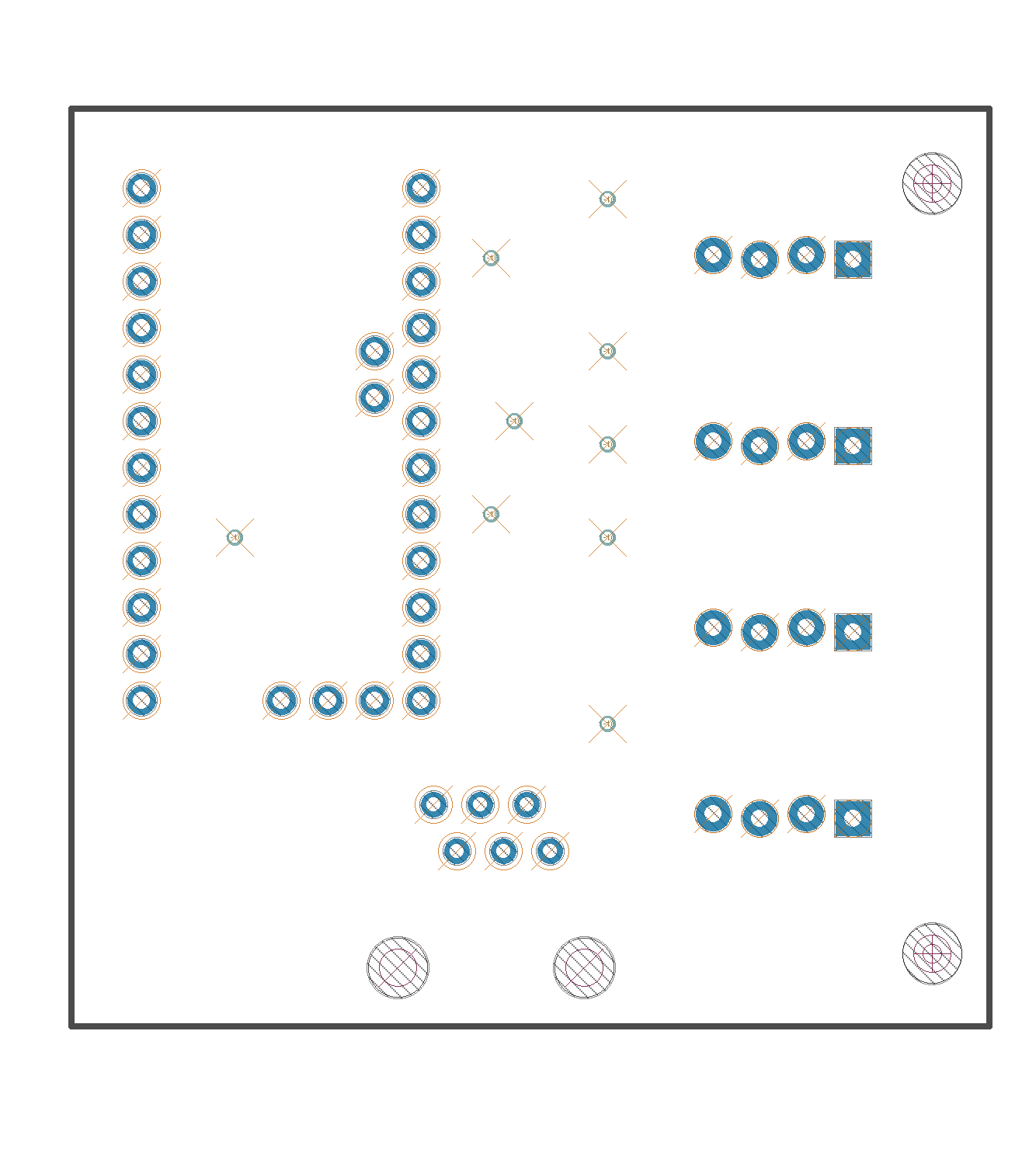

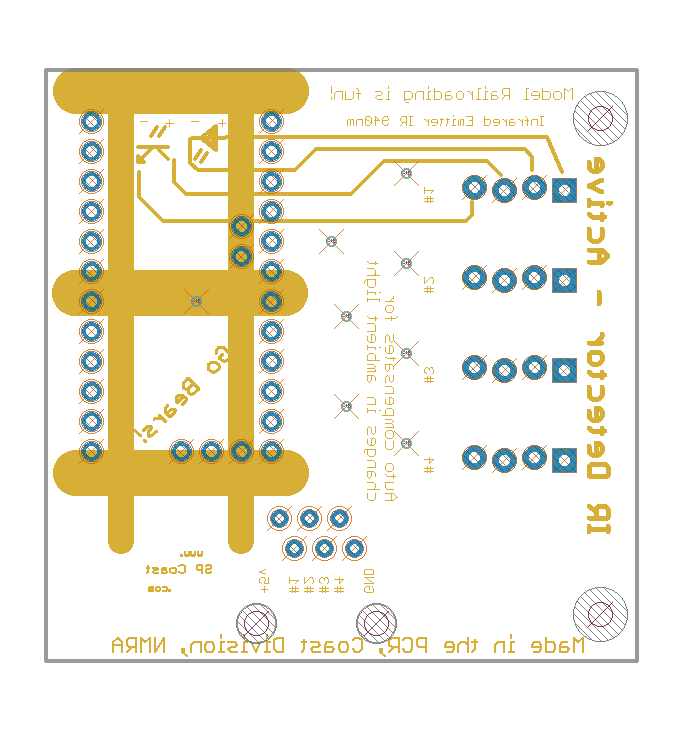

Bot Silk
Bot Silk

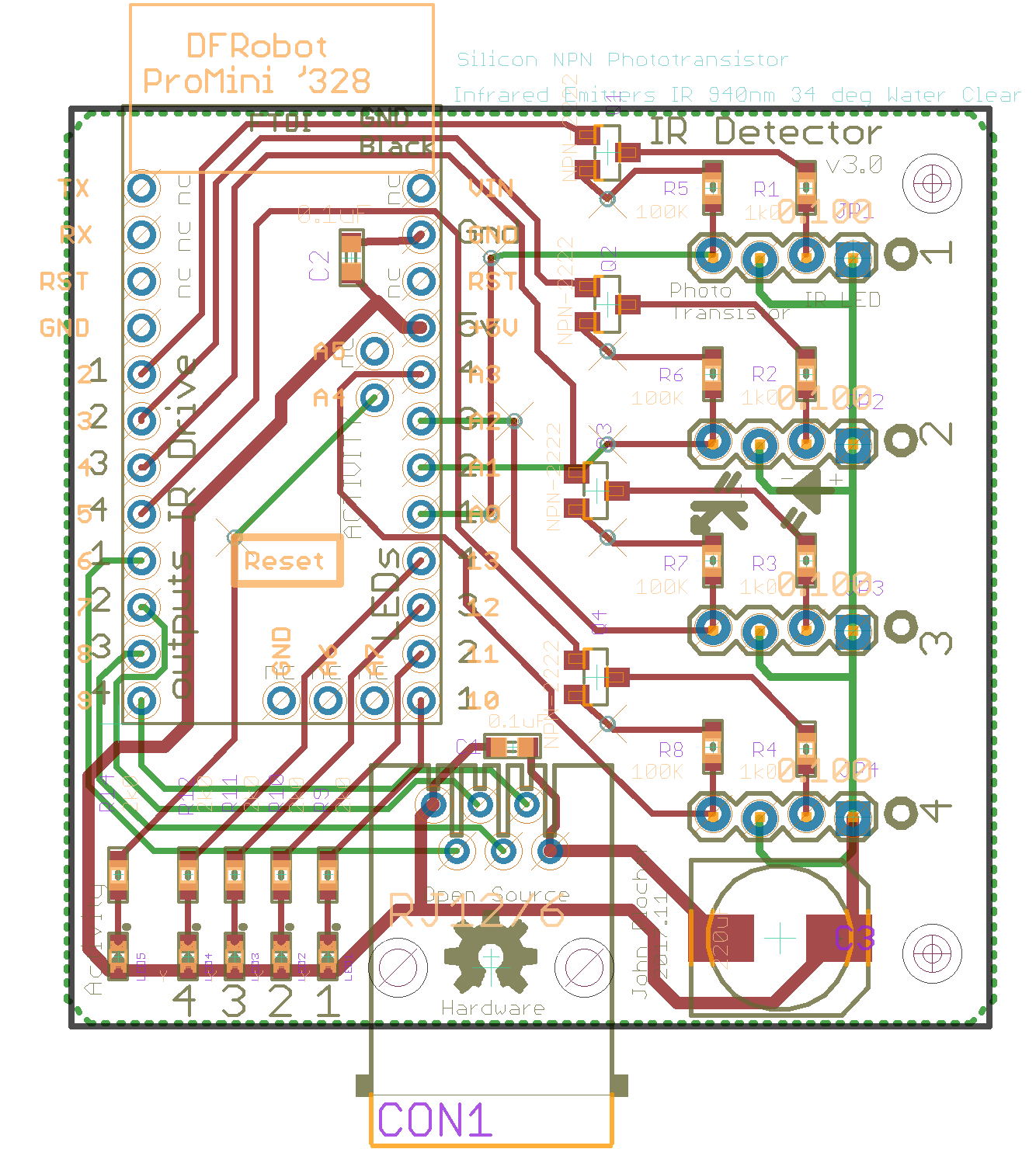

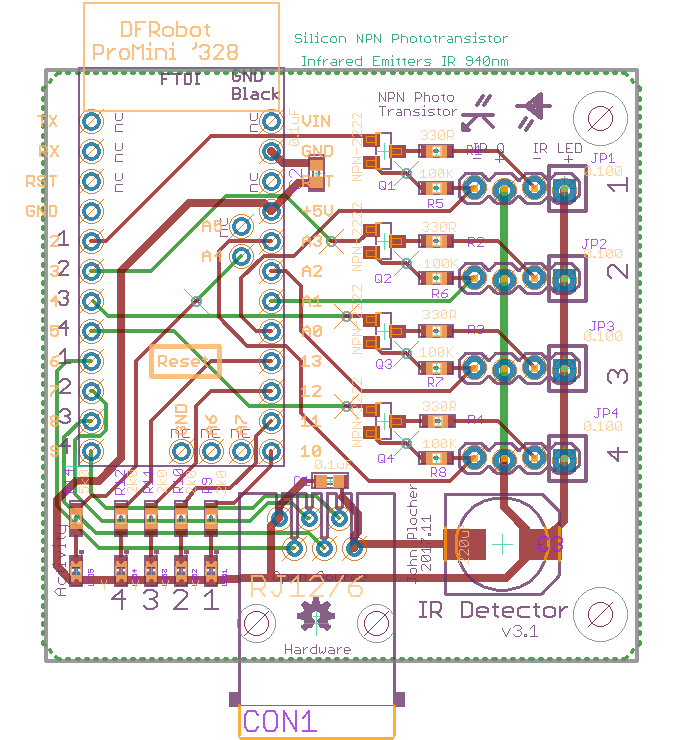

Board
Board

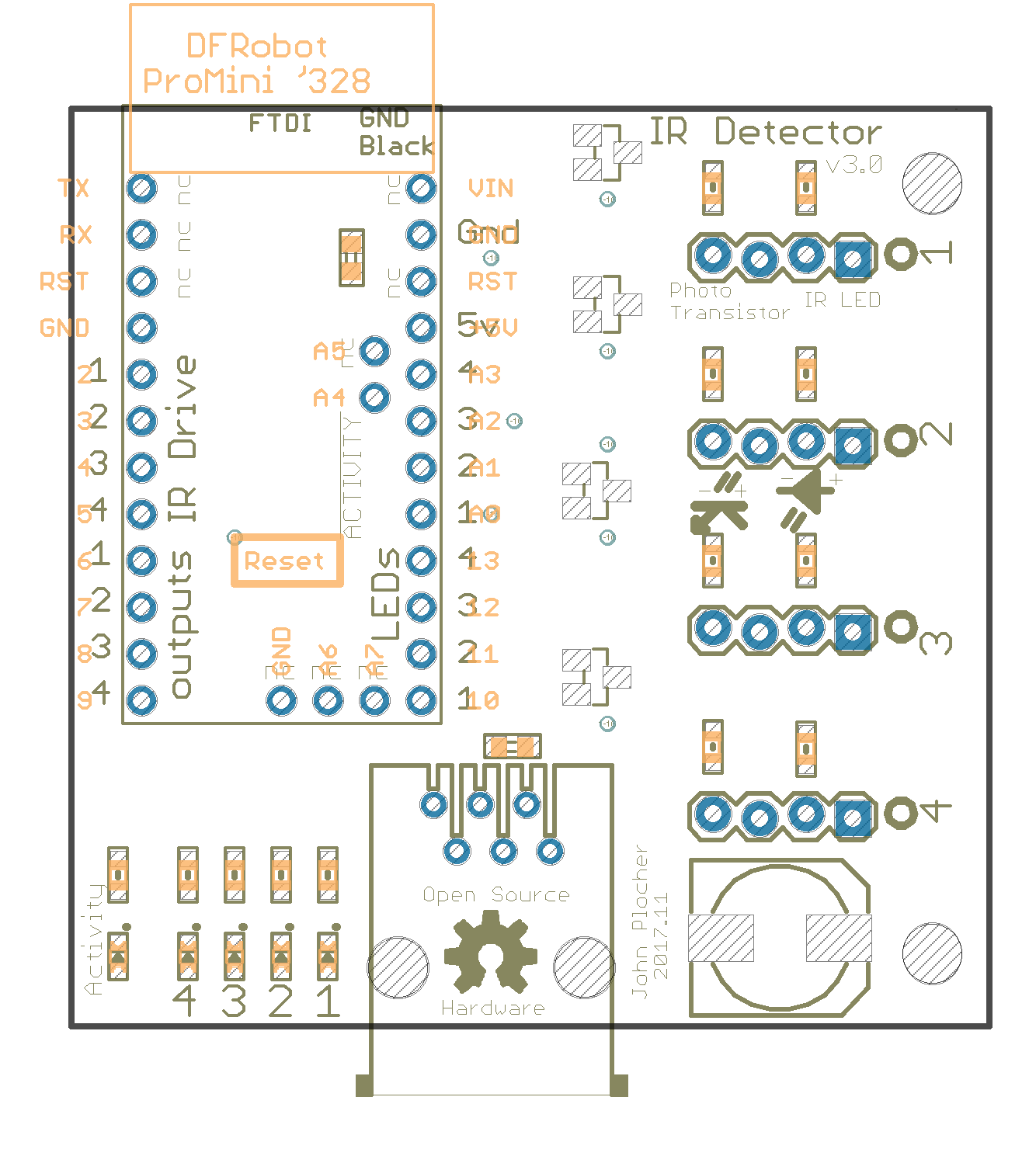

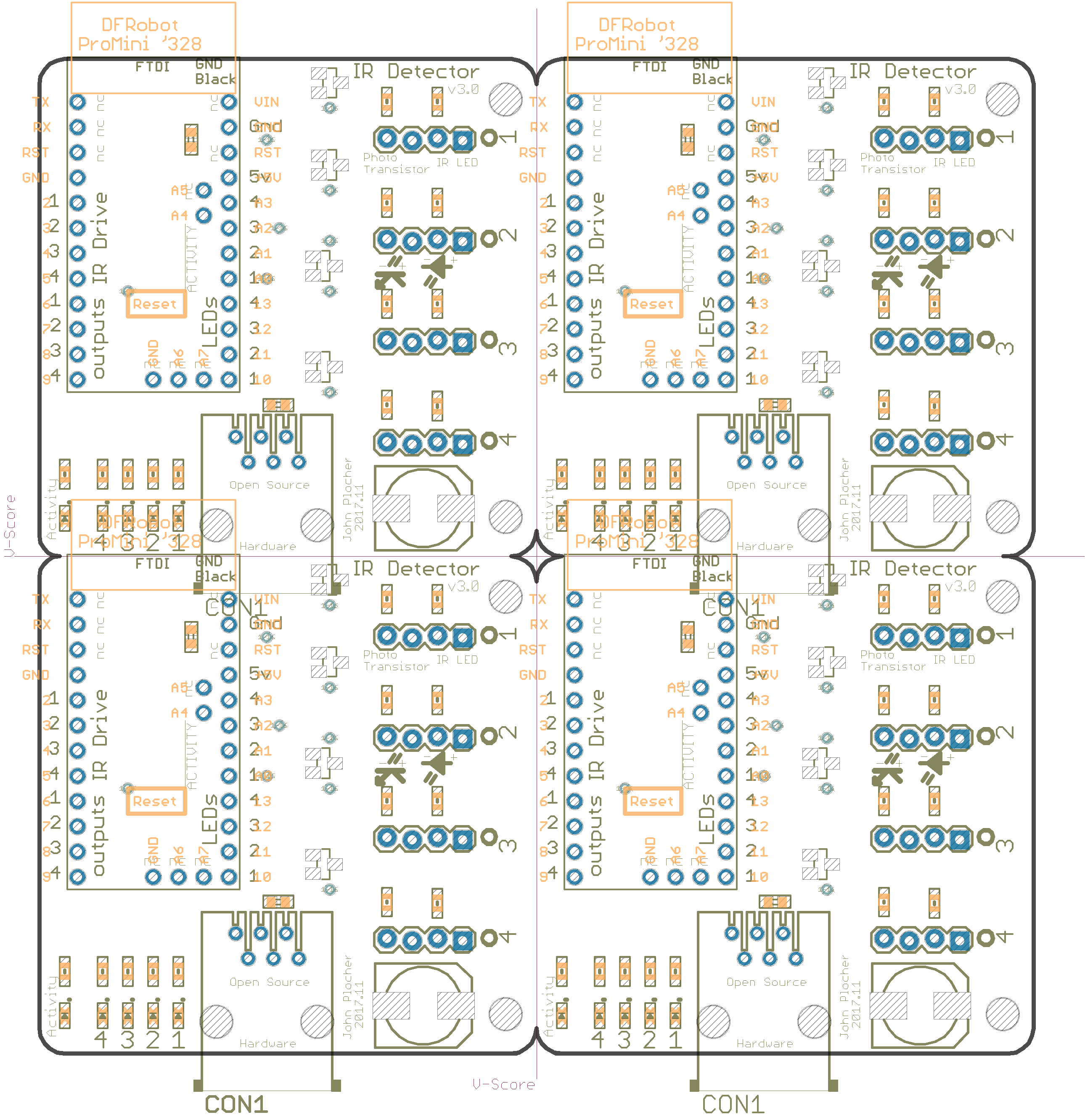

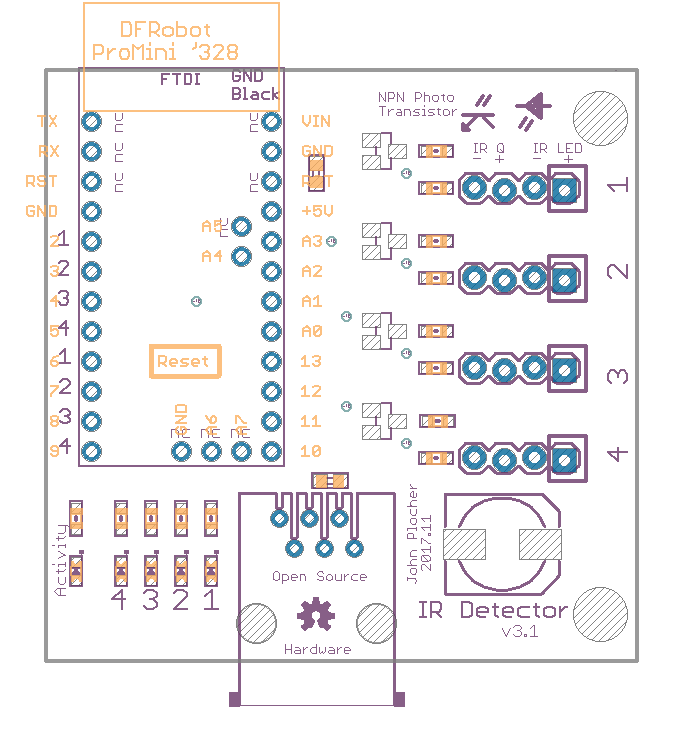

Top Silk
Top Silk

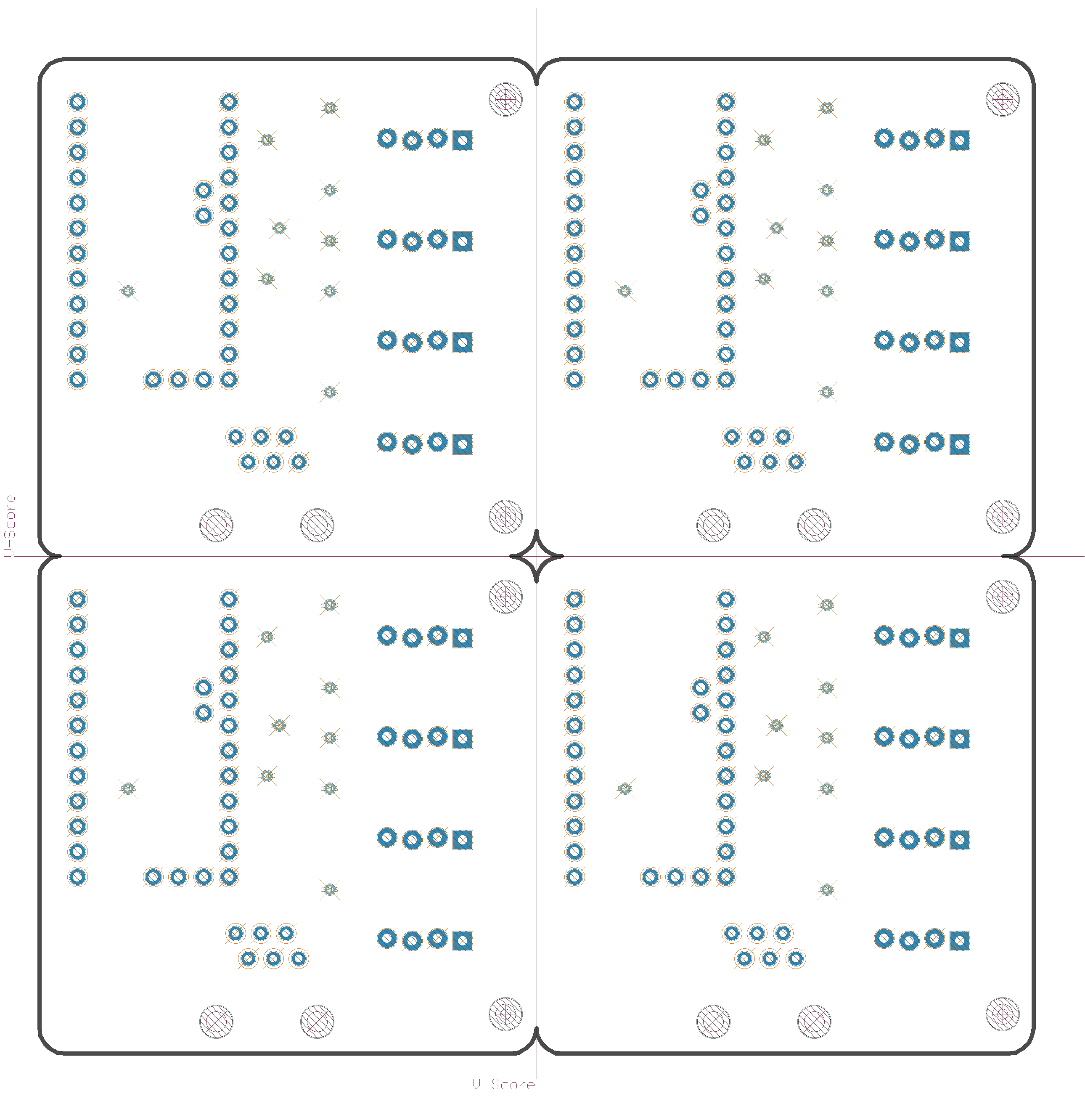

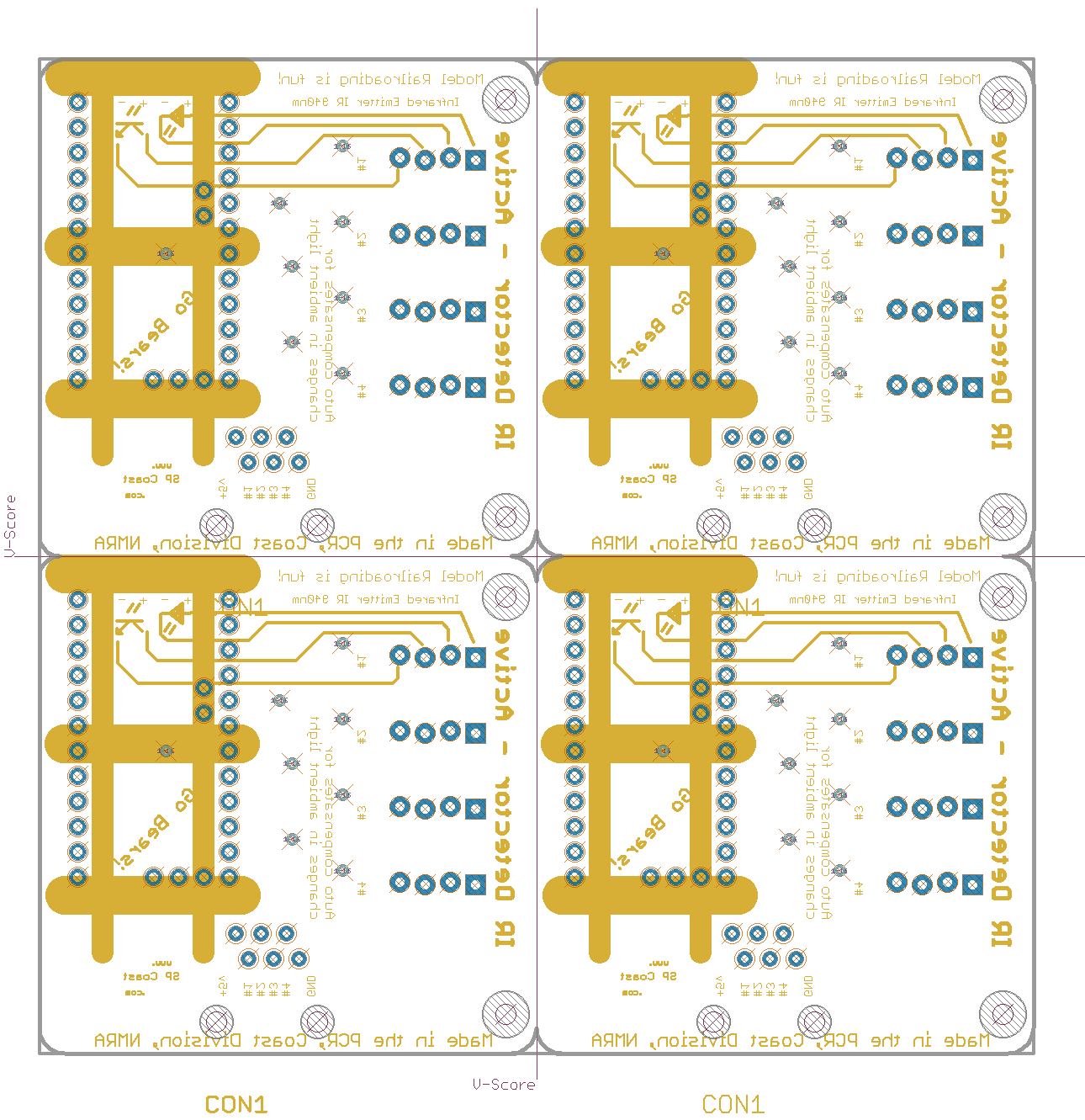

Bot Silk
Bot Silk

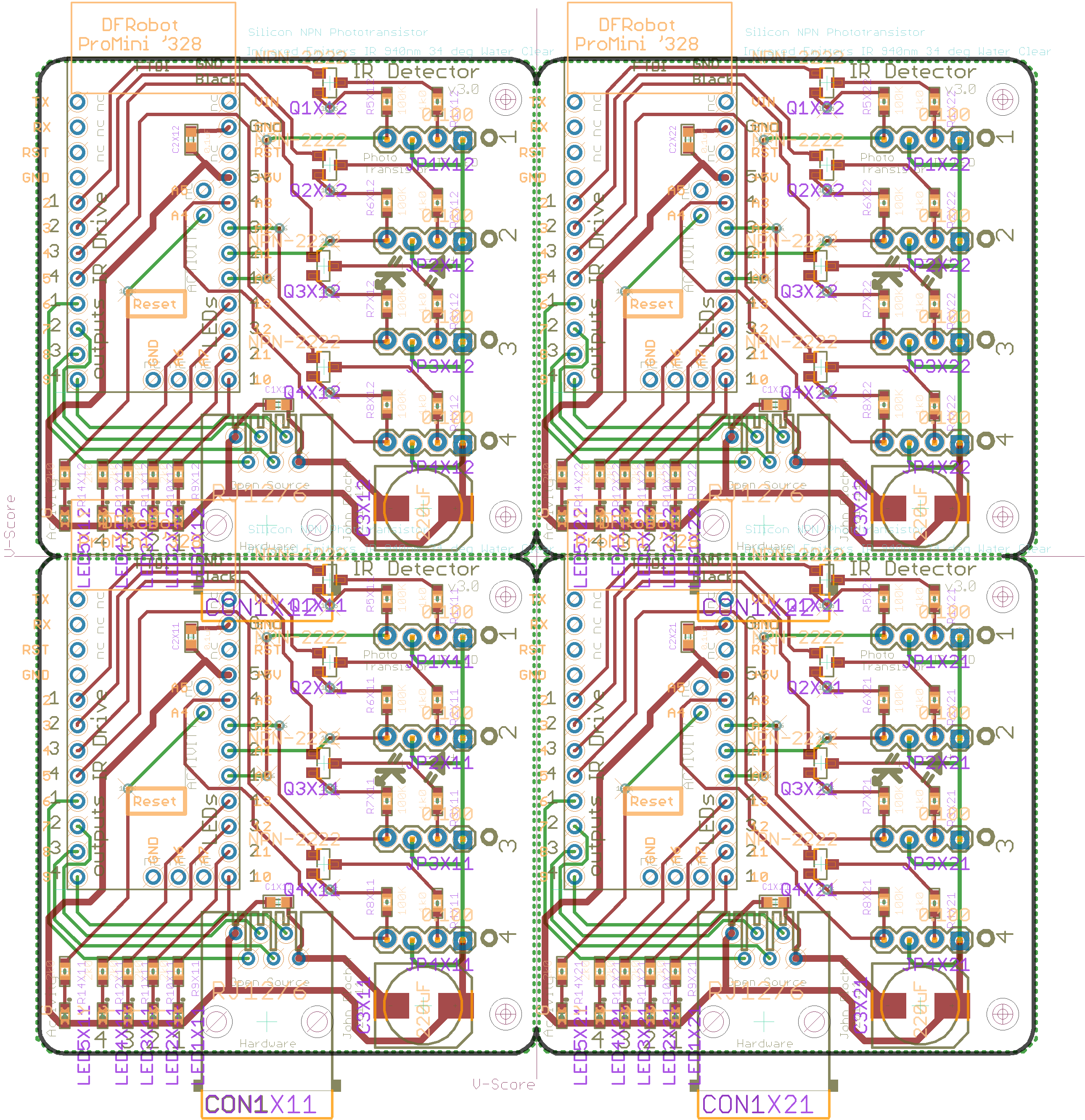

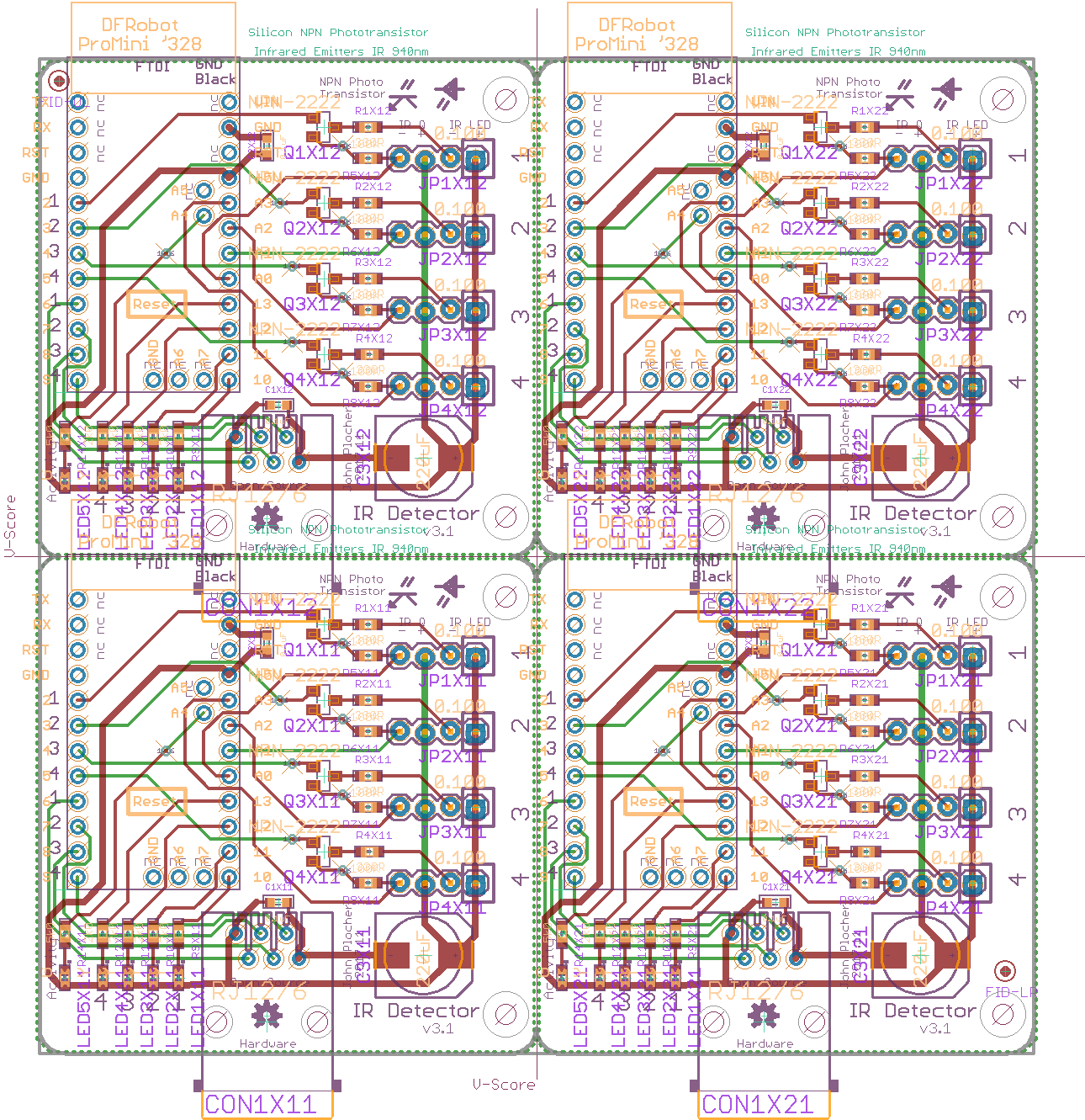

Board
Board

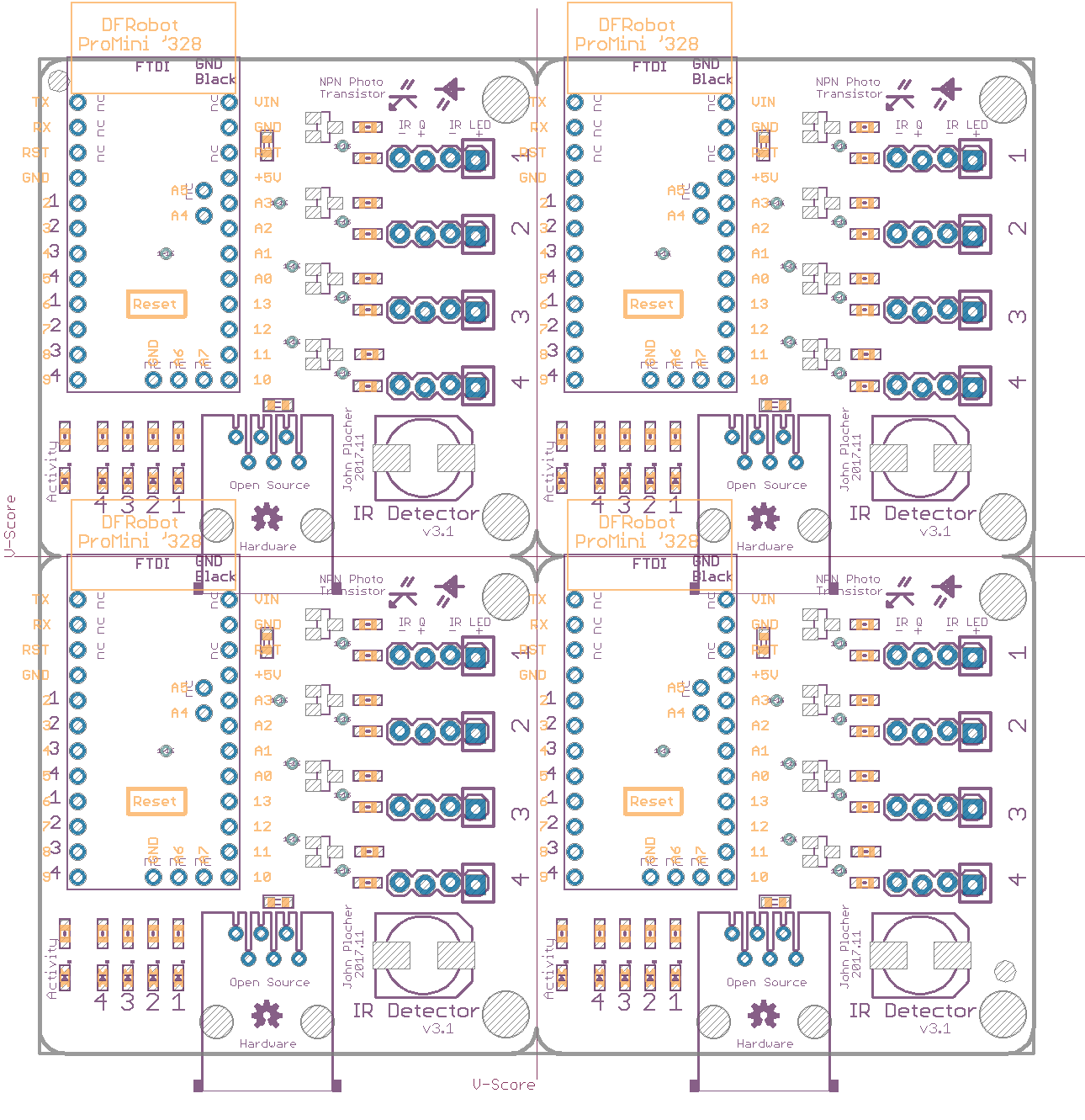

Top Silk
Top Silk

Download IO4-IR-Detector-Active.gerbers.zip - Gerber Fabrication files
Download IO4-IR-Detector-Active.parts - Parts List (spreadsheet data)
Download IO4-IR-Detector-Active_array.gerbers.zip - Gerber Fabrication files
Download IO4-IR-Detector-Active_array.parts - Parts List (spreadsheet data)



IO4-IR-Detector-Active.bom

Parts Value Package Quantity Library Type/Feeder
C1, C2 0.1uF 0603-CAP 2x SPCoast 19
JP1, JP2, JP3, JP4 0.100 1X04_LOCK 4x SPCoast PTH
R9, R10, R11, R12 2k0 0603-RES 4x SPCoast 42
R14 5k0 0603-RES 1x SPCoast NONE
R5, R6, R7, R8 100K 0603-RES 4x SPCoast NONE
C3 220uF 0810-CAP 1x SPCoast NONE
R1, R2, R3, R4 330R 0603-RES 4x SPCoast NONE
ARDUINO1 DAVEK ARDUINO_PRO_MINI_DAVEK 1x SPCoast PTH
OSH_LOGO DOC-OSHW-LOGO-S OSHW-LOGO-S 1x SPCoast PTH
LED5 G 0603-LED 1x SPCoast 3
Q1, Q2, Q3, Q4 NPN-2222 SOT23 4x SPCoast NONE
CON1 RJ12/6 RJ25-PANEL 1x SPCoast PTH
LED1, LED2, LED3, LED4 Y 0603-LED 4x SPCoast 2

IO4-IR-Detector-Active_array.bom

Parts Value Package Quantity Library Type/Feeder
C1X11, C1X12, C1X21, C1X22, C2X11, C2X12, C2X21, C2X22 0.1uF 0603-CAP 8x SPCoast 19
JP1X11, JP1X12, JP1X21, JP1X22, JP2X11, JP2X12, JP2X21, JP2X22, JP3X11, JP3X12, JP3X21, JP3X22, JP4X11, JP4X12, JP4X21, JP4X22 0.100 1X04_LOCK 16x SPCoast PTH
R9X11, R9X12, R9X21, R9X22, R10X11, R10X12, R10X21, R10X22, R11X11, R11X12, R11X21, R11X22, R12X11, R12X12, R12X21, R12X22 2k0 0603-RES 16x SPCoast 42
R14X11, R14X12, R14X21, R14X22 5k0 0603-RES 4x SPCoast NONE
R5X11, R5X12, R5X21, R5X22, R6X11, R6X12, R6X21, R6X22, R7X11, R7X12, R7X21, R7X22, R8X11, R8X12, R8X21, R8X22 100K 0603-RES 16x SPCoast NONE
C3X11, C3X12, C3X21, C3X22 220uF 0810-CAP 4x SPCoast NONE
R1X11, R1X12, R1X21, R1X22, R2X11, R2X12, R2X21, R2X22, R3X11, R3X12, R3X21, R3X22, R4X11, R4X12, R4X21, R4X22 330R 0603-RES 16x SPCoast NONE
FID-LR, FID-UL   FIDUCIAL_1MM 2x SPCoast NONE
ARDUINO1X11, ARDUINO1X12, ARDUINO1X21, ARDUINO1X22 DAVEK ARDUINO_PRO_MINI_DAVEK 4x SPCoast PTH
OSH_LOGOX11, OSH_LOGOX12, OSH_LOGOX21, OSH_LOGOX22 DOC-OSHW-LOGO-S OSHW-LOGO-S 4x SPCoast PTH
LED5X11, LED5X12, LED5X21, LED5X22 G 0603-LED 4x SPCoast 3
Q1X11, Q1X12, Q1X21, Q1X22, Q2X11, Q2X12, Q2X21, Q2X22, Q3X11, Q3X12, Q3X21, Q3X22, Q4X11, Q4X12, Q4X21, Q4X22 NPN-2222 SOT23 16x SPCoast NONE
CON1X11, CON1X12, CON1X21, CON1X22 RJ12/6 RJ25-PANEL 4x SPCoast PTH
LED1X11, LED1X12, LED1X21, LED1X22, LED2X11, LED2X12, LED2X21, LED2X22, LED3X11, LED3X12, LED3X21, LED3X22, LED4X11, LED4X12, LED4X21, LED4X22 Y 0603-LED 16x SPCoast 2

IO4-IR-Detector-Active Version 3.0

First built: 2017-11

  • DFRobot based Quad Active IR Transmitter/PhotoDetector occupancy detector

Schematic
Schematic
Bot Silk
Bot Silk
Board
Board
Top Silk
Top Silk
Bot Silk
Bot Silk
Board
Board
Top Silk
Top Silk

Download IO4-IR-Detector-Active.gerbers.zip - Gerber Fabrication files
Download IO4-IR-Detector-Active.parts - Parts List (spreadsheet data)
Download IO4-IR-Detector-Active_array.gerbers.zip - Gerber Fabrication files
Download IO4-IR-Detector-Active_array.parts - Parts List (spreadsheet data)



IO4-IR-Detector-Active.bom

Parts Value Package Quantity Library Type/Feeder
C1, C2 0.1uF 0603-CAP 2x SPCoast 19
JP1, JP2, JP3, JP4 0.100 1X04_LOCK 4x SPCoast PTH
R1, R2, R3, R4 1k0 0603-RES 4x SPCoast 41
R9, R10, R11, R12, R14 2k0 0603-RES 5x SPCoast 42
R5, R6, R7, R8 100K 0603-RES 4x SPCoast NONE
C3 220uF 0810-CAP 1x SPCoast NONE
ARDUINO1 DAVEK ARDUINO_PRO_MINI_DAVEK 1x SPCoast PTH
LED5 G 0603-LED 1x SPCoast 3
Q1, Q2, Q3, Q4 NPN-2222 SOT23 4x SPCoast NONE
OSH_LOGO OSHW-LOGOM OSHW-LOGO-M 1x SparkFun PTH
CON1 RJ12/6 RJ25-PANEL 1x SPCoast PTH
LED1, LED2, LED3, LED4 Y 0603-LED 4x SPCoast 2

IO4-IR-Detector-Active_array.bom

Parts Value Package Quantity Library Type/Feeder
C1X11, C1X12, C1X21, C1X22, C2X11, C2X12, C2X21, C2X22 0.1uF 0603-CAP 8x SPCoast 19
JP1X11, JP1X12, JP1X21, JP1X22, JP2X11, JP2X12, JP2X21, JP2X22, JP3X11, JP3X12, JP3X21, JP3X22, JP4X11, JP4X12, JP4X21, JP4X22 0.100 1X04_LOCK 16x SPCoast PTH
R1X11, R1X12, R1X21, R1X22, R2X11, R2X12, R2X21, R2X22, R3X11, R3X12, R3X21, R3X22, R4X11, R4X12, R4X21, R4X22 1k0 0603-RES 16x SPCoast 41
R9X11, R9X12, R9X21, R9X22, R10X11, R10X12, R10X21, R10X22, R11X11, R11X12, R11X21, R11X22, R12X11, R12X12, R12X21, R12X22, R14X11, R14X12, R14X21, R14X22 2k0 0603-RES 20x SPCoast 42
R5X11, R5X12, R5X21, R5X22, R6X11, R6X12, R6X21, R6X22, R7X11, R7X12, R7X21, R7X22, R8X11, R8X12, R8X21, R8X22 100K 0603-RES 16x SPCoast NONE
C3X11, C3X12, C3X21, C3X22 220uF 0810-CAP 4x SPCoast NONE
ARDUINO1X11, ARDUINO1X12, ARDUINO1X21, ARDUINO1X22 DAVEK ARDUINO_PRO_MINI_DAVEK 4x SPCoast PTH
LED5X11, LED5X12, LED5X21, LED5X22 G 0603-LED 4x SPCoast 3
Q1X11, Q1X12, Q1X21, Q1X22, Q2X11, Q2X12, Q2X21, Q2X22, Q3X11, Q3X12, Q3X21, Q3X22, Q4X11, Q4X12, Q4X21, Q4X22 NPN-2222 SOT23 16x SPCoast NONE
CON1X11, CON1X12, CON1X21, CON1X22 RJ12/6 RJ25-PANEL 4x SPCoast PTH
LED1X11, LED1X12, LED1X21, LED1X22, LED2X11, LED2X12, LED2X21, LED2X22, LED3X11, LED3X12, LED3X21, LED3X22, LED4X11, LED4X12, LED4X21, LED4X22 Y 0603-LED 16x SPCoast 2

This technical documentation is licensed under the CERN Open Hardware Licence v1.2
