IO4-IR-Detector-Active-Fingers

Fork project on GitHub

Active IR Detector subassemblies made to look like N or HO scale ties.

IO4-IR-Detector-Active-Fingers-Graphic
IO4-IR-Detector-Active-Fingers-Graphic



Download IO4-IR-Detector-Active-Fingers-short.brd - Eagle PCB file
Download IO4-IR-Detector-Active-Fingers.SMD-parts -
Download IO4-IR-Detector-Active-FingersN.brd - Eagle PCB file



IO4-IR-Detector-Active-Fingers Version 1.4

First built: 2020.12

Based on “GBunza Fingers”, but for active IR tx/rx use

Schematic
Schematic

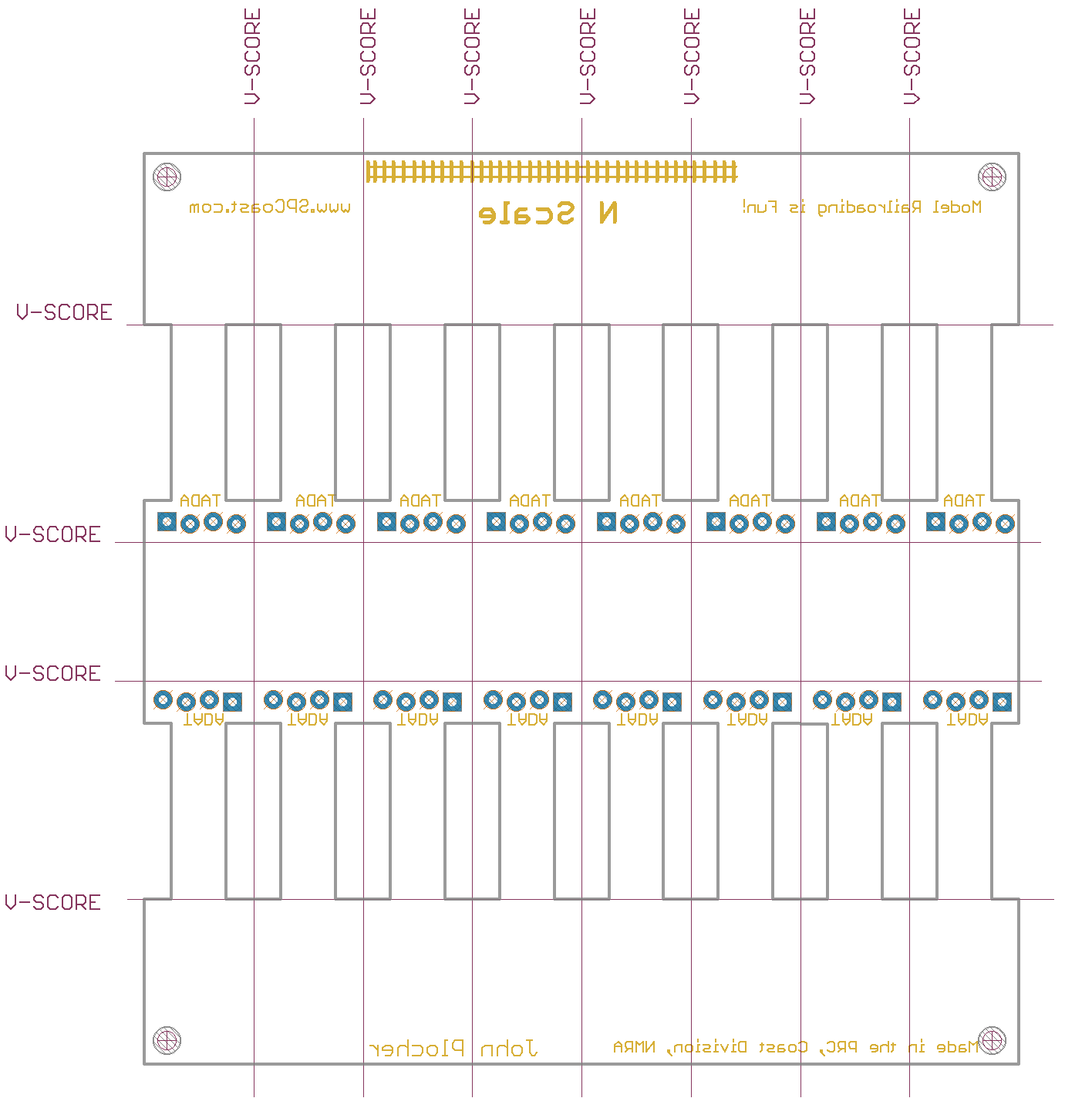

Bot Silk
Bot Silk

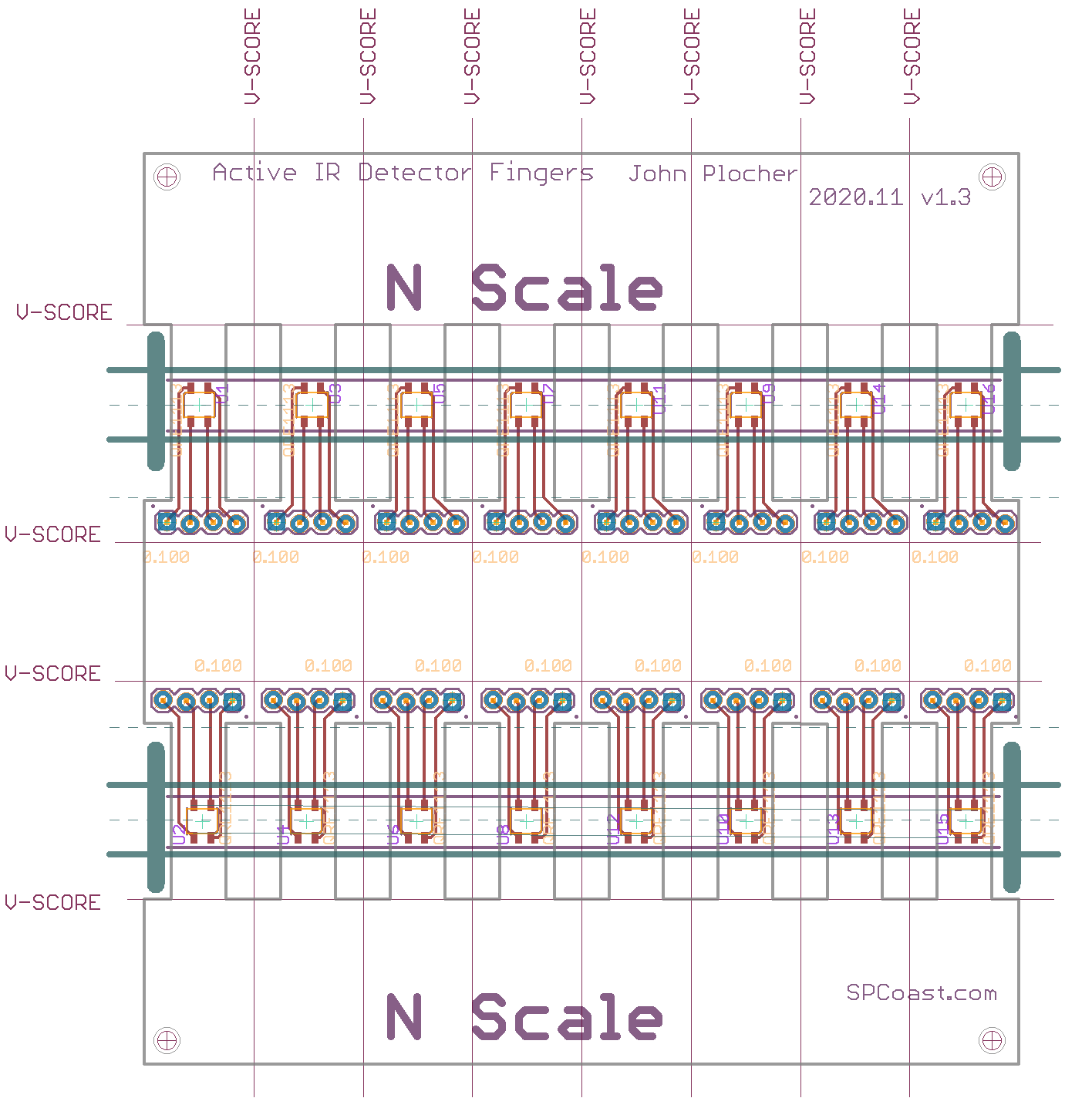

Board
Board

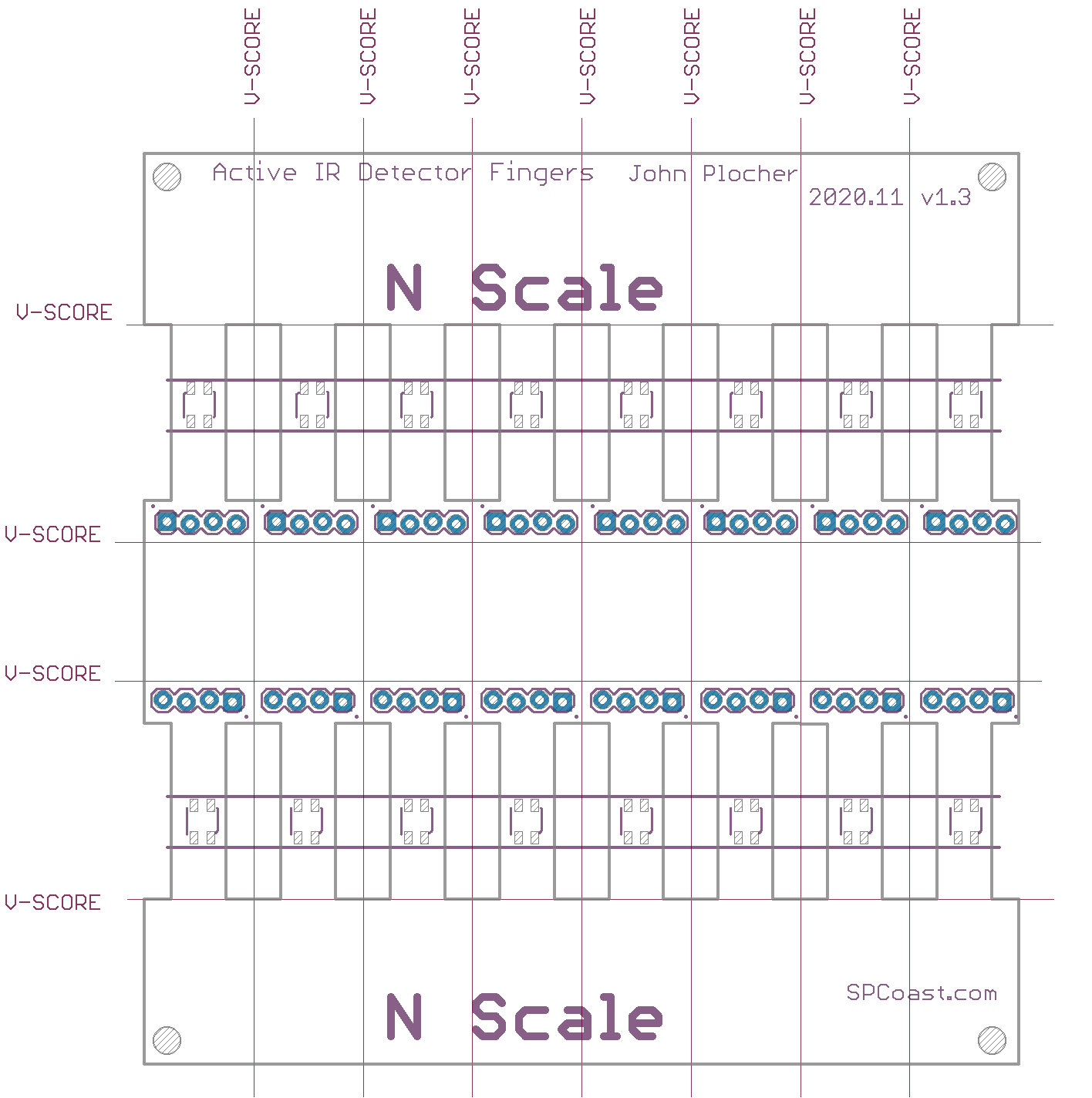

Top Silk
Top Silk

Download IO4-IR-Detector-Active-Fingers.gerbers.zip - Gerber Fabrication files
Download IO4-IR-Detector-Active-Fingers.parts - Parts List (spreadsheet data)



IO4-IR-Detector-Active-Fingers.bom

Parts Value Package Quantity Library Type/Feeder
J1, J2, J3, J4, J5, J6, J7, J8, J9, J10, J11, J12, J13, J14, J15, J16 0.100 1X04_LOCK 16x SPCoast PTH
U1, U2, U3, U4, U5, U6, U7, U8, U9, U10, U11, U12, U13, U14, U15, U16 QRE1113 QRE1113 16x SPCoast NONE

IO4-IR-Detector-Active-Fingers Version 1.3

Not built

Based on “GBunza Fingers”, but for active IR tx/rx use

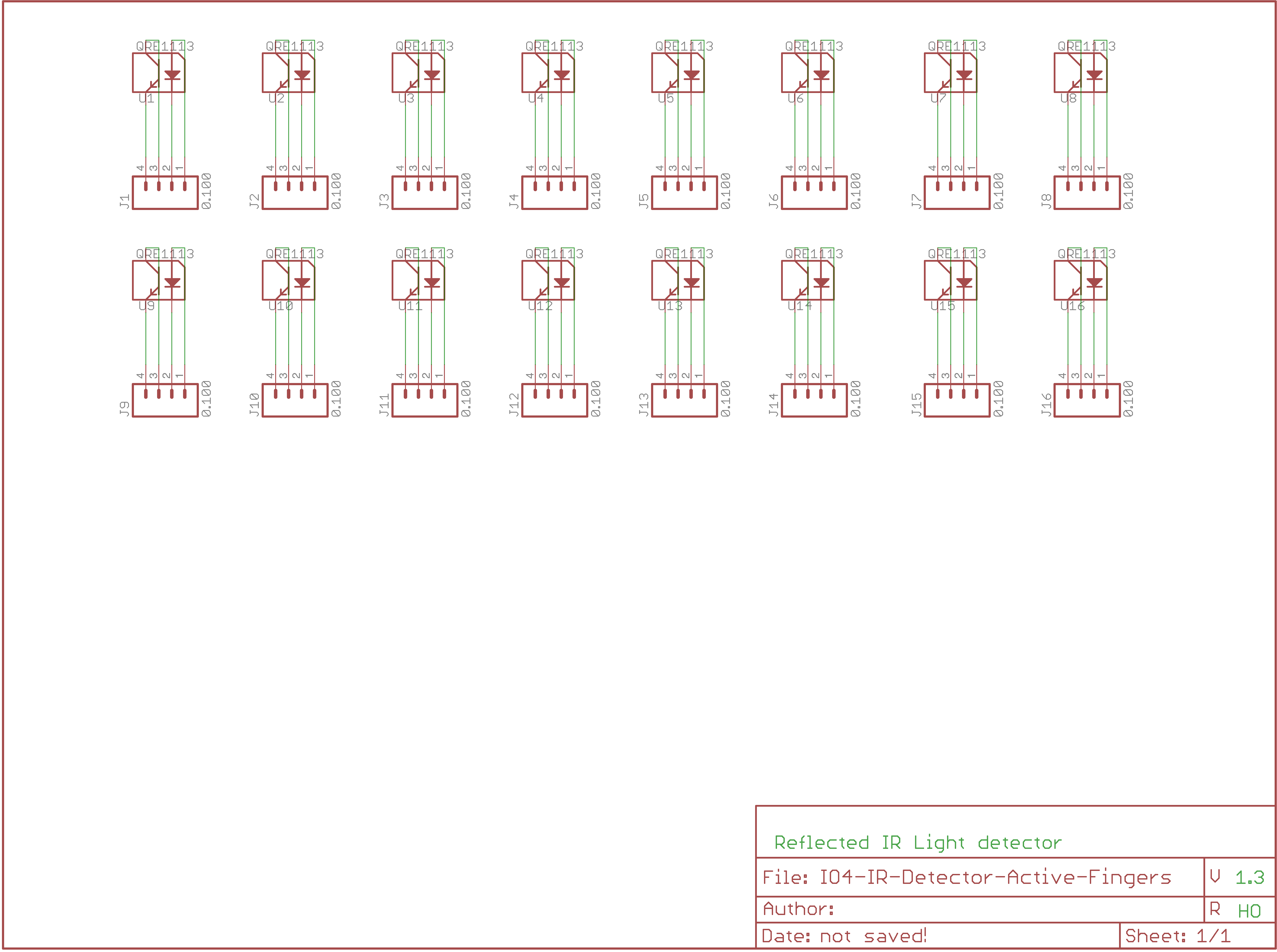

Schematic
Schematic

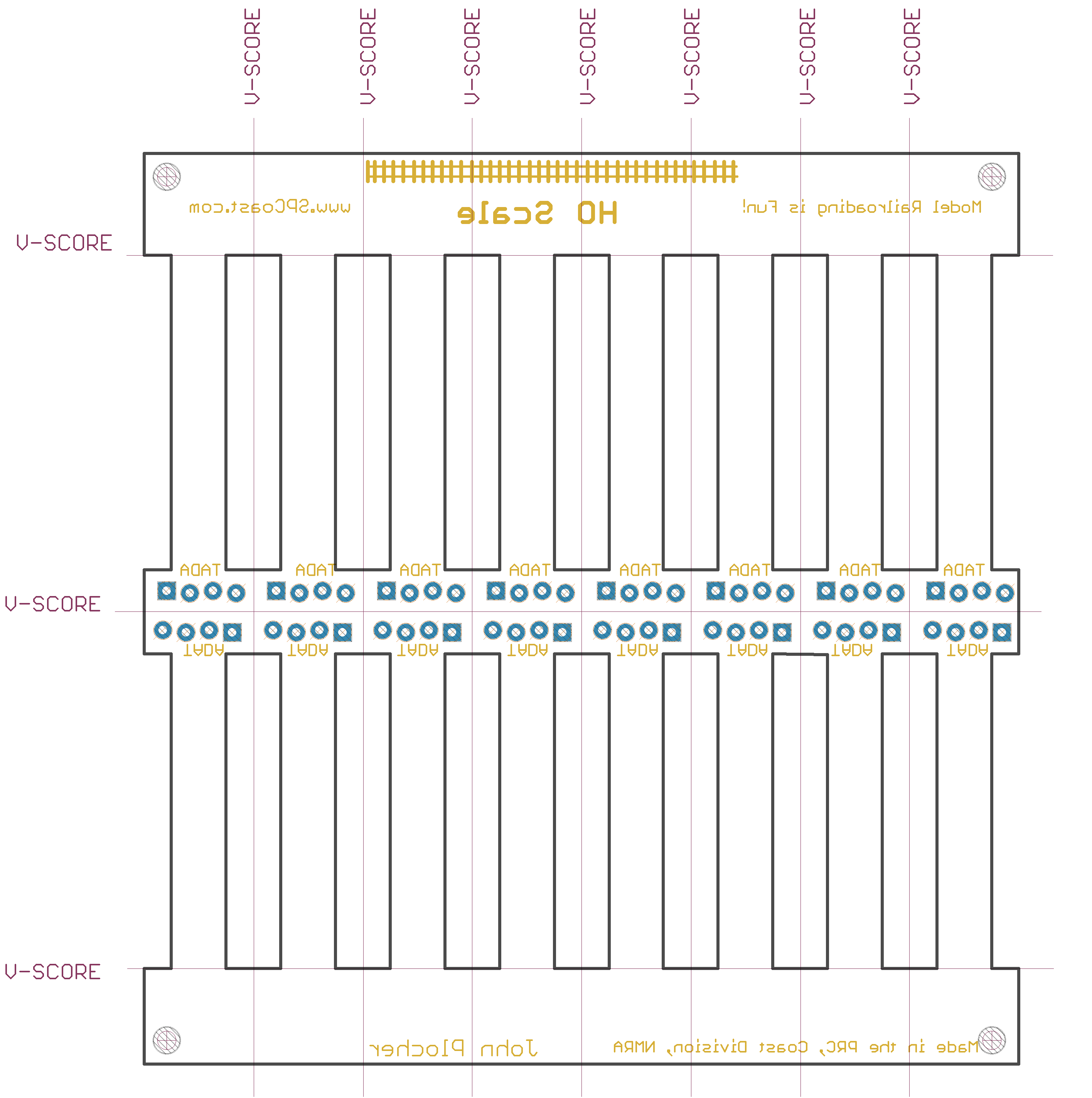

Bot Silk
Bot Silk

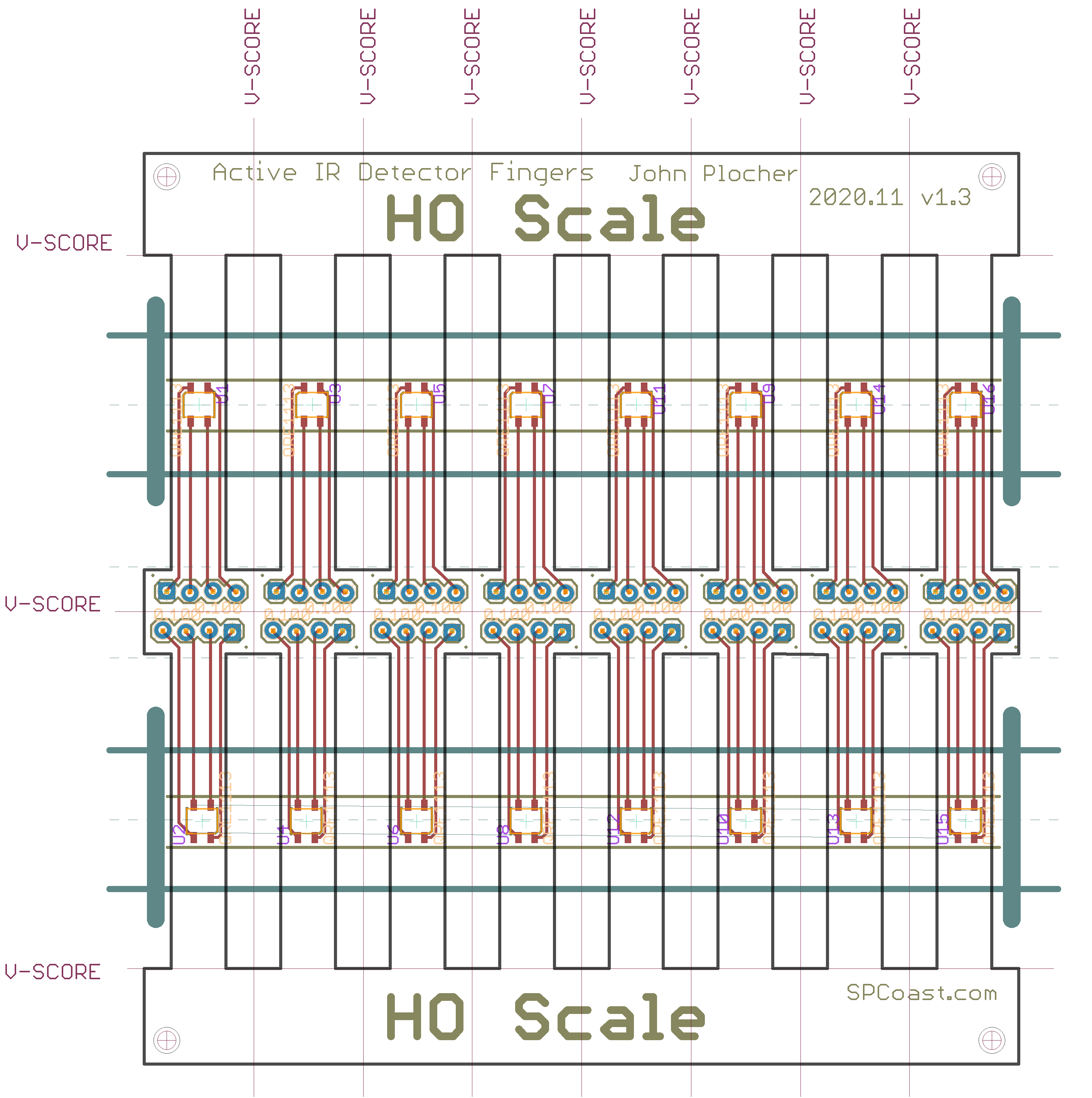

Board
Board

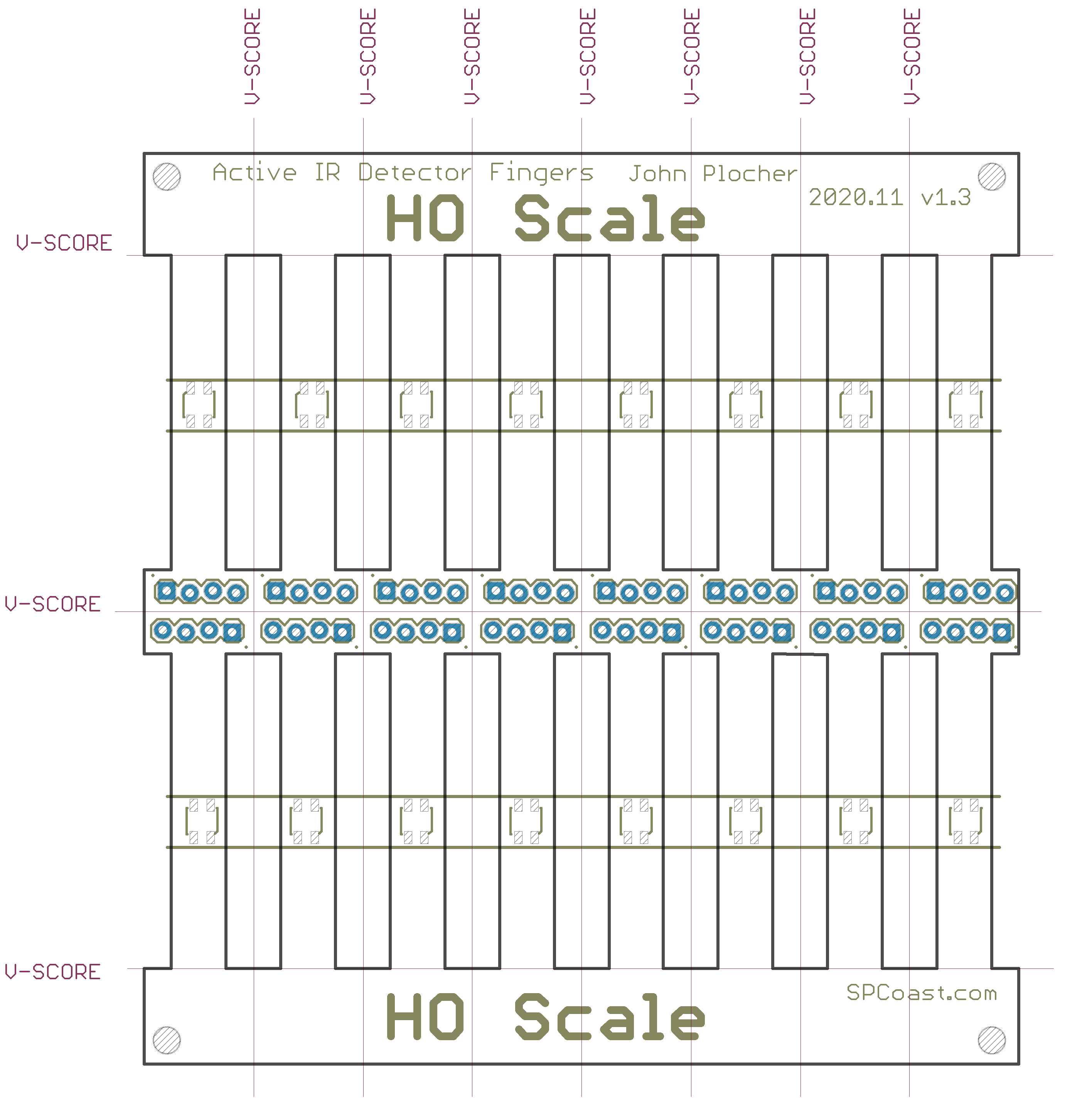

Top Silk
Top Silk

Download IO4-IR-Detector-Active-Fingers.gerbers.zip - Gerber Fabrication files
Download IO4-IR-Detector-Active-Fingers.parts - Parts List (spreadsheet data)



IO4-IR-Detector-Active-Fingers.bom

Parts Value Package Quantity Library Type/Feeder
J1, J2, J3, J4, J5, J6, J7, J8, J9, J10, J11, J12, J13, J14, J15, J16 0.100 1X04_LOCK 16x SPCoast PTH
U1, U2, U3, U4, U5, U6, U7, U8, U9, U10, U11, U12, U13, U14, U15, U16 QRE1113 QRE1113 16x SPCoast NONE

IO4-IR-Detector-Active-Fingers Version 1.1

Not built

Based on “GBunza Fingers”, but for active IR tx/rx use

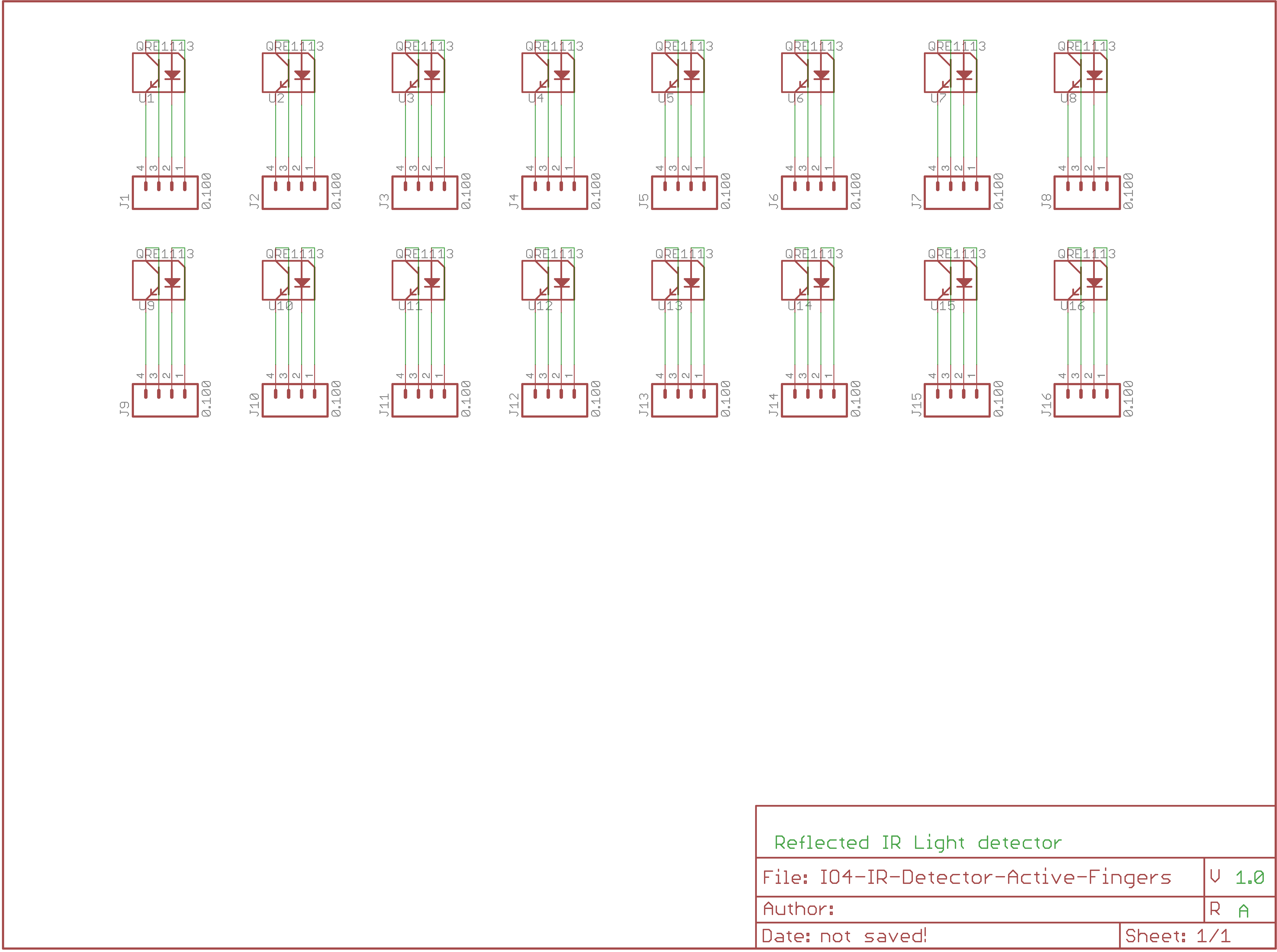

Schematic
Schematic

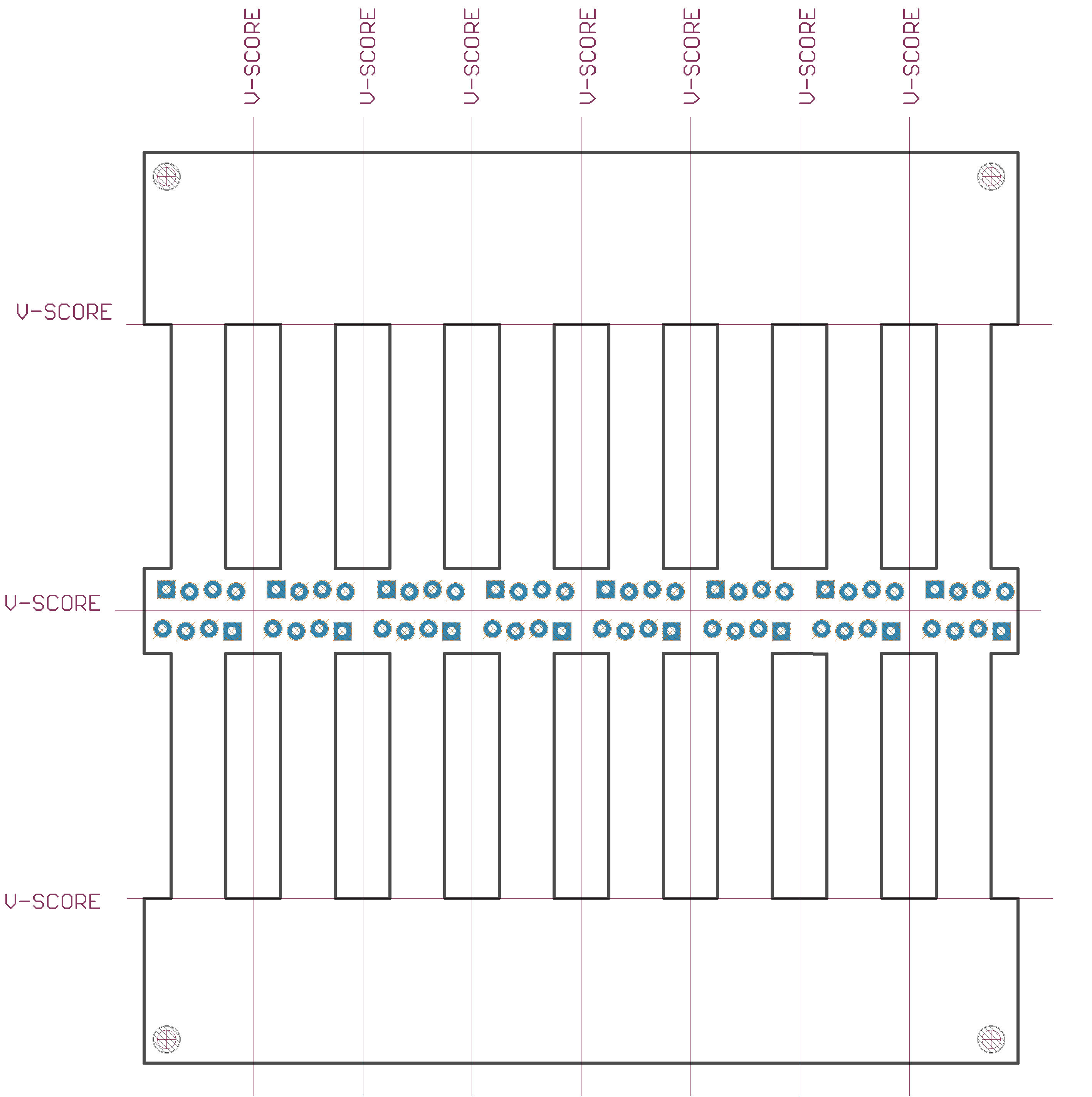

Bot Silk
Bot Silk

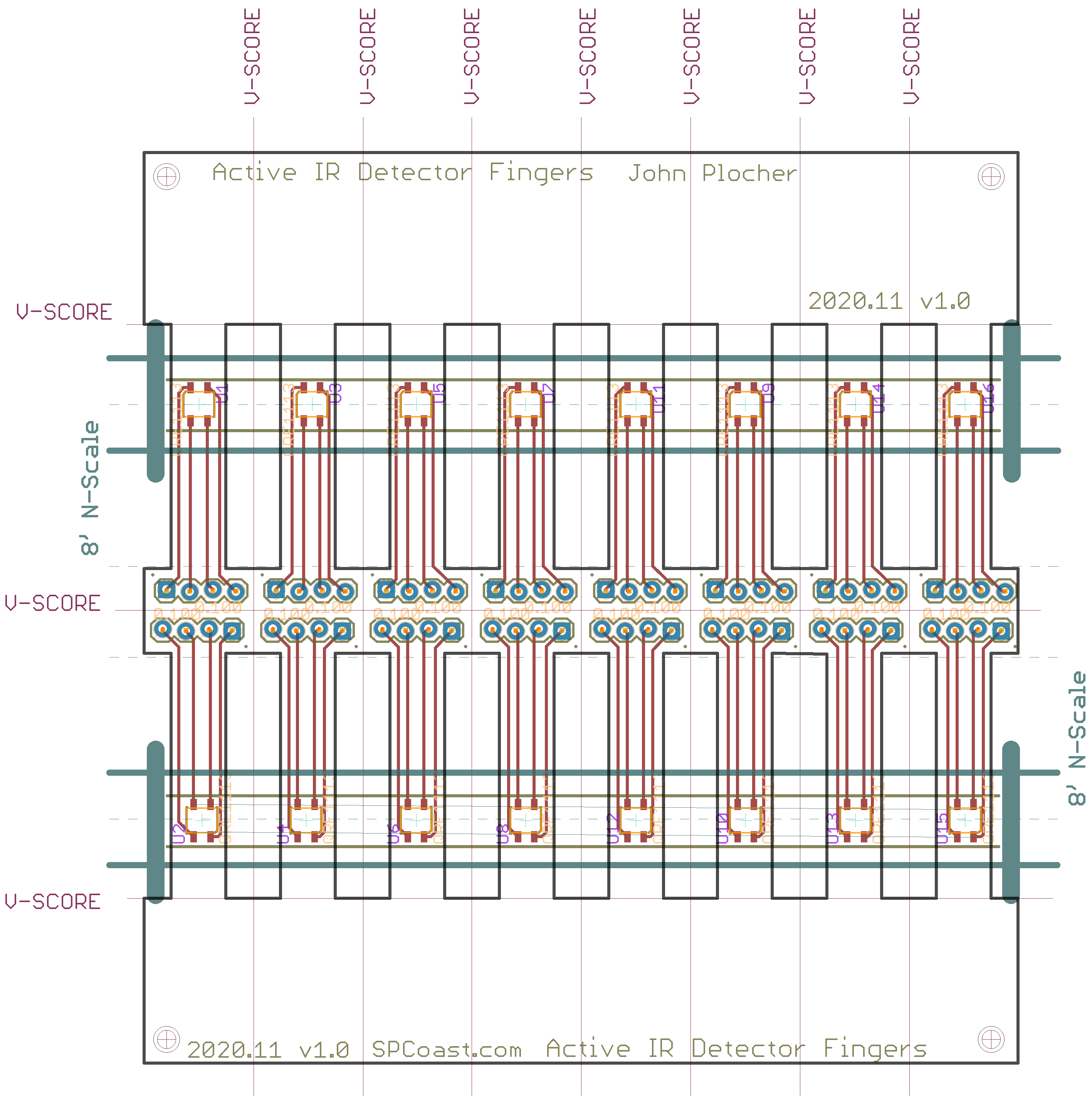

Board
Board

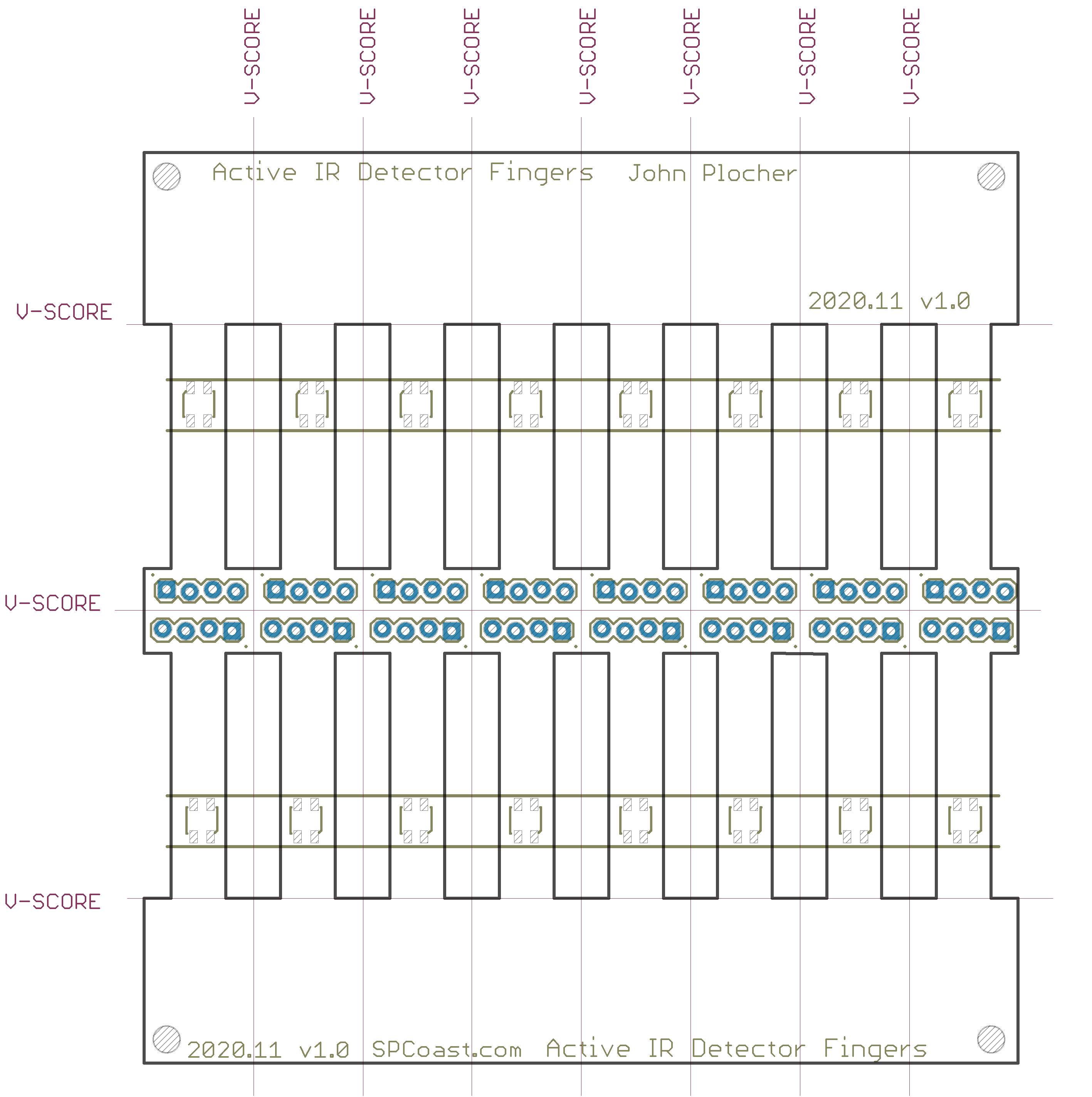

Top Silk
Top Silk

Download IO4-IR-Detector-Active-Fingers.gerbers.zip - Gerber Fabrication files
Download IO4-IR-Detector-Active-Fingers.parts - Parts List (spreadsheet data)



IO4-IR-Detector-Active-Fingers.bom

Parts Value Package Quantity Library Type/Feeder
J1, J2, J3, J4, J5, J6, J7, J8, J9, J10, J11, J12, J13, J14, J15, J16 0.100 1X04_LOCK 16x SPCoast PTH
U1, U2, U3, U4, U5, U6, U7, U8, U9, U10, U11, U12, U13, U14, U15, U16 QRE1113 QRE1113 16x SPCoast NONE

IO4-IR-Detector-Active-Fingers Version 1.0

Not built

Based on “GBunza Fingers”, but for active IR tx/rx use

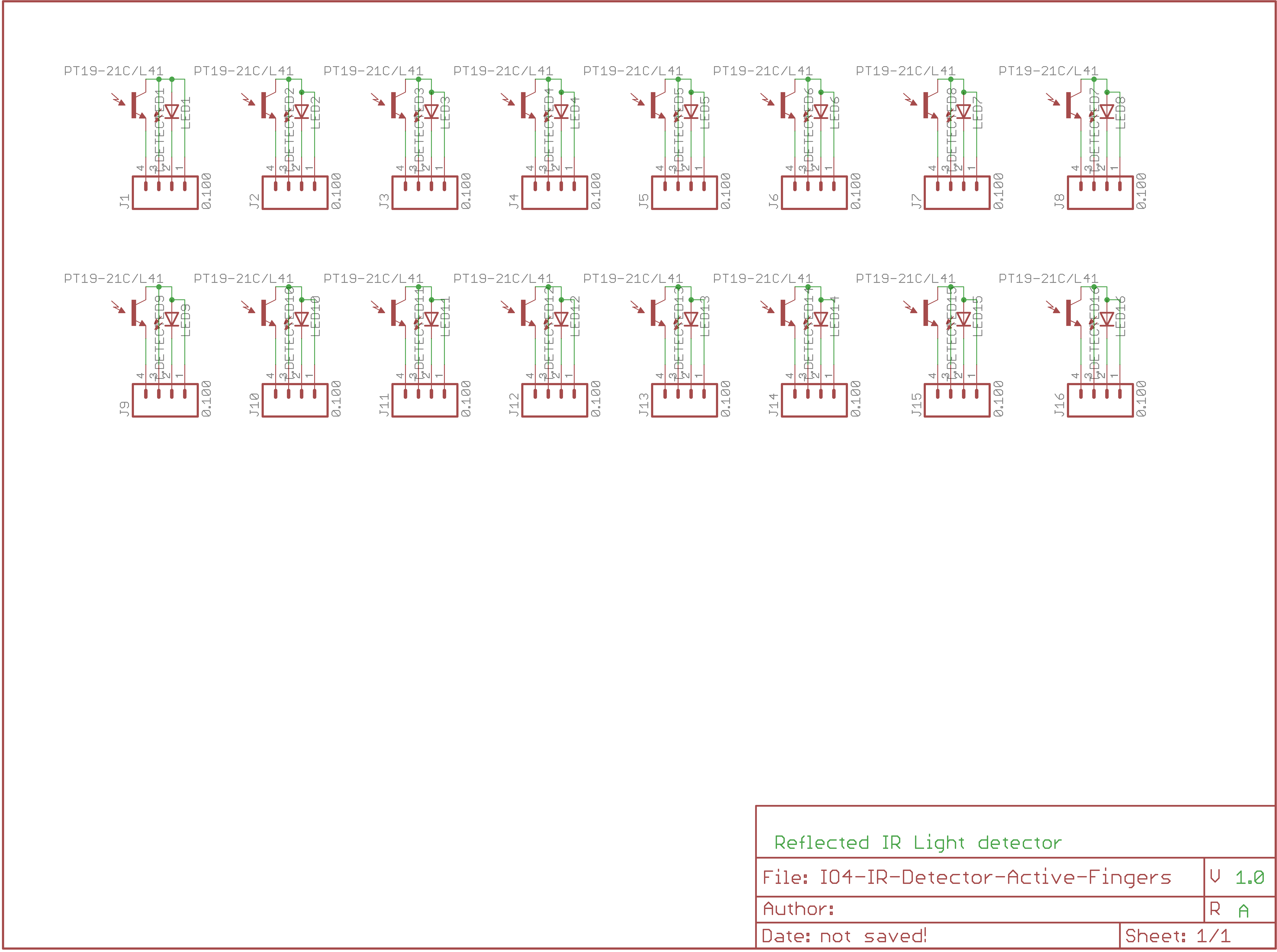

Schematic
Schematic

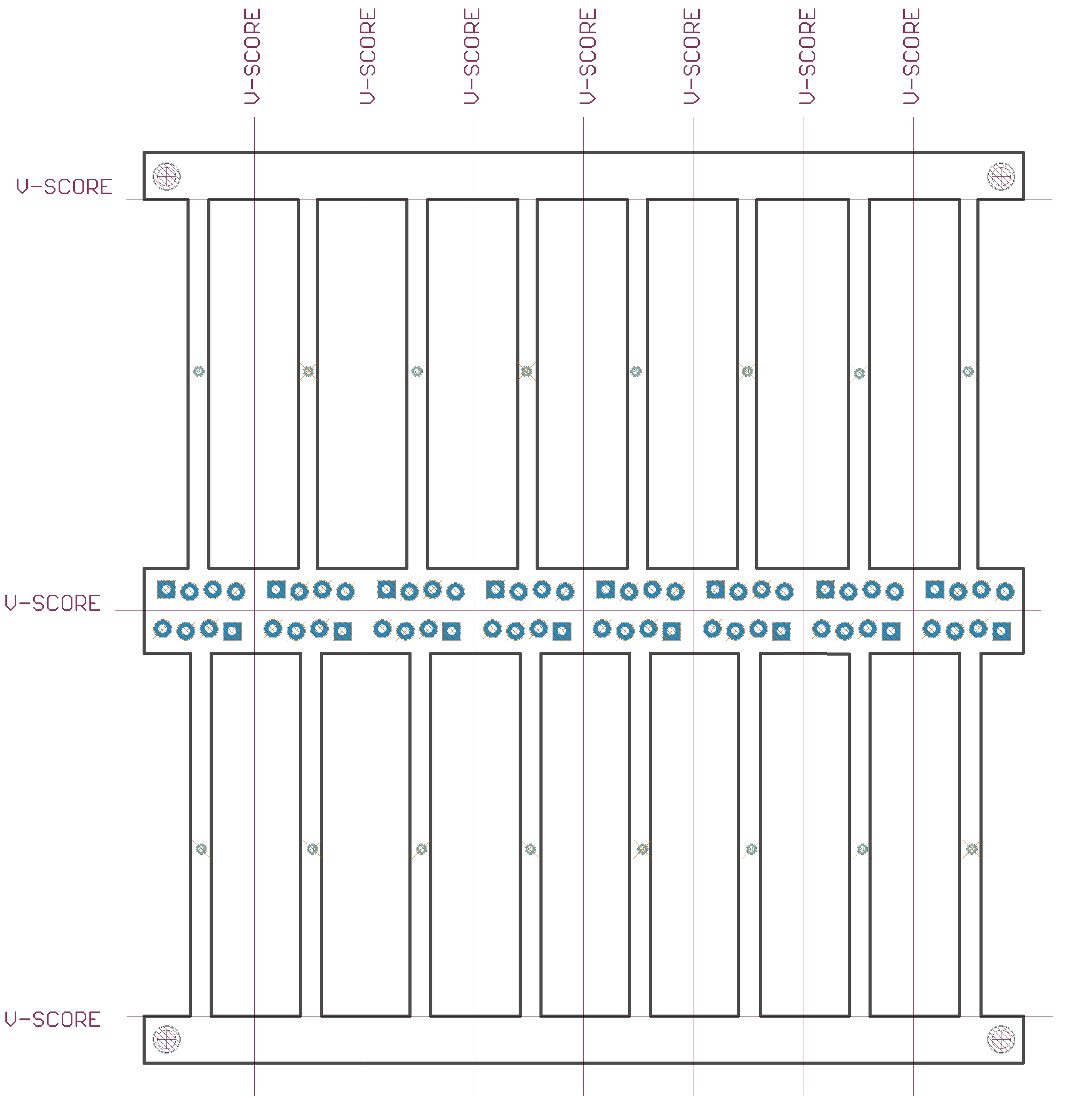

Bot Silk
Bot Silk

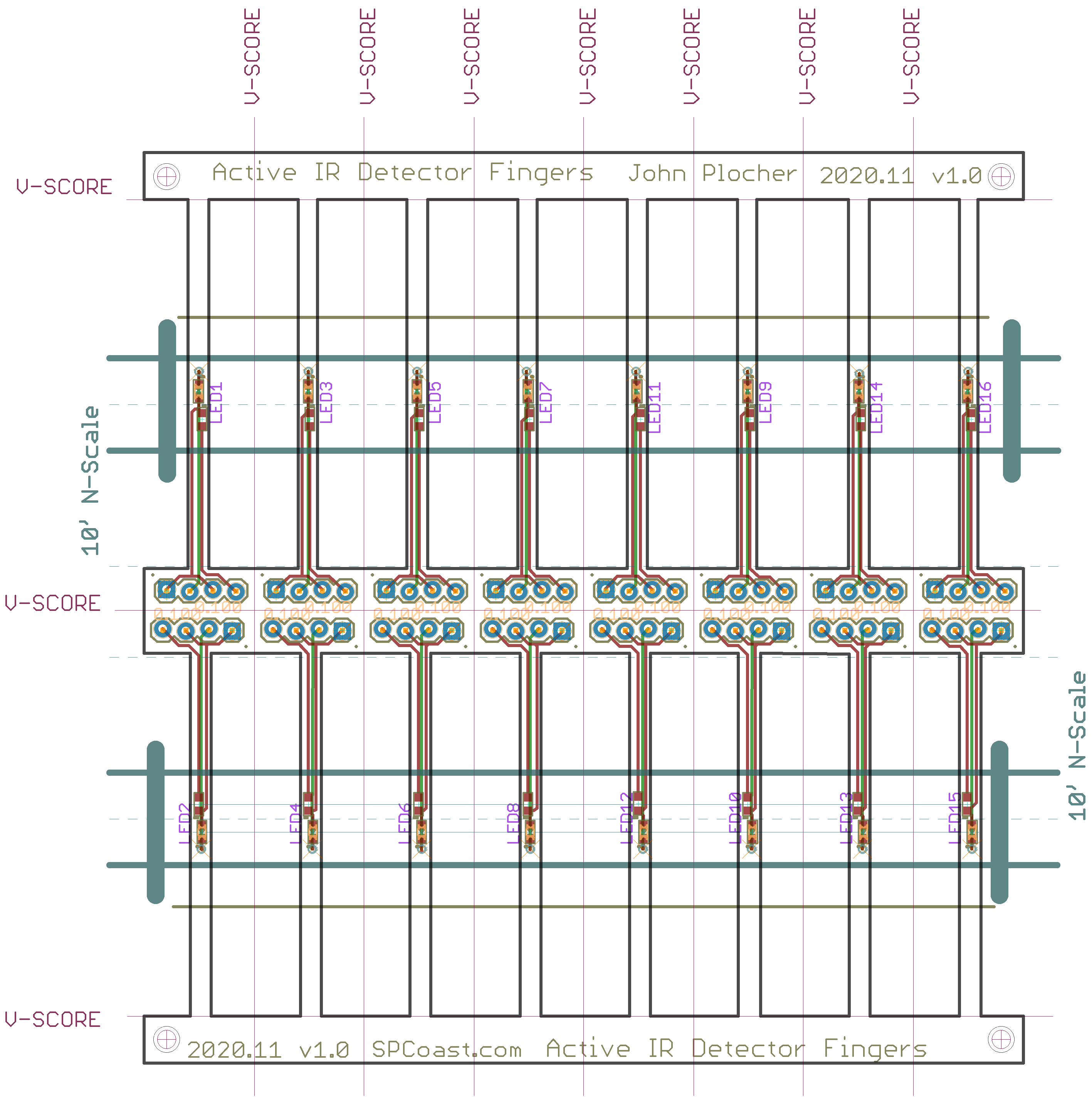

Board
Board

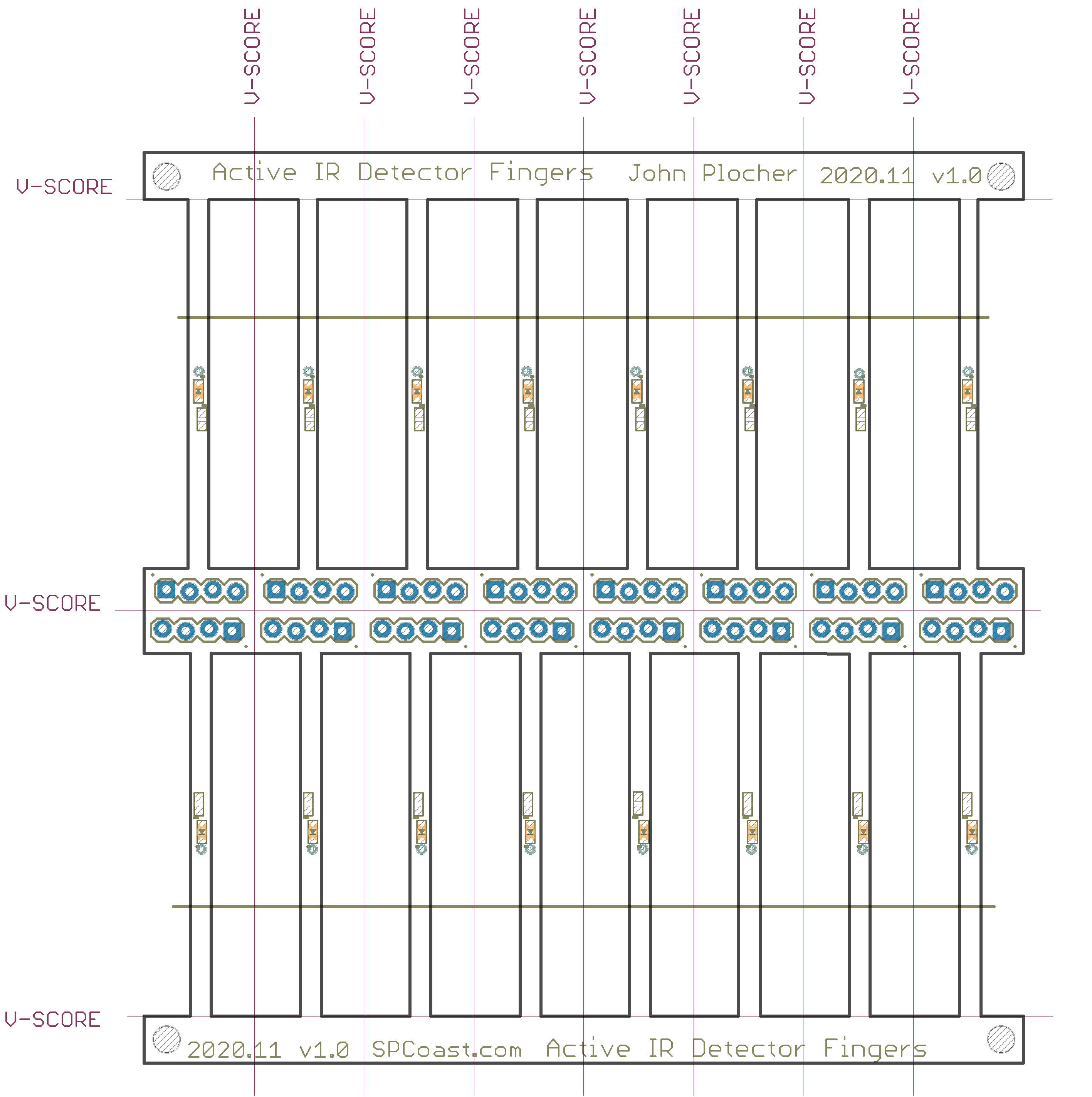

Top Silk
Top Silk

Download IO4-IR-Detector-Active-Fingers.gerbers.zip - Gerber Fabrication files
Download IO4-IR-Detector-Active-Fingers.parts - Parts List (spreadsheet data)



IO4-IR-Detector-Active-Fingers.bom

Parts Value Package Quantity Library Type/Feeder
J1, J2, J3, J4, J5, J6, J7, J8, J9, J10, J11, J12, J13, J14, J15, J16 0.100 1X04_LOCK 16x SPCoast PTH
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8, LED9, LED10, LED11, LED12, LED13, LED14, LED15, LED16   0603-LED 16x SPCoast NONE
T.DETECTED1, T.DETECTED2, T.DETECTED3, T.DETECTED4, T.DETECTED5, T.DETECTED6, T.DETECTED7, T.DETECTED8, T.DETECTED9, T.DETECTED10, T.DETECTED11, T.DETECTED12, T.DETECTED13, T.DETECTED14, T.DETECTED15, T.DETECTED16 PT19-21C/L41 ALS-PT19 16x SPCoast 16

Documentation

Works with SPCoast IO4-IR-Detector-Active IR Detector

  • Fab with a BLACK silk screen to help blend in to the trackwork.
  • Cut to length for N scale

This technical documentation is licensed under the CERN Open Hardware Licence v1.2
