IO4-Codeline-Matrix

Fork project on GitHub

IO4 interface for 2x LED Matrix displays (not for I2C expander ports)

IO4-Codeline-Matrix-Graphic
IO4-Codeline-Matrix-Graphic





IO4-Codeline-Matrix Version 1.0

First built: 2018-08

Not tested or validated

2x 8x8 MAX7219 LED matrixes driven by the LedControl library (replaced by I2C-Codeline-Matrix)

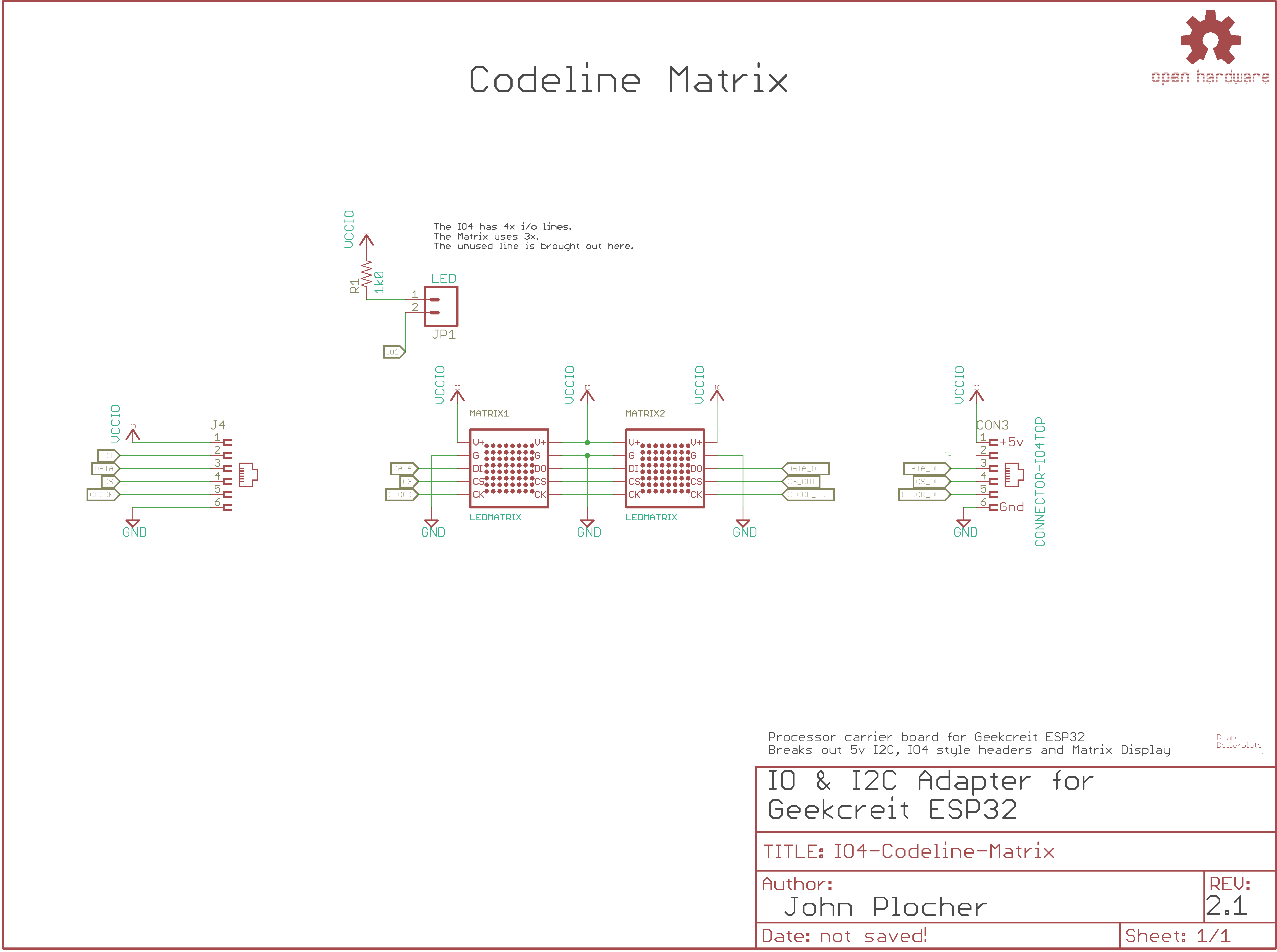

Schematic
Schematic

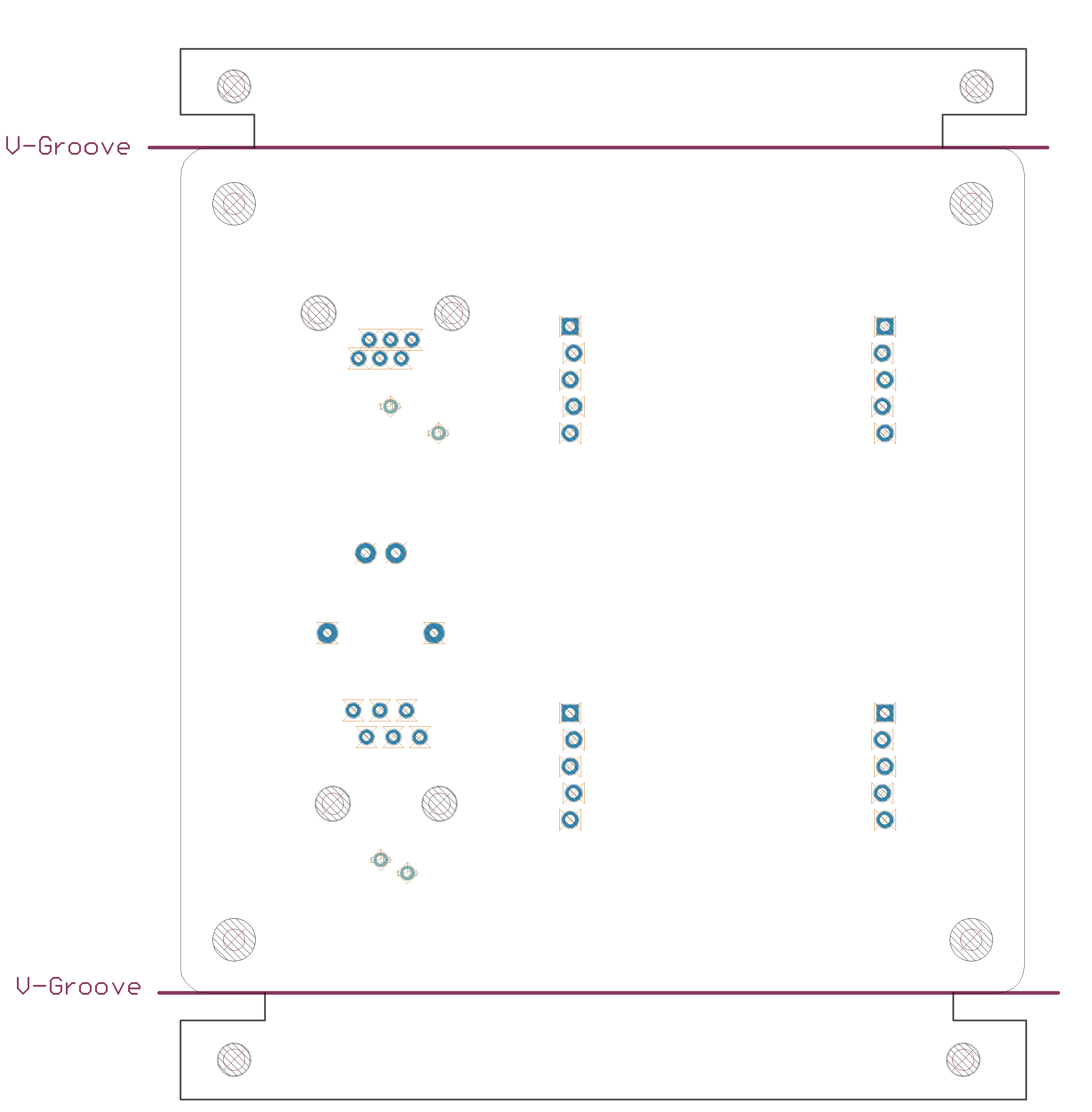

Bot Silk
Bot Silk

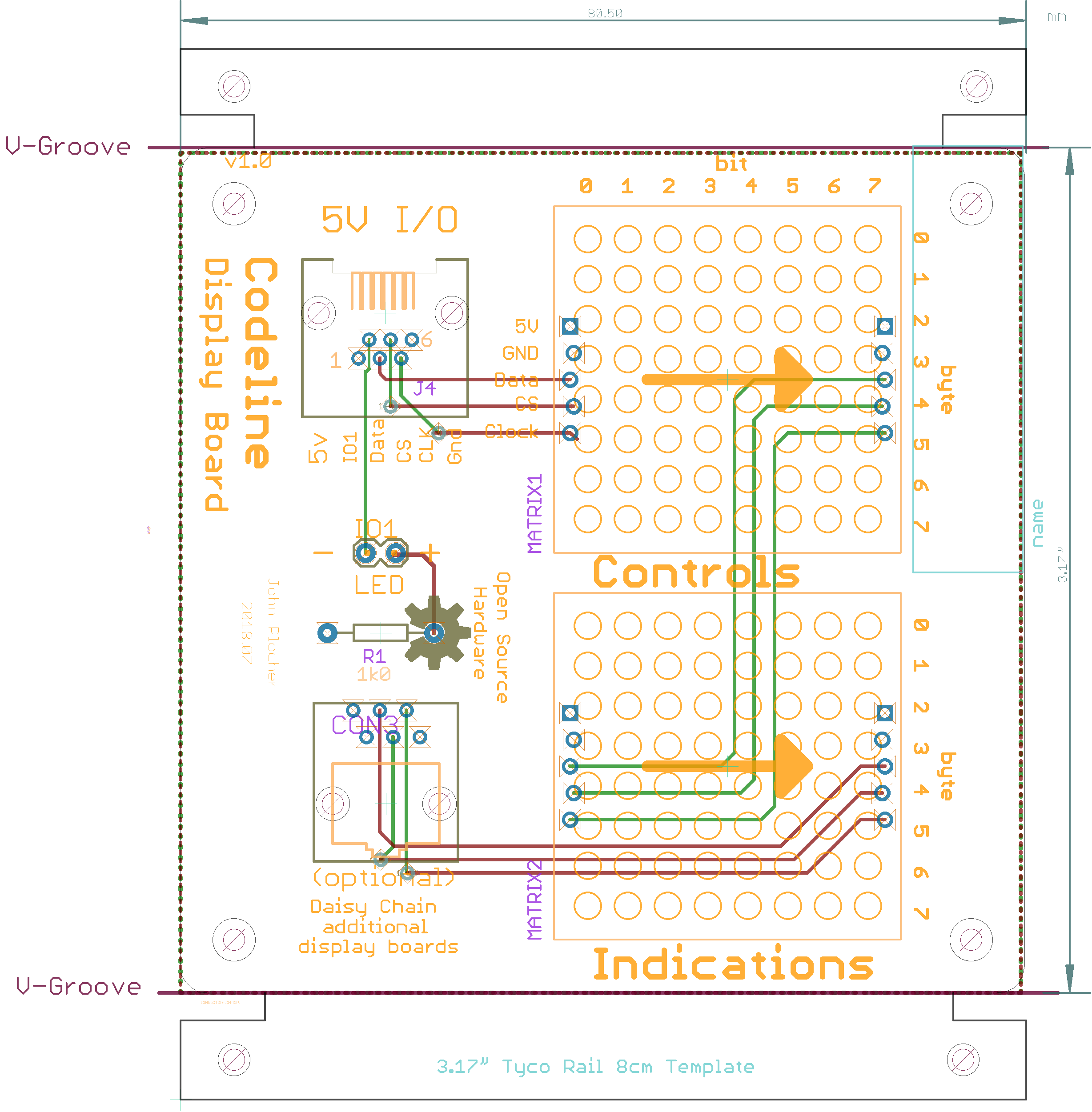

Board
Board
Top Silk
Top Silk

Download IO4-Codeline-Matrix.gerbers.zip - Gerber Fabrication files
Download IO4-Codeline-Matrix.parts - Parts List (spreadsheet data)



IO4-Codeline-Matrix.bom

Parts Value Package Quantity Library Type/Feeder
R1 1k0 AXIAL-0.4-RES 1x SPCoast PTH
J4   RJ25-INVERTED 1x SPCoast PTH
BOARD BOARD80X150 BOARD-DINRAIL-3.17INX8CM 1x SPCoast PTH
CON3 CONNECTOR-IO4TOP RJ25-TOP 1x SPCoast PTH
JP1 LED 1X02_LOCK 1x SparkFun-Connectors PTH
MATRIX1, MATRIX2 LEDMATRIX LEDMATRIX 2x SPCoast PTH
OSHW1 OSHW-LOGOL OSHW-LOGO-L 1x SparkFun PTH

This technical documentation is licensed under the CERN Open Hardware Licence v1.2

Tags: eagle SPCoast LCB
