I2C-7313-cTc

Fork project on GitHub

I2C MAX7313-based IO Expander cTc Wiring Harness

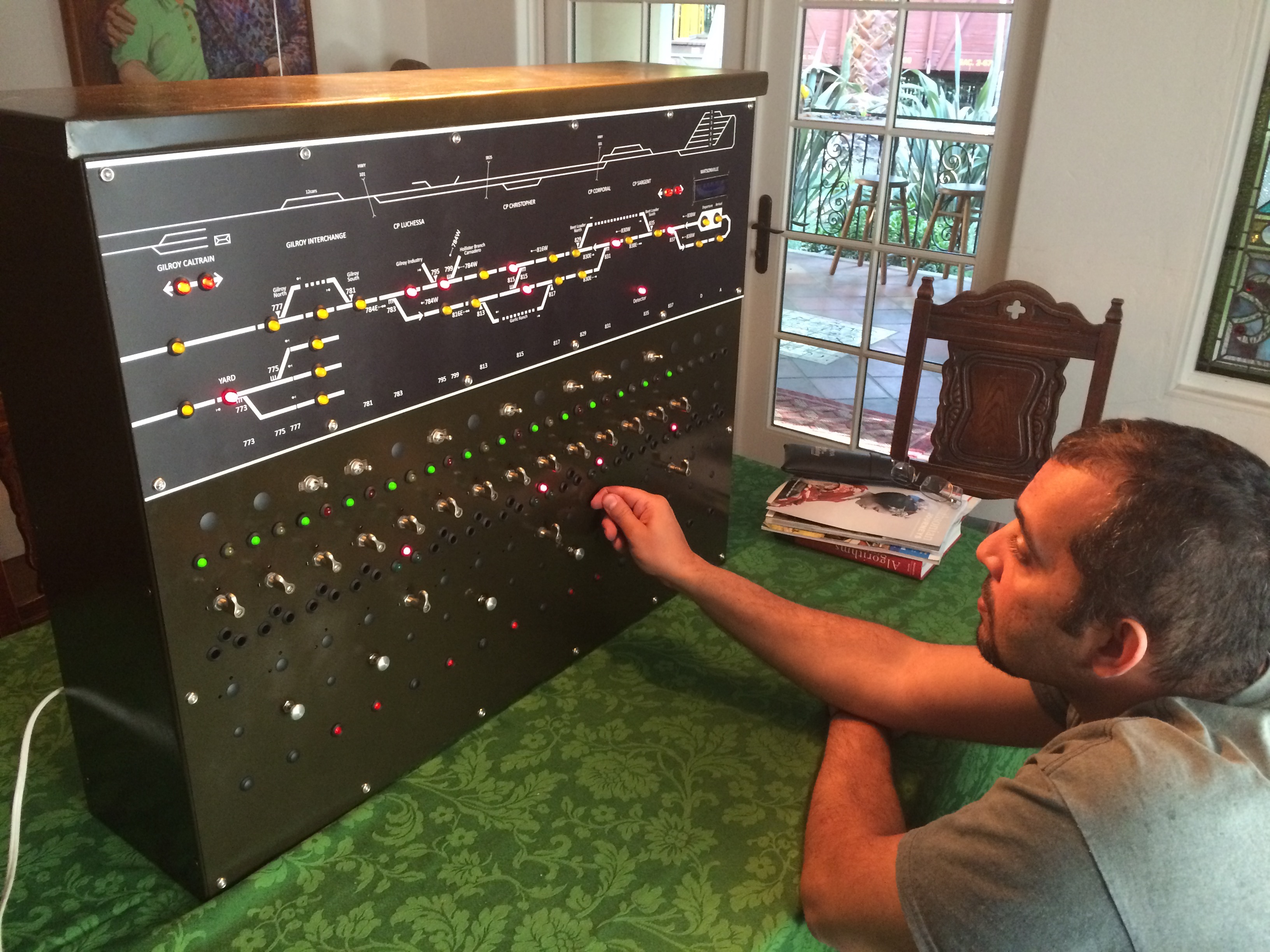

IMG_5026
IMG_5026

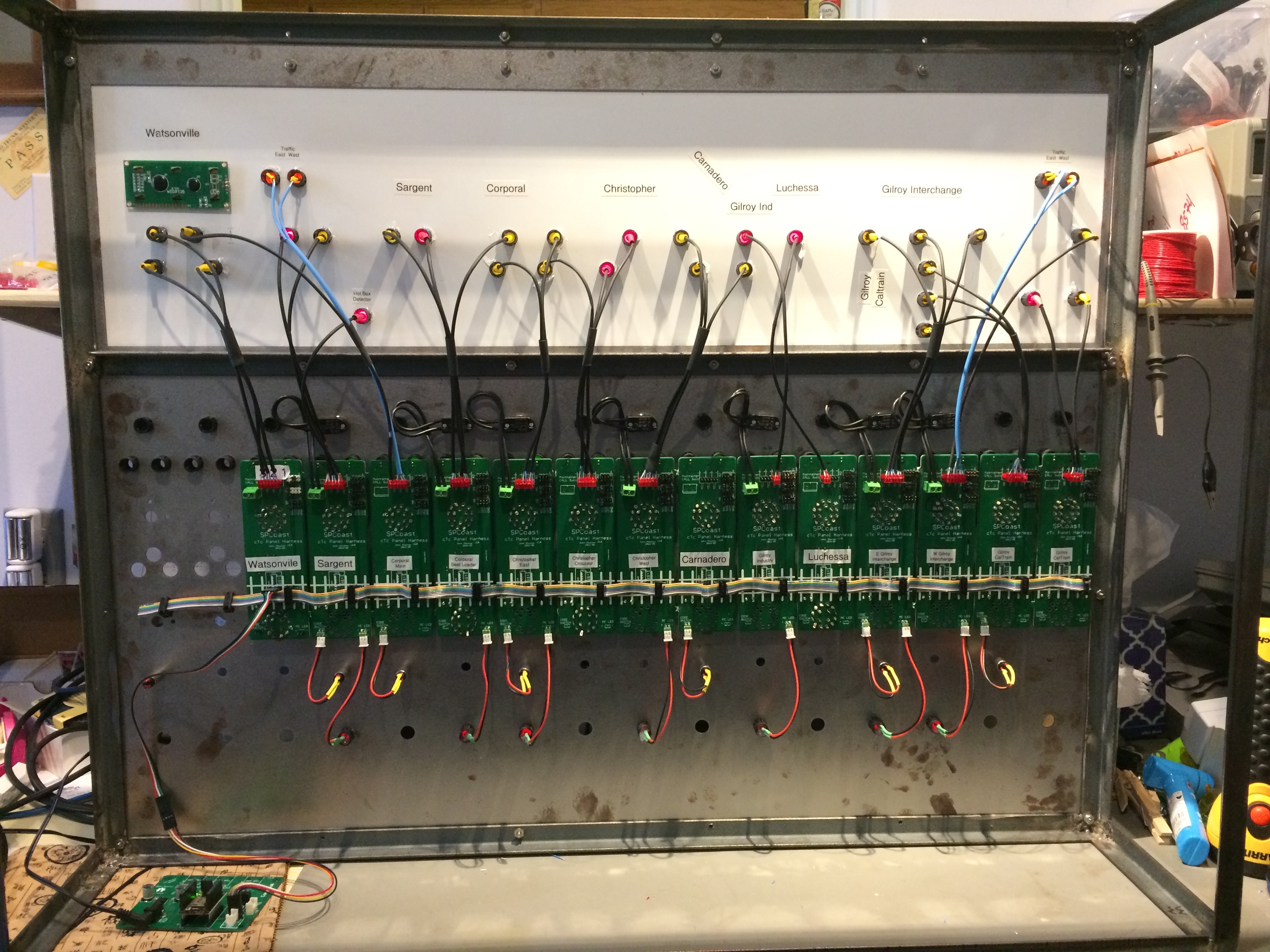

IMG_4880
IMG_4880

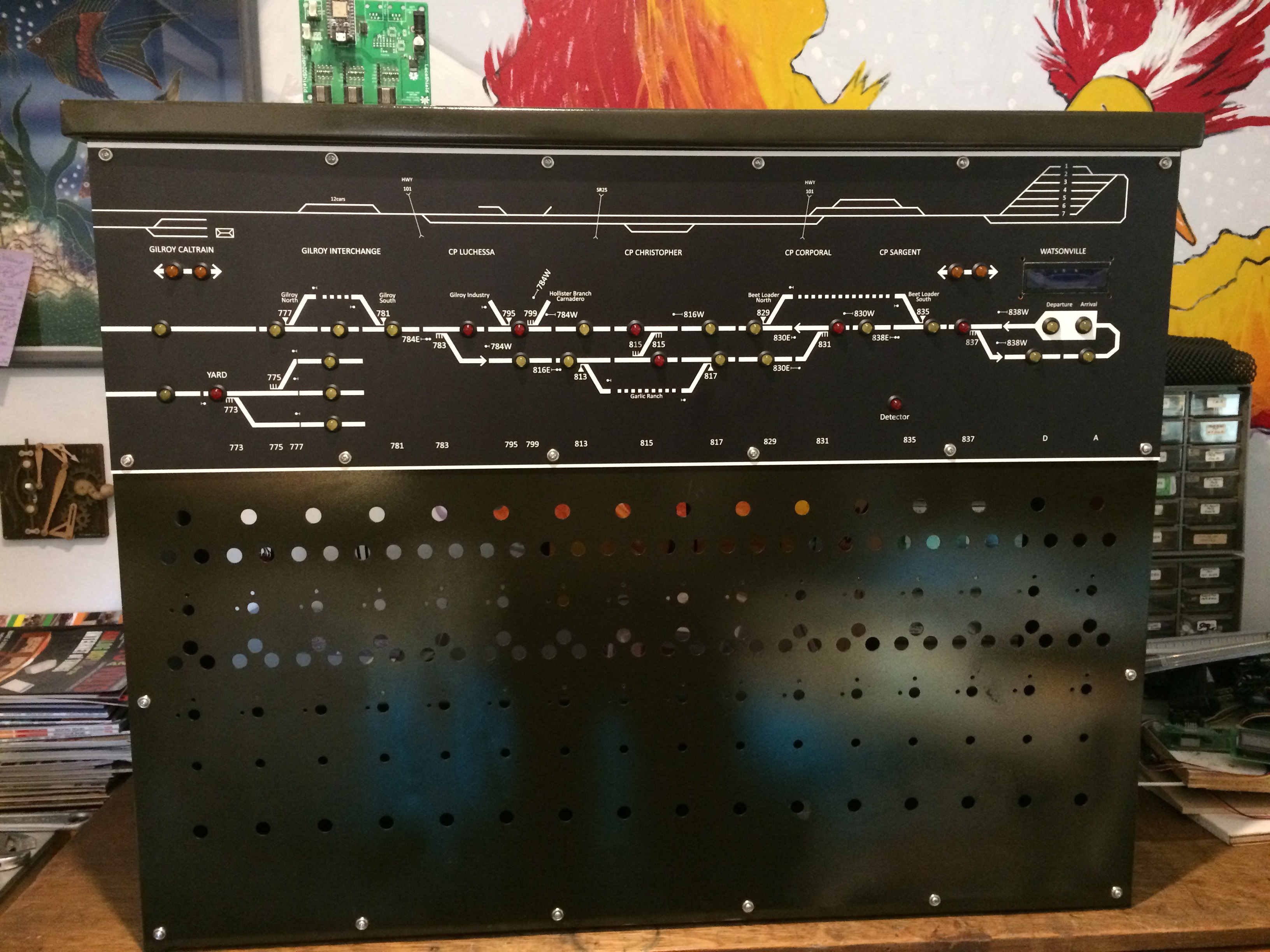

IMG_5022
IMG_5022

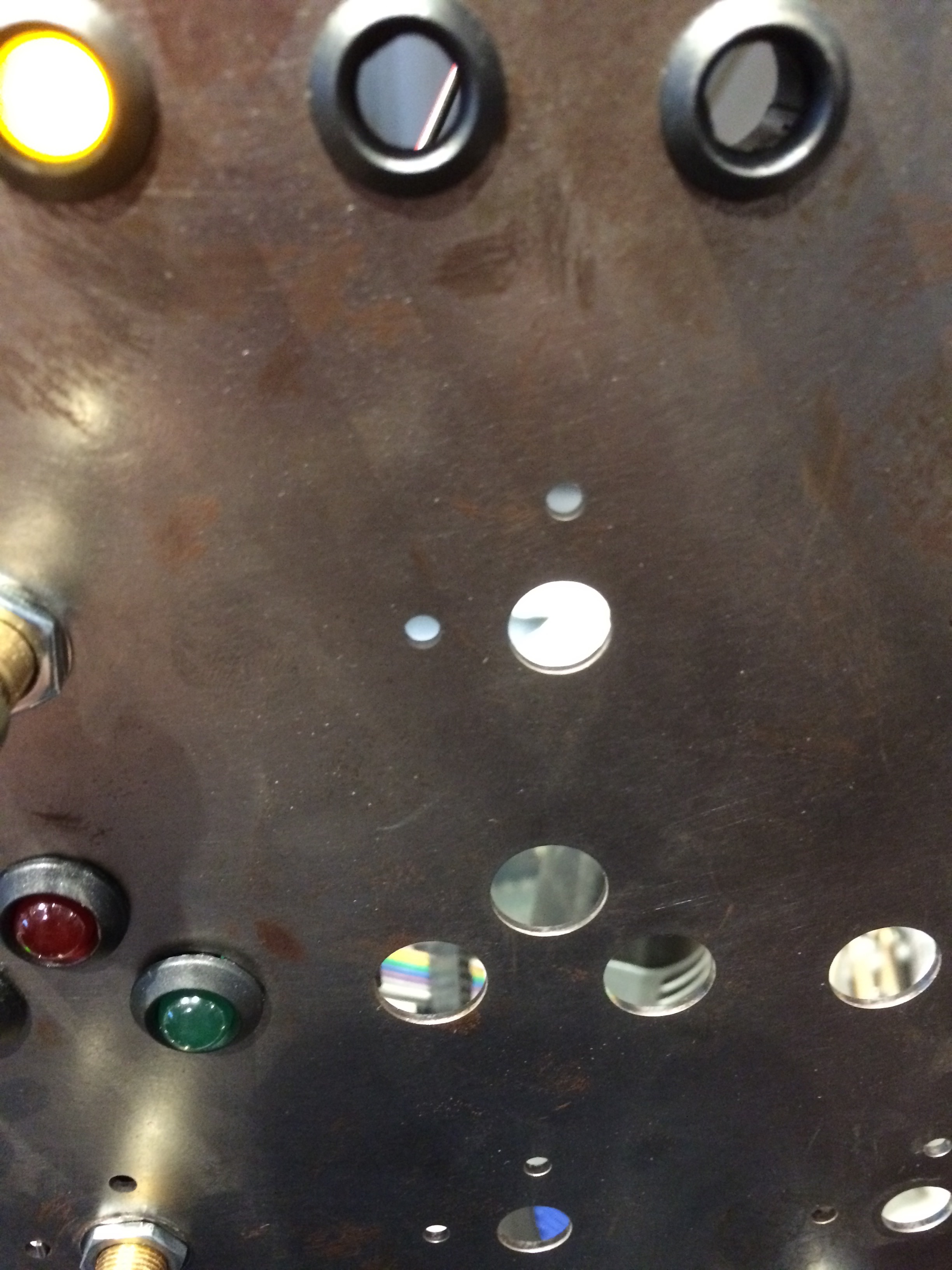

IMG_4856
IMG_4856

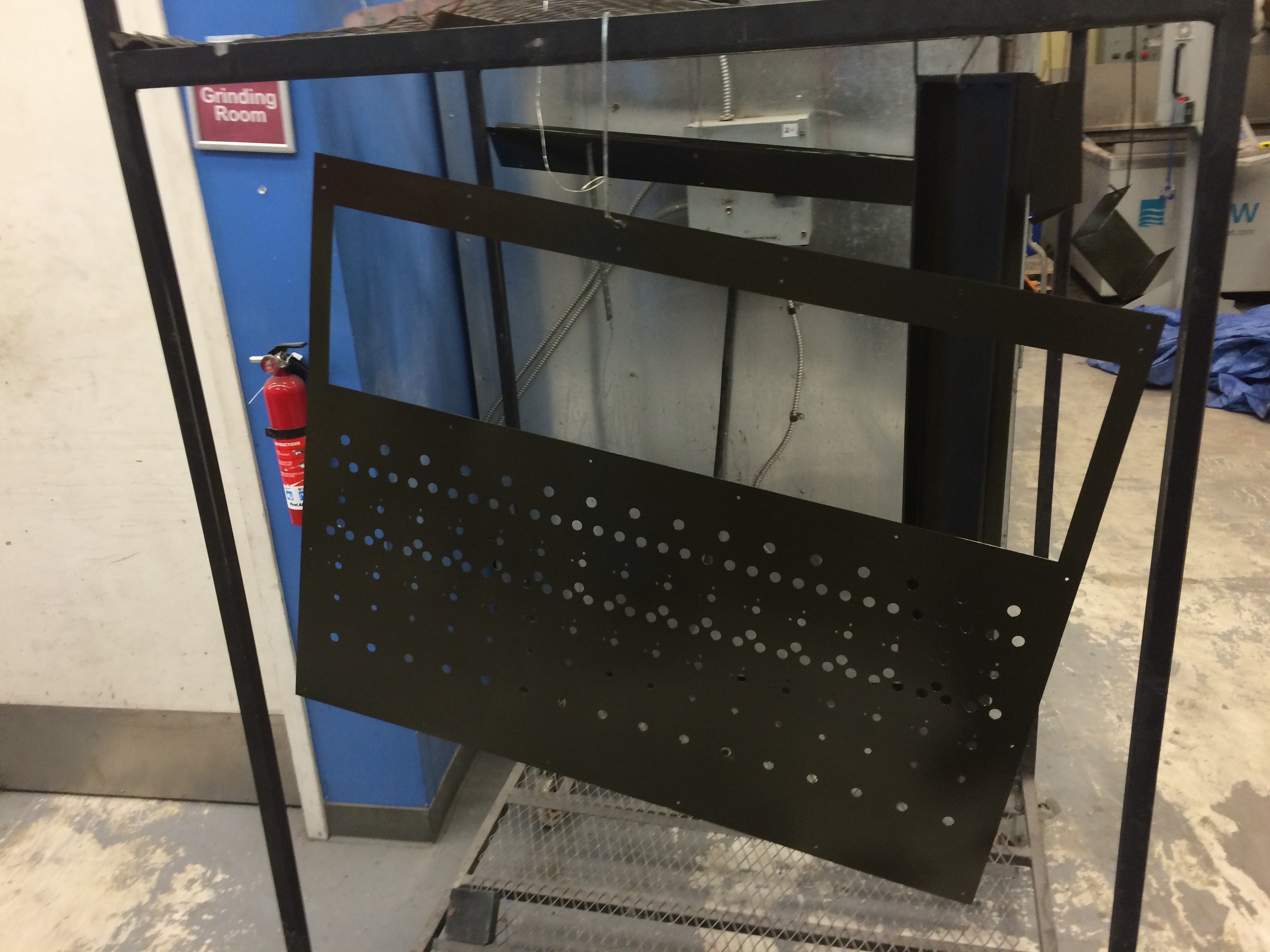

IMG_4985
IMG_4985

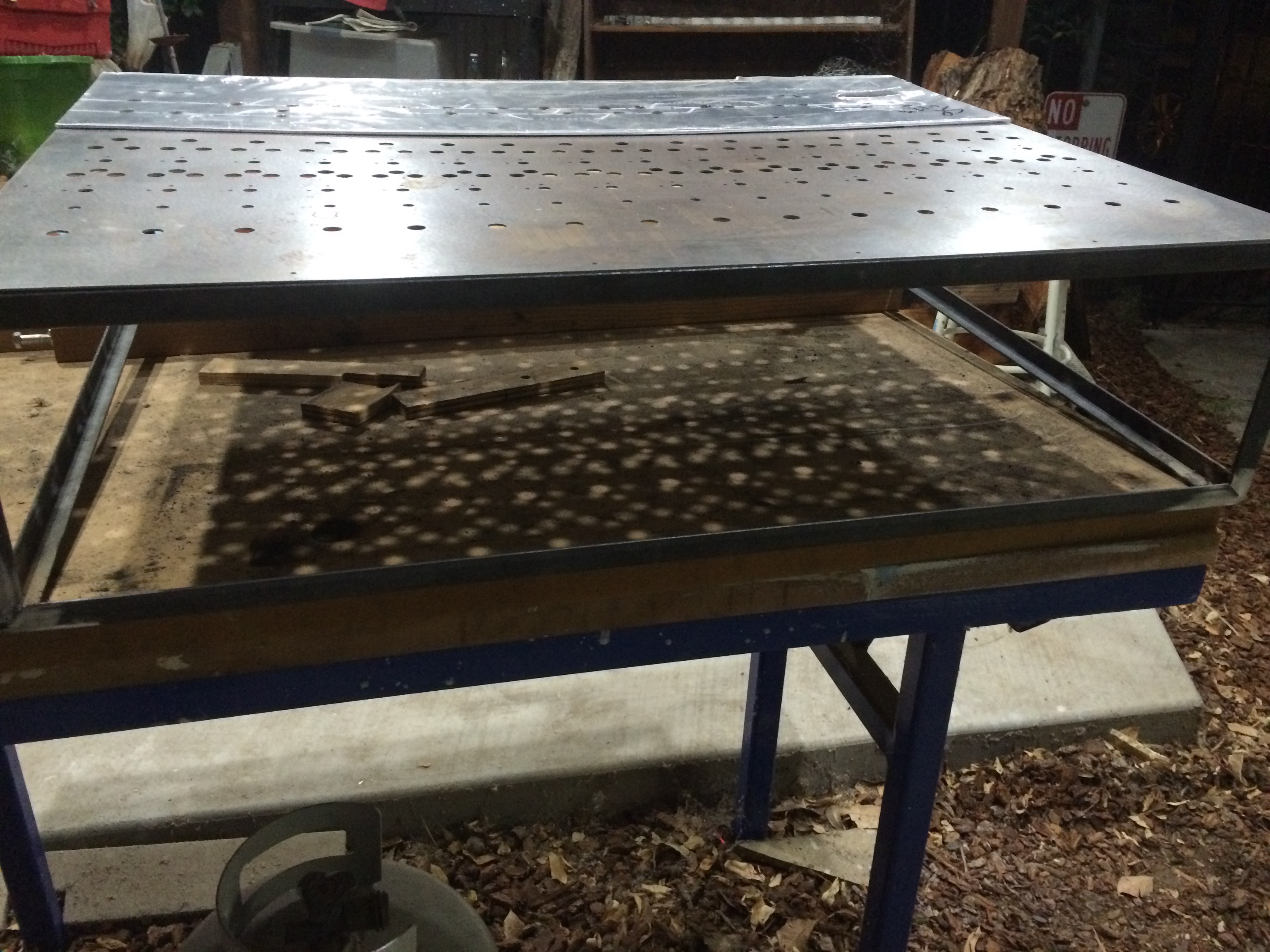

IMG_4774
IMG_4774

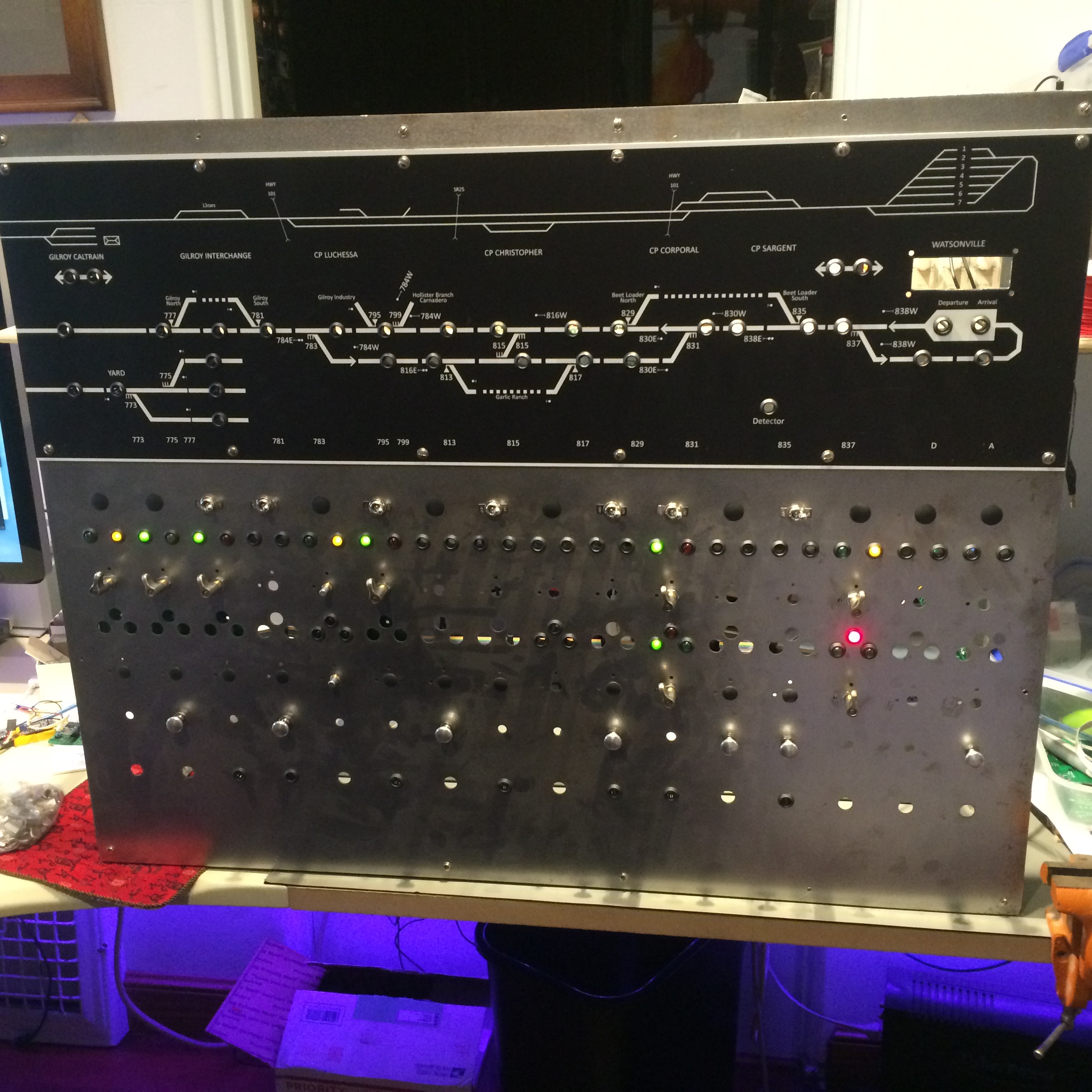

IMG_4819
IMG_4819

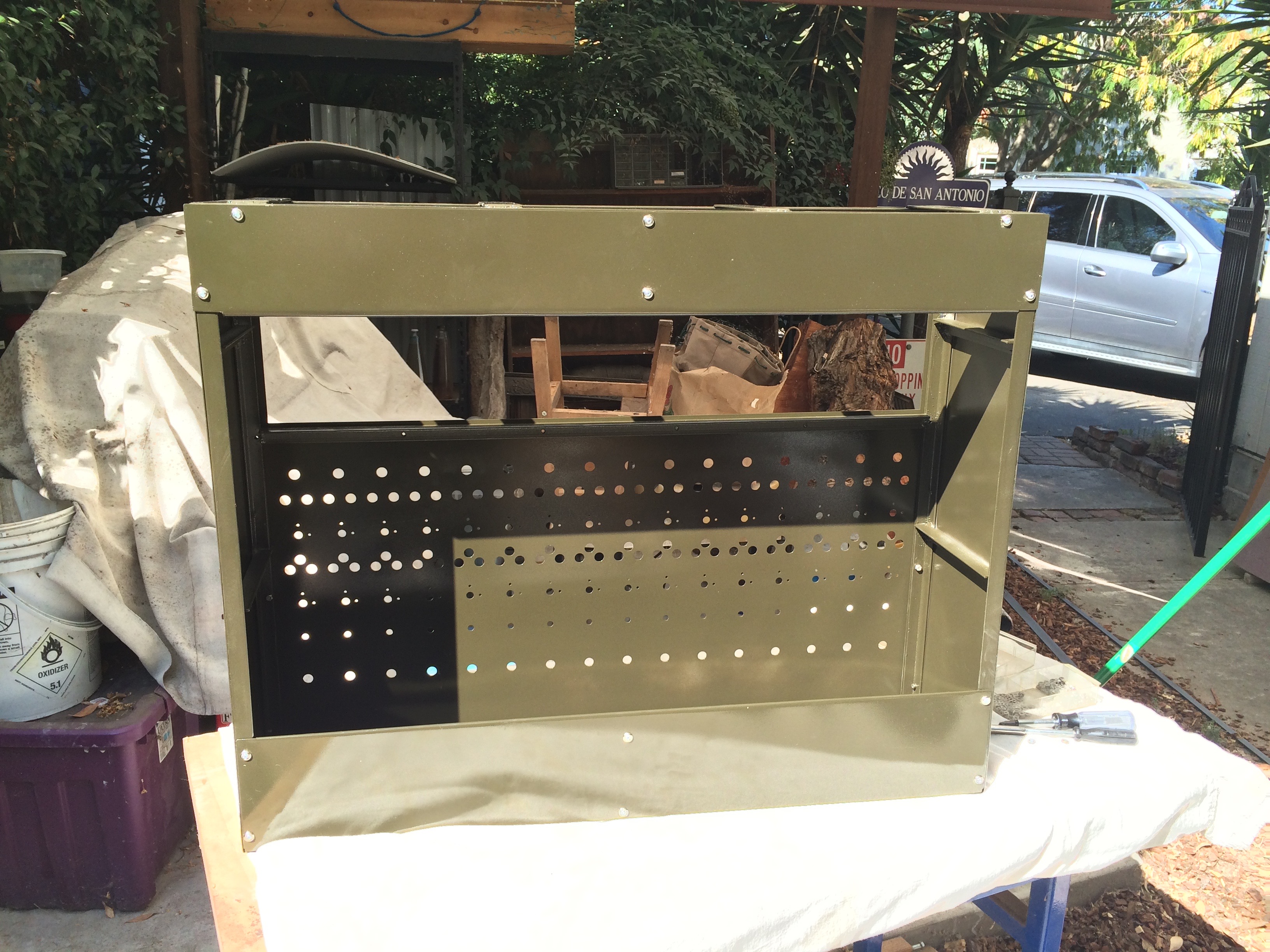

IMG_4993
IMG_4993
IMG_4777
IMG_4777

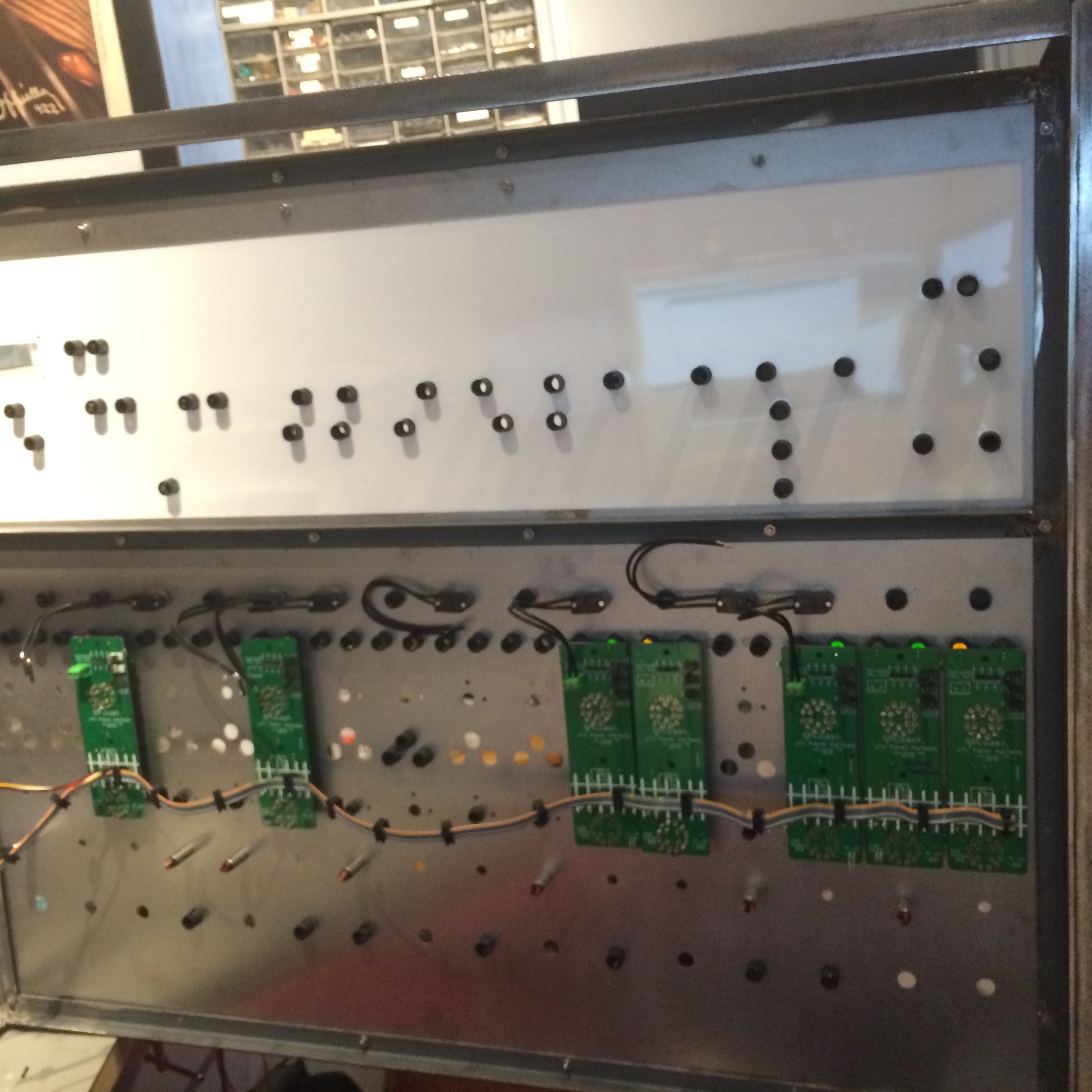

IMG_4820
IMG_4820
IMG_4980
IMG_4980

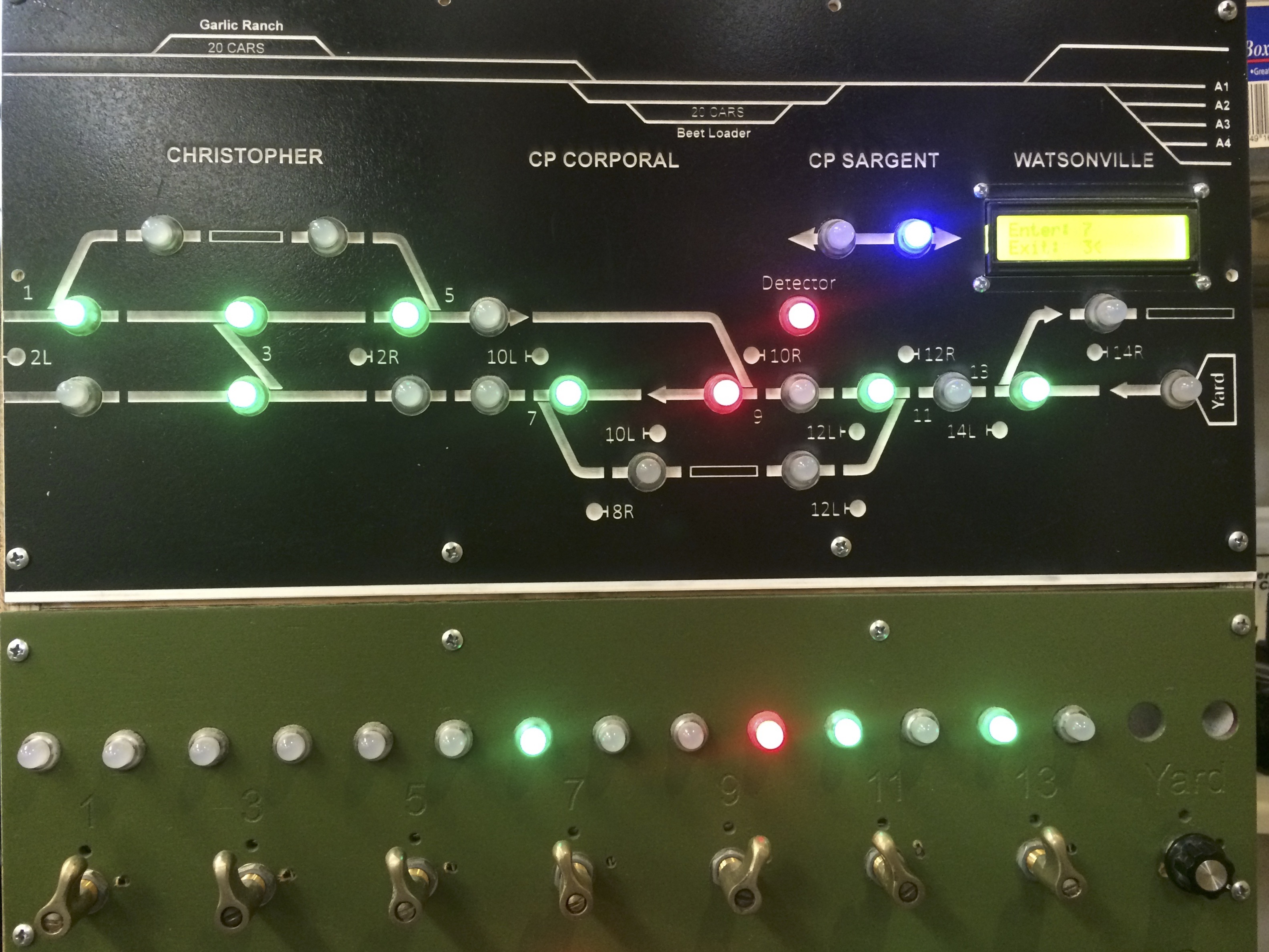

IMG_3803
IMG_3803

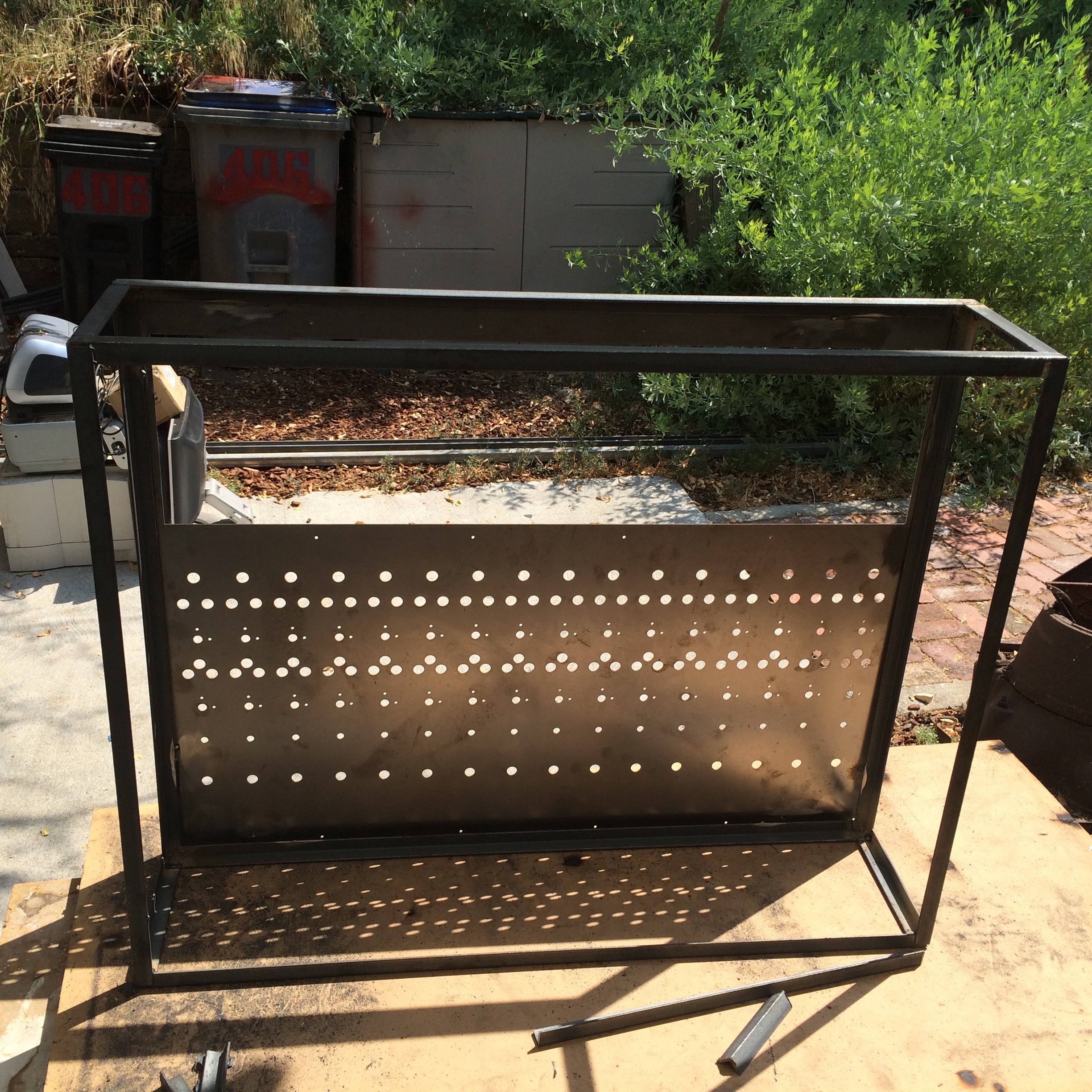

IMG_4780
IMG_4780
IMG_4977
IMG_4977

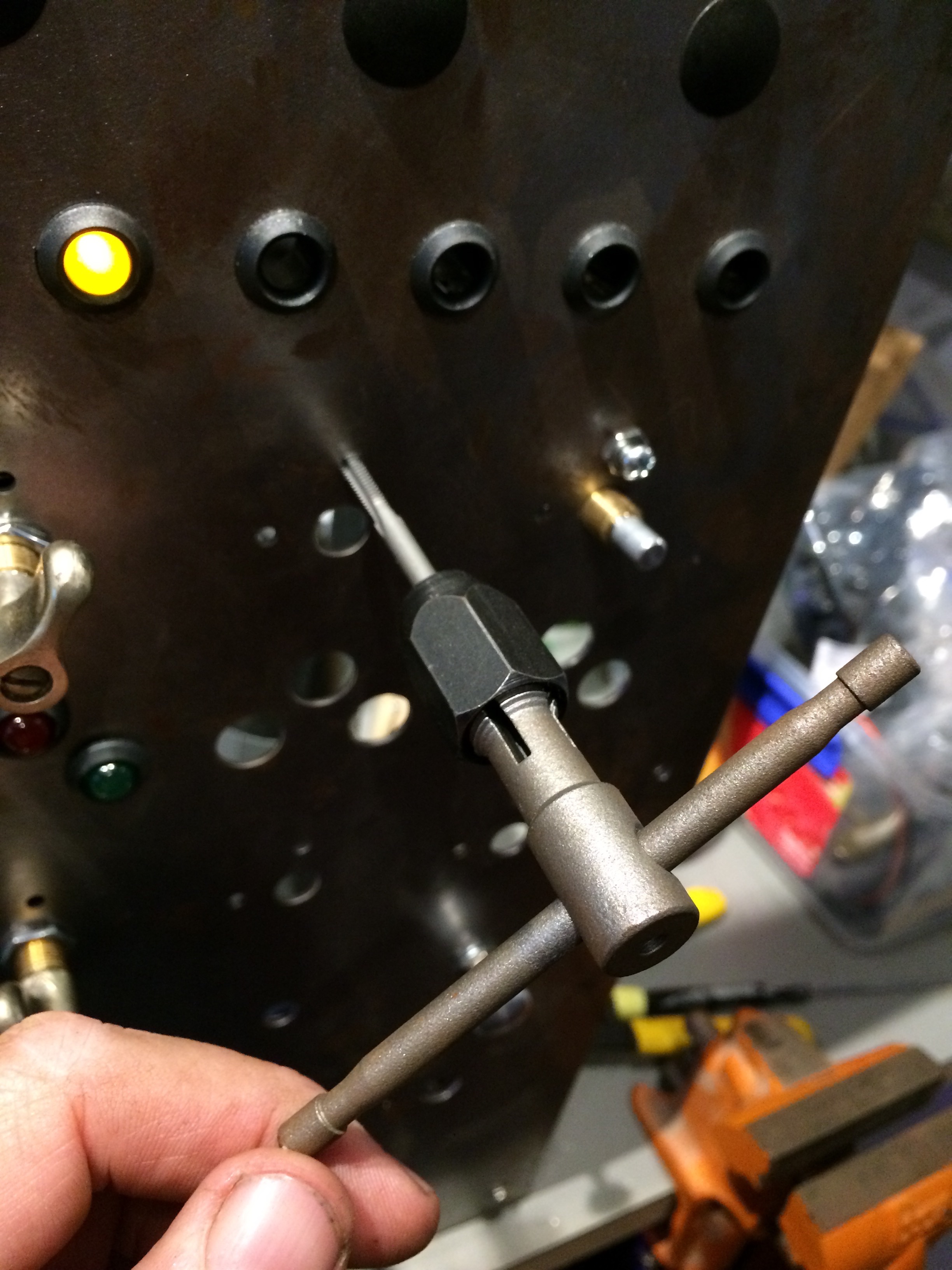

IMG_4858
IMG_4858

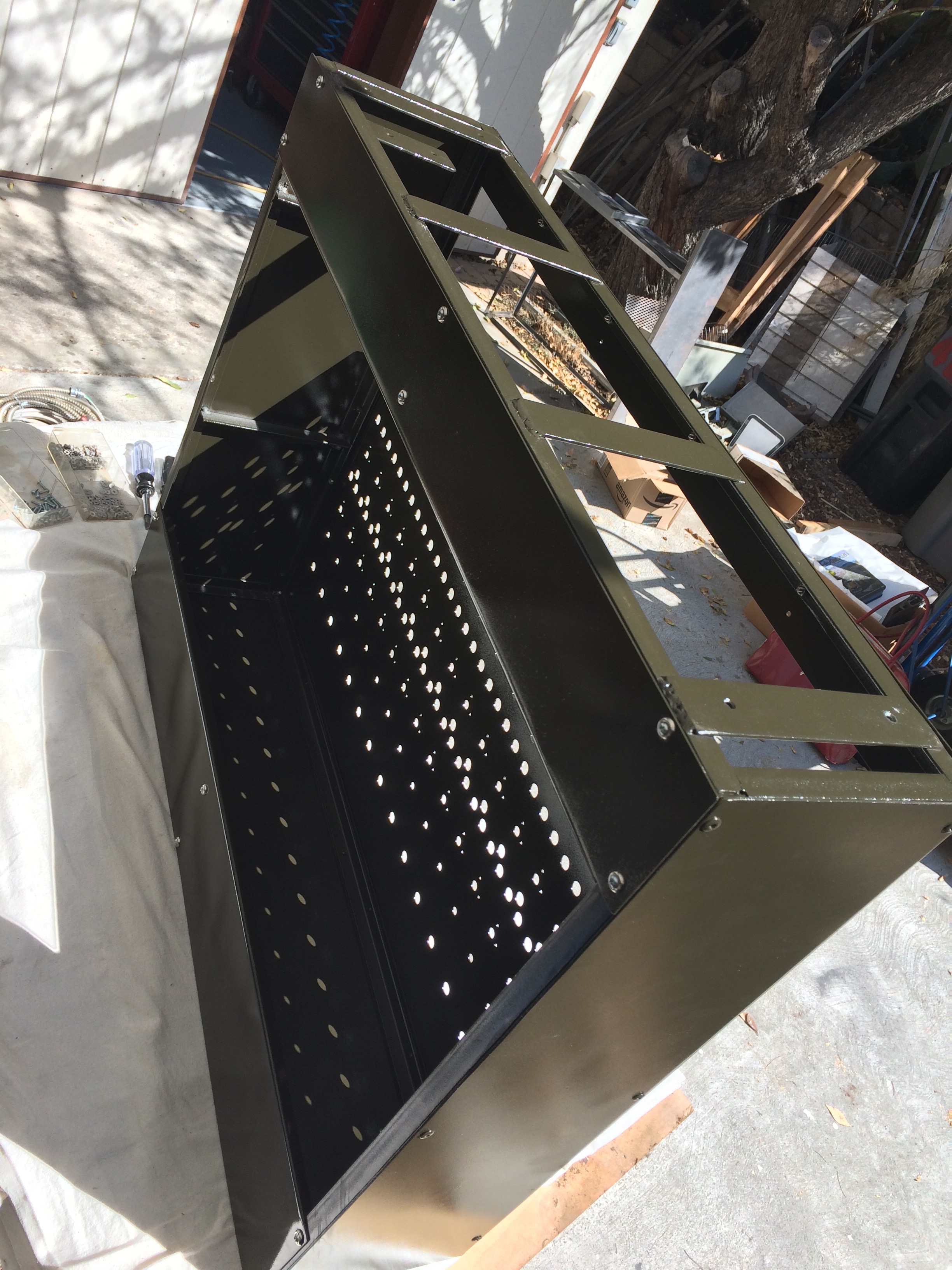

IMG_5005
IMG_5005

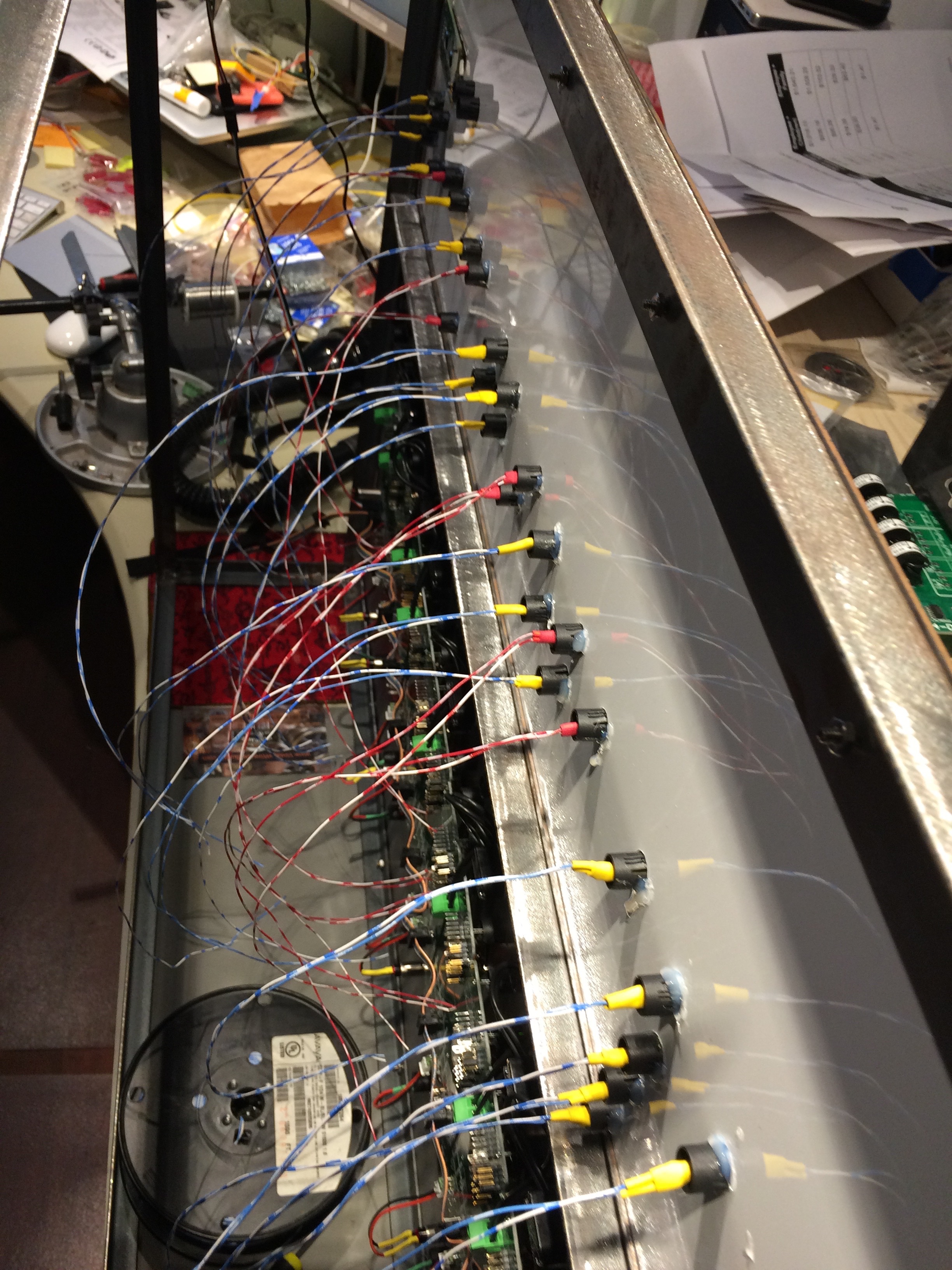

IMG_4873
IMG_4873

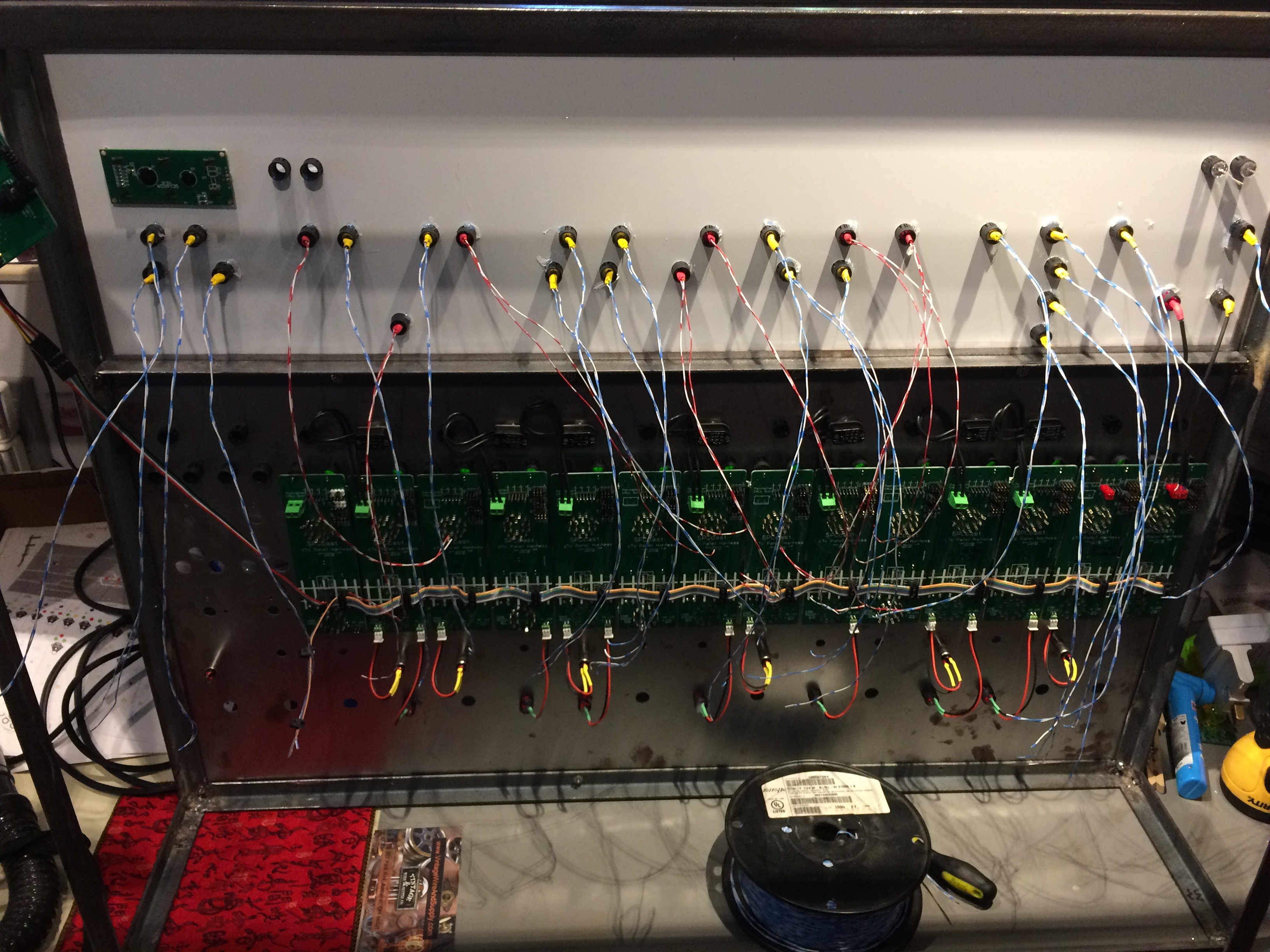

IMG_4872
IMG_4872

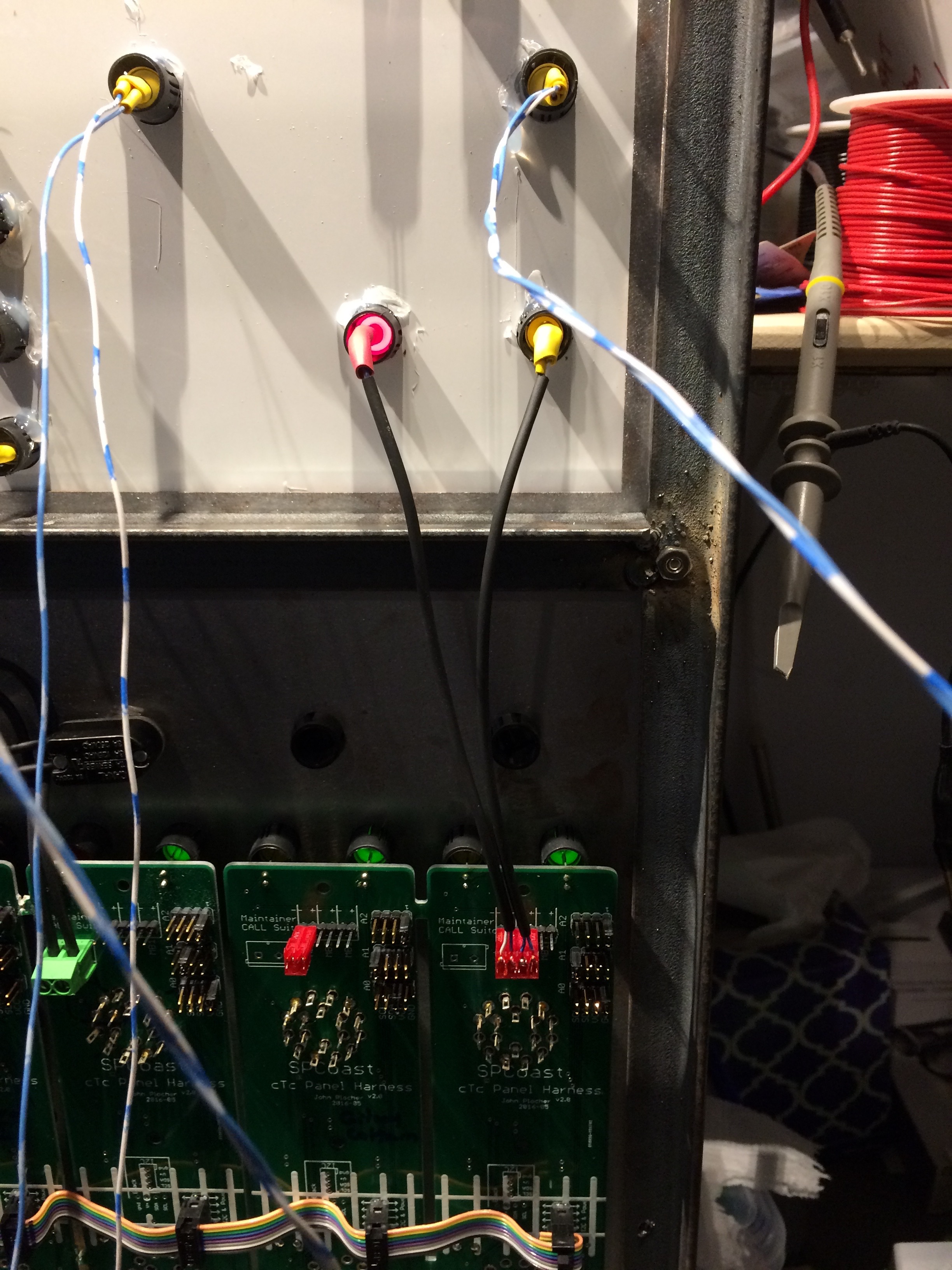

IMG_4876
IMG_4876

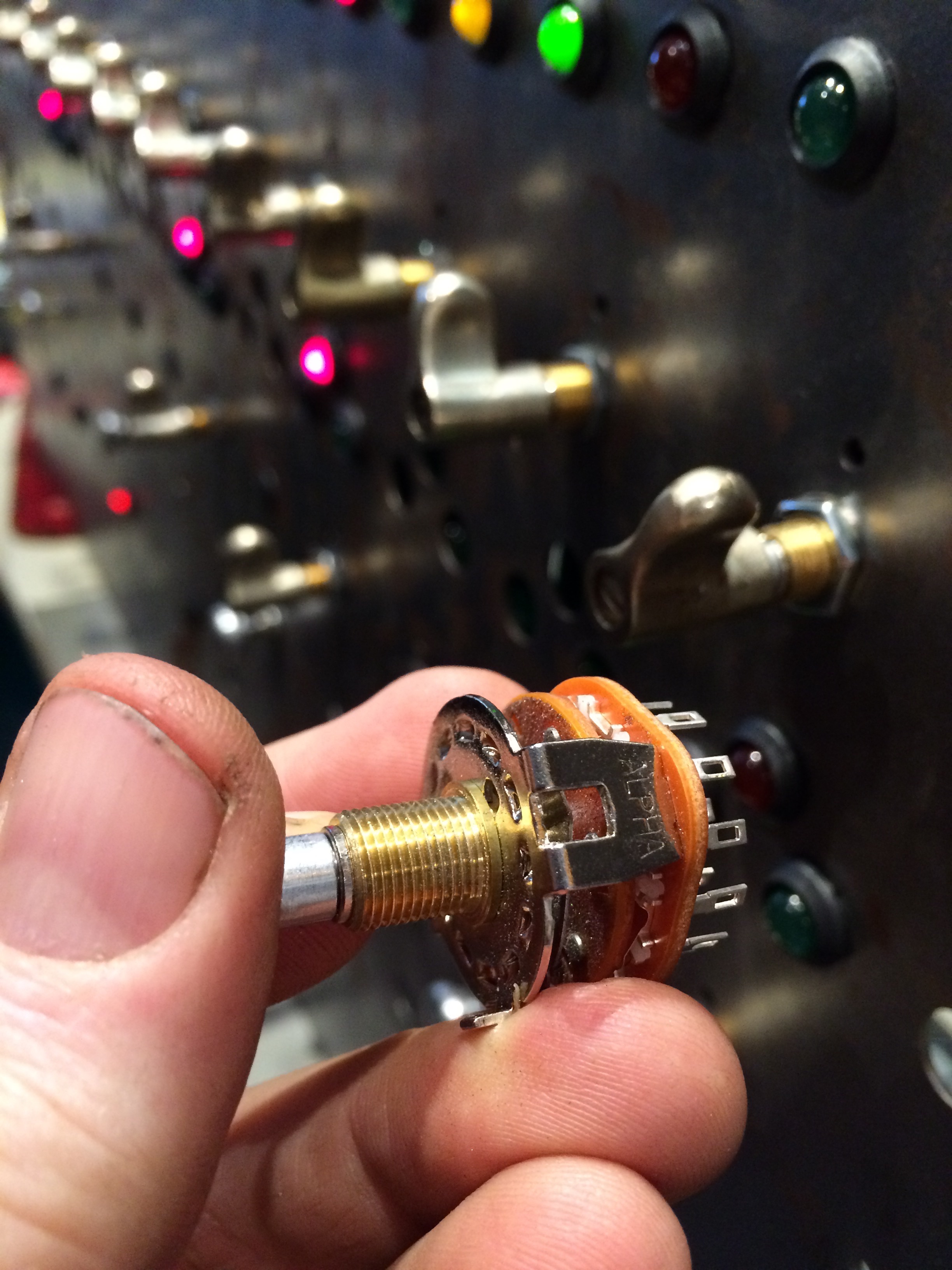

IMG_4861
IMG_4861

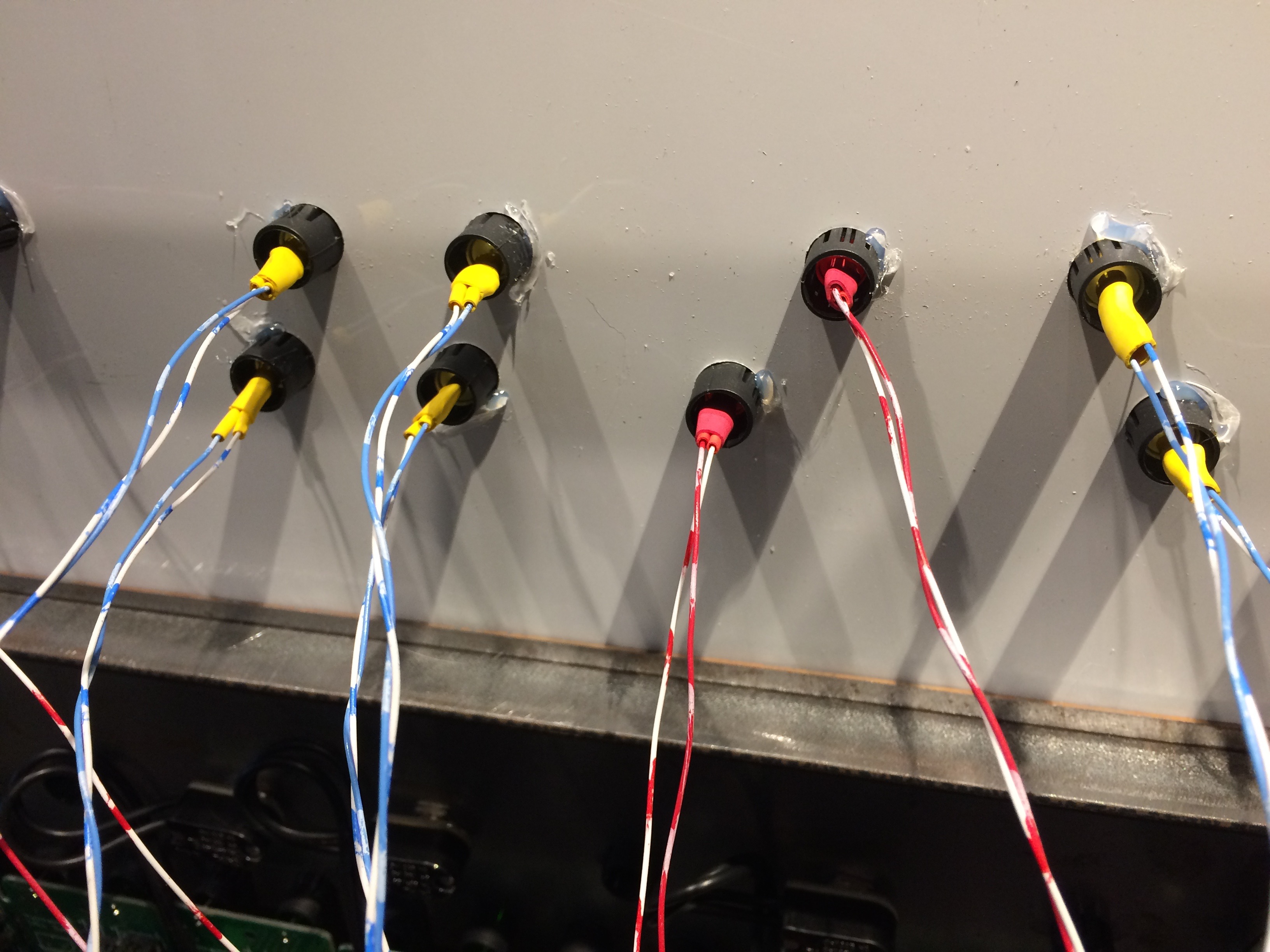

IMG_4874
IMG_4874



Download CTC-CAD.pdf - Documentation
Download MAX7313-Datasheet.pdf - Documentation
Download MAX7313_I2C_Addresses.pdf - Documentation
Download MAX7313_I2C_Addresses.xlsx - Spreadsheet
Download SSL-LX80113SGD-GreenLED-Datasheet.pdf - Documentation
Download SSL-LX80113SRD-RedLED-Datasheet.pdf - Documentation
Download WP793ED-OrangeLED-Datasheet.pdf - Documentation
Download WP793YD-YellowLED-Datasheet.pdf - Documentation



I2C-7313-cTc Version 2.2

First built: 2017-11

Manual panelization of the 2.1 design, made such that the unbroken board set would exactly fit the 2” spacing on the cTc machine panel.

Simple PCBs to help with taming the wiring ratsnest found behind a CTC machine’s panels by concentrating the majority of LEDs and Switches directly on a PCB.

The I2C-8574-cTc versions are simple wiring-to-I2C adapters, these 2.1 versions are mounting plates for switches and LEDs as well.

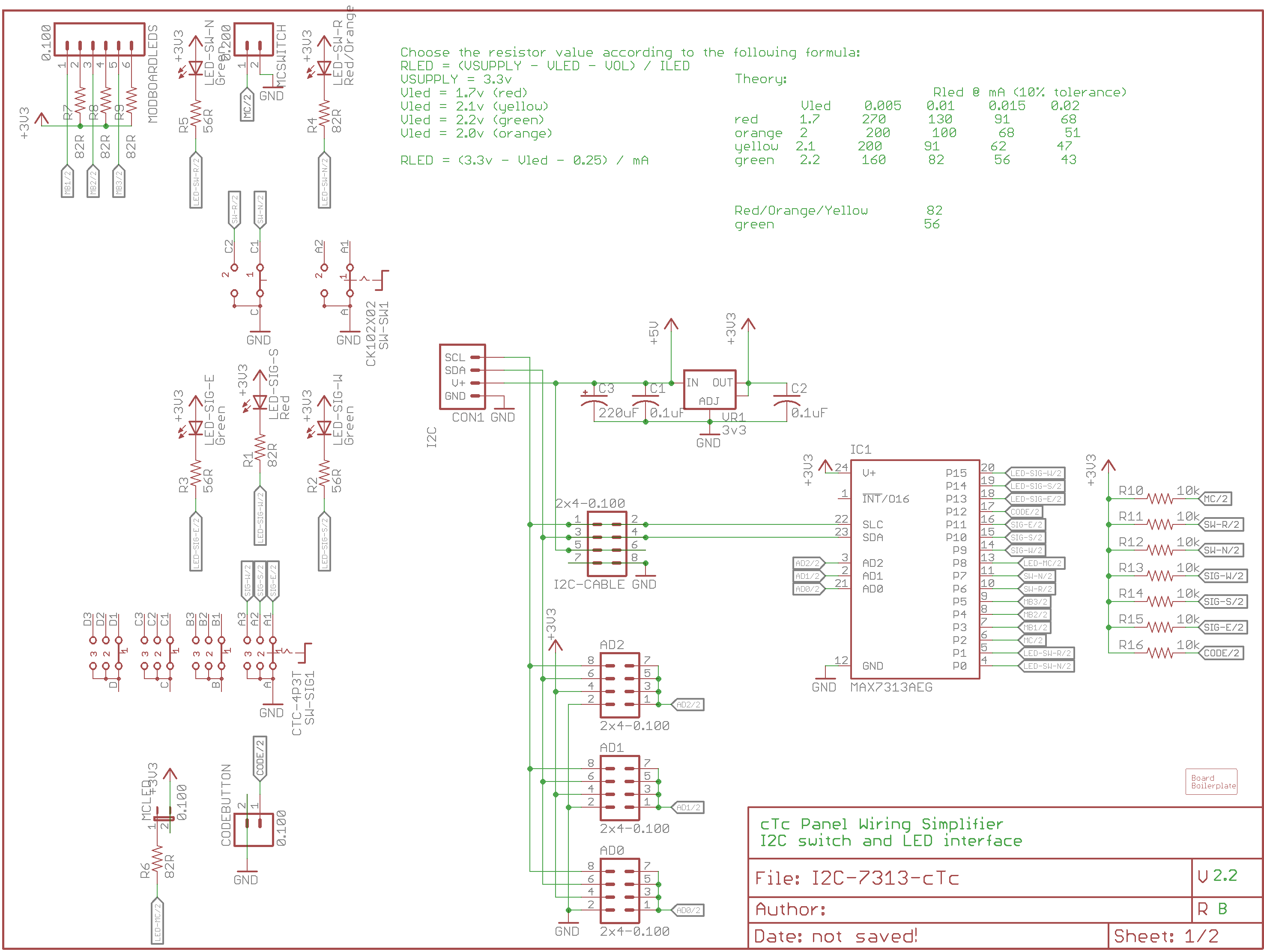

Schematic
Schematic

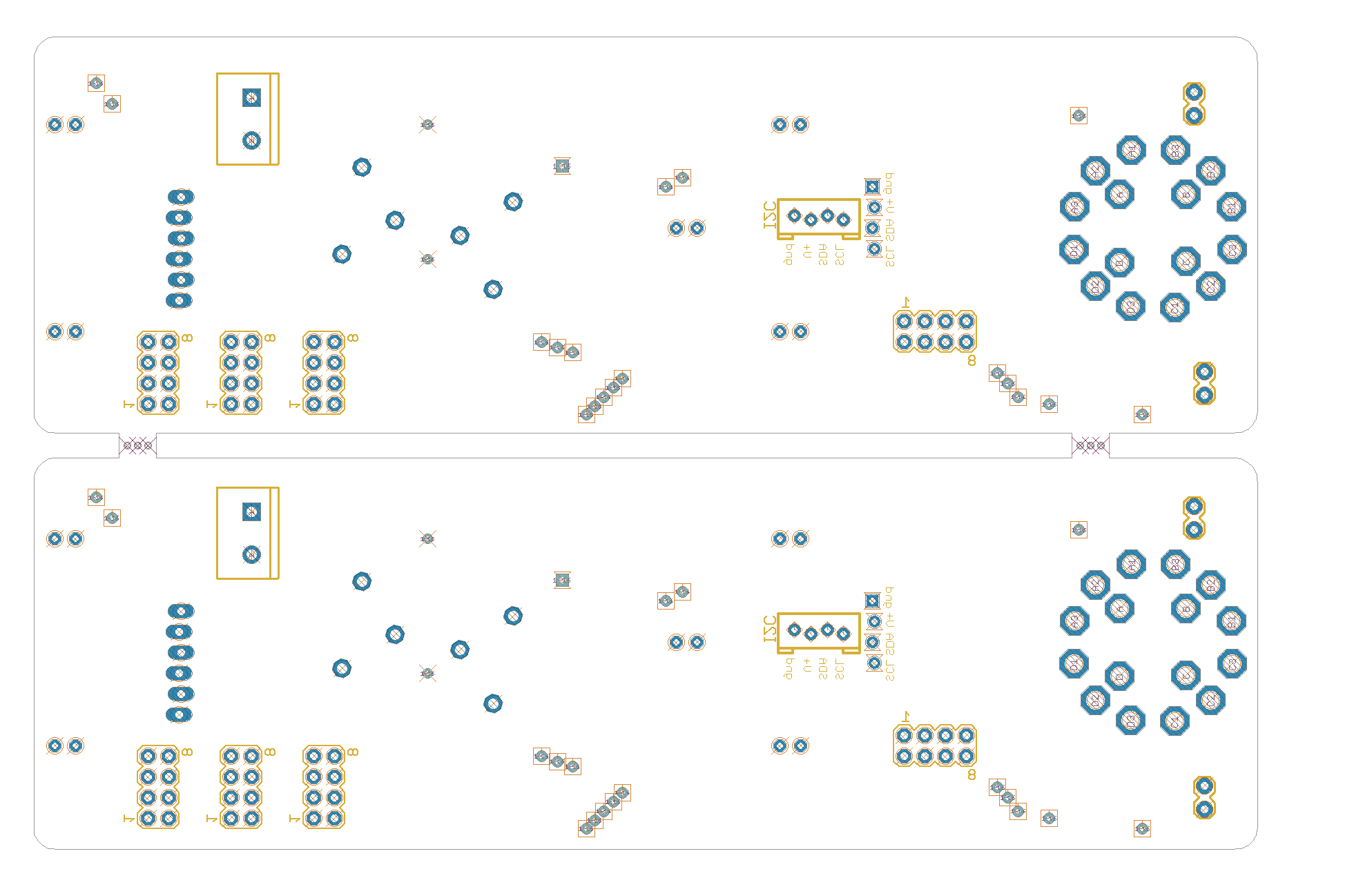

Bot Silk
Bot Silk

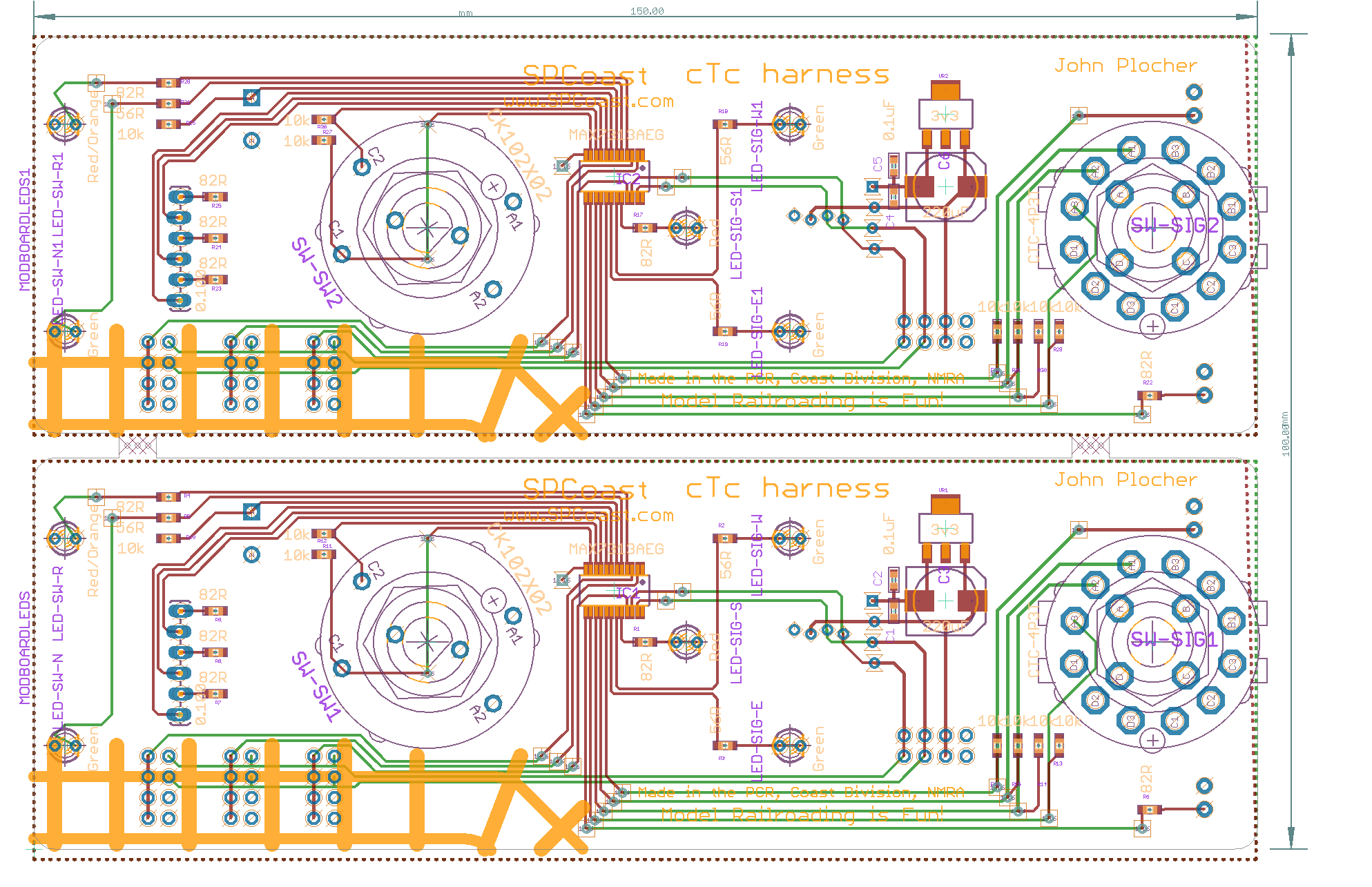

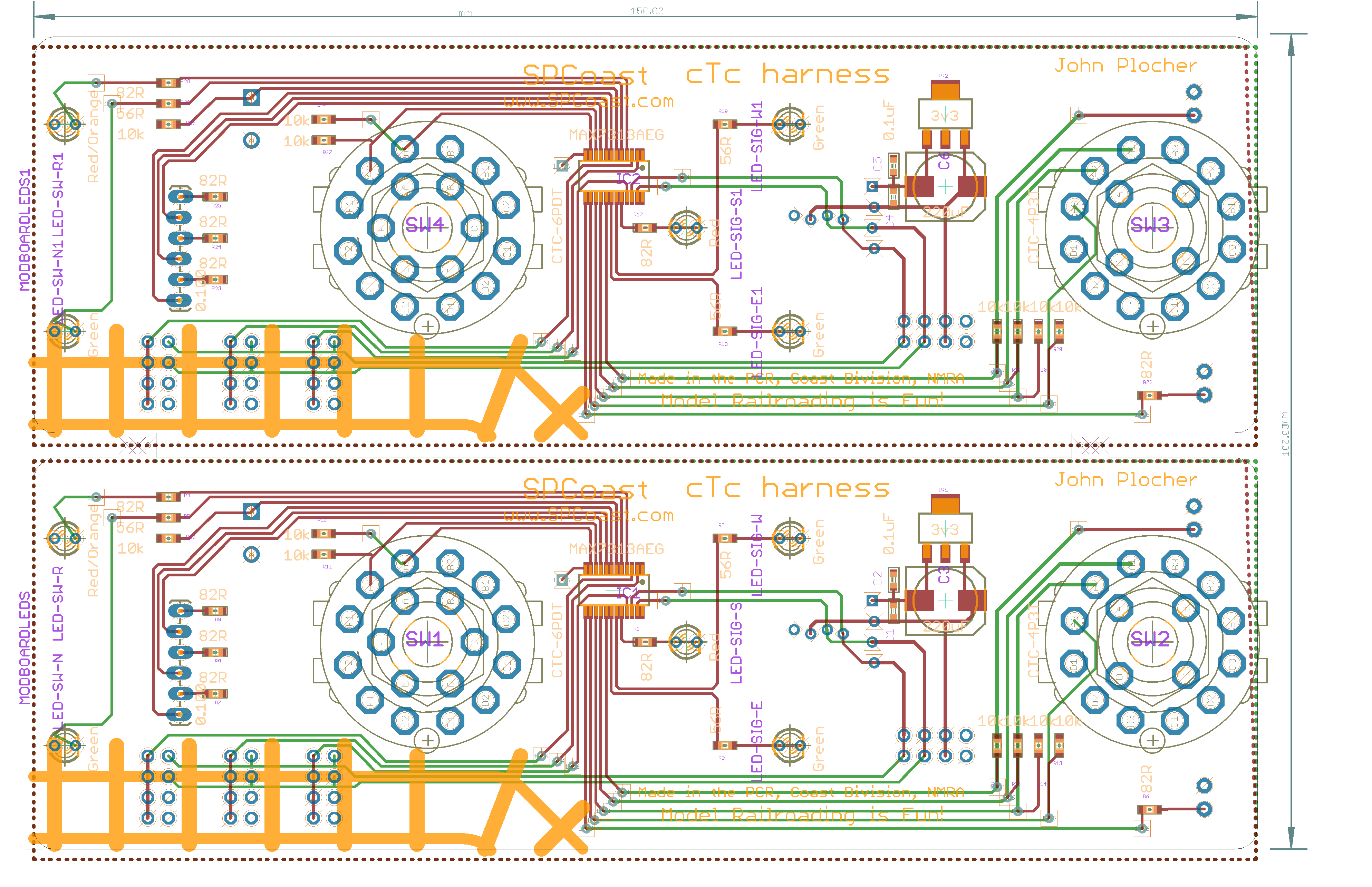

Board
Board

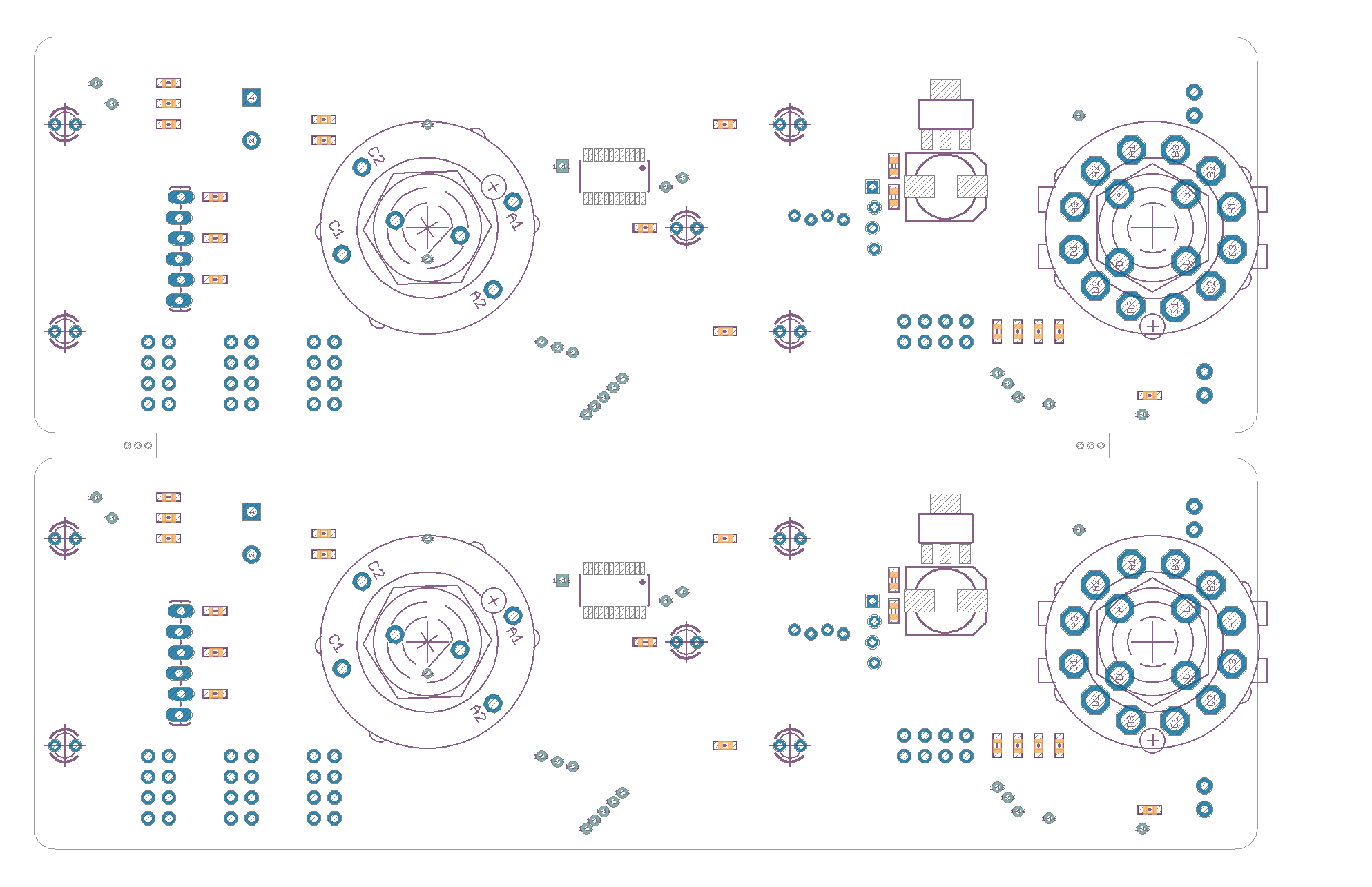

Top Silk
Top Silk

Download I2C-7313-cTc.gerbers.zip - Gerber Fabrication files
Download I2C-7313-cTc.parts - Parts List (spreadsheet data)



I2C-7313-cTc.bom

Parts Value Package Quantity Library Type/Feeder
C1, C2, C4, C5 0.1uF 0603-CAP 4x SPCoast 19
CODEBUTTON, CODEBUTTON1, MCLED, MCLED1 0.100 1X02_LOCK 4x SPCoast PTH
MODBOARDLEDS, MODBOARDLEDS1 0.100 1X06_LOCK_LONGPADS 2x SPCoast PTH
MCSWITCH, MCSWITCH1 0.200 SCREWTERMINAL-5MM-2 2x SPCoast PTH
AD0, AD1, AD2, AD3, AD4, AD5, I2C-CABLE, I2C-CABLE1 2x4-0.100 MA04-2 8x con-lstb PTH
VR1, VR2 3v3 SOT223 2x SPCoast 26
R10, R11, R12, R13, R14, R15, R16, R26, R27, R28, R29, R30, R31, R32 10k 0603-RES 14x SPCoast 46
R2, R3, R5, R18, R19, R21 56R 0603-RES 6x SPCoast NONE
R1, R4, R6, R7, R8, R9, R17, R20, R22, R23, R24, R25 82R 0603-RES 12x SPCoast NONE
C3, C6 220uF 0810-CAP 2x SPCoast NONE
BOARD1 BOARD BOARD-SEEED10X15/2-NOHOLES 1x SPCoast PTH
SW-SW1, SW-SW2 CK102X02 CK102X02 2x SPCoast PTH
SW-SIG1, SW-SIG2 CTC-4P3T CTC-4P3T 2x SPCoast PTH
LED-SIG-E, LED-SIG-E1, LED-SIG-W, LED-SIG-W1, LED-SW-N, LED-SW-N1 Green LED3MM 6x SPCoast PTH
CON1, CON2 I2C I2C-L 2x SPCoast PTH
IC1, IC2 MAX7313AEG QSOP24 2x maxim NONE
LED-SIG-S, LED-SIG-S1 Red LED3MM 2x SPCoast PTH
LED-SW-R, LED-SW-R1 Red/Orange LED3MM 2x SPCoast PTH

I2C-7313-cTc Version 2.1

First built: 2017-11

Simple PCBs to help with taming the wiring ratsnest found behind a CTC machine’s panels by concentrating the majority of LEDs and Switches directly on a PCB.

The I2C-8574-cTc versions are simple wiring-to-I2C adapters, these 2.1 versions are mounting plates for switches and LEDs as well.

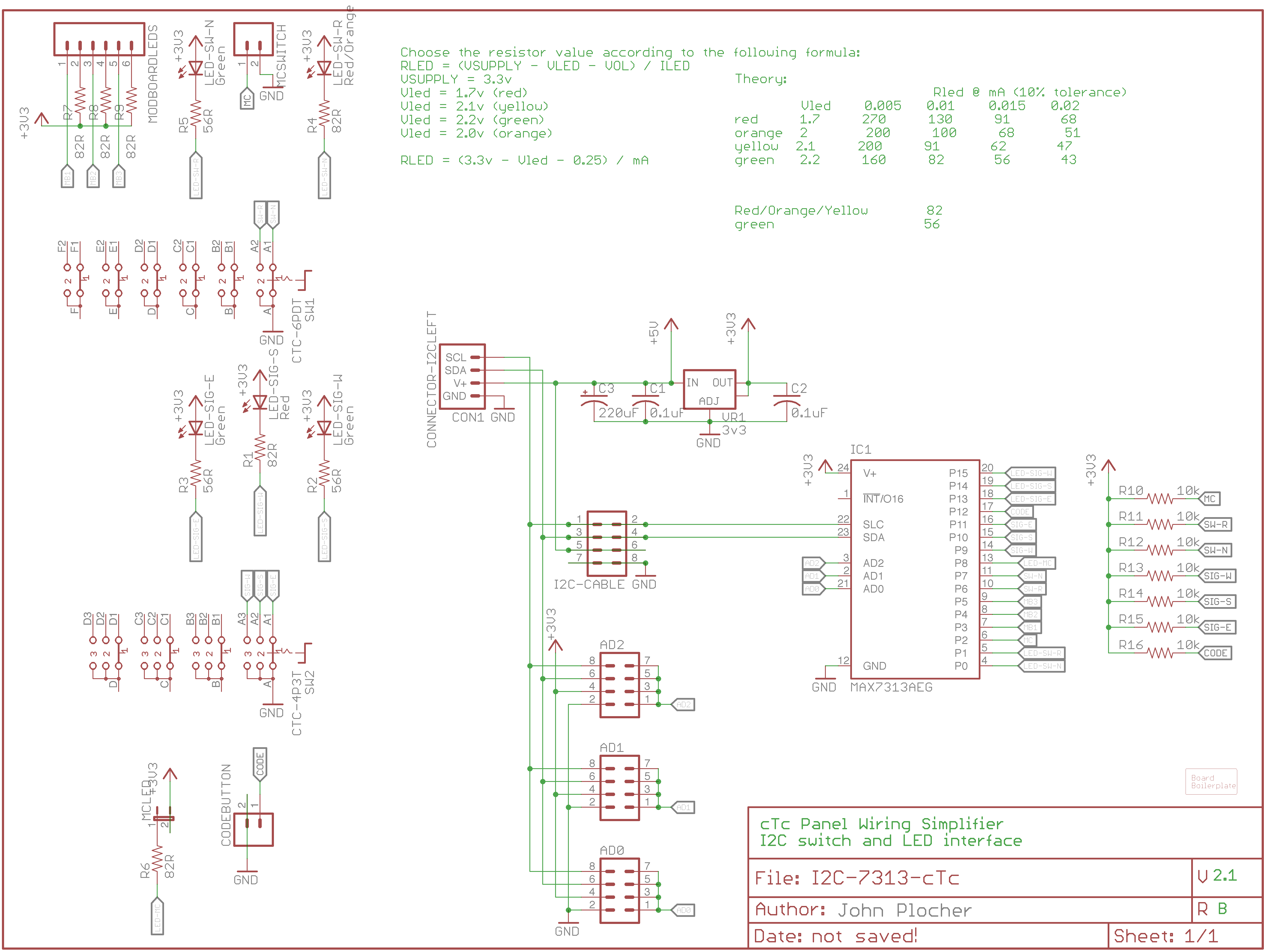

Schematic
Schematic

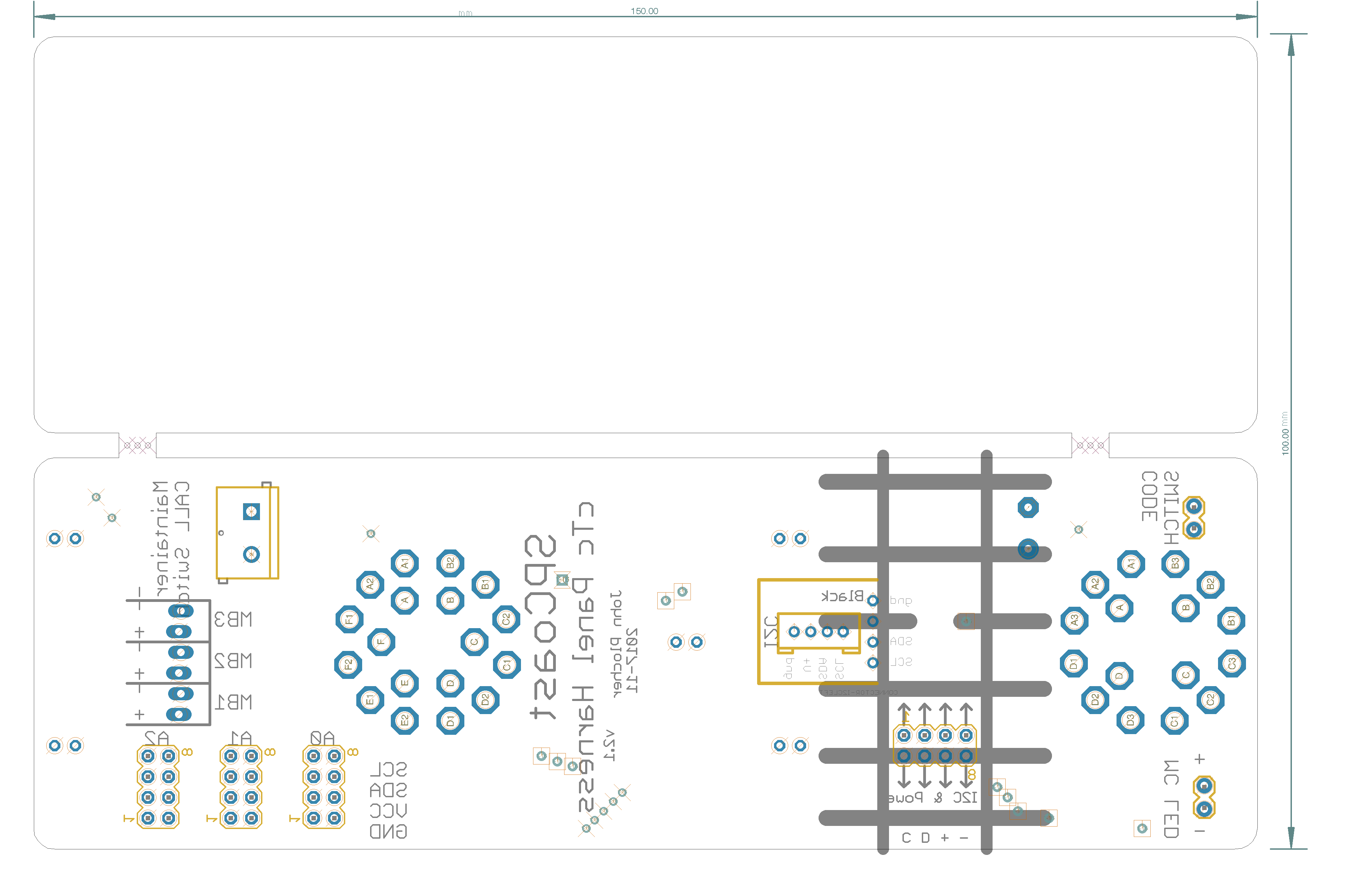

Bot Silk
Bot Silk

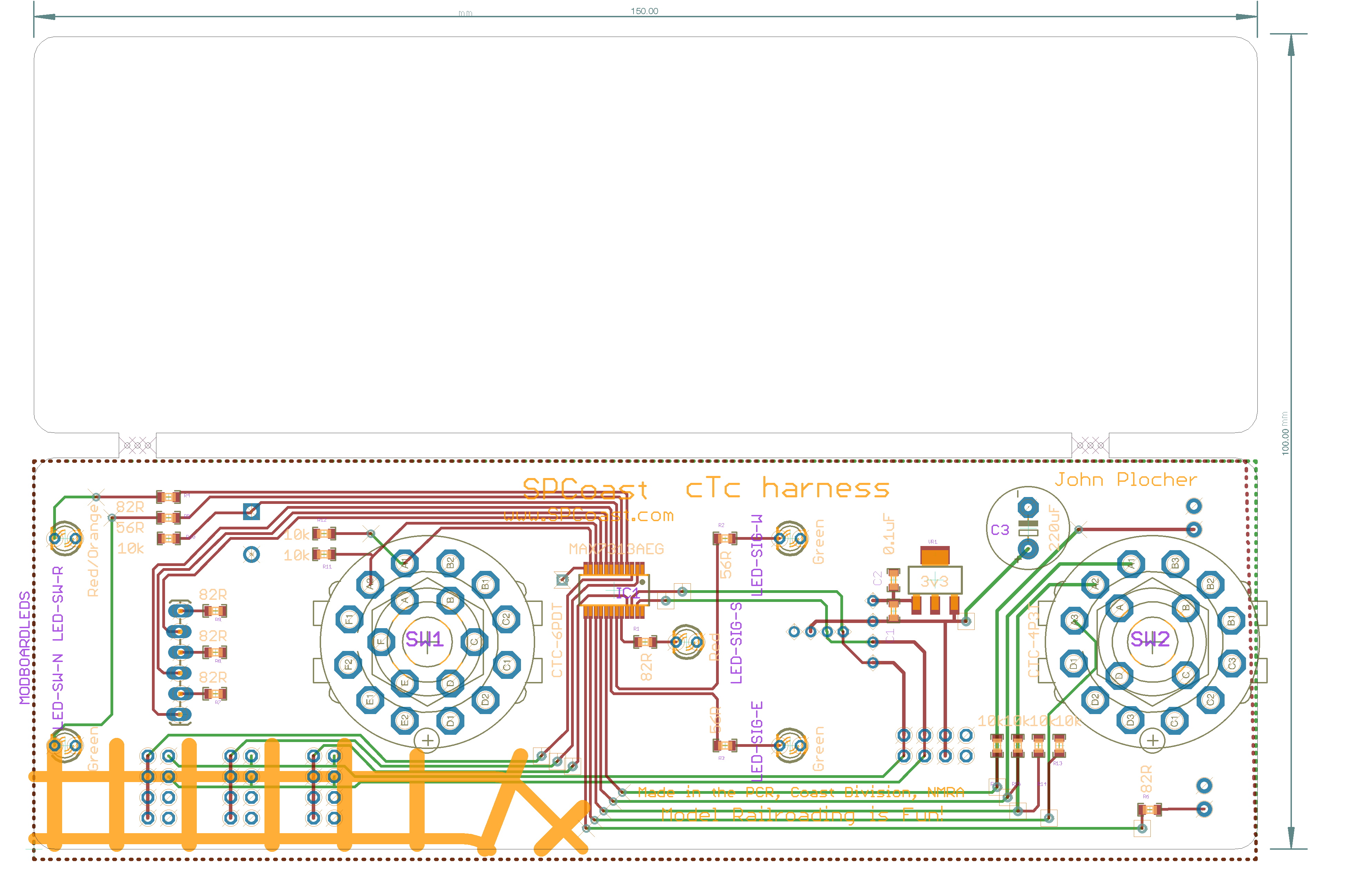

Board
Board

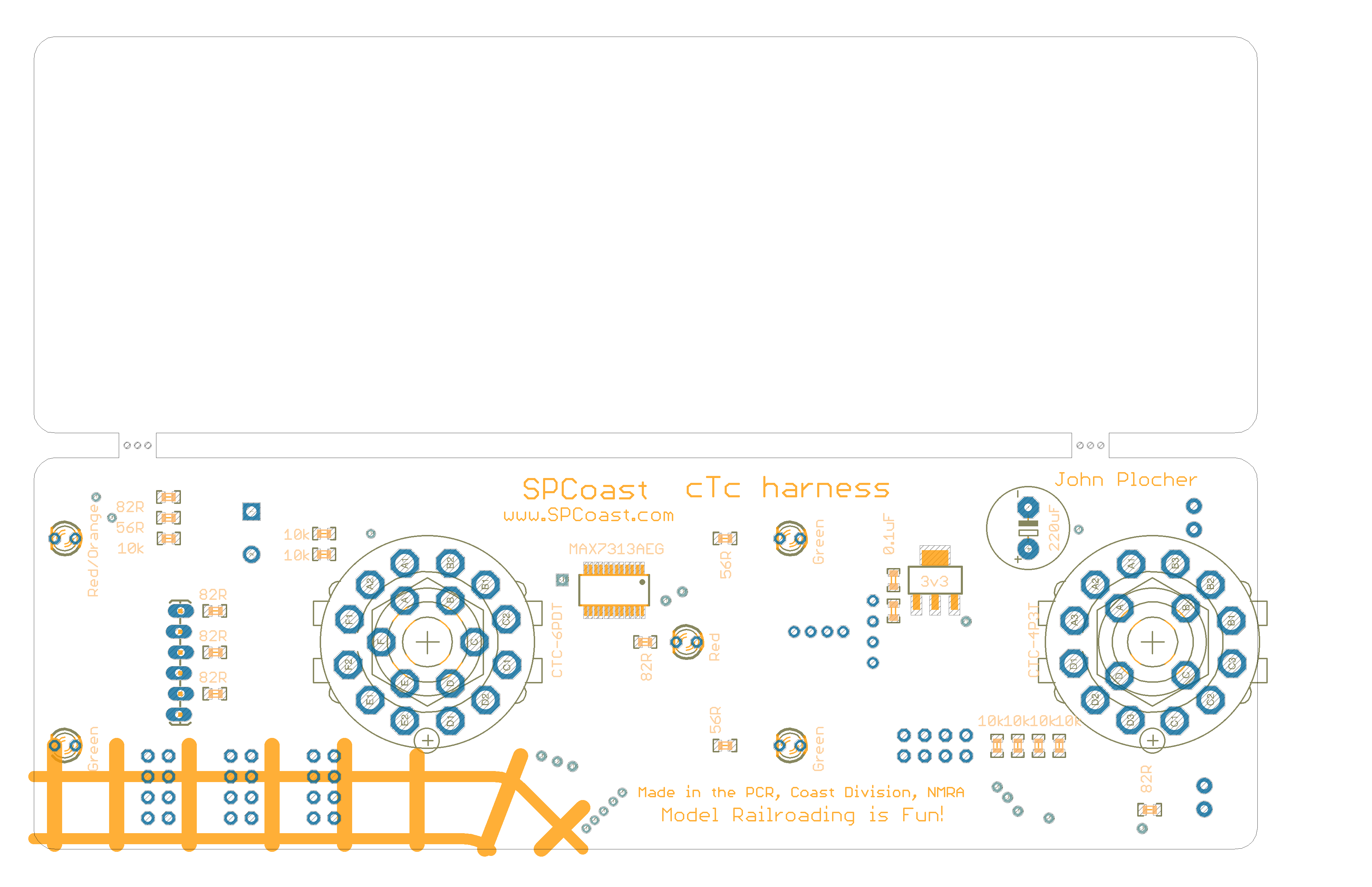

Top Silk
Top Silk

Download I2C-7313-cTc - CHMT Component and feeder definitions
Download I2C-7313-cTc.gerbers.zip - Gerber Fabrication files
Download I2C-7313-cTc.parts - Parts List (spreadsheet data)



I2C-7313-cTc.bom

Parts Value Package Quantity Library Type/Feeder
C1, C2 0.1uF 0805-CAP 2x SPCoast NONE
VR1 3v3 SOT223 1x SPCoast 25
R10, R11, R12, R13, R14, R15, R16 10k 0805-RES 7x SPCoast 11
R2, R3, R5 56R 0805-RES 3x SPCoast 2
R1, R4, R6, R7, R8, R9 82R 0805-RES 6x SPCoast NONE
C3 220uF E5-10.5 1x SPCoast PTH
CODEBUTTON, MCLED   1X02_LOCK 2x SPCoast PTH
MODBOARDLEDS   1X06_LOCK_LONGPADS 1x SPCoast PTH
AD0, AD1, AD2, I2C-CABLE   MA04-2 4x con-lstb PTH
MCSWITCH   SCREWTERMINAL-5MM-2 1x SPCoast PTH
BOARD1 BOARD100X150X2-NOHOLES BOARD-SEEED10X15/2-NOHOLES 1x SPCoast PTH
CON1 CONNECTOR-I2CLEFT I2C-L 1x SPCoast PTH
SW2 CTC-4P3T CTC-4P3T 1x SPCoast PTH
SW1 CTC-6PDT CTC-6PDT-ROTARY 1x SPCoast PTH
LED-SIG-E, LED-SIG-W, LED-SW-N Green LED3MM 3x SPCoast PTH
IC1 MAX7313AEG QSOP24 1x maxim NONE
LED-SIG-S Red LED3MM 1x SPCoast PTH
LED-SW-R Red/Orange LED3MM 1x SPCoast PTH

I2C-7313-cTc Version 2.1-panel

First built: 2017-11

Manual panelization of the 2.1 design, made such that the unbroken board set would exactly fit the 2” spacing on the cTc machine panel.

Simple PCBs to help with taming the wiring ratsnest found behind a CTC machine’s panels by concentrating the majority of LEDs and Switches directly on a PCB.

The I2C-8574-cTc versions are simple wiring-to-I2C adapters, these 2.1 versions are mounting plates for switches and LEDs as well.

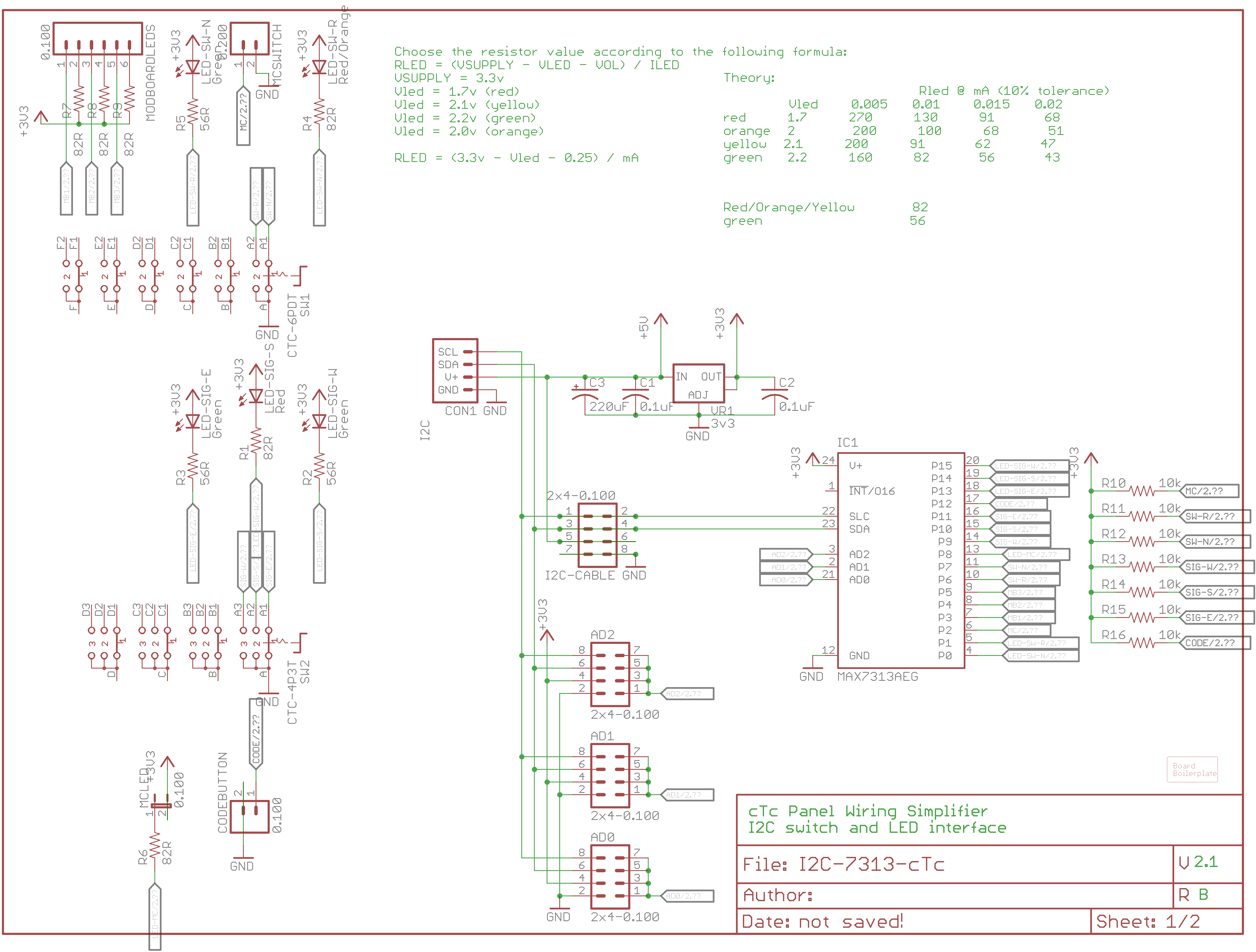

Schematic
Schematic

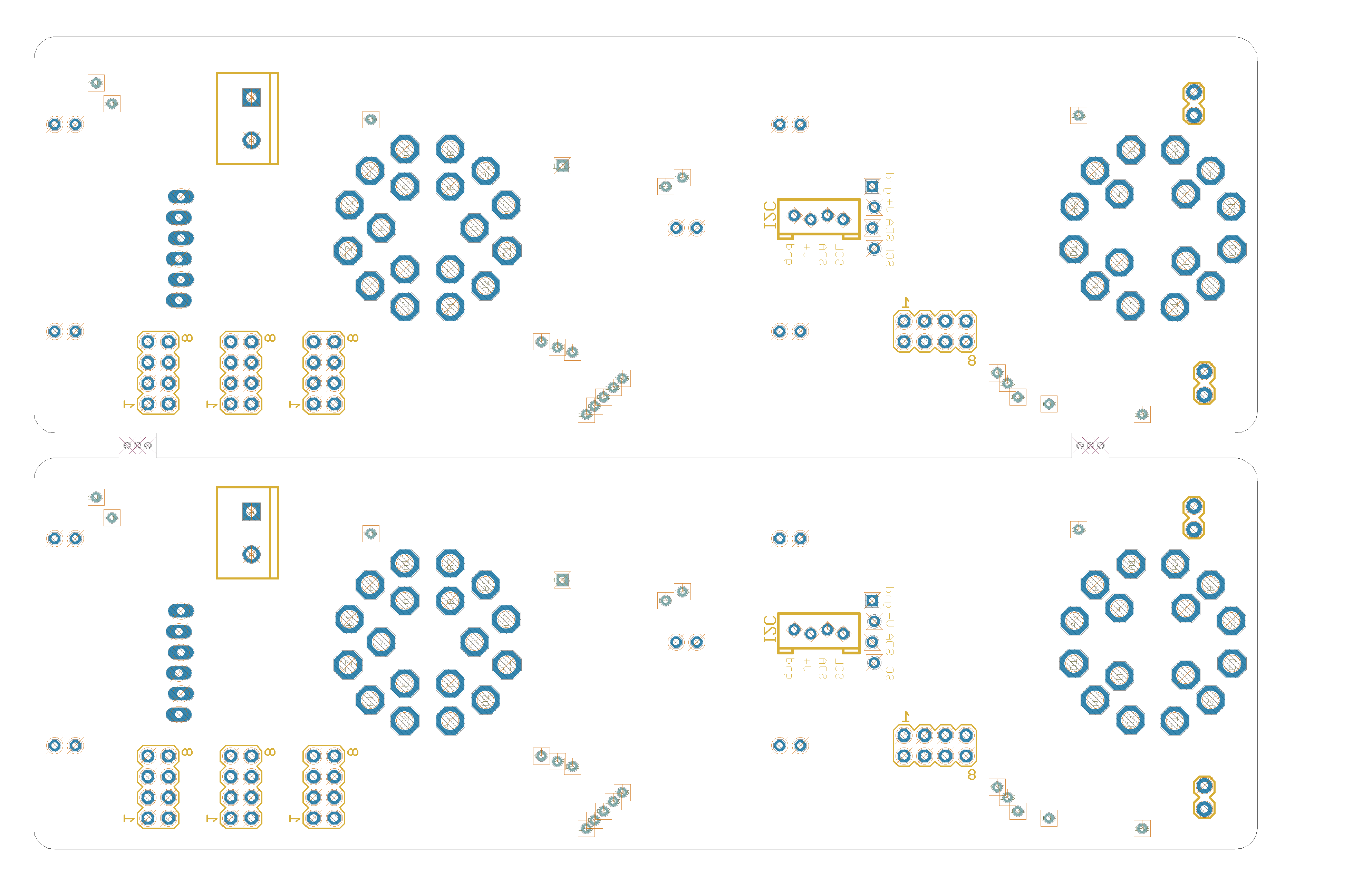

Bot Silk
Bot Silk

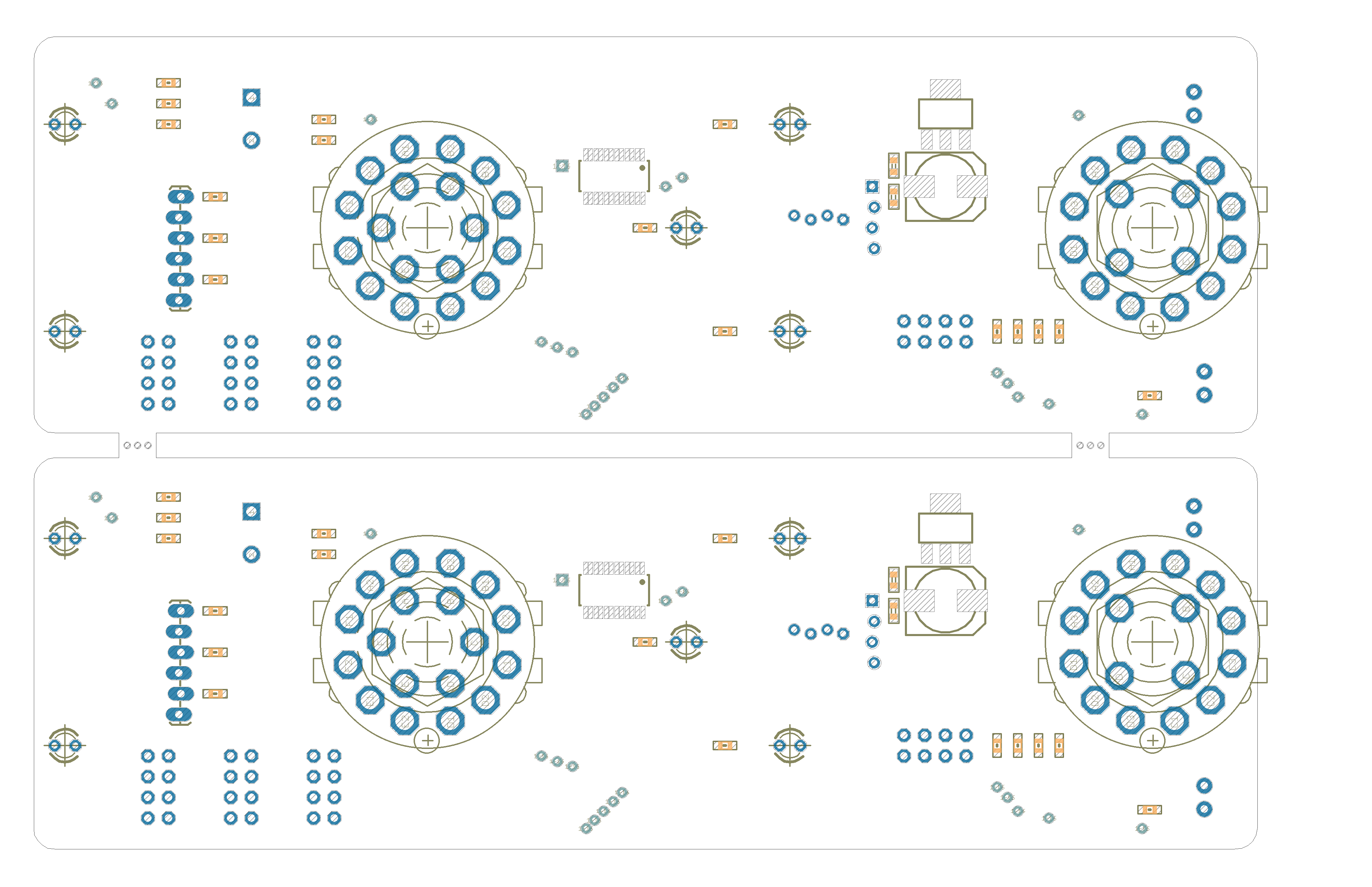

Board
Board
Top Silk
Top Silk

Download I2C-7313-cTc.gerbers.zip - Gerber Fabrication files
Download I2C-7313-cTc.parts - Parts List (spreadsheet data)



I2C-7313-cTc.bom

Parts Value Package Quantity Library Type/Feeder
C1, C2, C4, C5 0.1uF 0603-CAP 4x SPCoast 19
CODEBUTTON, CODEBUTTON1, MCLED, MCLED1 0.100 1X02_LOCK 4x SPCoast PTH
MODBOARDLEDS, MODBOARDLEDS1 0.100 1X06_LOCK_LONGPADS 2x SPCoast PTH
MCSWITCH, MCSWITCH1 0.200 SCREWTERMINAL-5MM-2 2x SPCoast PTH
AD0, AD1, AD2, AD3, AD4, AD5, I2C-CABLE, I2C-CABLE1 2x4-0.100 MA04-2 8x con-lstb PTH
VR1, VR2 3v3 SOT223 2x SPCoast 26
R10, R11, R12, R13, R14, R15, R16, R26, R27, R28, R29, R30, R31, R32 10k 0603-RES 14x SPCoast 46
R2, R3, R5, R18, R19, R21 56R 0603-RES 6x SPCoast NONE
R1, R4, R6, R7, R8, R9, R17, R20, R22, R23, R24, R25 82R 0603-RES 12x SPCoast NONE
C3, C6 220uF 0810-CAP 2x SPCoast NONE
BOARD1 BOARD BOARD-SEEED10X15/2-NOHOLES 1x SPCoast PTH
SW2, SW3 CTC-4P3T CTC-4P3T 2x SPCoast PTH
SW1, SW4 CTC-6PDT CTC-6PDT-ROTARY 2x SPCoast PTH
LED-SIG-E, LED-SIG-E1, LED-SIG-W, LED-SIG-W1, LED-SW-N, LED-SW-N1 Green LED3MM 6x SPCoast PTH
CON1, CON2 I2C I2C-L 2x SPCoast PTH
IC1, IC2 MAX7313AEG QSOP24 2x maxim NONE
LED-SIG-S, LED-SIG-S1 Red LED3MM 2x SPCoast PTH
LED-SW-R, LED-SW-R1 Red/Orange LED3MM 2x SPCoast PTH

This technical documentation is licensed under the CERN Open Hardware Licence v1.2
