Core-ProMini

Fork project on GitHub

IO4-based Arduino ProMini baseboard

Core-ProMini-Graphic
Core-ProMini-Graphic





Core-ProMini Version 3.0

First built: 2017-05

removed Loconet interface electronics and per-pin status LEDs to make a simpler board

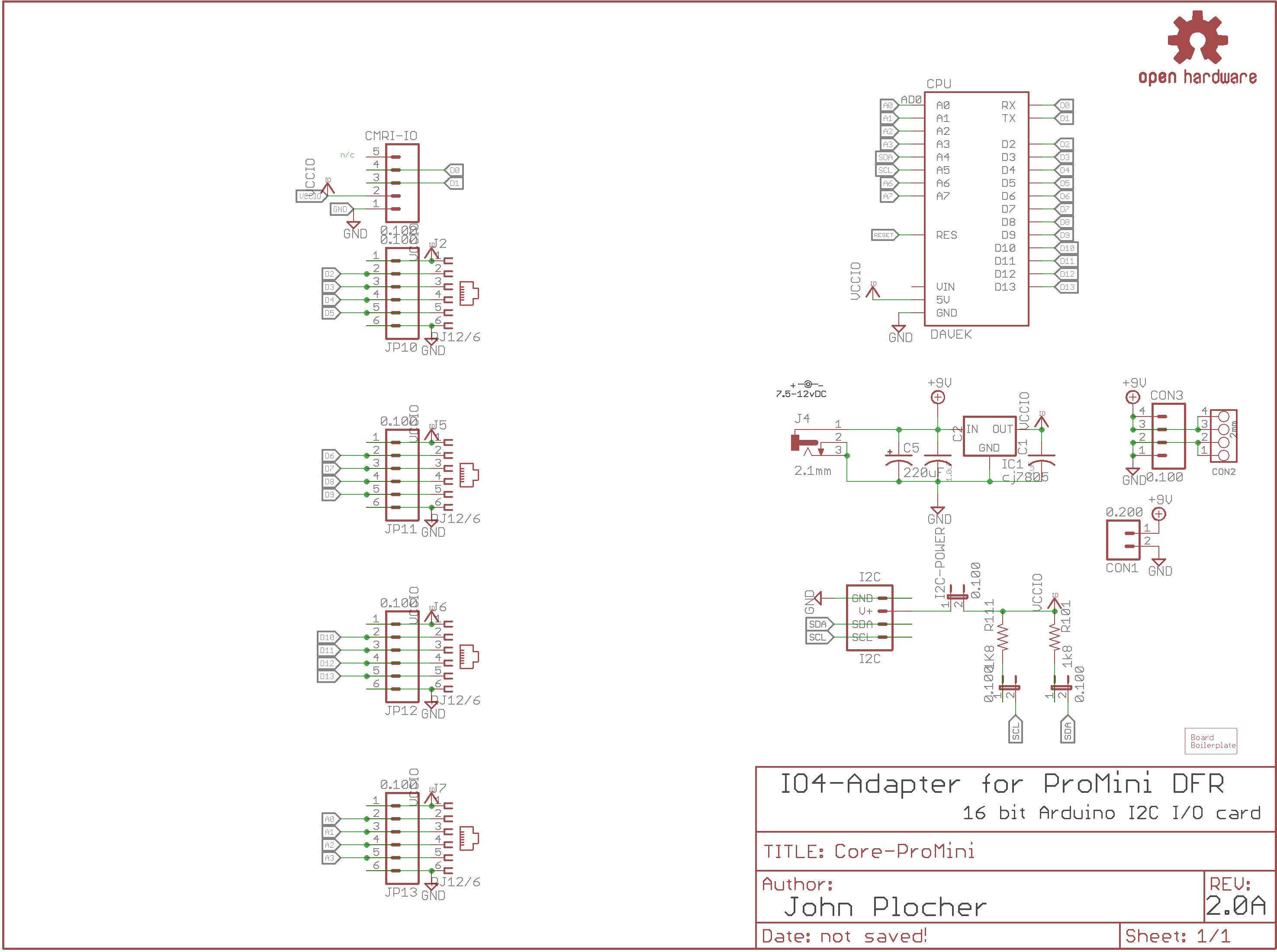

Schematic
Schematic

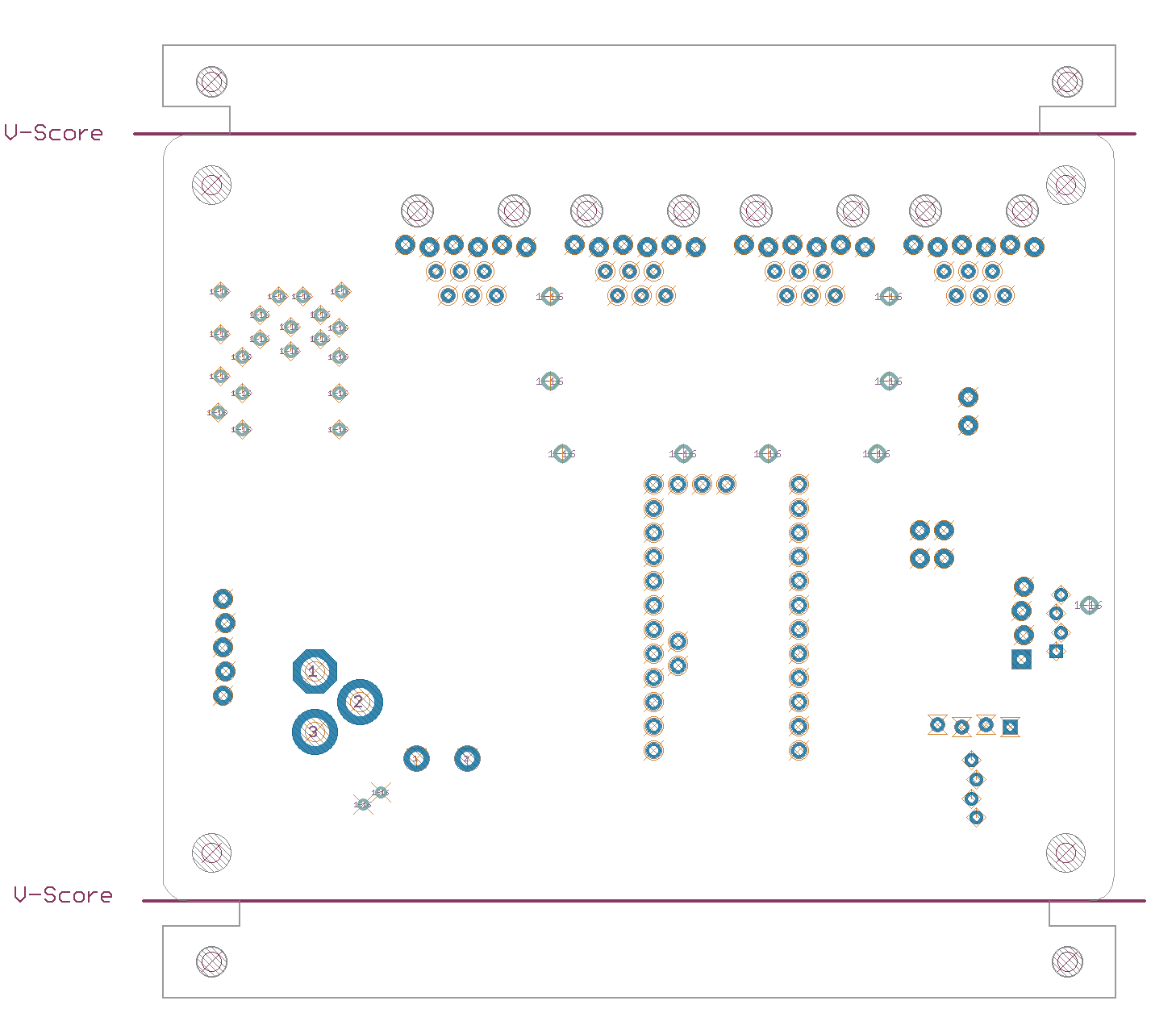

Bot Silk
Bot Silk

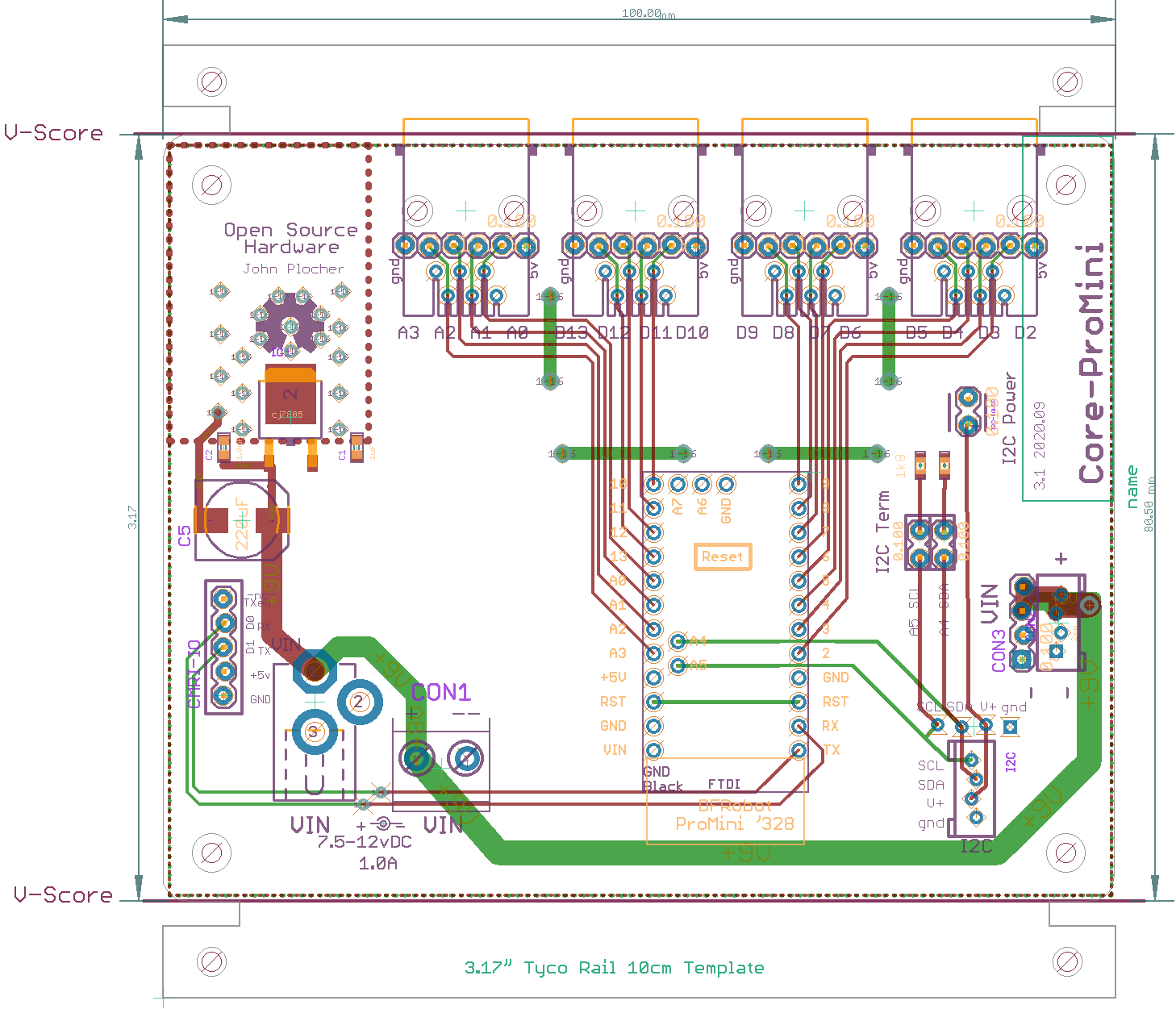

Board
Board

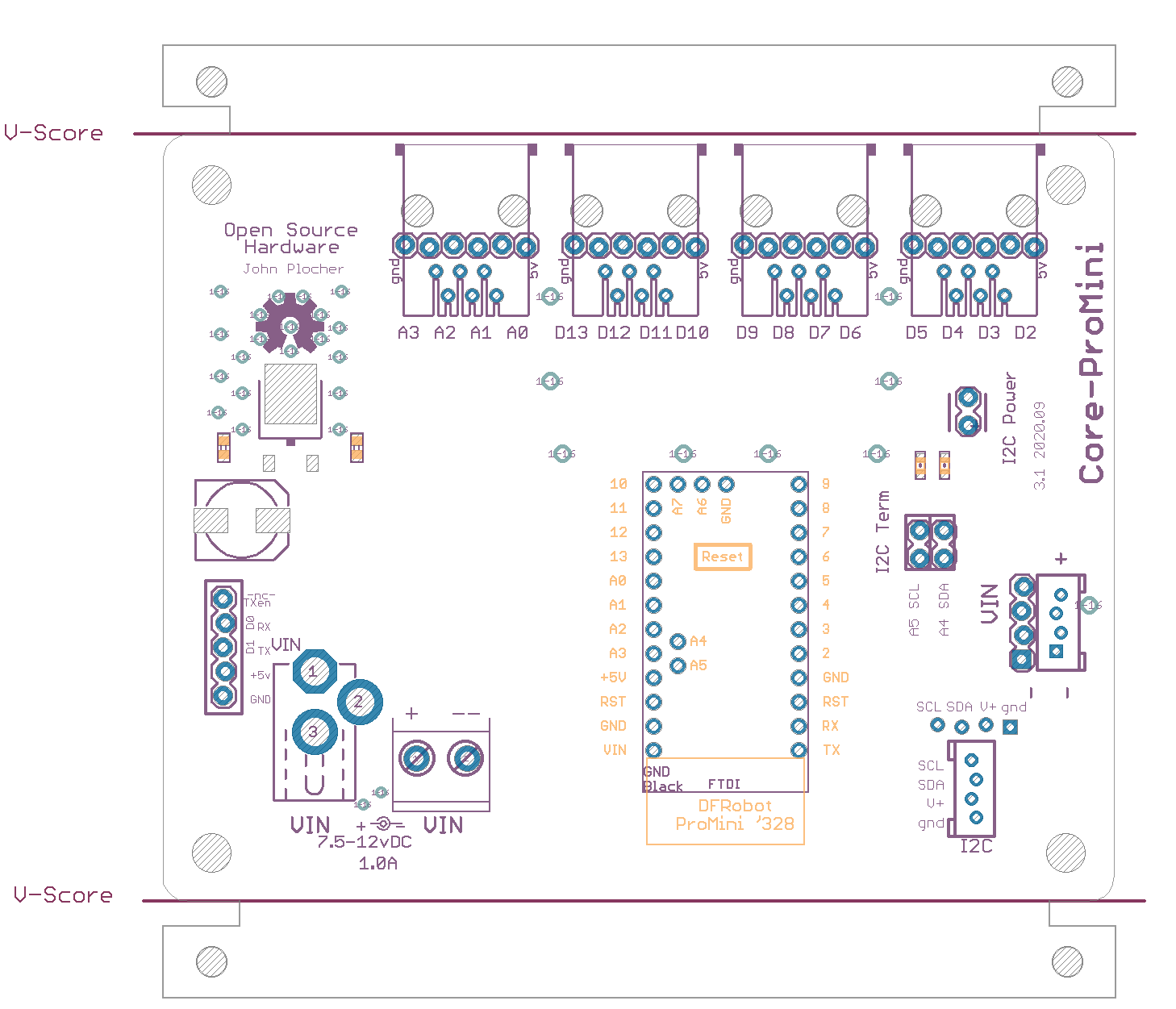

Top Silk
Top Silk

Download Core-ProMini.gerbers.zip - Gerber Fabrication files
Download Core-ProMini.parts - Parts List (spreadsheet data)



Core-ProMini.bom

Parts Value Package Quantity Library Type/Feeder
I2C-POWER, SCL, SDA 0.100 1X02_LOCK 3x SPCoast PTH
CON3 0.100 1X04_LOCK 1x SPCoast PTH
CMRI-IO 0.100 1X05-CMRI-IO 1x SPCoast PTH
JP10, JP11, JP12, JP13 0.100 1X06_LOCK 4x SPCoast PTH
CON1 0.200 MSTB2 1x SPCoast PTH
C2 1.0uF 0603-CAP 1x SPCoast 20
R101, R111 1K8 0603-RES 2x SPCoast NONE
C1 1uF 0603-CAP 1x SPCoast NONE
J4 2.1mm DCJ0202 1x SPCoast PTH
CON2 2mm 4P-2.0 1x SPCoast PTH
PWR 7.5-12vDC PWR_LABEL 1x SPCoast PTH
C5 220uF 0810-CAP 1x SPCoast NONE
BOARD BOARD BOARD-DINRAIL-3.17INX10CM 1x SPCoast PTH
IC1 cj7805 TO-252 1x SPCoast NONE
CPU DAVEK ARDUINO_PRO_MINI_DAVEK 1x SPCoast PTH
I2C I2C I2C-L 1x SPCoast PTH
OSH OSHW OSHW-LOGO-L 1x SparkFun PTH
J2, J5, J6, J7 RJ12/6 RJ25-PANEL 4x SPCoast PTH

Core-ProMini Version 2.0

First built: 2015-01

This design evolved from the Core-ArduinoShield sequence as it became obvious that the eBay ProMini clones were much cheaper than full sized Arduinos and their clones.

Until the Core Wemos D1 Mini and Core-ESP32 boards, this was my go-to building block for field units and other layout automation tasks.

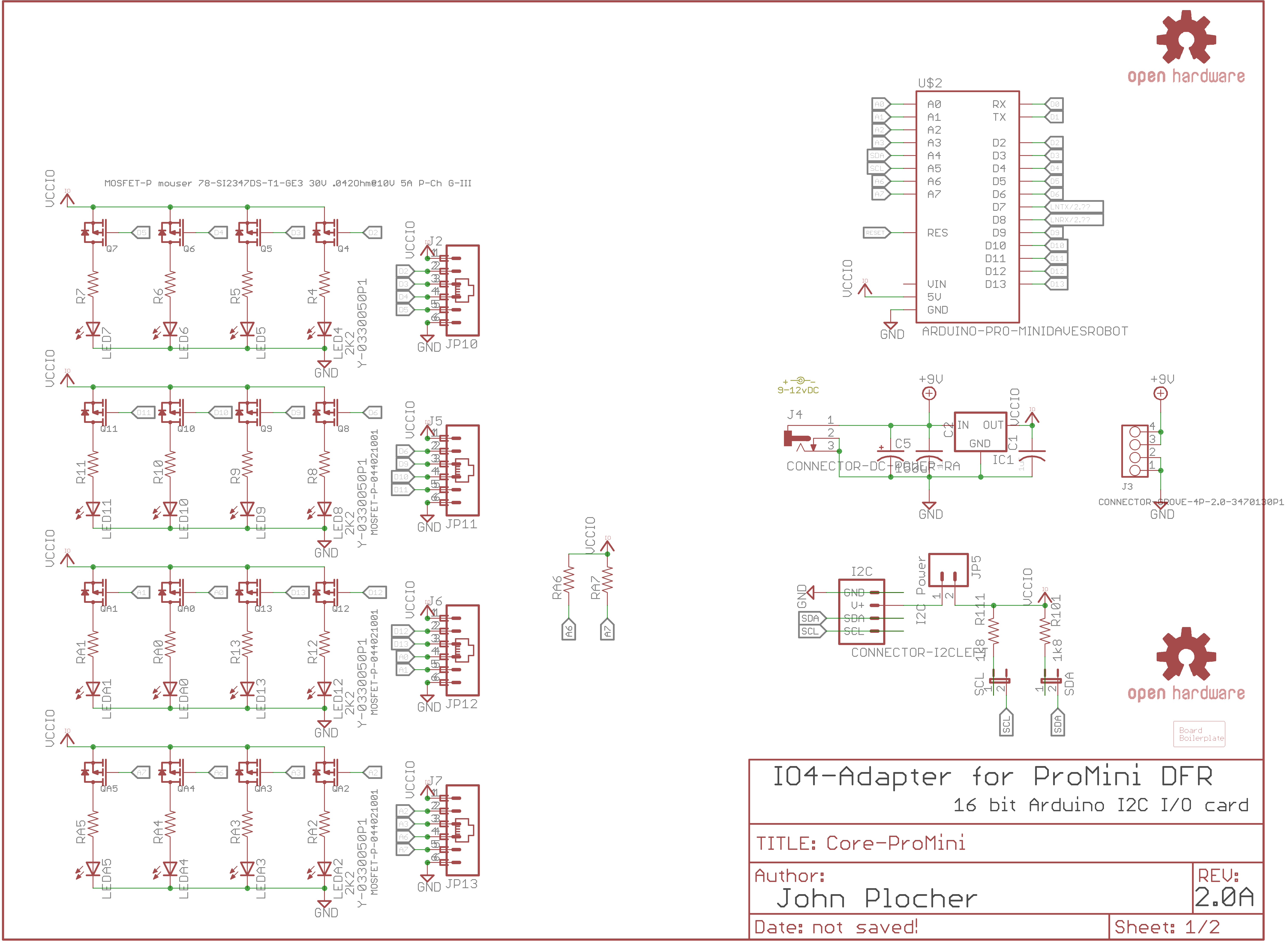

Schematic
Schematic

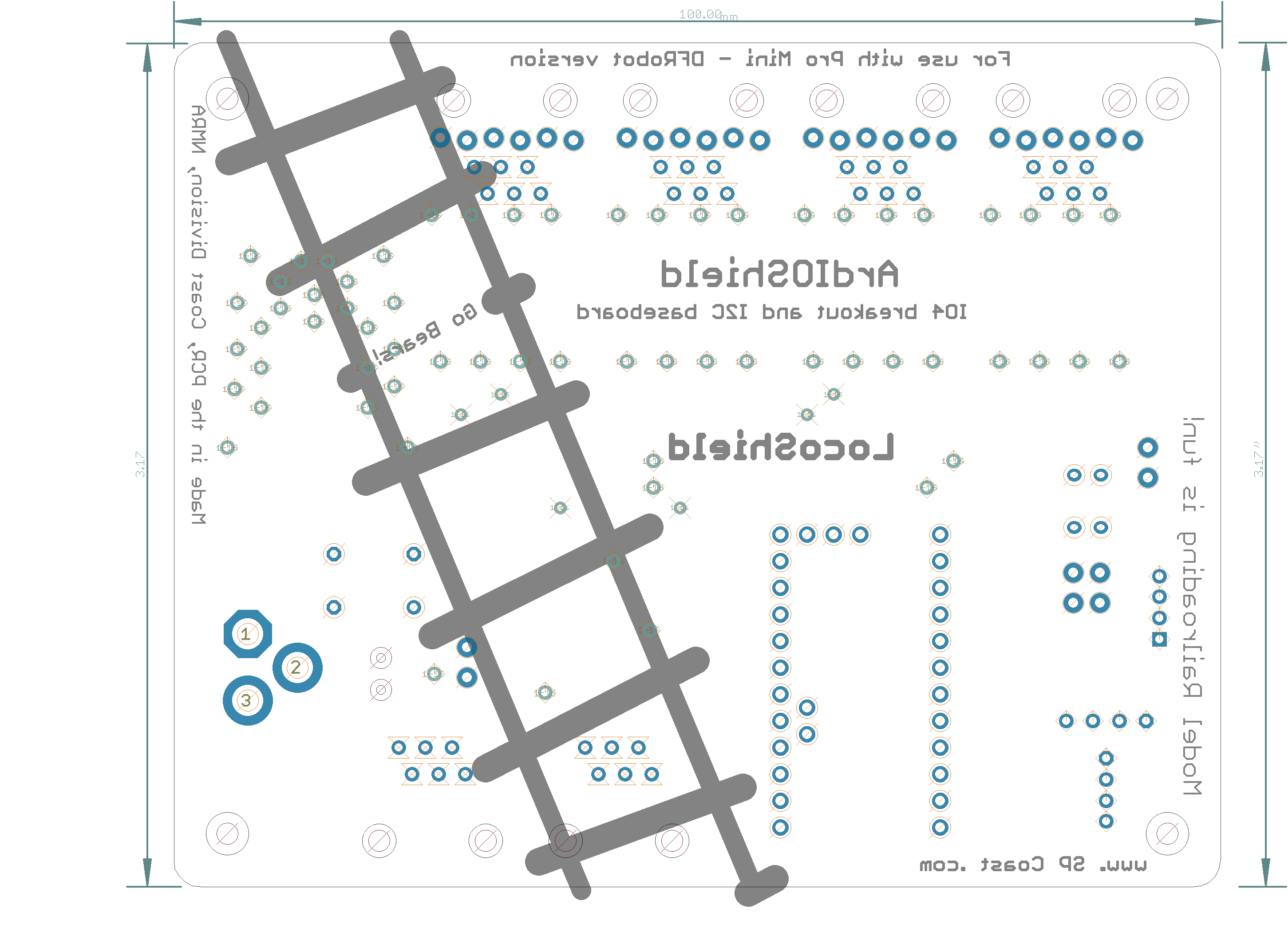

Bot Silk
Bot Silk

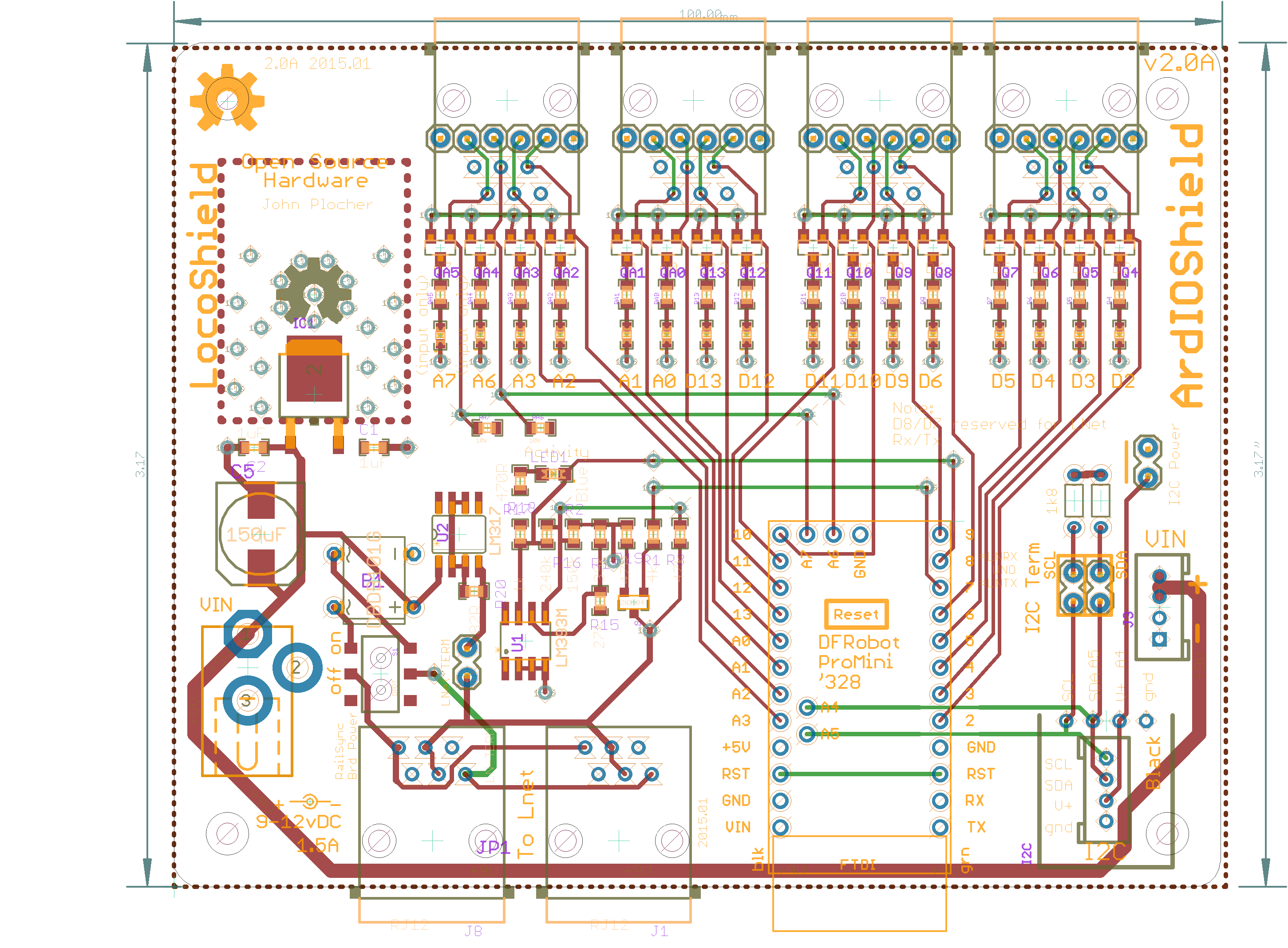

Board
Board

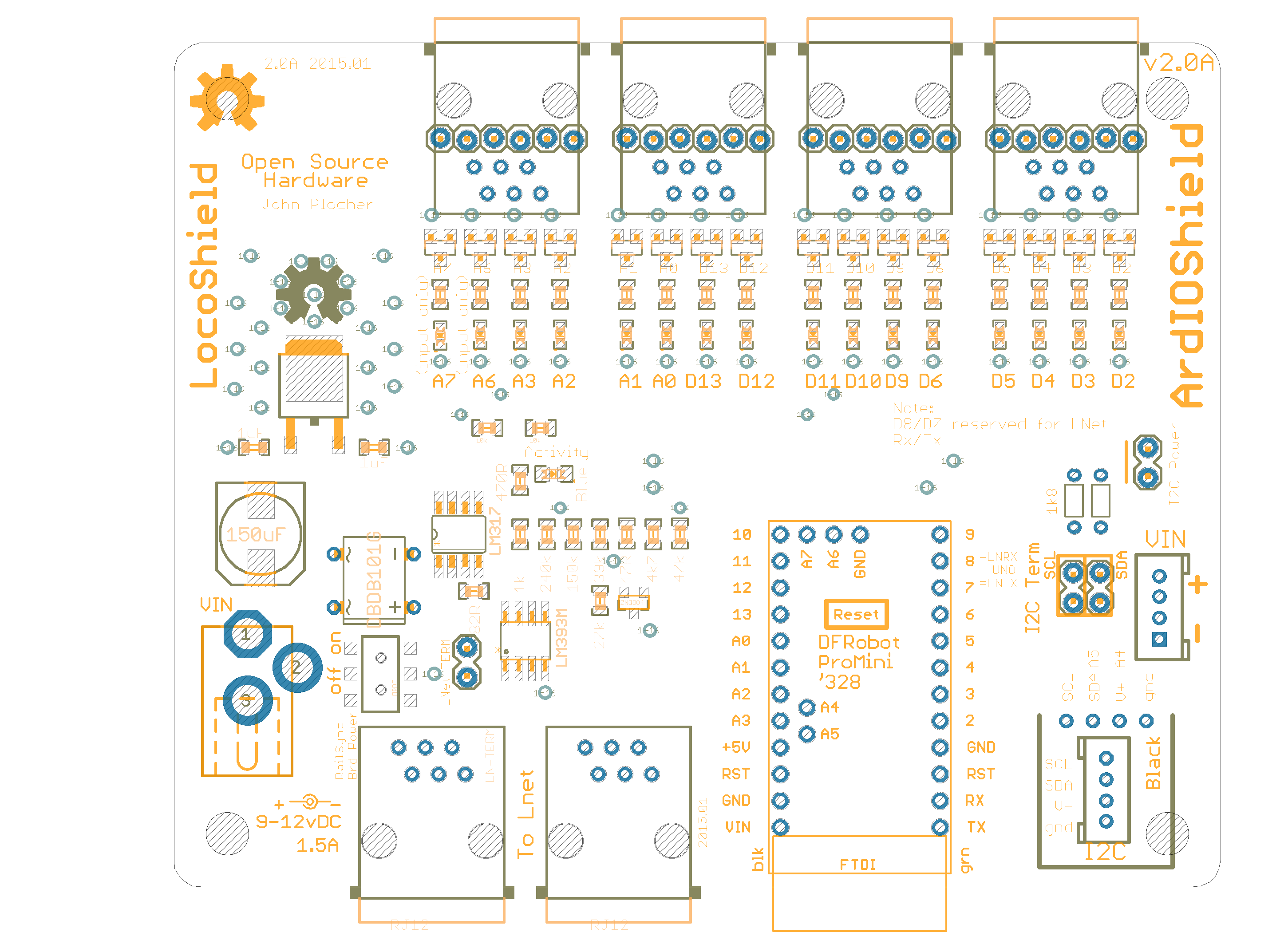

Top Silk
Top Silk

Download Core-ProMini - CHMT Component and feeder definitions
Download Core-ProMini.gerbers.zip - Gerber Fabrication files
Download Core-ProMini.parts - Parts List (spreadsheet data)



Core-ProMini.bom

Parts Value Package Quantity Library Type/Feeder
R101, R111 1k8 1/6W-RES 2x SPCoast PTH
R17 1k 0805-RES 1x SPCoast NONE
C1, C2 1uF 0805-CAP 2x SPCoast NONE
R4, R5, R6, R7, R8, R9, R10, R11, R12, R13, RA0, RA1, RA2, RA3, RA4, RA5 2K2 0805-RES 16x SPCoast 7
Q1 2N3904 SOT23-3 1x MCP NONE
R1 4k7 0805-RES 1x SPCoast 9
U$3 9-12vDC POWER_USAGE 1x SPCoast-minimal PTH
RA6, RA7 10k 0805-RES 2x SPCoast 11
R15 27k 0805-RES 1x SPCoast NONE
R14 39k 0805-RES 1x SPCoast NONE
R3 47k 0805-RES 1x SPCoast NONE
R19 47R 0805-RES 1x SPCoast NONE
R20 82R 0805-RES 1x SPCoast NONE
R2 150k 0805-RES 1x SPCoast NONE
C5 150uF 0810-CAP 1x SPCoast NONE
R16 240k 0805-RES 1x SPCoast NONE
R18 470R 0805-RES 1x SPCoast NONE
JP10, JP11, JP12, JP13   1X06_LOCK 4x SparkFun-Connectors PTH
J2, J5, J6, J7   RJ11-NO_SHIELD 4x SPCoast PTH
IC1   TO252 1x SPCoast NONE
U$2 ARDUINO-PRO-MINIDAVESROBOT ARDUINO_PRO_MINI_DAVEK 1x SPCoast PTH
LED1 Blue 0805-LED 1x SPCoast NONE
U$4 BOARD80X100 BOARD-DINRAIL-3.17IN 1x SPCoast PTH
J4 CONNECTOR-DC-POWER-RA DCJ0202 1x SPCoast PTH
J3 CONNECTOR-GROVE-4P-2.0-3470130P1 4P-2.0 1x SPCoast PTH
I2C CONNECTOR-I2CLEFT I2C-L 1x SPCoast PTH
B1 DBDB101G DB 1x rectifier PTH
LOGO1 DOC-OSHW-LOGOL OSHW-LOGO-L 1x SPCoast PTH
S1 DPDT AYZ0202 1x SPCoast NONE
JP5 I2C Power 1X02_LOCK 1x SparkFun-Connectors PTH
U2 LM317 SO08 1x MCP NONE
U1 LM393M SO08@1 1x MCP NONE
JP1 LN-TERM 1X02_LOCK 1x MCP PTH
Q4 MOSFET-P mouser 78-SI2347DS-T1-GE3 30V .042Ohm@10V 5A P-Ch G-III SOT23 1x SPCoast NONE
Q5, Q6, Q7, Q8, Q9, Q10, Q11, Q12, Q13, QA0, QA1, QA2, QA3, QA4, QA5 MOSFET-P-044021001 SOT23 15x SPCoast NONE
U$1 OSHW-LOGOL OSHW-LOGO-L 1x SparkFun PTH
J1, J8 RJ12 RJ25 2x SPCoast PTH
JP3 SCL 1X02_LOCK 1x SPCoast PTH
JP2 SDA 1X02_LOCK 1x SPCoast PTH
LED4, LED5, LED6, LED7, LED8, LED9, LED10, LED11, LED12, LED13, LEDA0, LEDA1, LEDA2, LEDA3, LEDA4, LEDA5 Y-0330050P1 0603-LED 16x SPCoast NONE

This technical documentation is licensed under the CERN Open Hardware Licence v1.2
