Core-Locobuffer
Standalone "locobuffer-style" Loconet interface with I2C expandability using the USB capability of an Arduino Pro Micro
Developed in conjunction with Alex Shepherd
|

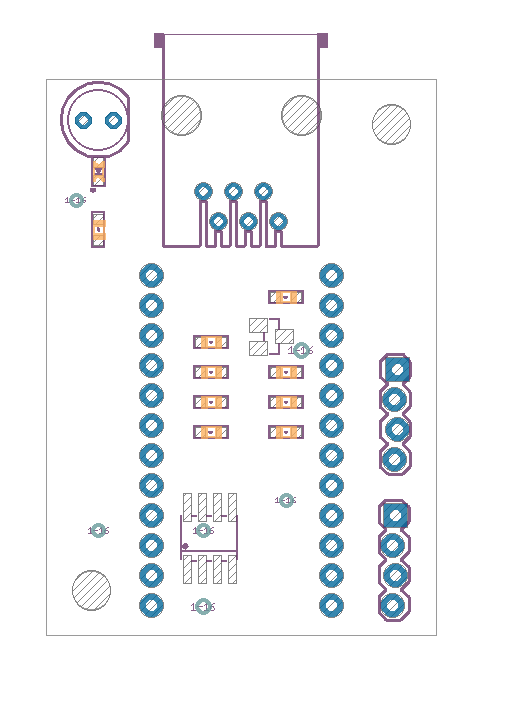

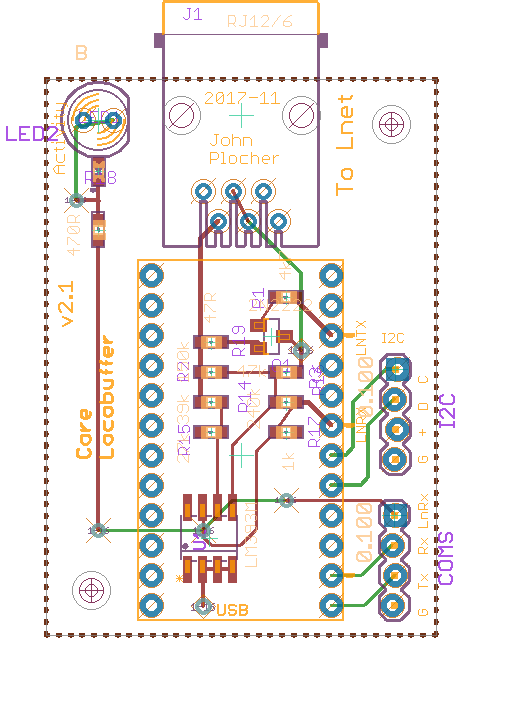

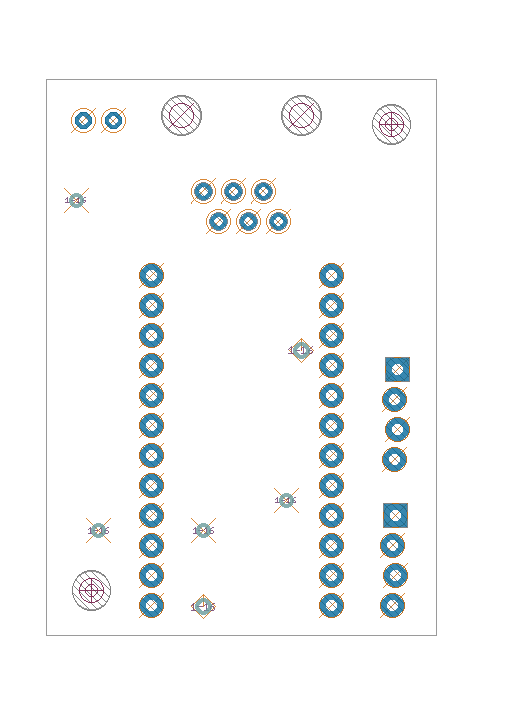

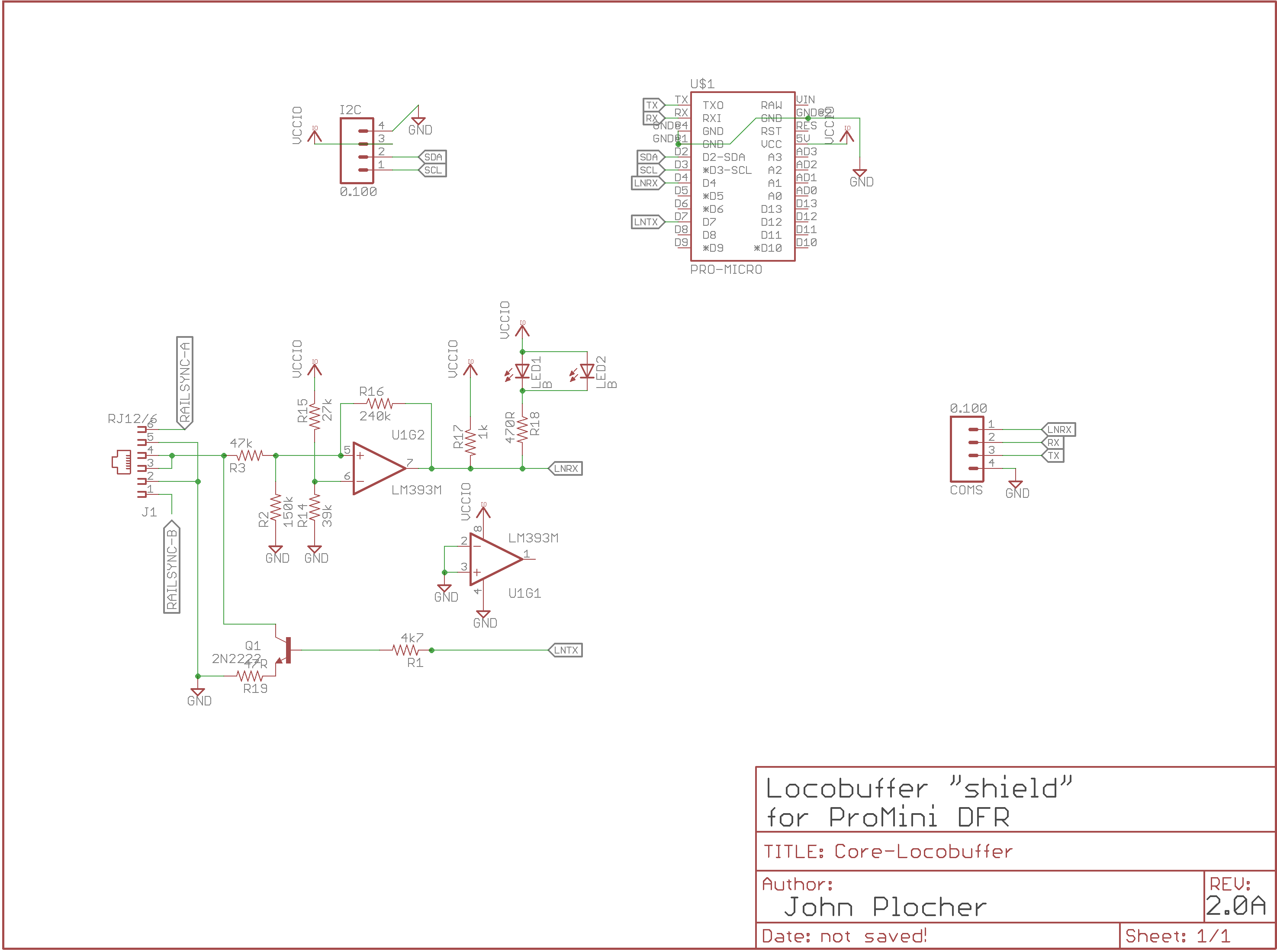

Core-Locobuffer Version 2.1
First built: 2017.11
- 2.1 - initial published version after collaboration
|
|
|
Download Core-Locobuffer.parts - Parts List (spreadsheet data)
Core-Locobuffer.bom
| Parts | Value | Package | Quantity | Library | Type/Feeder |
|---|---|---|---|---|---|
| COMS, I2C | 0.100 | 1X04_LOCK | 2x | SPCoast | PTH |
| R17 | 1k | 0603-RES | 1x | SPCoast | NONE |
| Q1 | 2N2222 | SOT23 | 1x | SPCoast | 14 |
| R1 | 4k7 | 0603-RES | 1x | SPCoast | NONE |
| R15 | 27k | 0603-RES | 1x | SPCoast | NONE |
| R14 | 39k | 0603-RES | 1x | SPCoast | NONE |
| R3 | 47k | 0603-RES | 1x | SPCoast | NONE |
| R19 | 47R | 0603-RES | 1x | SPCoast | NONE |
| R2 | 150k | 0603-RES | 1x | SPCoast | NONE |
| R16 | 240k | 0603-RES | 1x | SPCoast | NONE |
| R18 | 470R | 0603-RES | 1x | SPCoast | 40 |
| LED1 | B | 0603-LED | 1x | SPCoast | 4 |
| LED2 | B | LED5MM | 1x | SPCoast | PTH |
| U1 | LM393M | SO08 | 1x | SPCoast | NONE |
| U$1 | PRO-MICRO | ARDUINO-PRO-MICRO-NOSILK | 1x | SPCoast | PTH |
| J1 | RJ12/6 | RJ25-PANEL | 1x | SPCoast | PTH |
This technical documentation is licensed under the CERN Open Hardware Licence v1.2
