CP_Watsonville_Mid-Model

Fork project on GitHub

Model Board for CP Watsonville Middle yard - Maintainer Service Panel

Prototype for debugging and remote feedback

CP_Watsonville_Mid-Model.top.brd
CP_Watsonville_Mid-Model.top.brd





CP_Watsonville_Mid-Model Version 1.0

First built: 2020.11

  • 1.0 - initial version
    • </ul

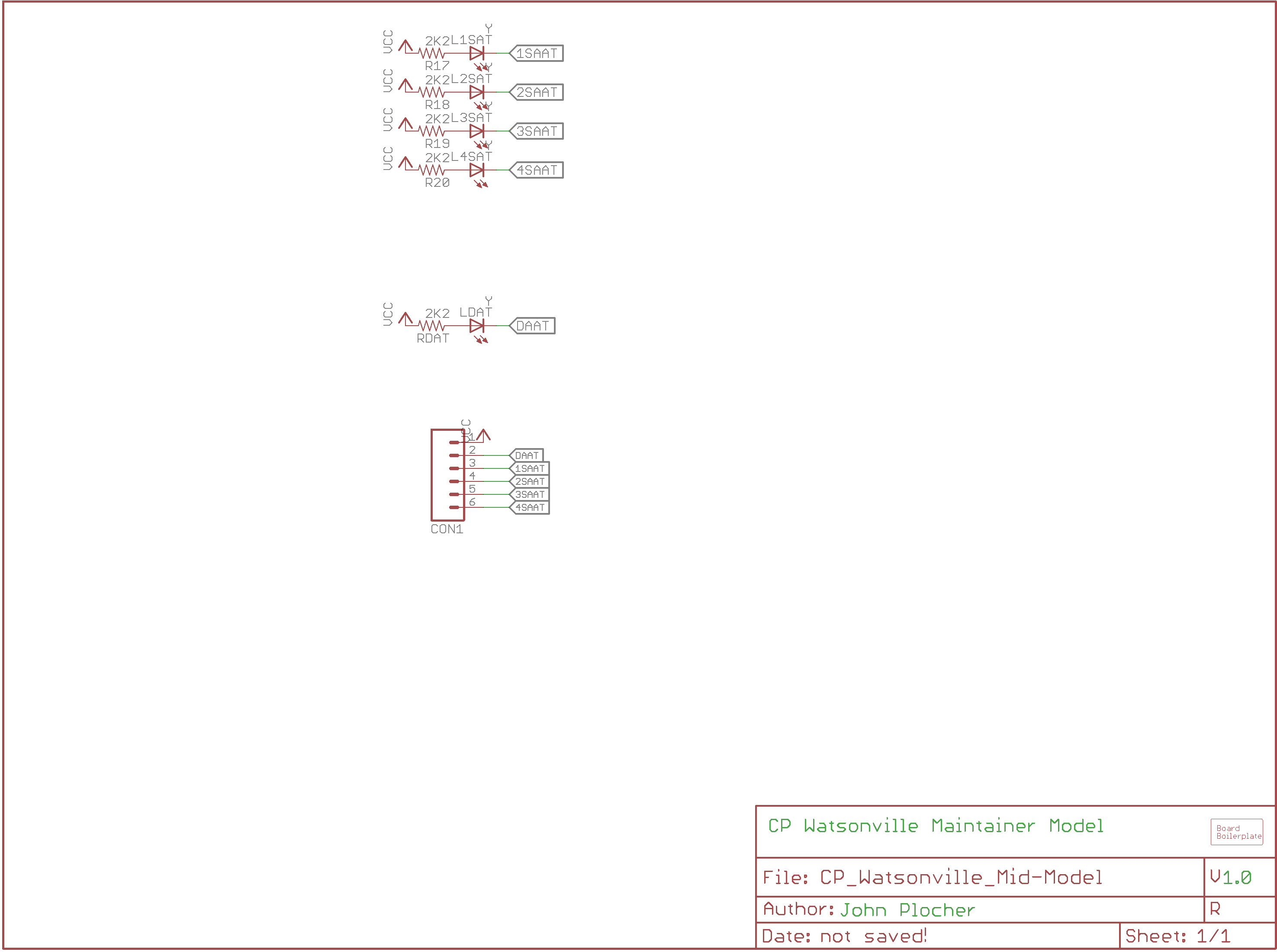

Schematic
Schematic

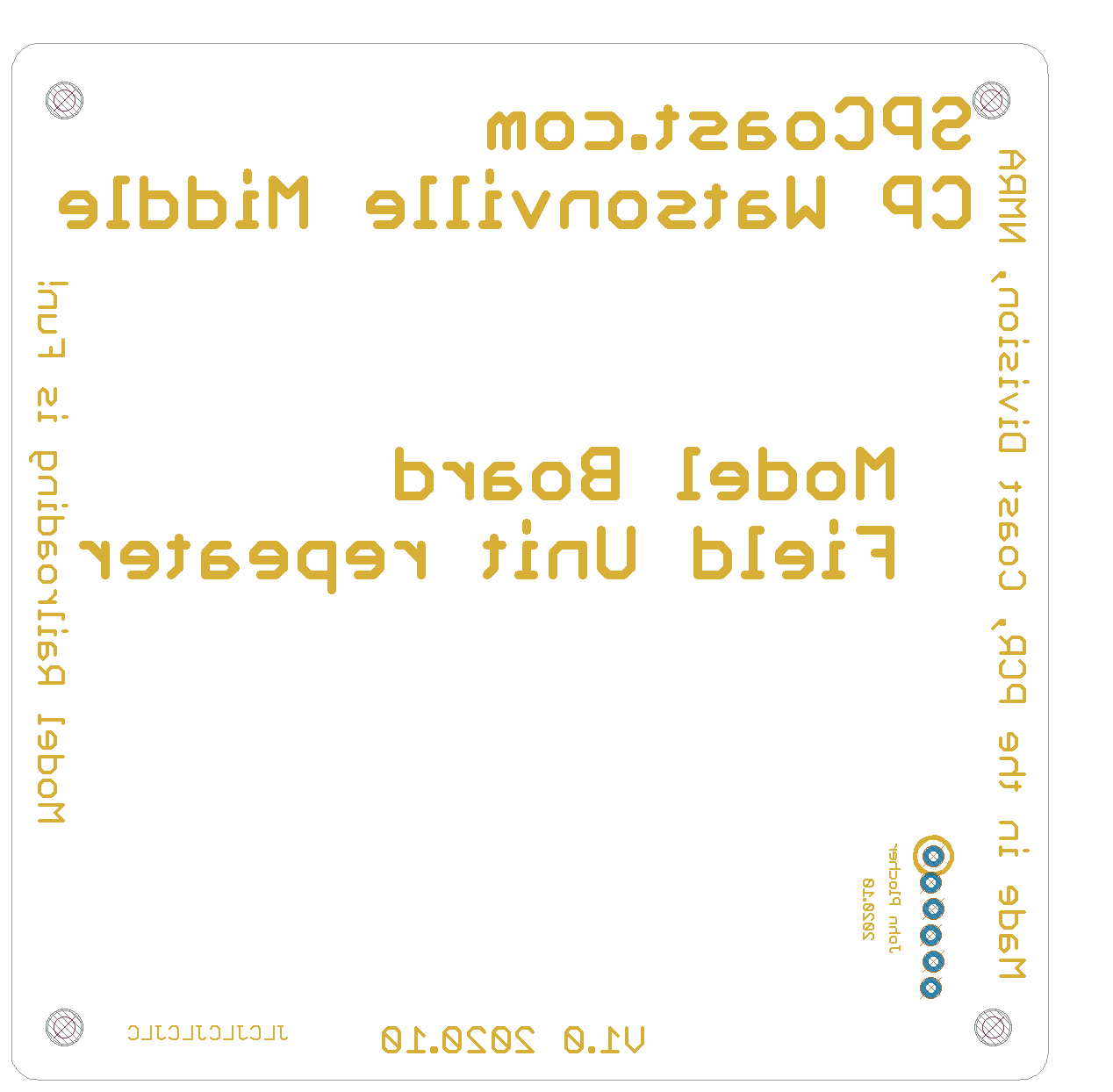

Bot Silk
Bot Silk

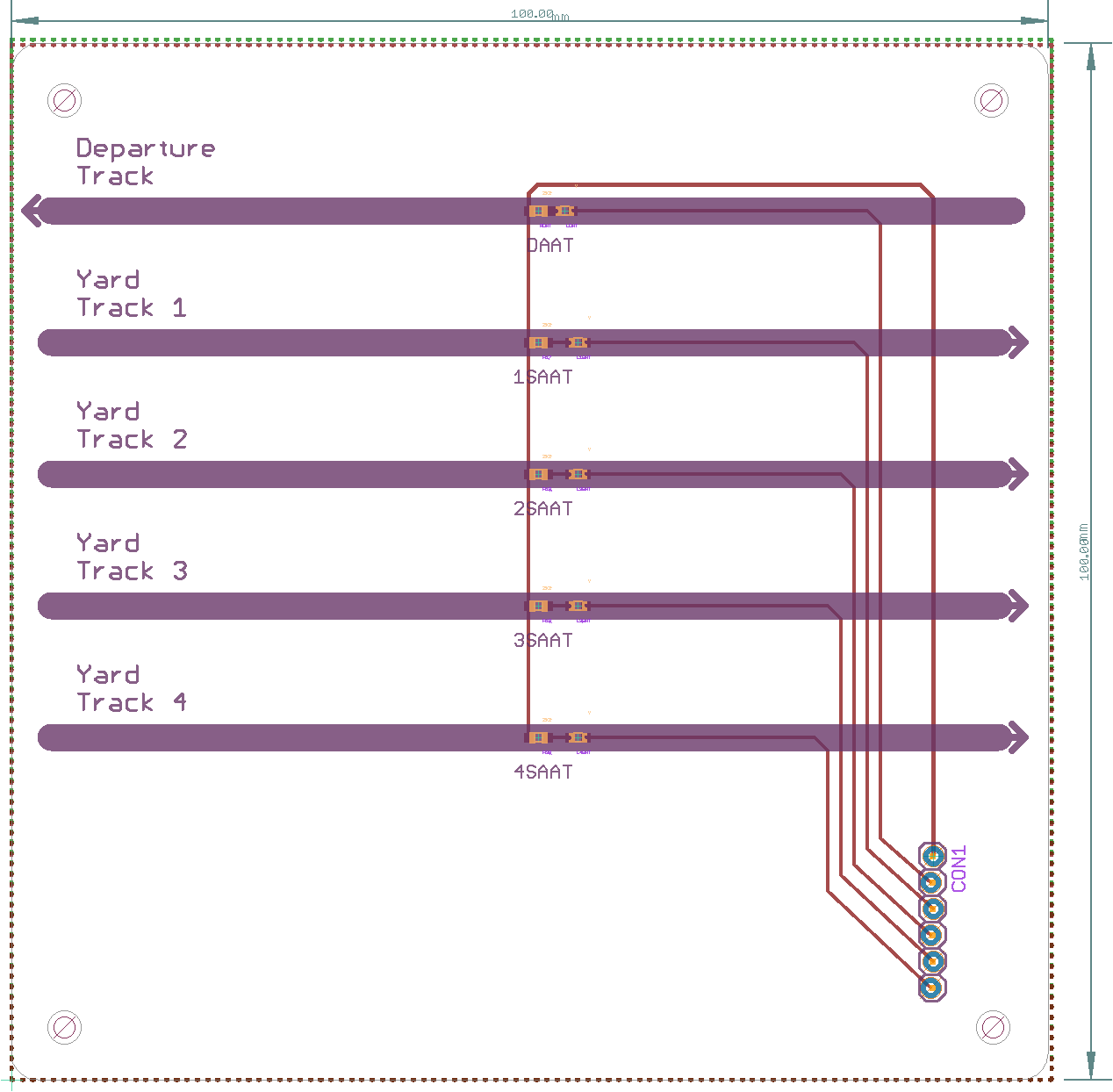

Board
Board

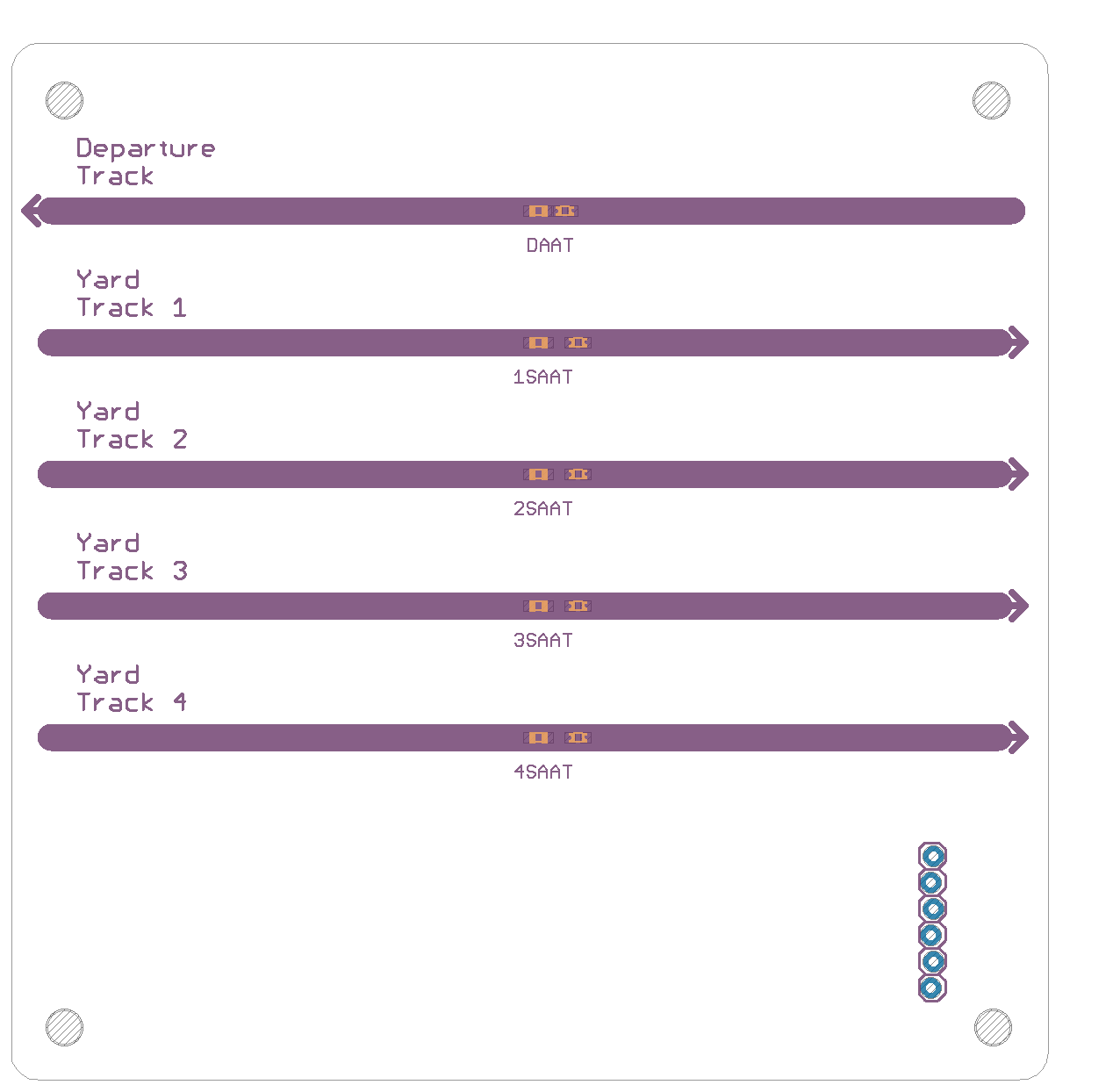

Top Silk
Top Silk

Download CP_Watsonville_Mid-Model.SMD-parts - Parts List (spreadsheet data)
Download CP_Watsonville_Mid-Model.gerbers.zip - Gerber Fabrication files
Download CP_Watsonville_Mid-Model.parts - Parts List (spreadsheet data)



CP_Watsonville_Mid-Model.bom

Parts Value Package Quantity Library Type/Feeder
R17, R18, R19, R20, RDAT 2K2 0603-RES 5x SPCoast 42
CON1   1X06_LOCK 1x SPCoast PTH
BOARD1   BOARD-SEEED10X10 1x SPCoast PTH
L1SAT, L2SAT, L3SAT, L4SAT, LDAT Y 0603-LED 5x SPCoast 2

This technical documentation is licensed under the CERN Open Hardware Licence v1.2

Tags: eagle SPCoast
