RJ45/8 breakout board, for driving signal heads from IOB-Signal

Adapter-RJ45-SignalHead-Graphic
Adapter-RJ45-SignalHead-Graphic



Download Adapter-RJ45-SignalHead_array.scr - Eagle SCRipt
Download PanelTemplate.brd - Eagle PCB file

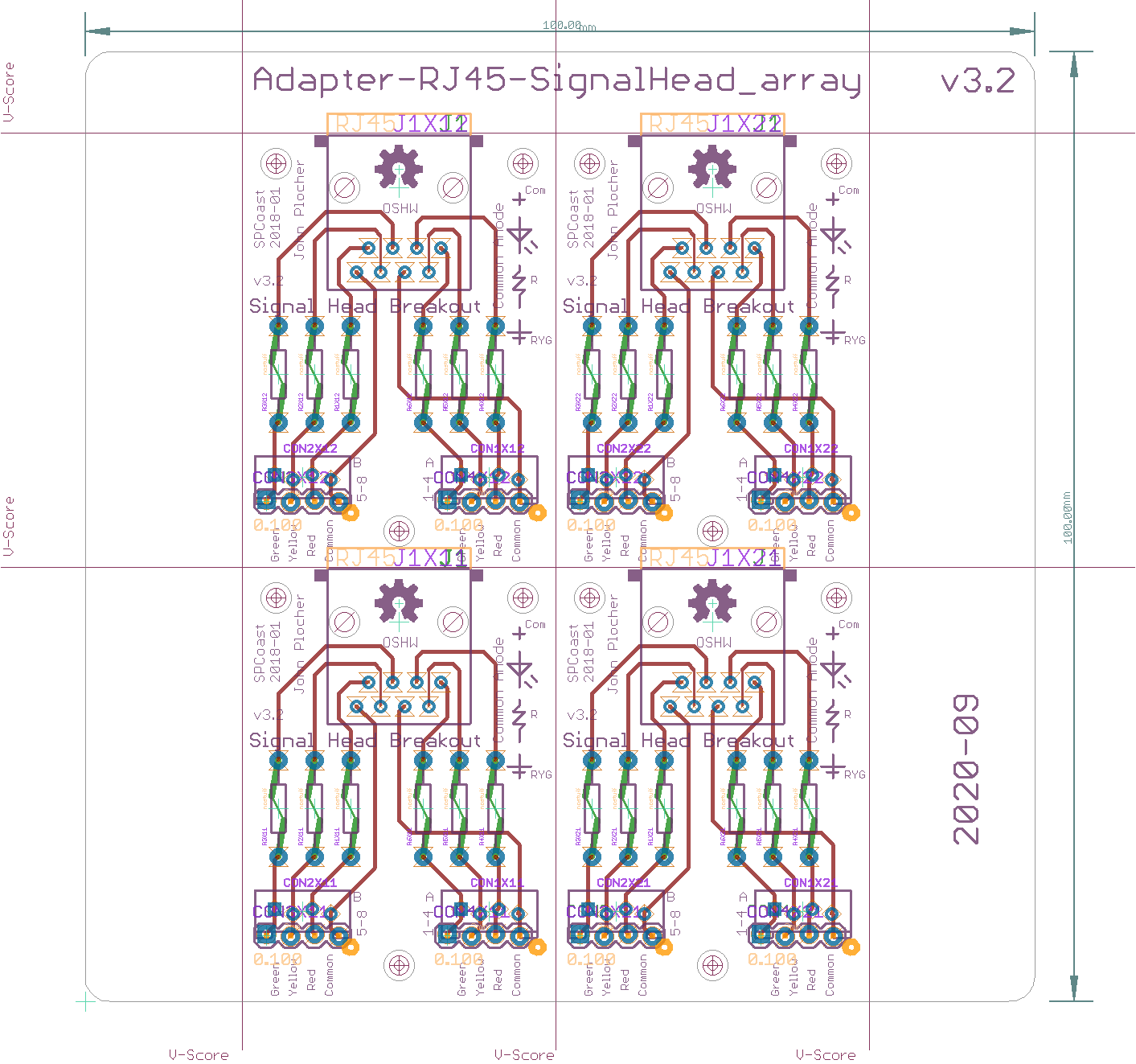

Adapter-RJ45-SignalHead Version 3.2

First built: 2020-09

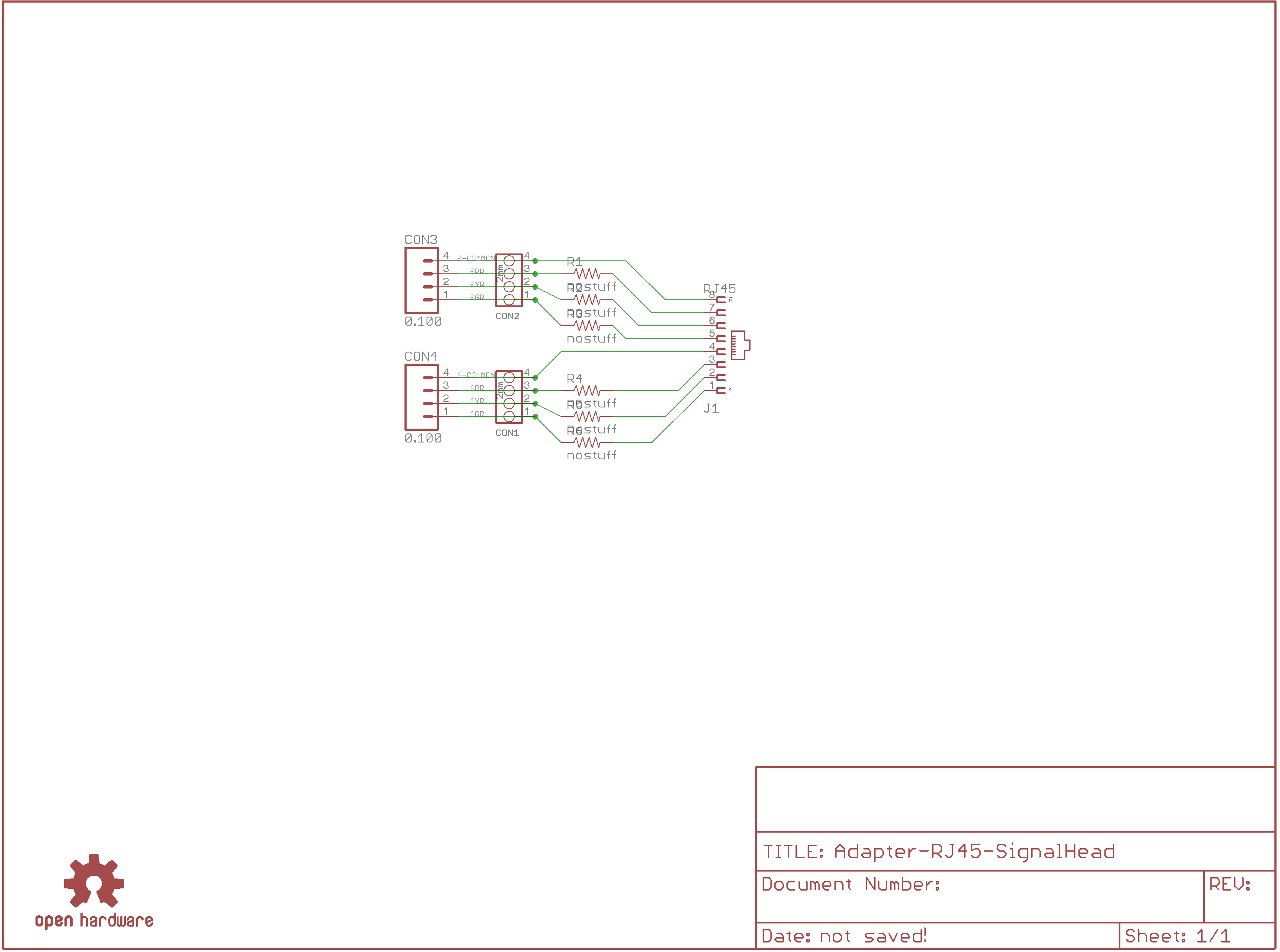

Schematic
Schematic

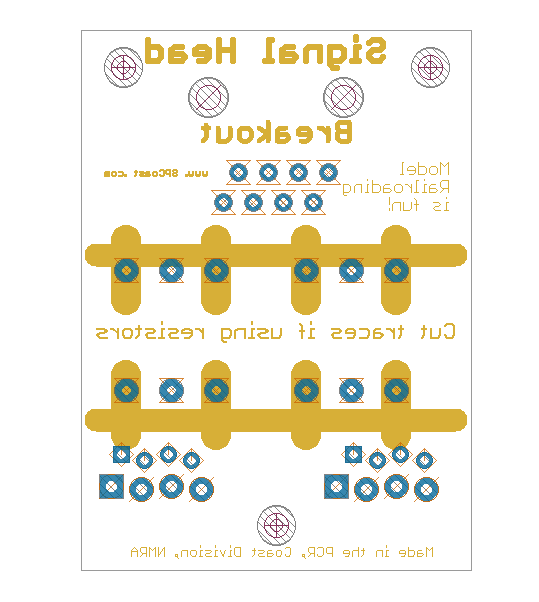

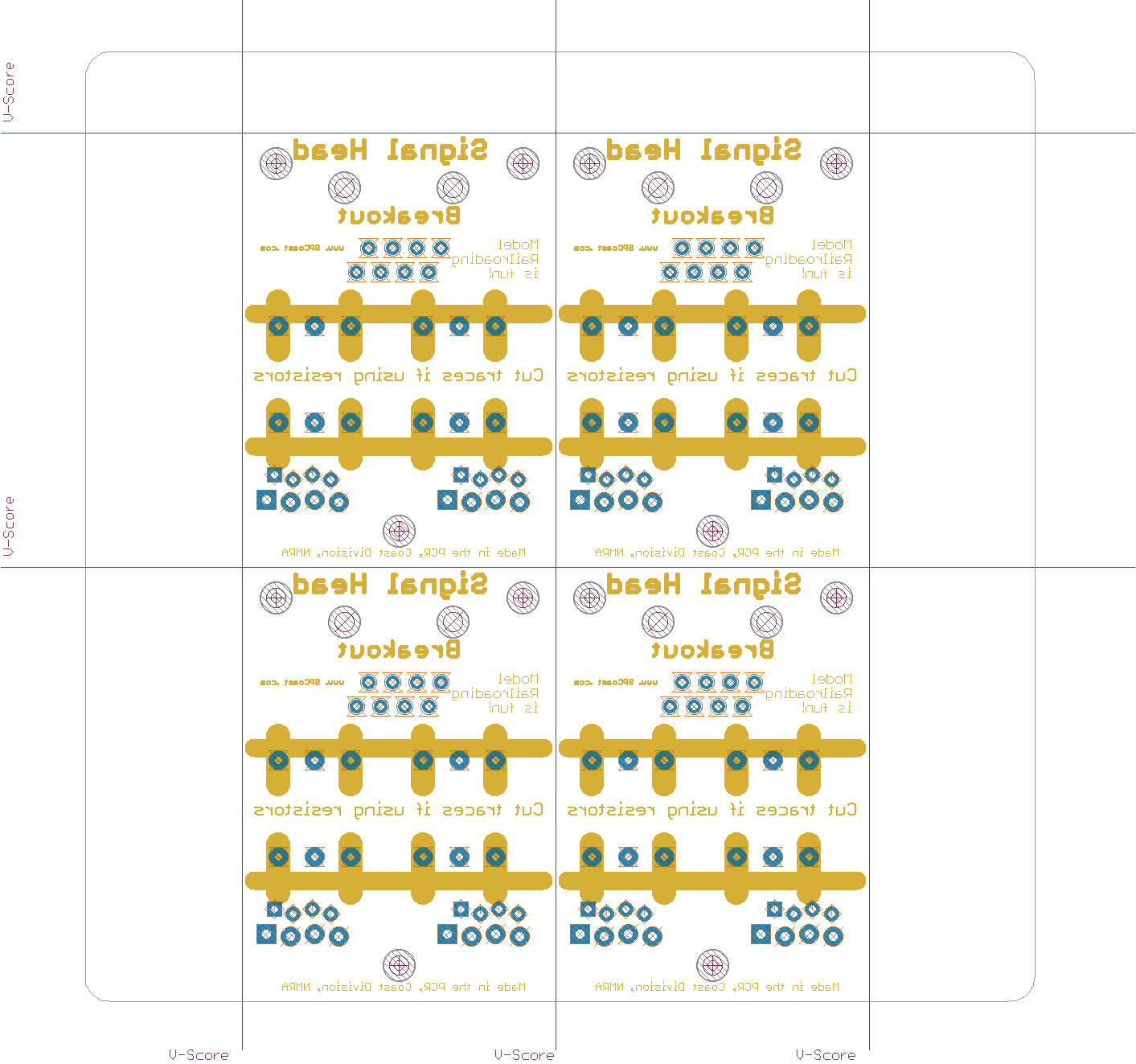

Bot Silk
Bot Silk

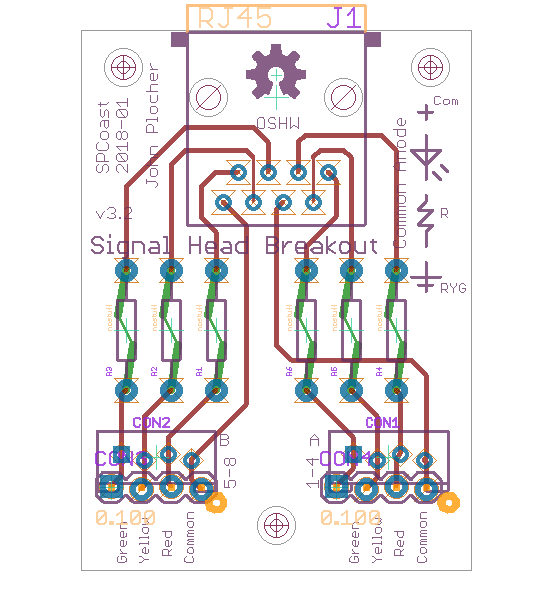

Board
Board

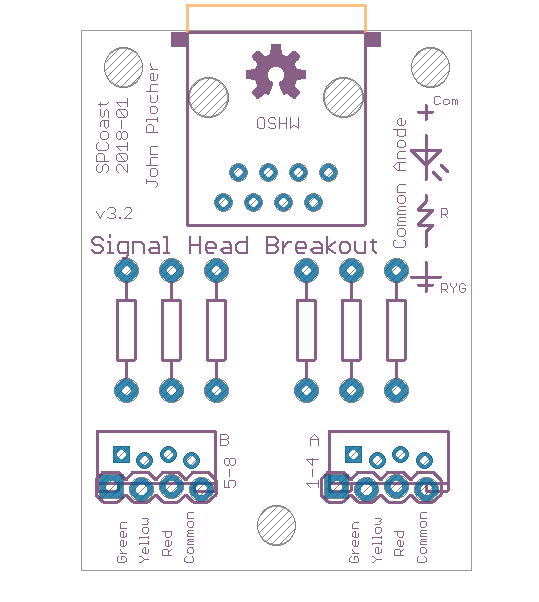

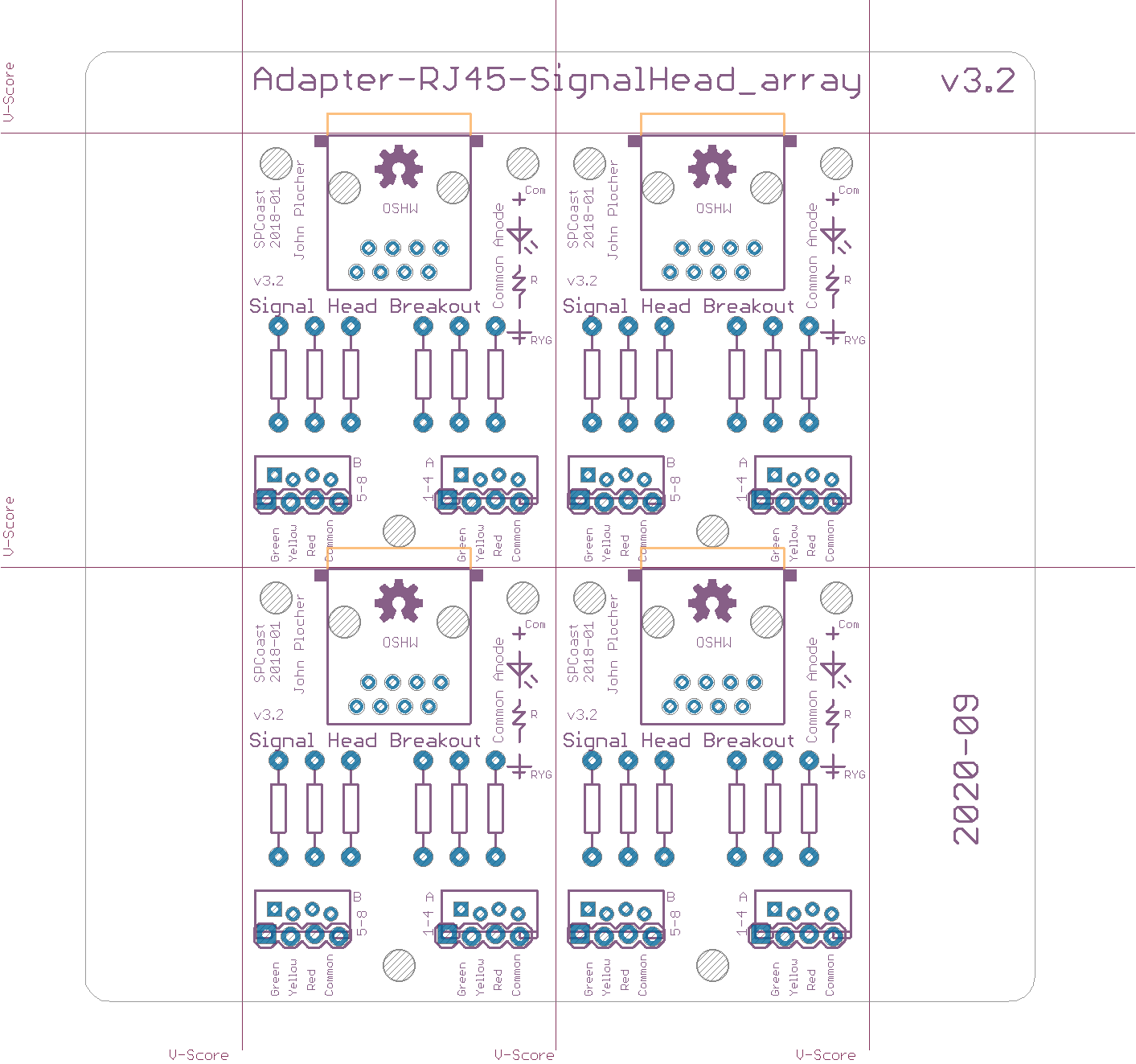

Top Silk
Top Silk
Bot Silk
Bot Silk
Board
Board
Top Silk
Top Silk

Download Adapter-RJ45-SignalHead.gerbers.zip - Gerber Fabrication files
Download Adapter-RJ45-SignalHead.parts - Parts List (spreadsheet data)
Download Adapter-RJ45-SignalHead_array.gerbers.zip - Gerber Fabrication files
Download Adapter-RJ45-SignalHead_array.parts - Parts List (spreadsheet data)



Adapter-RJ45-SignalHead.bom

Parts Value Package Quantity Library Type/Feeder
CON3, CON4 0.100 1X04_LOCK 2x SPCoast PTH
CON1, CON2 2mm 4P-2.0 2x SPCoast PTH
R1, R2, R3, R4, R5, R6 nostuff CUT-R 6x SPCoast PTH
U$1 OSHW OSHW-LOGO-M 1x SPCoast PTH
J1 RJ45 RJ45-NO-SHIELD 1x SPCoast PTH

Adapter-RJ45-SignalHead_array.bom

Parts Value Package Quantity Library Type/Feeder
CON3X11, CON3X12, CON3X21, CON3X22, CON4X11, CON4X12, CON4X21, CON4X22 0.100 1X04_LOCK 8x SPCoast PTH
CON1X11, CON1X12, CON1X21, CON1X22, CON2X11, CON2X12, CON2X21, CON2X22 2mm 4P-2.0 8x SPCoast PTH
U$1X1 BOARD BOARD-SEEED10X10-NOHOLES 1x SPCoast PTH
R1X11, R1X12, R1X21, R1X22, R2X11, R2X12, R2X21, R2X22, R3X11, R3X12, R3X21, R3X22, R4X11, R4X12, R4X21, R4X22, R5X11, R5X12, R5X21, R5X22, R6X11, R6X12, R6X21, R6X22 nostuff CUT-R 24x SPCoast PTH
U$1X11, U$1X12, U$1X21, U$1X22 OSHW OSHW-LOGO-M 4x SPCoast PTH
J1X11, J1X12, J1X21, J1X22 RJ45 RJ45-NO-SHIELD 4x SPCoast PTH

Adapter-RJ45-SignalHead Version 3.1

First built: 2018-01

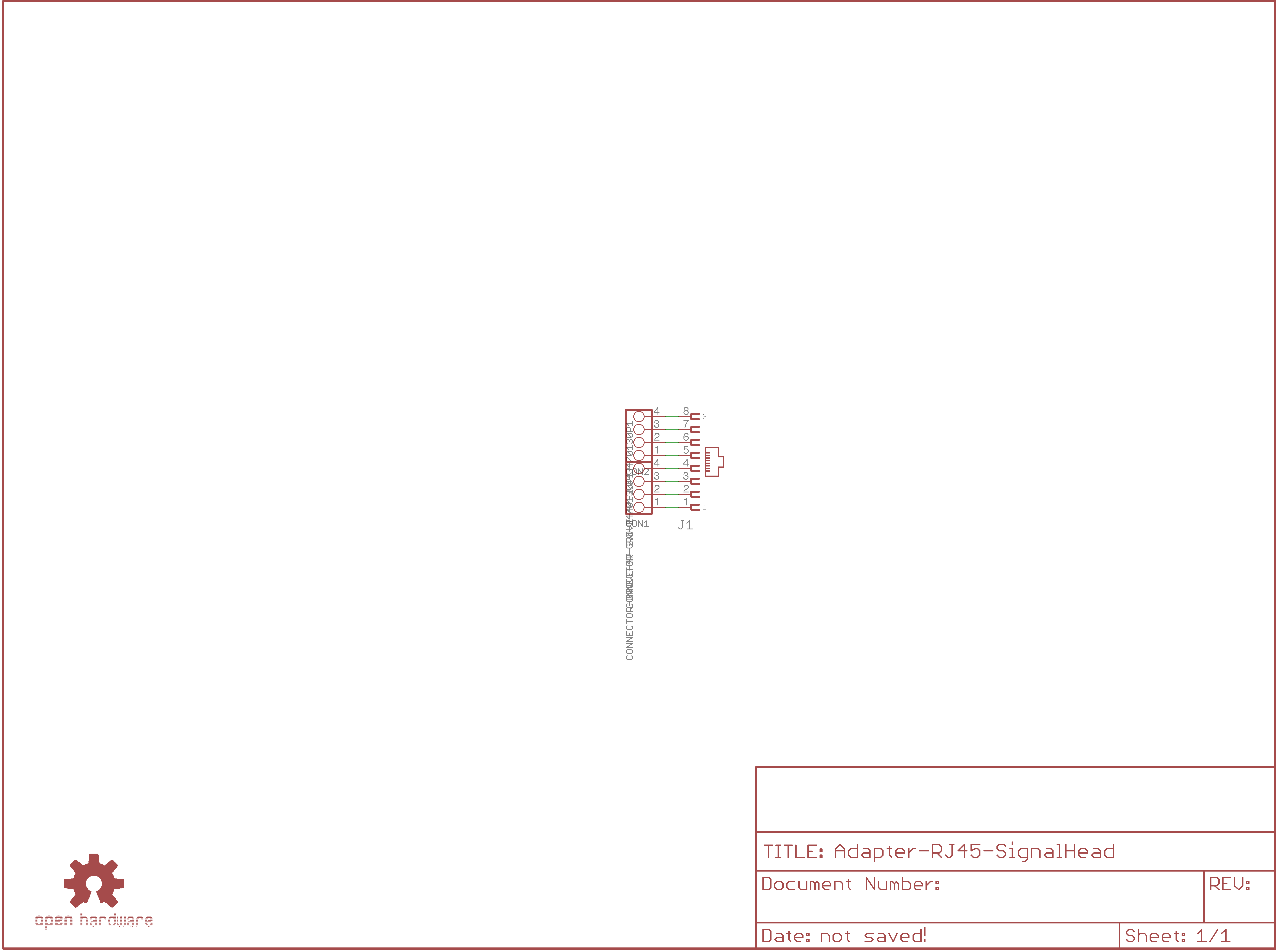

Schematic
Schematic

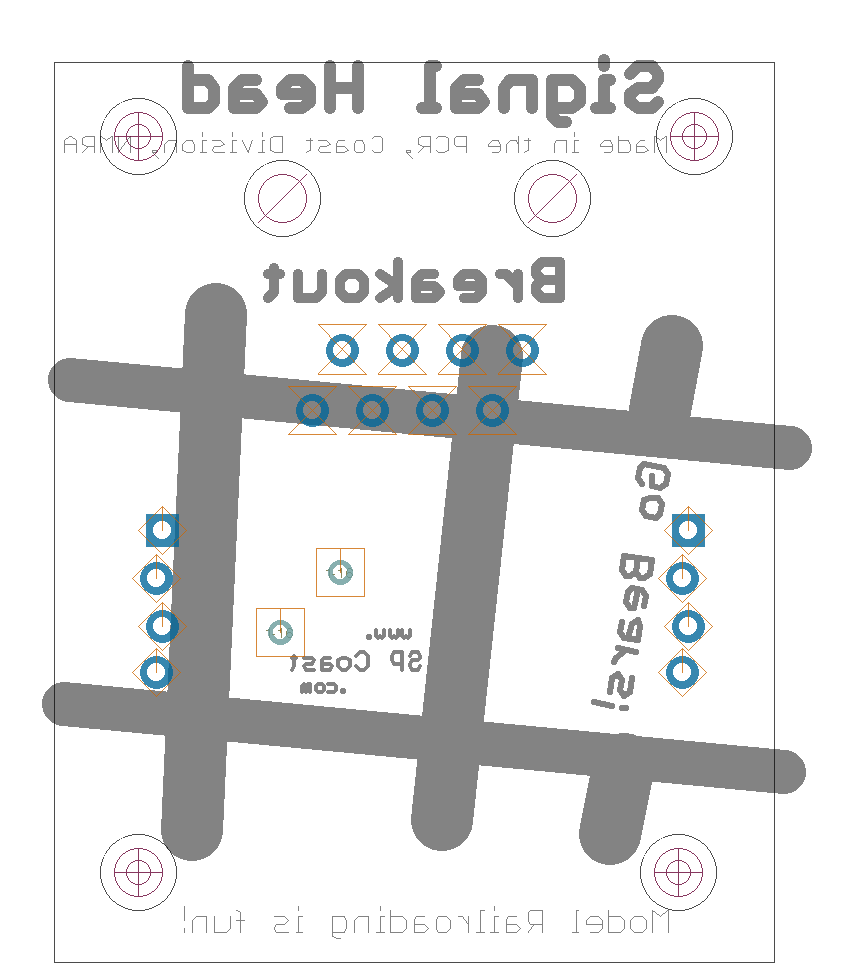

Bot Silk
Bot Silk

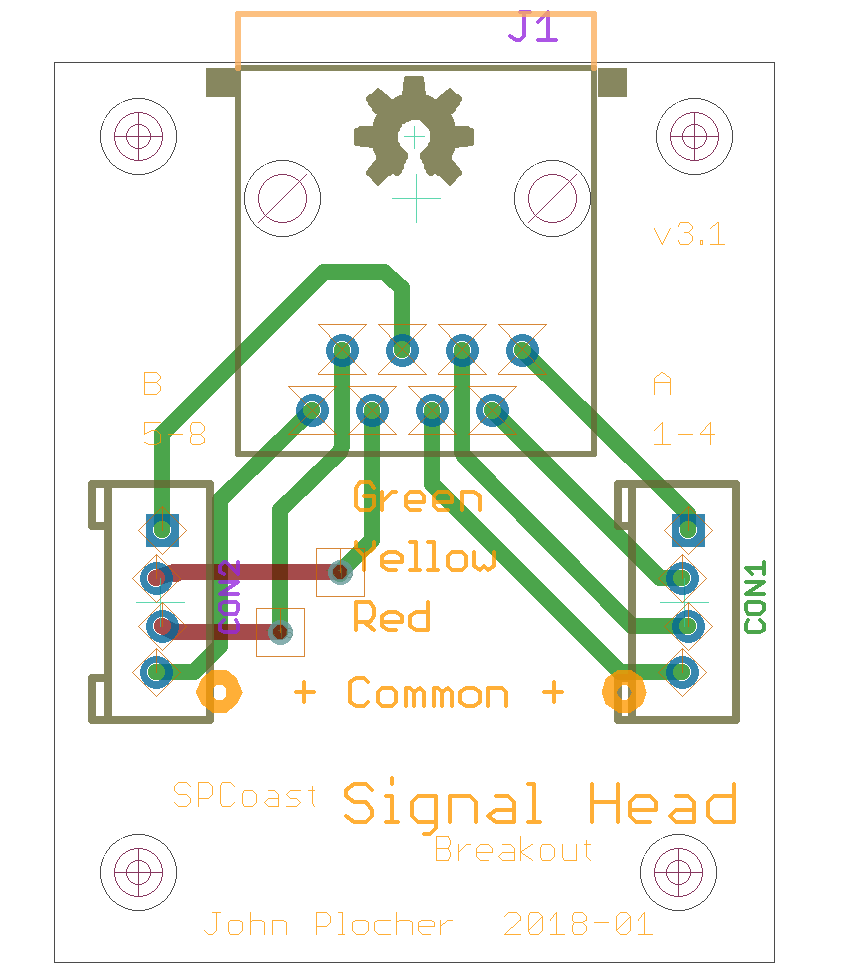

Board
Board

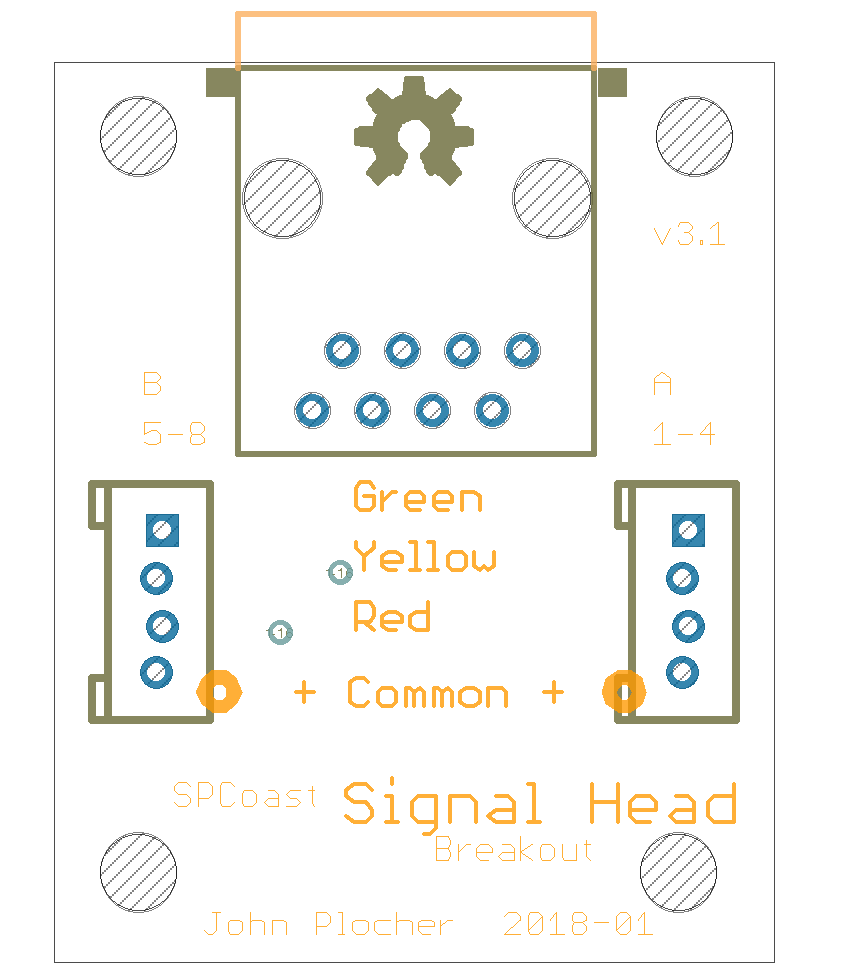

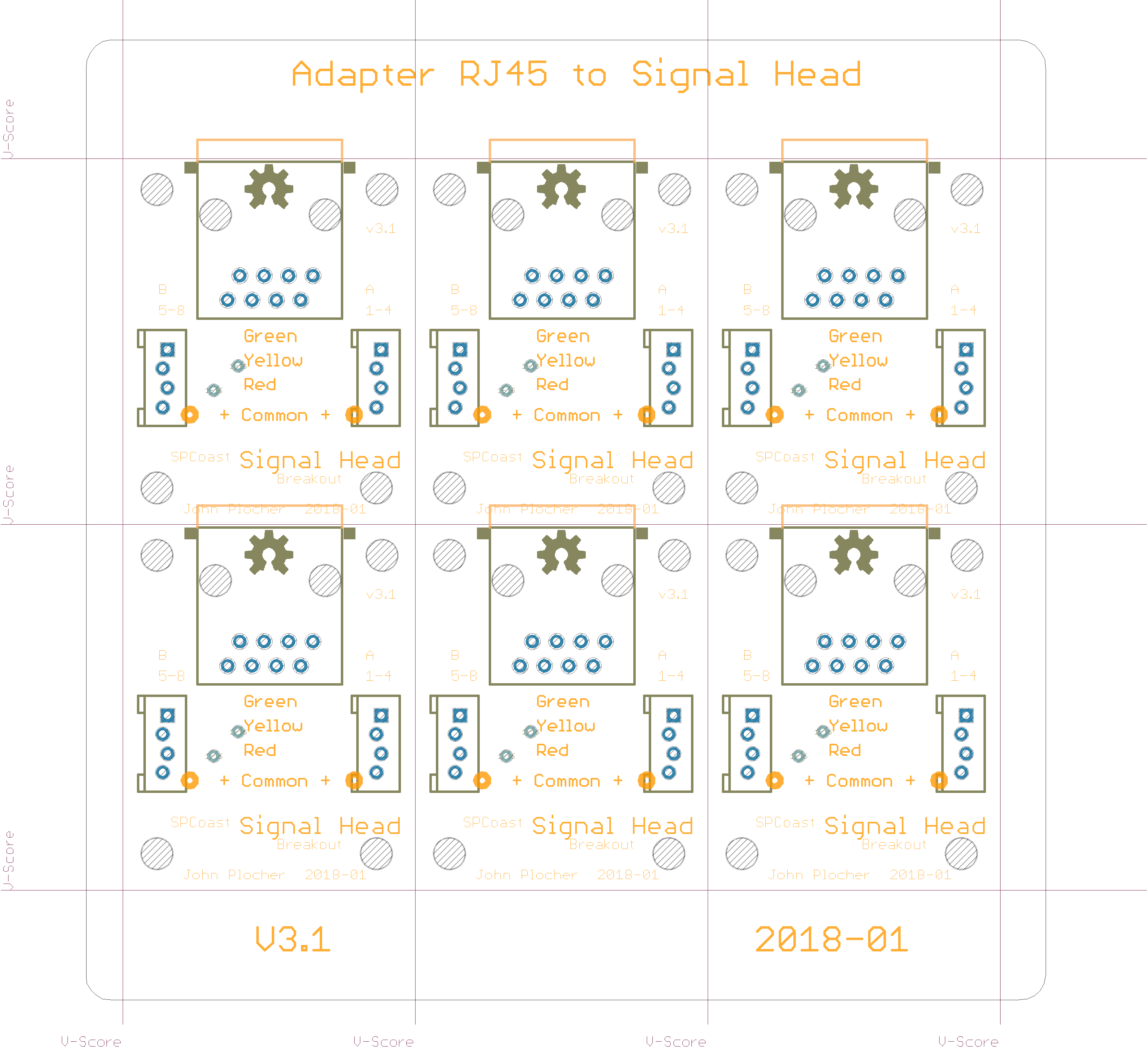

Top Silk
Top Silk

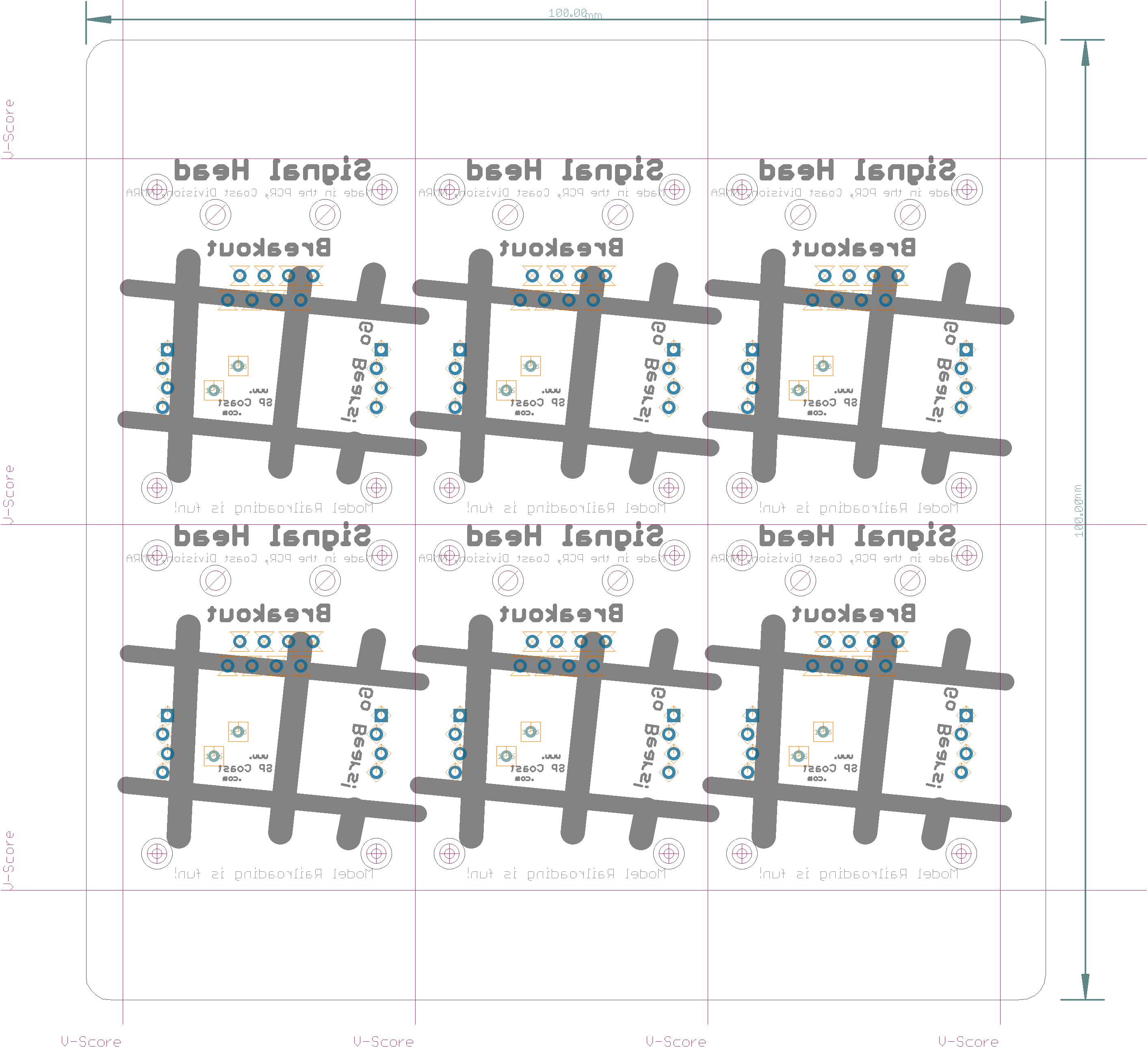

Bot Silk
Bot Silk
Board
Board
Top Silk
Top Silk

Download Adapter-RJ45-SignalHead - CHMT Component and feeder definitions
Download Adapter-RJ45-SignalHead.gerbers.zip - Gerber Fabrication files
Download Adapter-RJ45-SignalHead.parts - Parts List (spreadsheet data)
Download Adapter-RJ45-SignalHead_array - CHMT Component and feeder definitions
Download Adapter-RJ45-SignalHead_array.gerbers.zip - Gerber Fabrication files
Download Adapter-RJ45-SignalHead_array.parts - Parts List (spreadsheet data)



Adapter-RJ45-SignalHead.bom

Parts Value Package Quantity Library Type/Feeder
J1   RJ45-NO-SHIELD 1x SPCoast PTH
CON1, CON2 CONNECTOR-GROVE-4P-2.0-3470130P1 4P-2.0 2x SPCoast PTH
U$1 DOC-OSHW-LOGO-M OSHW-LOGO-M 1x SPCoast PTH

Adapter-RJ45-SignalHead_array.bom

Parts Value Package Quantity Library Type/Feeder
CON1X11, CON1X12, CON1X21, CON1X22, CON1X31, CON1X32, CON2X11, CON2X12, CON2X21, CON2X22, CON2X31, CON2X32   4P-2.0 12x SPCoast PTH
U$1X1   BOARD-SEEED10X10-NOHOLES 1x SPCoast PTH
U$1X11, U$1X12, U$1X21, U$1X22, U$1X31, U$1X32   OSHW-LOGO-M 6x SPCoast PTH
J1X11, J1X12, J1X21, J1X22, J1X31, J1X32   RJ45-NO-SHIELD 6x SPCoast PTH
