MRCS IOX-16 Test Fixture



Download Adapter-IOX-test_array.scr - Eagle SCRipt



Adapter-IOX-test Version 1.0

Not built

Active Low LED test jig for debugging IOX outputs When initially setting up an IOX expander, or debugging an existing installation, it is useful to be able to see the I/O lines changing. This board is similar to the CMRI Output Test Card, but the LEDs are isolated from the I/O lines, allowing them to show the status of both outputs and inputs. Build with pin headers and you can insert the tester into the machined headers on the IOX or cpNode boards.

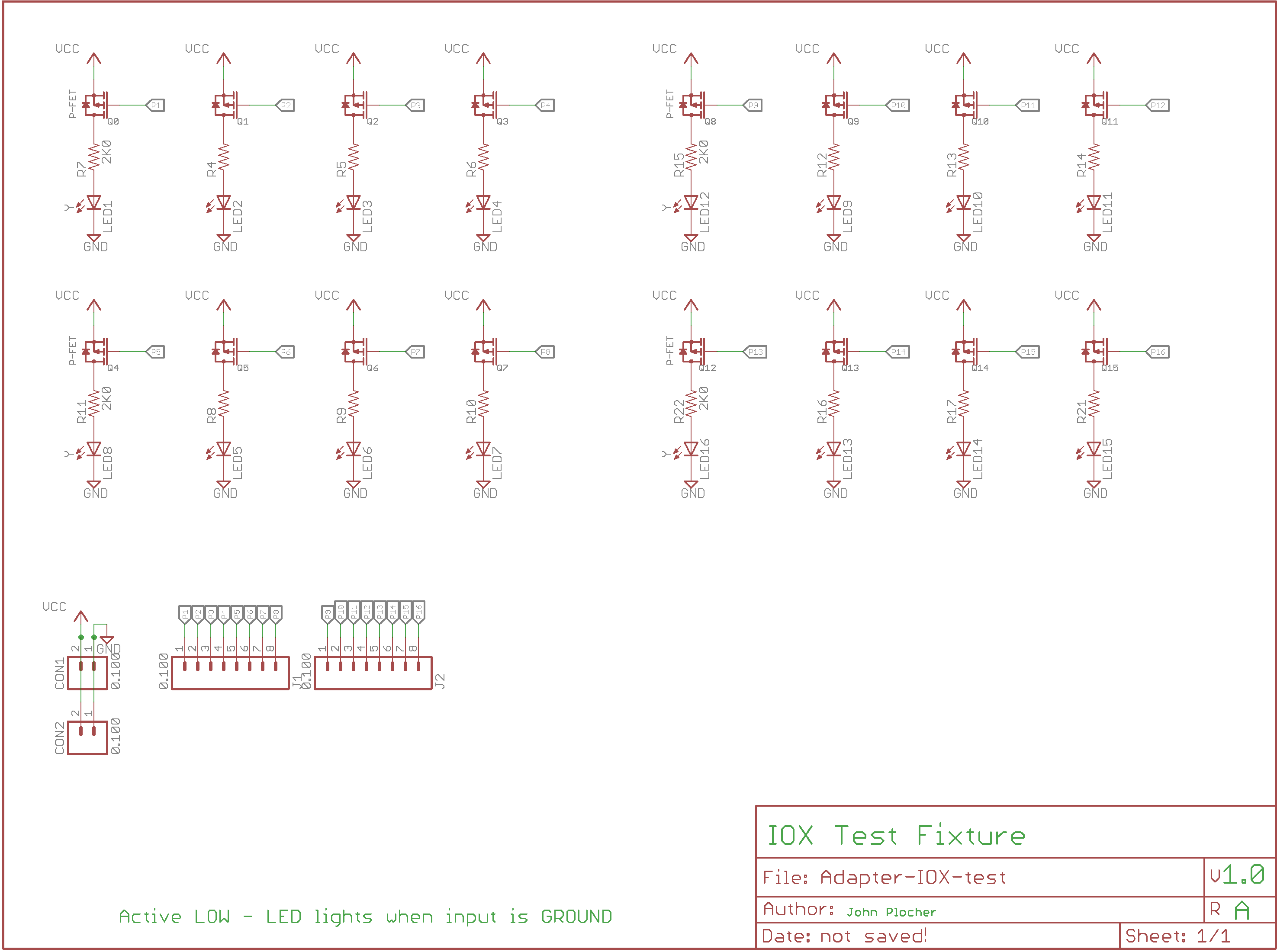

Schematic
Schematic

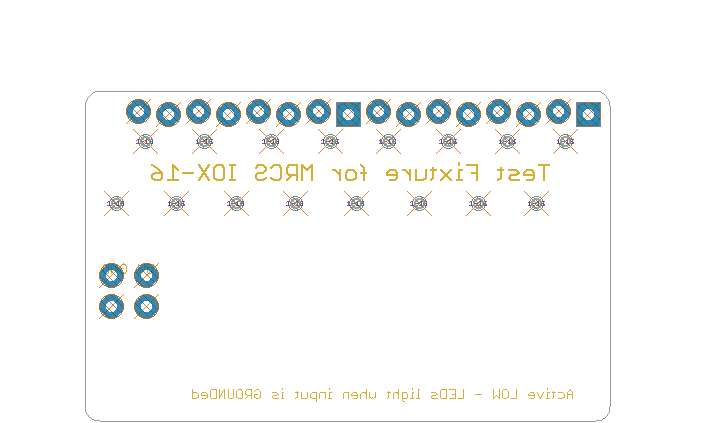

Bot Silk
Bot Silk

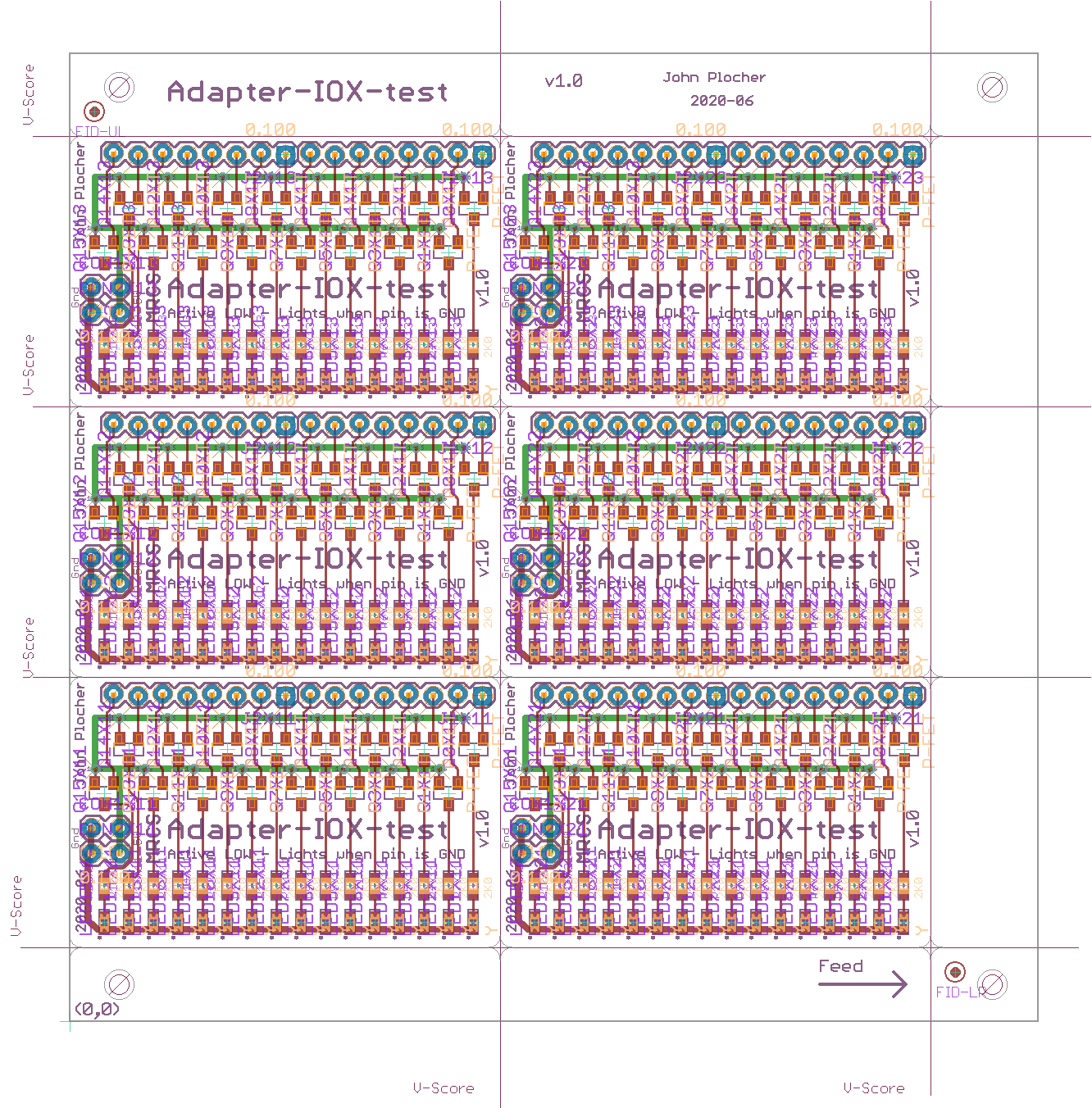

Board
Board

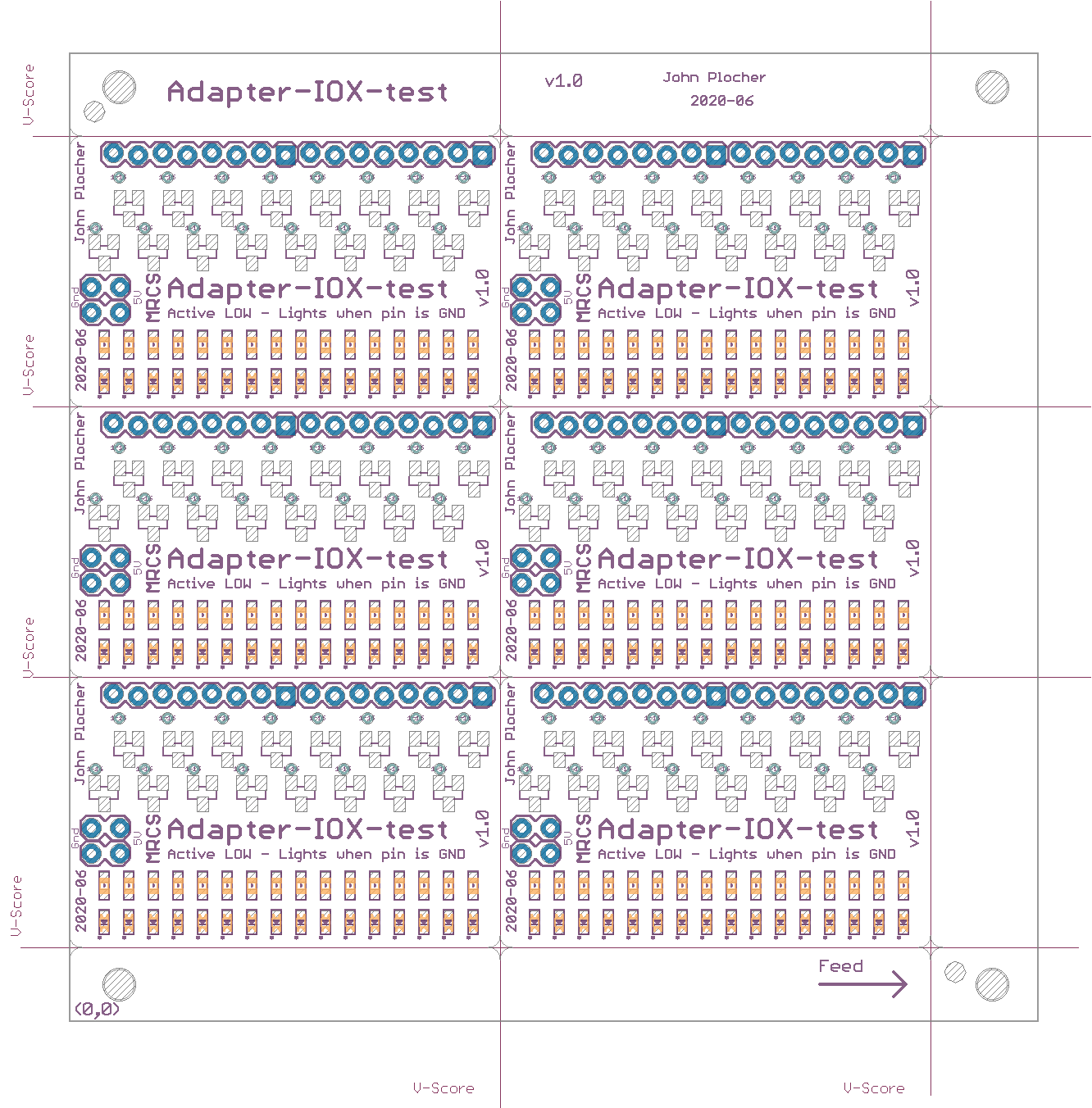

Top Silk
Top Silk

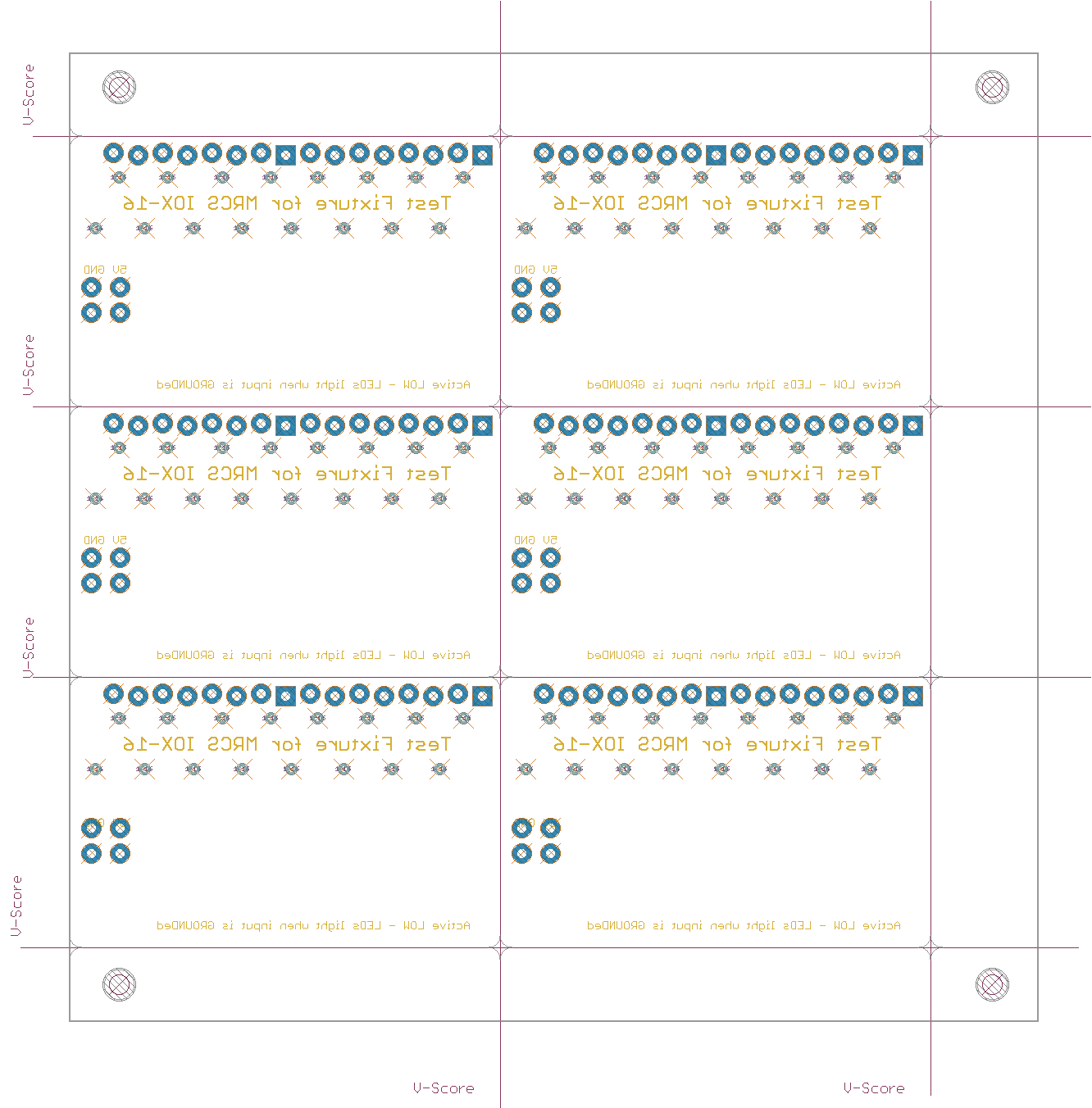

Bot Silk
Bot Silk

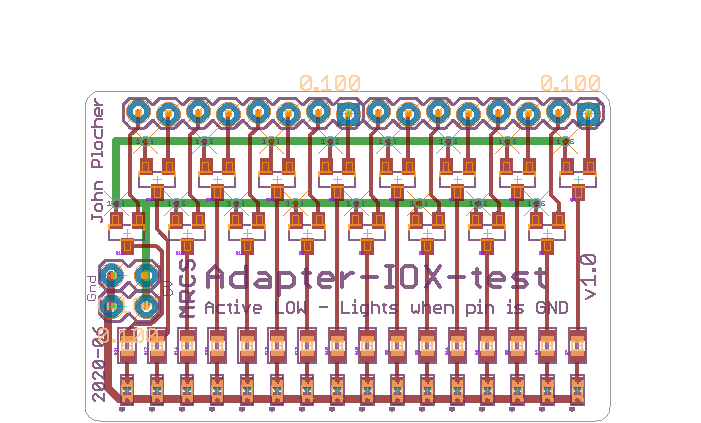

Board
Board

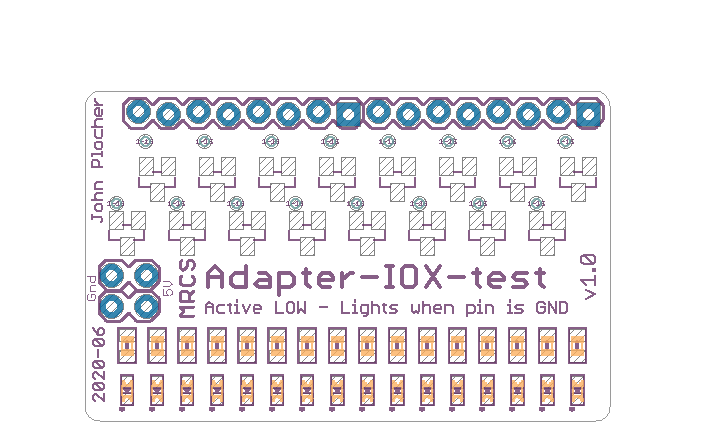

Top Silk
Top Silk

Download Adapter-IOX-test.gerbers.zip - Gerber Fabrication files
Download Adapter-IOX-test.parts - Parts List (spreadsheet data)
Download Adapter-IOX-test_array.gerbers.zip - Gerber Fabrication files
Download Adapter-IOX-test_array.parts - Parts List (spreadsheet data)



Adapter-IOX-test.bom

Parts Value Package Quantity Library Type/Feeder
CON1, CON2 0.100 1X02_LOCK 2x SPCoast PTH
J1, J2 0.100 1X08_LOCK 2x SPCoast PTH
R4, R5, R6, R7, R8, R9, R10, R11, R12, R13, R14, R15, R16, R17, R21, R22 2K0 0805-RES 16x SPCoast 42
Q0, Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8, Q9, Q10, Q11, Q12, Q13, Q14, Q15 P-FET SOT23 16x SPCoast 9
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8, LED9, LED10, LED11, LED12, LED13, LED14, LED15, LED16 Y 0603-LED 16x SPCoast 2

Adapter-IOX-test_array.bom

Parts Value Package Quantity Library Type/Feeder
CON1X11, CON1X12, CON1X13, CON1X21, CON1X22, CON1X23, CON2X11, CON2X12, CON2X13, CON2X21, CON2X22, CON2X23 0.100 1X02_LOCK 12x SPCoast PTH
J1X11, J1X12, J1X13, J1X21, J1X22, J1X23, J2X11, J2X12, J2X13, J2X21, J2X22, J2X23 0.100 1X08_LOCK 12x SPCoast PTH
R4X11, R4X12, R4X13, R4X21, R4X22, R4X23, R5X11, R5X12, R5X13, R5X21, R5X22, R5X23, R6X11, R6X12, R6X13, R6X21, R6X22, R6X23, R7X11, R7X12, R7X13, R7X21, R7X22, R7X23, R8X11, R8X12, R8X13, R8X21, R8X22, R8X23, R9X11, R9X12, R9X13, R9X21, R9X22, R9X23, R10X11, R10X12, R10X13, R10X21, R10X22, R10X23, R11X11, R11X12, R11X13, R11X21, R11X22, R11X23, R12X11, R12X12, R12X13, R12X21, R12X22, R12X23, R13X11, R13X12, R13X13, R13X21, R13X22, R13X23, R14X11, R14X12, R14X13, R14X21, R14X22, R14X23, R15X11, R15X12, R15X13, R15X21, R15X22, R15X23, R16X11, R16X12, R16X13, R16X21, R16X22, R16X23, R17X11, R17X12, R17X13, R17X21, R17X22, R17X23, R21X11, R21X12, R21X13, R21X21, R21X22, R21X23, R22X11, R22X12, R22X13, R22X21, R22X22, R22X23 2K0 0603-RES 96x SPCoast 42
R22X1 BOARD BOARD-10X10-TEMPLATE 1x SPCoast PTH
FID-LR, FID-UL FIDUCIAL FIDUCIAL_1MM 2x SPCoast NONE
Q0X11, Q0X12, Q0X13, Q0X21, Q0X22, Q0X23, Q1X11, Q1X12, Q1X13, Q1X21, Q1X22, Q1X23, Q2X11, Q2X12, Q2X13, Q2X21, Q2X22, Q2X23, Q3X11, Q3X12, Q3X13, Q3X21, Q3X22, Q3X23, Q4X11, Q4X12, Q4X13, Q4X21, Q4X22, Q4X23, Q5X11, Q5X12, Q5X13, Q5X21, Q5X22, Q5X23, Q6X11, Q6X12, Q6X13, Q6X21, Q6X22, Q6X23, Q7X11, Q7X12, Q7X13, Q7X21, Q7X22, Q7X23, Q8X11, Q8X12, Q8X13, Q8X21, Q8X22, Q8X23, Q9X11, Q9X12, Q9X13, Q9X21, Q9X22, Q9X23, Q10X11, Q10X12, Q10X13, Q10X21, Q10X22, Q10X23, Q11X11, Q11X12, Q11X13, Q11X21, Q11X22, Q11X23, Q12X11, Q12X12, Q12X13, Q12X21, Q12X22, Q12X23, Q13X11, Q13X12, Q13X13, Q13X21, Q13X22, Q13X23, Q14X11, Q14X12, Q14X13, Q14X21, Q14X22, Q14X23, Q15X11, Q15X12, Q15X13, Q15X21, Q15X22, Q15X23 P-FET SOT23 96x SPCoast 9
LED1X11, LED1X12, LED1X13, LED1X21, LED1X22, LED1X23, LED2X11, LED2X12, LED2X13, LED2X21, LED2X22, LED2X23, LED3X11, LED3X12, LED3X13, LED3X21, LED3X22, LED3X23, LED4X11, LED4X12, LED4X13, LED4X21, LED4X22, LED4X23, LED5X11, LED5X12, LED5X13, LED5X21, LED5X22, LED5X23, LED6X11, LED6X12, LED6X13, LED6X21, LED6X22, LED6X23, LED7X11, LED7X12, LED7X13, LED7X21, LED7X22, LED7X23, LED8X11, LED8X12, LED8X13, LED8X21, LED8X22, LED8X23, LED9X11, LED9X12, LED9X13, LED9X21, LED9X22, LED9X23, LED10X11, LED10X12, LED10X13, LED10X21, LED10X22, LED10X23, LED11X11, LED11X12, LED11X13, LED11X21, LED11X22, LED11X23, LED12X11, LED12X12, LED12X13, LED12X21, LED12X22, LED12X23, LED13X11, LED13X12, LED13X13, LED13X21, LED13X22, LED13X23, LED14X11, LED14X12, LED14X13, LED14X21, LED14X22, LED14X23, LED15X11, LED15X12, LED15X13, LED15X21, LED15X22, LED15X23, LED16X11, LED16X12, LED16X13, LED16X21, LED16X22, LED16X23 Y 0603-LED 96x SPCoast 2

This technical documentation is licensed under the CERN Open Hardware Licence v1.2

Tags: eagle SPCoast
