CMRI Breakout8 Adapter RJ45 to 0.100, 3.5mm and 0.156 Molex
CMRI boards have traditionally used Molex KK 0.156 pitch I/O pins, which required crimping matching connectors onto layout wiring. This adapter board converts them into RJ-45 style used by common network cables. Crimping to RH45 connectors is (IMO at least) much simpler than the alternative. Another of these boards can be used at the other end of the 8-conductor cable, but this time it can be populated with a 0.1” or 3.5mm pitch screw terminal and mounted to the benchwork near where it’s signals are used.
|

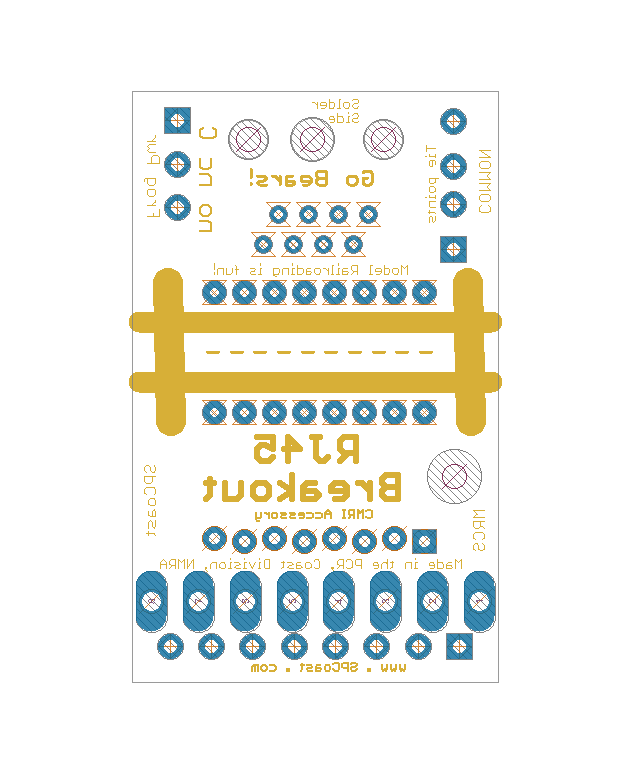

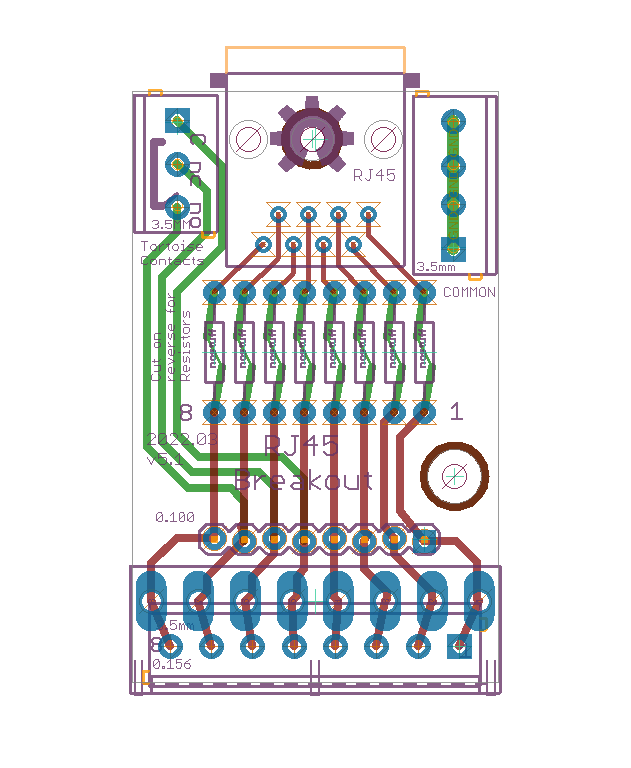

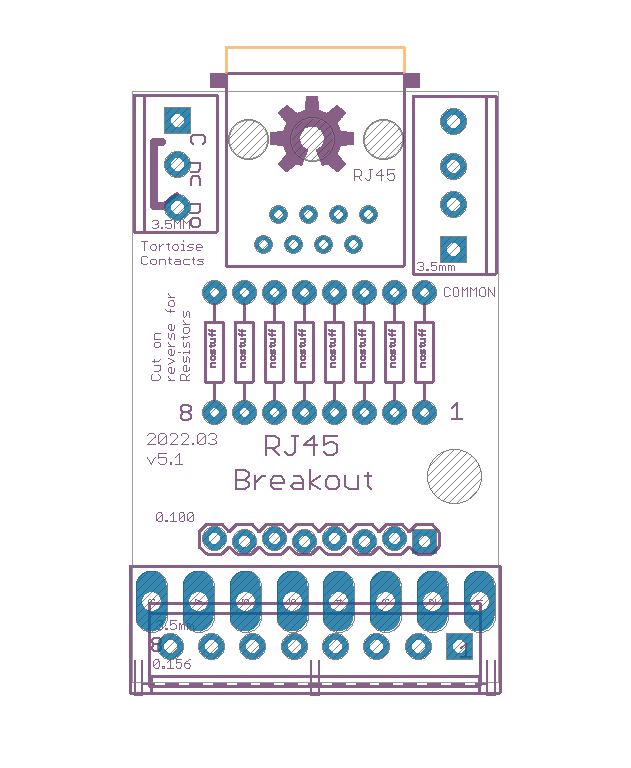

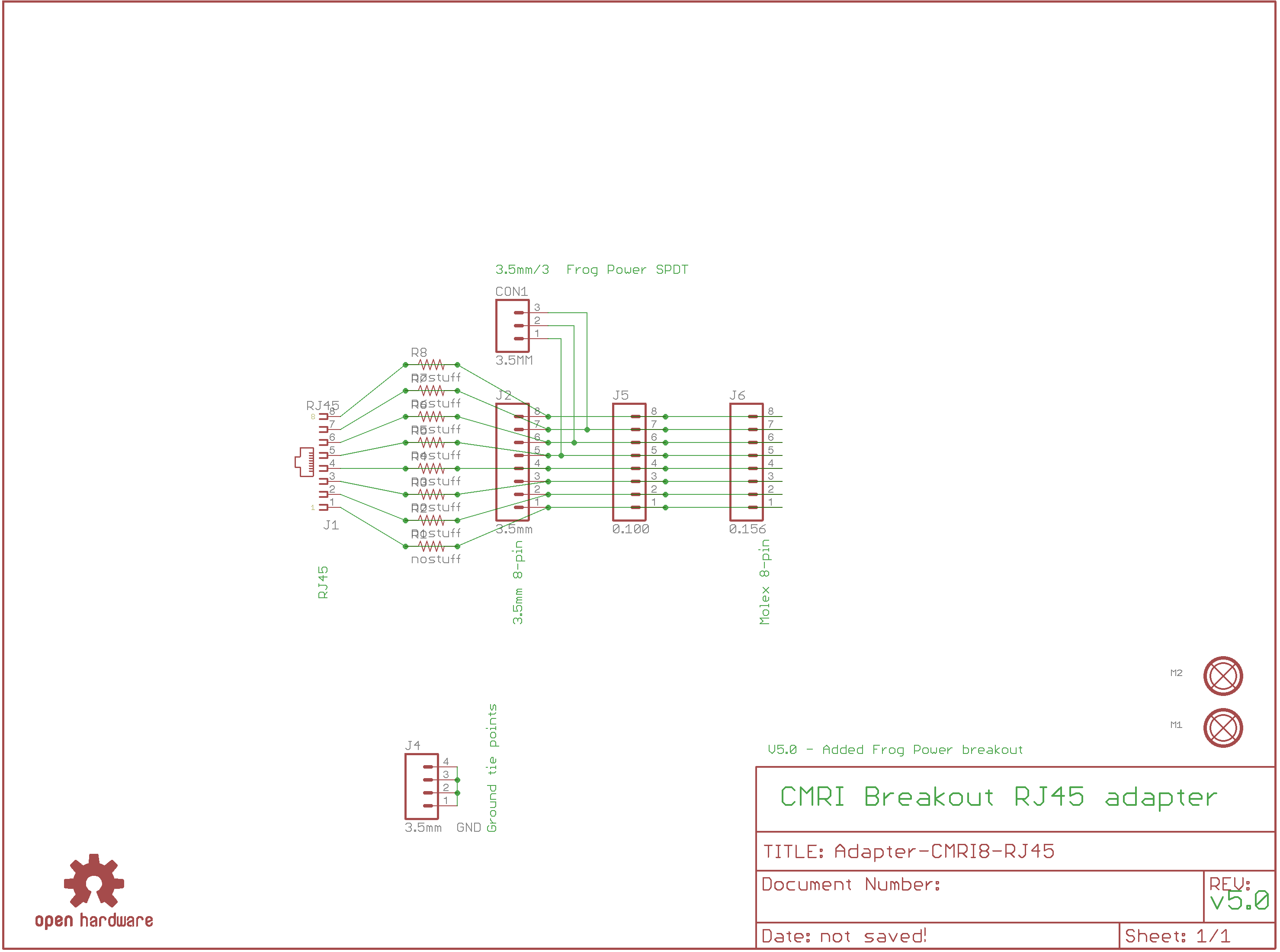

Adapter-CMRI8-RJ45 Version 5.0
First built: 2018-12
- 4.0 Added optional resistors inline for direct driving LED outputs with a default (cuttable) link for use as inputs...

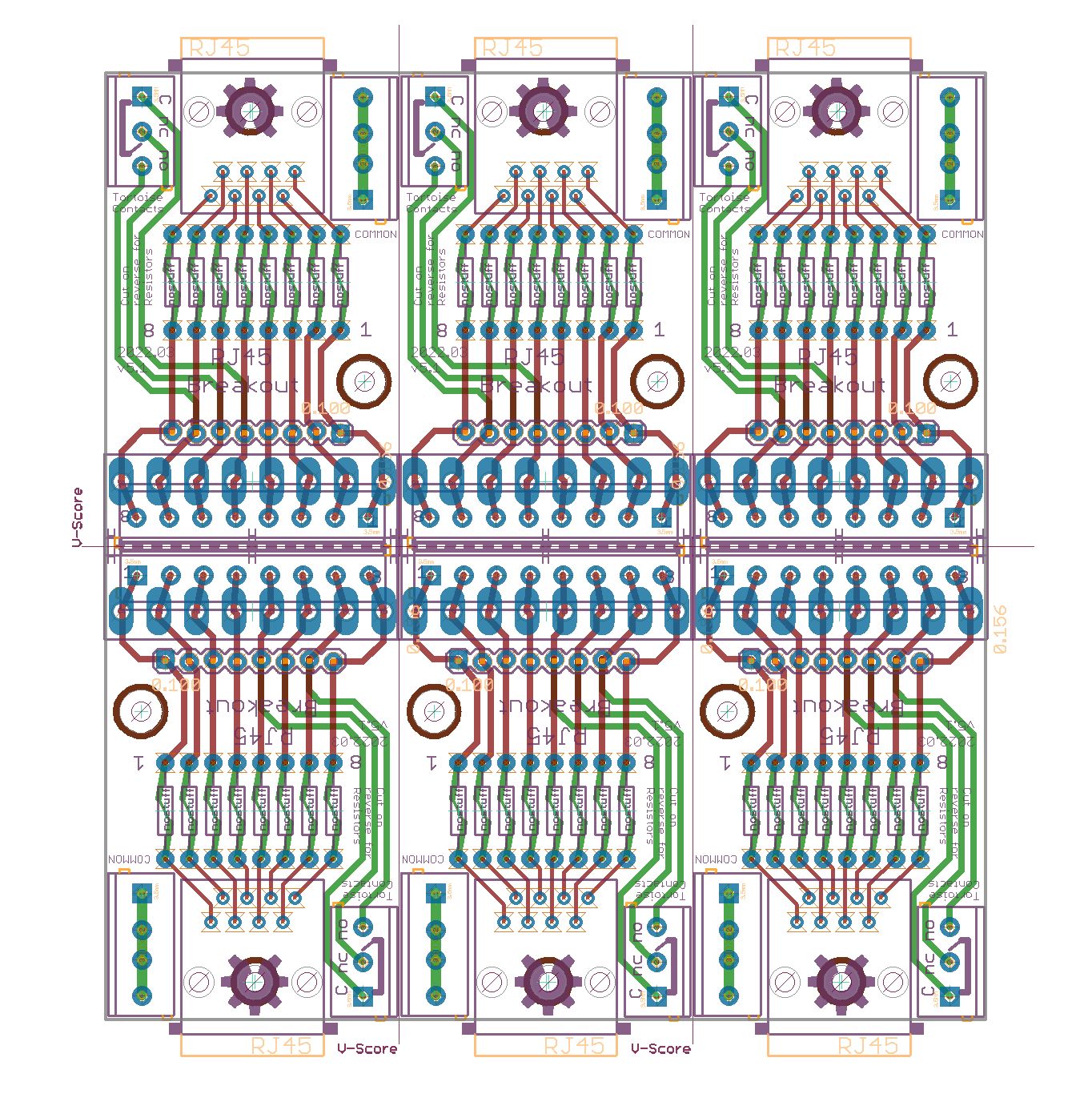

- 5.0 Added SPDT "Frog Power" 3.5mm connector pads
|
|
|
|||
|
|
|

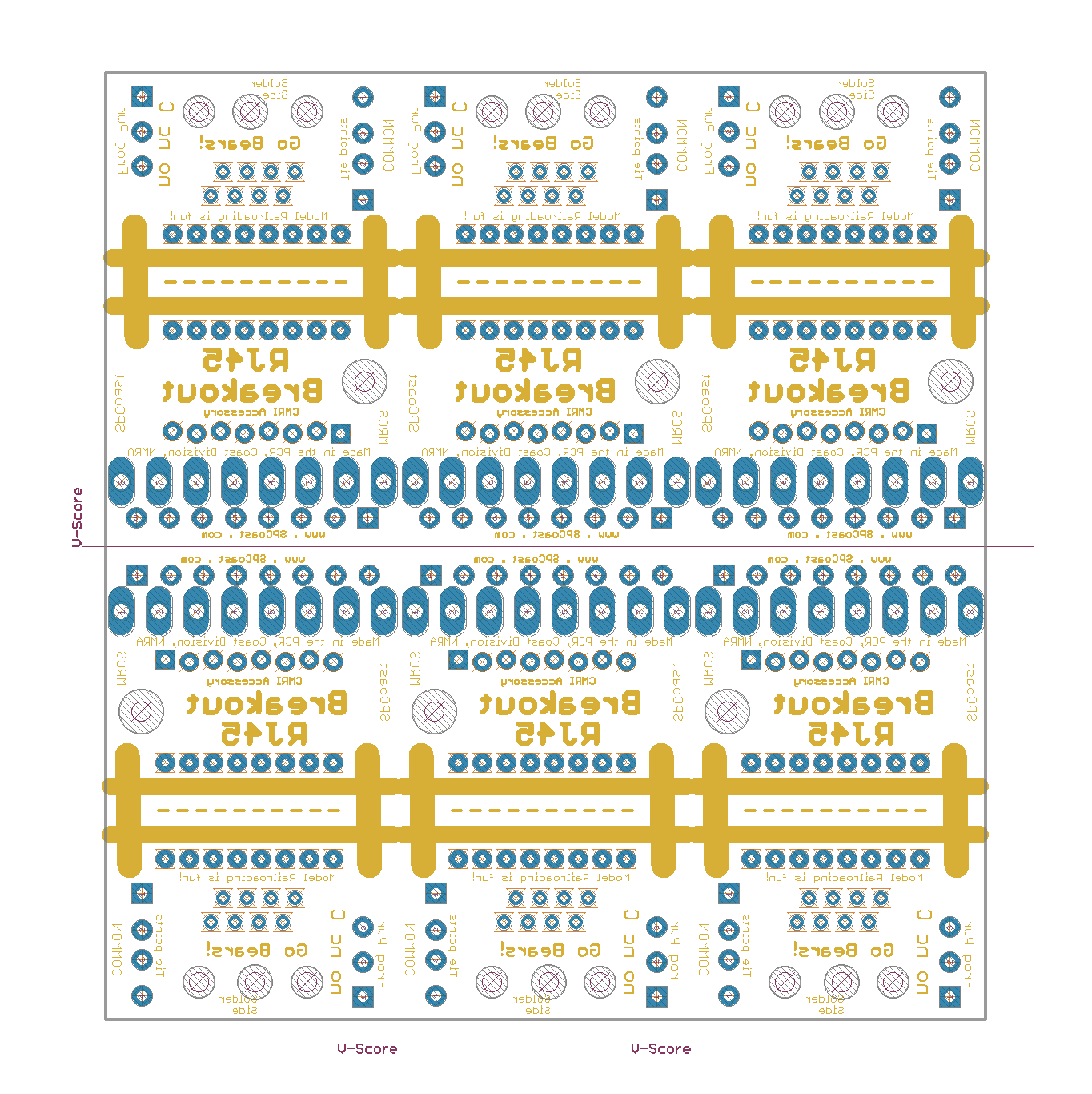

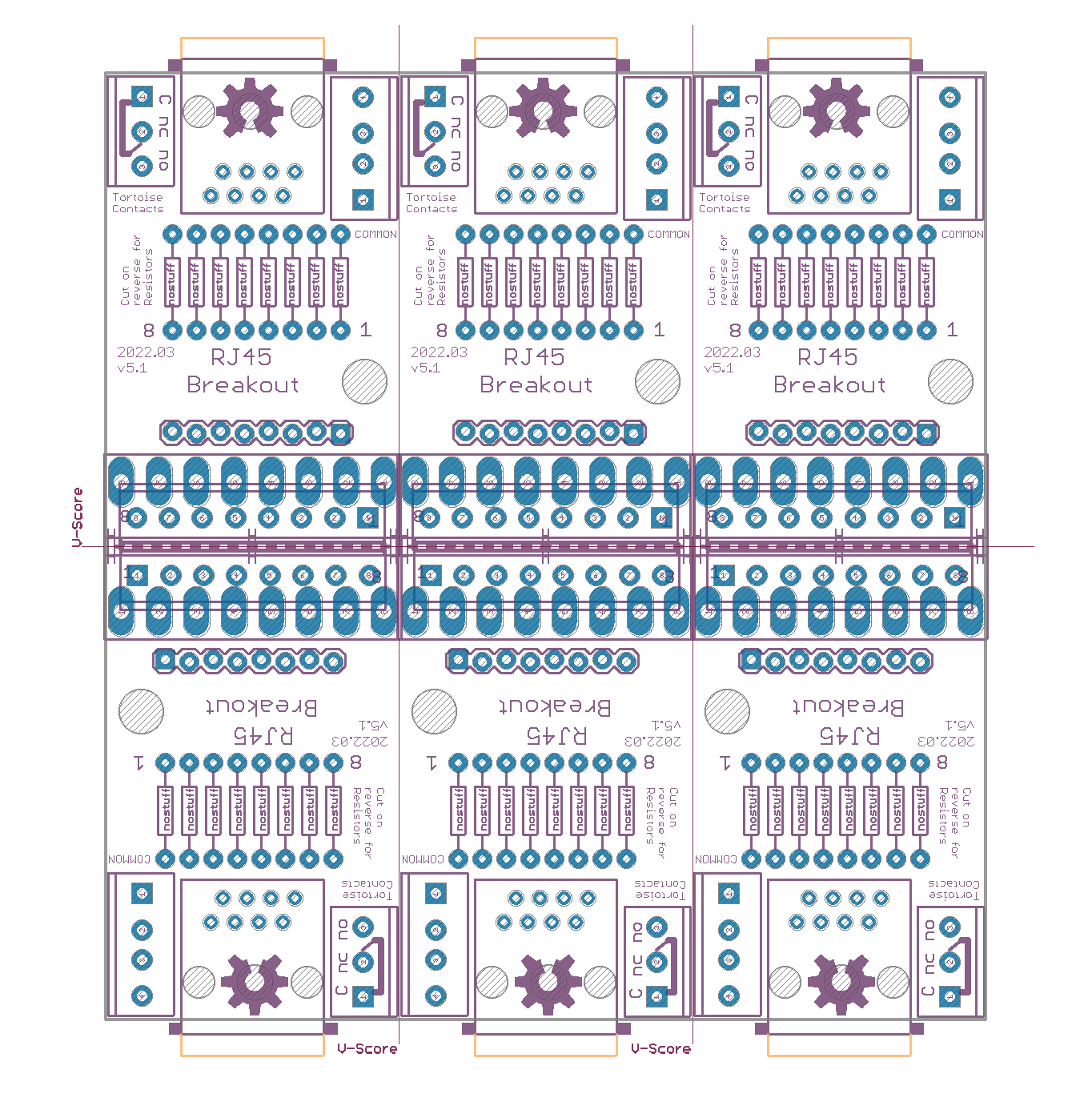

Download Adapter-CMRI8-RJ45.parts - Parts List (spreadsheet data)
Download Adapter-CMRI8-RJ45_array.gerbers.zip - Gerber Fabrication files
Download Adapter-CMRI8-RJ45_array.parts - Parts List (spreadsheet data)
Adapter-CMRI8-RJ45.bom
| Parts | Value | Package | Quantity | Library | Type/Feeder |
|---|---|---|---|---|---|
| J5 | 0.100 | 1X08_LOCK | 1x | SPCoast | PTH |
| J6 | 0.156 | KK-156-8-F | 1x | SPCoast | PTH |
| CON1 | 3.5MM | SCREWTERMINAL-3.5MM-3_LOCK.007S | 1x | SPCoast | PTH |
| J4 | 3.5mm | SCREWTERMINAL-3.5MM-4_LOCK | 1x | SPCoast | PTH |
| J2 | 3.5mm | SCREWTERMINAL-3.5MM-8 | 1x | SPCoast | PTH |
| M2 | MOUNTINGHOLE-L | 1x | SPCoast | PTH | |
| M1 | MOUNTINGHOLE-S | 1x | SPCoast | PTH | |
| R1, R2, R3, R4, R5, R6, R7, R8 | nostuff | AXIAL-0.4-RES | 8x | SPCoast | PTH |
| U$1 | OSHW | OSHW-LOGO-L | 1x | SPCoast | PTH |
| J1 | RJ45 | RJ45-NO-SHIELD | 1x | SPCoast | PTH |

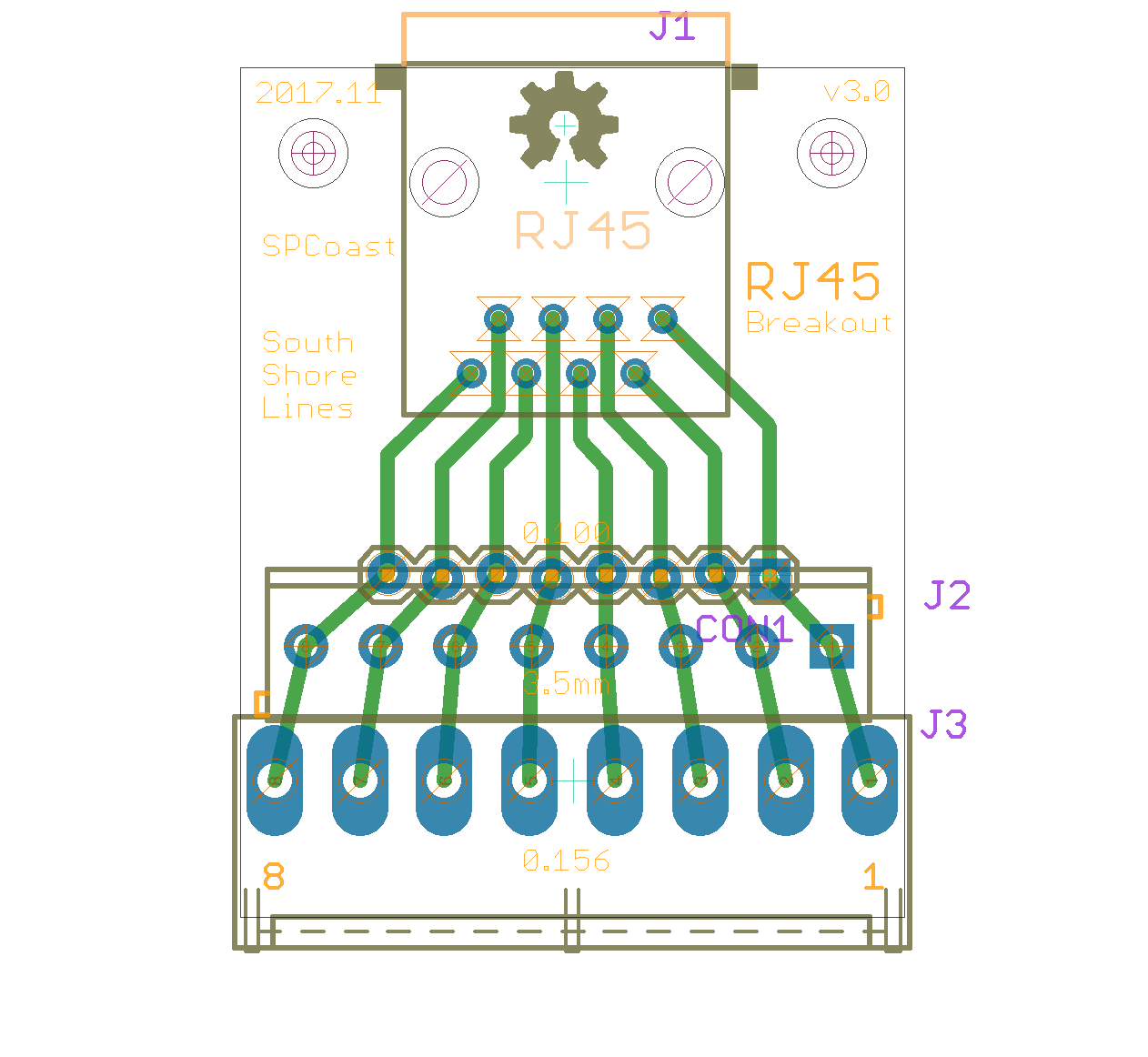

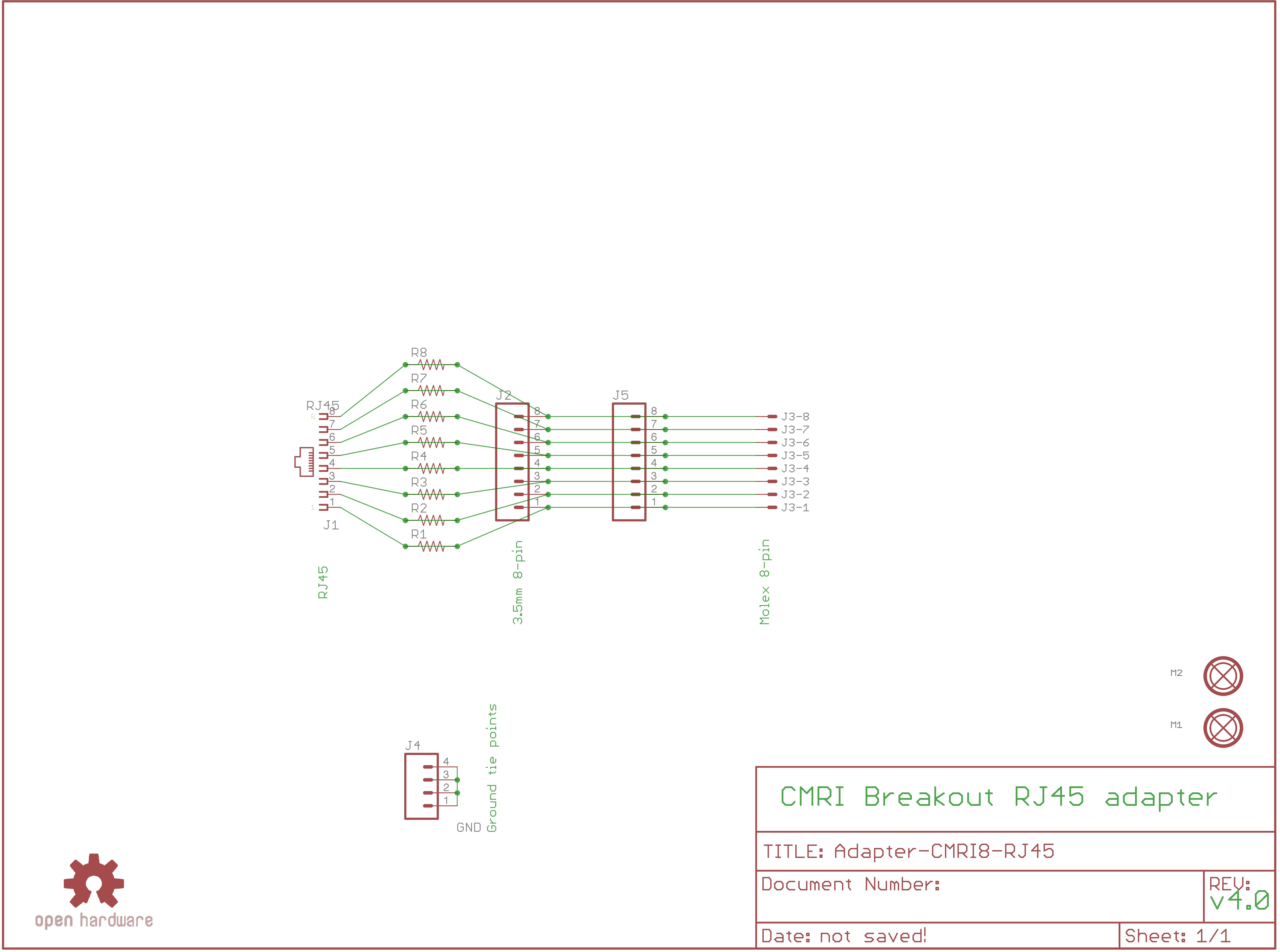

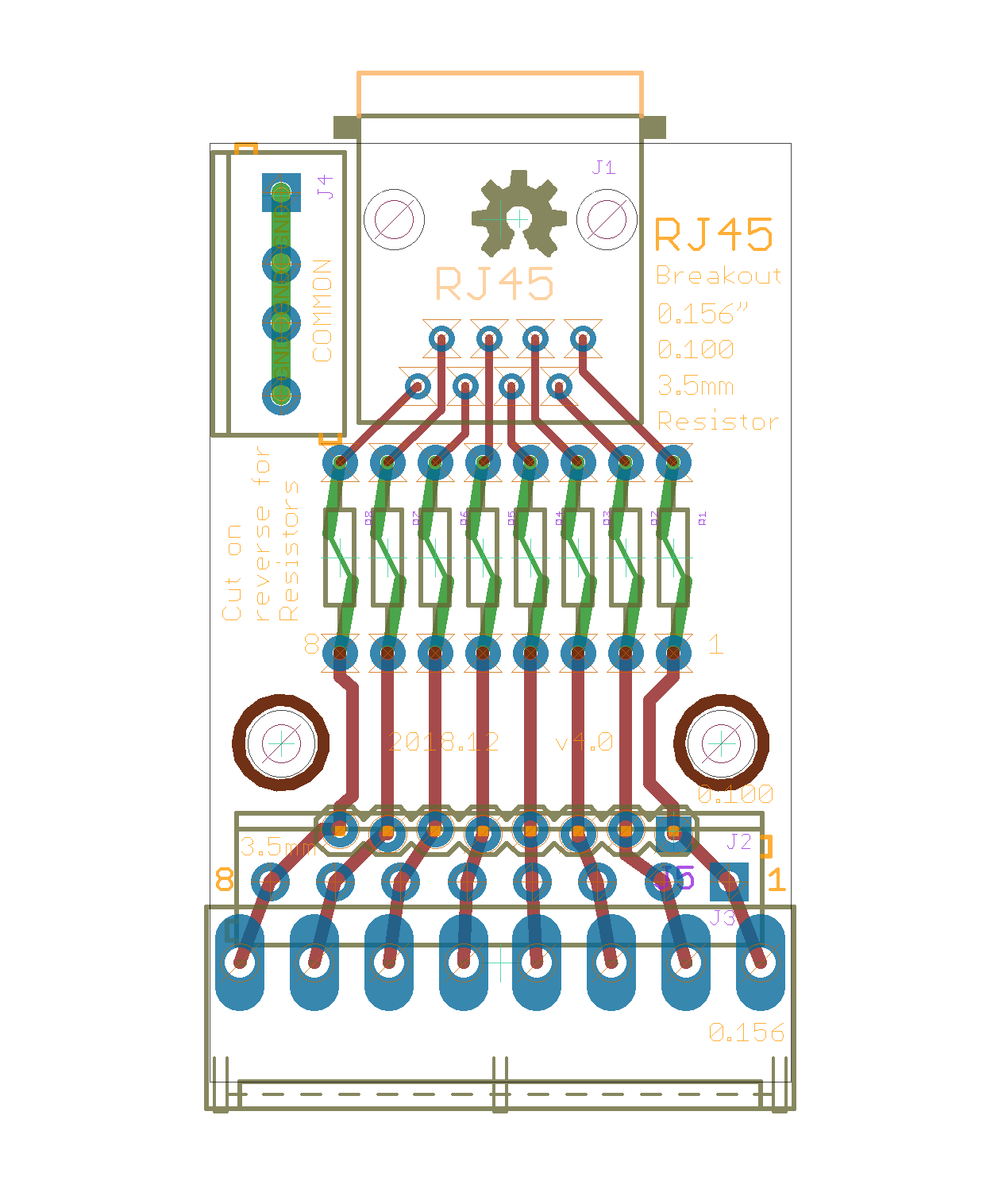

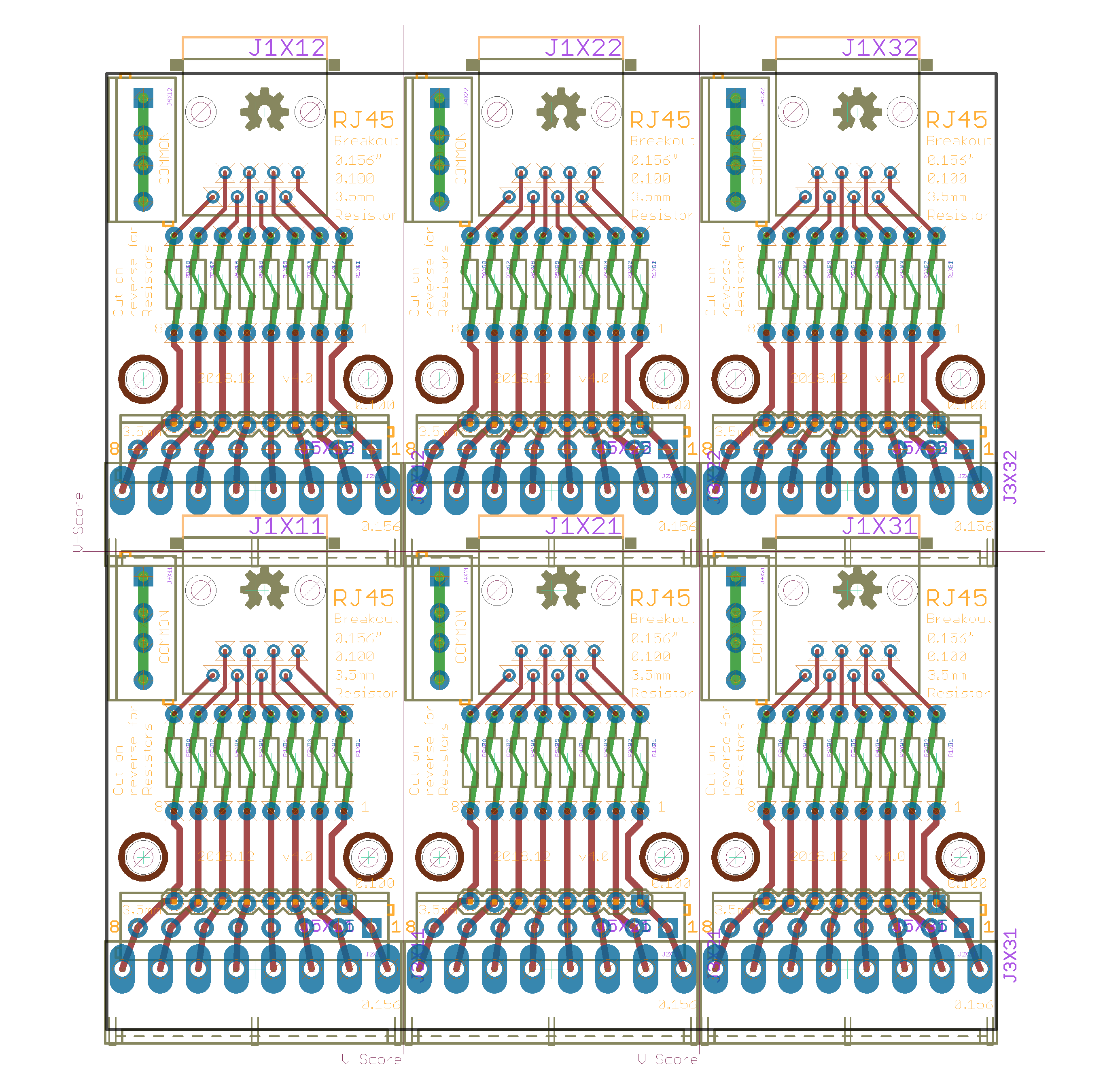

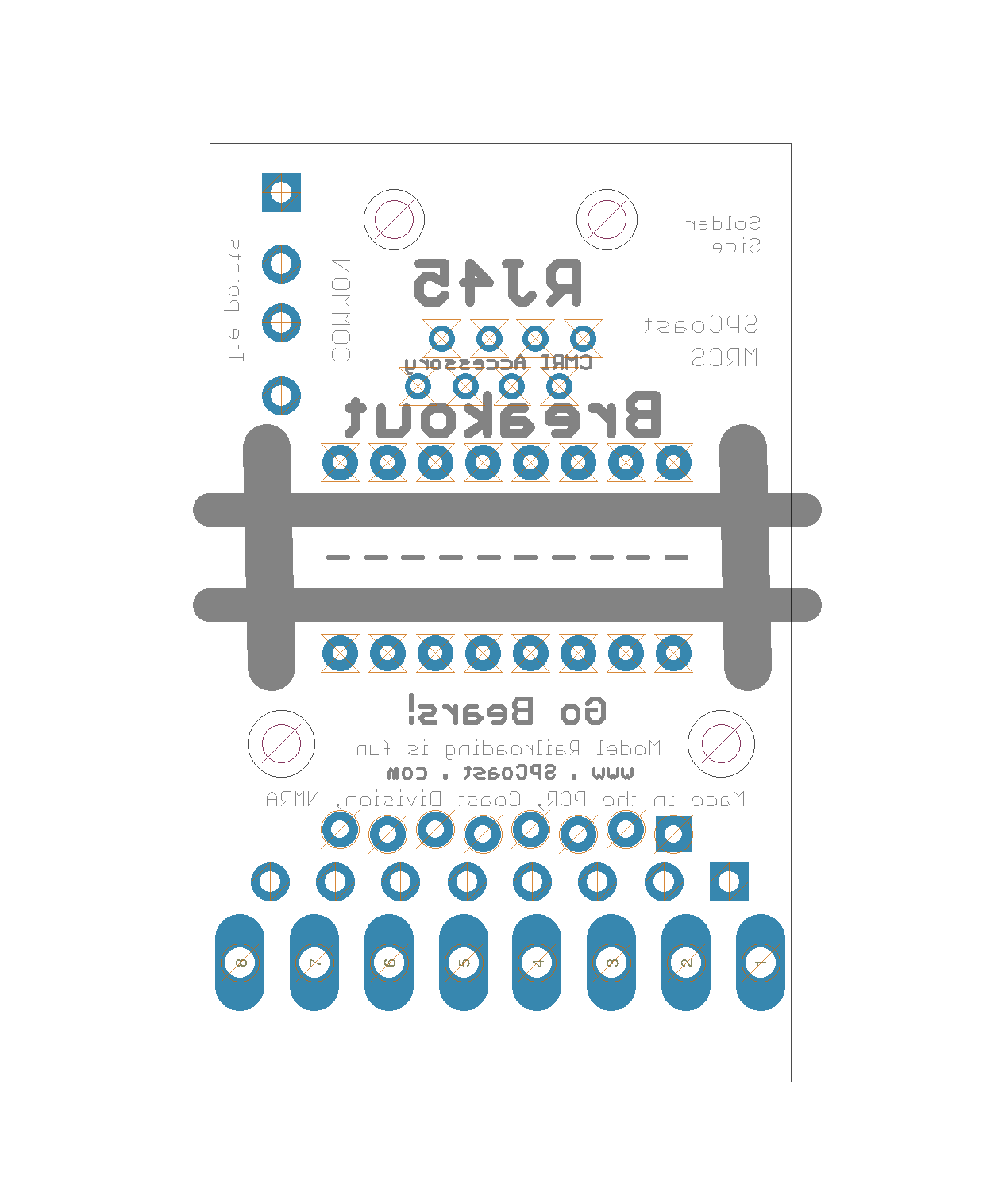

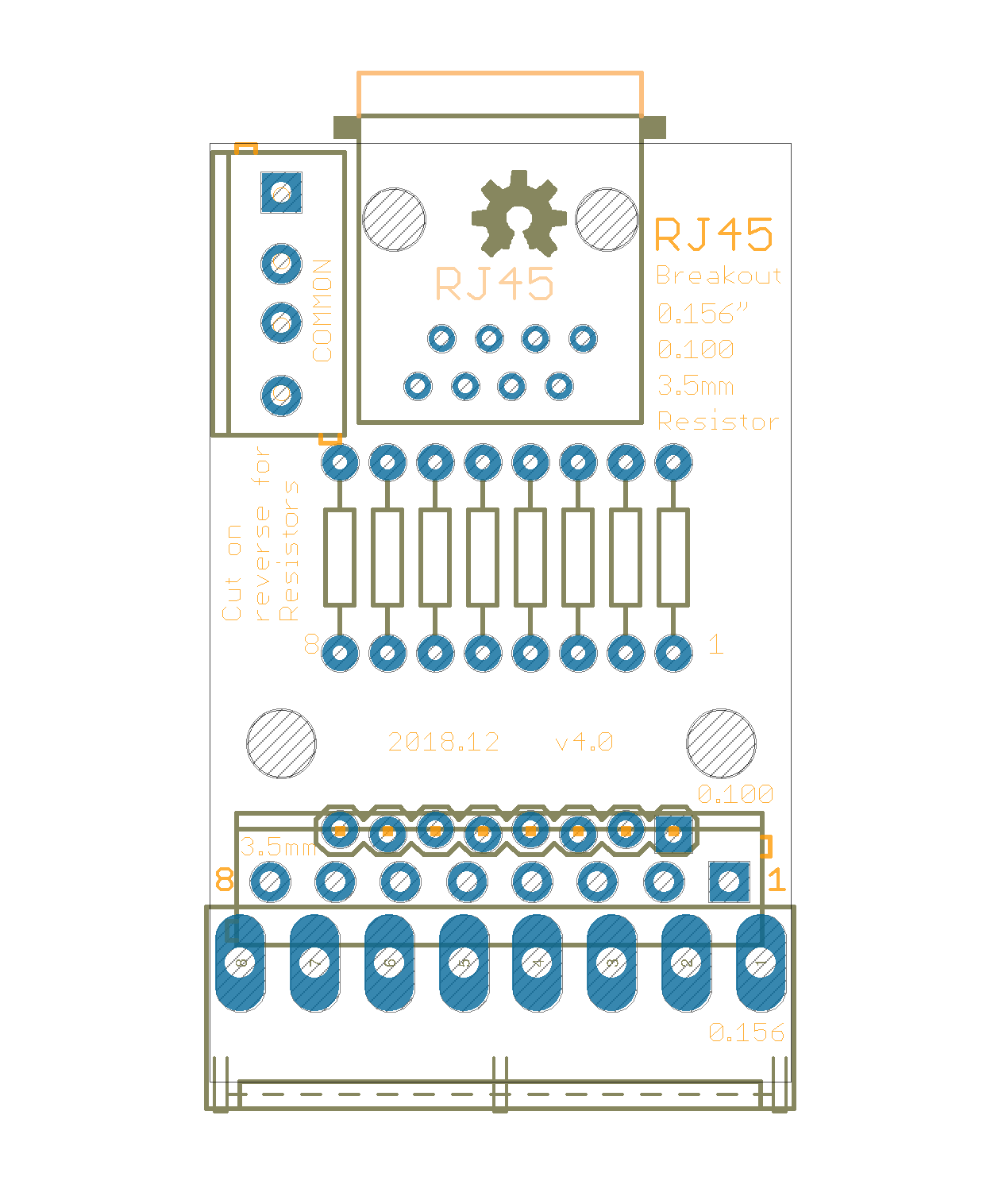

Adapter-CMRI8-RJ45 Version 4.0
First built: 2018-12
CMRI boards have traditionally used Molex KK 0.156 pitch I/O pins, which required crimping matching connectors onto layout wiring. This adapter board converts them into RJ-45 style used by common network cables. Crimping to RH45 connectors is (IMO at least) much simpler than the alternative. Another of these boards can be used at the other end of the 8-conductor cable, but this time it can be populated with a 0.1” or 3.5mm pitch screw terminal and mounted to the benchwork near where it’s signals are used.
- Added optional resistors inline for direct driving LED outputs with a default (cuttable) link for use as inputs…
|
|
|
|||
|
|
|
Download Adapter-CMRI8-RJ45.gerbers.zip - Gerber Fabrication files
Download Adapter-CMRI8-RJ45.parts - Parts List (spreadsheet data)
Download Adapter-CMRI8-RJ45_array - CHMT Component and feeder definitions
Download Adapter-CMRI8-RJ45_array.gerbers.zip - Gerber Fabrication files
Download Adapter-CMRI8-RJ45_array.parts - Parts List (spreadsheet data)
Adapter-CMRI8-RJ45.bom
| Parts | Value | Package | Quantity | Library | Type/Feeder |
|---|---|---|---|---|---|
| J5 | 1X08_LOCK | 1x | SPCoast | PTH | |
| R1, R2, R3, R4, R5, R6, R7, R8 | AXIAL-0.4-RES | 8x | SPCoast | PTH | |
| J3 | KK-156-8-F | 1x | SPCoast | PTH | |
| J4 | SCREWTERMINAL-3.5MM-4_LOCK | 1x | SPCoast | PTH | |
| J2 | SCREWTERMINAL-3.5MM-8 | 1x | SPCoast | PTH | |
| U$1 | DOC-OSHW-LOGO-M | OSHW-LOGO-M | 1x | SPCoast | PTH |
| M1, M2 | MOUNTINGHOLE | MOUNTINGHOLE | 2x | SPCoast | PTH |
| J1 | RJ45 | RJ45-NO-SHIELD | 1x | SPCoast | PTH |

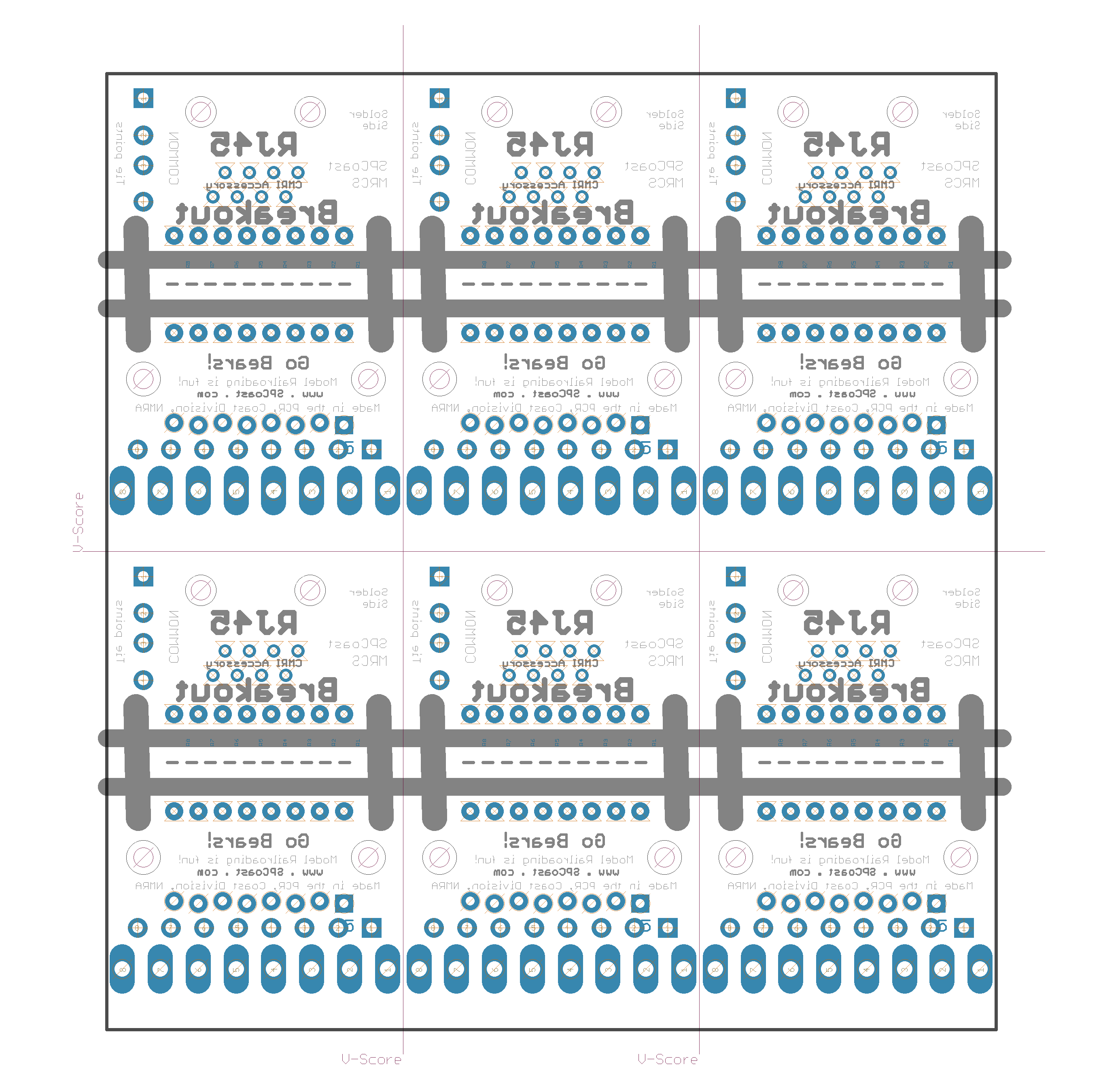

Adapter-CMRI8-RJ45_array.bom
| Parts | Value | Package | Quantity | Library | Type/Feeder |
|---|---|---|---|---|---|
| J5X11, J5X12, J5X21, J5X22, J5X31, J5X32 | 1X08_LOCK | 6x | SPCoast | PTH | |
| R1X11, R1X12, R1X21, R1X22, R1X31, R1X32, R2X11, R2X12, R2X21, R2X22, R2X31, R2X32, R3X11, R3X12, R3X21, R3X22, R3X31, R3X32, R4X11, R4X12, R4X21, R4X22, R4X31, R4X32, R5X11, R5X12, R5X21, R5X22, R5X31, R5X32, R6X11, R6X12, R6X21, R6X22, R6X31, R6X32, R7X11, R7X12, R7X21, R7X22, R7X31, R7X32, R8X11, R8X12, R8X21, R8X22, R8X31, R8X32 | AXIAL-0.4-RES | 48x | SPCoast | PTH | |
| J3X11, J3X12, J3X21, J3X22, J3X31, J3X32 | KK-156-8-F | 6x | SPCoast | PTH | |
| M1X11, M1X12, M1X21, M1X22, M1X31, M1X32, M2X11, M2X12, M2X21, M2X22, M2X31, M2X32 | MOUNTINGHOLE | 12x | SPCoast | PTH | |
| U$1X11, U$1X12, U$1X21, U$1X22, U$1X31, U$1X32 | OSHW-LOGO-M | 6x | SPCoast | PTH | |
| J1X11, J1X12, J1X21, J1X22, J1X31, J1X32 | RJ45-NO-SHIELD | 6x | SPCoast | PTH | |
| J4X11, J4X12, J4X21, J4X22, J4X31, J4X32 | SCREWTERMINAL-3.5MM-4_LOCK | 6x | SPCoast | PTH | |
| J2X11, J2X12, J2X21, J2X22, J2X31, J2X32 | SCREWTERMINAL-3.5MM-8 | 6x | SPCoast | PTH |

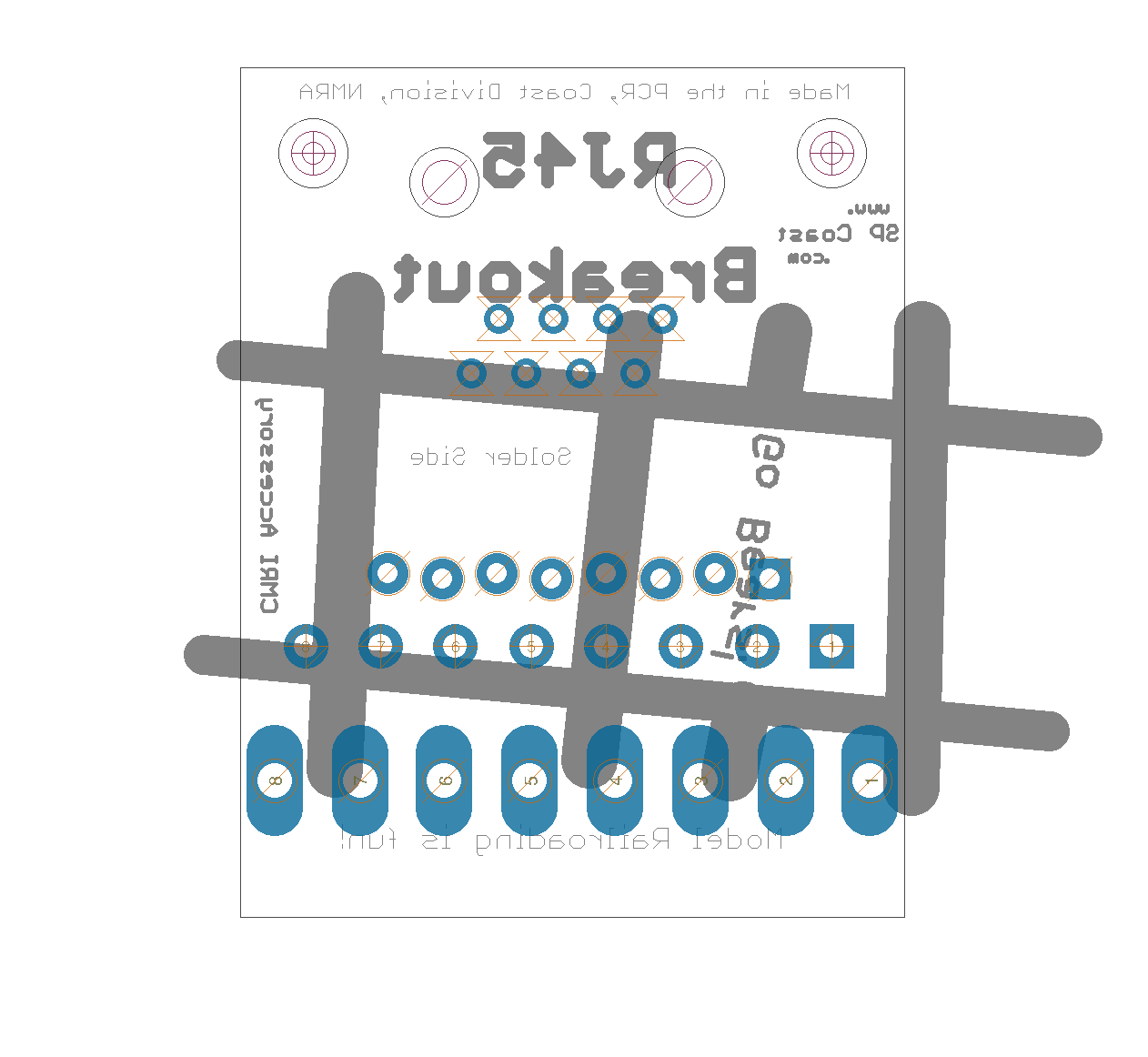

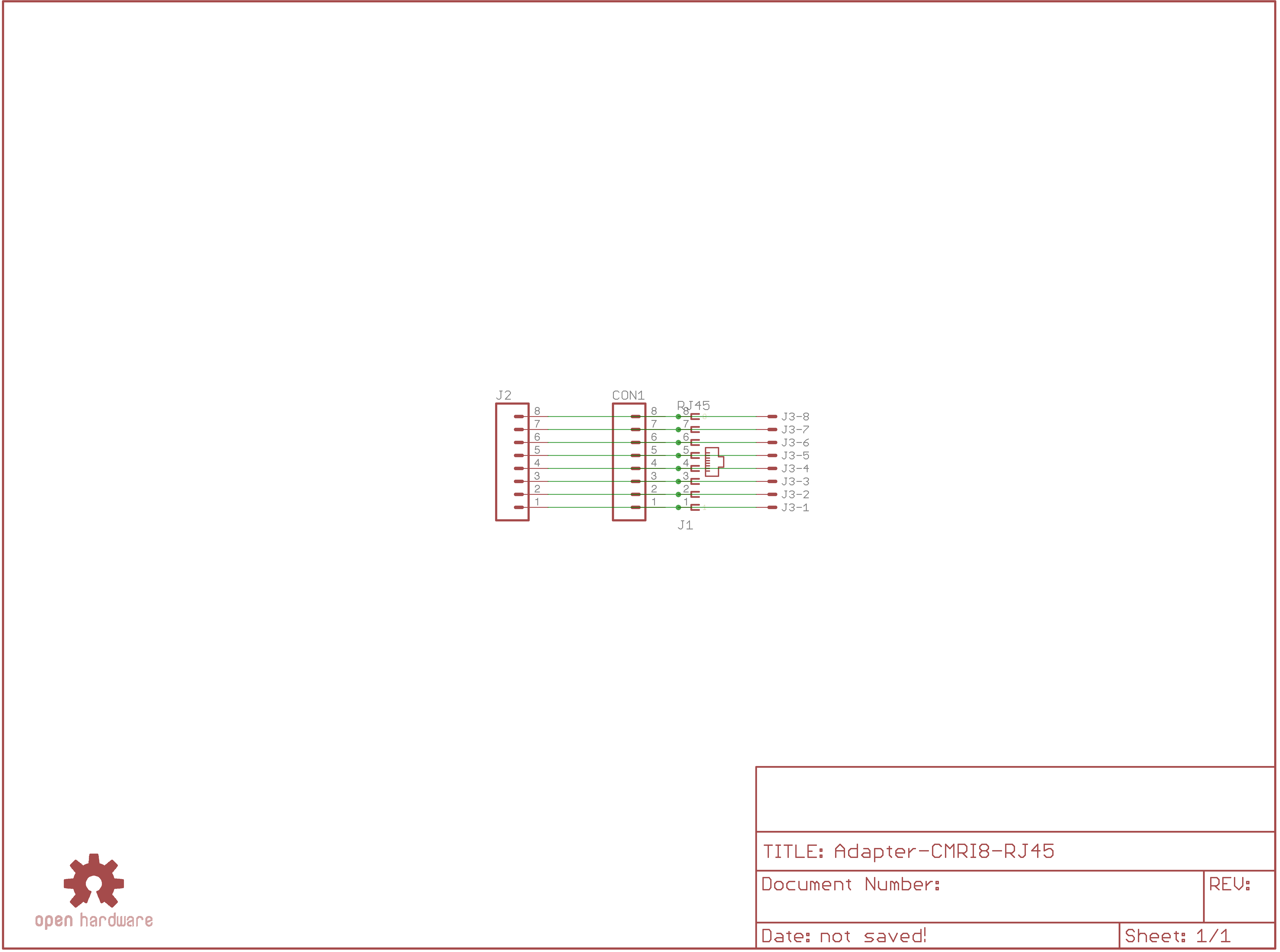

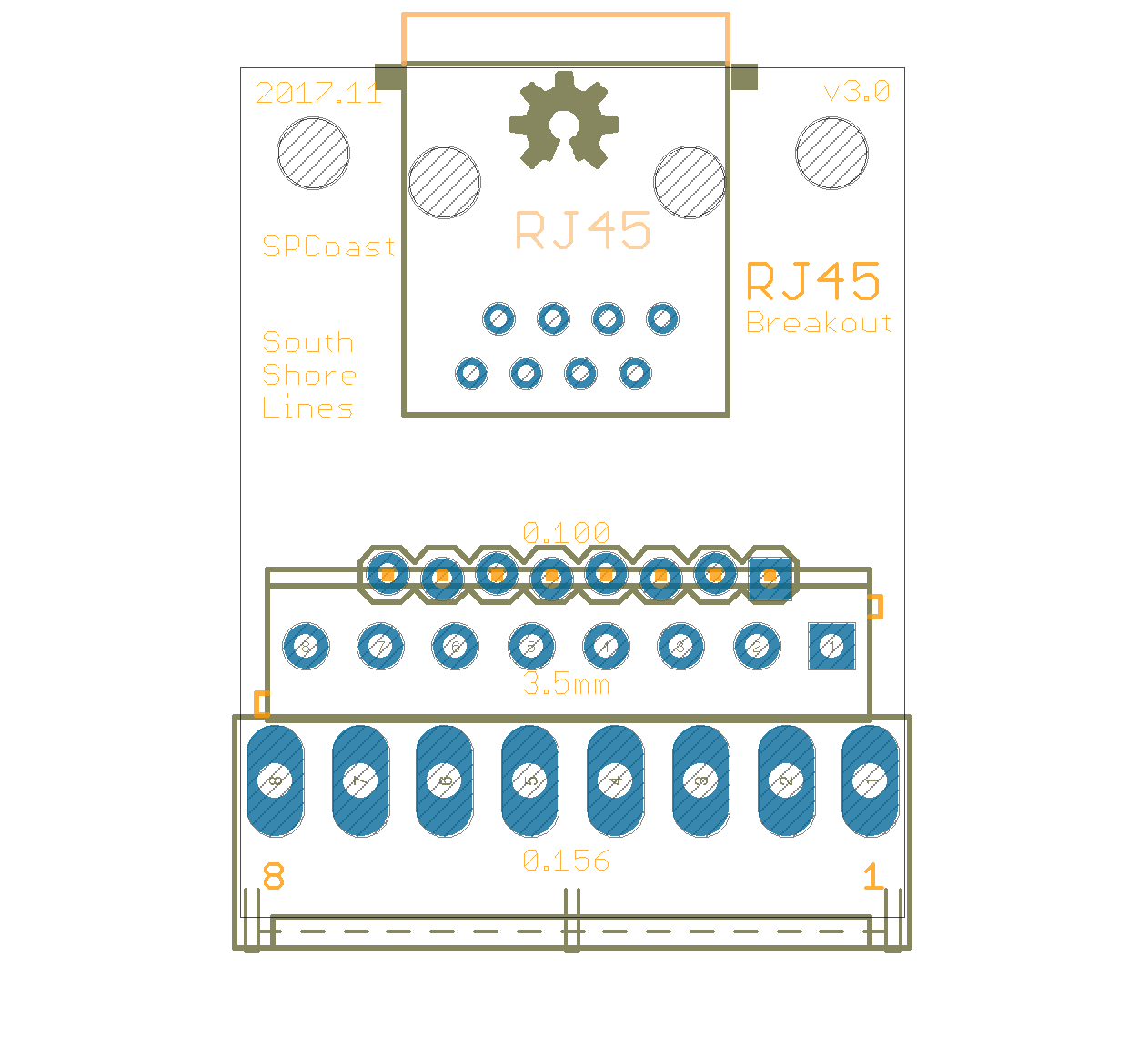

Adapter-CMRI8-RJ45 Version 3.0
First built: 2017-11
CMRI boards have traditionally used Molex KK 0.156 pitch I/O pins, which required crimping matching connectors onto layout wiring. This adapter board converts them into RJ-45 style used by common network cables. Crimping to RH45 connectors is (IMO at least) much simpler than the alternative. Another of these boards can be used at the other end of the 8-conductor cable, but this time it can be populated with a 0.1” or 3.5mm pitch screw terminal and mounted to the benchwork near where it’s signals are used.
- Removed unused ground point ties
|
|
|
UNPUBLISHED

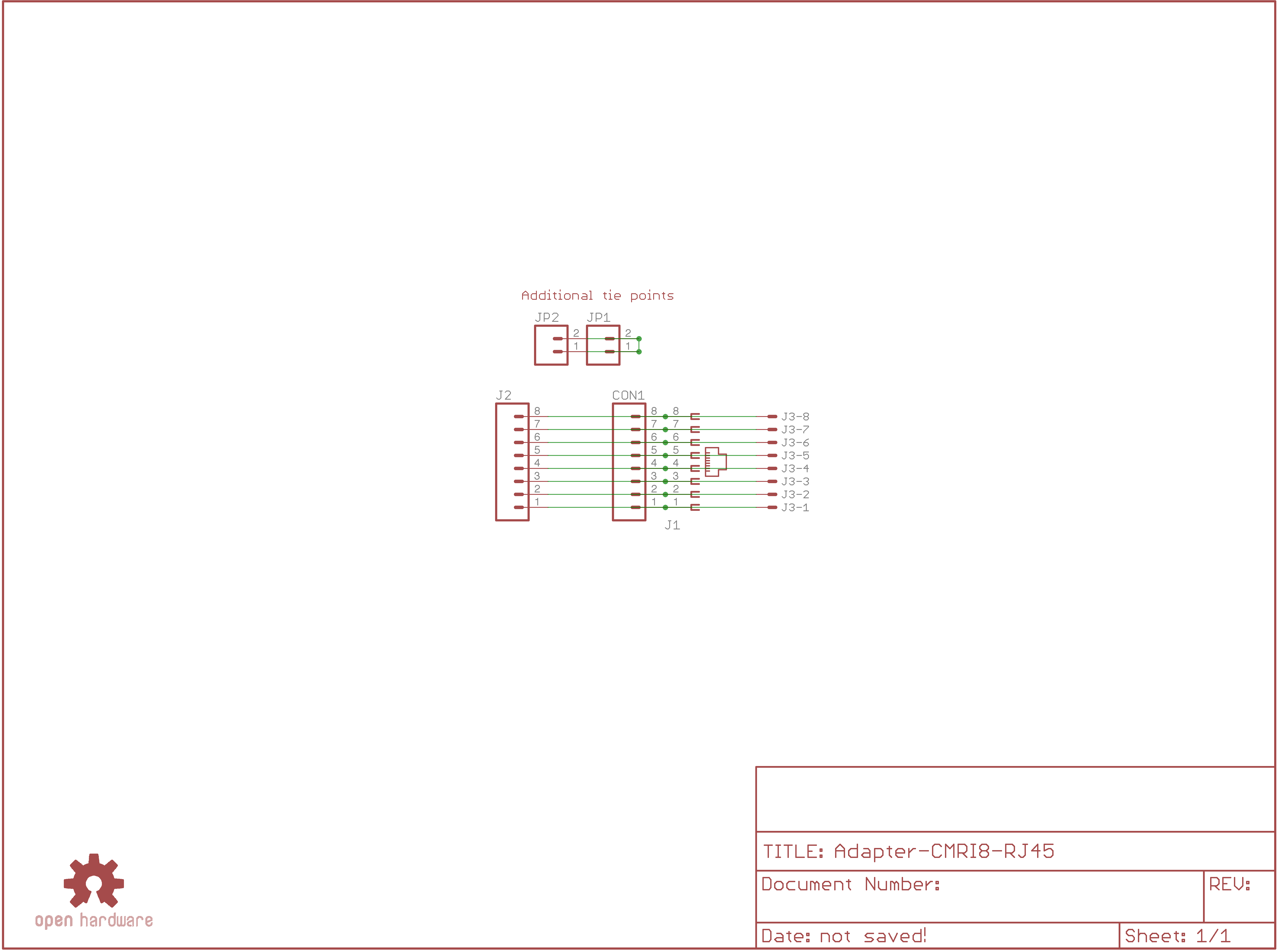

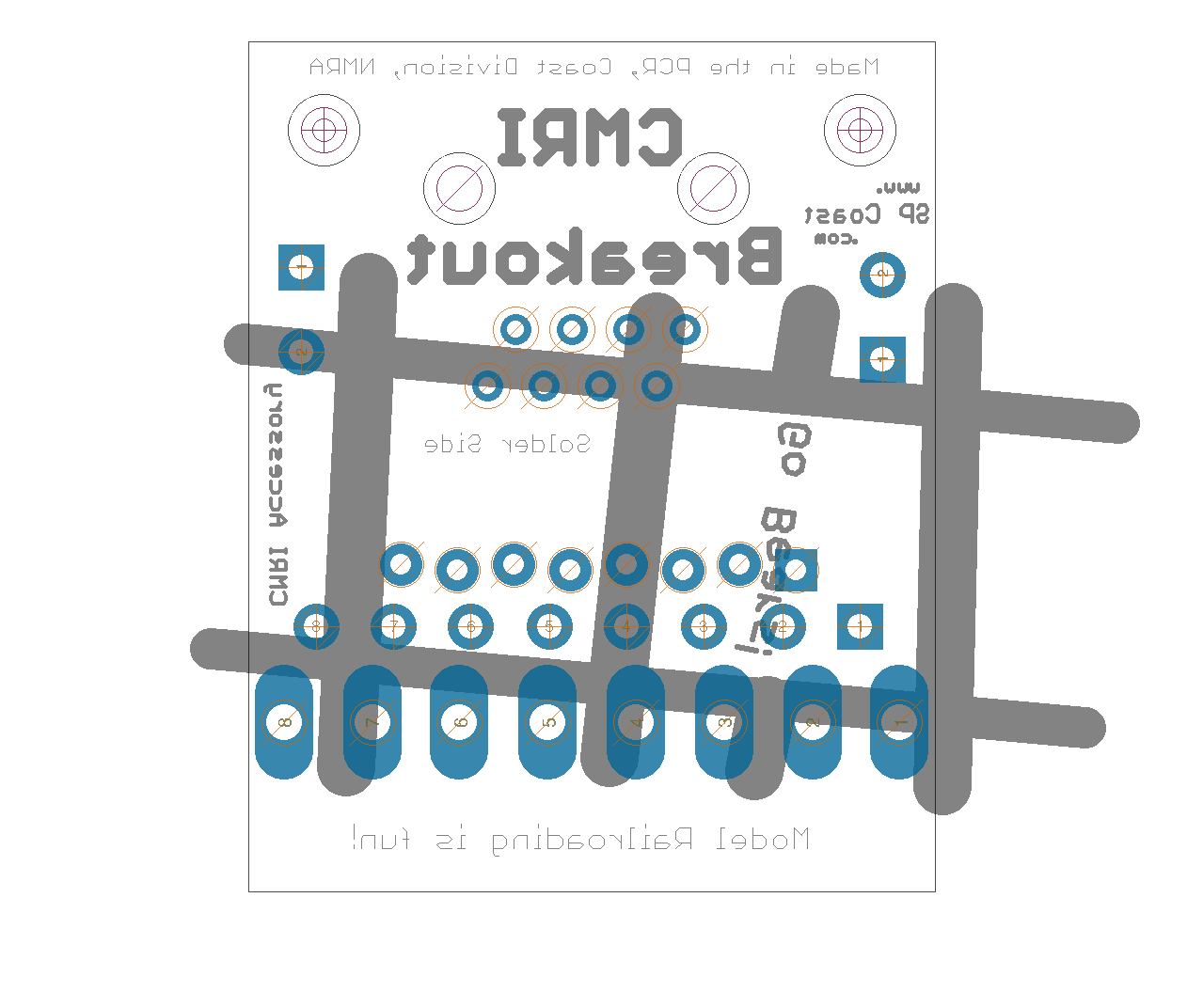

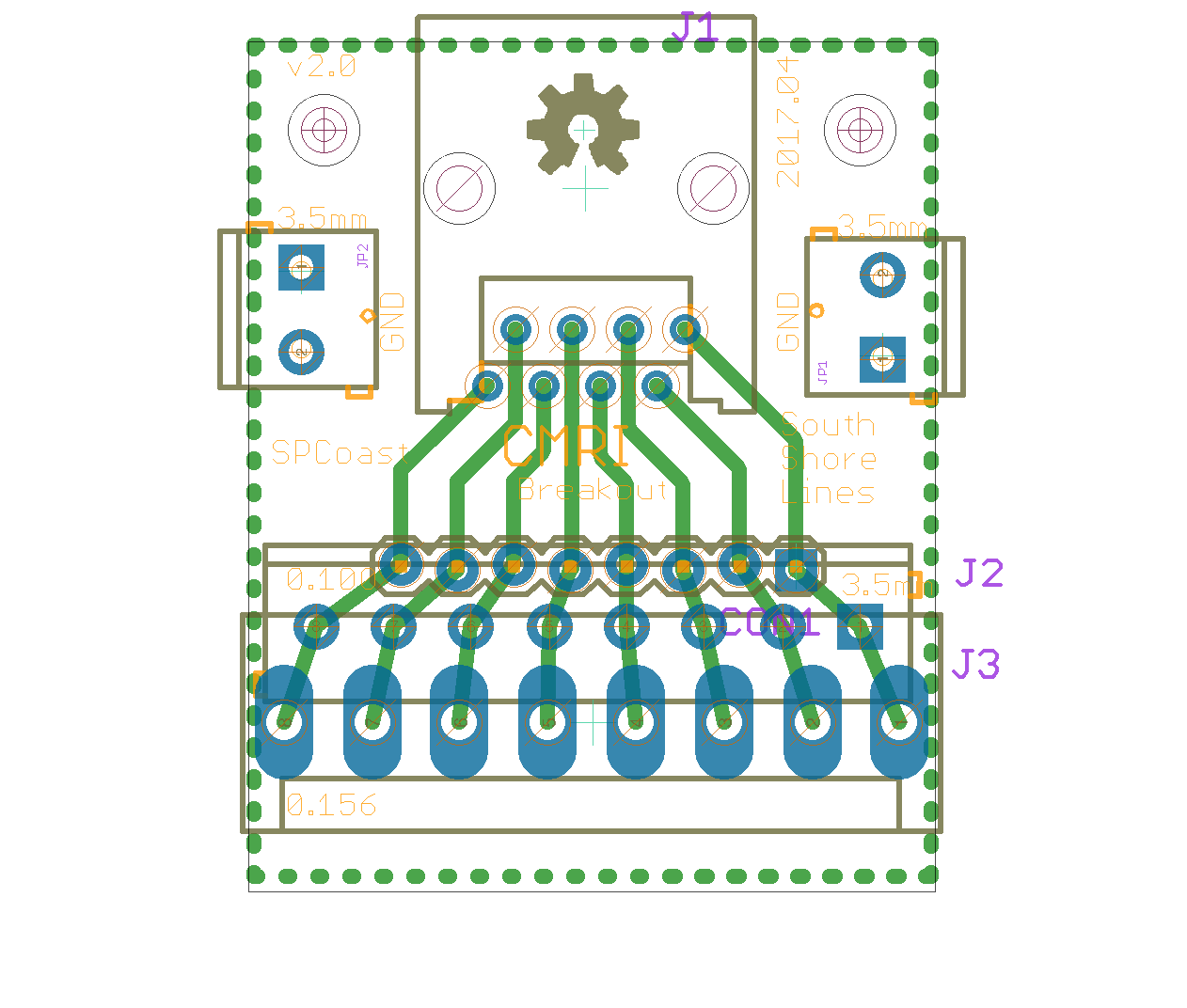

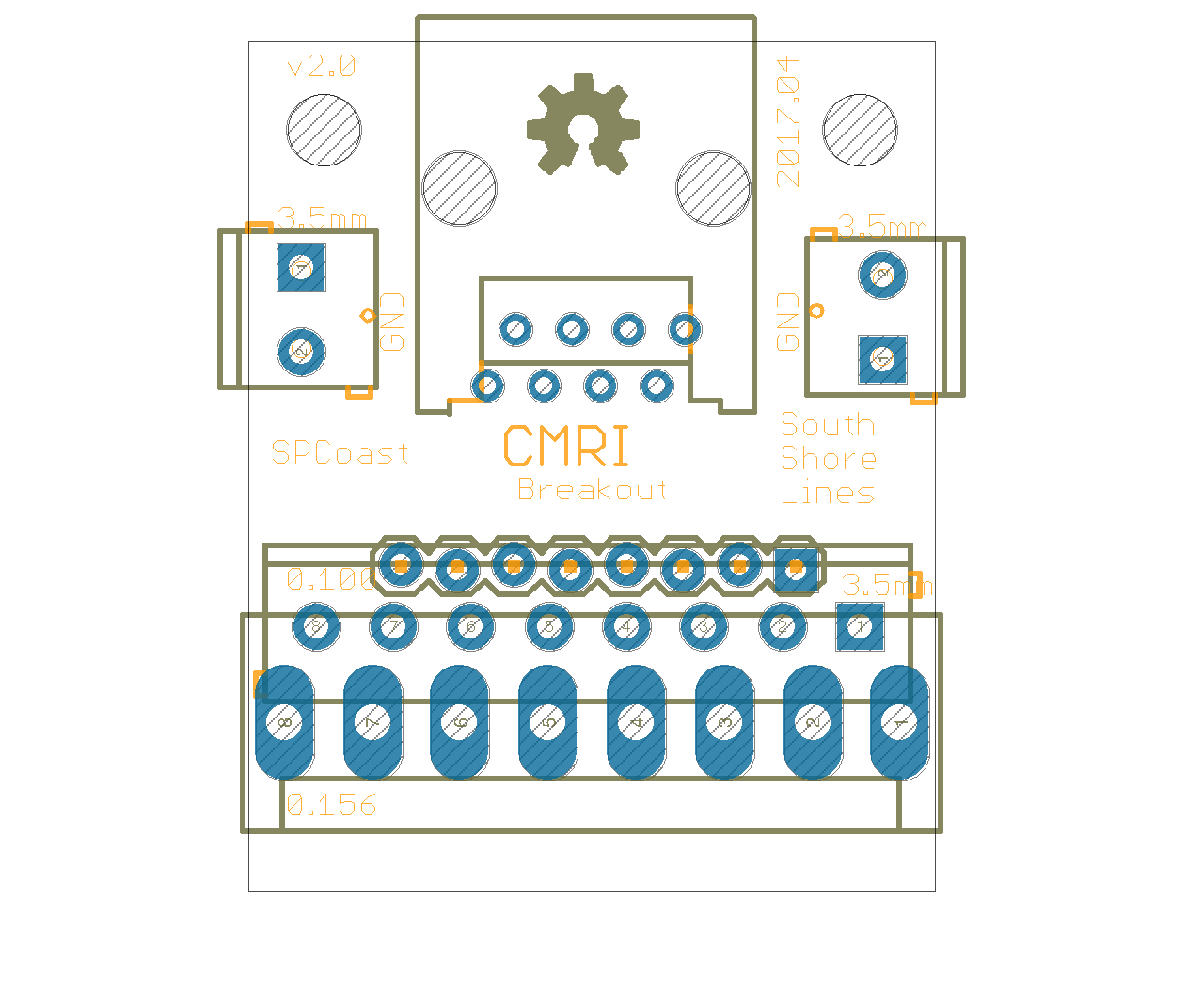

Adapter-CMRI8-RJ45 Version 2.0
First built: 2017-04
CMRI boards have traditionally used Molex KK 0.156 pitch I/O pins, which required crimping matching connectors onto layout wiring. This adapter board converts them into RJ-45 style used by common network cables. Crimping to RH45 connectors is (IMO at least) much simpler than the alternative. Another of these boards can be used at the other end of the 8-conductor cable, but this time it can be populated with a 0.1” or 3.5mm pitch screw terminal and mounted to the benchwork near where it’s signals are used.
- Added ground tie point/distribution, 0.100 pin header
|
|
|
UNPUBLISHED

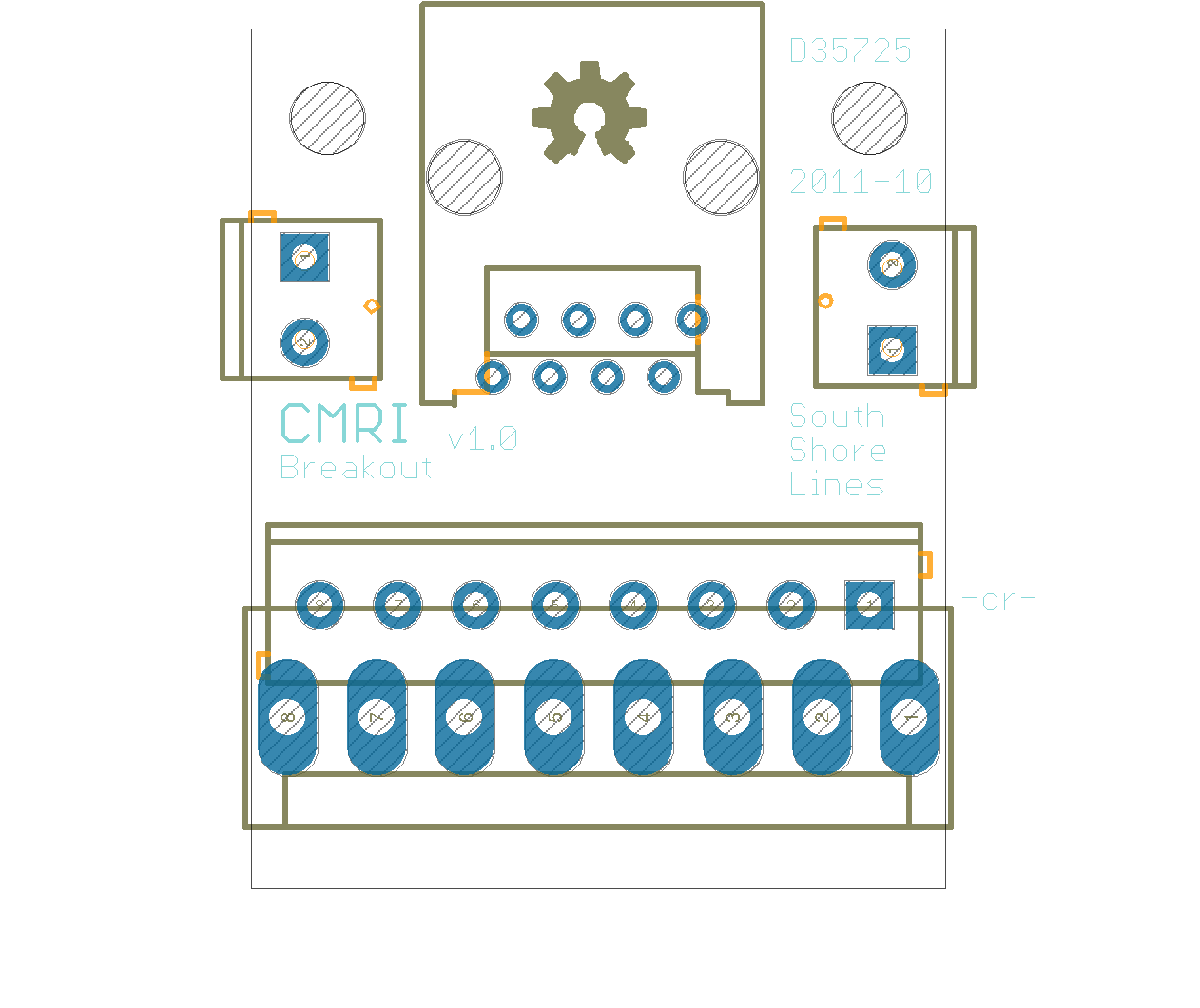

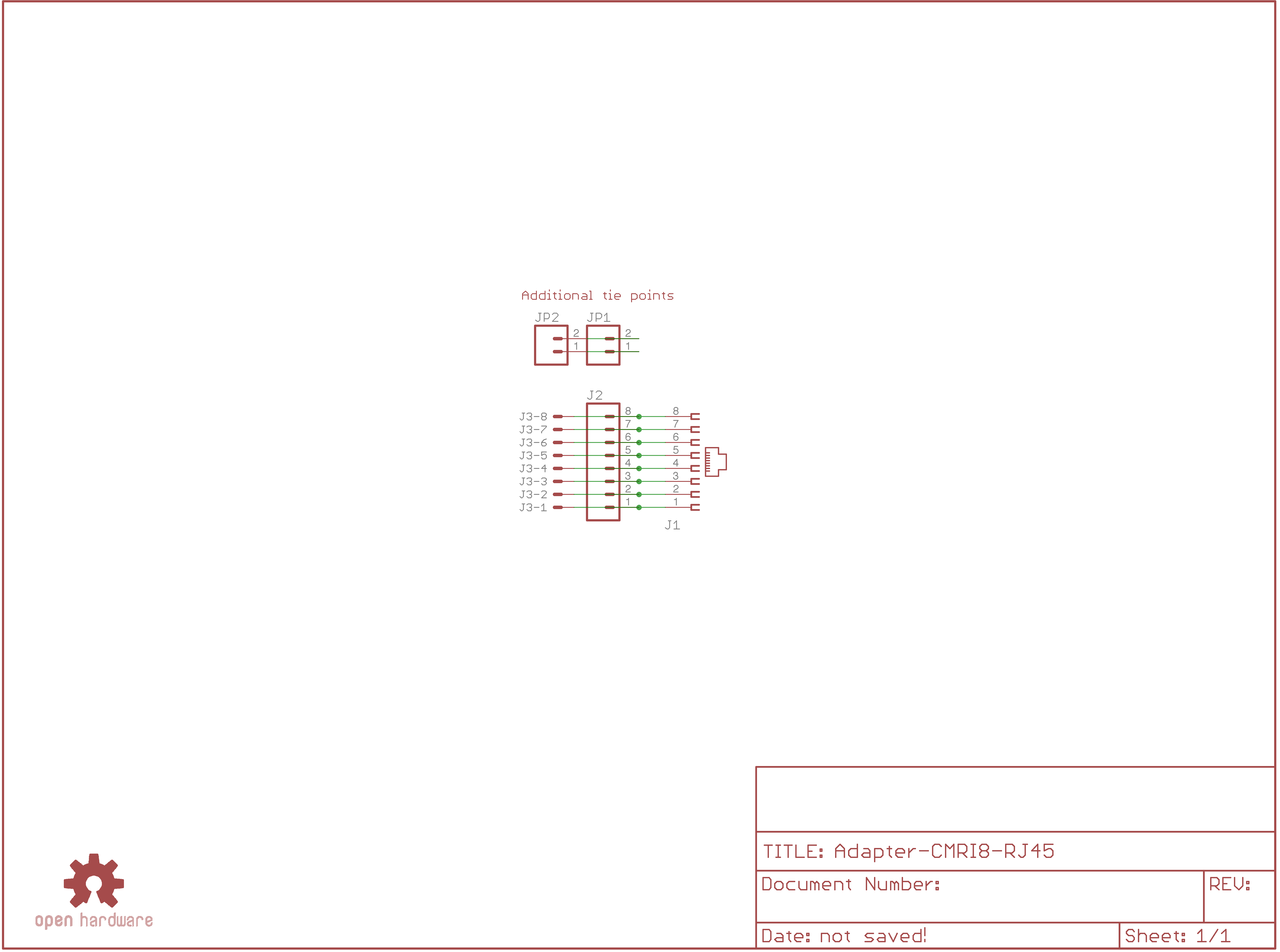

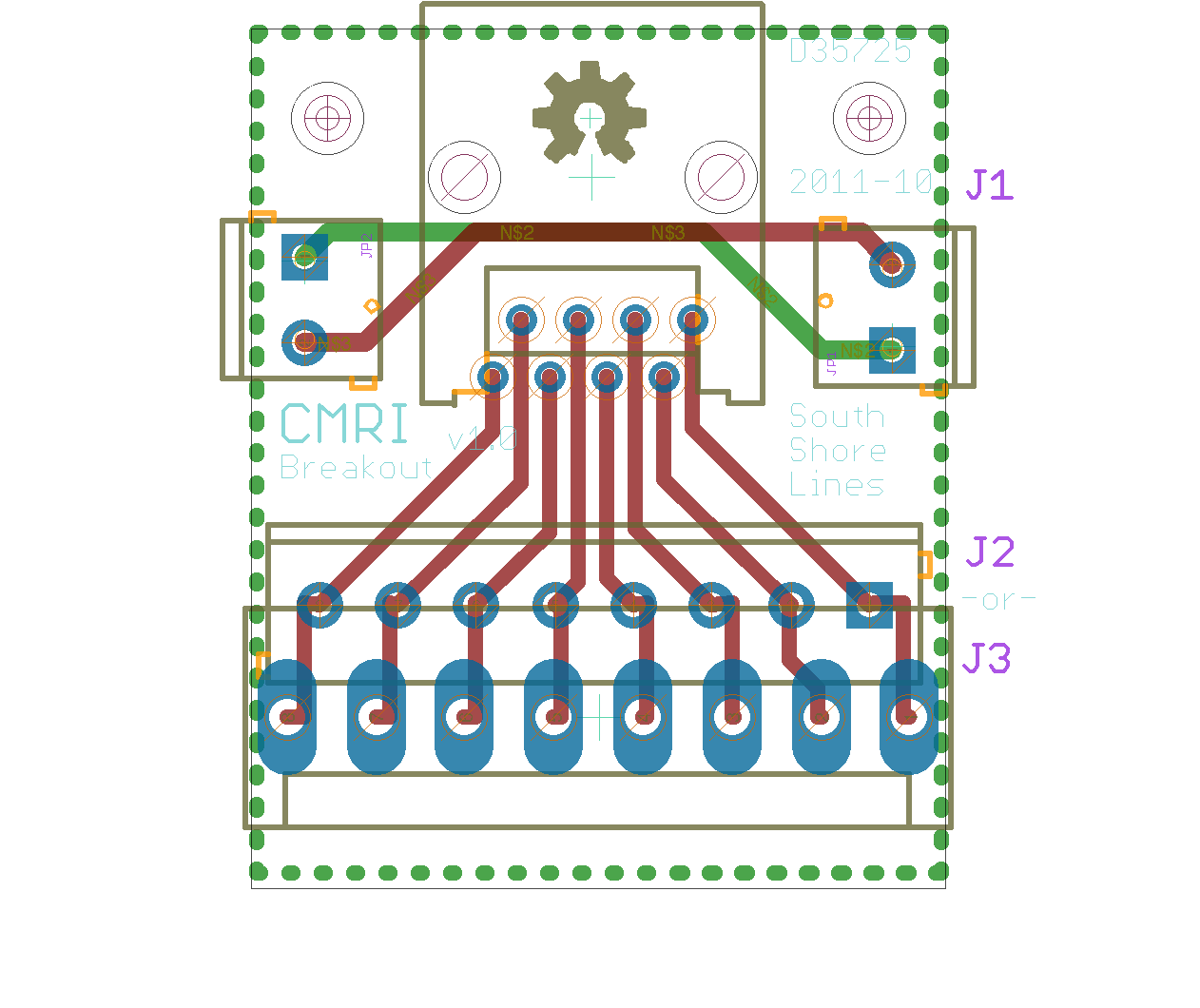

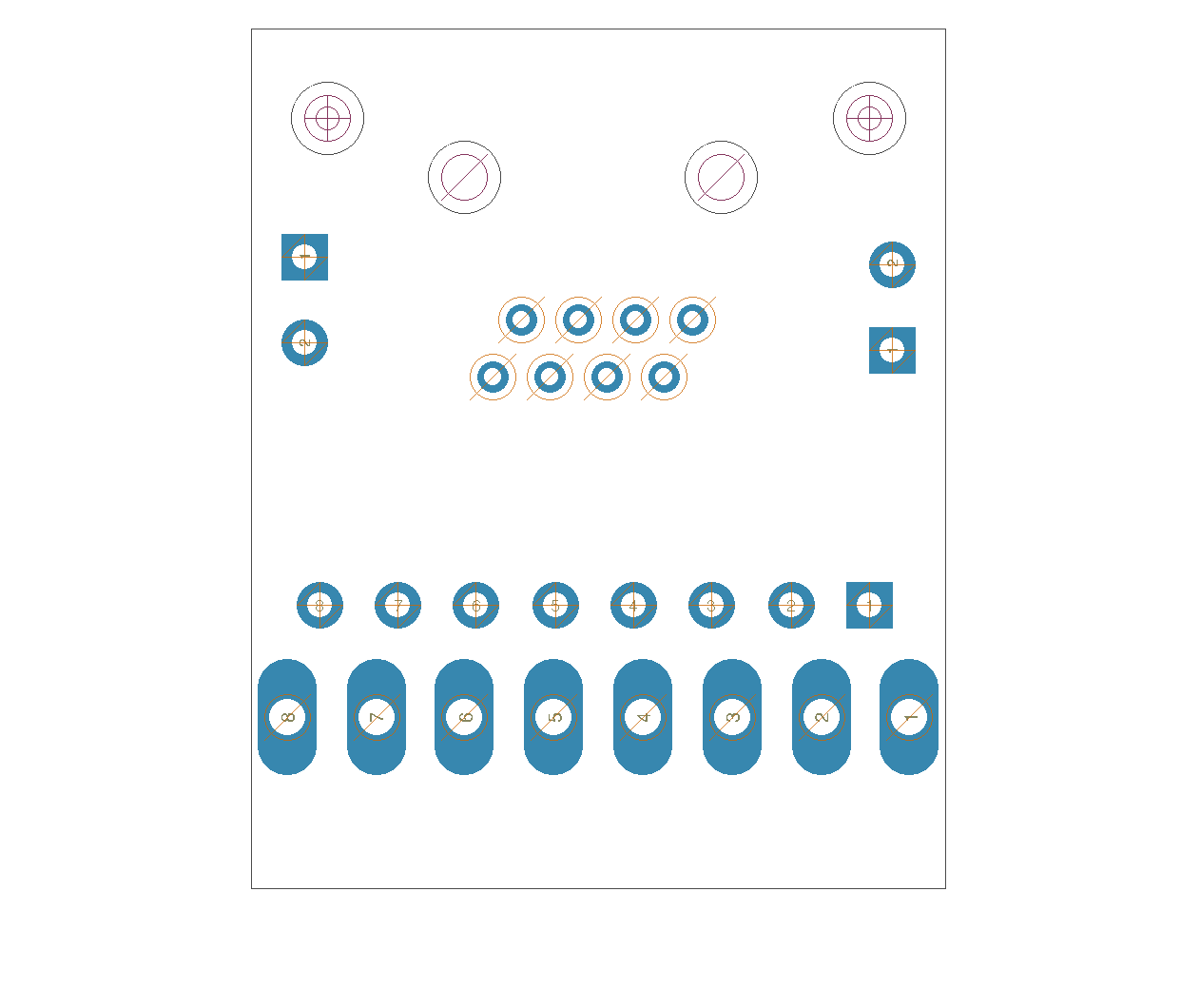

Adapter-CMRI8-RJ45 Version 1.0
First built: 2011-10
CMRI boards have traditionally used Molex KK 0.156 pitch I/O pins, which required crimping matching connectors onto layout wiring. This adapter board converts them into RJ-45 style used by common network cables. Crimping to RH45 connectors is (IMO at least) much simpler than the alternative. Another of these boards can be used at the other end of the 8-conductor cable, but this time it can be populated with a 0.1” or 3.5mm pitch screw terminal and mounted to the benchwork near where it’s signals are used.
- Initial version
|
|
|
UNPUBLISHED
