AD4DA-LightUI

Fork project on GitHub

4x slide potentiometers for use with I2C-AD4DA.

AD4DA-LightUI-Graphic
AD4DA-LightUI-Graphic



Download ALPS-SuperSlide.PDF - Documentation
Download PCF8591.pdf - Documentation



AD4DA-LightUI Version 2.2

Prototyped

Not tested or validated

Shrunk board The Light UI has 4x slide potentiometers which are used to control LED Layout lighting color balances and levels. It is designed to connect to my I2C-AD4DA (I2C 4x Analog to Digital and 1x Digital to Analog) interface board with an RJ45/8 connection.

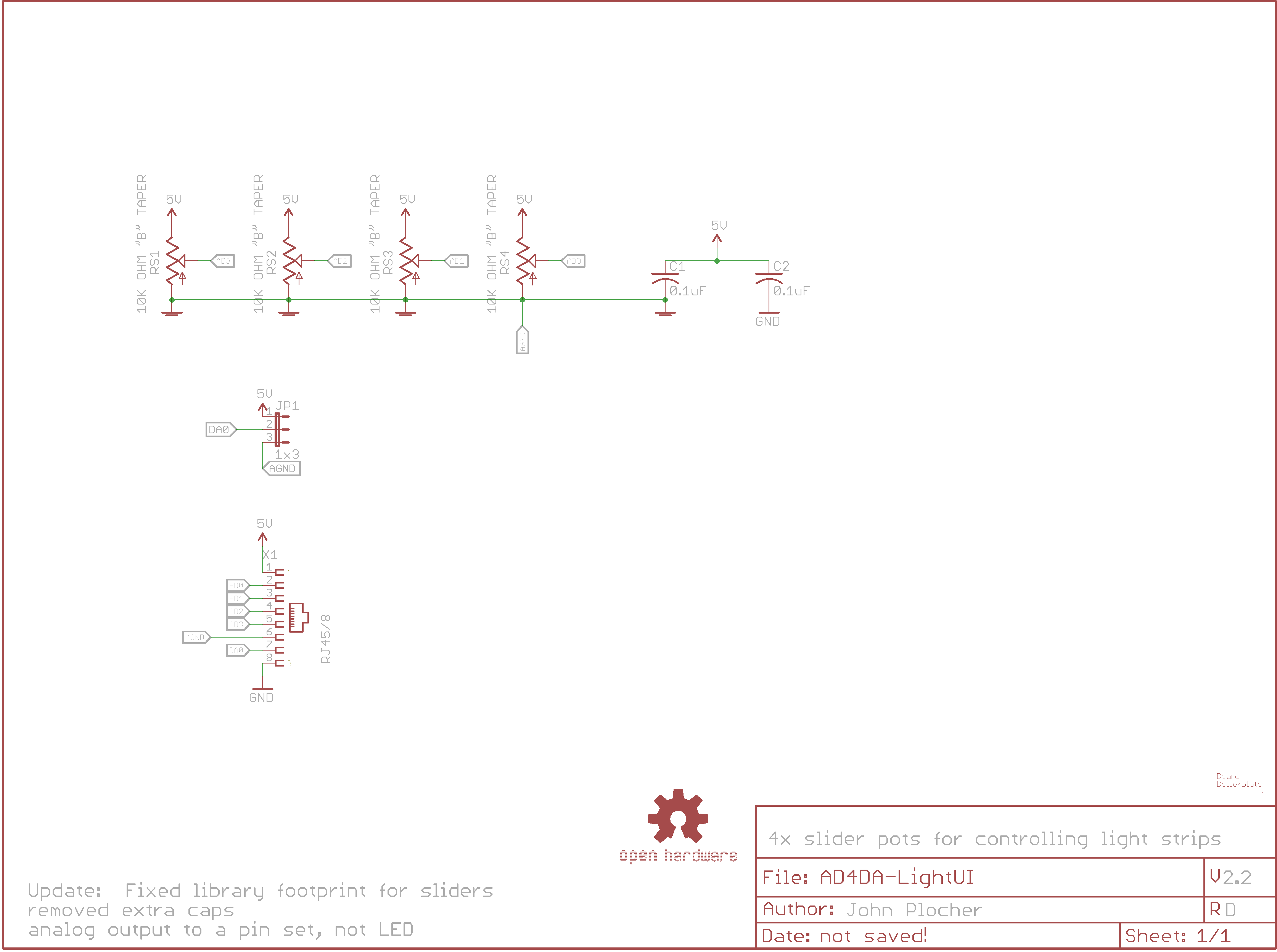

Schematic
Schematic

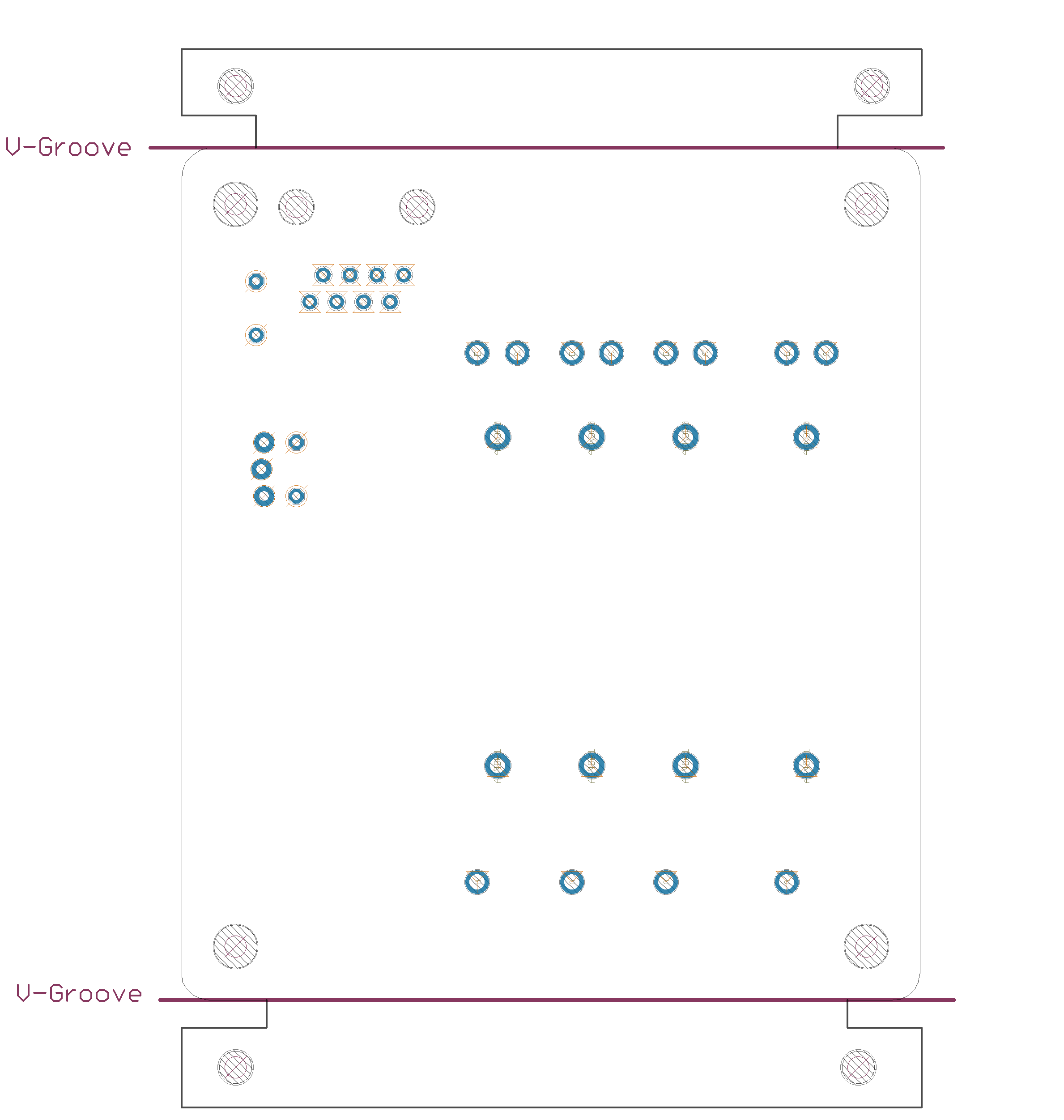

Bot Silk
Bot Silk

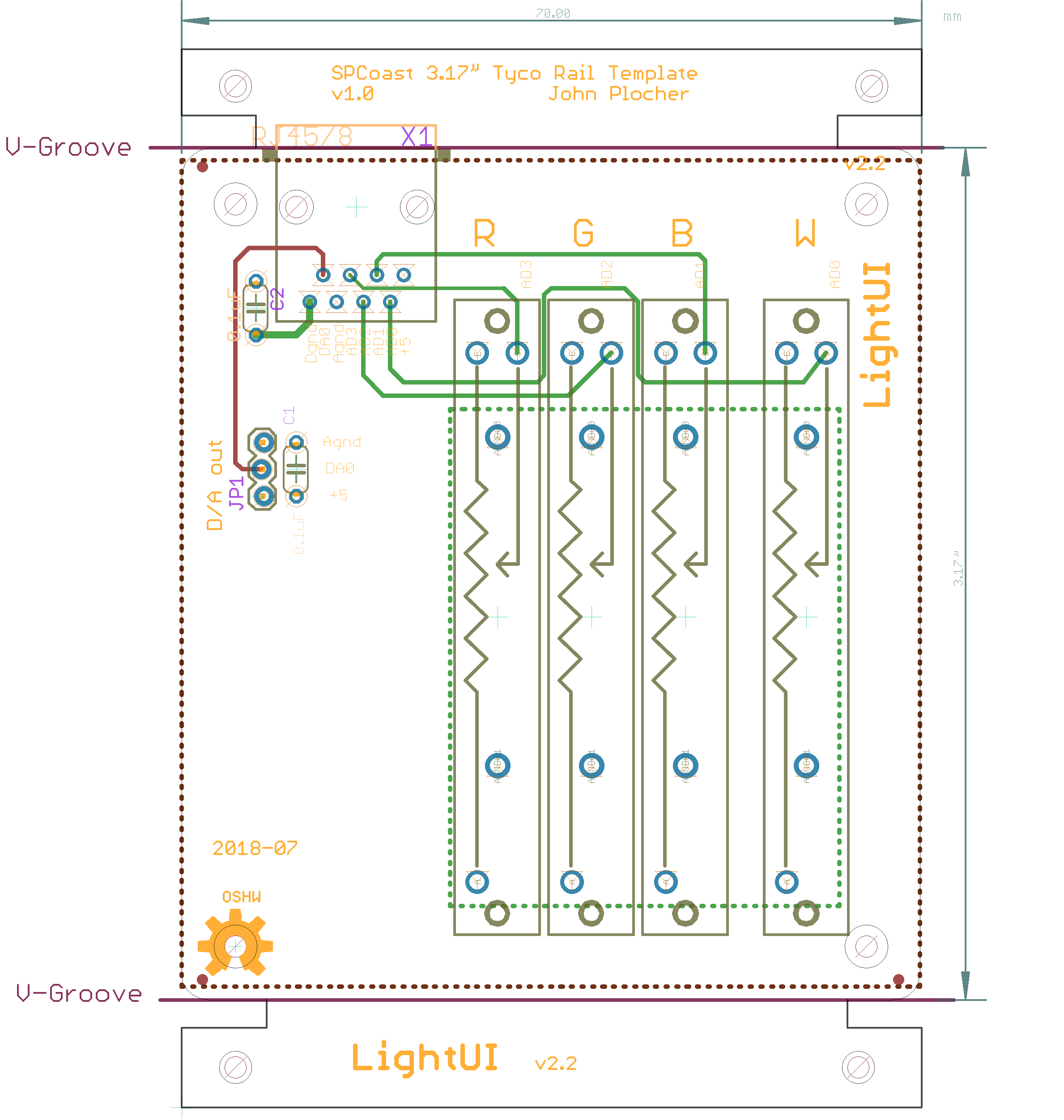

Board
Board

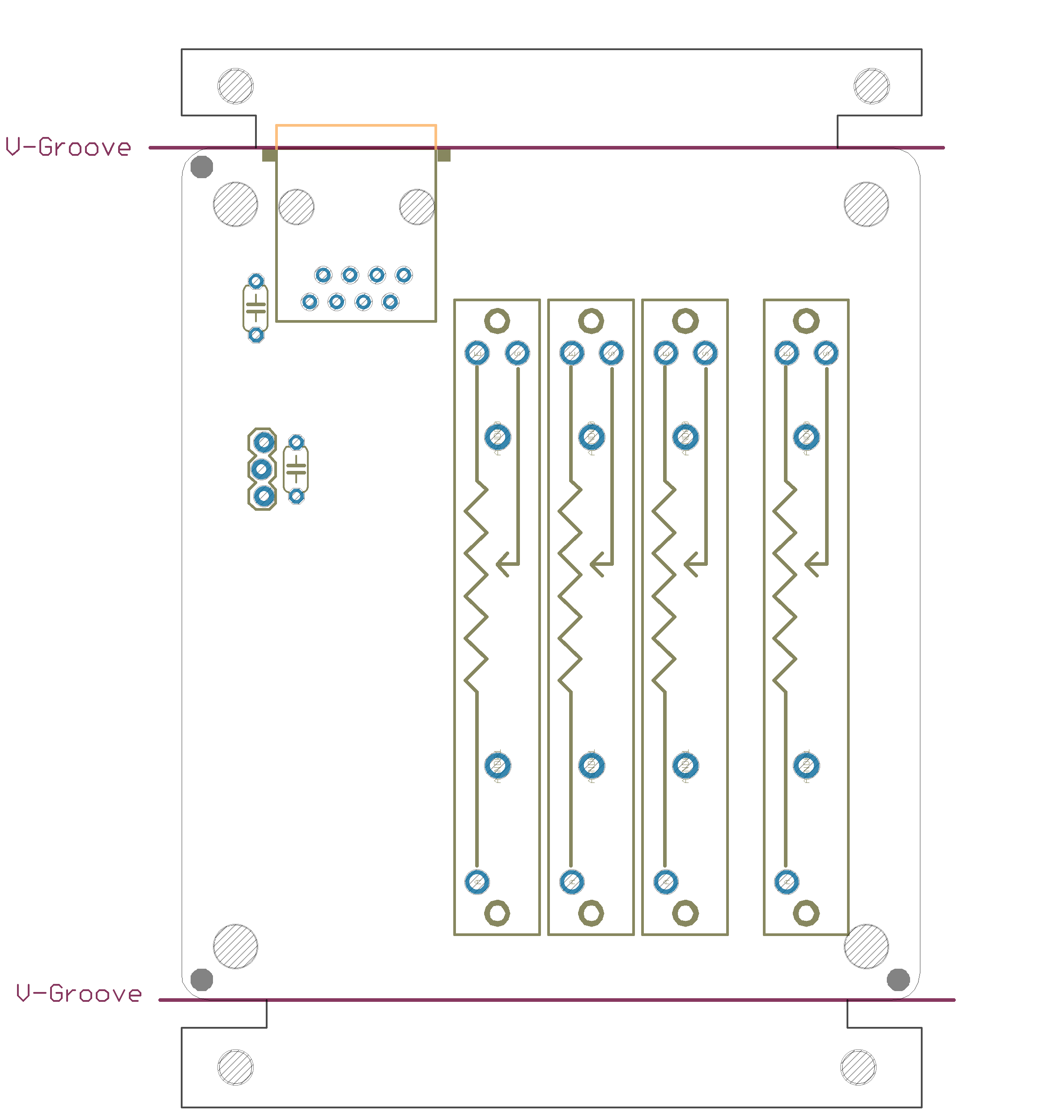

Top Silk
Top Silk

Download AD4DA-LightUI.gerbers.zip - Gerber Fabrication files
Download AD4DA-LightUI.parts - Parts List (spreadsheet data)



AD4DA-LightUI.bom

Parts Value Package Quantity Library Type/Feeder
C1, C2 0.1uF C050-024X044 2x SPCoast PTH
JP1 1x3 1X03 1x SPCoast PTH
RS1, RS2, RS3, RS4 10K OHM “B” TAPER SLIDER-45MM 4x SPCoast PTH
BOARD1 10x7cm BOARD-DINRAIL-3.17INX7CM 1x SPCoast NONE
LOGO1 DOC-OSHW-LOGO-L OSHW-LOGO-L 1x SPCoast PTH
X1 RJ45/8 RJ45-NO-SHIELD 1x SPCoast PTH

AD4DA-LightUI Version 2.1

Prototyped

Fixed silkscreen AGND and +5V labels. The Light UI has 4x slide potentiometers which are used to control LED Layout lighting color balances and levels. It is designed to connect to my I2C-AD4DA (I2C 4x Analog to Digital and 1x Digital to Analog) interface board with an RJ45/8 connection.

Schematic
Schematic
Bot Silk
Bot Silk

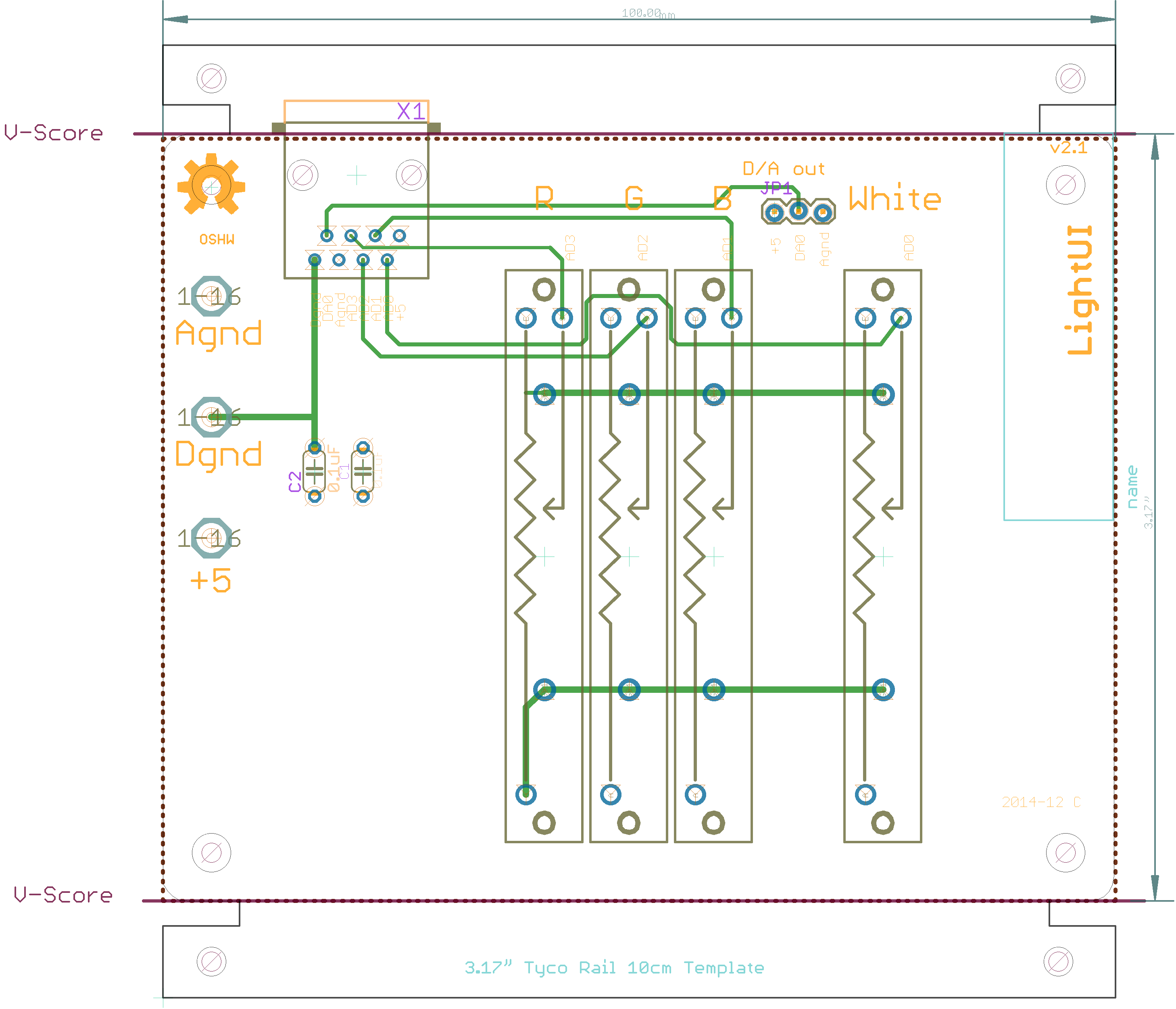

Board
Board

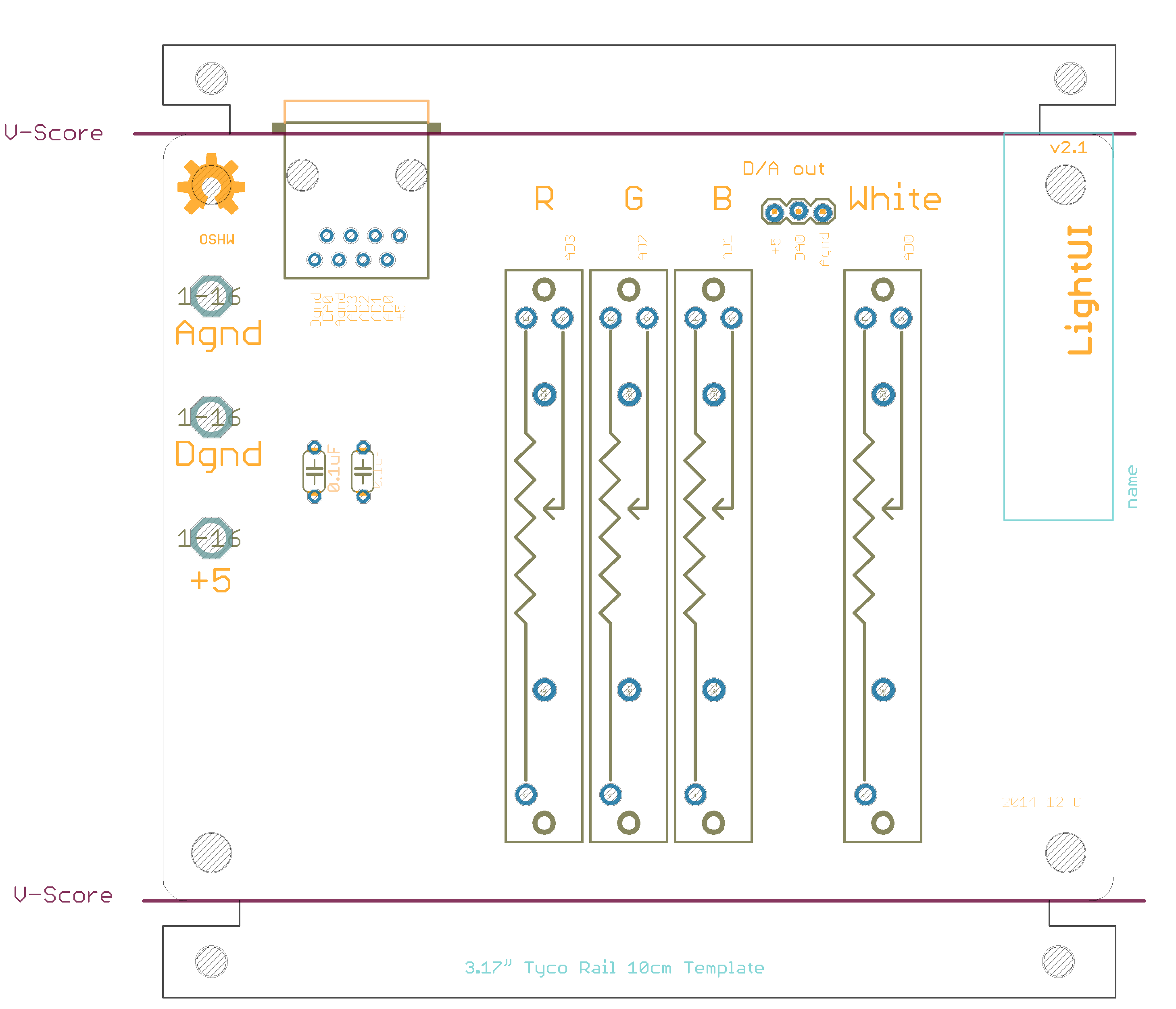

Top Silk
Top Silk

Download AD4DA-LightUI - CHMT Component and feeder definitions
Download AD4DA-LightUI.gerbers.zip - Gerber Fabrication files
Download AD4DA-LightUI.parts - Parts List (spreadsheet data)



AD4DA-LightUI.bom

Parts Value Package Quantity Library Type/Feeder
C1, C2 0.1uF C050-024X044 2x SPCoast PTH
X1   RJ45-NO-SHIELD 1x SPCoast PTH
BOARD1 BOARD80X100 BOARD-DINRAIL-3.17INX10CM 1x SPCoast PTH
LOGO1 DOC-OSHW-LOGO-L OSHW-LOGO-L 1x SPCoast PTH
JP1 JUMPER-3PTH-LOCK 1X03 1x SPCoast PTH
U$1, U$2, U$3, U$7 R-SLIDE-POT-45MM SLIDER-45MM 4x SPCoast PTH

AD4DA-LightUI Version 2.0

Prototyped

Analog output to a pin header, not hardwired LED. Silkscreen WRONG - mixed up AGND and +5V labels. The Light UI has 4x slide potentiometers which are used to control LED Layout lighting color balances and levels. It is designed to connect to my I2C-AD4DA (I2C 4x Analog to Digital and 1x Digital to Analog) interface board with an RJ45/8 connection.

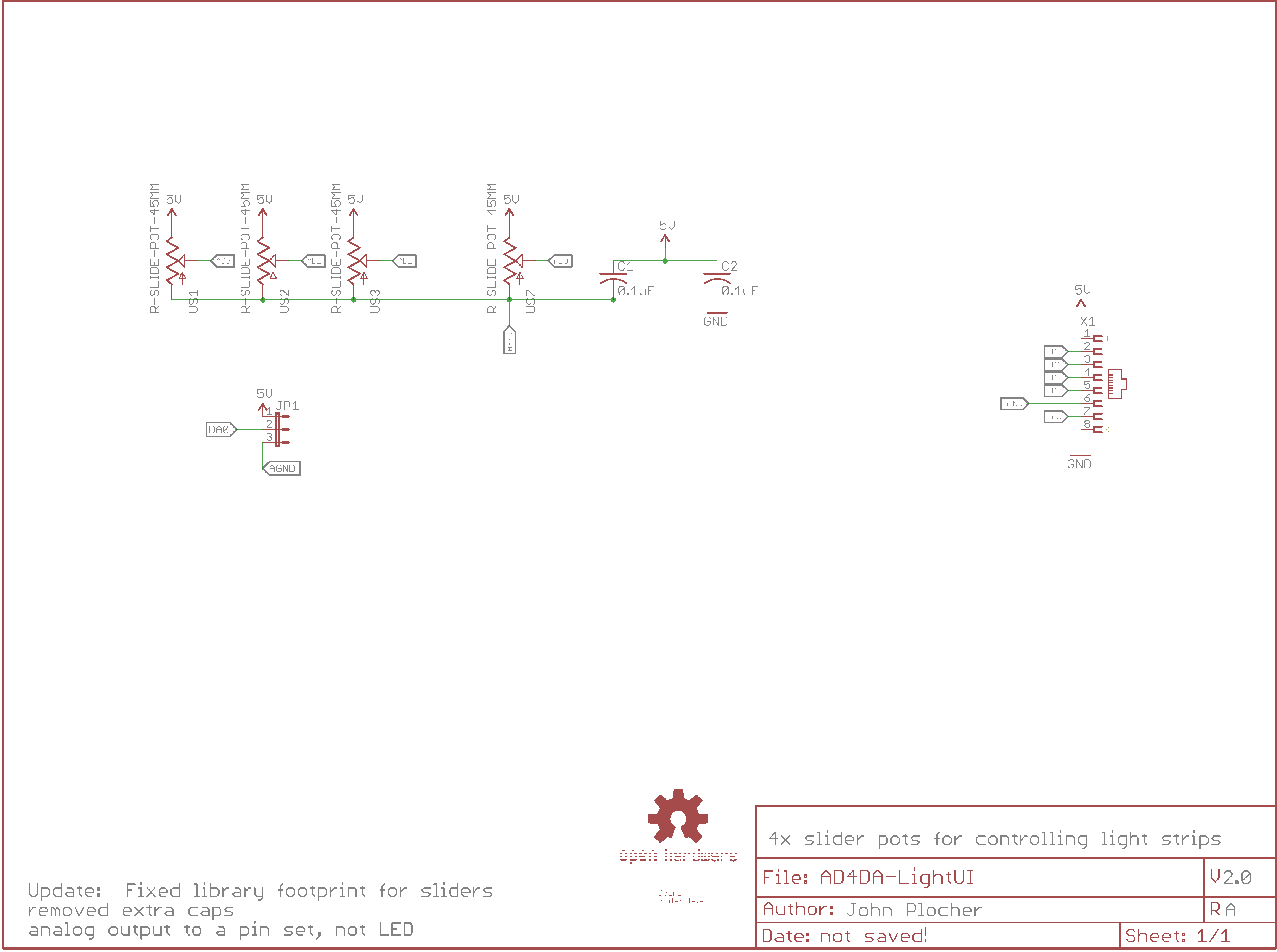

Schematic
Schematic

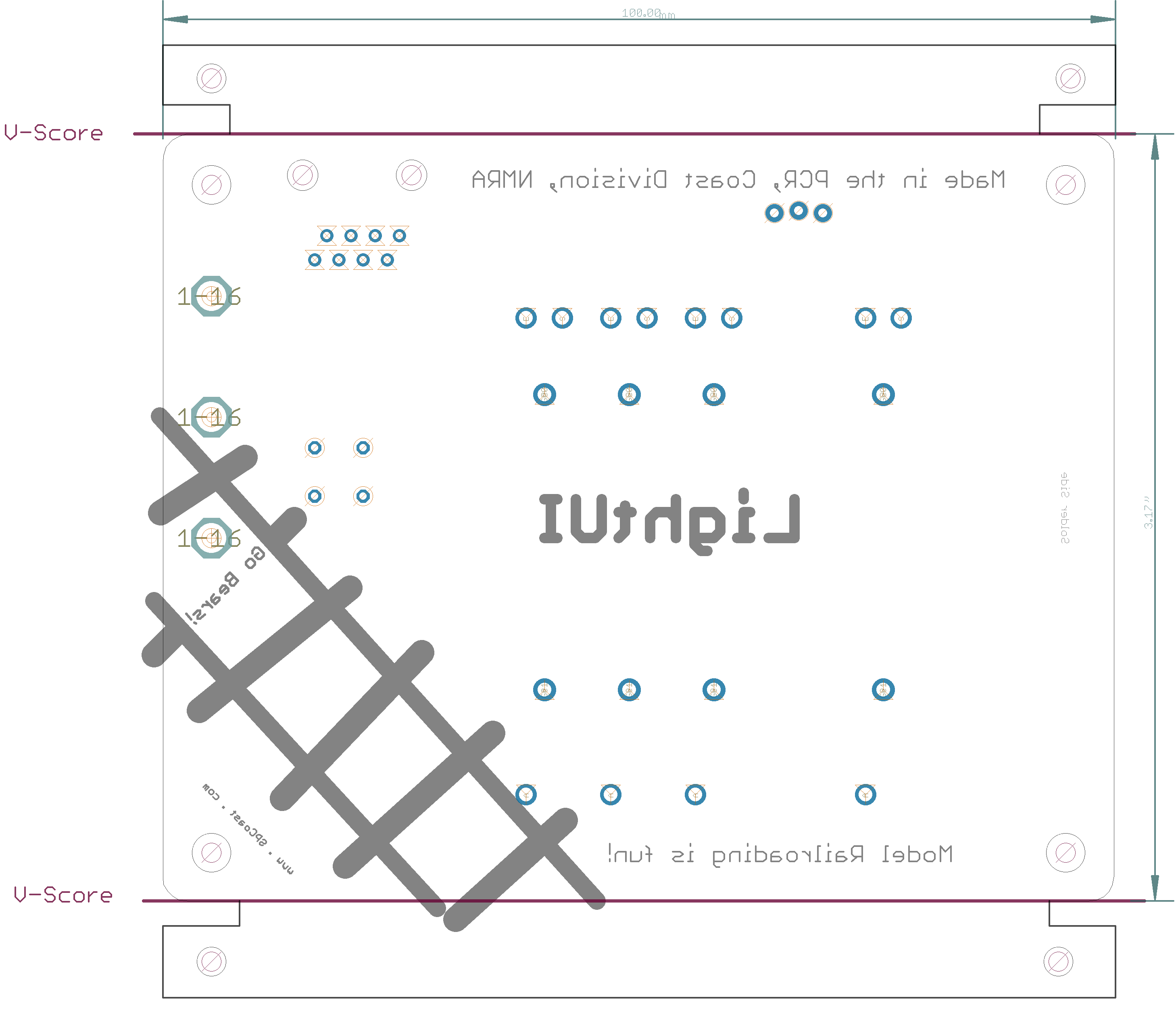

Bot Silk
Bot Silk

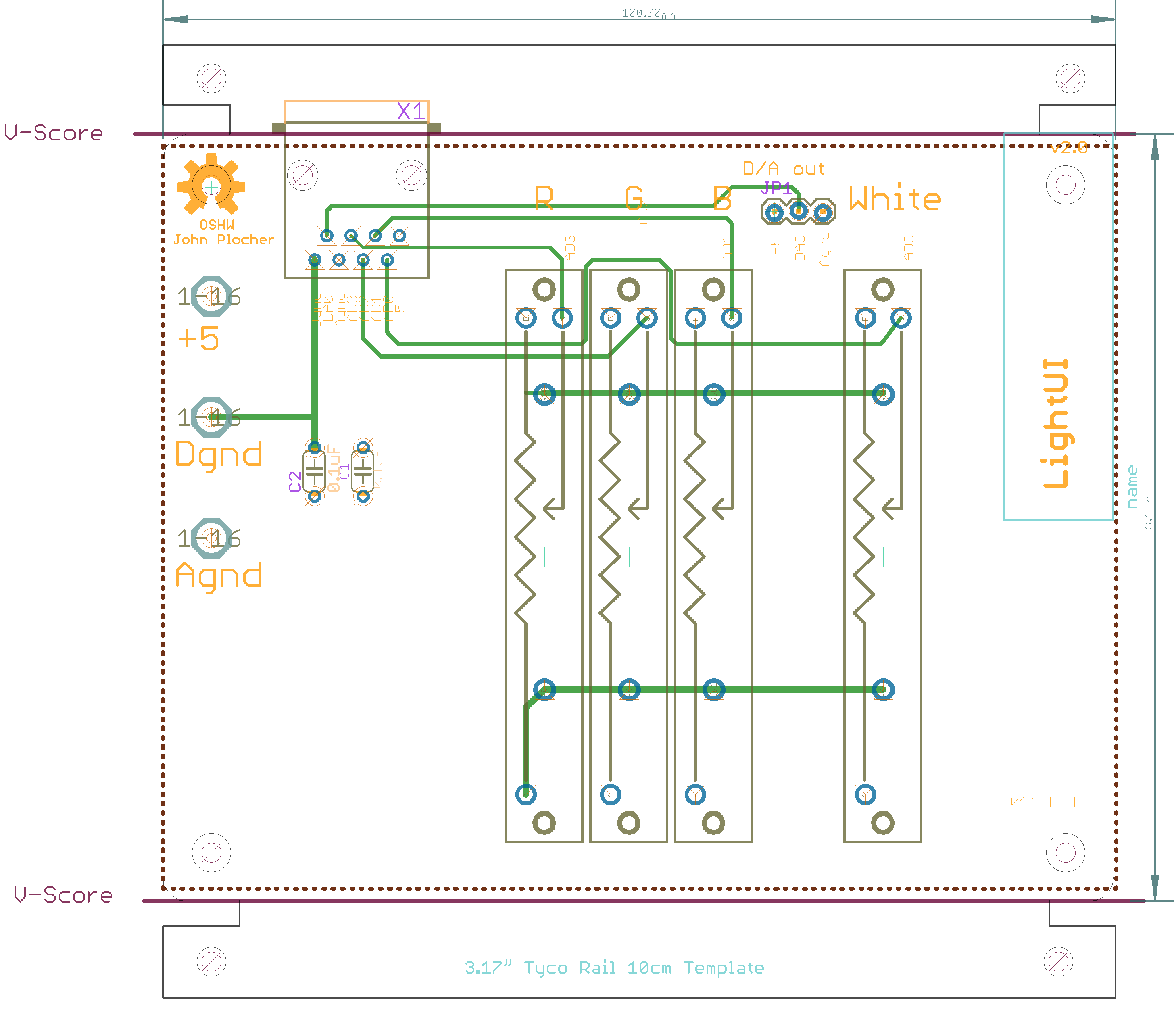

Board
Board

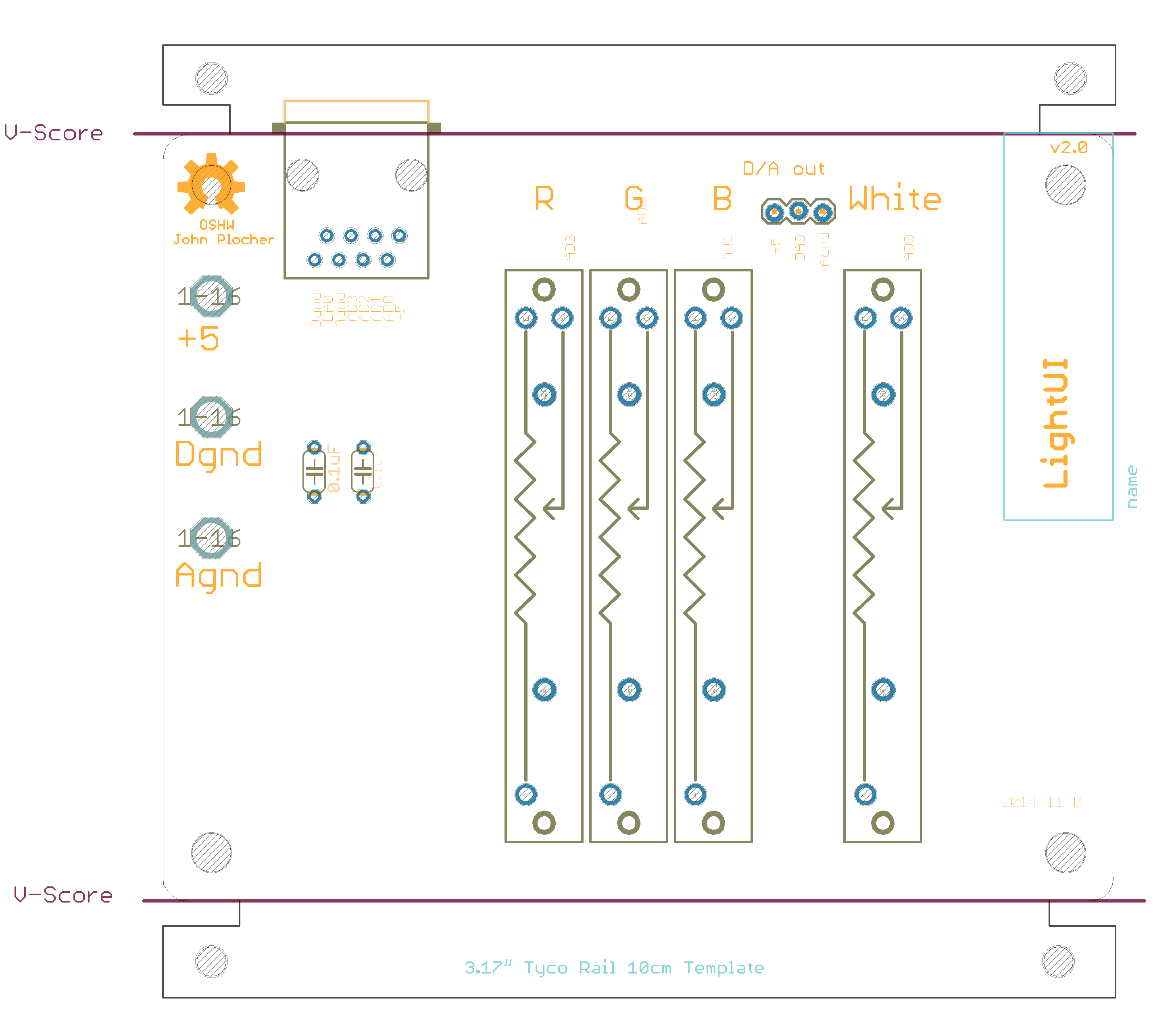

Top Silk
Top Silk

AD4DA-LightUI Version 1.0

Prototyped

This version has the wrong footprint for the slider potentiometers that I had purchased. The Light UI has 4x slide potentiometers which are used to control LED Layout lighting color balances and levels. It is designed to connect to my I2C-AD4DA (I2C 4x Analog to Digital and 1x Digital to Analog) interface board with an RJ45/8 connection.

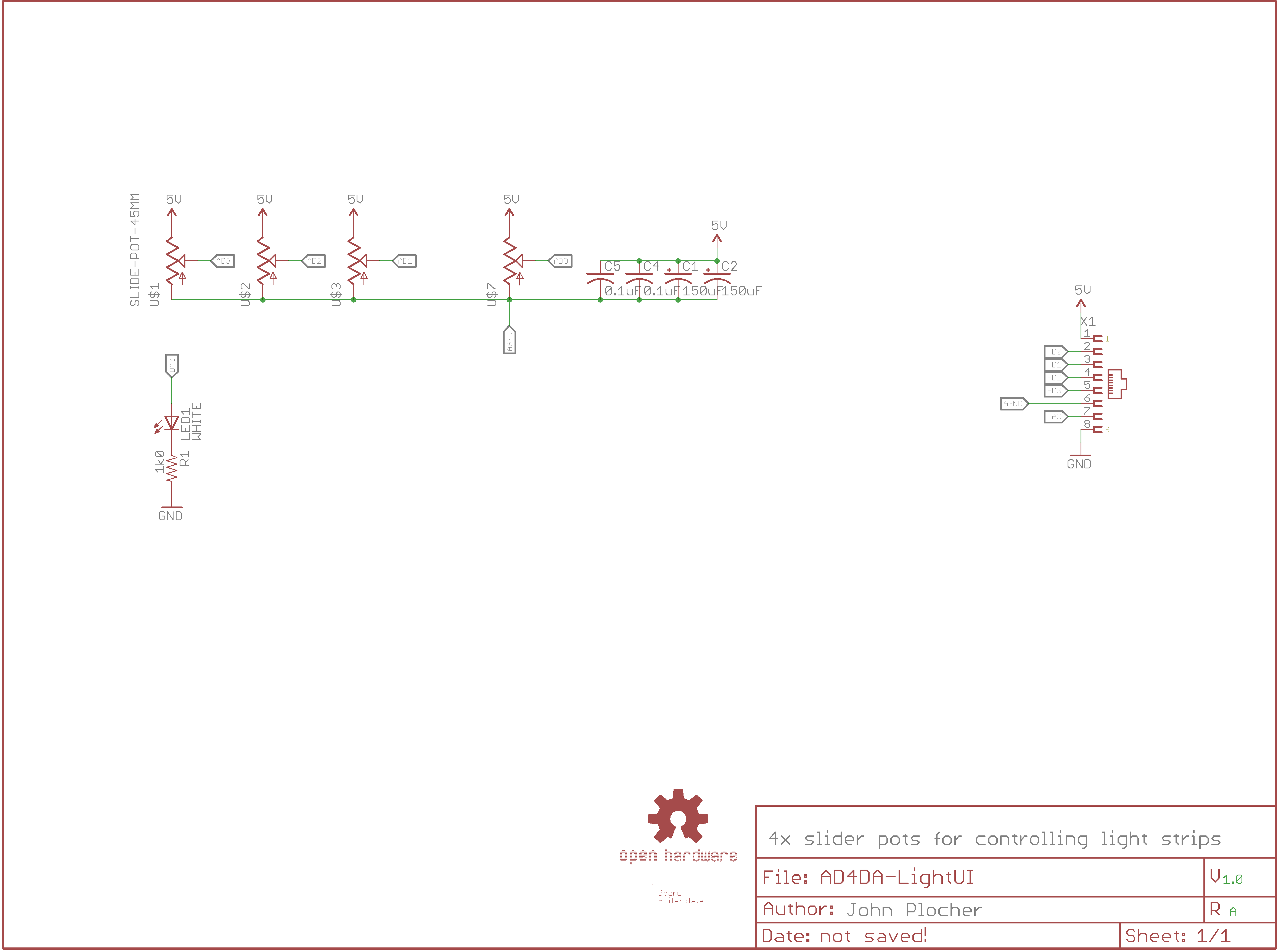

Schematic
Schematic

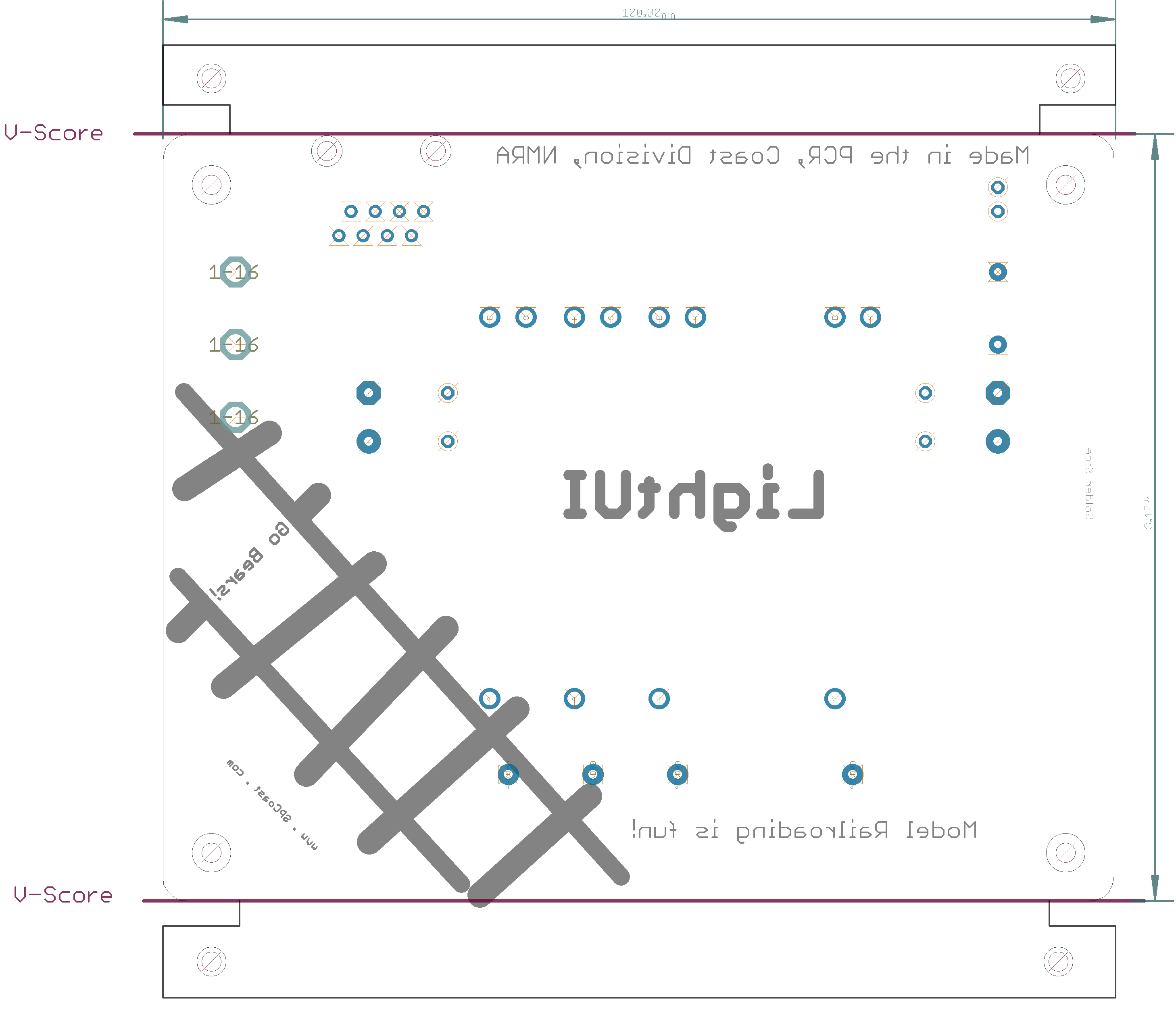

Bot Silk
Bot Silk

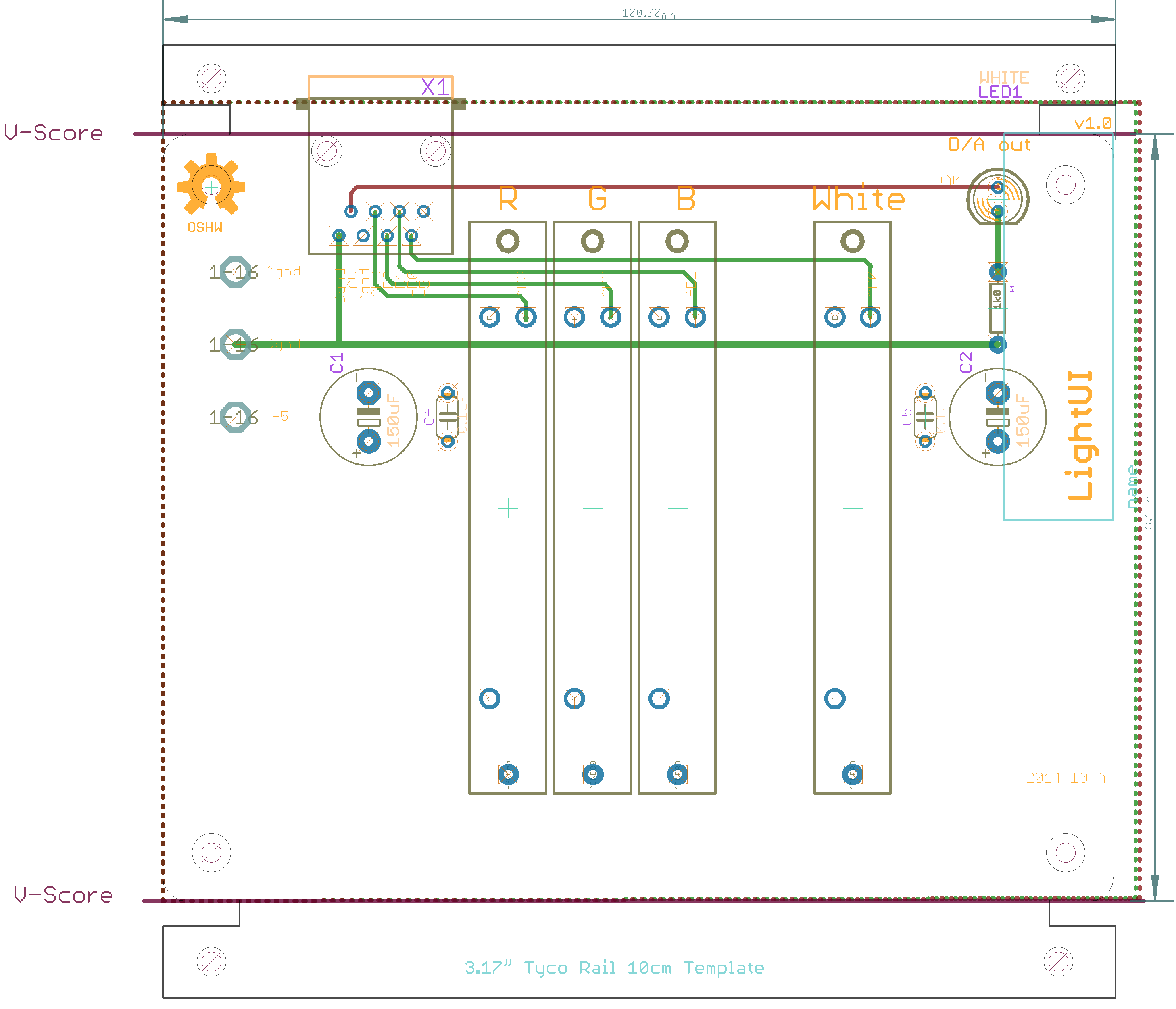

Board
Board

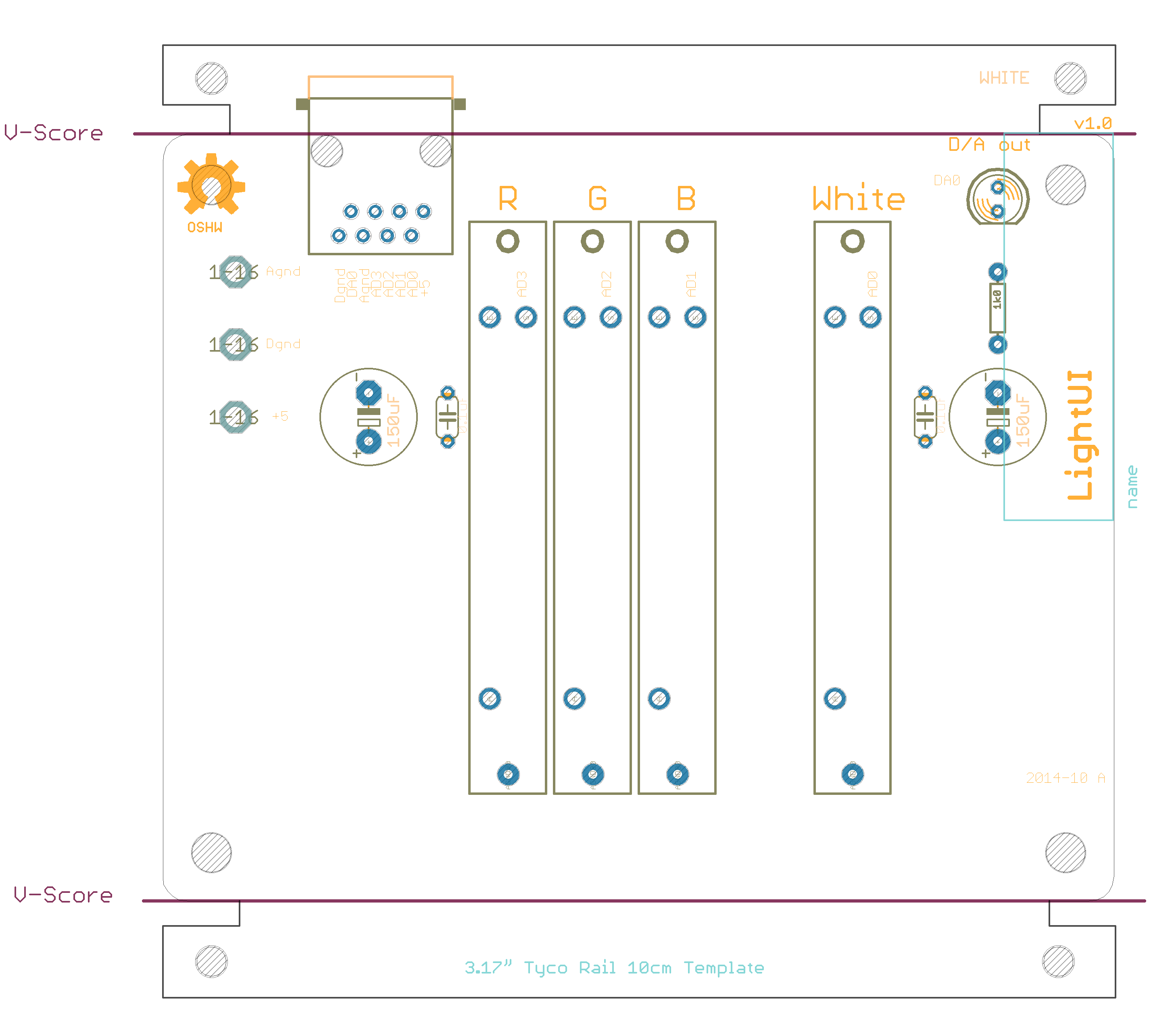

Top Silk
Top Silk

This project’s technical documentation is licensed under the CERN Open Hardware Licence v1.2
