Low cost Signal Mast - single high head 3-lamp Color Light - N scale

SP style color light signal heads Color-light signals consist of three bulbs shining through three lenses, or “roundels,” one each red, yellow, and green. The lights are grouped vertically with green at the top.

• 1.1

SignalMast-ColorLight-Dwarf Version 1.1

First built: 2018-04, 2018-06, 2018-08, 2019-08, 2019-11

SP style color light signal heads Color-light signals consist of three bulbs shining through three lenses, or “roundels,” one each red, yellow, and green. The lights are grouped vertically with green at the top.

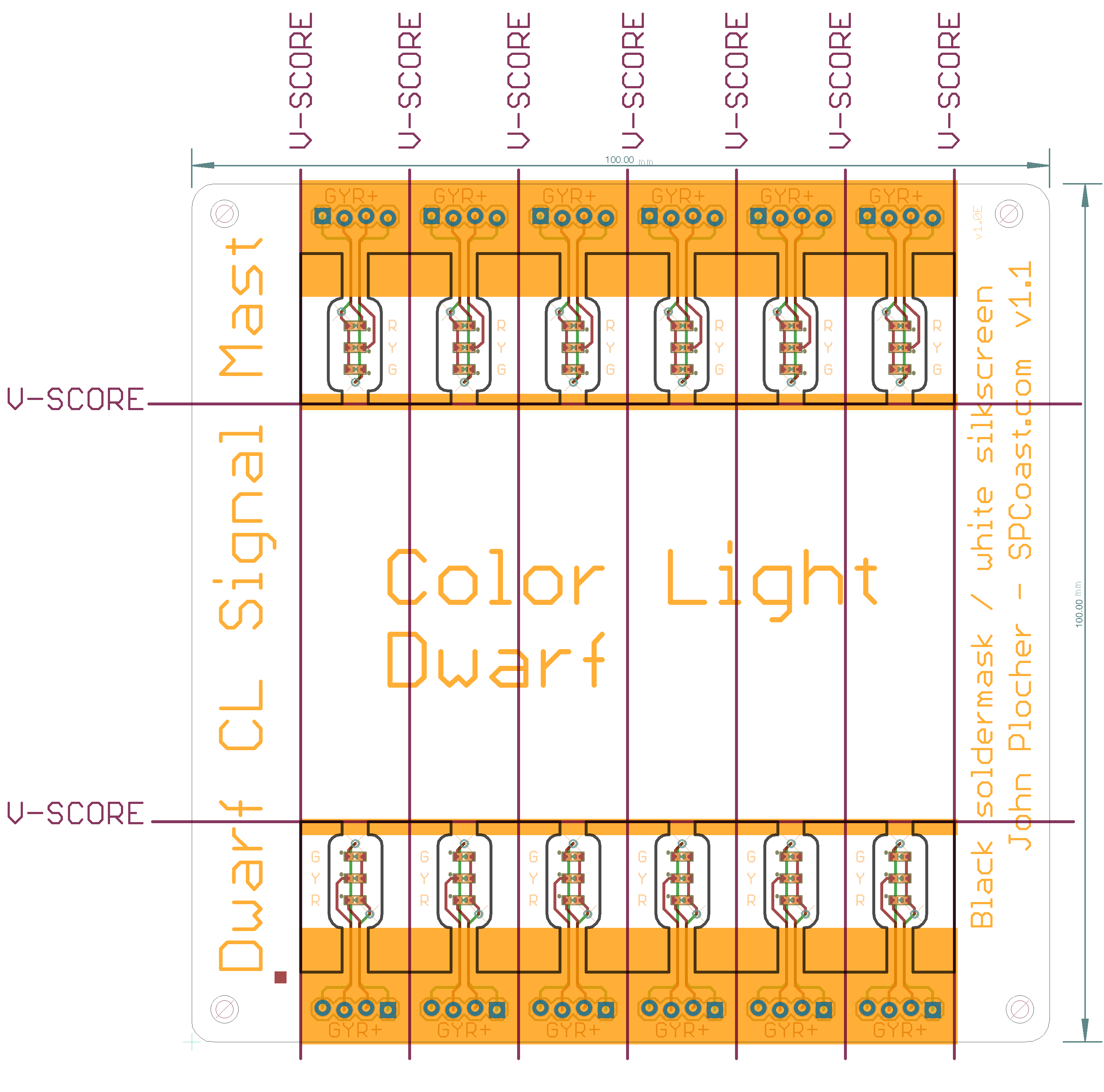

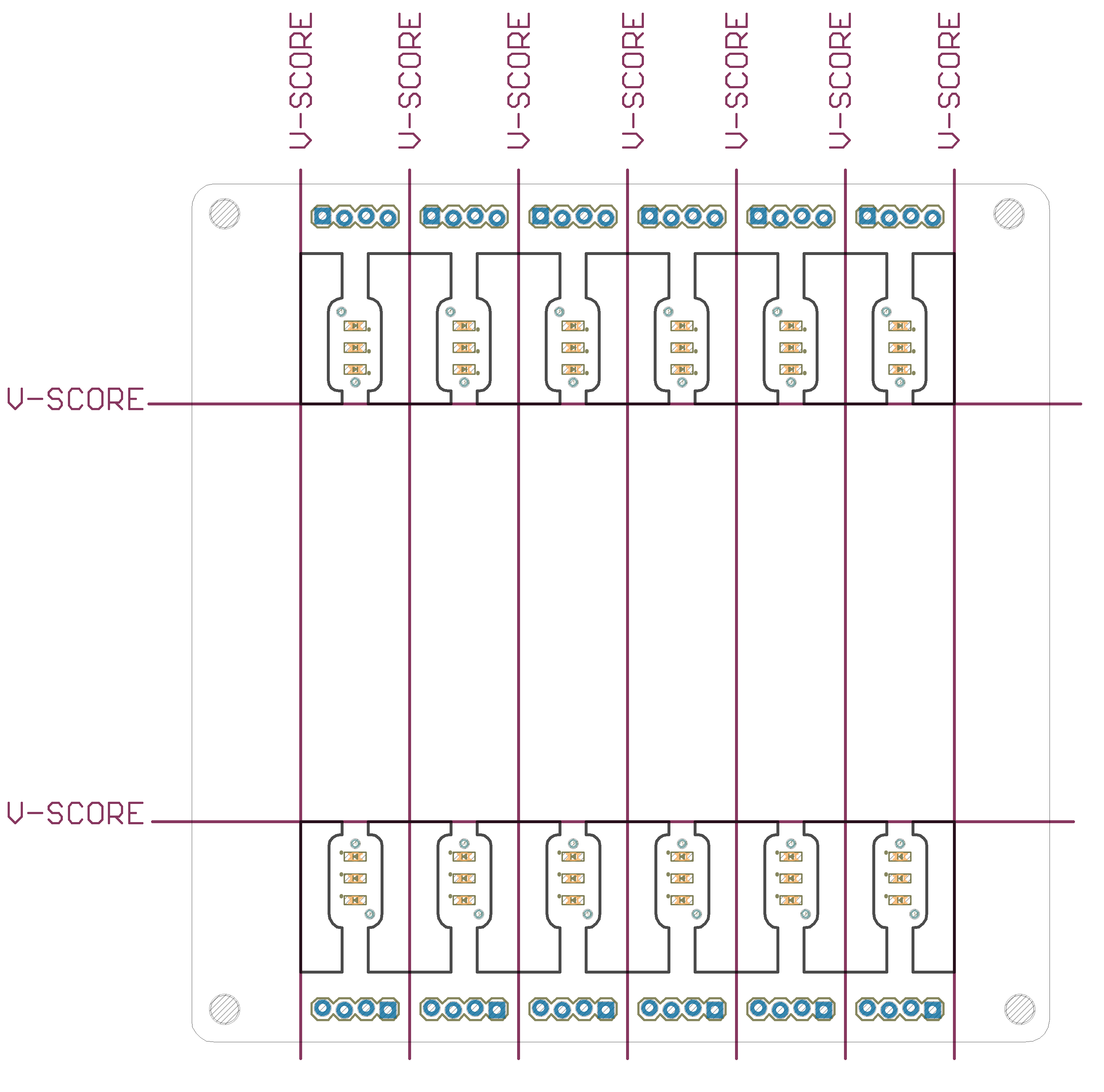

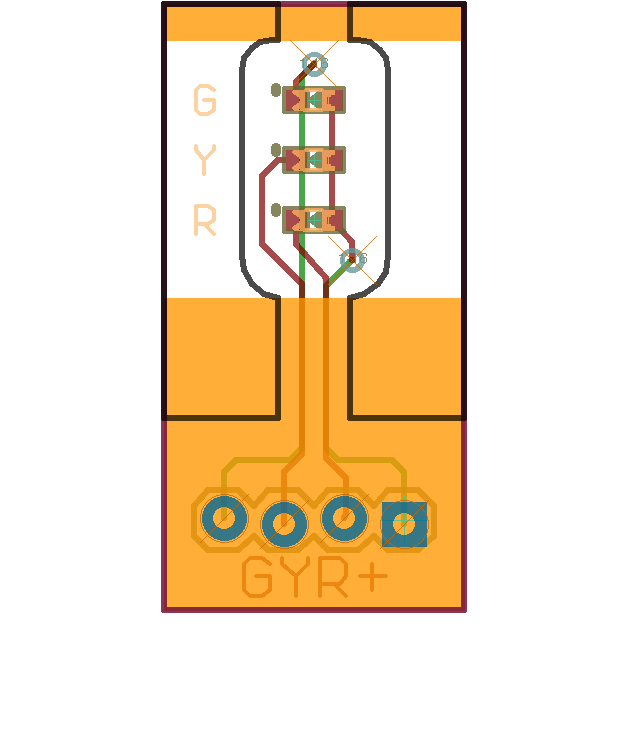

Bot Silk	Board	Top Silk

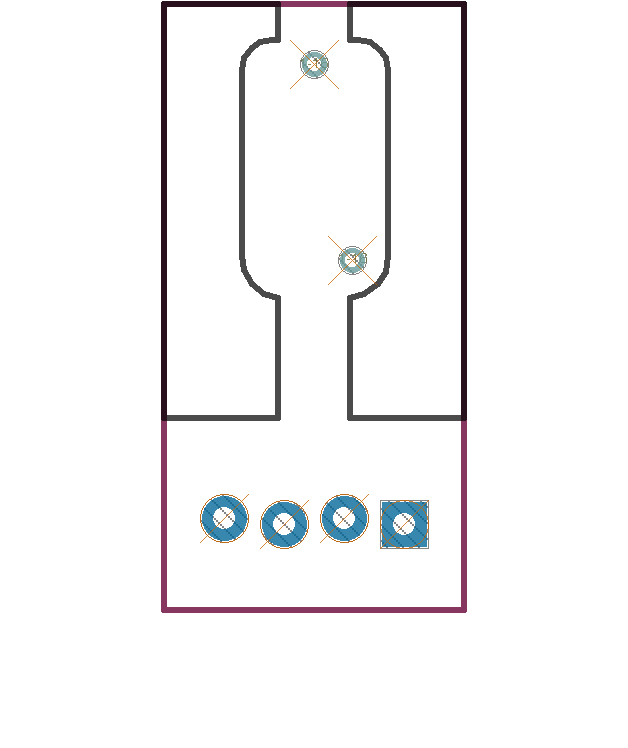

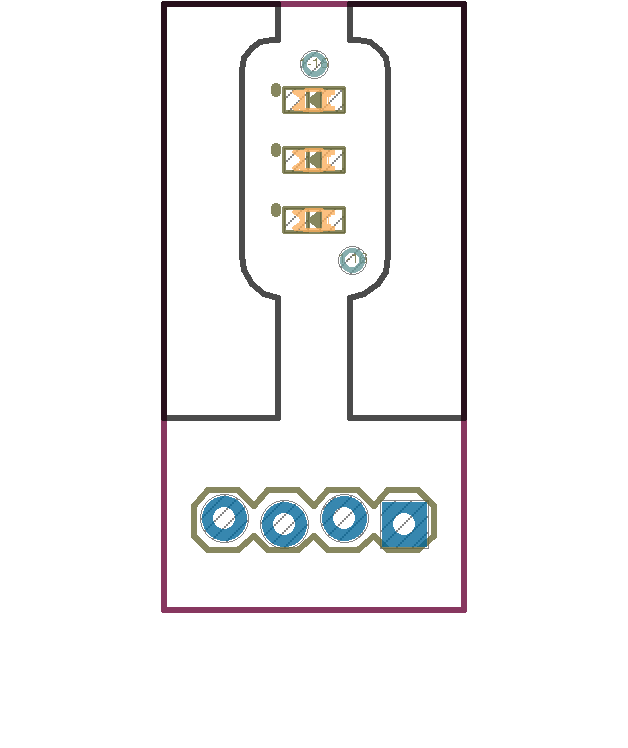

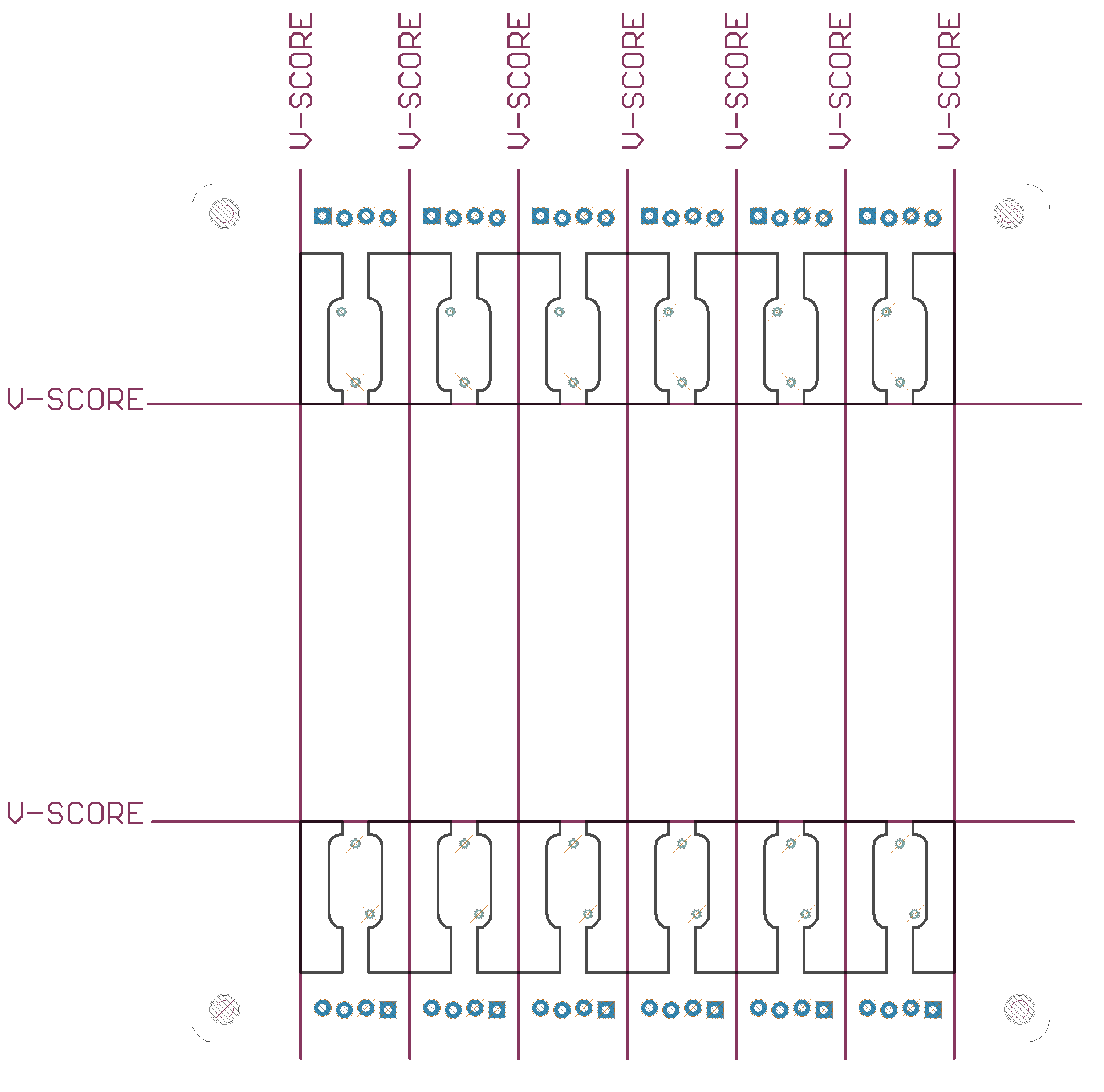

Bot Silk	Board	Top Silk

UNPUBLISHED

This technical documentation is licensed under the CERN Open Hardware Licence v1.2
