LNetPanel

Fork project on GitHub

LNetPanel - a distribution panel for LocoNet distribution

Optional 12v RailSync power injection, passthrough





LNetPanel Version 1.0

First built: 2016

Optional 12v RailSync power injection, passthrough

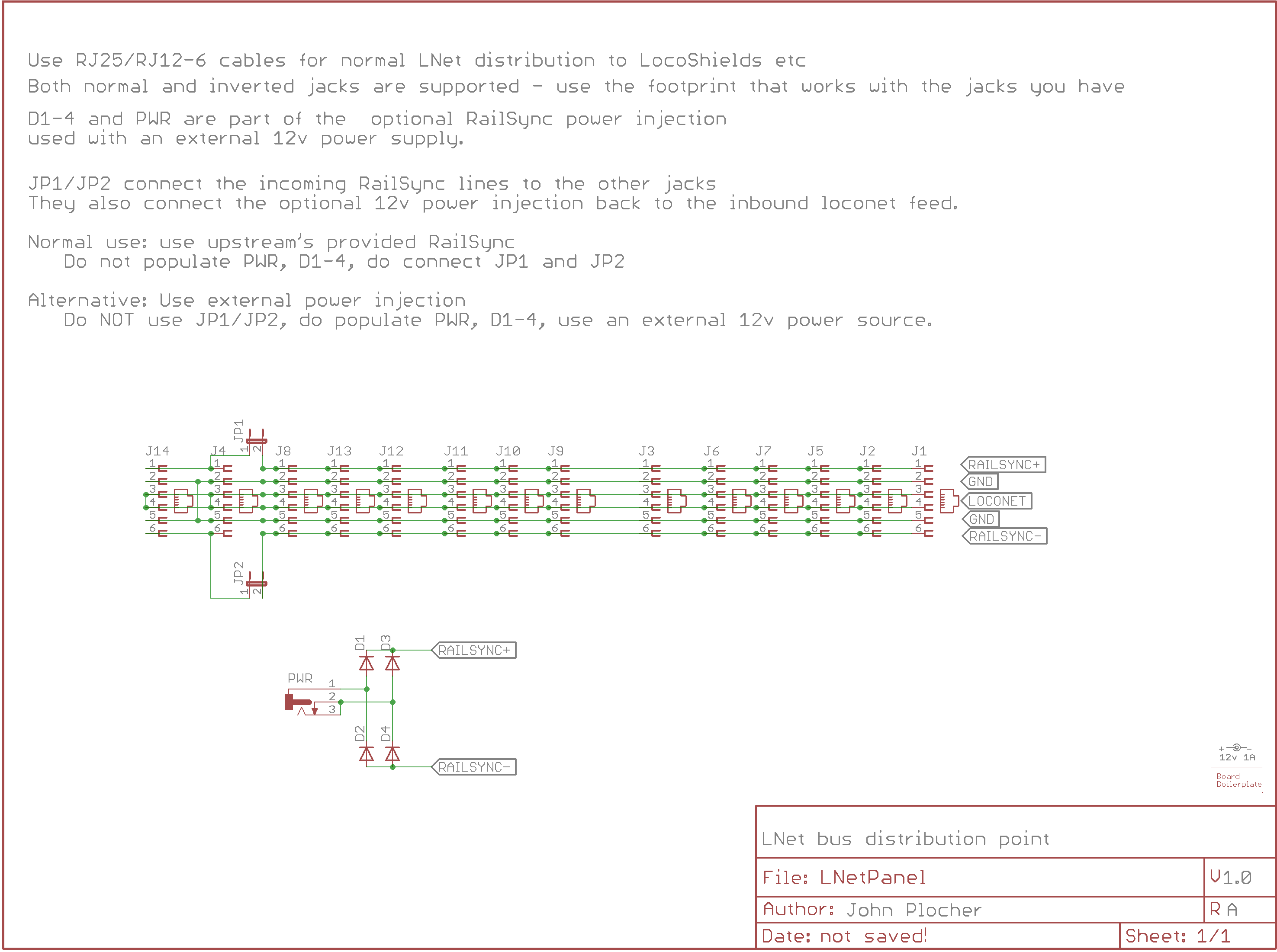

Schematic
Schematic

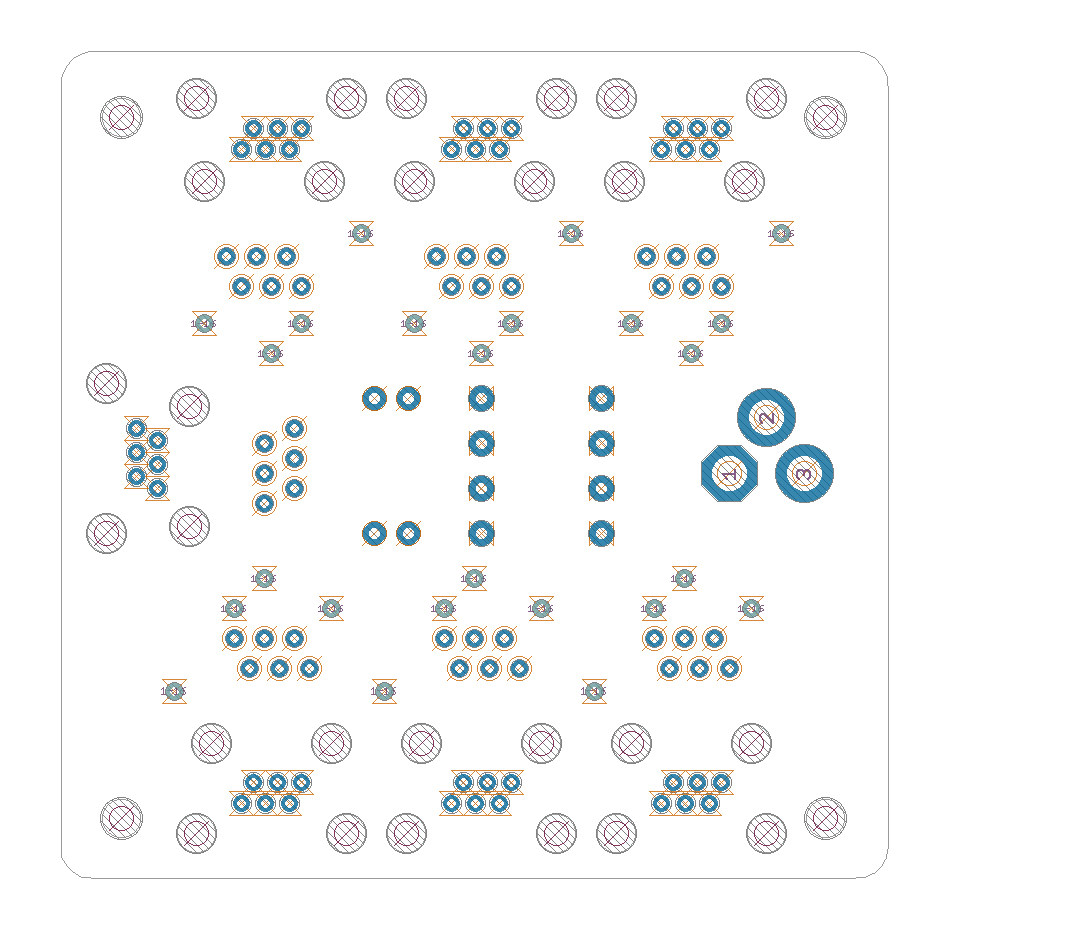

Bot Silk
Bot Silk

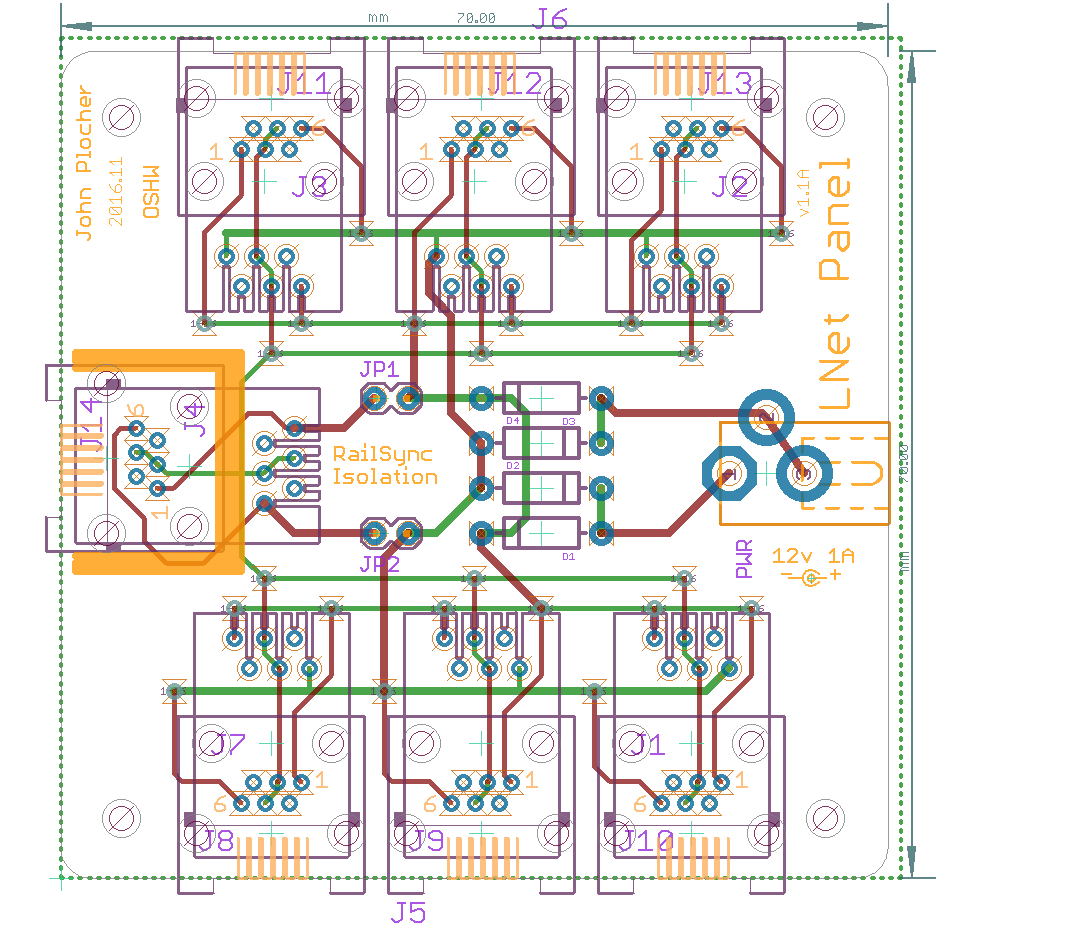

Board
Board

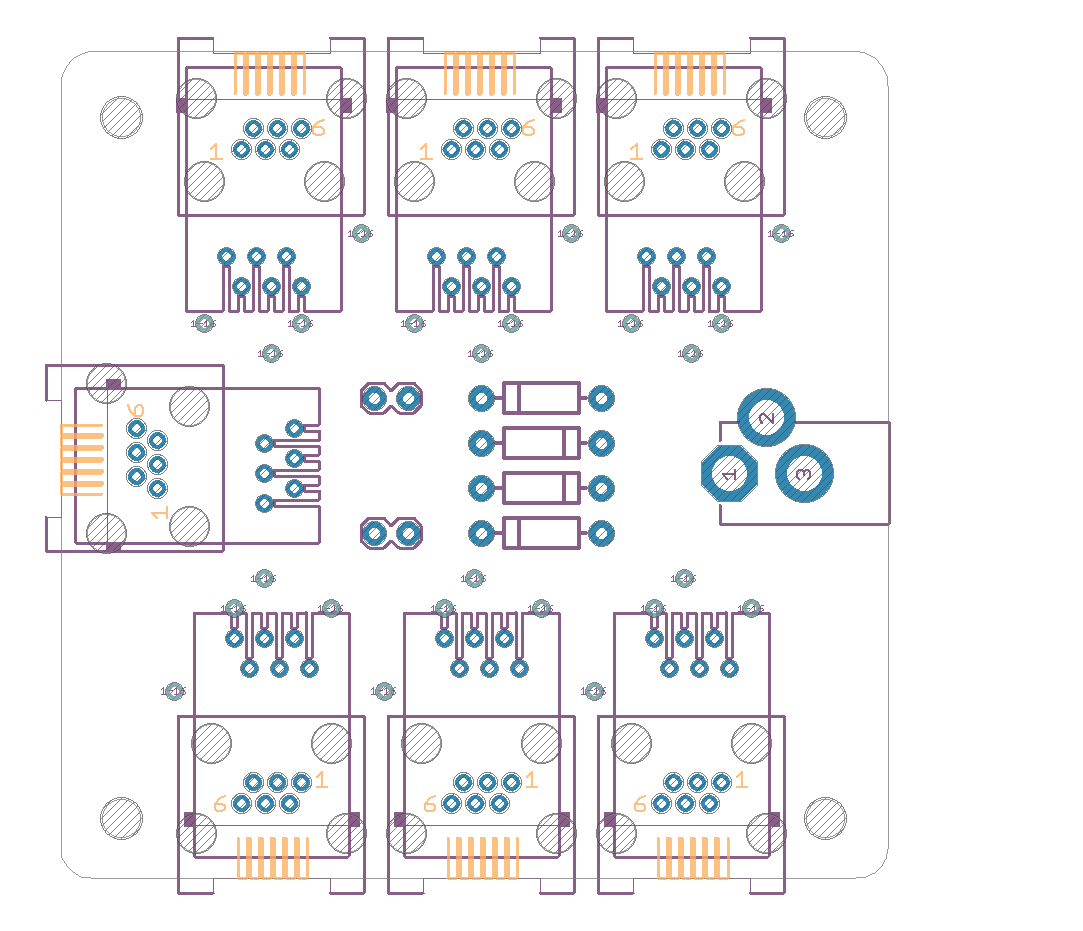

Top Silk
Top Silk

UNPUBLISHED

This technical documentation is licensed under the CERN Open Hardware Licence v1.2

Tags: eagle SPCoast
