Drury-DABSC
Drury-DABSC - Dual ABS Signal Controller

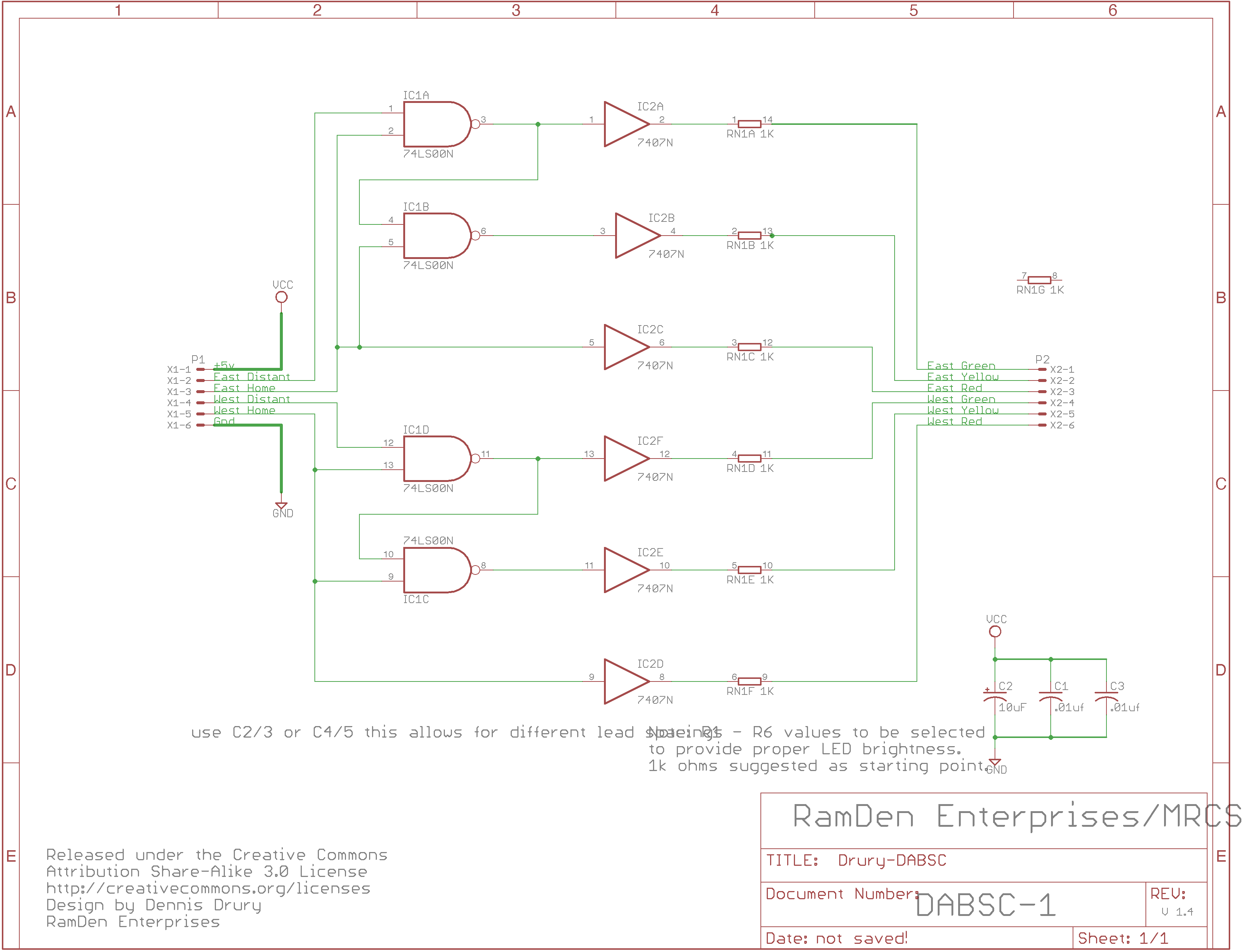

The Dual ABS Signal Controller provides a simple, no software, solution for the modeler looking for a prototypical Automatic Block Signaling (ABS) system. This board provides signal control for two blocks of 3 aspect (Green - Yellow - Red) route signaling for two blocks. The Dual ABS Signal Controller can be used in either single track (1 segment for each signaled direction) or double track (Rule 251, Current of Traffic) applications. This is an excellent product for modular and sectional railroads as well as permanent applications. We recommend our cpOD (screw terminal option) detector for detection input. Note: The Dual ABS Signal Controller is NOT MSS compatible. This board is designed and supported by Dennis Drury, a former Southern Pacific Signal Maintainer and the design has given him good service for 30 years! See Dennis’ clinic from the 2017 PCR Convention on the development of this board. The DABSC draws about 30mA at 5V.
|
|
Download DABSC 15 Update.pdf - Documentation
Drury-DABSC Version 1.0
First built: 2022.11
- 1.0 - initial published version from Seth and Dennis </ul
|
|
|
|||
|
|
|

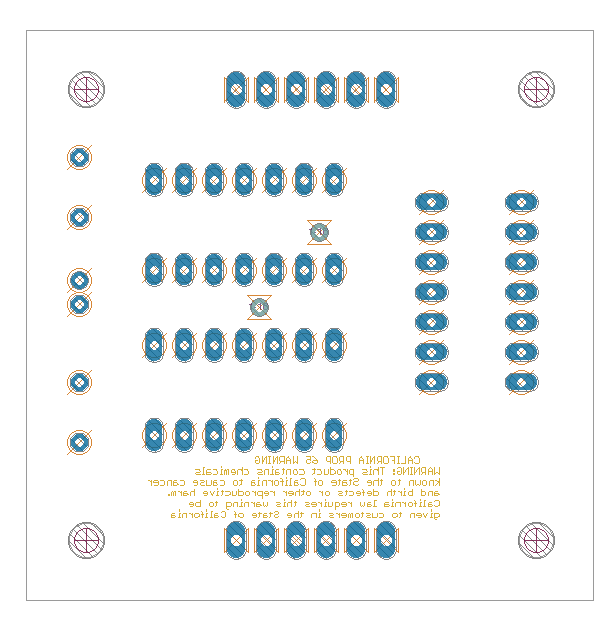

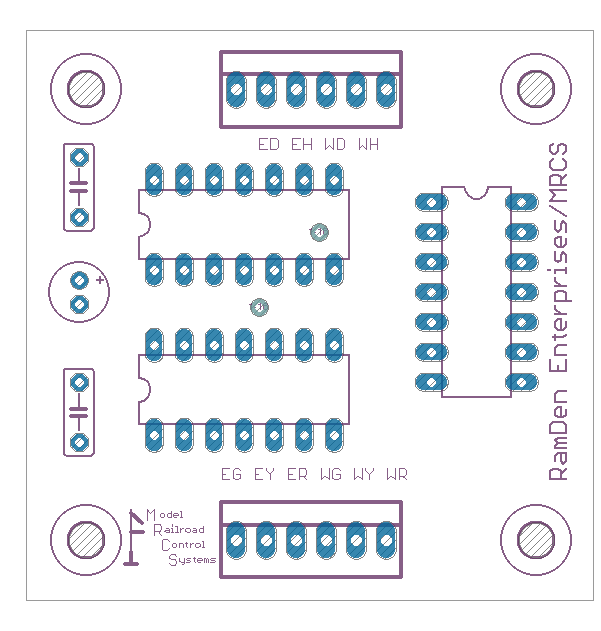

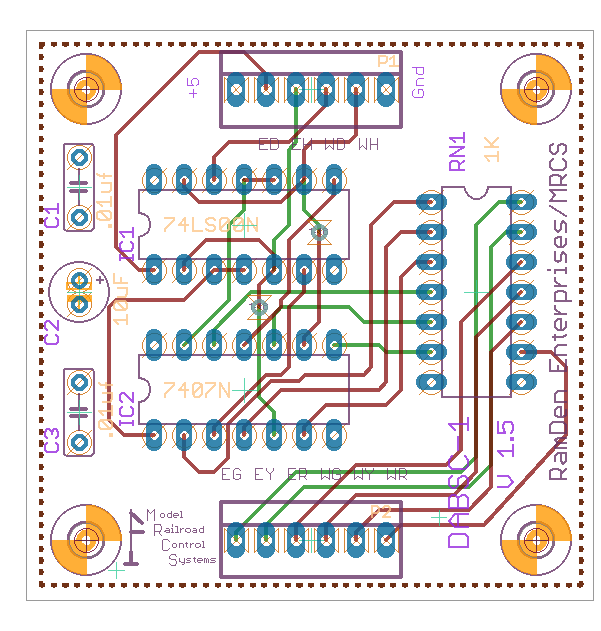

Download Drury-DABSC.gerbers.zip - Gerber Fabrication files
Download Drury-DABSC.parts - Parts List (spreadsheet data)
Download Drury-DABSC_array.SMD-parts - Parts List (spreadsheet data)

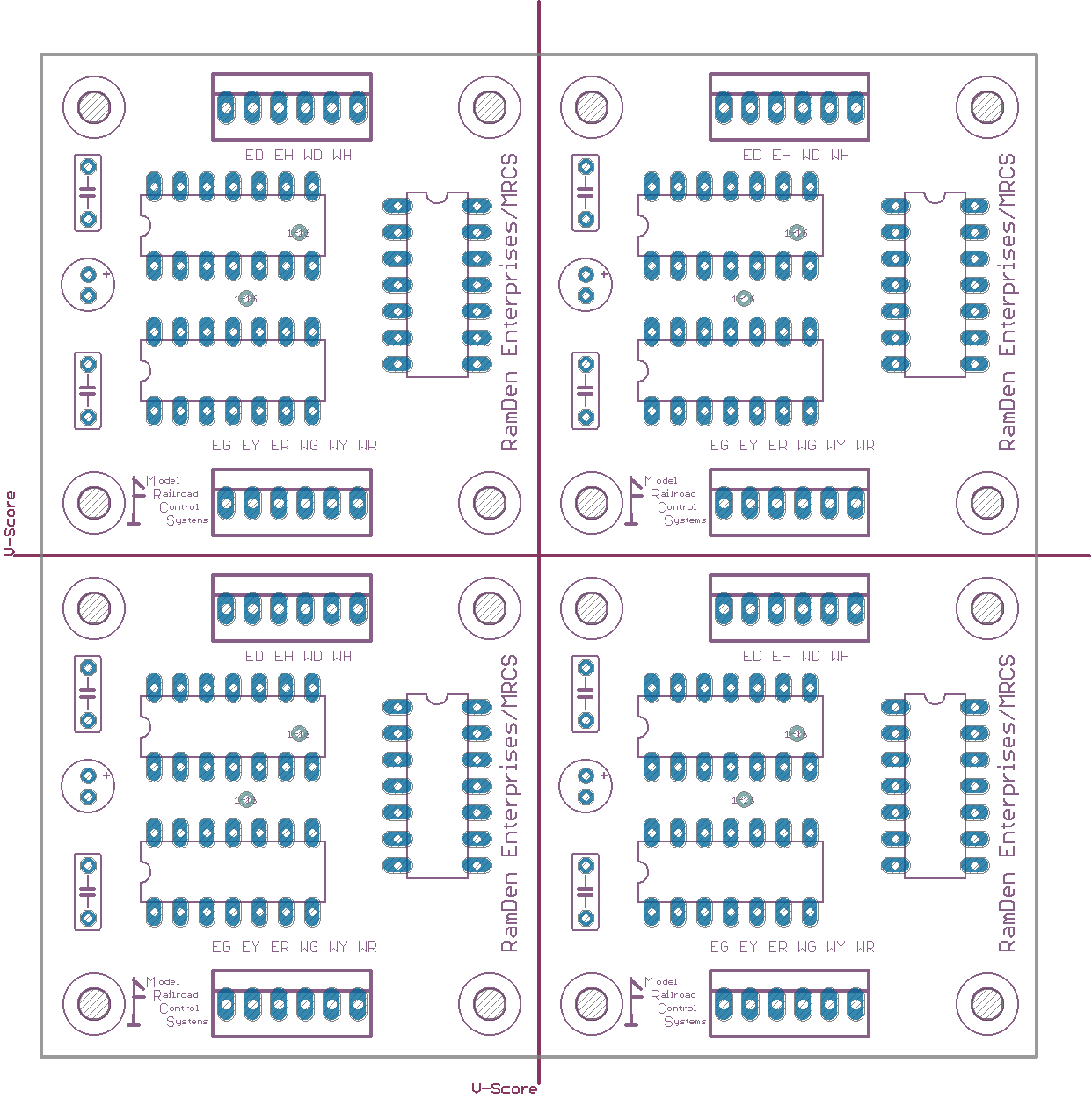

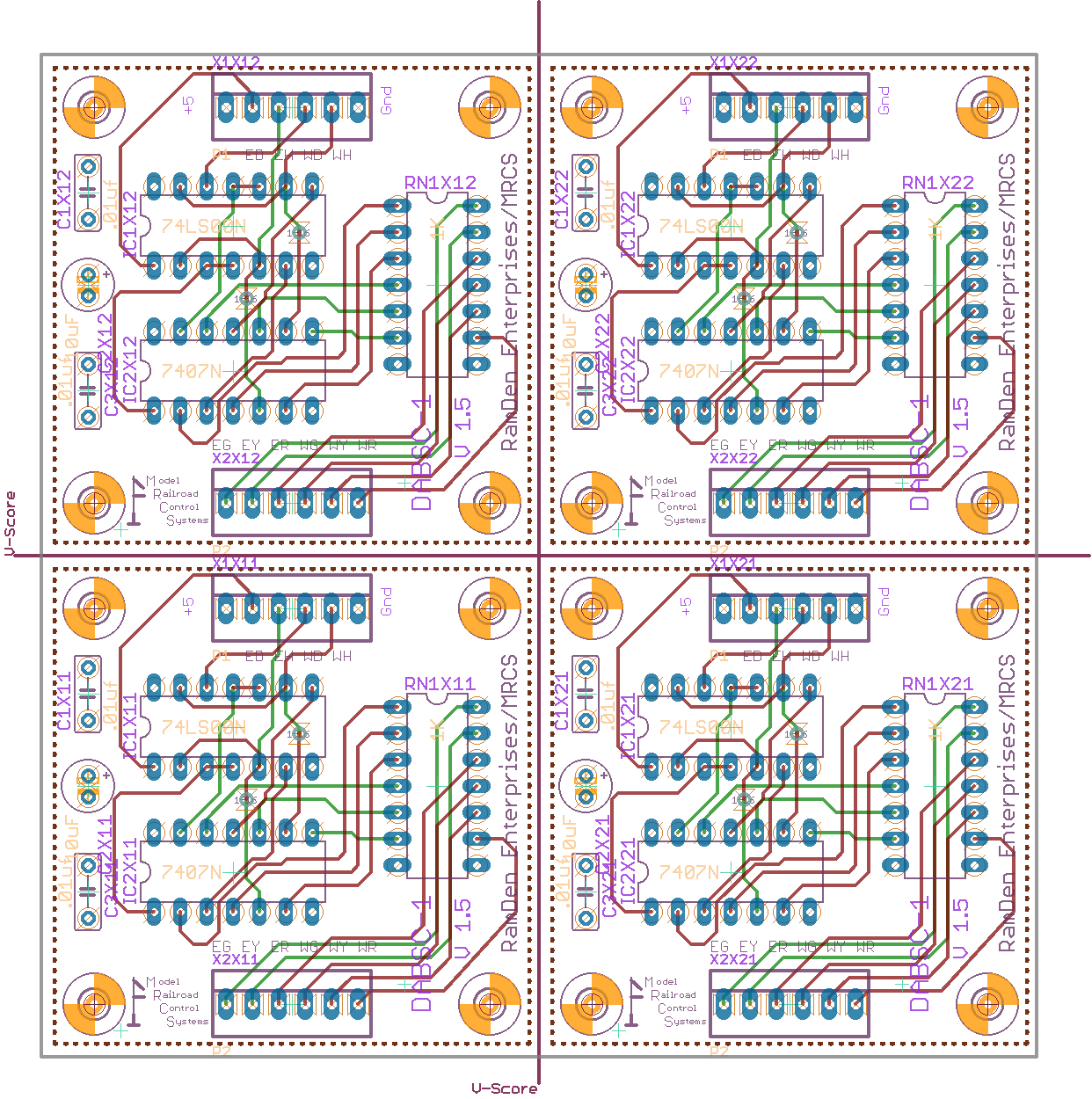

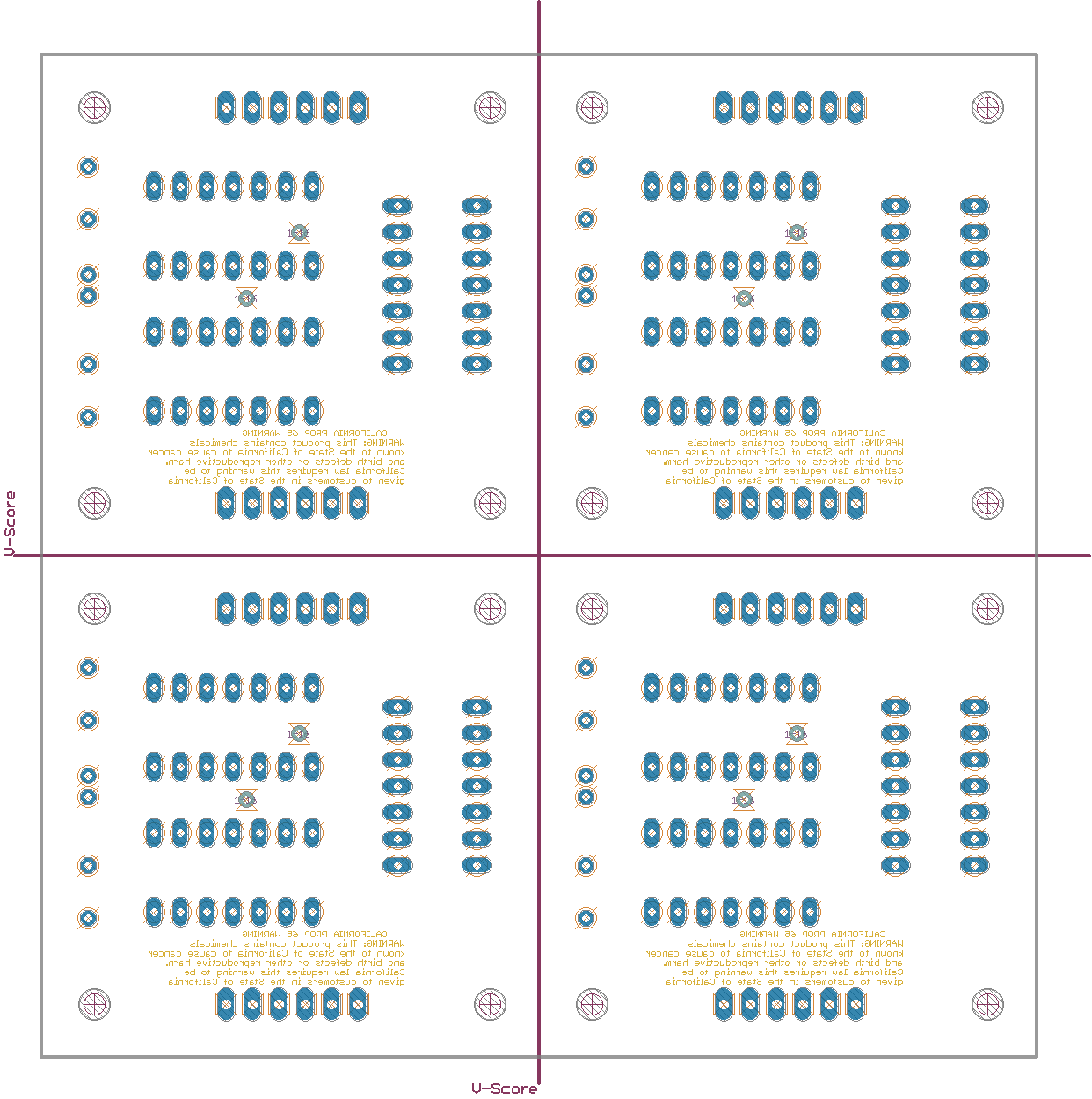

Download Drury-DABSC_array.gerbers.zip - Gerber Fabrication files
Download Drury-DABSC_array.parts - Parts List (spreadsheet data)
Drury-DABSC.bom
| Parts | Value | Package | Quantity | Library | Type/Feeder |
|---|---|---|---|---|---|
| RN1 | 1K | DIL14 | 1x | resistor-dil | PTH |
| C2 | 10uF | E2-5 | 1x | SPCoast | PTH |
| IC1 | 74LS00N | DIL14 | 1x | 74xx-us | PTH |
| IC2 | 7407N | DIL14 | 1x | 74xx-us | PTH |
| U$1, U$2, U$3, U$4 | 2,8 | 4x | holes | PTH | |
| U$6 | CA-PROP65-BACK | 1x | SPCoast | PTH | |
| U$5 | MRCSLOGOTOP | 1x | SPCoast | PTH | |
| C1, C3 | .01uf | C050-025X075 | 2x | resistor | PTH |
| X1 | P1 | 22-23-2061 | 1x | con-molex | PTH |
| X2 | P2 | 22-23-2061 | 1x | con-molex | PTH |
This technical documentation is licensed under the Creative Commons Attribution-NonCommercial-ShareAlike
