CP_Watsonville_South-Model
Model Board for CP Watsonville South - Maintainer Sevice Panel
Prototype for debugging and remote feedback
|
Download CP_Watsonville_South-Model -
Download eagle -

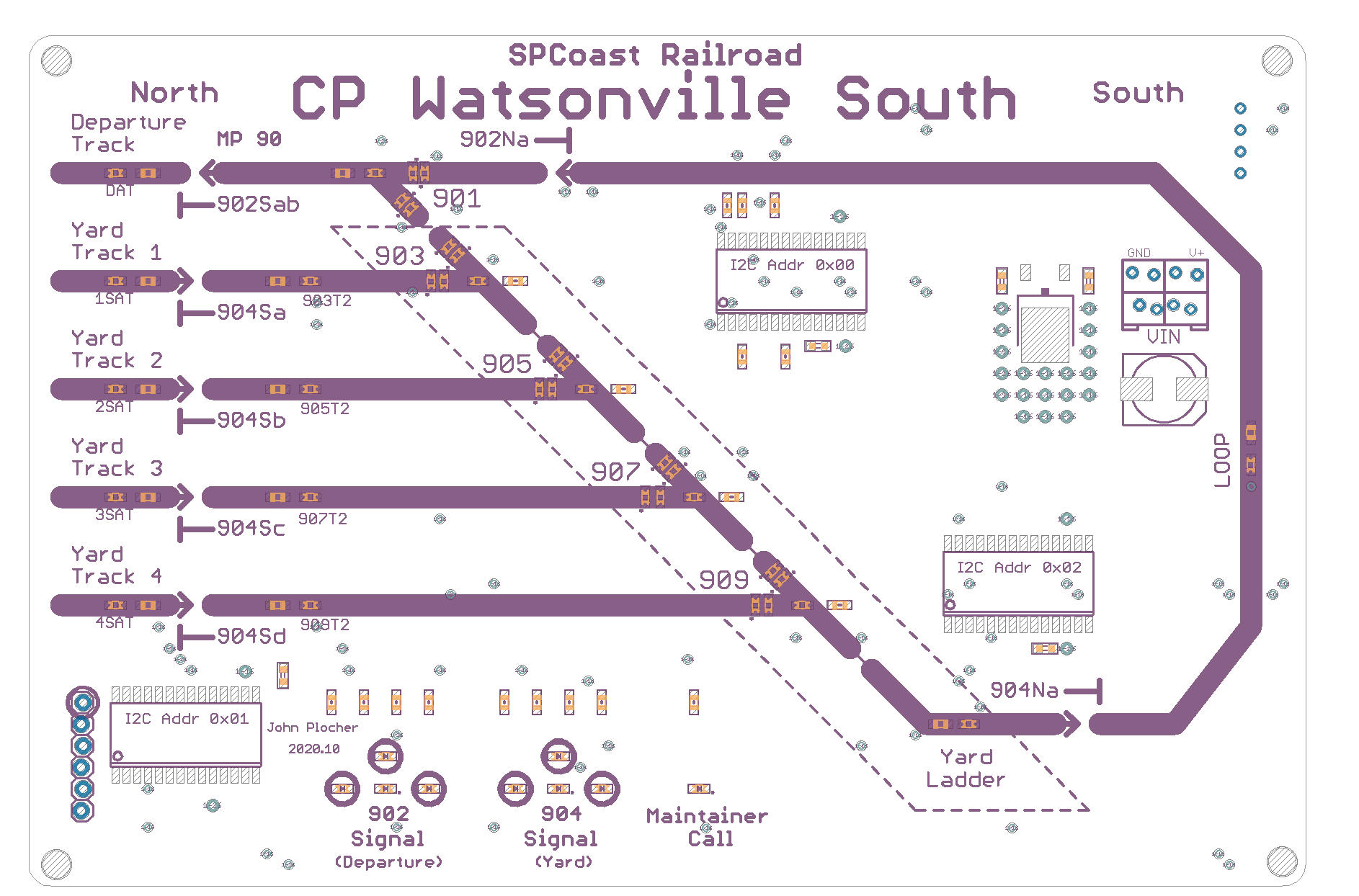

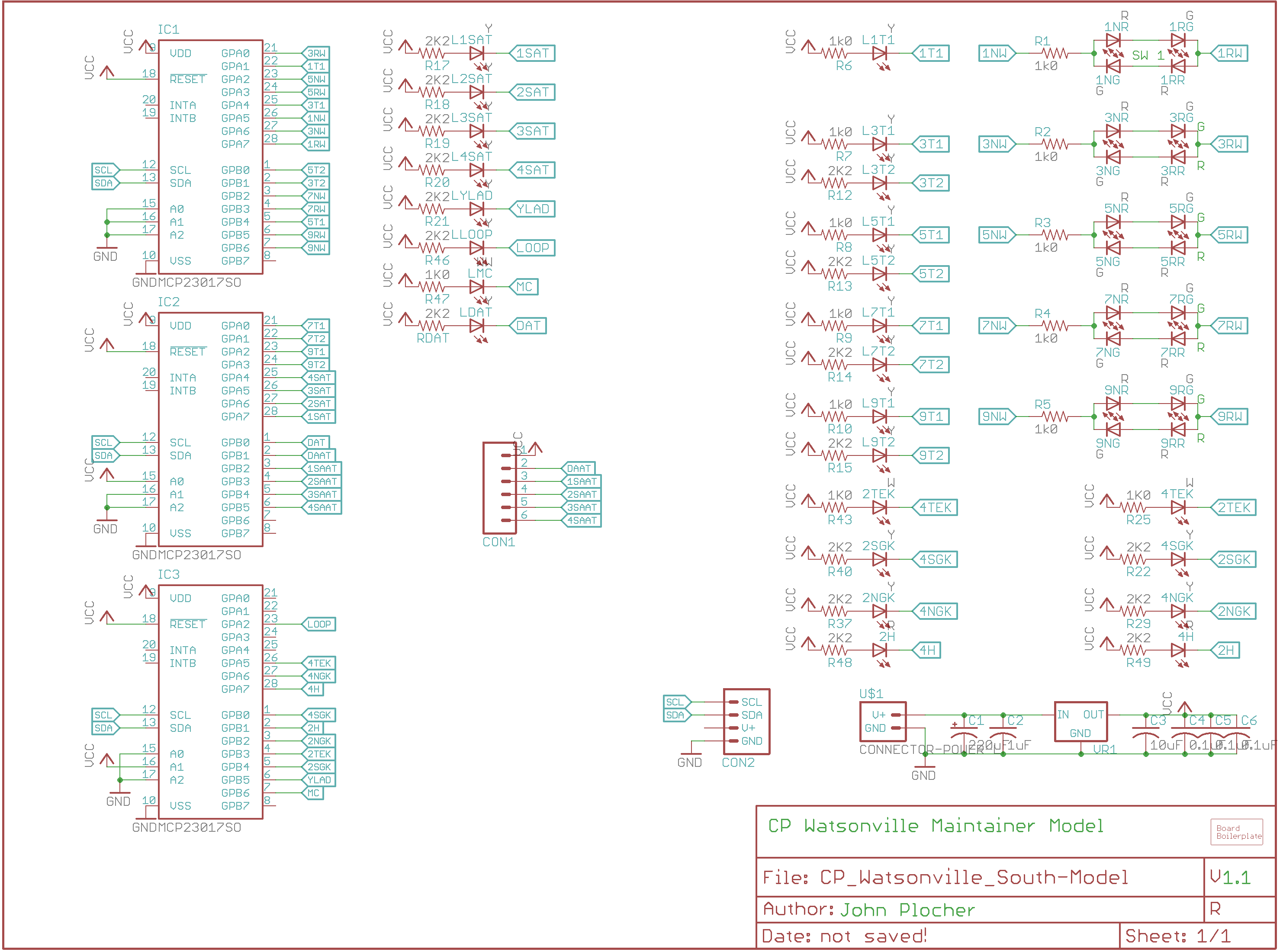

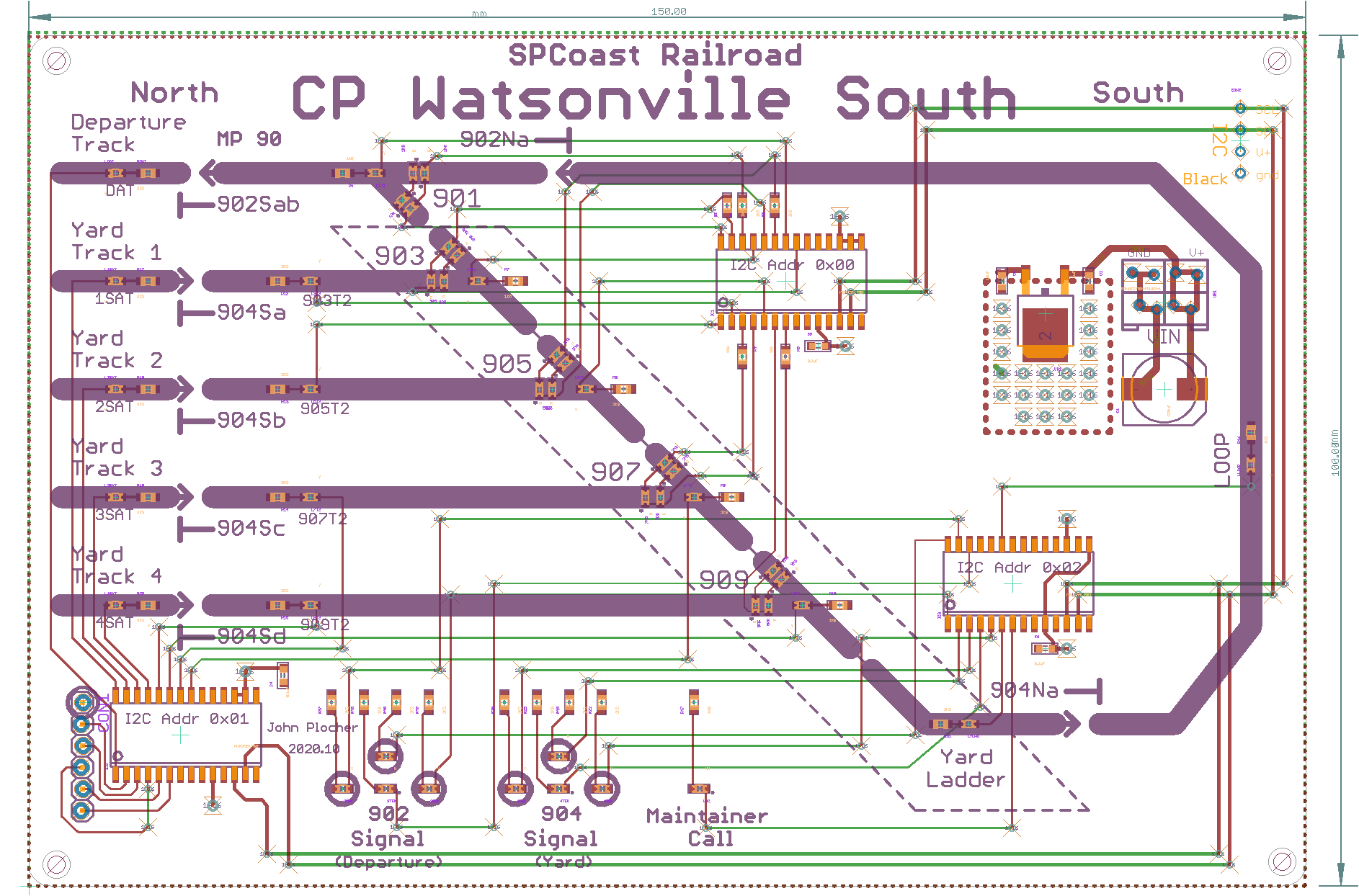

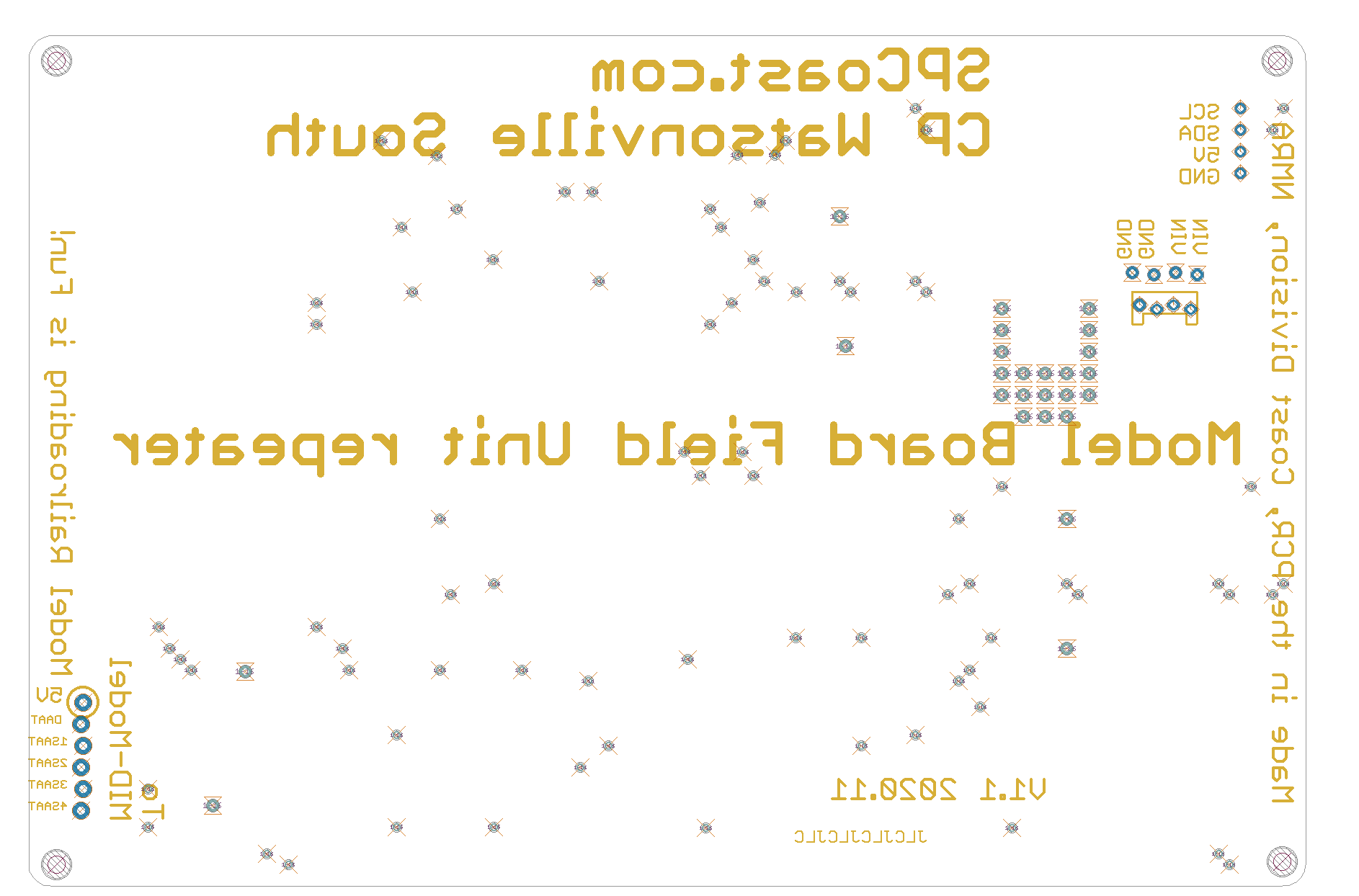

CP_Watsonville_South-Model Version 1.0
First built: 2020.11
|
|
|
Download CP_Watsonville_South-Model.gerbers.zip - Gerber Fabrication files
Download CP_Watsonville_South-Model.parts - Parts List (spreadsheet data)
CP_Watsonville_South-Model.bom
| Parts | Value | Package | Quantity | Library | Type/Feeder |
|---|---|---|---|---|---|
| C4, C5, C6 | 0.1uF | 0603-CAP | 3x | SPCoast | 19 |
| R1, R2, R3, R4, R5, R6, R7, R8, R9, R10, R25, R43, R47 | 1K0 | 0603-RES | 13x | SPCoast | 41 |
| C2 | 1uF | 0603-CAP | 1x | SPCoast | NONE |
| R12, R13, R14, R15, R17, R18, R19, R20, R21, R22, R29, R37, R40, R46, R48, R49, RDAT | 2K2 | 0603-RES | 17x | SPCoast | 42 |
| C3 | 10uF | 0603-CAP | 1x | SPCoast | 22 |
| C1 | 220uF | 0810-CAP | 1x | SPCoast | NONE |
| CON1 | 1X06_LOCK | 1x | SPCoast | PTH | |
| BOARD1 | BOARD-SEEED10X15 | 1x | SPCoast | PTH | |
| CON2 | I2C-NOOUTLINE | 1x | SPCoast | PTH | |
| VR1 | TO-252 | 1x | SPCoast | NONE | |
| U$1 | CONNECTOR-POWER-L | POWER-R2 | 1x | SPCoast | PTH |
| 1NG, 1RG, 3NG, 3RG, 5NG, 5RG, 7NG, 7RG, 9NG, 9RG | G | 0603-LED | 10x | SPCoast | 3 |
| IC1, IC2, IC3 | MCP23017SO | SO28W | 3x | SPCoast | NONE |
| 1NR, 1RR, 2H, 3NR, 3RR, 4H, 5NR, 5RR, 7NR, 7RR, 9NR, 9RR | R | 0603-LED | 12x | SPCoast | 1 |
| 2TEK, 4TEK | W | 0603-LED | 2x | SPCoast | 5 |
| LMC | WW | 0603-LED | 1x | SPCoast | 5 |
| 2NGK, 2SGK, 4NGK, 4SGK, L1SAT, L1T1, L2SAT, L3SAT, L3T1, L3T2, L4SAT, L5T1, L5T2, L7T1, L7T2, L9T1, L9T2, LDAT, LLOOP, LYLAD | Y | 0603-LED | 20x | SPCoast | 2 |
This technical documentation is licensed under the CERN Open Hardware Licence v1.2
