Adapter-IO4-test
IO4 Tester
Push buttons and LEDs to exercise I/O lines
|
|

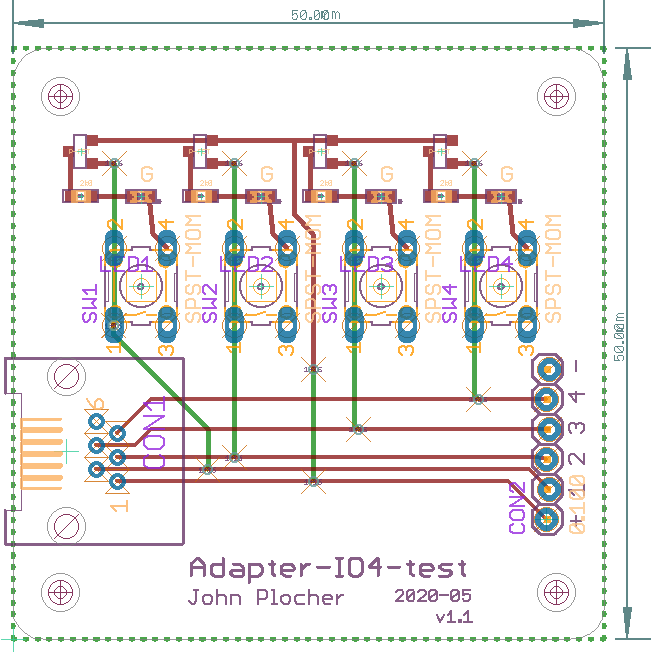

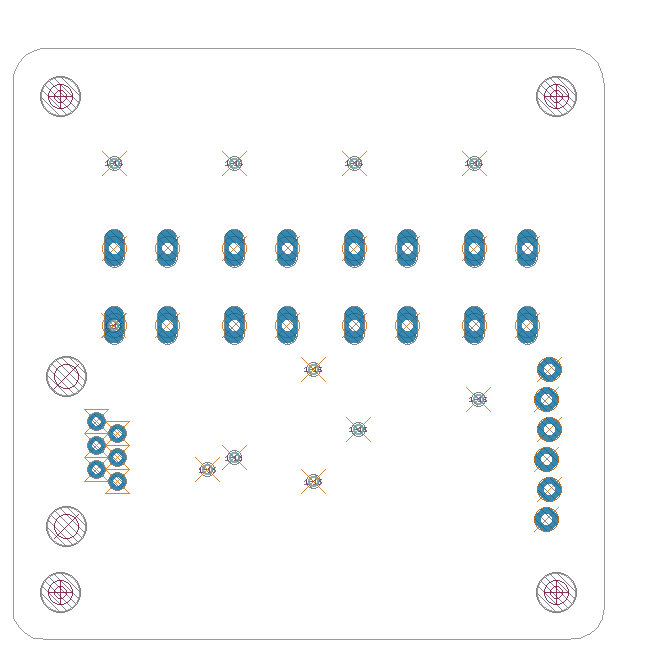

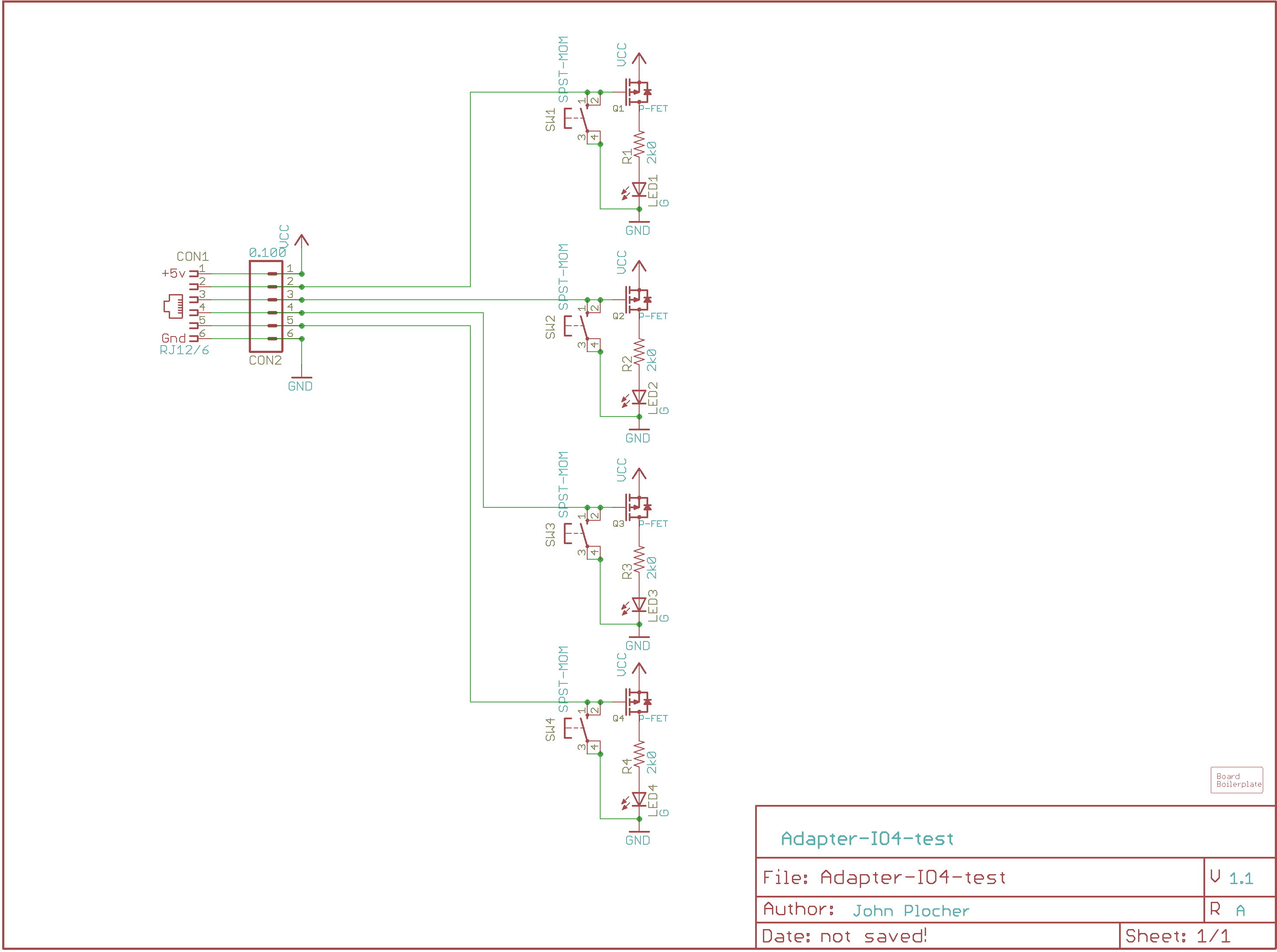

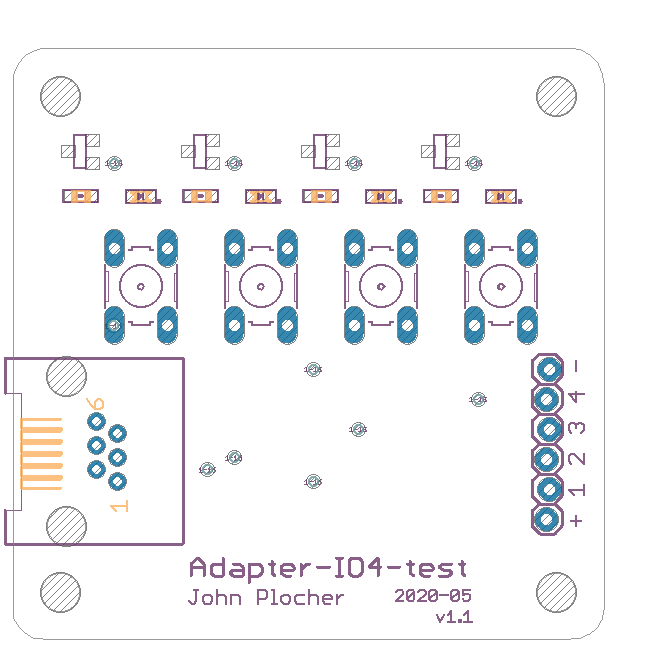

Adapter-IO4-test Version 1.1
First built: 2020.05
Note: Experimental design, work in progress
- 1.0 - Initial version - PTH
- 1.1 - SMT </ul
|
|
|
|||
|
|
|
Download Adapter-IO4-test.gerbers.zip - Gerber Fabrication files
Download Adapter-IO4-test.parts - Parts List (spreadsheet data)
Download Adapter-IO4-test_array.SMD-parts - Parts List (spreadsheet data)

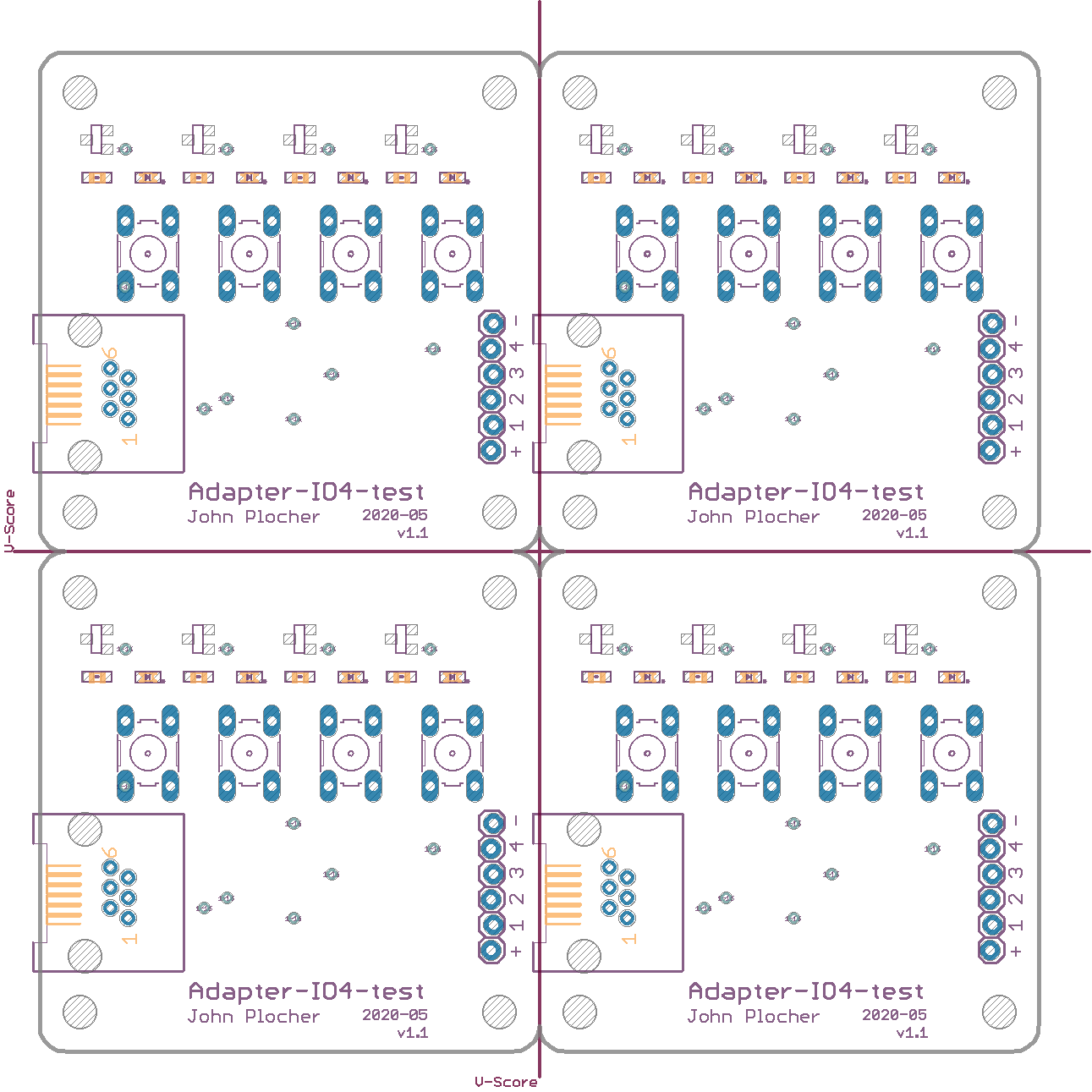

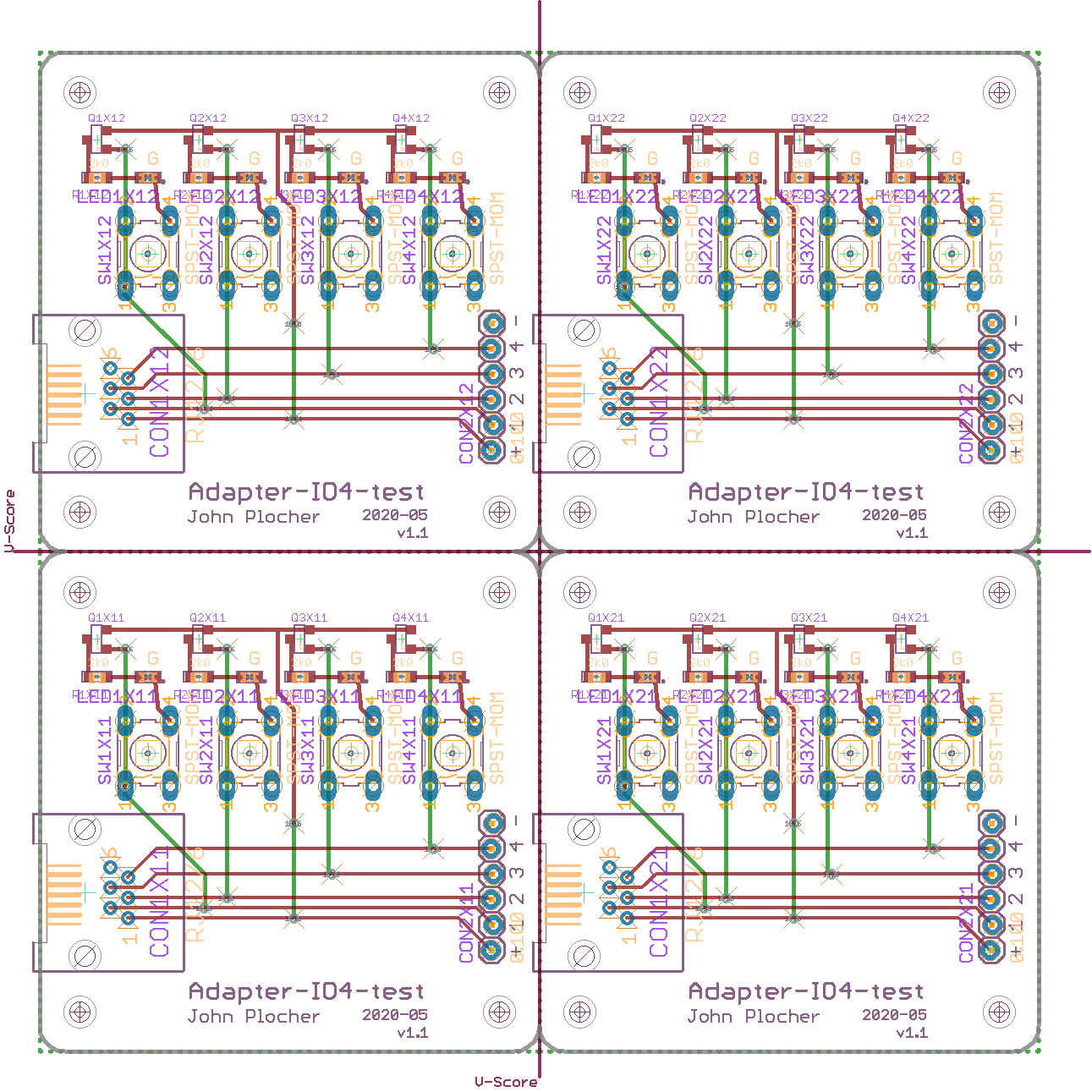

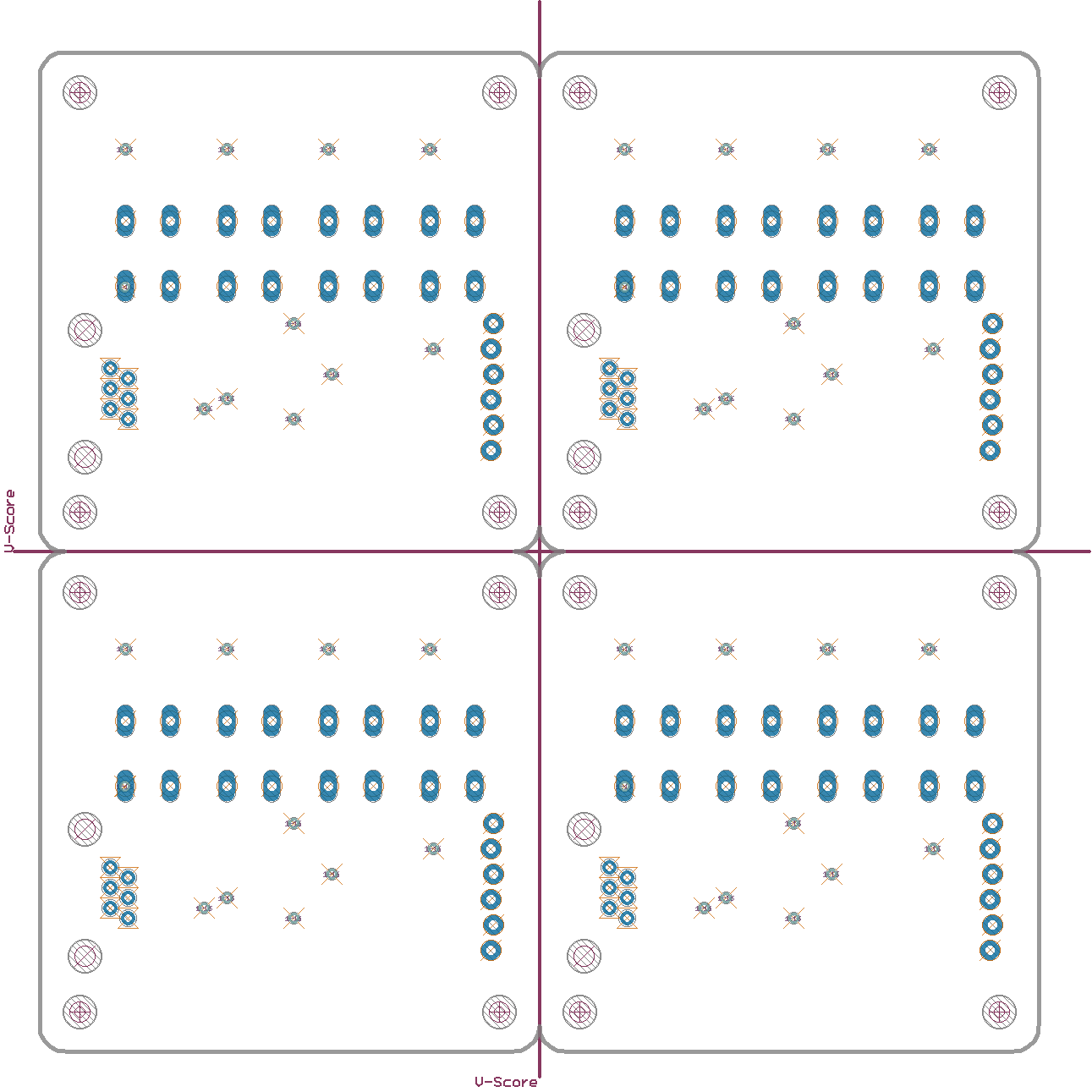

Download Adapter-IO4-test_array.gerbers.zip - Gerber Fabrication files
Download Adapter-IO4-test_array.parts - Parts List (spreadsheet data)
Adapter-IO4-test.bom
| Parts | Value | Package | Quantity | Library | Type/Feeder |
|---|---|---|---|---|---|
| CON2 | 0.100 | 1X06_LOCK | 1x | SPCoast | PTH |
| R1, R2, R3, R4 | 2k0 | 0603-RES | 4x | SPCoast | 42 |
| BOARD1 | BOARD50X50-NOHOLES | BOARD-SEEED5X5-NOHOLES | 1x | SPCoast | PTH |
| LED1, LED2, LED3, LED4 | G | 0603-LED | 4x | SPCoast | 3 |
| Q1, Q2, Q3, Q4 | P-FET | SOT23-3 | 4x | SPCoast | NONE |
| CON1 | RJ12/6 | RJ25-INVERTED | 1x | SPCoast | PTH |
| SW1, SW2, SW3, SW4 | SPST-MOM | B3F-10XX | 4x | SPCoast | PTH |
Documentation
How to use this template:
- Create a repo using this template,
- Create your project content using eagle…
- Edit the other text files to describe your project
- git add .
- git commit -m “add to git”
- git tag -a 1.0 -m 1.0
- git push origin 1.0
