Adapter-IO4-Breakout

Fork project on GitHub

RJ12/6 breakout board, inline IO4-IO4 probe

For circuit debugging and signal integrity verification

Adapter-IO4-Breakout-Graphic
Adapter-IO4-Breakout-Graphic





Adapter-IO4-Breakout Version 1.0

First built: 2015-11

  • 1.0 - Initial version

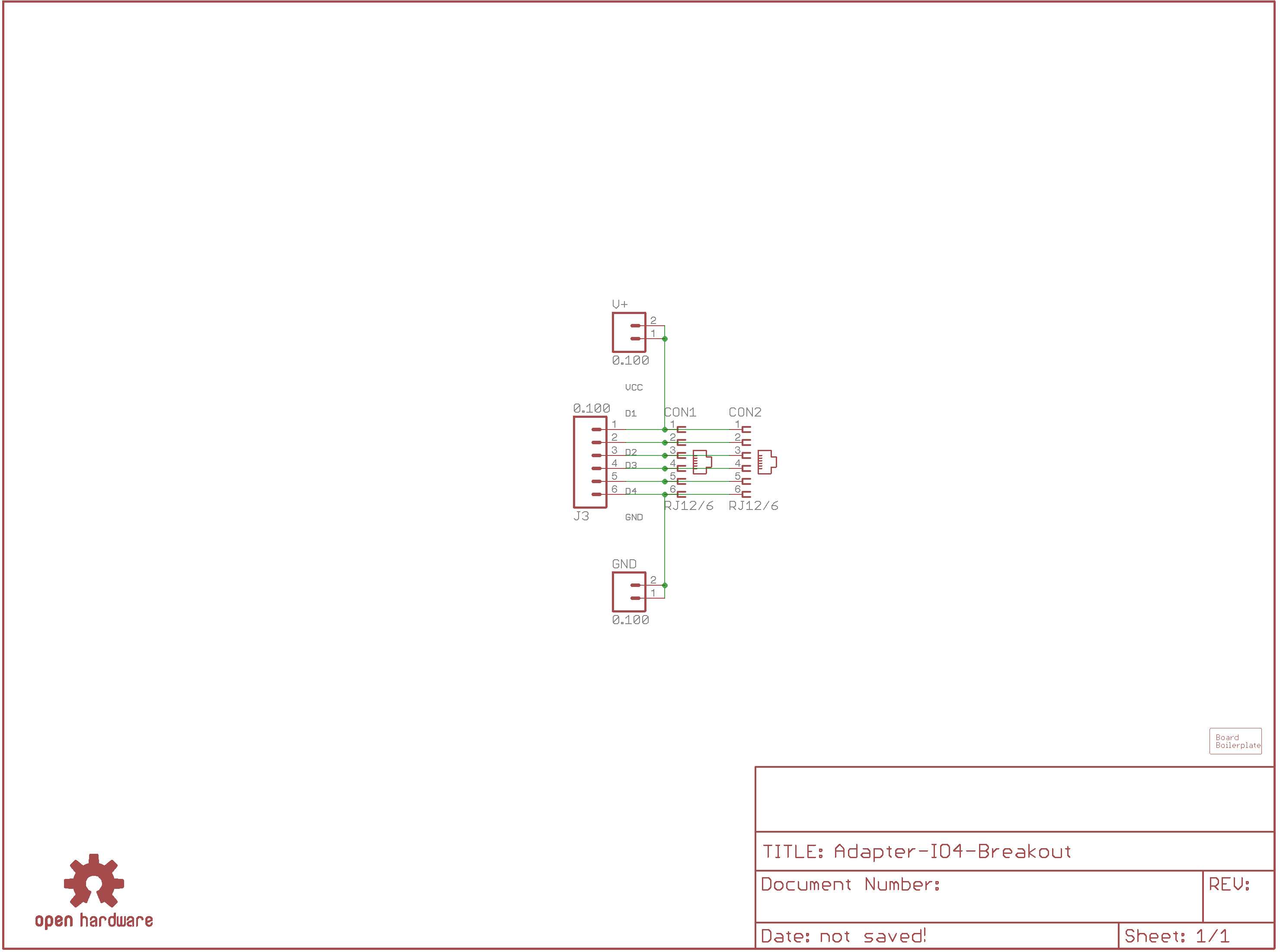

Schematic
Schematic

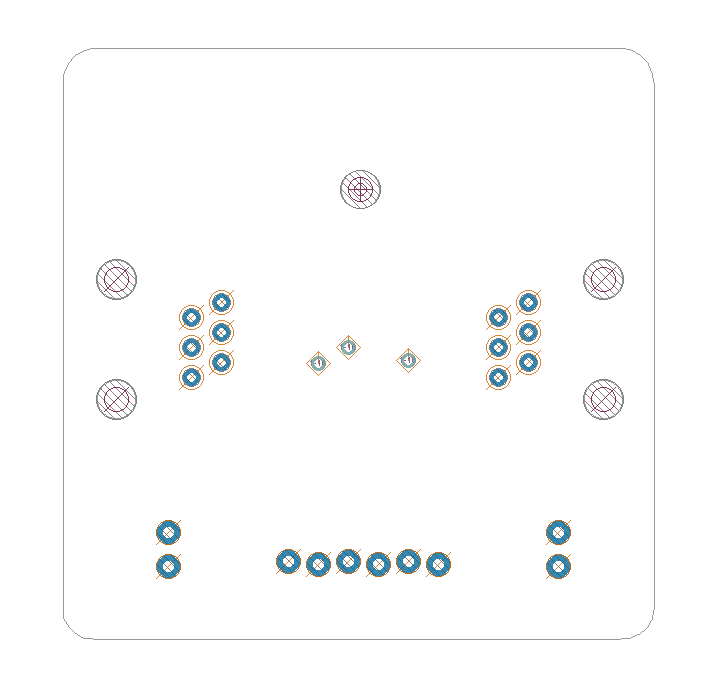

Bot Silk
Bot Silk

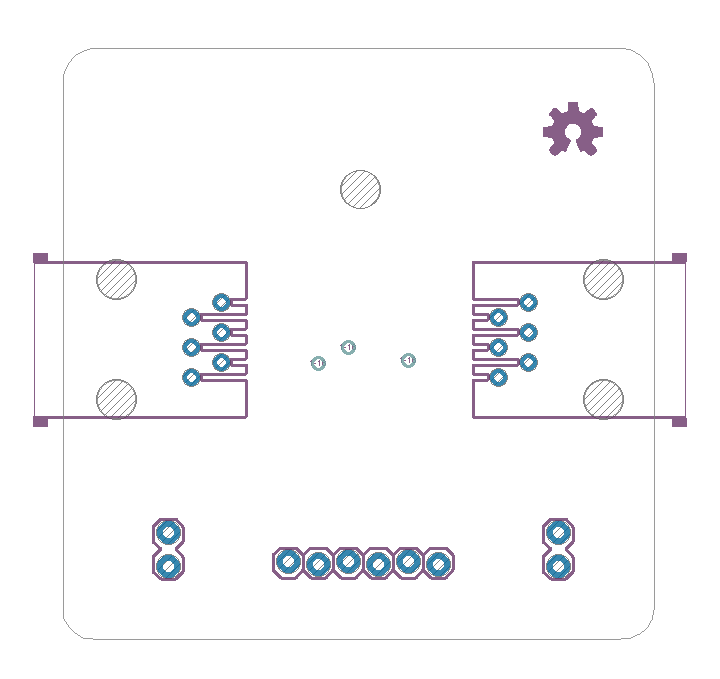

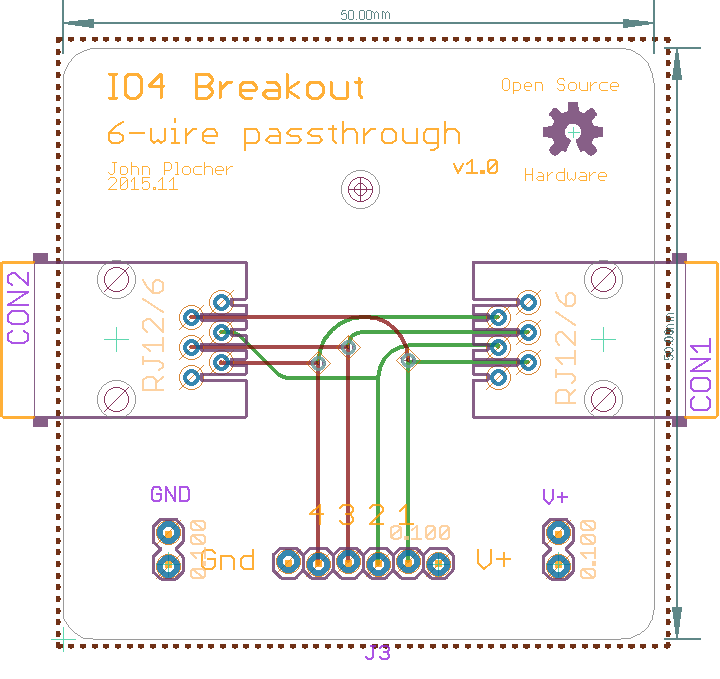

Board
Board
Top Silk
Top Silk

Download Adapter-IO4-Breakout.SMD-parts - Parts List (spreadsheet data)
Download Adapter-IO4-Breakout.gerbers.zip - Gerber Fabrication files
Download Adapter-IO4-Breakout.parts - Parts List (spreadsheet data)



Adapter-IO4-Breakout.bom

Parts Value Package Quantity Library Type/Feeder
GND, V+ 0.100 1X02_LOCK 2x SPCoast PTH
J3 0.100 1X06_LOCK 1x SPCoast PTH
BOARD1 BOARD BOARD-SEEED5X5-NOHOLES 1x SPCoast PTH
U$1 OSHW OSHW-LOGO-M 1x SparkFun PTH
CON1, CON2 RJ12/6 RJ25-PANEL 2x SPCoast PTH

This technical documentation is licensed under the CERN Open Hardware Licence v1.2

Tags: eagle SPCoast Adapter
