I2C-SignalTestJig
Test Jig for simple signal panels
An I2C slave board that drives 6x signal head drivers (effectively 3x IOB-Signal circuits) in a form factor that mimics the panelization spacing of the simple signal boards. This allows bulk testing after fabrication of an entire board in 2 (or 4) operations
- align a board with the pogo pins
- press down on pins
- observe the correct operation of the heads
- mark any defective units
- move panel to next set of contacts & repeat
|

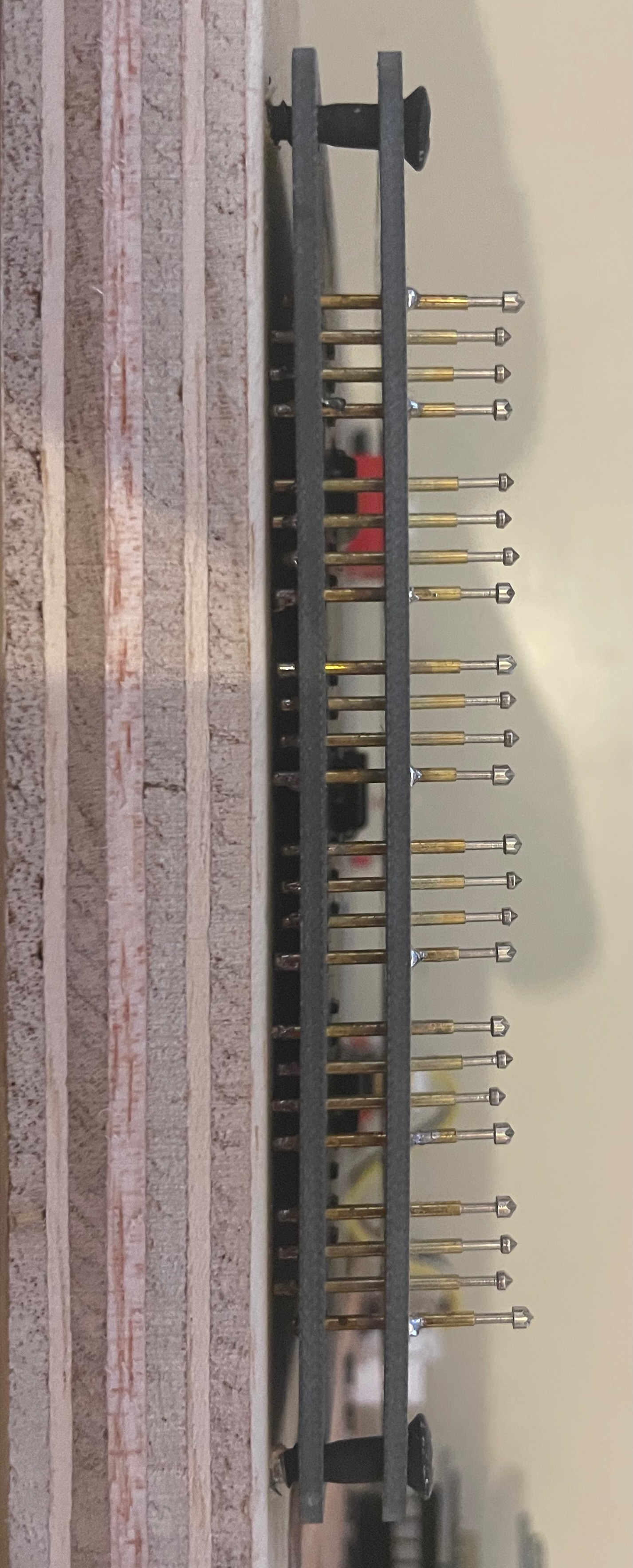

Download PogoPins -

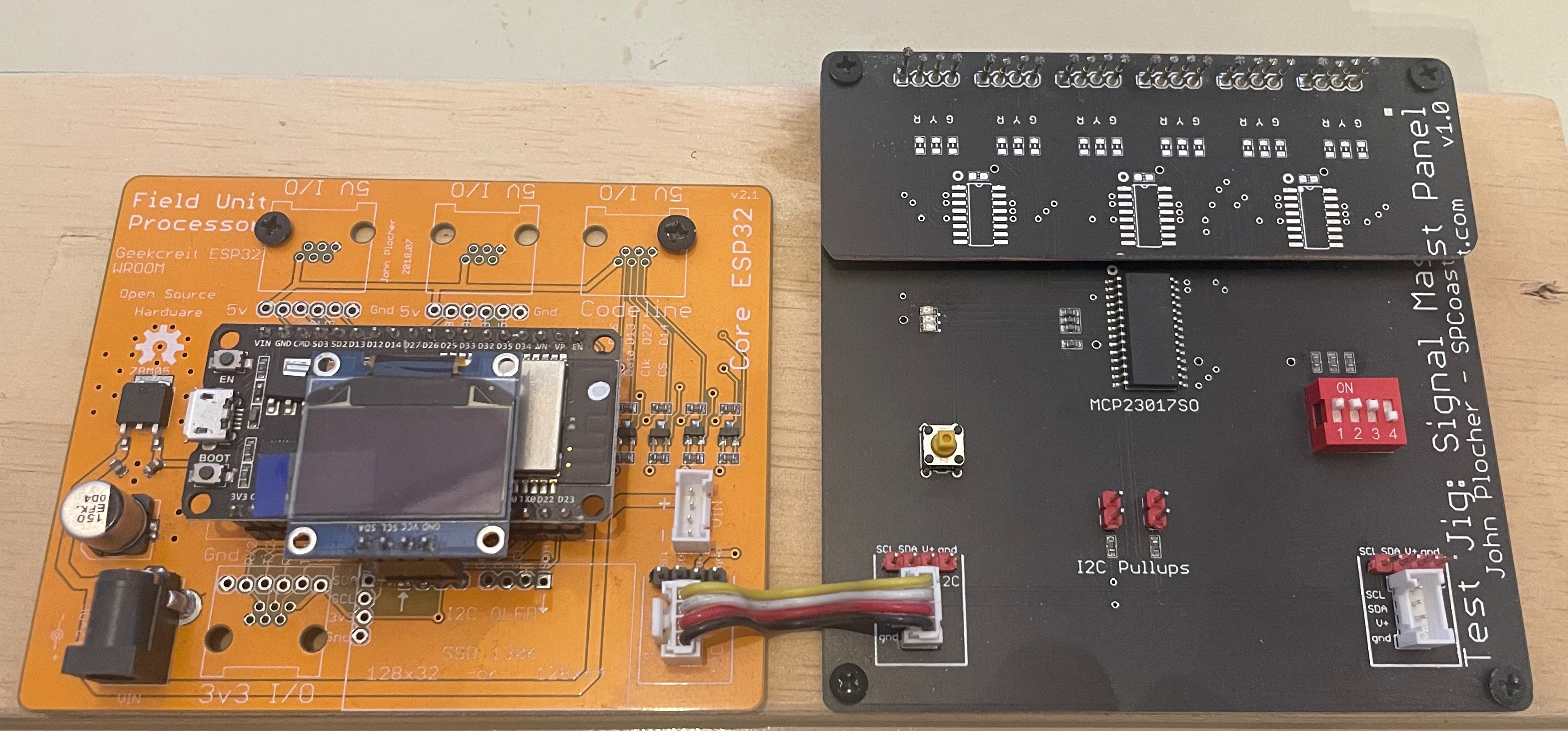

Download TestAssembly -

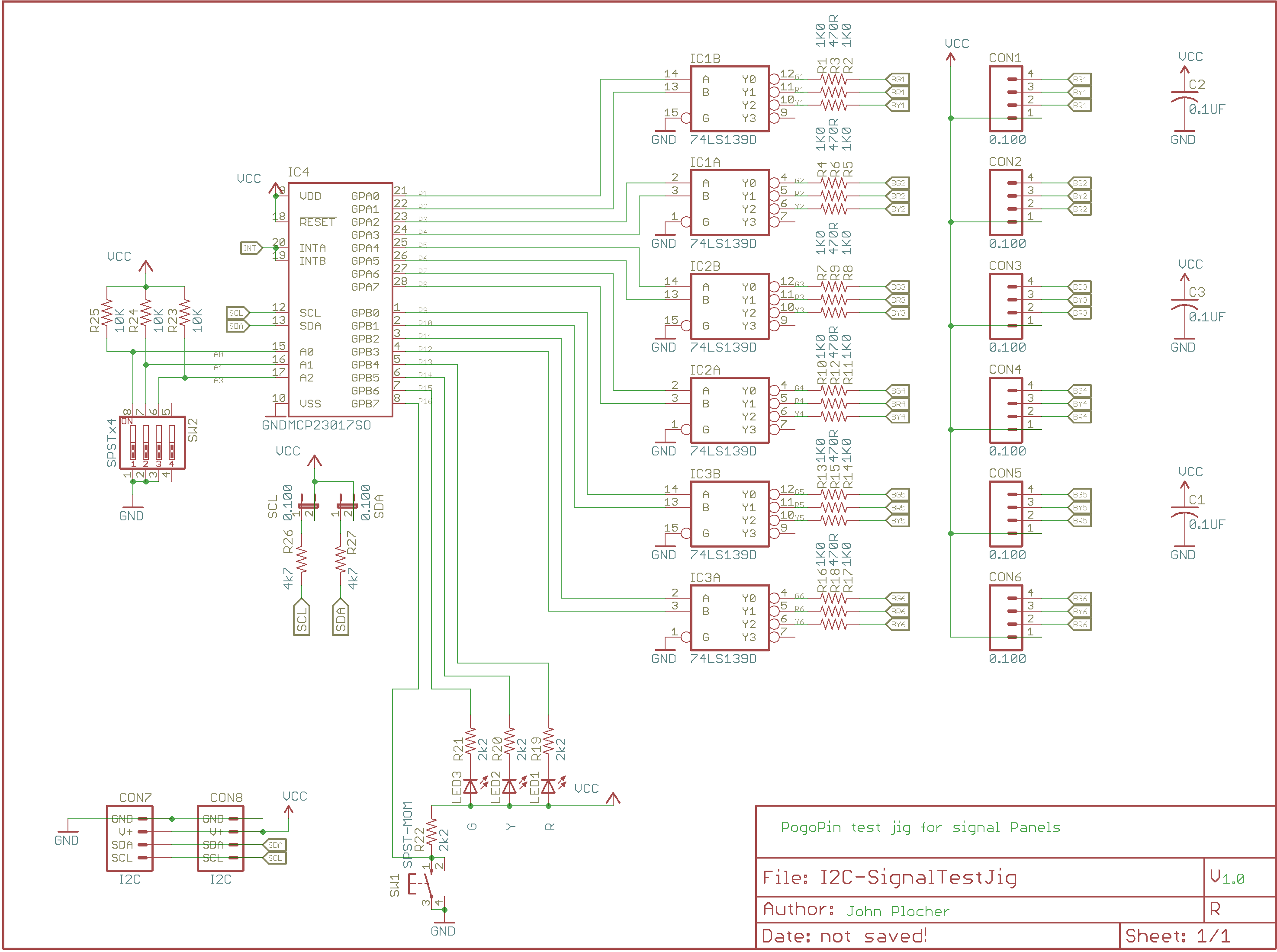

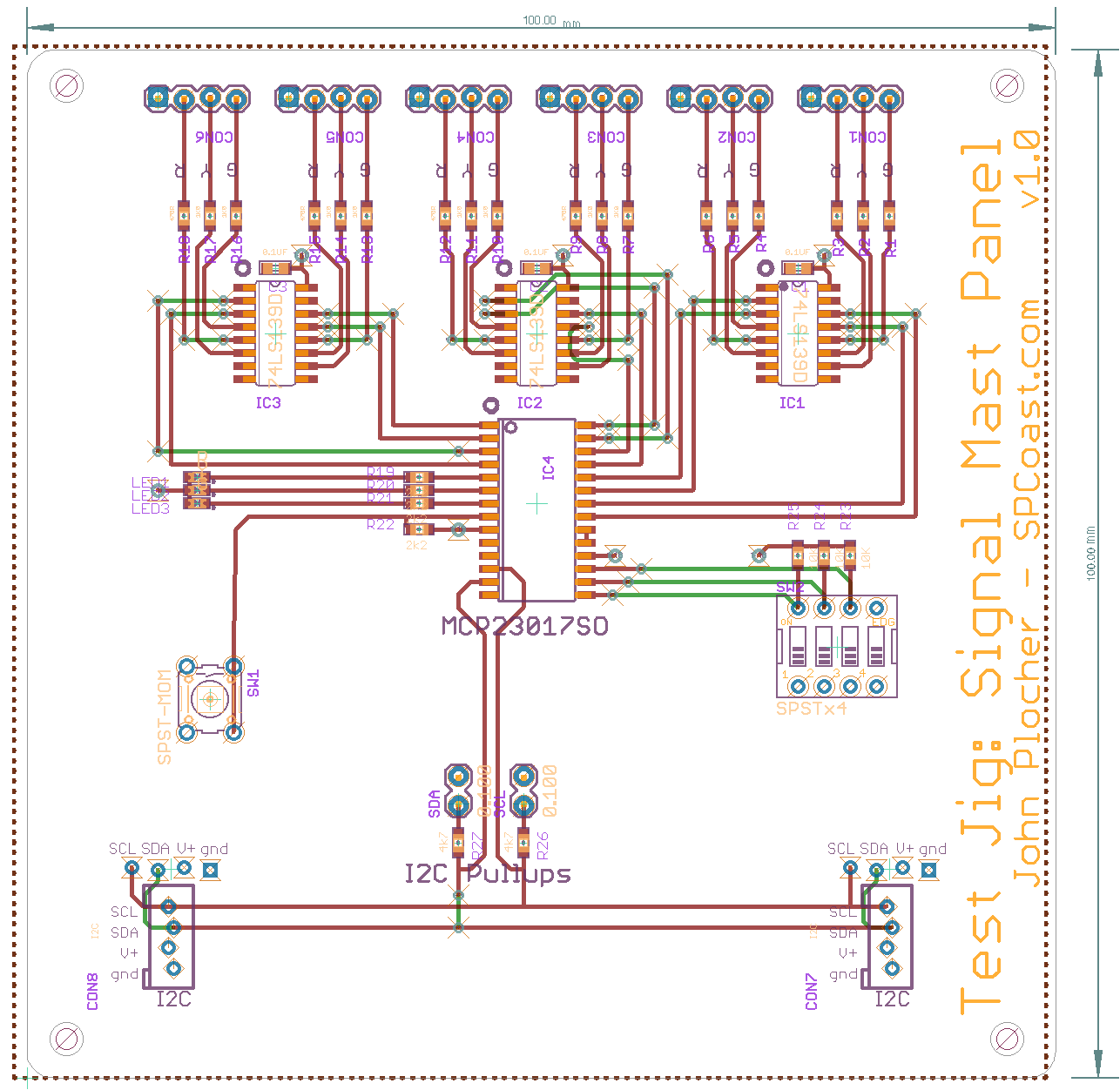

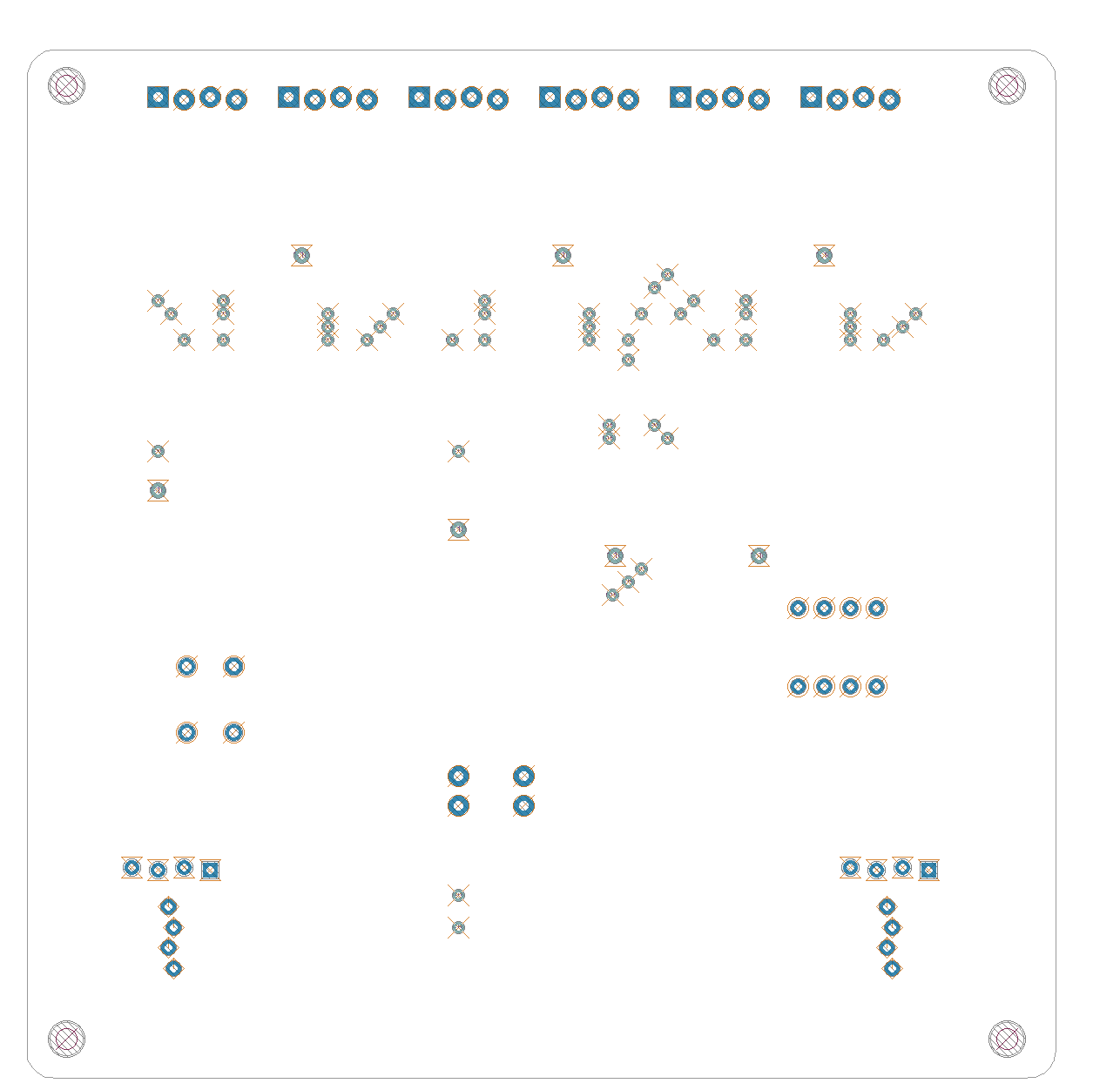

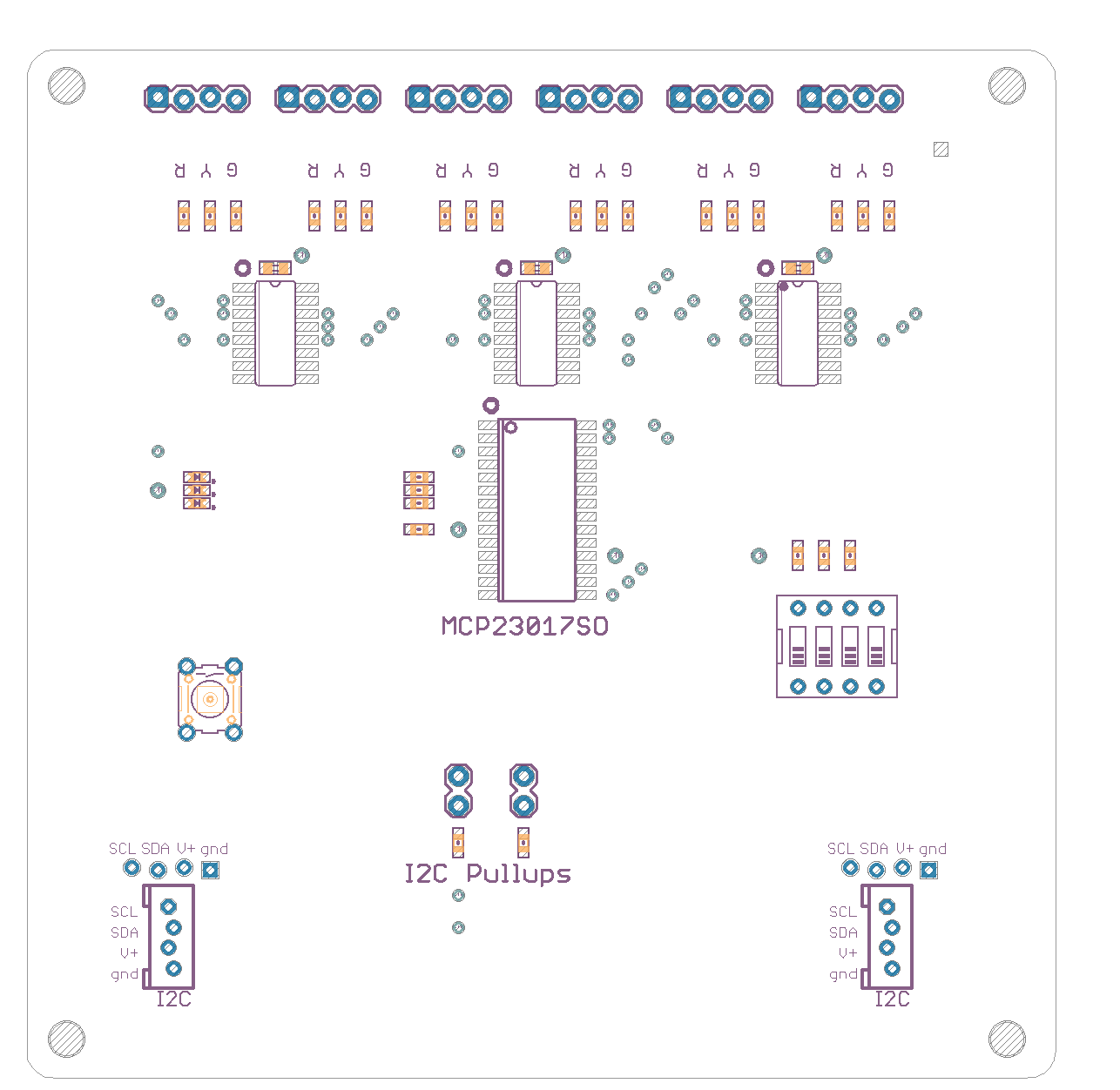

I2C-SignalTestJig Version 1.0
First built: 2020.04
- 1.0 - initial version - pogo pin mount for quick testing of simple signal panels </ul
|
|
|
Download I2C-SignalTestJig.gerbers.zip - Gerber Fabrication files
Download I2C-SignalTestJig.parts - Parts List (spreadsheet data)
I2C-SignalTestJig.bom
| Parts | Value | Package | Quantity | Library | Type/Feeder |
|---|---|---|---|---|---|
| C1, C2, C3 | 0.1UF | 0603-CAP | 3x | SPCoast | 19 |
| SCL, SDA | 0.100 | 1X02_LOCK | 2x | SPCoast | PTH |
| CON1, CON2, CON3, CON4, CON5, CON6 | 0.100 | 1X04_LOCK | 6x | SPCoast | PTH |
| R1, R2, R4, R5, R7, R8, R10, R11, R13, R14, R16, R17 | 1K0 | 0603-RES | 12x | SPCoast | 41 |
| R19, R20, R21, R22 | 2k2 | 0603-RES | 4x | SPCoast | 42 |
| R26, R27 | 4k7 | 0603-RES | 2x | SPCoast | NONE |
| R23, R24, R25 | 10K | 0603-RES | 3x | SPCoast | 46 |
| IC1, IC2, IC3 | 74LS139D | SO16 | 3x | SPCoast | NONE |
| R3, R6, R9, R12, R15, R18 | 470R | 0603-RES | 6x | SPCoast | 40 |
| BOARD1 | BOARD | BOARD-SEEED10X10-NOHOLES | 1x | SPCoast | PTH |
| LED3 | G | 0603-LED | 1x | SPCoast | 3 |
| CON7, CON8 | I2C | I2C-L | 2x | SPCoast | PTH |
| IC4 | MCP23017SO | SO28W | 1x | SPCoast | NONE |
| LED1 | R | 0603-LED | 1x | SPCoast | 1 |
| SW1 | SPST-MOM | 4P-PTH-6.0X6.0X5.0H | 1x | SPCoast | PTH |
| SW2 | SPSTx4 | EDG-04 | 1x | SPCoast | PTH |
| LED2 | Y | 0603-LED | 1x | SPCoast | 2 |
This technical documentation is licensed under the CERN Open Hardware Licence v1.2
